Performance Architecture within ICENI

1. Performance Architecture within ICENI Dr Andrew Stephen McGough Laurie Young, Ali Afzal, Steven Newhouse and John Darlington London e-Science Centre Department of Computing, Imperial College London

2. Outline • Overview of ICENI • Performance Framework • Example • Conclusion

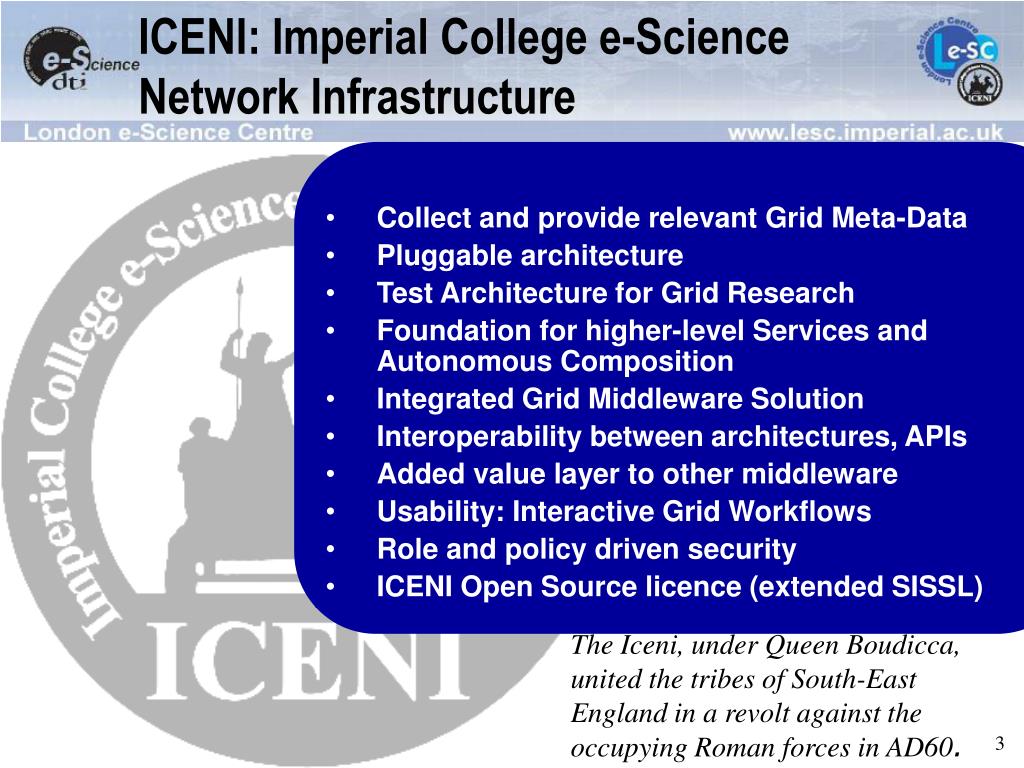

3. ICENI: Imperial College e-Science Network Infrastructure • Collect and provide relevant Grid Meta-Data • Pluggable architecture • Test Architecture for Grid Research • Foundation for higher-level Services and Autonomous Composition • Integrated Grid Middleware Solution • Interoperability between architectures, APIs • Added value layer to other middleware • Usability: Interactive Grid Workflows • Role and policy driven security • ICENI Open Source licence (extended SISSL) The Iceni, under Queen Boudicca, united the tribes of South-East England in a revolt against the occupying Roman forces in AD60.

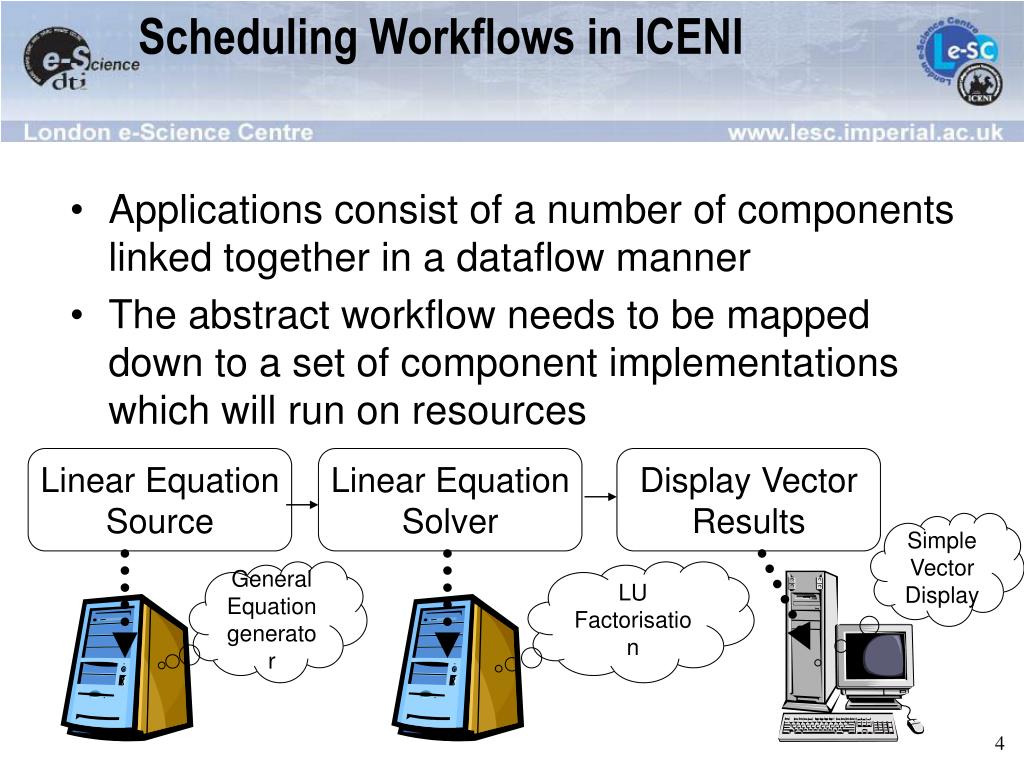

4. Scheduling Workflows in ICENI Simple Vector Display General Equation generator LU Factorisation • Applications consist of a number of components linked together in a dataflow manner • The abstract workflow needs to be mapped down to a set of component implementations which will run on resources Linear Equation Source Linear Equation Solver Display Vector Results

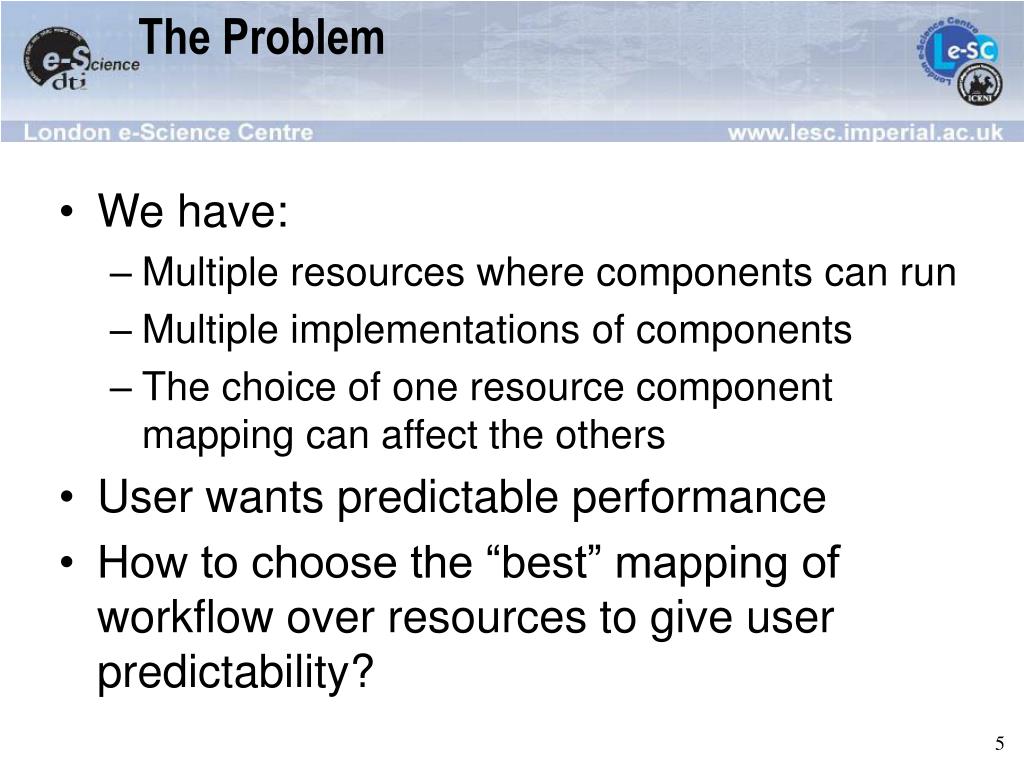

5. The Problem • We have: • Multiple resources where components can run • Multiple implementations of components • The choice of one resource component mapping can affect the others • User wants predictable performance • How to choose the “best” mapping of workflow over resources to give user predictability?

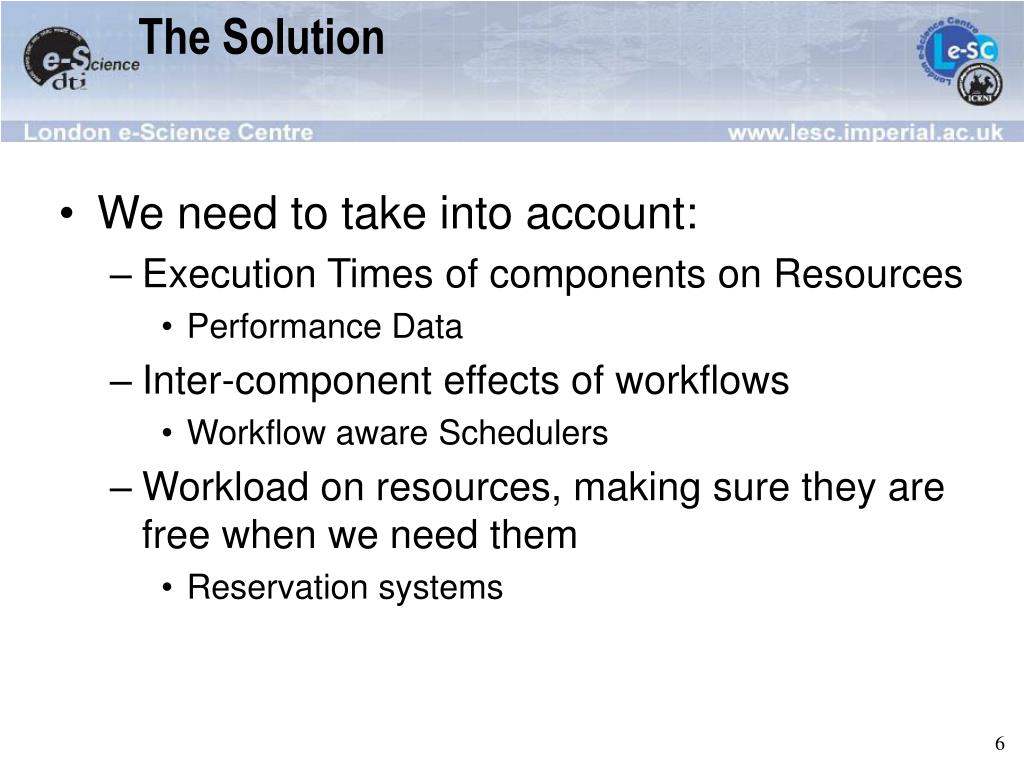

6. The Solution • We need to take into account: • Execution Times of components on Resources • Performance Data • Inter-component effects of workflows • Workflow aware Schedulers • Workload on resources, making sure they are free when we need them • Reservation systems

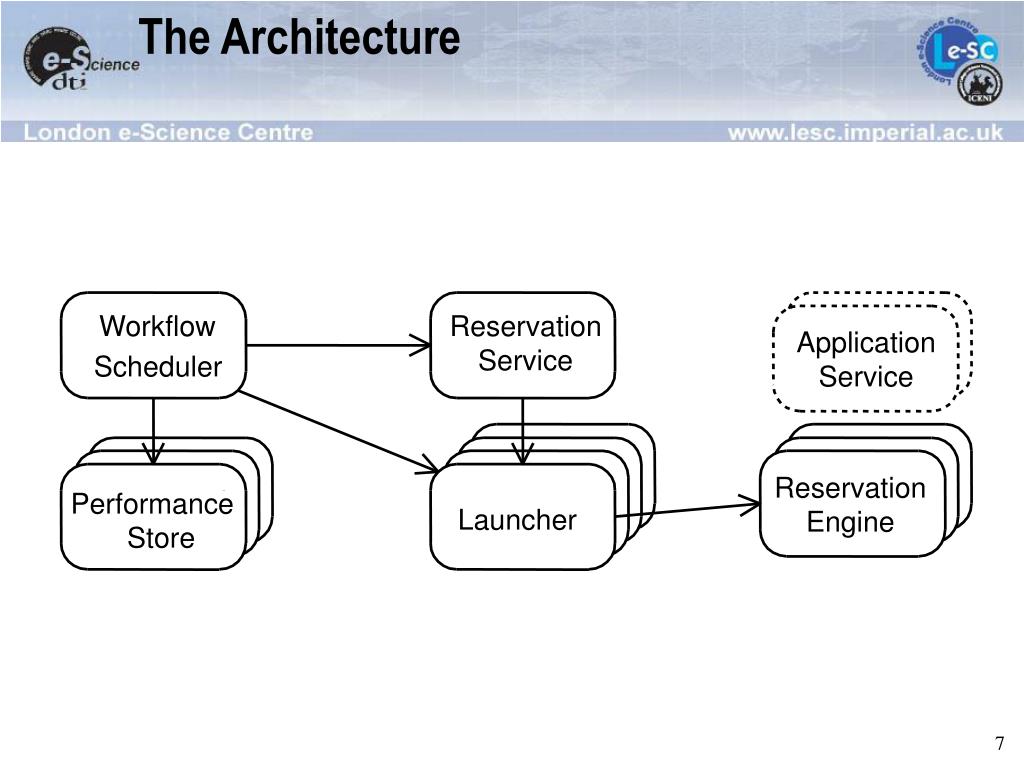

7. The Architecture Reservation Service Reservation Engine Performance Store Workflow Application Service Scheduler Launcher

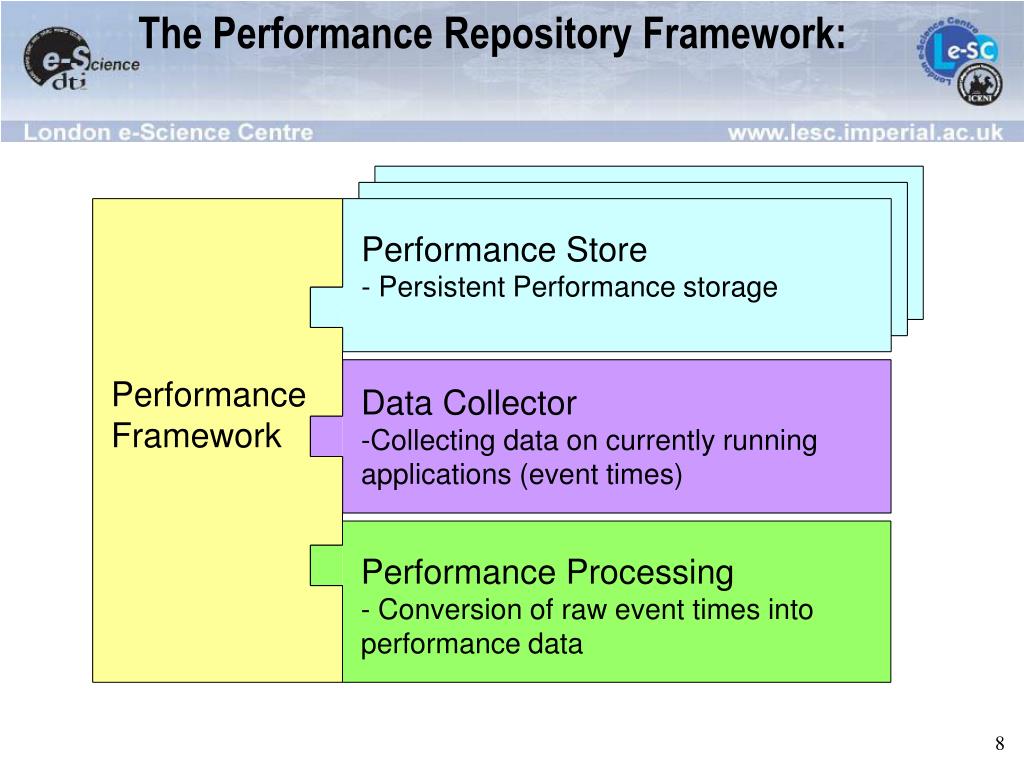

8. The Performance Repository Framework: Performance Store - Persistent Performance storage Performance Store - Persistent Performance storage Performance Store - Persistent Performance storage Performance Framework • Data Collector • Collecting data on currently running • applications (event times) • Performance Processing • Conversion of raw event times into • performance data

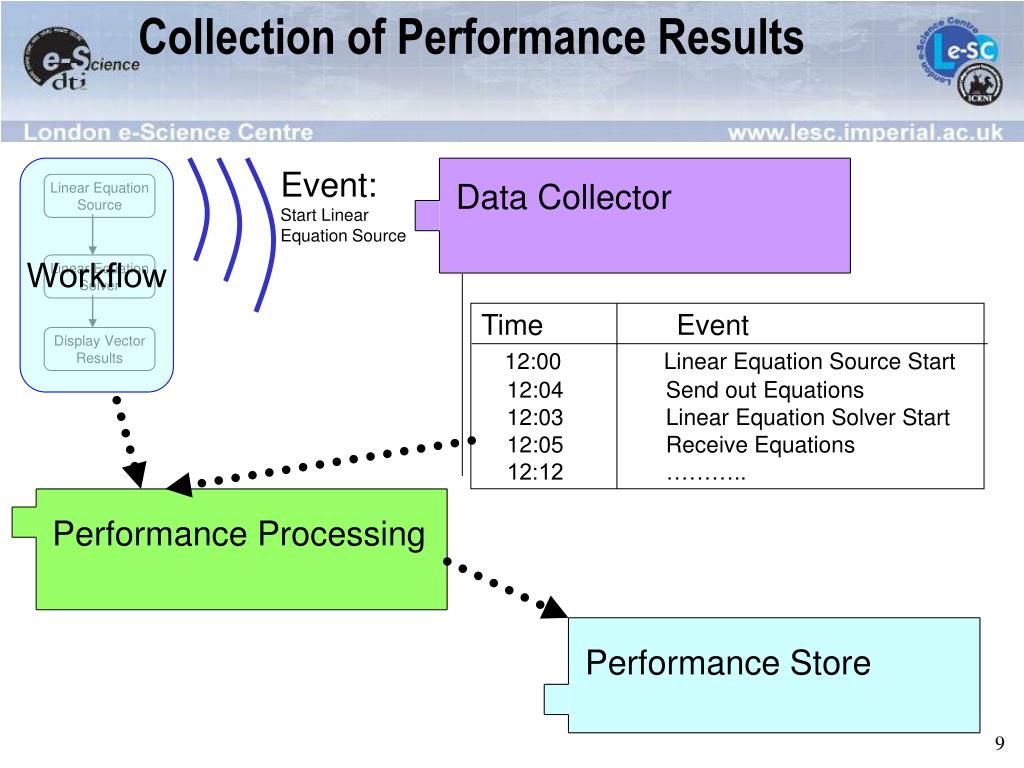

9. Collection of Performance Results Workflow Event: Start Linear Equation Source Performance Store Data Collector Performance Processing Linear Equation Source Linear Equation Solver Time Event 12:00 Linear Equation Source Start 12:04 Send out Equations 12:03 Linear Equation Solver Start 12:05 Receive Equations 12:12 ……….. Display Vector Results

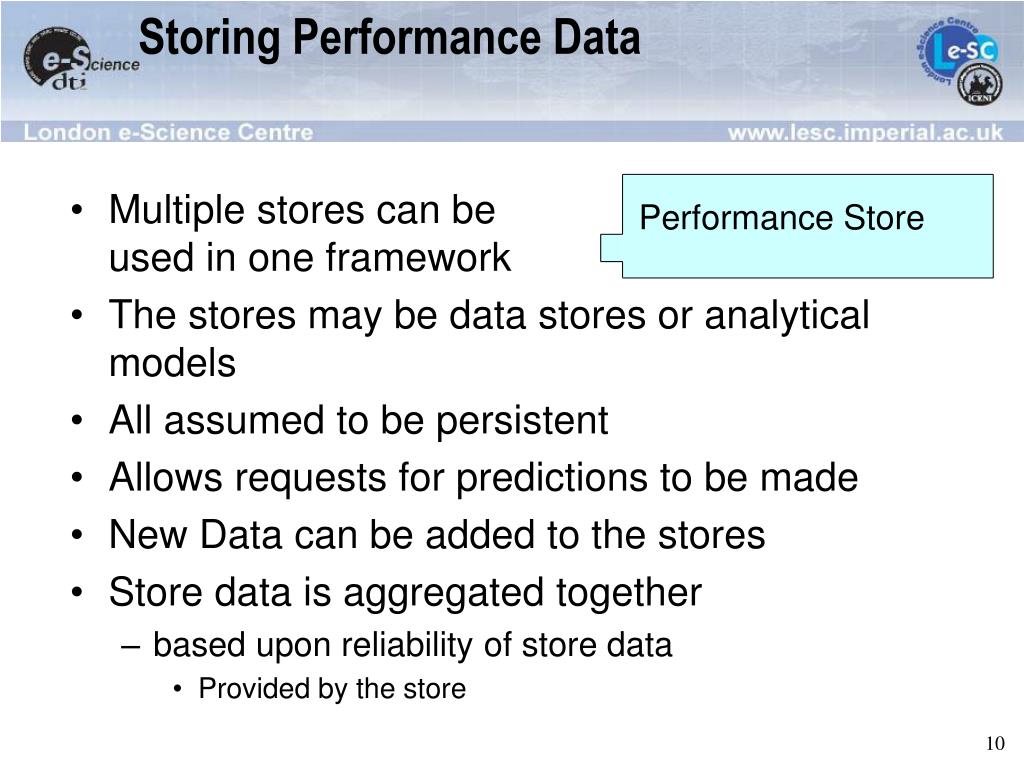

10. Storing Performance Data Performance Store • Multiple stores can be used in one framework • The stores may be data stores or analytical models • All assumed to be persistent • Allows requests for predictions to be made • New Data can be added to the stores • Store data is aggregated together • based upon reliability of store data • Provided by the store

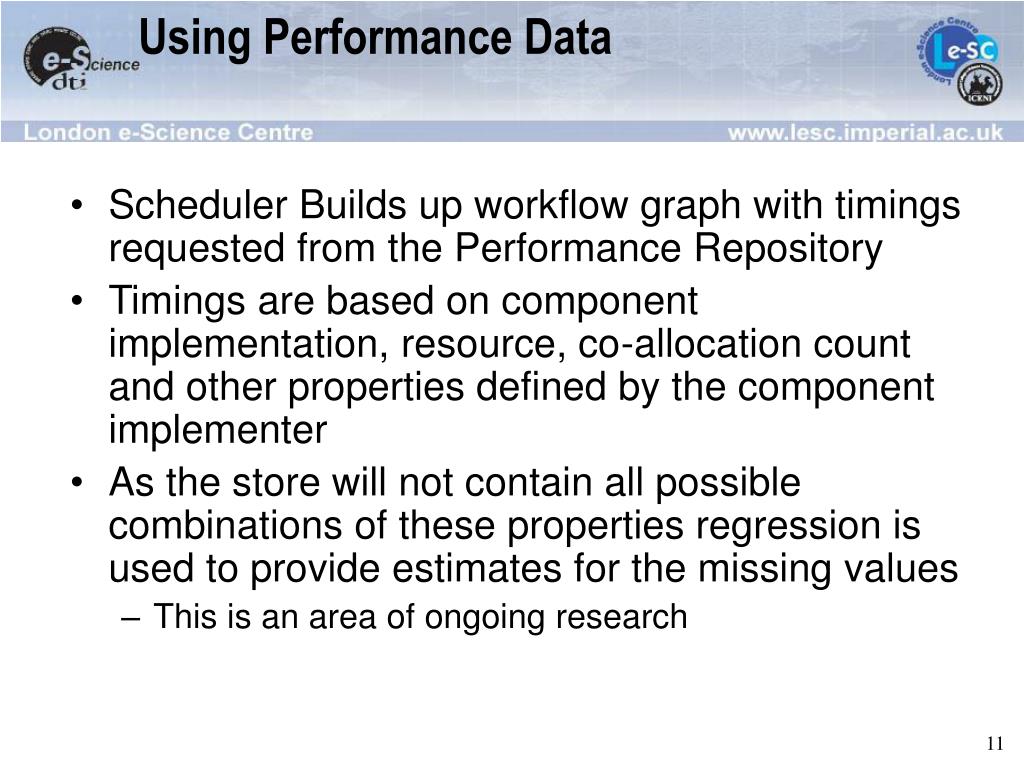

11. Using Performance Data • Scheduler Builds up workflow graph with timings requested from the Performance Repository • Timings are based on component implementation, resource, co-allocation count and other properties defined by the component implementer • As the store will not contain all possible combinations of these properties regression is used to provide estimates for the missing values • This is an area of ongoing research

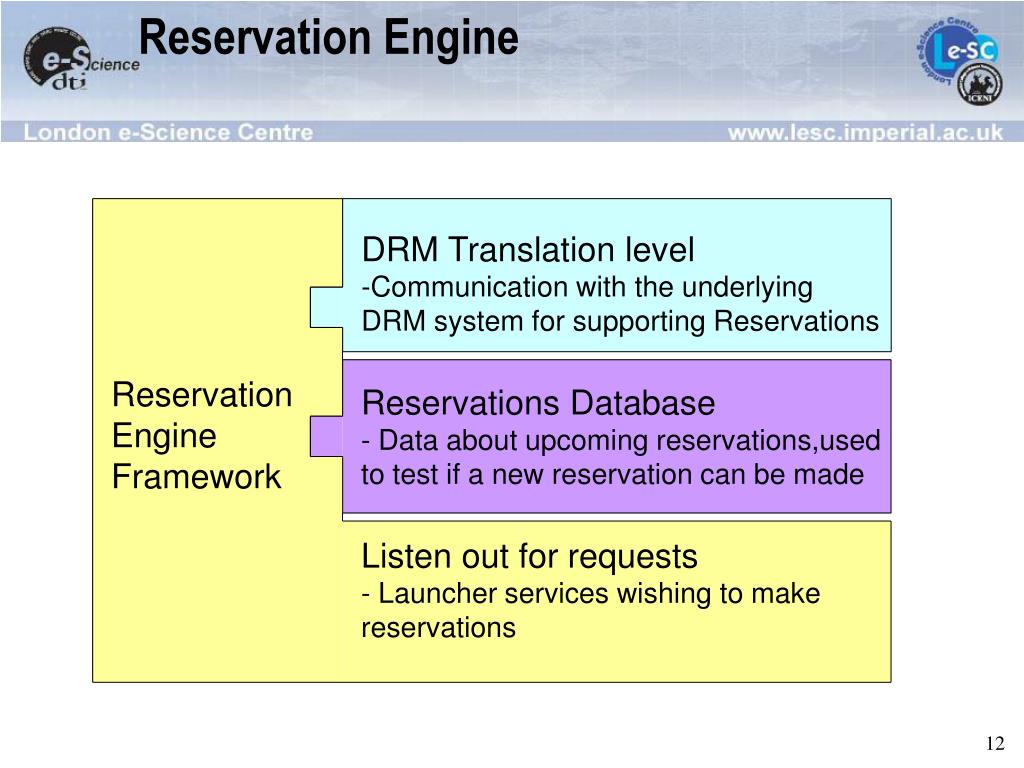

12. Reservation Engine • DRM Translation level • Communication with the underlying DRM system for supporting Reservations • Reservations Database • Data about upcoming reservations,usedto test if a new reservation can be made Reservation Engine Framework • Listen out for requests • Launcher services wishing to makereservations

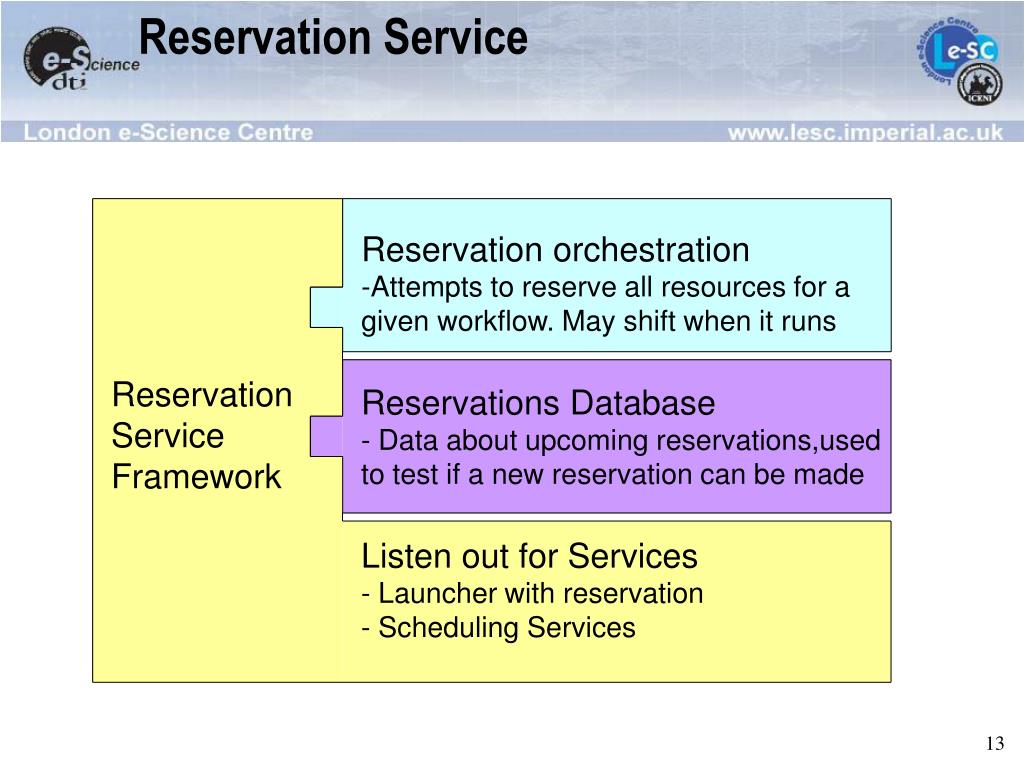

13. Reservation Service • Reservation orchestration • Attempts to reserve all resources for a given workflow. May shift when it runs • Reservations Database • Data about upcoming reservations,usedto test if a new reservation can be made Reservation Service Framework • Listen out for Services • Launcher with reservation • Scheduling Services

14. Reservations Workflow Reservation Service Scheduler HOLD HOLD HOLD Reserve Reserve Conflict Reserve (workflow) Linear Equation Source Linear Equation Solver Display Vector Results WS-Agreement Request interval time → time → Reservations not possible on Users Desktop

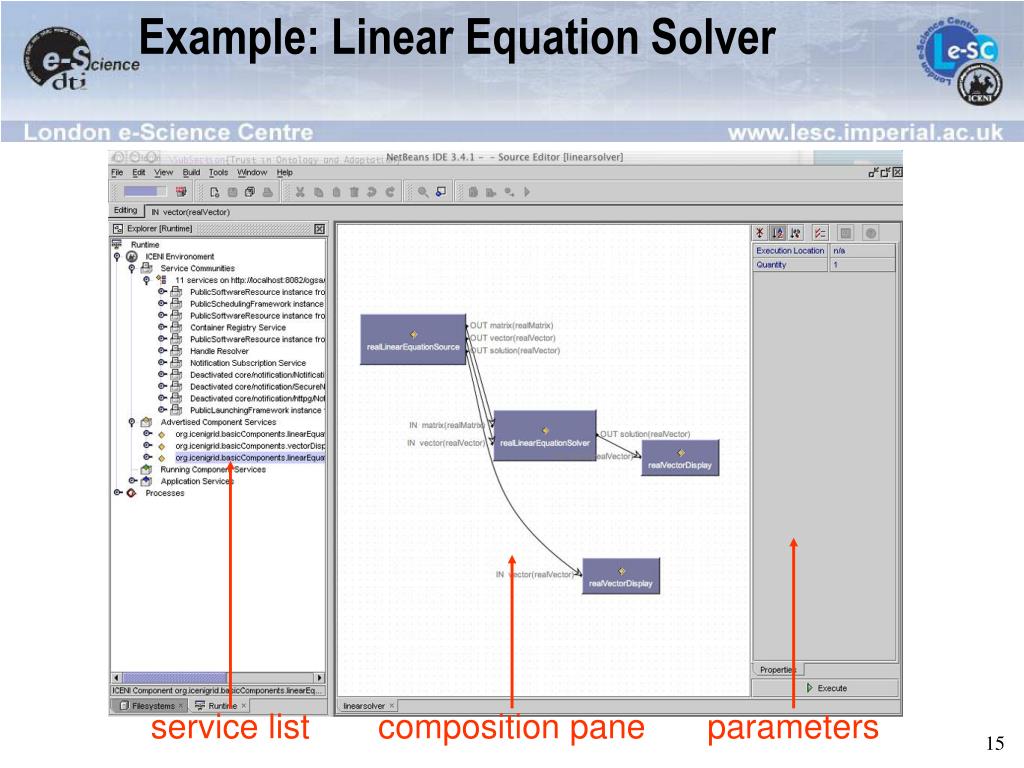

15. Example: Linear Equation Solver service list composition pane parameters

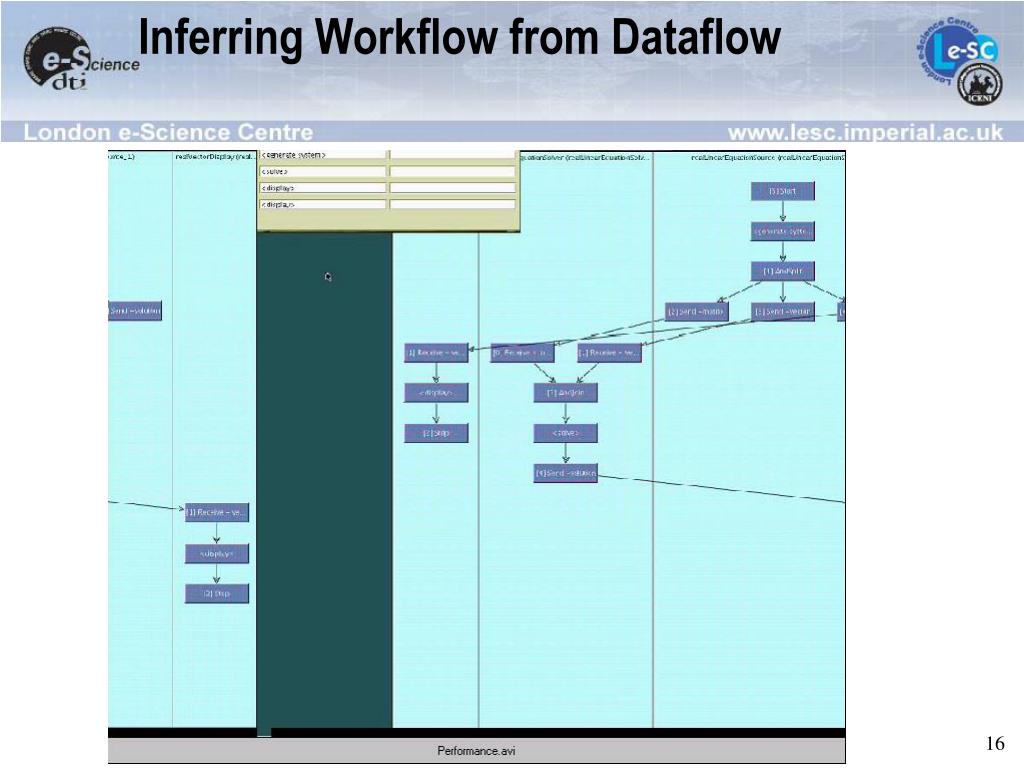

16. Inferring Workflow from Dataflow

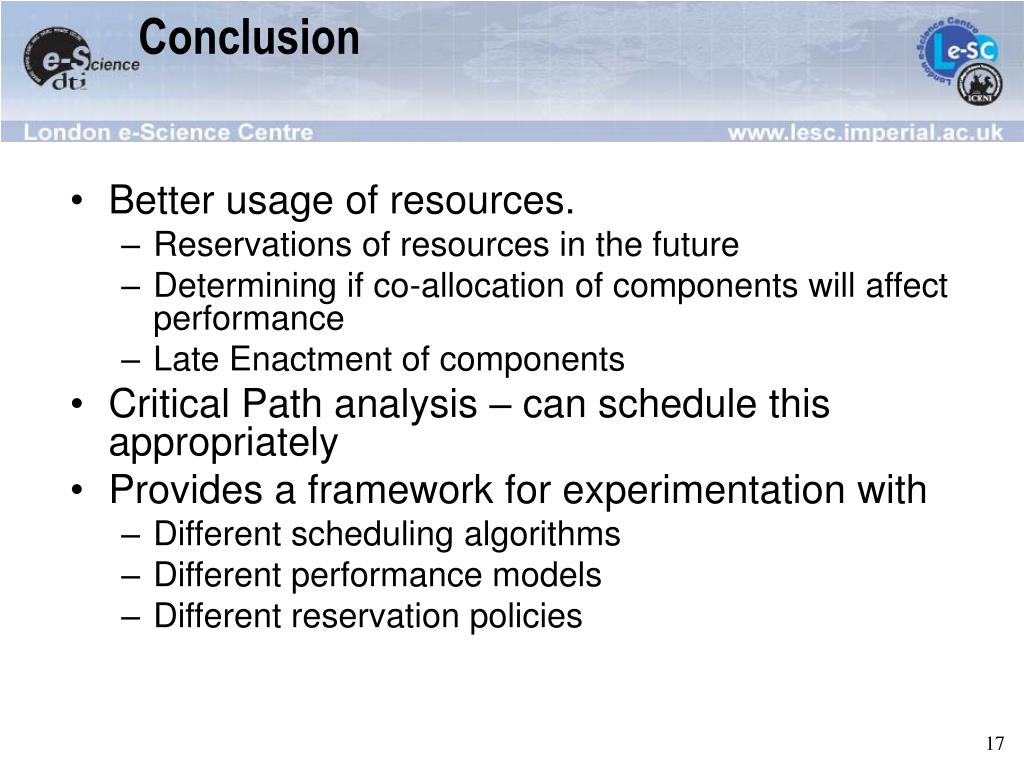

17. Conclusion • Better usage of resources. • Reservations of resources in the future • Determining if co-allocation of components will affect performance • Late Enactment of components • Critical Path analysis – can schedule this appropriately • Provides a framework for experimentation with • Different scheduling algorithms • Different performance models • Different reservation policies

18. Performance Trinity Performance Models Grid Scheduling Reservation Fabric

19. The Architecture: Showing the Trinity Reservation Service Scheduler Application Service Reservation Engine Performance Store Launcher

20. Acknowledgements • Director: Professor John Darlington • Research Staff: • Nathalie Furmento, Stephen McGough, William Lee • Jeremy Cohen, Marko Krznaric, Murtaza Gulamali • Asif Saleem, Laurie Young, Jeffrey Hau • David McBride, Ali Afzal • Support Staff: • Oliver Jevons, Sue Brookes, Glynn Cunin, Keith Sephton • Alumni: • Steven Newhouse, Yong Xie, Gary Kong • James Stanton, Anthony Mayer, Angela O’Brien • Contact: • http://www.lesc.ic.ac.uk/  e-mail: lesc@ic.ac.uk
