  1. ZIP 4x5 The world’s most functional telephone

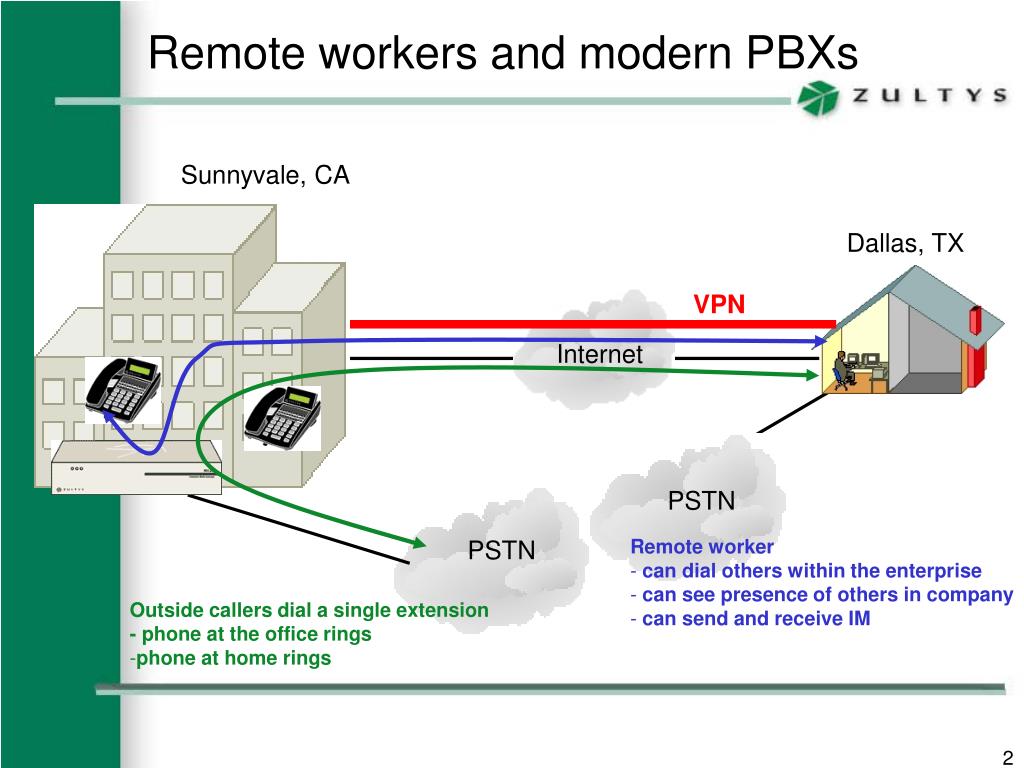

  2. Remote workers and modern PBXs Sunnyvale, CA Dallas, TX VPN Internet PSTN PSTN • Remote worker • can dial others within the enterprise • can see presence of others in company • can send and receive IM • Outside callers dial a single extension • - phone at the office rings • phone at home rings

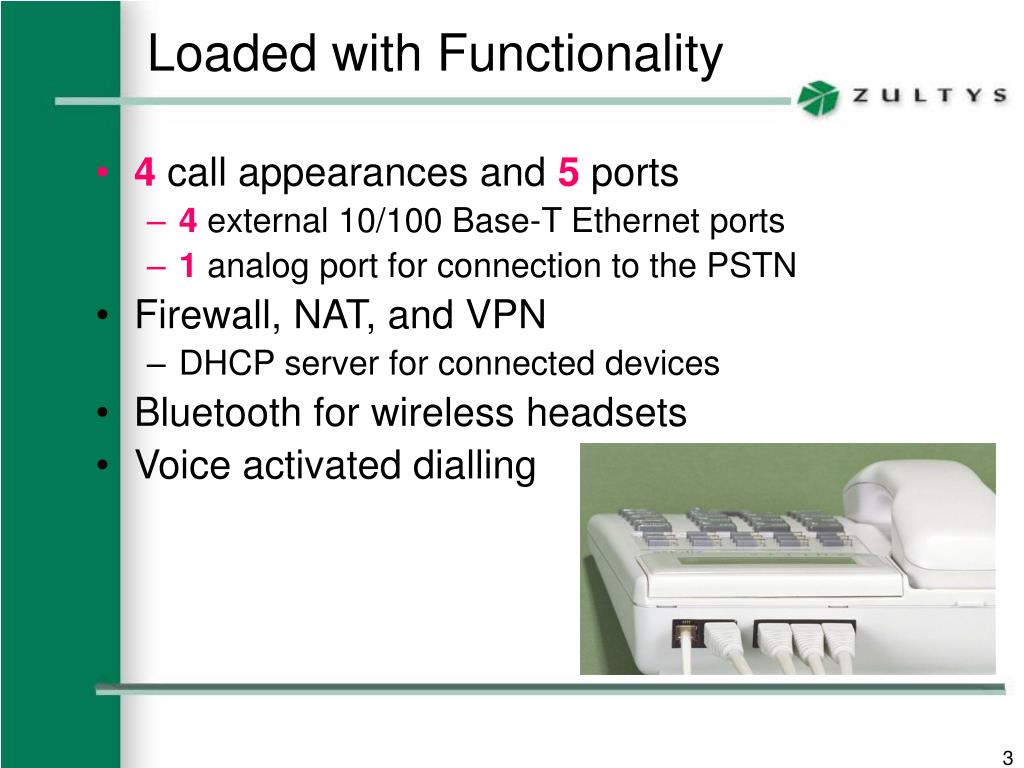

  3. Loaded with Functionality • 4 call appearances and 5 ports • 4 external 10/100 Base-T Ethernet ports • 1 analog port for connection to the PSTN • Firewall, NAT, and VPN • DHCP server for connected devices • Bluetooth for wireless headsets • Voice activated dialling

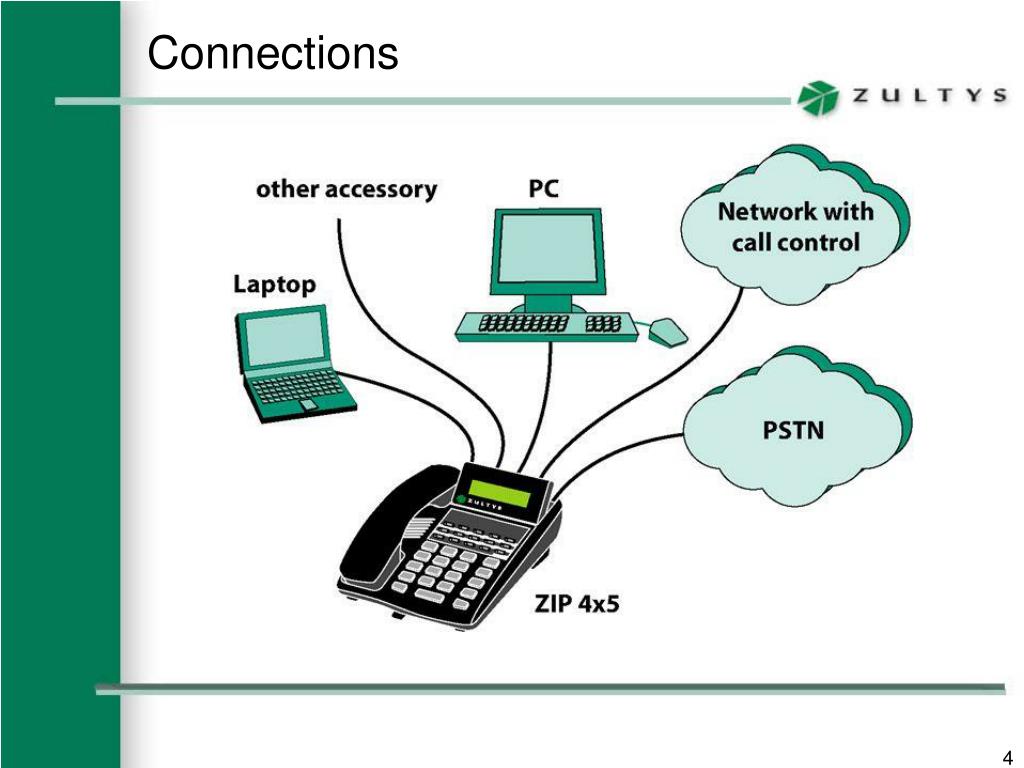

  4. Connections

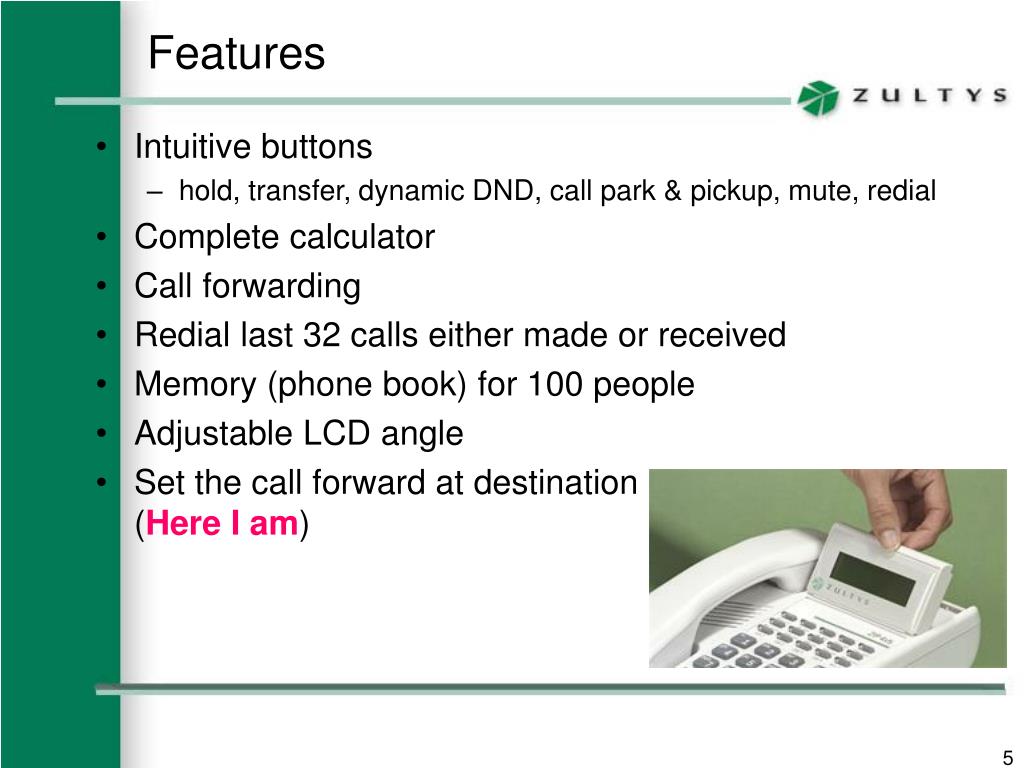

  5. Features • Intuitive buttons • hold, transfer, dynamic DND, call park & pickup, mute, redial • Complete calculator • Call forwarding • Redial last 32 calls either made or received • Memory (phone book) for 100 people • Adjustable LCD angle • Set the call forward at destination(Here I am)

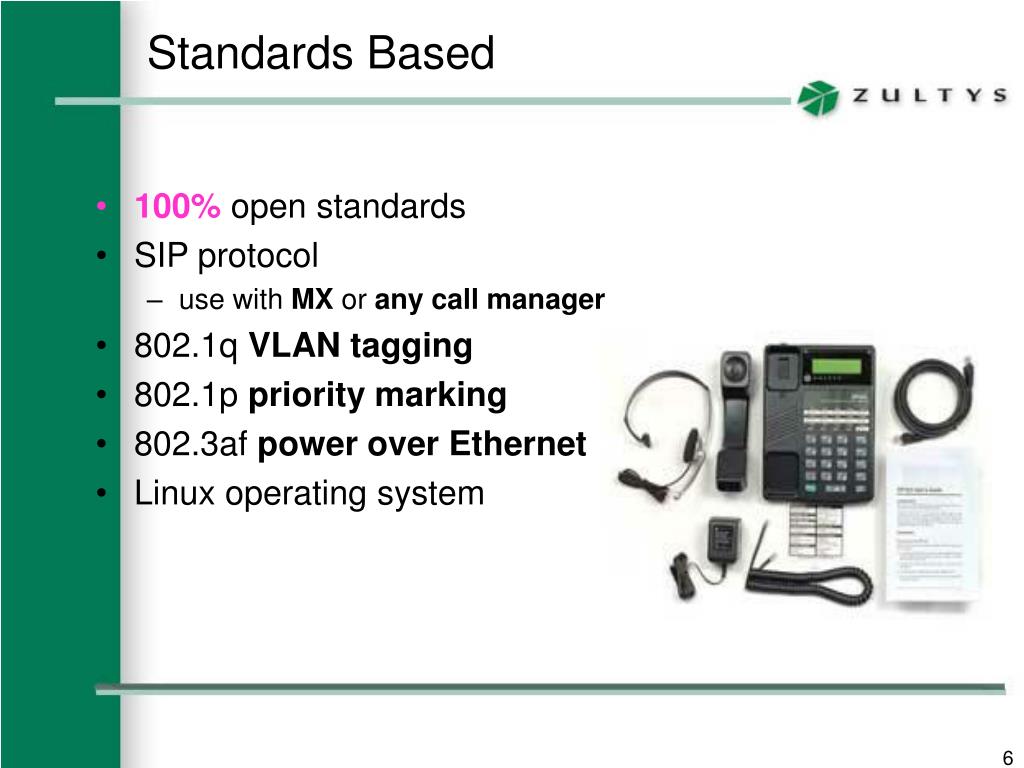

  6. Standards Based • 100% open standards • SIP protocol • use with MX or any call manager • 802.1q VLAN tagging • 802.1p priority marking • 802.3af power over Ethernet • Linux operating system

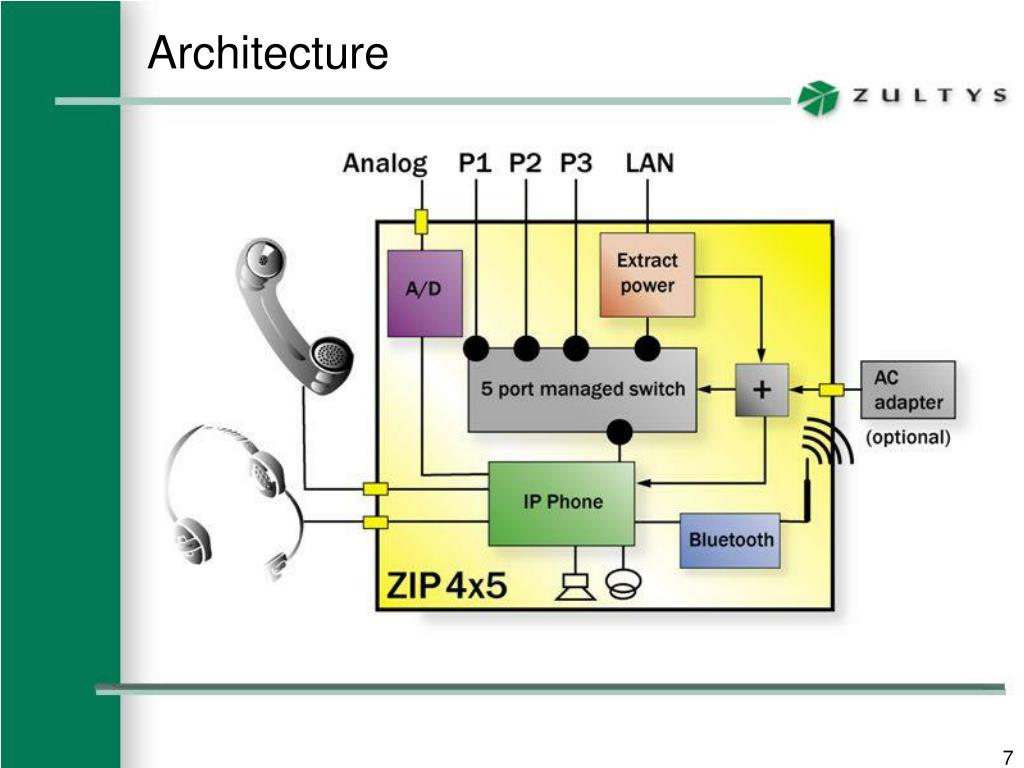

  7. Architecture

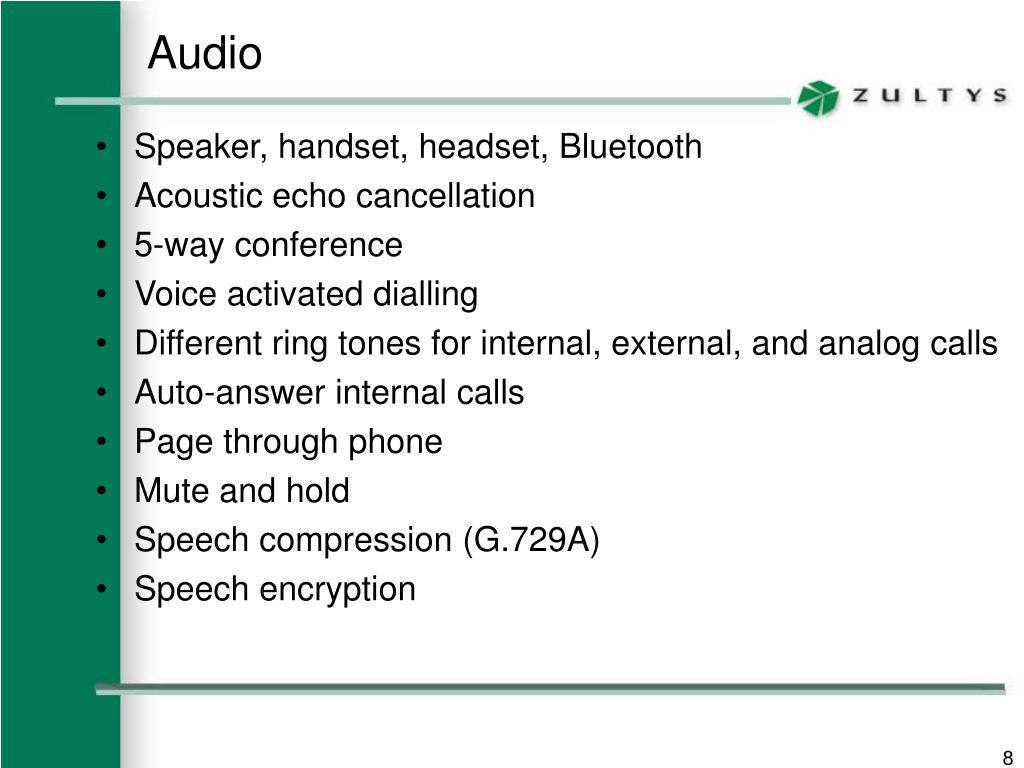

  8. Audio • Speaker, handset, headset, Bluetooth • Acoustic echo cancellation • 5-way conference • Voice activated dialling • Different ring tones for internal, external, and analog calls • Auto-answer internal calls • Page through phone • Mute and hold • Speech compression (G.729A) • Speech encryption

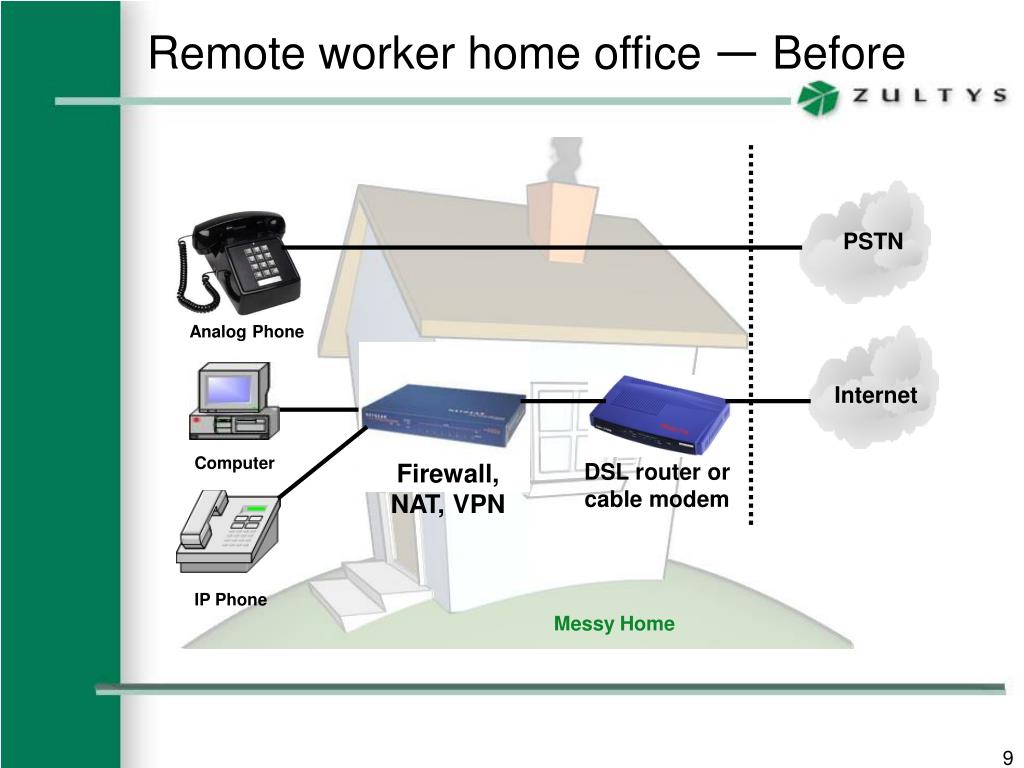

  9. Remote worker home office — Before PSTN Analog Phone Internet Computer Firewall, NAT, VPN DSL router or cable modem IP Phone Messy Home

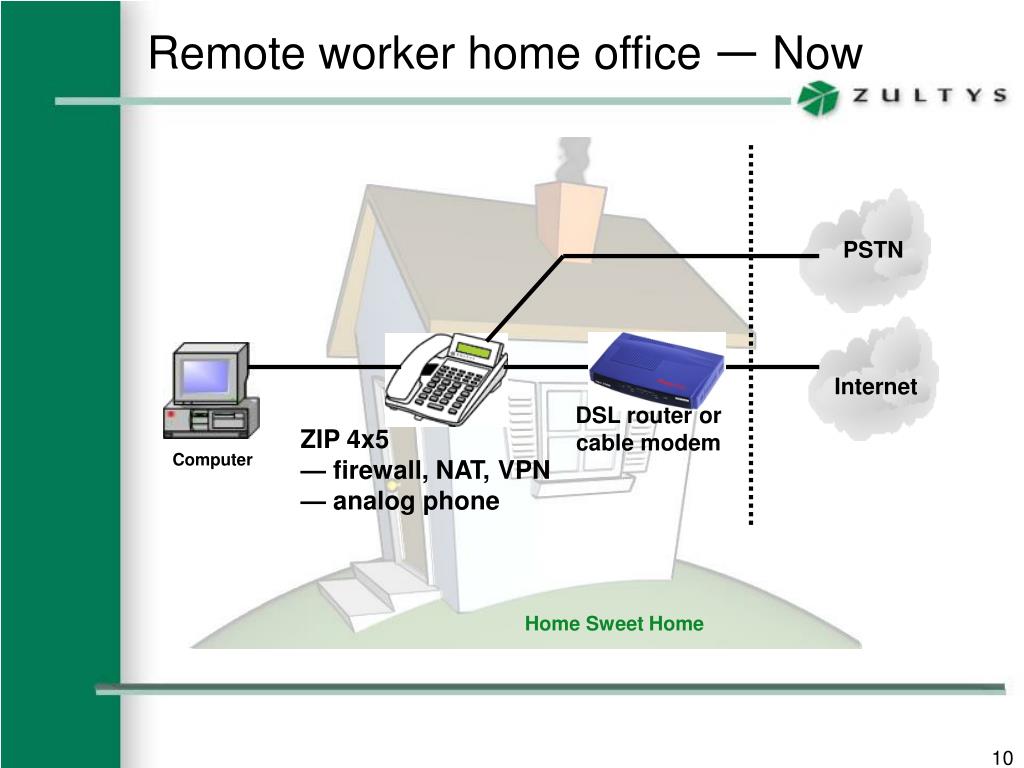

  10. Remote worker home office — Now PSTN Internet DSL router or cable modem ZIP 4x5 — firewall, NAT, VPN — analog phone Computer Home Sweet Home

  11. AnalogInterface • Allows local number to be published • important when worker is remote from office • One call appearance can be dedicated • Can transfer call on analog to Ethernet • Can conference caller on analog to Ethernet • Remote worker chooses to make local calls • or all PSTN calls go through the office

  12. VPN and non-VPN traffic

  13. Emergency • Configure emergency numbers in ZIP 4x5 • When dialled • ZIP 4x5 directs call over analog interface • Emergency services get correct information • come to proper location

  14. Bluetooth • Use any standard Bluetooth headset • or order one with your ZIP 4x5 • Excellent for people spending much time on the phone • Easy to use • enable Bluetooth on the ZIP 4x5 • pair the phone and the headset • use Bluetooth headset • to control calls • carry on conversation • up to 10 meters (30 ft.) from ZIP 4x5

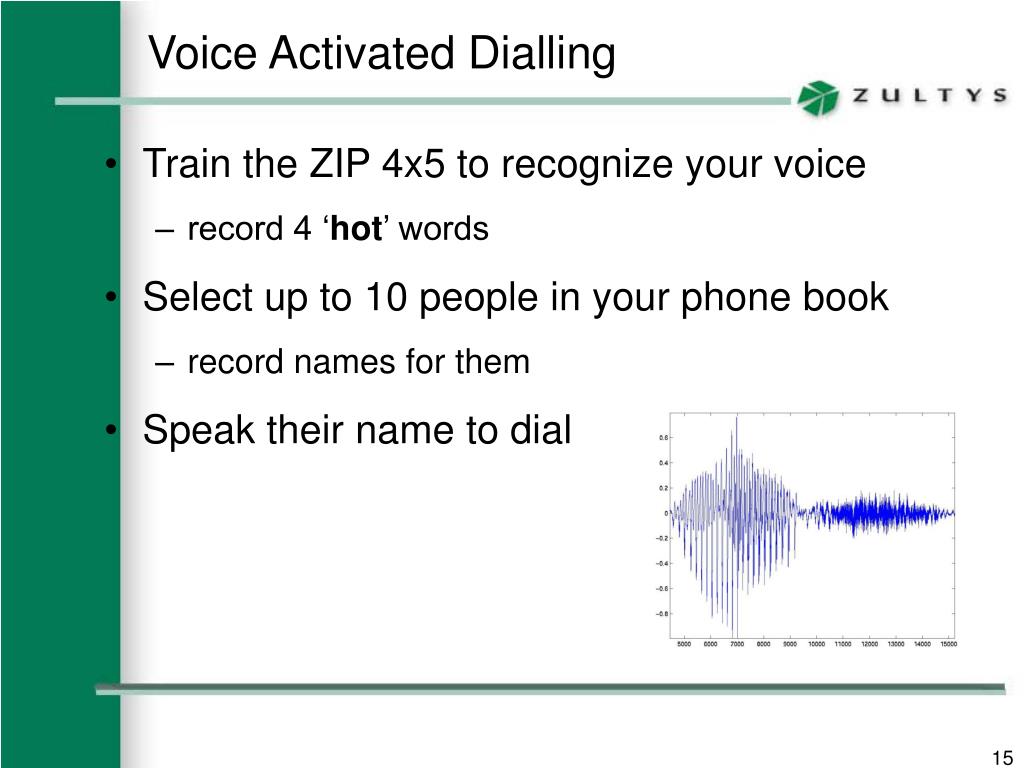

  15. Voice Activated Dialling • Train the ZIP 4x5 to recognize your voice • record 4 ‘hot’ words • Select up to 10 people in your phone book • record names for them • Speak their name to dial

  16. Encryption • Secure conversations • secure conversations end to end • secure retrieval of voice mail • 128 bit AES encryption • increases bandwidth requirement by 2% • Negligible time to encrypt or decrypt • adds 100 µs to packet delay • Compatible with any standards based device

  17. Administration • TFTP file • created by MX250 • download configuration in office • give to remote worker • remote configuration on software changes • Browser interface • for local changes • Menu interface • ideal for user preferences

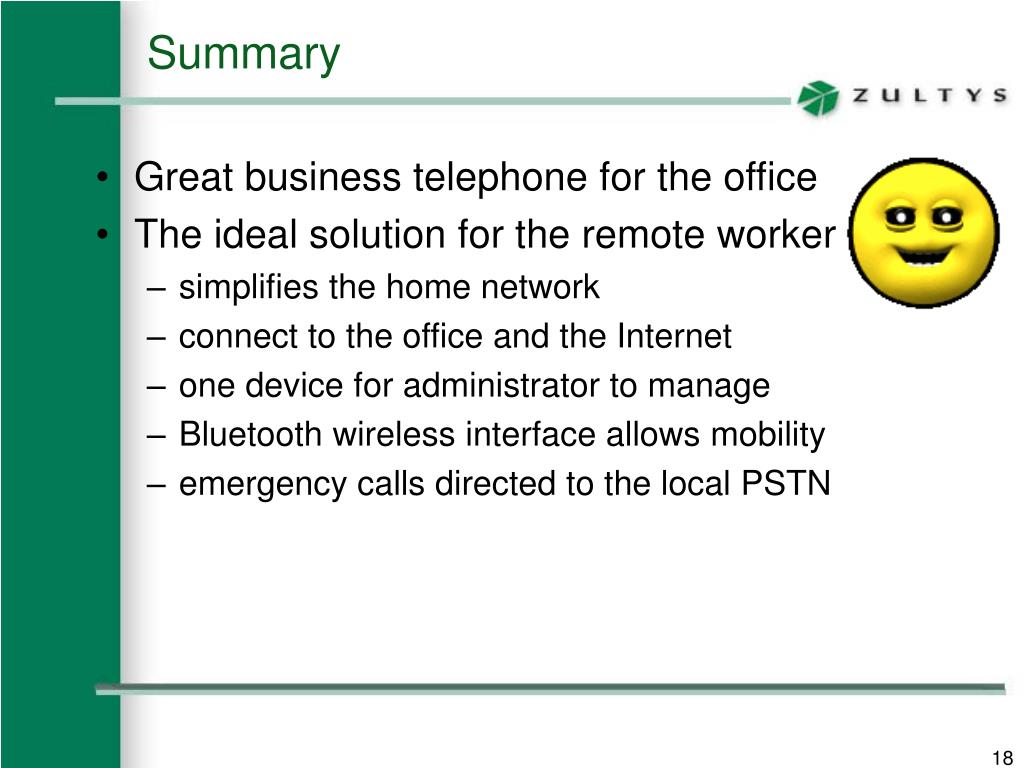

  18. Summary • Great business telephone for the office • The ideal solution for the remote worker • simplifies the home network • connect to the office and the Internet • one device for administrator to manage • Bluetooth wireless interface allows mobility • emergency calls directed to the local PSTN
