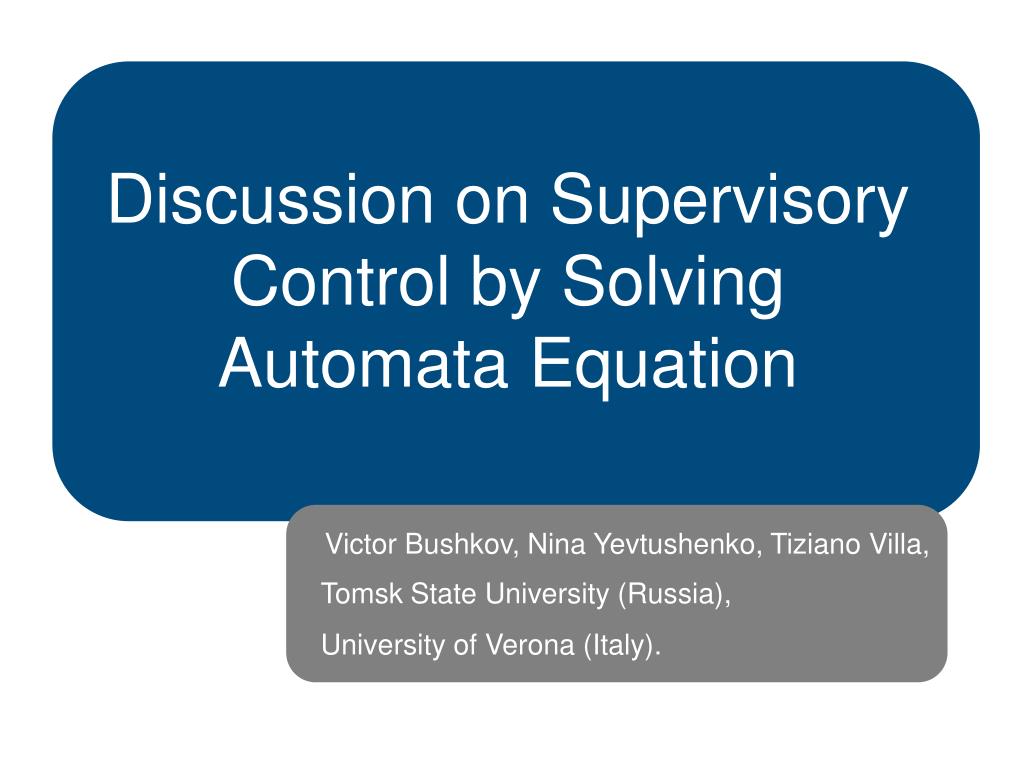

  1. Discussion on Supervisory Control by Solving Automata Equation Victor Bushkov, Nina Yevtushenko, Tiziano Villa, Tomsk State University (Russia), University of Verona (Italy).

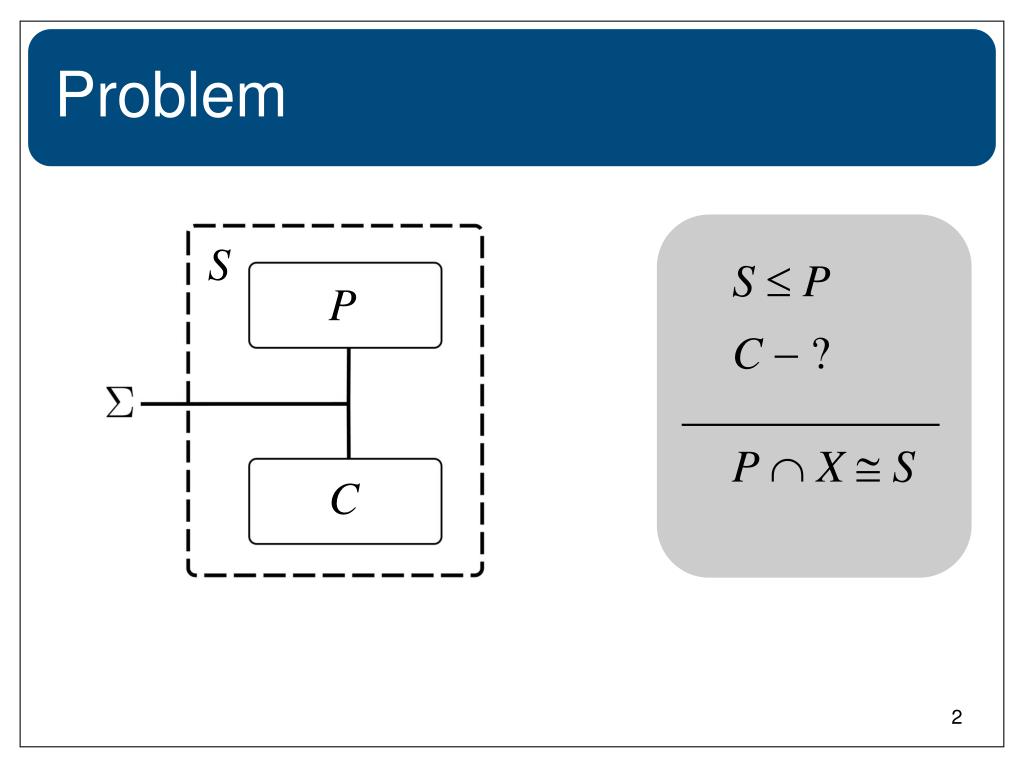

  2. Problem S S P P C ? P XS C

  3. Supervisor Example Standard realizationInit(S) – prefix-closure of S Plant P Specification S Standard realization of supervisor C Init(S)

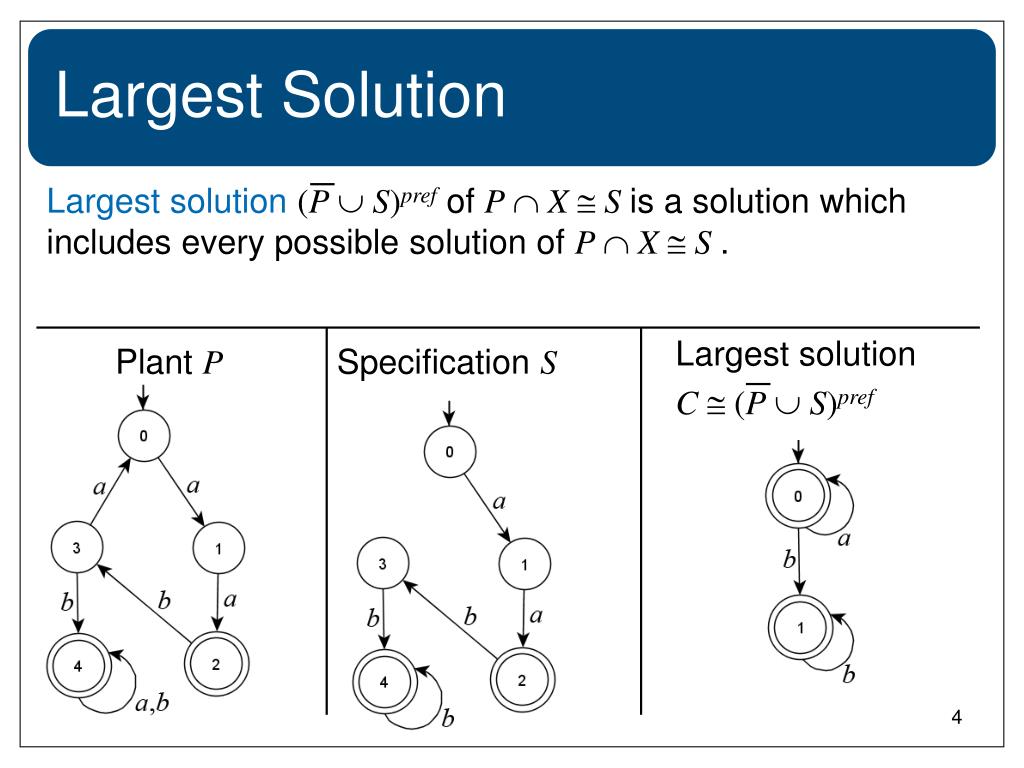

  4. Largest Solution Largest solution (P S)pref of P XS is a solution which includes every possible solution of P XS. Largest solution Plant P Specification S C  (P S)pref

  5. Progressive Solution Solution C of P XS is a progressivesolution if in P Ca final state could be reached from every state Non-progressive solution Cnon-prog Progressive solution Cprog Plant P P Cnon-prog P Cprog 2 Specification S

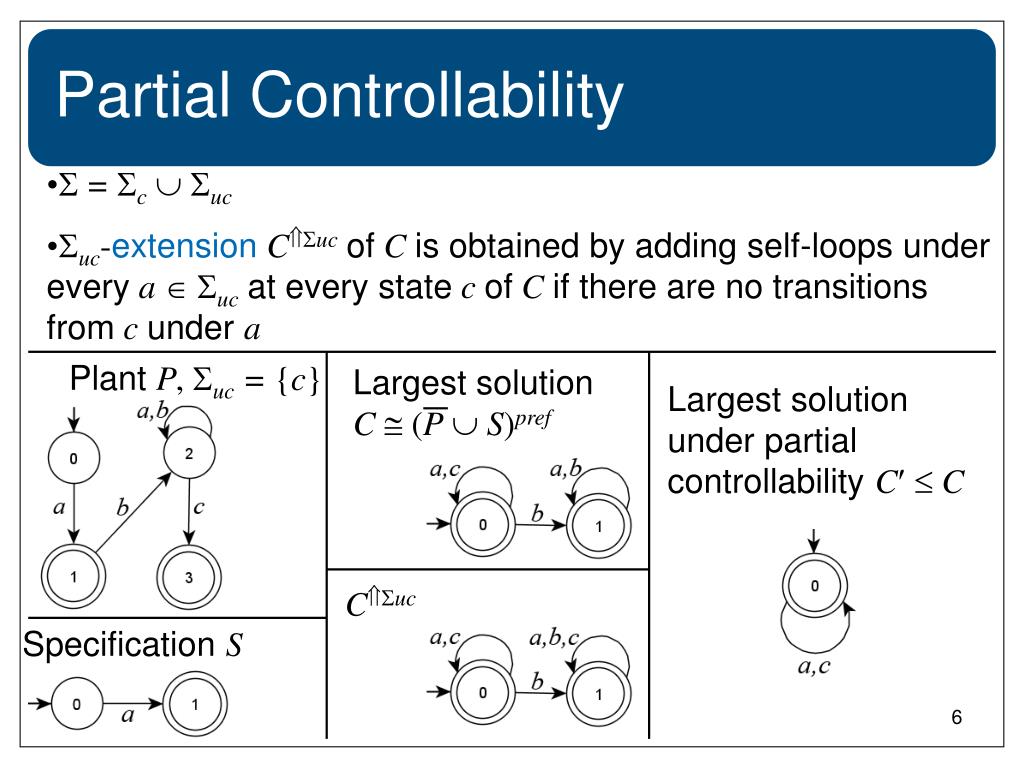

  6. Partial Controllability • =c  uc • uc-extensionCucofCis obtained by adding self-loops under everya  ucat every statecofCif there are no transitions fromcunder a Plant P , uc = {c} Largest solution C  (P S)pref Largest solution under partial controllability C  C Cuc Specification S

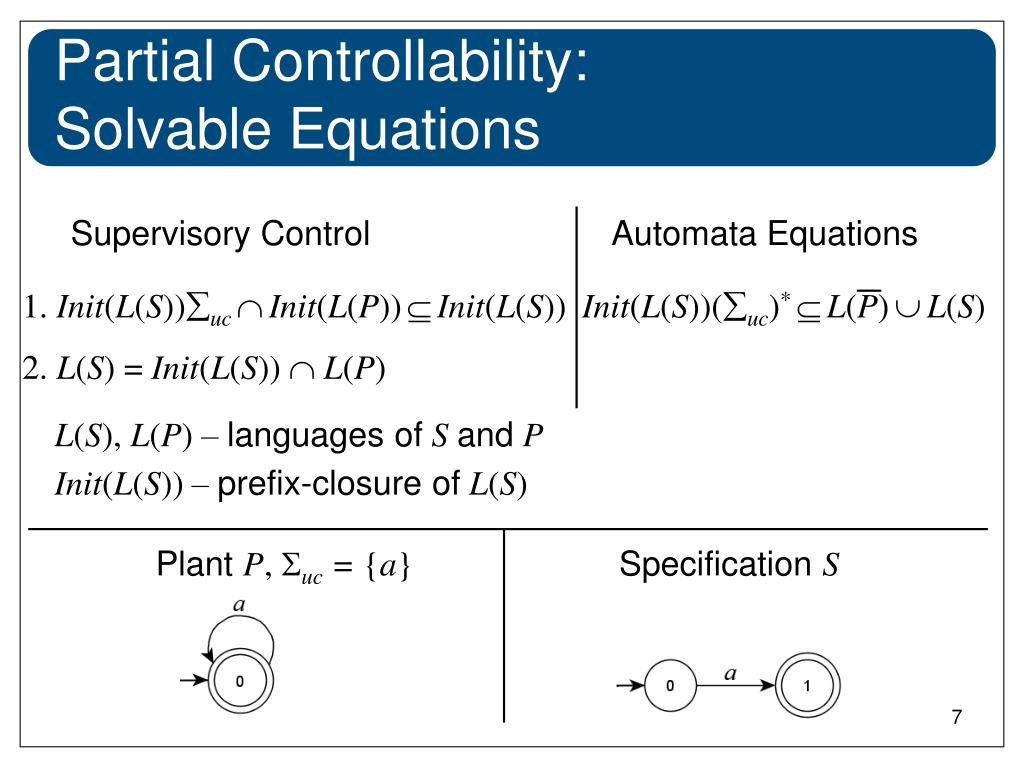

  7. Partial Controllability: Solvable Equations Supervisory Control Automata Equations 1. Init(L(S))ucInit(L(P))Init(L(S)) 2. L(S) = Init(L(S))  L(P) Init(L(S))(uc)* L(P)L(S) L(S), L(P) – languages ofS andP Init(L(S)) – prefix-closure ofL(S) Plant P , uc = {a} Specification S

  8. Partial Controllability: Progressive Solutions Solution C of P XS is a progressivesolution under partial controllability if Cuc is a progressive solutionofP XS Plant P , uc={a} Solution under partial controllability C Cuc  P Specification S

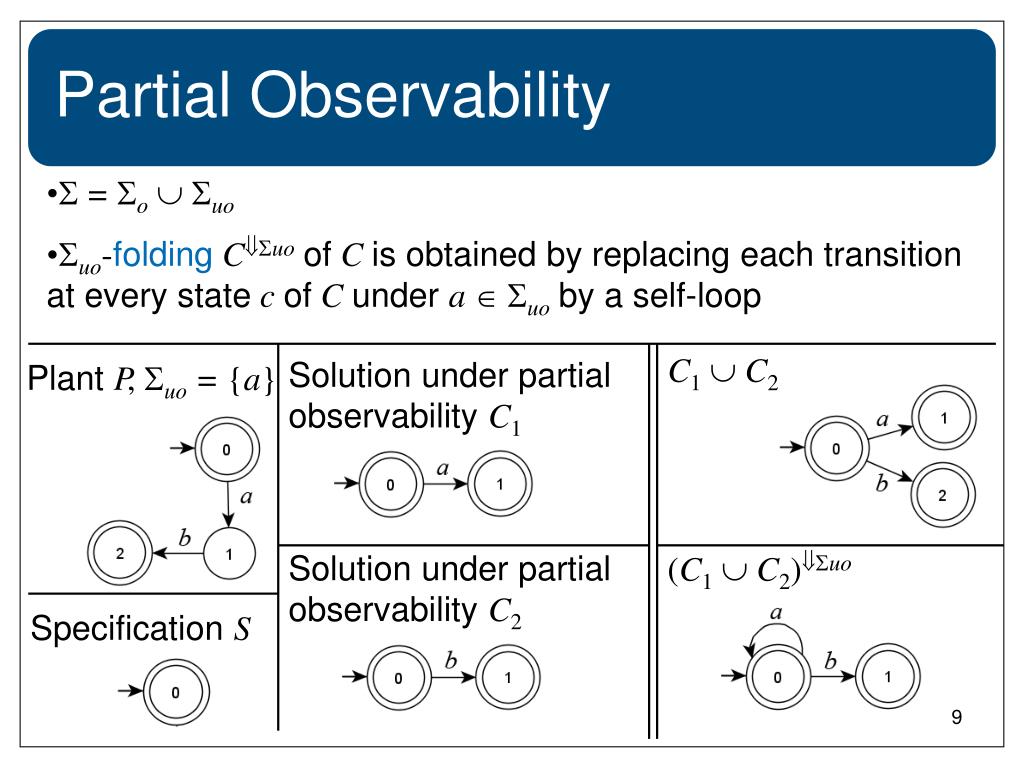

  9. Partial Observability • =o  uo • uo-foldingCuoofCis obtained by replacing each transition at every statecofCunder a  uoby a self-loop C1 C2 Solution under partial observability C1 Plant P , uo = {a} Solution under partial observability C2 (C1 C2)uo Specification S

  10. Conclusions and Future Works • The complexity of solving supervisory control problem by automata equation approach is polynomial • By solving automata equation we can find a largest supervisor, from which an optimal supervisor can be extracted • The automata equation approach can deal with more general topologies
