  1. Steven Hiu (“CJ”)02/07/2008Structural AnalysisModel Analysis Team Function CodeStructural Sizing & Optimization AAE 450 Spring 2008

  2. Structural Sizing • Matlab function call (Brandon White, CJ Hiu) • Automated Tank Size and Weight Calculations • tank material & propellant type • insulation • Sanity Checks • wall thicknesses • tank aspect ratio • automatic shape control • Interoperability with Prop & master code (Yaple, Bluestone, Wilcox, Lattibeaudaire, Schwing, Rhodes) AAE 450 Spring 2008 Structures

  3. Findings • Cryogenic Tanks problematic • Carbon Fiber attractive? Steel unattractive Future Work • Cost function calls (David Childer) • Advanced Tank Options – Compound/Tandem/Carbon Wound • Tank & Interstage internal structures (Structures Group internal division) • Engine Masses • MAT Teams to crunch through permutations AAE 450 Spring 2008 Structures

  4. References • NASA, External Tank Thermal Protection System, Apr 2005 • Denaro et al., Development on Cryogenic Insulations for Reusable Launchers, AIAA 2005-3436 Acknowledgements • Brandon White, for v0.0 MATLAB structures code • Propulsion coders (Yaple, Bluestone, Wilcox, Lattibeaudaire) • Alan Schwing and Justin Rhodes for master function • Molly Kane for Structures Group Materials Database AAE 450 Spring 2008

  5. Backup Slides 1 • Shuttle ET Source: en.wikipedia.org AAE 450 Spring 2008 Group Name (i.e.Trajectory Optimization)

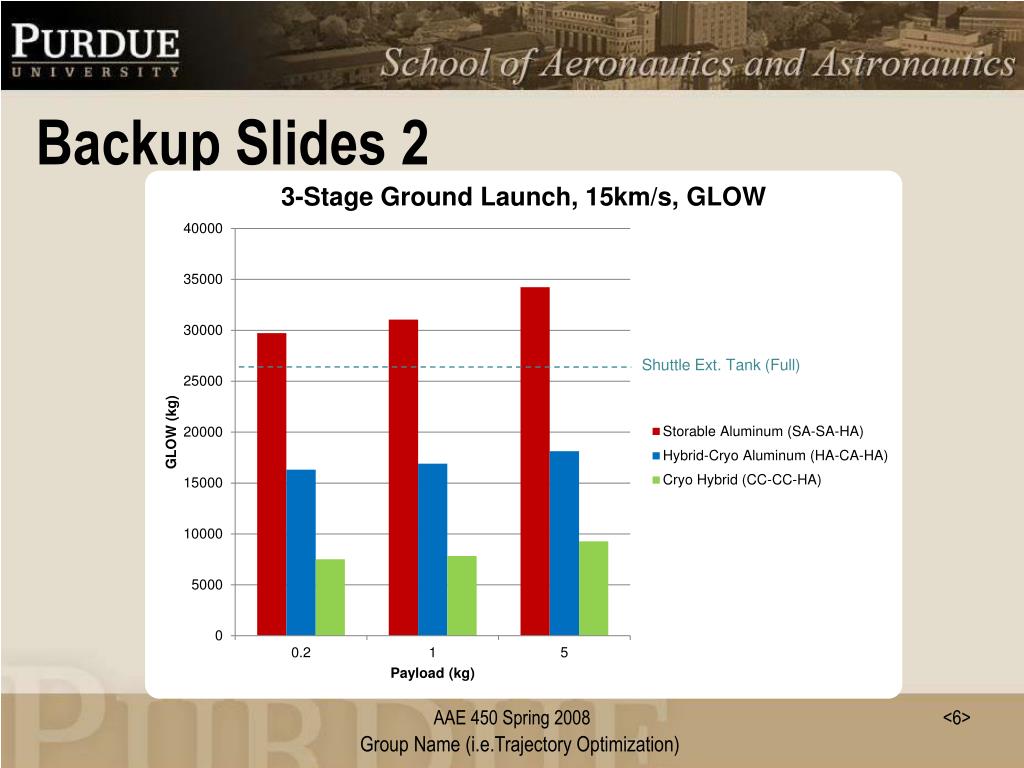

  6. Backup Slides 2 AAE 450 Spring 2008 Group Name (i.e.Trajectory Optimization)

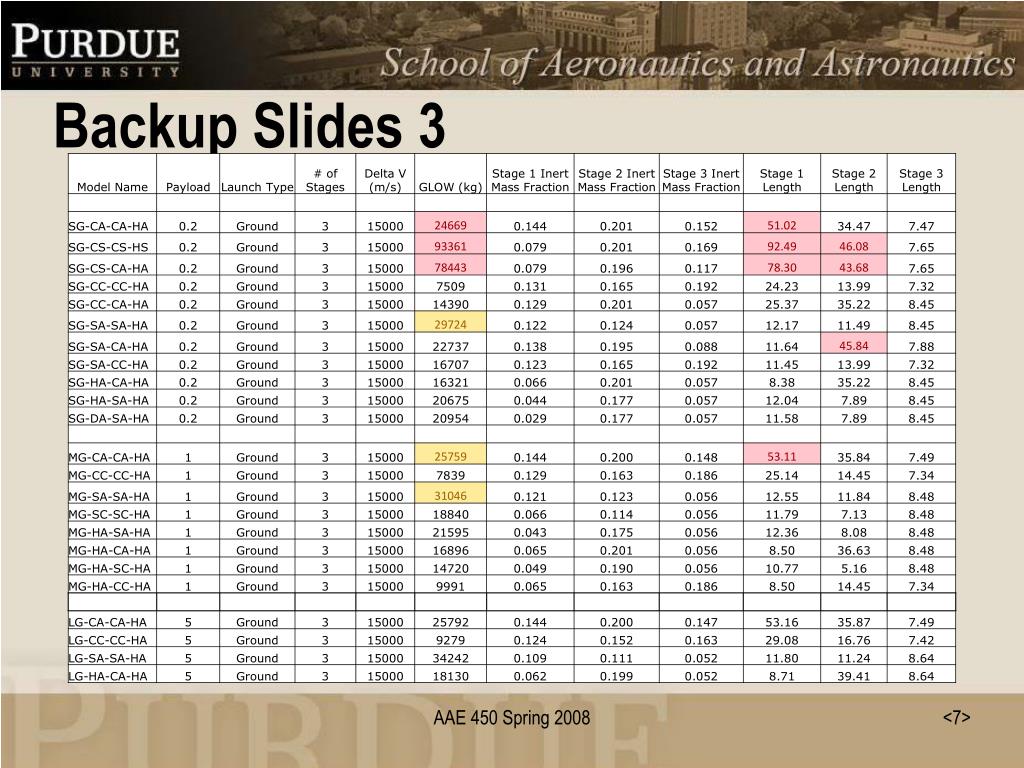

  7. Backup Slides 3 AAE 450 Spring 2008
