  1. Technical highlights session PRODUCTS & SERVICES Summary

  2. Technical highlights session PRODUCTS & SERVICES Summary

  3. Sam Tagliavore www.PBNAmericas.com 1-877-PBN-FTTX

  4. Fiber to the: • Home • Apartment • Business • Neighborhood

  5. No Broadband Bottlenecks One Platform One Solution • HFC • RFOG • FTTH

  6. One Platform, One Solution

  7. OCMR-SNMP : Series 3 • LTM13 - 45 to 1000 MHz forward path, 1310 nm Optical Tx from 1.6 to 31 mW • LTM15 - 45 to 1000 MHz forward path, 1550 nm Optical Tx from 6 to 10 mW • EDFAM - For high power 1550 nm applications, up to 250mW (8 outputs at 15 dBm each) • FPRM/RPQRM - Forward Path Rx > 40dBmV; Four, 5-200 MHz Return Rxs in one module • LTM802 – Gigabit Ethernet (CWDM) + 1550nm CATV for 10 to 110 km fiber backbones • QOLTM – Quad OLTs for IEEE802.3ah GEPON serving up to 256 subscribers < 20 km • plus many additional modules for a wide variety of HFC, RFOG & FTTH applications

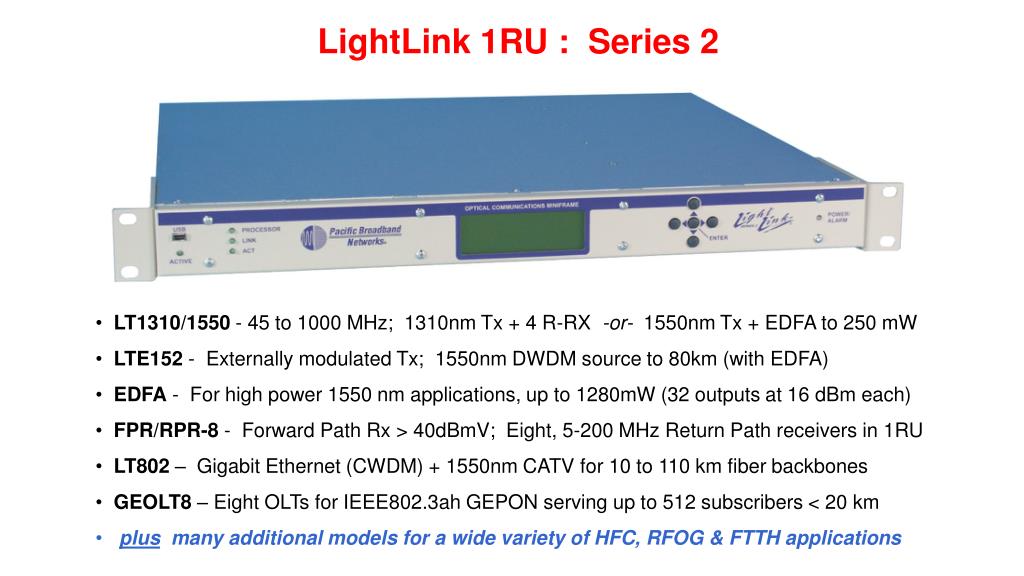

  8. LightLink 1RU : Series 2 • LT1310/1550 - 45 to 1000 MHz; 1310nm Tx + 4 R-RX -or- 1550nm Tx + EDFA to 250 mW • LTE152 - Externally modulated Tx; 1550nm DWDM source to 80km (with EDFA) • EDFA - For high power 1550 nm applications, up to 1280mW (32 outputs at 16 dBm each) • FPR/RPR-8 - Forward Path Rx > 40dBmV; Eight, 5-200 MHz Return Path receivers in 1RU • LT802 – Gigabit Ethernet (CWDM) + 1550nm CATV for 10 to 110 km fiber backbones • GEOLT8 – Eight OLTs for IEEE802.3ah GEPON serving up to 512 subscribers < 20 km • plus many additional models for a wide variety of HFC, RFOG & FTTH applications

  9. NMS3 Network Management • NMS3-NetCraft • Network Management System Remote Access Tool • Chassis Management/Control • NMS3 NetCraft comes as an inclusion with the OCMR Service Package, and does not require an NMS3 application server in the network • NMS3 Netcraft GEPON is a low-cost upgrade for remote provisioning of P2MP GEPON premise ONUs • NMS3-DragonNest / NMS3-DragonView • Network Management System Regional management • DragonNest – Application Server for Monitoring/Control • DragonView – Management of client of DragonNest, network visuals and control • Supports all PBN Products • NMS3-Enterprise • Network Enterprise Element Management (Web-Based) • 25 dedicated Software Engineers focused on 2009 launch • Supports all PBN Products & third party MIBS (optics, CMTS, etc.)

  10. No Broadband Bottlenecks One Platform One Solution HFC

  11. ODN4P Node 4 RF Outputs for Distribution ODN2P Node 2 RF Outputs For Distribution 2 2 AMCP1315 Node 1 RF Output for Distribution Hundreds of Headendsserving Tens of Millions of Subscribers Worldwide since 1991 CPON-HFC Node 1 RF Output for Distribution

  12. NEW PRODUCT : LE1G 1000 MHz Line Extender • LE1G: Cost-effective, flexible, superior performance for advanced network architectures • 1003 MHz Advanced GaAs FET RF hybrid technology provides linear RF amplification • High Gain / High Output Level: Operational Gain = 37 dB • Plug-in diplex filters; Multiple diplex filter frequency split options • 60/90 VAC powering; 15 Ampere AC capability with 25 Ampere surge survivability • Optional AGC with thermal feedback; Eliminates RF output variation with pilot tone loss • Optional return path ingress control and status monitor interface

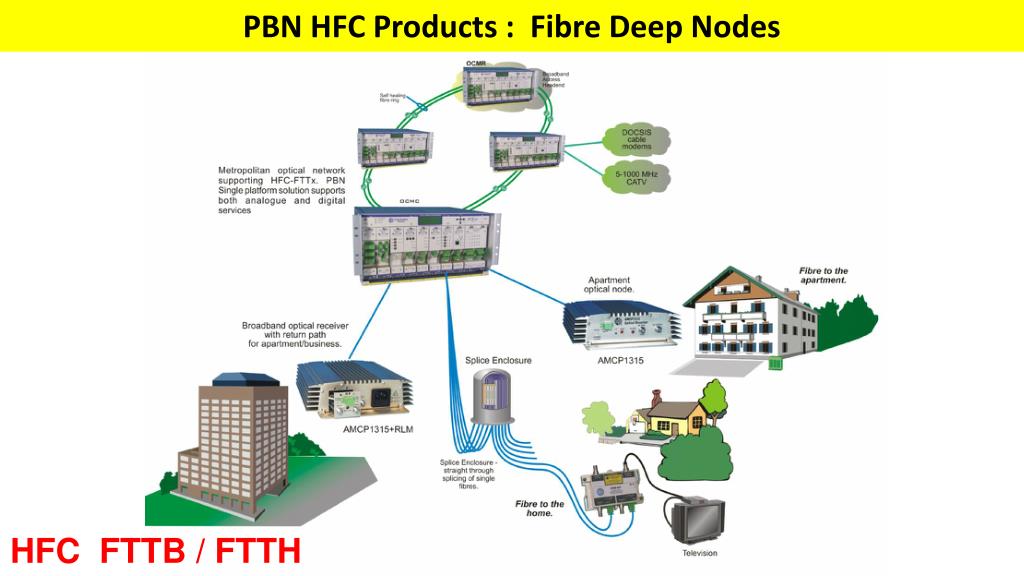

  13. PBN HFC Products : Fibre Deep Nodes HFC FTTB / FTTH

  14. No Broadband Bottlenecks One Platform One Solution RFOG

  15. Node+ZeroUniversal RFOG MicroNode Solution 1610nm

  16. Node+ZeroUniversal RFOG MicroNode Solution 1610nm

  17. Node+ZeroUniversal RFOG Mini Node Solution • 1X32 P2MP direct-connect HFC network • facilitates CATV MSO transition to FTTH • Eliminates Active Electronics • between Headend & Subscribers • Passes RF Fwd & Return Paths • for STB and DOCSIS transparency • 3 Deployment options: • Standalone (1550/1610 nm) • With Integrated EPON ONU • With future upgrade path to EPON (1310/1490nm) 18

  18. Node+ZeroUniversal RFOG MicroNode Solution H-110 1610nm RF H-112 19

  19. No Broadband Bottlenecks One Platform One Solution FTTH

  20. P2P P2MP GEPON – IEEE standard based on IEEE 802.3ah – 2004

  21. P2P (Active Ethernet)

  22. P2MP (GEPON)

  23. P2MP (GEPON)

  24. NEW PRODUCT : MAU MDU Multiple Access Node • MAU: Designed for high-density apartment buildings with coax cabling for local distribution • Integrates 3 distinct technologies: HFC, EPON& MoCA onto a single coaxial cable • 4 functions: (a) RF amplifier; (b) HFC or RFOG Node; (c) EPON ONU; (d) MoCA master unit • 870 MHz Advanced GaAs FET RF hybrid technology provides excellent RF performance • Optional RF return path optical transmitter with 4.5MHz pilot and integrated status monitoring • Optional GEPON IEEE802.3ah-compliant 1x32 PON service access • Optional MoCA master unit supports up to 31 MoCA CPE units per MAU via CATV coax cabling

  25. Fiber to the: • Home • Apartment • Business • Neighborhood
