  1. MKDV vacuum behaviour with LHC beams K. Cornelis SPSU meeting 18/11/08

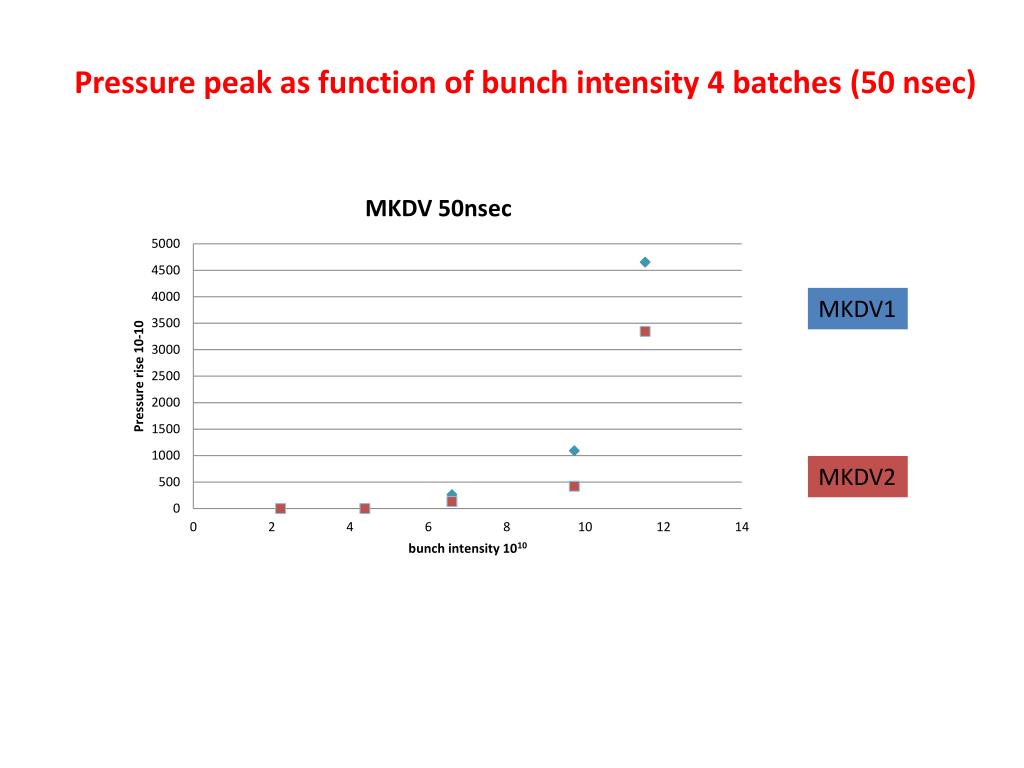

  2. Pressure peak as function of bunch intensity 4 batches (50 nsec) MKDV1 MKDV2

  3. 50 nsec beam (60% nominal) MKDV1 MKDV2

  4. Influence of RF volts (60% of nominal 4 batches) MKDV1 MKDV2 Rf V high Rf V low

  5. Influence of the batch distances (60% of nominal 4 batches) MKDV1 MKDV2 Nominal +5 bunches square

  6. 1 hour later 1 hour later

  7. MKDV1 MKDV2

  8. 75nsec nominal MKDV1 1batch MKDV2 4 batches

  9. Dependence on time in cycle MKDV1 MKDV2

  10. 50 nsec beam (60% nominal) MKDV1 MKDV2

  11. Conclusions • The instantaneous pressure rises in MKDV kickers shows a clear threshold effect with intensity. • There is a relative fast conditioning effect. • Phenomena is present for 50nsec and 75nsec spacing. • Depends on bunch length • Depends on batch spacing • Time behaviour of MKDV1 and MKDV2 different
