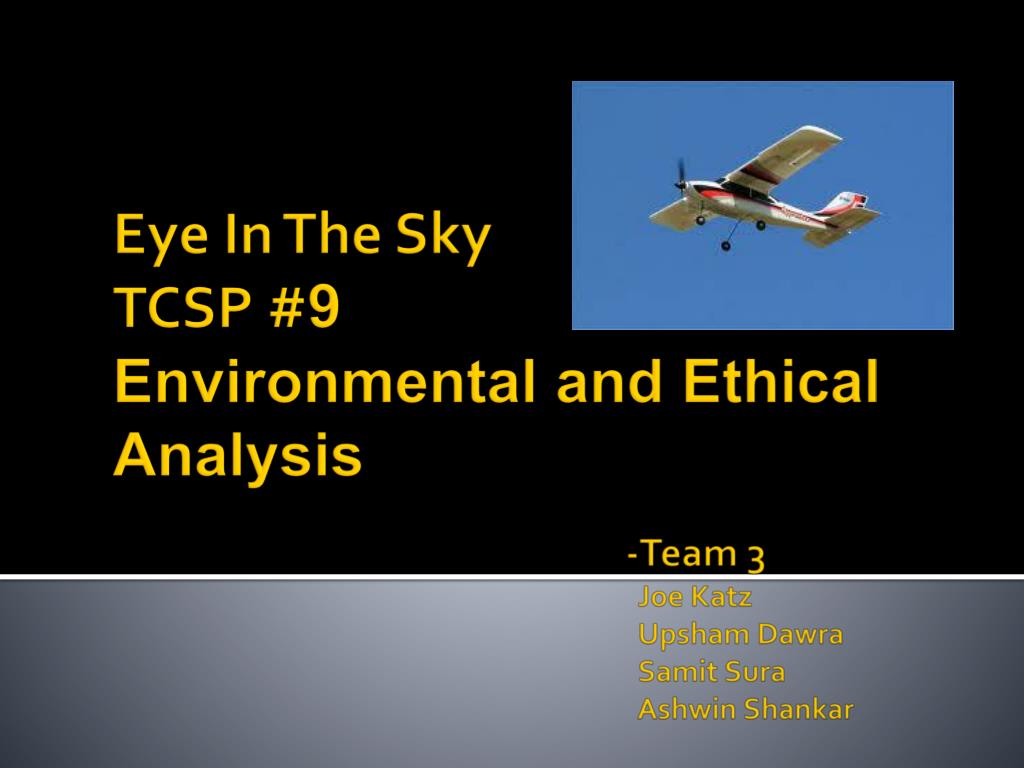

  1. Eye In The SkyTCSP #9Environmental and Ethical Analysis-Team 3 Joe KatzUpshamDawraSamitSuraAshwin Shankar

  2. Project Overview • Portable low-cost aerial drone that can be used for reconnaissance • Relay real-time video and data, like location, heading, battery life • Take high-resolution pictures of the ground in flight • Store photos and some flight data in non-volatile memory, á la “blackbox” system. • Control drone manually via a control unit

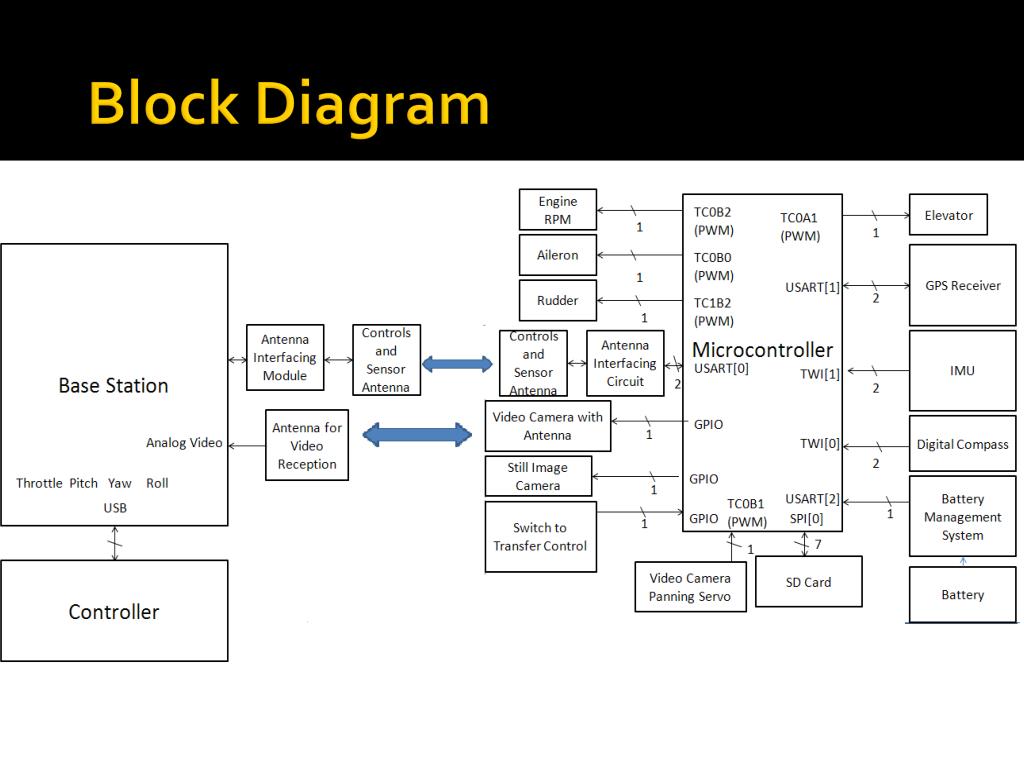

  3. Block Diagram

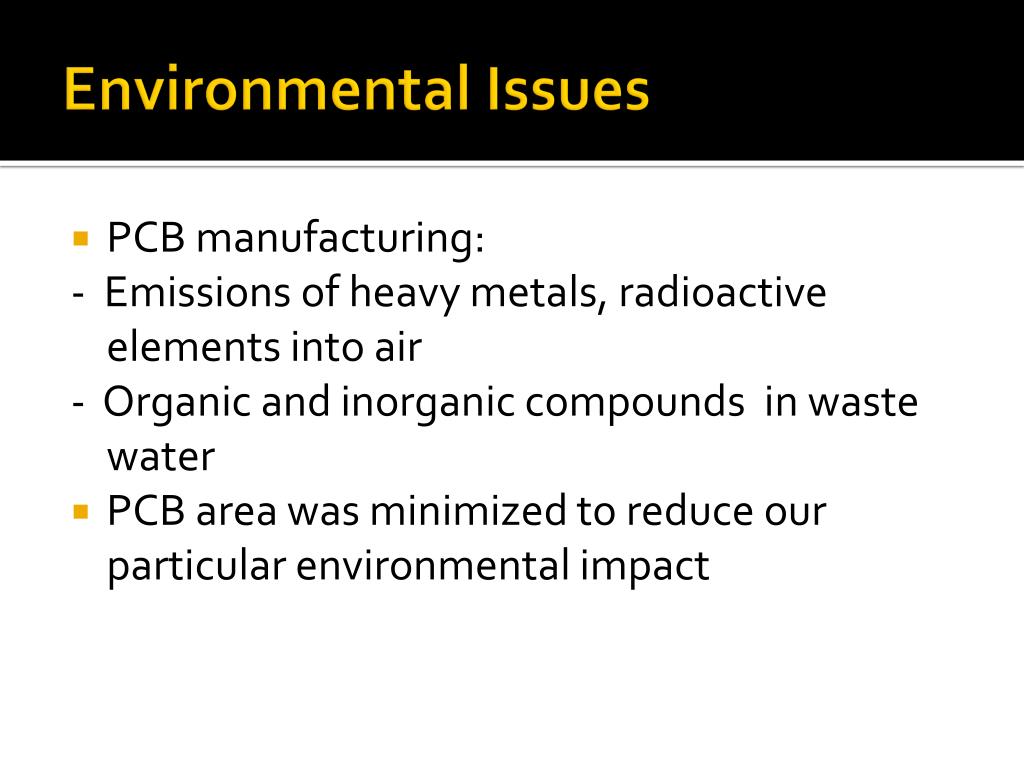

  4. Environmental Issues • PCB manufacturing: - Emissions of heavy metals, radioactive elements into air - Organic and inorganic compounds in waste water • PCB area was minimized to reduce our particular environmental impact

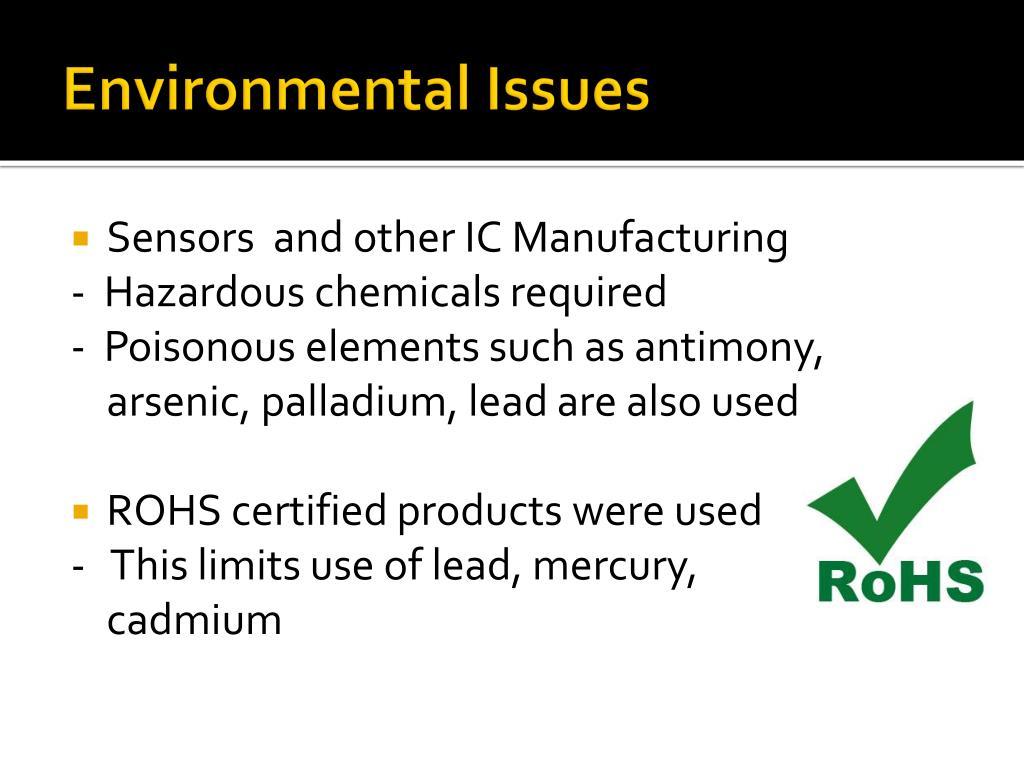

  5. Environmental Issues • Sensors and other IC Manufacturing - Hazardous chemicals required - Poisonous elements such as antimony, arsenic, palladium, lead are also used • ROHS certified products were used - This limits use of lead, mercury, cadmium

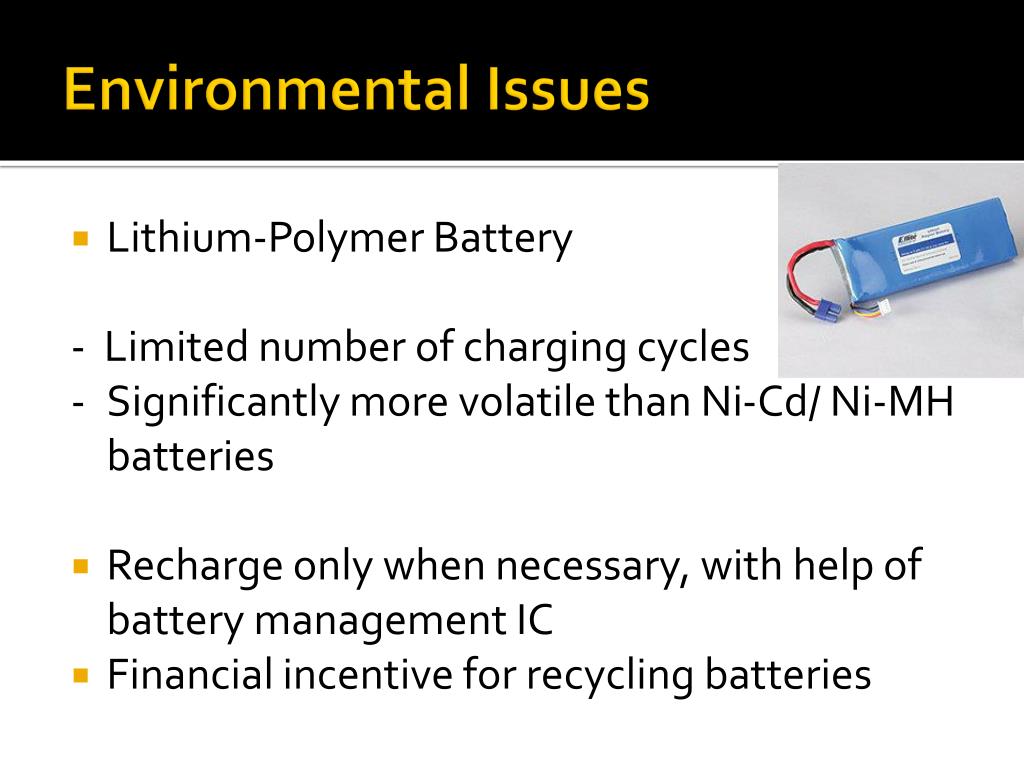

  6. Environmental Issues • Lithium-Polymer Battery - Limited number of charging cycles - Significantly more volatile than Ni-Cd/ Ni-MH batteries • Recharge only when necessary, with help of battery management IC • Financial incentive for recycling batteries

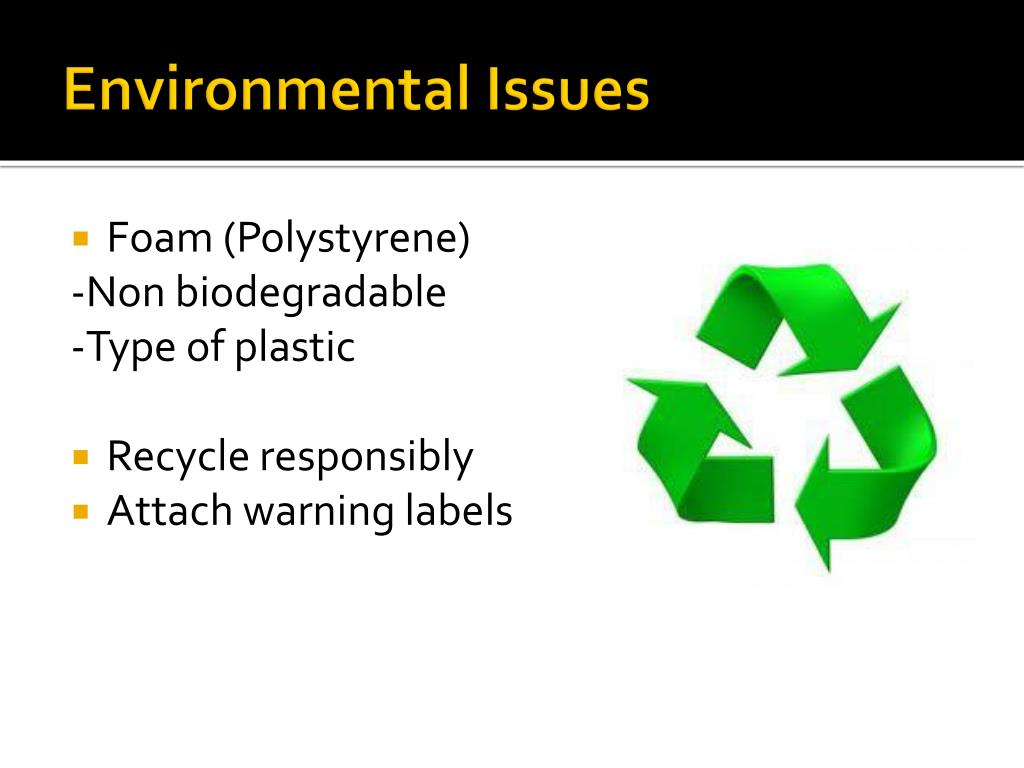

  7. Environmental Issues • Foam (Polystyrene) -Non biodegradable -Type of plastic • Recycle responsibly • Attach warning labels

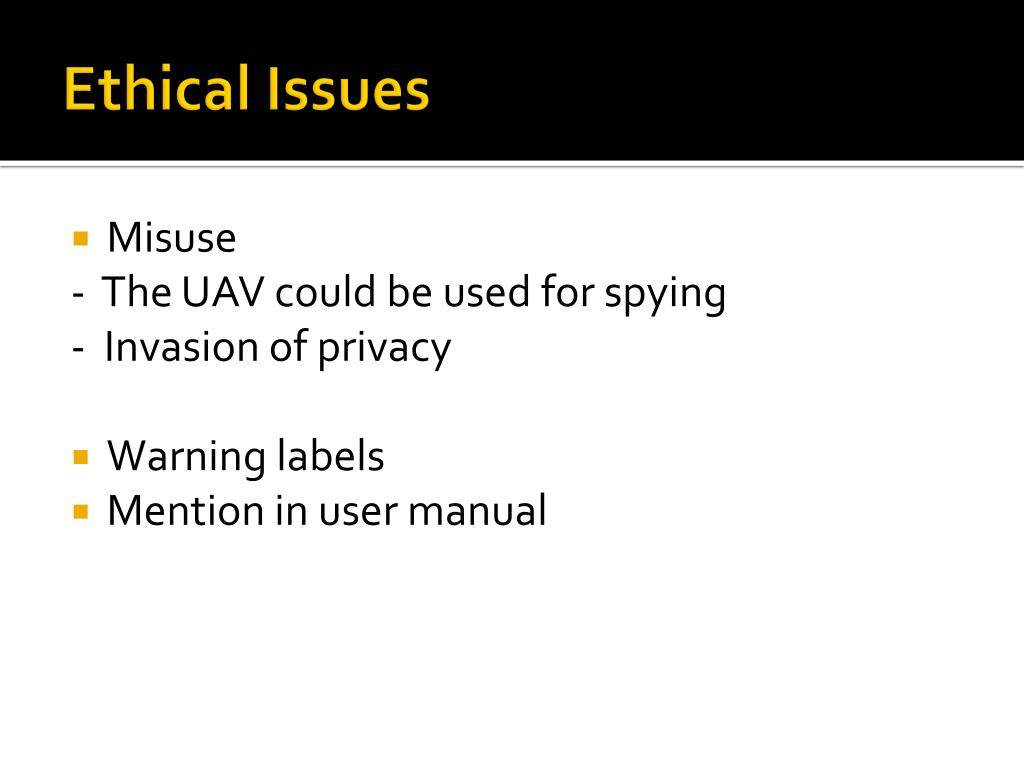

  8. Ethical Issues • Misuse - The UAV could be used for spying - Invasion of privacy • Warning labels • Mention in user manual

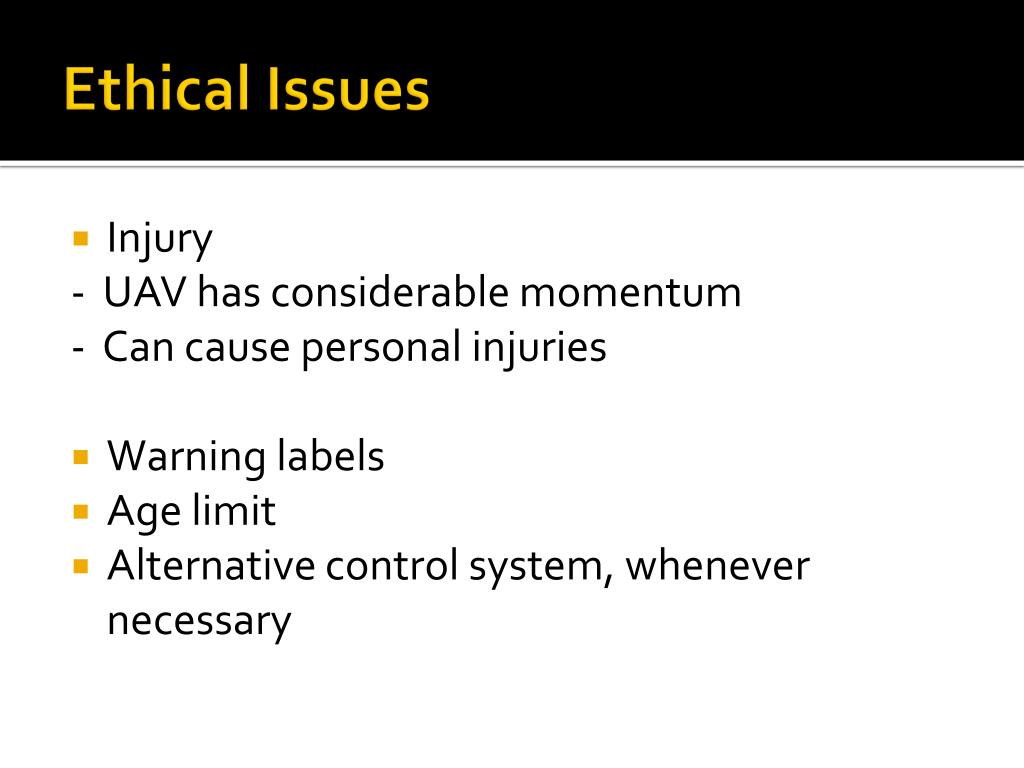

  9. Ethical Issues • Injury - UAV has considerable momentum - Can cause personal injuries • Warning labels • Age limit • Alternative control system, whenever necessary

  10. Testing Issues The UAV will be thoroughly tested to the following regards: - Software integrity - Mechanical faults due to rough handling - Steady flight in good weather

  11. Feedback • Questions?
