  1. 15 – Web applications:Server-side code (ASP)

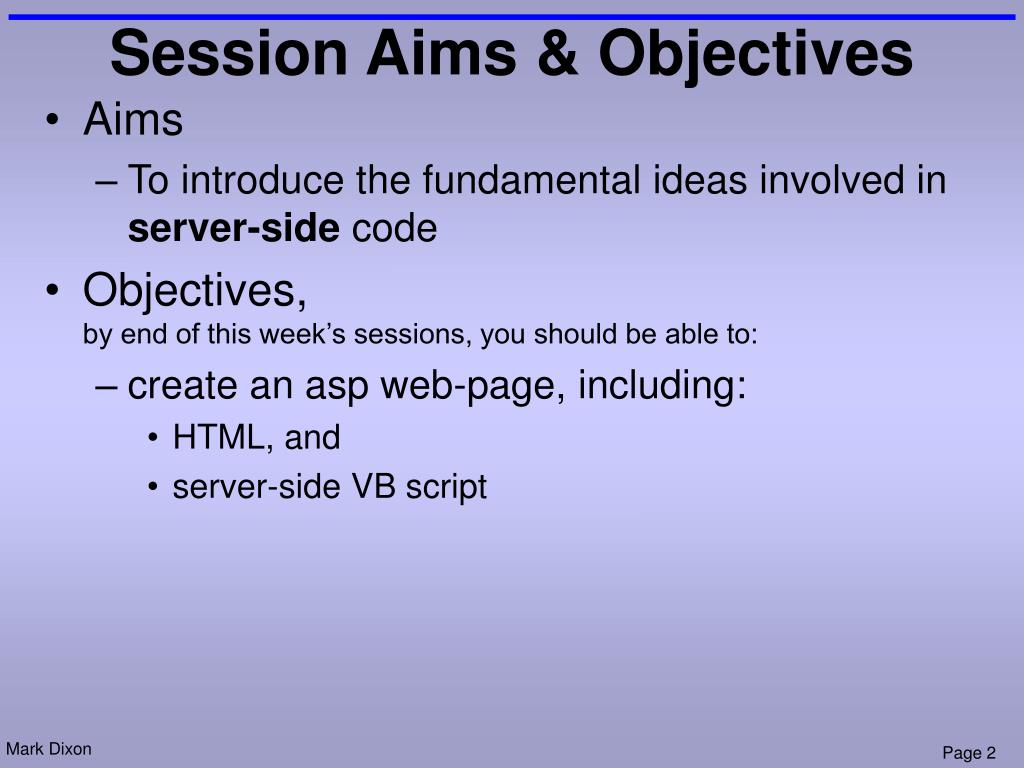

  2. Session Aims & Objectives • Aims • To introduce the fundamental ideas involved in server-side code • Objectives,by end of this week’s sessions, you should be able to: • create an asp web-page, including: • HTML, and • server-side VB script

  3. Example: Logon (analysis) • SPECIFICATION • User Requirements • protection from fraud and invasion of privacy • Software Requirements • Functional: • logon page, user must type name and password • following pages can only be accessed after successful logon • Non-functionalshould be very difficult to hack • hotmail, Amazon, University portal, utility bills (gas, electricity, phone, internet), Travel (flights, ferry, car rental)

  4. Example: Logon (design) • Restrict access tohome page

  5. Example: Logon (code v1) Logon.htm • Using Client-side VB Script <html> <head><title></title></head> <body> Please logon:<br /> <input id="txtUserName" type="text" /><br /> <input id="txtPassWord" type="text" /><br /> <input id="btnLogon" type="submit" value="Logon" /> <p id="msg"></p> </body> </html> <script language="vbscript"> Sub btnLogon_OnClick() Dim un Dim pw un = txtUserName.value pw = txtPassWord.value If un = "mark" And pw = "soft131" Then window.navigate "home.htm" Else msg.innerText = "Login details incorrect." End If End Sub </script> Home.htm <html> <head><title>My Home page</title></head> <body> <p> Welcome to my home page.<br /> <img src="YouAreHere.jpg" /> </p> </body> </html>

  6. Example: Login (Problem) • View Source – shows client-side script: Reveals bothusername & password

  7. Web Hardware and Software network connection Client Server Browser Application (MS Explorer, FireFox, Opera) Web-server Application (MS IIS, Apache)

  8. Request-Response Cycle Request Web-server Application (MS IIS, Apache) Browser Application (MS Explorer, Firefox) Logon.htm Response <html> <head><title></title></head> <body> Please logon:<br /> <input id="txtUserName" type="text" /><br /> <input id="txtPassWord" type="text" /><br /> <input id="btnLogon" type="submit" value="Logon" /> <p id="msg"></p> </body> </html> <script language="vbscript"> Sub btnLogon_OnClick() Dim un Dim pw un = txtUserName.value pw = txtPassWord.value If un = "mark" And pw = "soft131" Then window.navigate "home.htm" Else msg.innerText = "Login details incorrect." End If End Sub </script> Client-side code:Code sent to Client Interpreted by browser

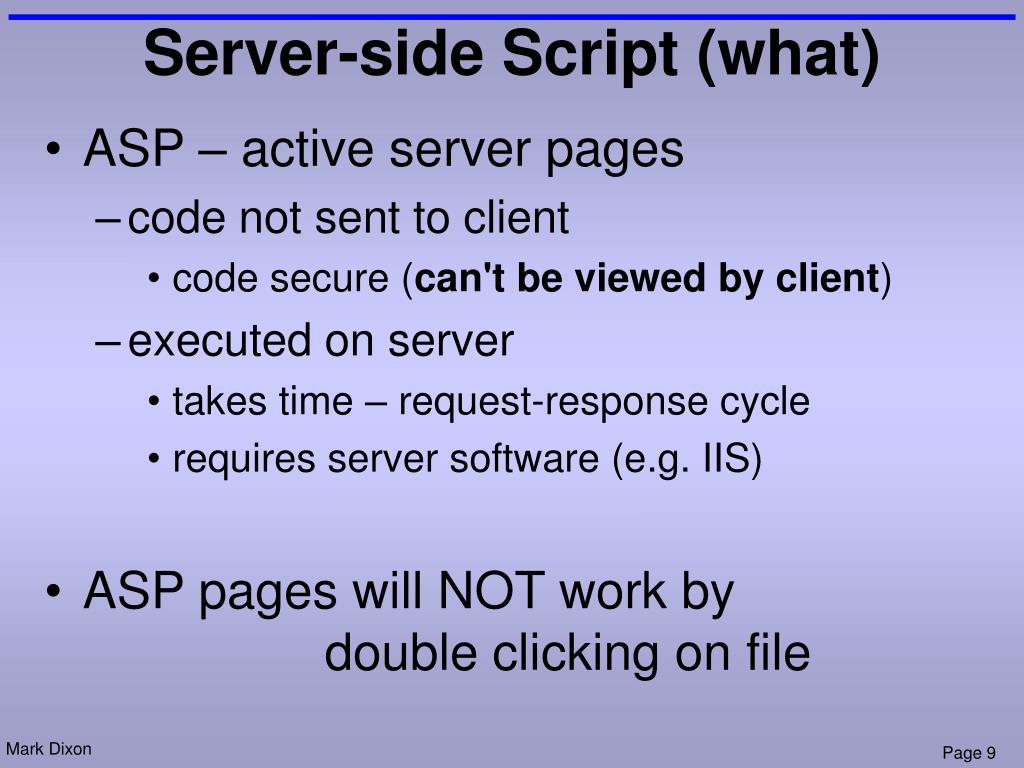

  9. Server-side Script (what) • ASP – active server pages • code not sent to client • code secure (can't be viewed by client) • executed on server • takes time – request-response cycle • requires server software (e.g. IIS) • ASP pages will NOT work by double clicking on file

  10. Example: Date Date.aspx • ASP code: • .aspx (not .htm) • VB (not vbscript) • variables have type • Now is current date and time (on server) • runat="server" gives server code access to object <script language="VB" runat="server"> Sub Page_Load() Dim s As String s = "The date today is " s = s & Format(Now, "ddd d MMM yyyy") parD.InnerText = s s = "The time now is " s = s & Format(Now, "HH:mm") parT.InnerText = s End Sub </script> <html> <head><title>Today's Date</title></head> <body> <p id="parD" runat="server"></p> <p id="parT" runat="server"></p> </body> </html>

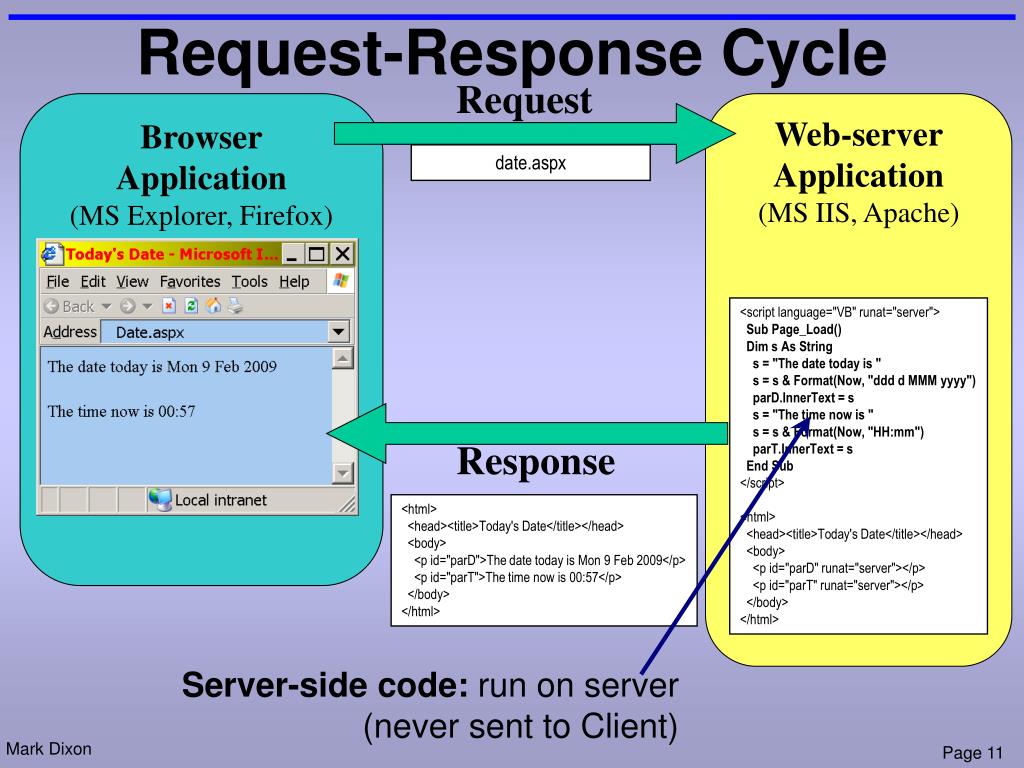

  11. Request-Response Cycle Request date.aspx Browser Application (MS Explorer, Firefox) Web-server Application (MS IIS, Apache) <script language="VB" runat="server"> Sub Page_Load() Dim s As String s = "The date today is " s = s & Format(Now, "ddd d MMM yyyy") parD.InnerText = s s = "The time now is " s = s & Format(Now, "HH:mm") parT.InnerText = s End Sub </script> <html> <head><title>Today's Date</title></head> <body> <p id="parD" runat="server"></p> <p id="parT" runat="server"></p> </body> </html> Response <html> <head><title>Today's Date</title></head> <body> <p id="parD">The date today is Mon 9 Feb 2009</p> <p id="parT">The time now is 00:57</p> </body> </html> Server-side code: run on server(never sent to Client)

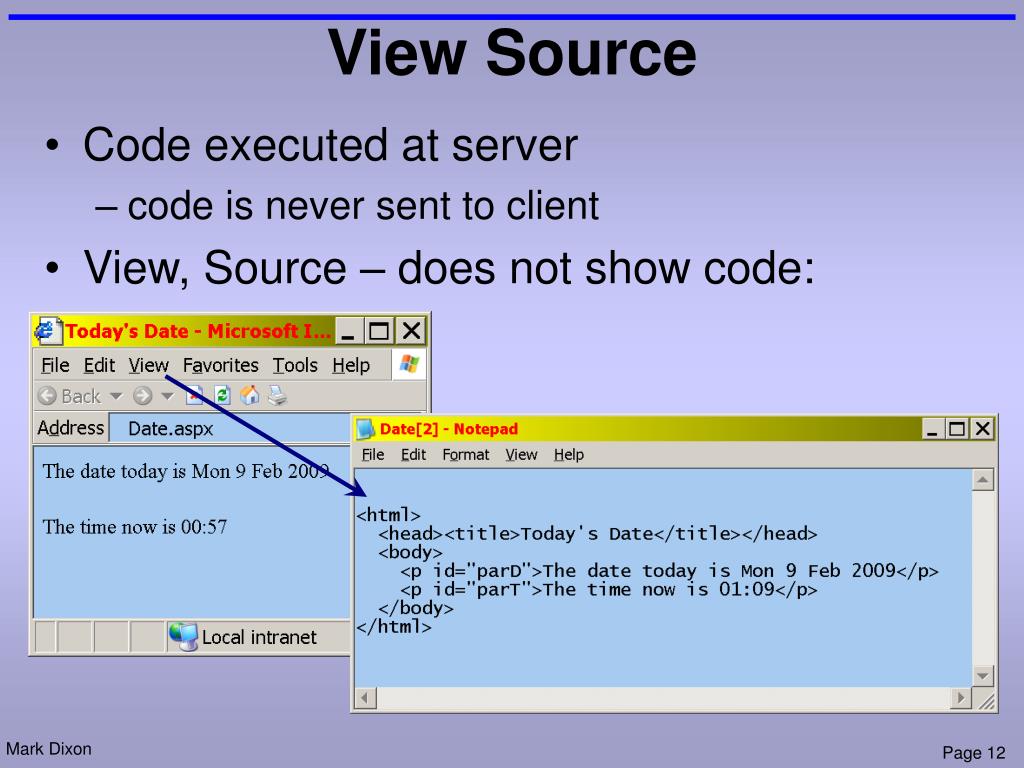

  12. View Source • Code executed at server • code is never sent to client • View, Source – does not show code:

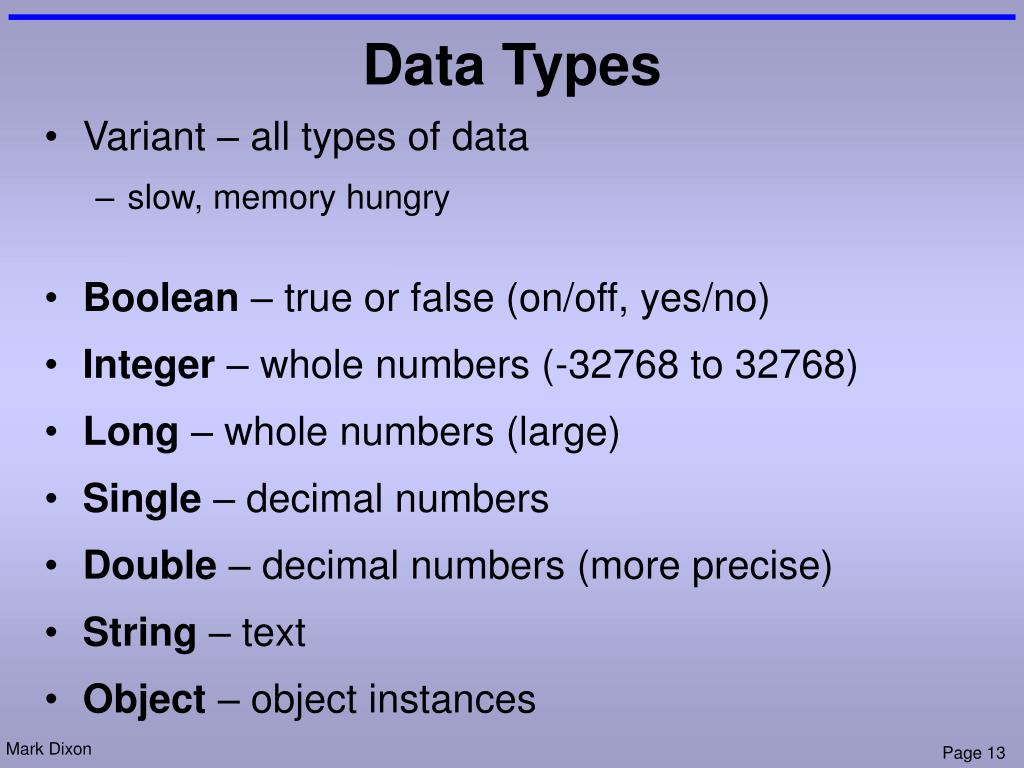

  13. Data Types • Variant – all types of data • slow, memory hungry • Boolean – true or false (on/off, yes/no) • Integer – whole numbers (-32768 to 32768) • Long – whole numbers (large) • Single – decimal numbers • Double – decimal numbers (more precise) • String – text • Object – object instances

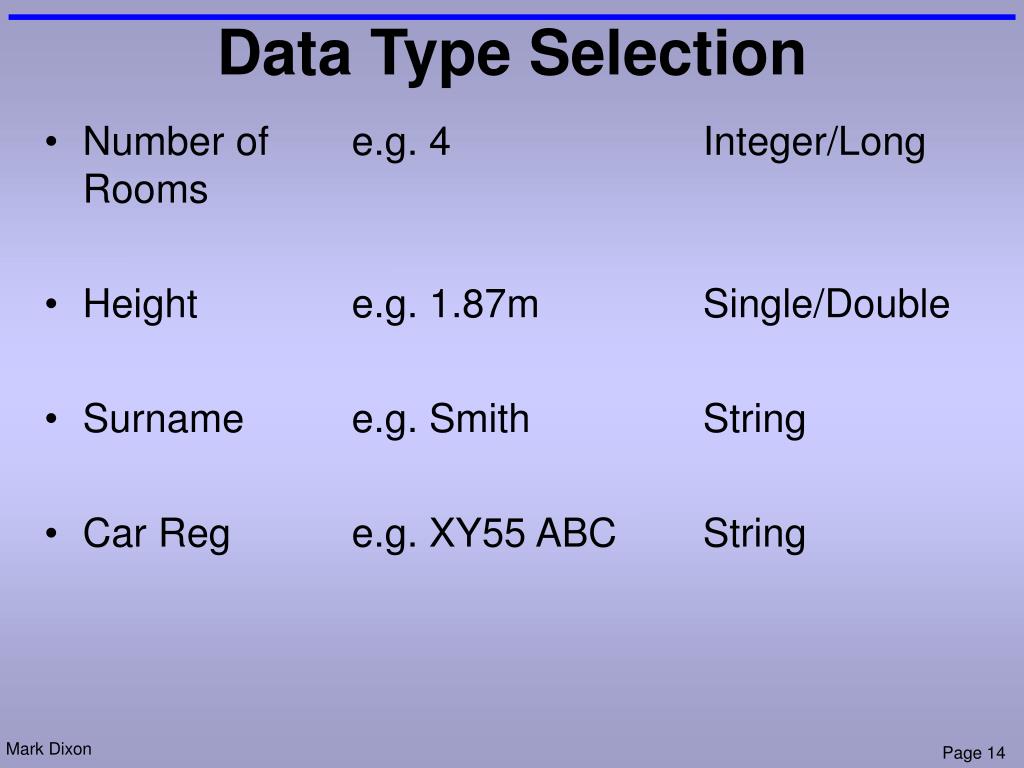

  14. Data Type Selection • Number of e.g. 4 Integer/LongRooms • Height e.g. 1.87m Single/Double • Surname e.g. Smith String • Car Reg e.g. XY55 ABC String

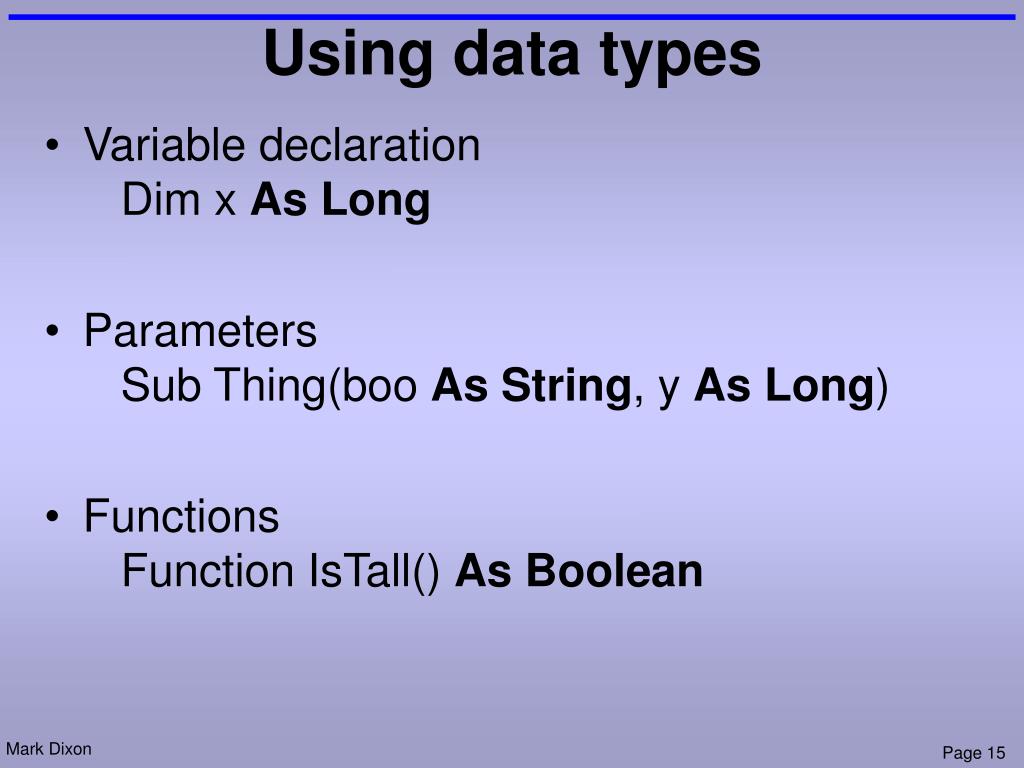

  15. Using data types • Variable declaration Dim x As Long • Parameters Sub Thing(boo As String, y As Long) • Functions Function IsTall() As Boolean

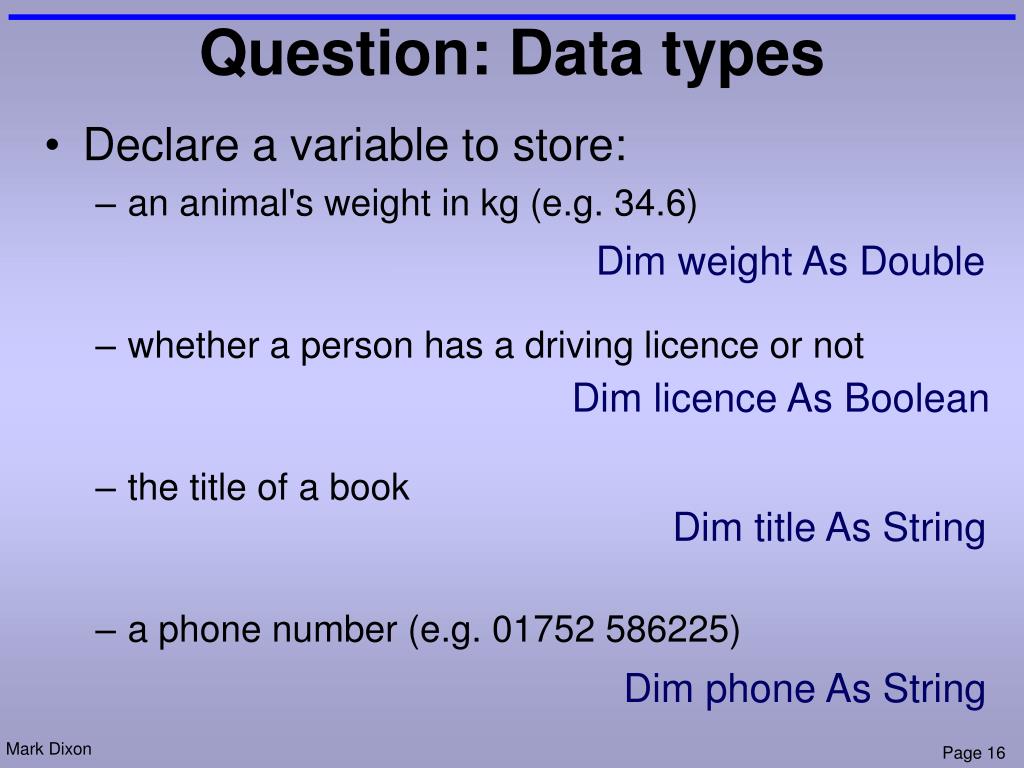

  16. Question: Data types • Declare a variable to store: • an animal's weight in kg (e.g. 34.6) • whether a person has a driving licence or not • the title of a book • a phone number (e.g. 01752 586225) Dim weight As Double Dim licence As Boolean Dim title As String Dim phone As String

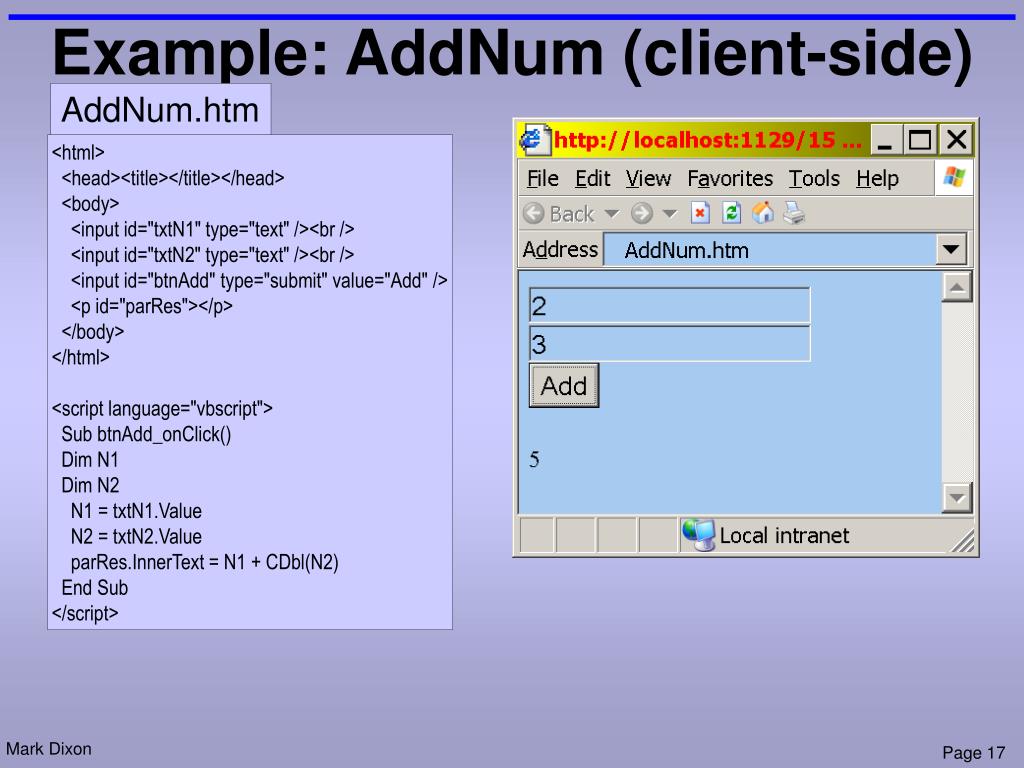

  17. Example: AddNum (client-side) AddNum.htm <html> <head><title></title></head> <body> <input id="txtN1" type="text" /><br /> <input id="txtN2" type="text" /><br /> <input id="btnAdd" type="submit" value="Add" /> <p id="parRes"></p> </body> </html> <script language="vbscript"> Sub btnAdd_onClick() Dim N1 Dim N2 N1 = txtN1.Value N2 = txtN2.Value parRes.InnerText = N1 + CDbl(N2) End Sub </script>

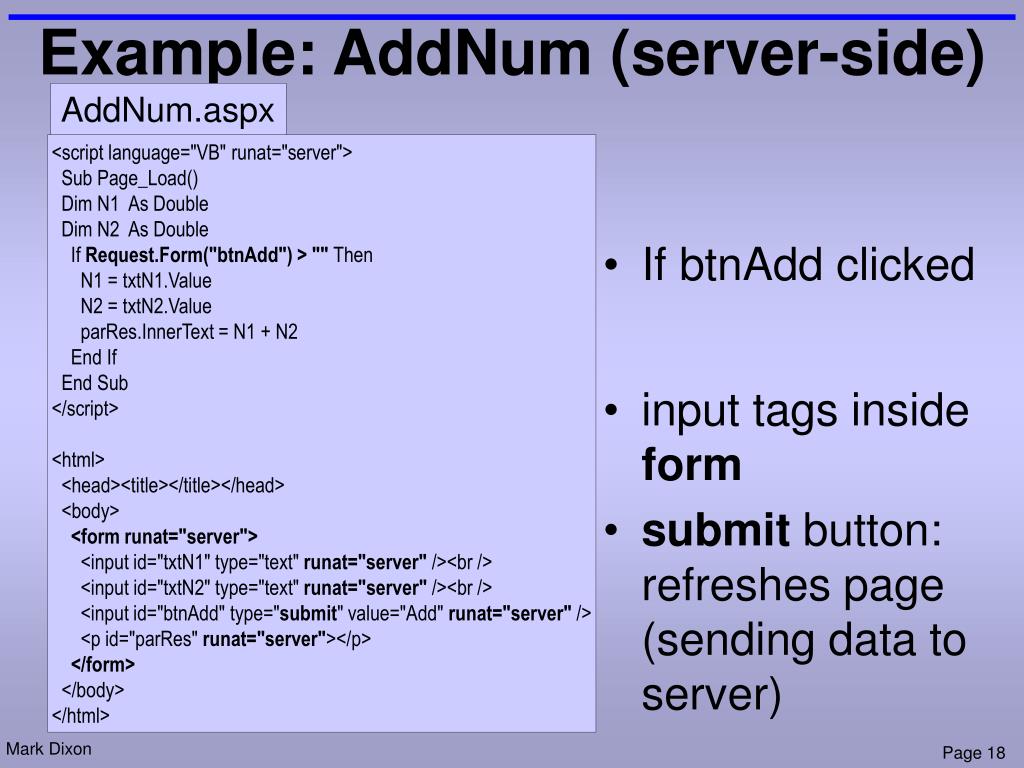

  18. Example: AddNum (server-side) AddNum.aspx • input tags inside form • submit button:refreshes page (sending data to server) <script language="VB" runat="server"> Sub Page_Load() Dim N1 As Double Dim N2 As Double If Request.Form("btnAdd") > "" Then N1 = txtN1.Value N2 = txtN2.Value parRes.InnerText = N1 + N2 End If End Sub </script> <html> <head><title></title></head> <body> <form runat="server"> <input id="txtN1" type="text" runat="server" /><br /> <input id="txtN2" type="text" runat="server" /><br /> <input id="btnAdd" type="submit" value="Add" runat="server" /> <p id="parRes" runat="server"></p> </form> </body> </html> • If btnAdd clicked

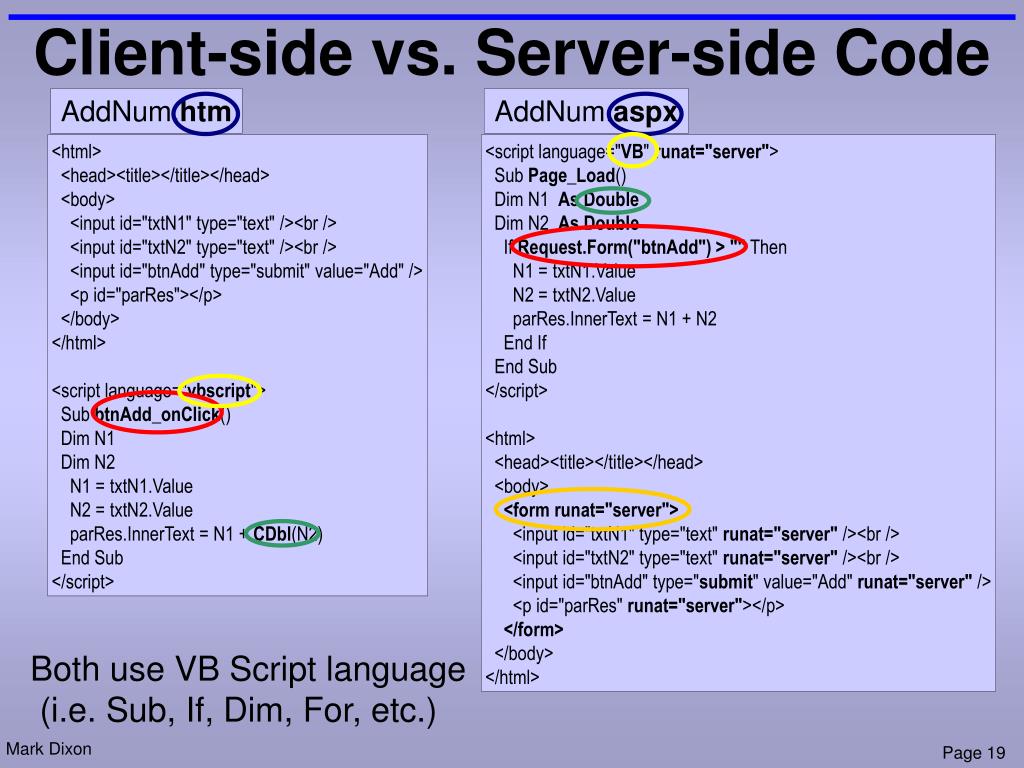

  19. Client-side vs. Server-side Code AddNum.htm AddNum.aspx <html> <head><title></title></head> <body> <input id="txtN1" type="text" /><br /> <input id="txtN2" type="text" /><br /> <input id="btnAdd" type="submit" value="Add" /> <p id="parRes"></p> </body> </html> <script language="vbscript"> Sub btnAdd_onClick() Dim N1 Dim N2 N1 = txtN1.Value N2 = txtN2.Value parRes.InnerText = N1 + CDbl(N2) End Sub </script> <script language="VB" runat="server"> Sub Page_Load() Dim N1 As Double Dim N2 As Double If Request.Form("btnAdd") > "" Then N1 = txtN1.Value N2 = txtN2.Value parRes.InnerText = N1 + N2 End If End Sub </script> <html> <head><title></title></head> <body> <form runat="server"> <input id="txtN1" type="text" runat="server" /><br /> <input id="txtN2" type="text" runat="server" /><br /> <input id="btnAdd" type="submit" value="Add" runat="server" /> <p id="parRes" runat="server"></p> </form> </body> </html> Both use VB Script language (i.e. Sub, If, Dim, For, etc.)

  20. Example: Apples Apples.aspx <script runat="server" language="VB"> Sub Page_Load() If Request.Form("btnGo") > "" Then parRes.InnerHtml = parRes.InnerHtml & "<img src='Apple.gif' />" End If End Sub </script> <html> <head><title>Apples</title></head> <body> <form runat="server"> <input id="btnGo" type="submit" value="Go" runat="server" /> <p id="parRes" runat="server"></p> </form> </body> </html>

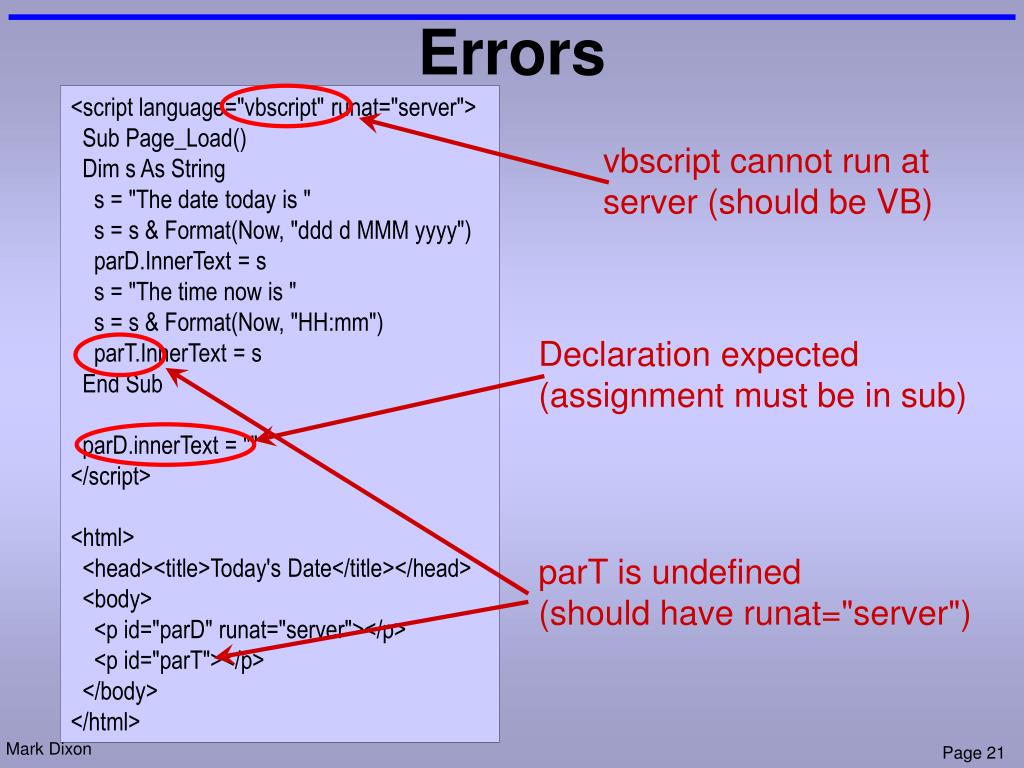

  21. Errors <script language="vbscript" runat="server"> Sub Page_Load() Dim s As String s = "The date today is " s = s & Format(Now, "ddd d MMM yyyy") parD.InnerText = s s = "The time now is " s = s & Format(Now, "HH:mm") parT.InnerText = s End Sub parD.innerText = "" </script> <html> <head><title>Today's Date</title></head> <body> <p id="parD" runat="server"></p> <p id="parT"></p> </body> </html> vbscript cannot run at server (should be VB) Declaration expected(assignment must be in sub) parT is undefined(should have runat="server")

  22. Running your ASP pages • within Visual Studio • Run (play) button (F5) • only available to you on development PC • using Internet Information Services (IIS) • makes PC a server • page available to all computers on internet

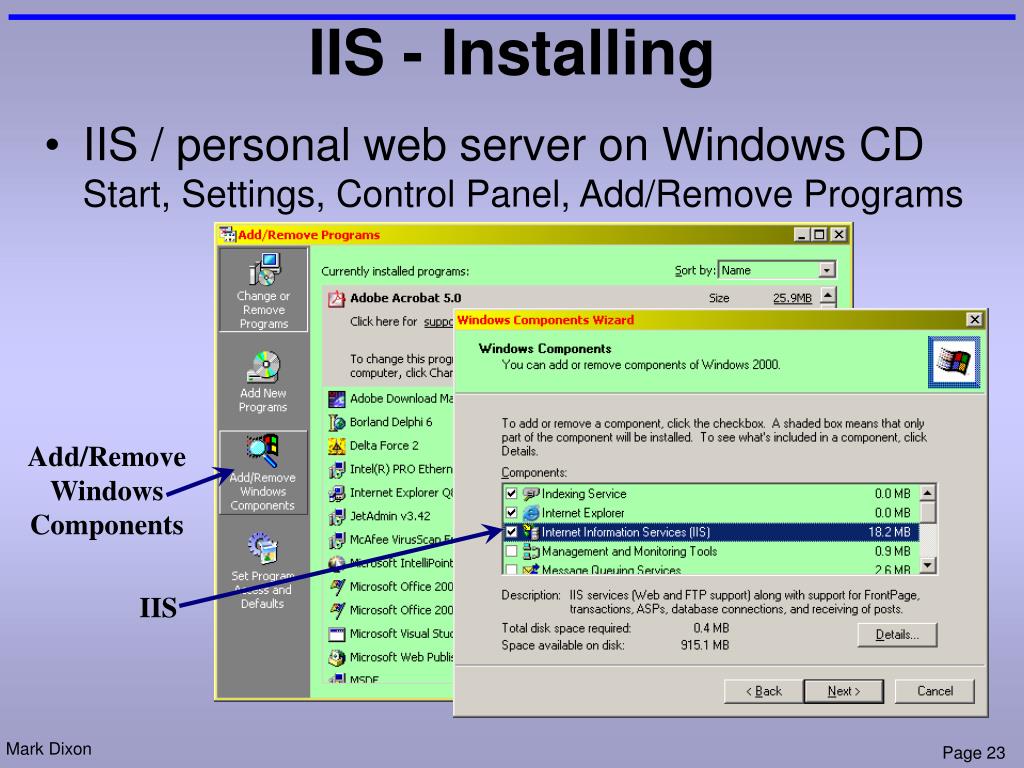

  23. IIS - Installing Add/RemoveWindowsComponents IIS • IIS / personal web server on Windows CDStart, Settings, Control Panel, Add/Remove Programs

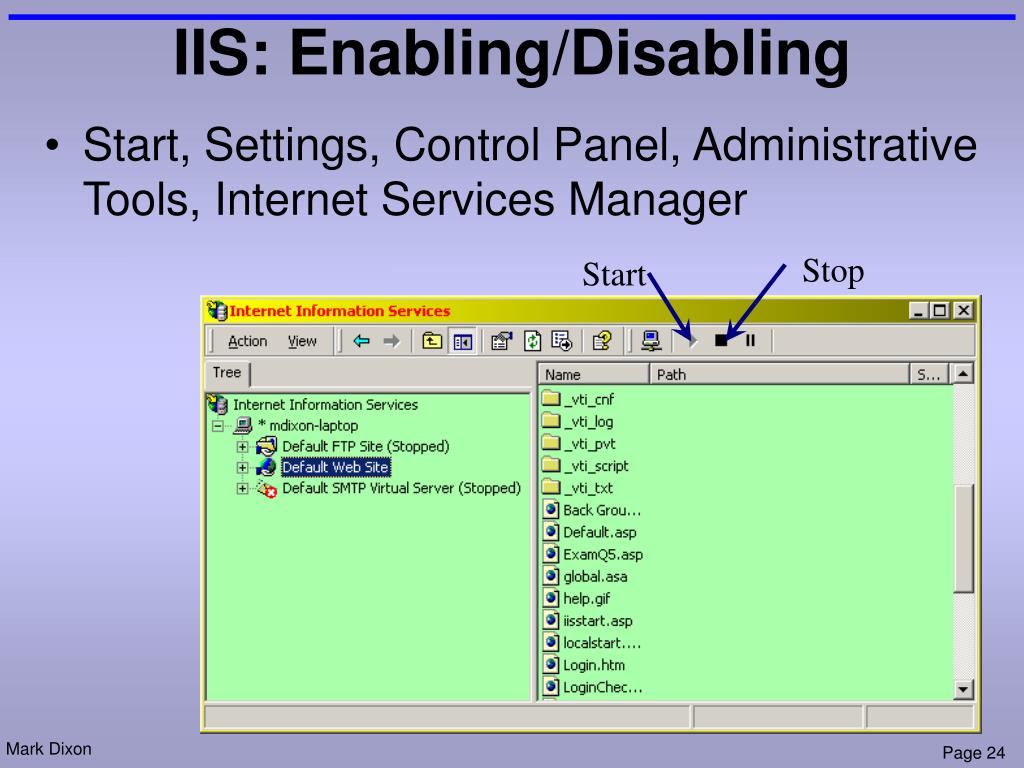

  24. IIS: Enabling/Disabling • Start, Settings, Control Panel, Administrative Tools, Internet Services Manager Stop Start

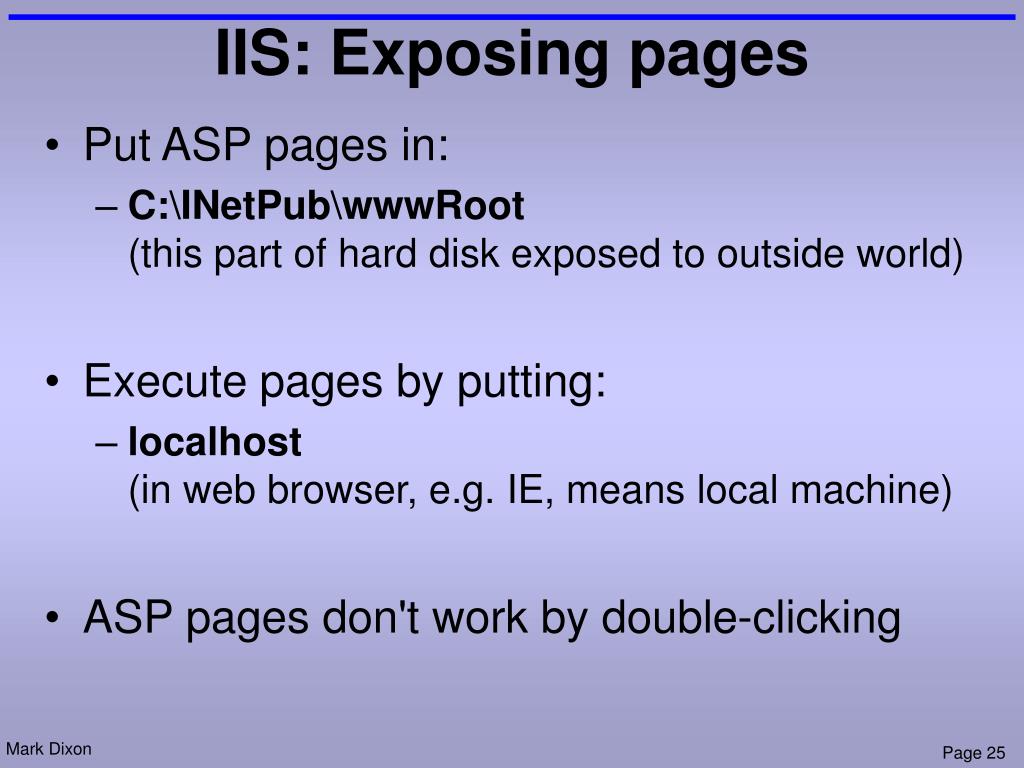

  25. IIS: Exposing pages • Put ASP pages in: • C:\INetPub\wwwRoot(this part of hard disk exposed to outside world) • Execute pages by putting: • localhost(in web browser, e.g. IE, means local machine) • ASP pages don't work by double-clicking

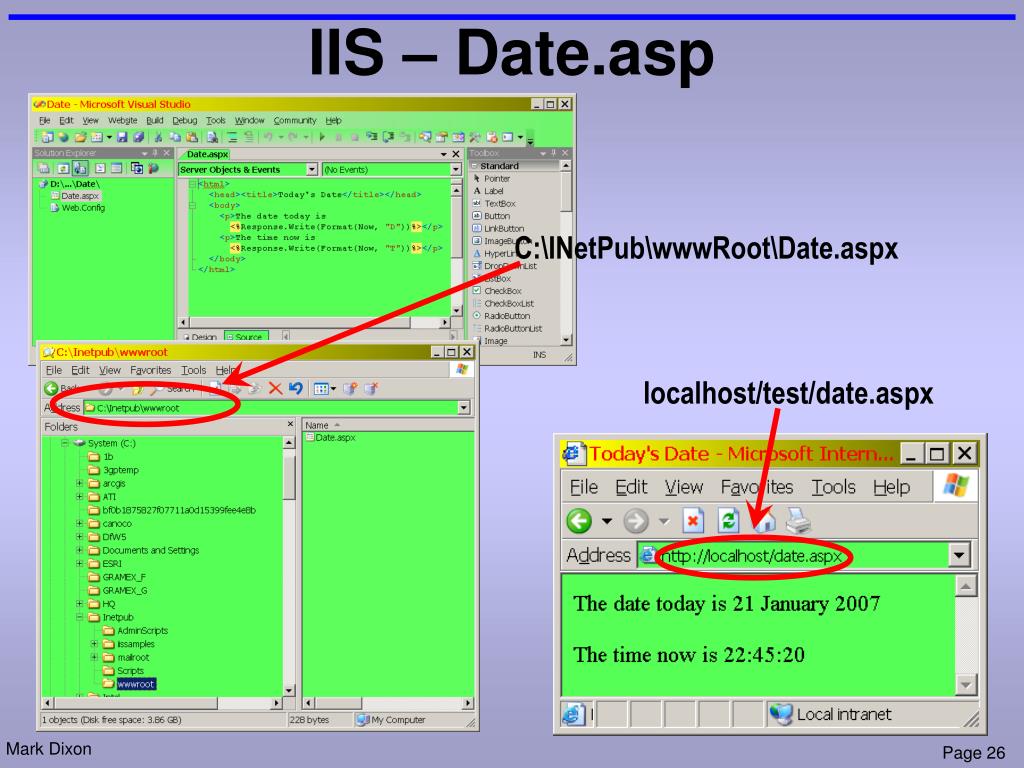

  26. IIS – Date.asp C:\INetPub\wwwRoot\Date.aspx localhost/test/date.aspx

  27. Tutorial Exercise: Login (client-side) • LEARNING OBJECTIVE:see how vulnerable client-side code is • Task 1: Get the Login (v1) example from the lecture working. • Task 2: Use view source – you should be able to see the code.

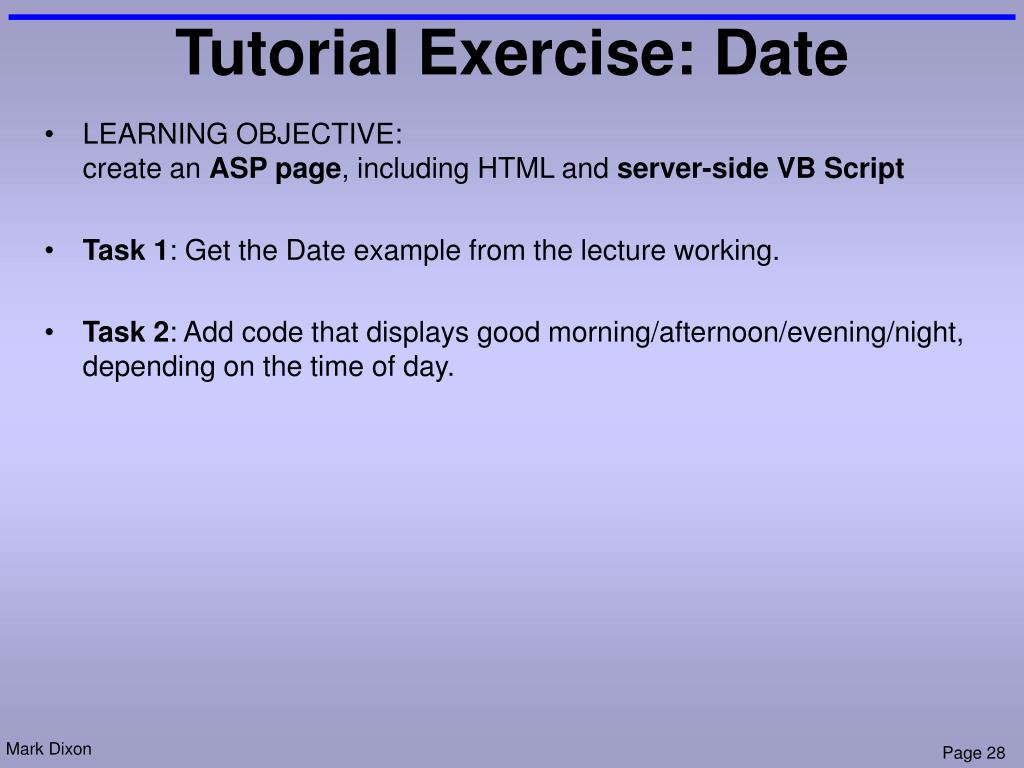

  28. Tutorial Exercise: Date • LEARNING OBJECTIVE:create an ASP page, including HTML and server-sideVB Script • Task 1: Get the Date example from the lecture working. • Task 2: Add code that displays good morning/afternoon/evening/night, depending on the time of day.

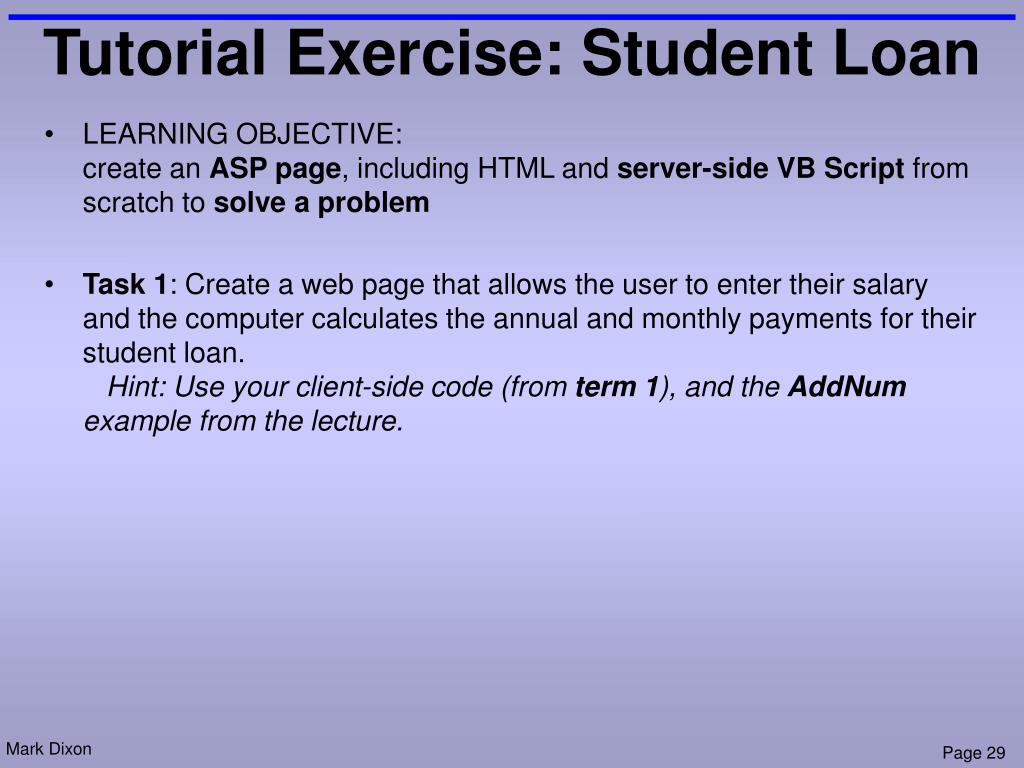

  29. Tutorial Exercise: Student Loan • LEARNING OBJECTIVE:create an ASP page, including HTML and server-sideVB Script from scratch to solve a problem • Task 1: Create a web page that allows the user to enter their salary and the computer calculates the annual and monthly payments for their student loan.Hint: Use your client-side code (from term 1), and the AddNum example from the lecture.

  30. Tutorial Exercise: Login (client-side) • LEARNING OBJECTIVE:create an ASP page, including HTML and server-sideVB Script from scratch to solve a problem • Task 1: Create a login page that uses server-side code to check the username and password entered by the user.Hint: Use the AddNum example as inspiration. Hint2: Use the following code to send the user to the homepage: Response.Redirect("Home.htm") • Task 2: Use view source – you should NOT be able to see the code.

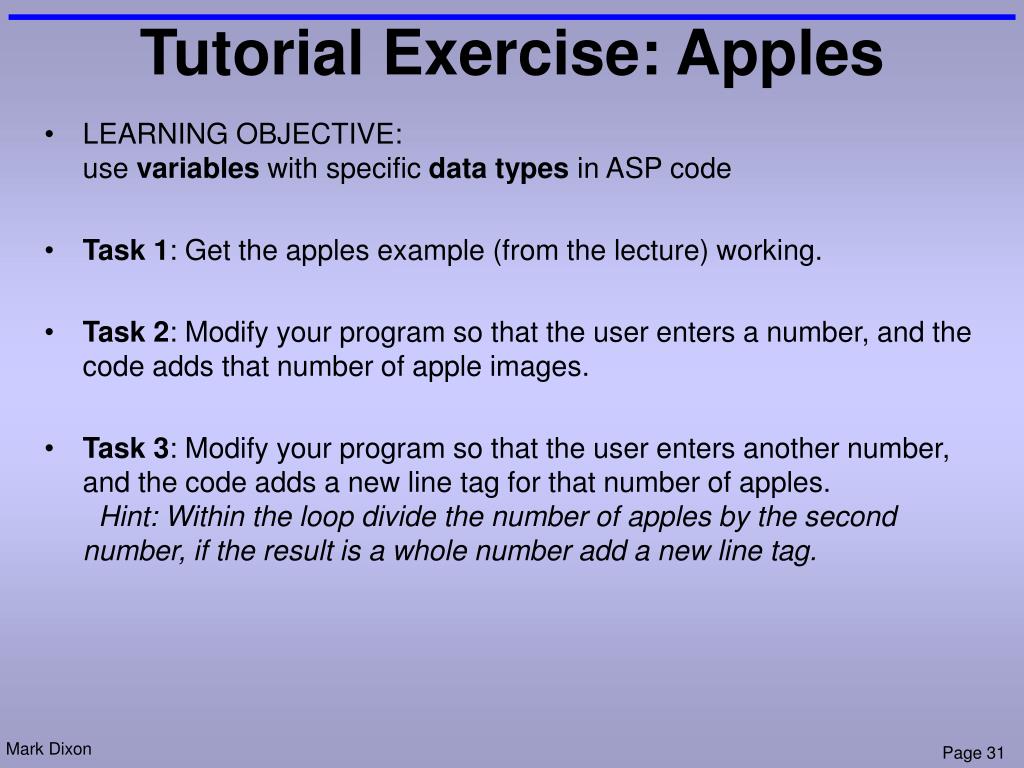

  31. Tutorial Exercise: Apples • LEARNING OBJECTIVE:use variables with specific data types in ASP code • Task 1: Get the apples example (from the lecture) working. • Task 2: Modify your program so that the user enters a number, and the code adds that number of apple images. • Task 3: Modify your program so that the user enters another number, and the code adds a new line tag for that number of apples. Hint: Within the loop divide the number of apples by the second number, if the result is a whole number add a new line tag.
