  1. A Constraint Language Approach toGrid Resource Selection Chuang Liu, Ian Foster Distributed System Lab University of Chicago http://dsl.cs.uchicago.edu Work performed within the Grid Application Development Software (GrADS) Project of the NSF Next Generation Software Program

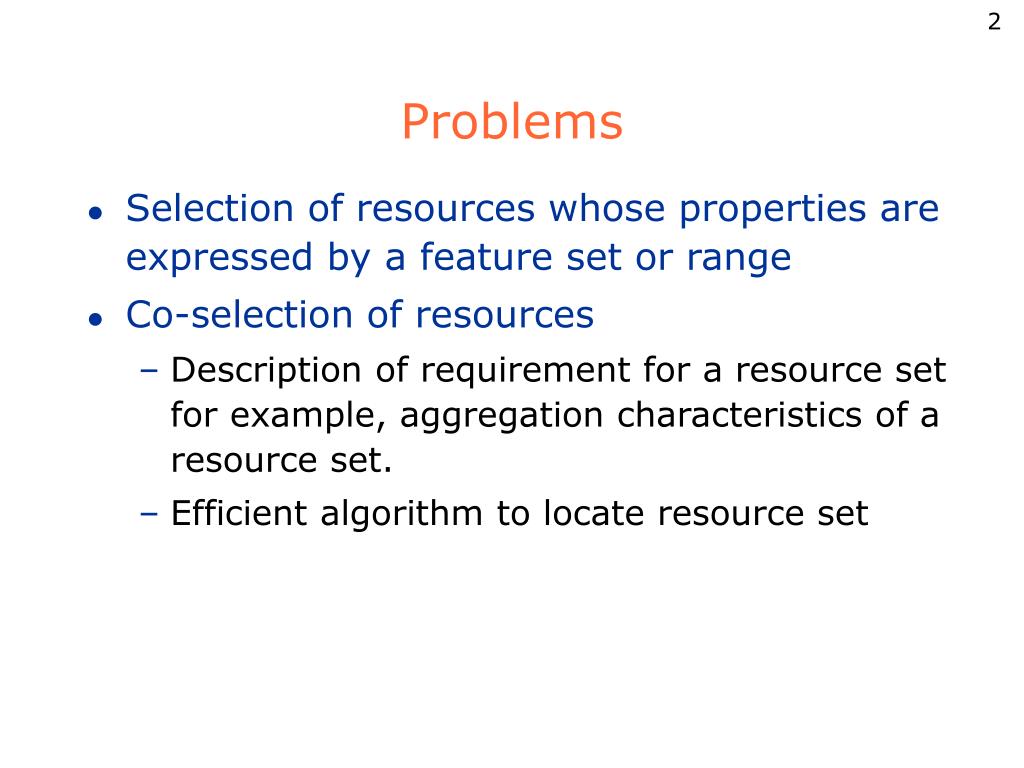

  2. Problems • Selection of resources whose properties are expressed by a feature set or range • Co-selection of resources • Description of requirement for a resource set for example, aggregation characteristics of a resource set. • Efficient algorithm to locate resource set

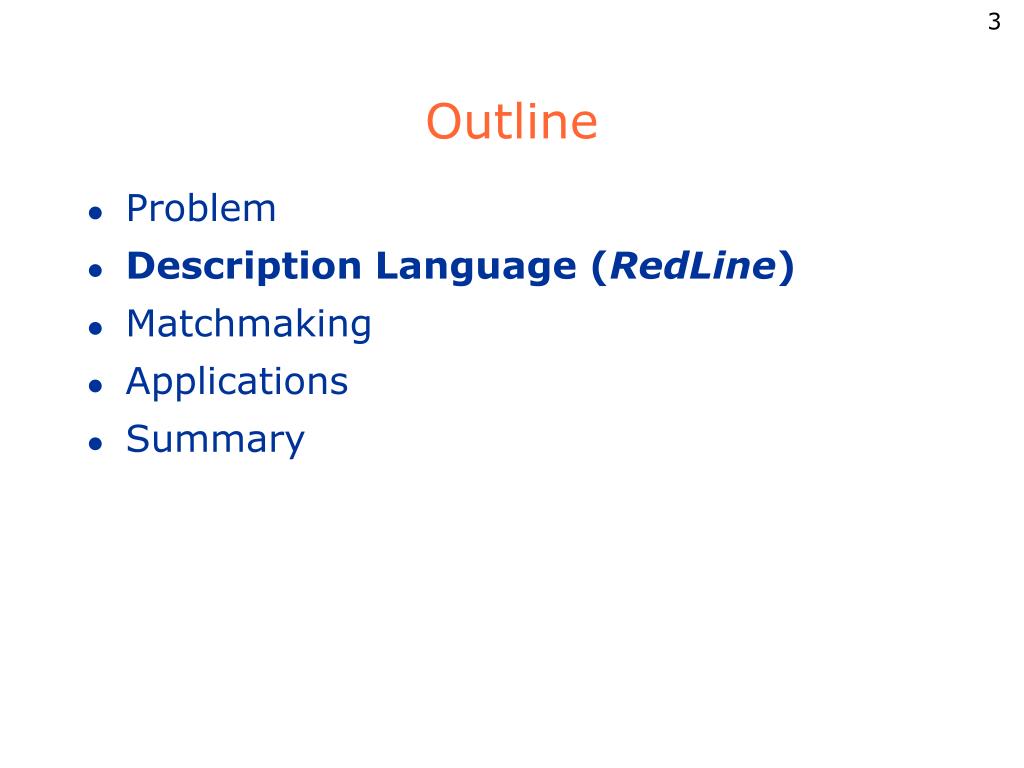

  3. Outline • Problem • Description Language (RedLine) • Matchmaking • Applications • Summary

  4. Description Language

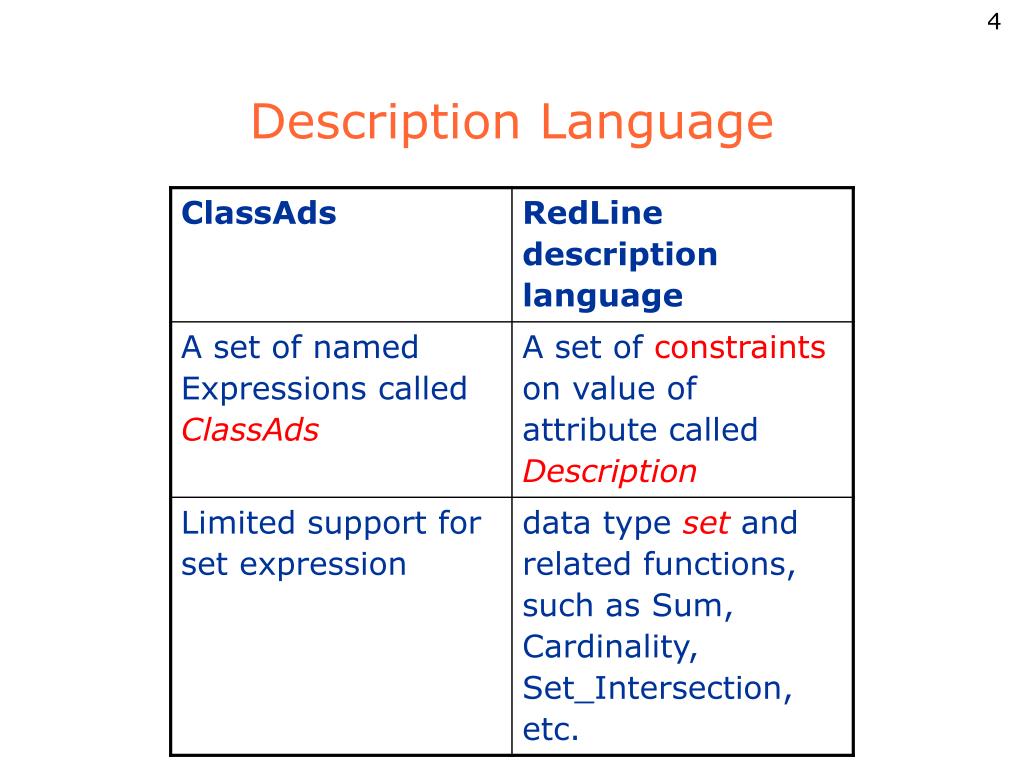

  5. Description Language • Use constraints to describe attributes.

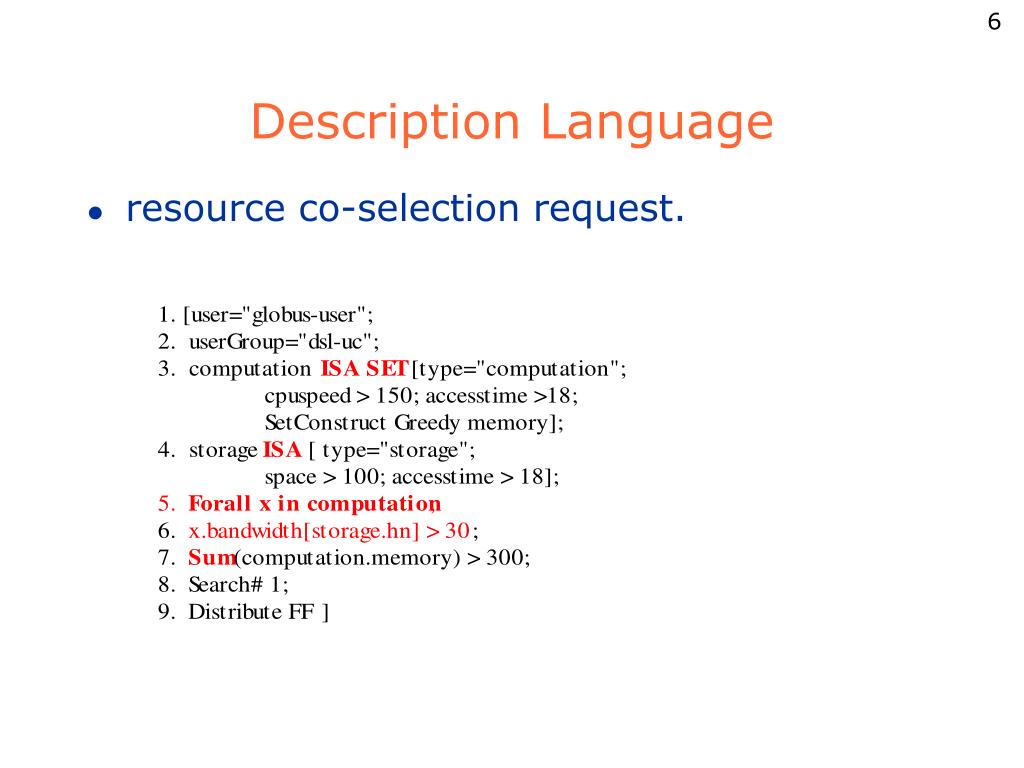

  6. Description Language • resource co-selection request.

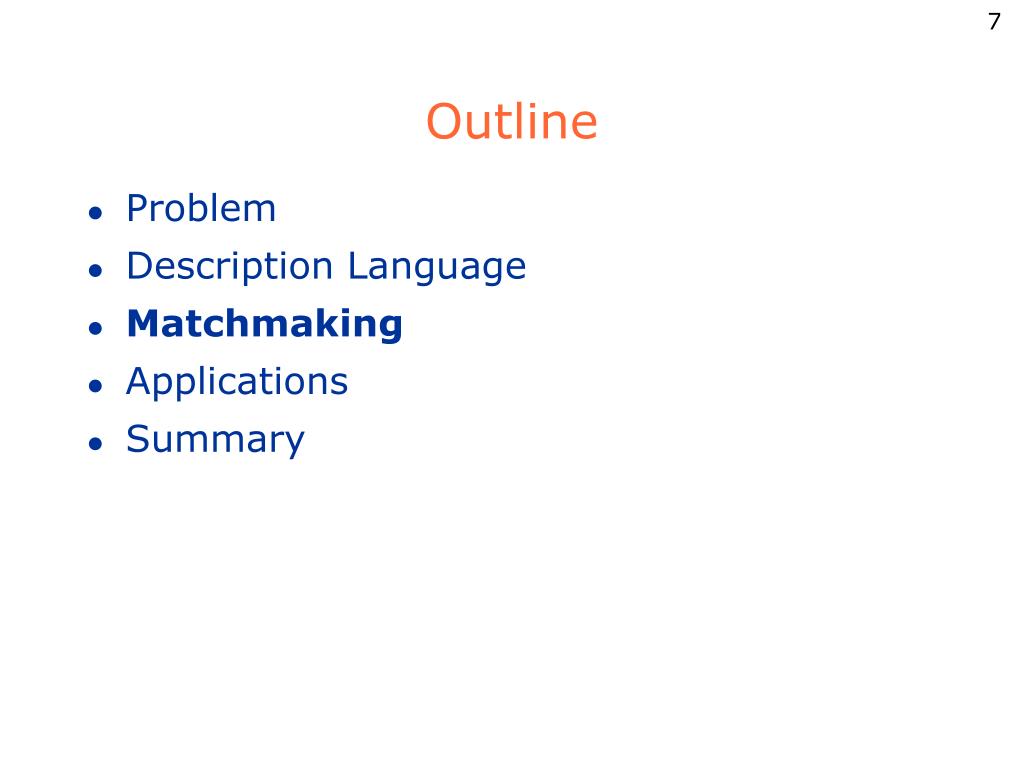

  7. Outline • Problem • Description Language • Matchmaking • Applications • Summary

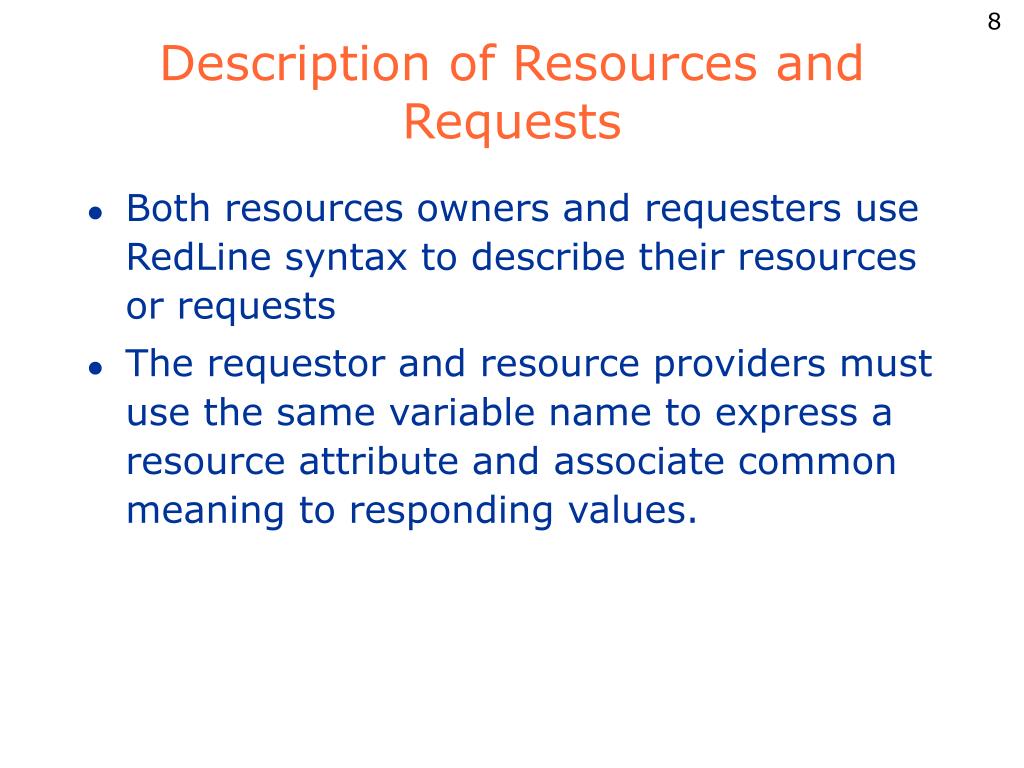

  8. Description of Resources and Requests • Both resources owners and requesters use RedLine syntax to describe their resources or requests • The requestor and resource providers must use the same variable name to express a resource attribute and associate common meaning to responding values.

  9. Definition of Match • A constraint C is satisfiable if there exists a value assignment to every variable v Î vars(C) such that C holds. Otherwise, it is unsatisfiable. vars(C) denotes the set of variables occurring in constraint C. • RedLine defines bilateral match: Two descriptions C1 and C2 match each other if C1  C2 is satisfiable. Scope of satisfying Capability Scope of resource Capability

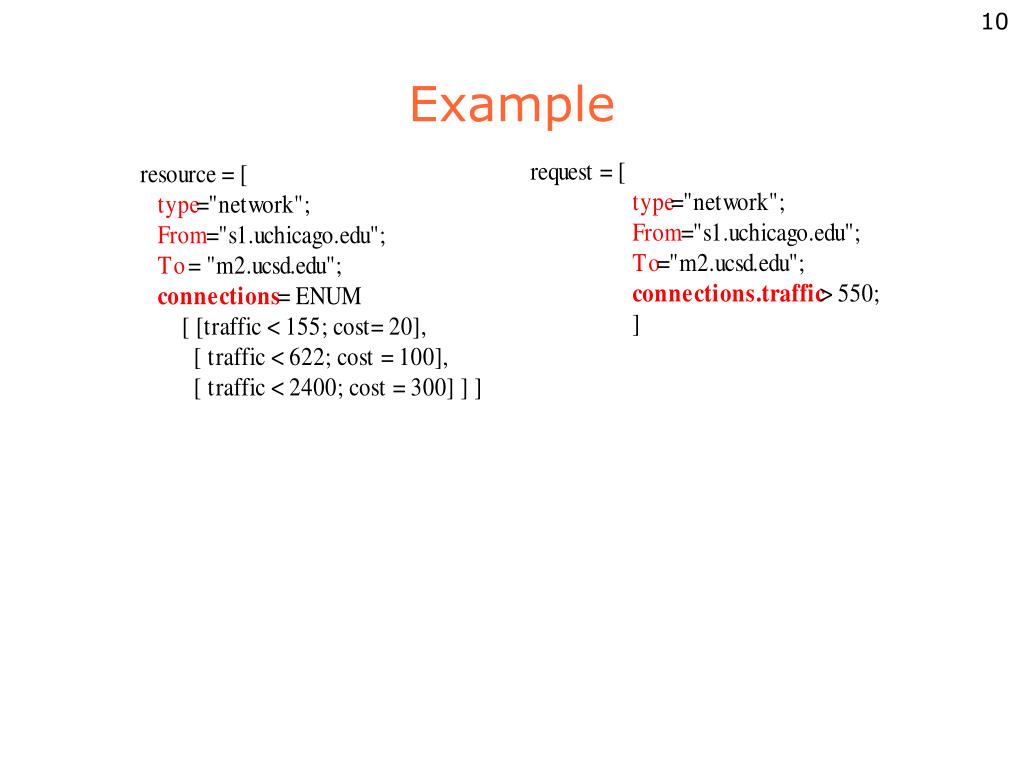

  10. Example

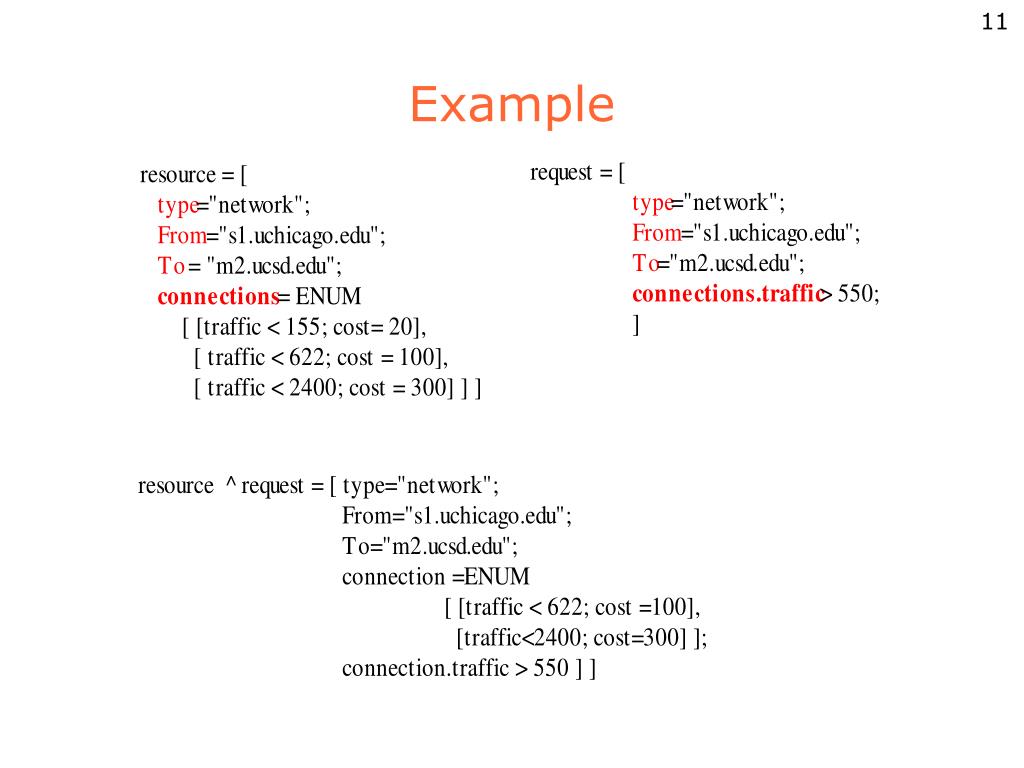

  11. Example

  12. Definition of Match • RedLine also defines multilateral match: Descriptions D1, D2, … , Dnmatch a description R if D1, D2, …, Dn is an assignment to variables with description or description set type in description R and R is still satisfiable after replacing these variables with their values.

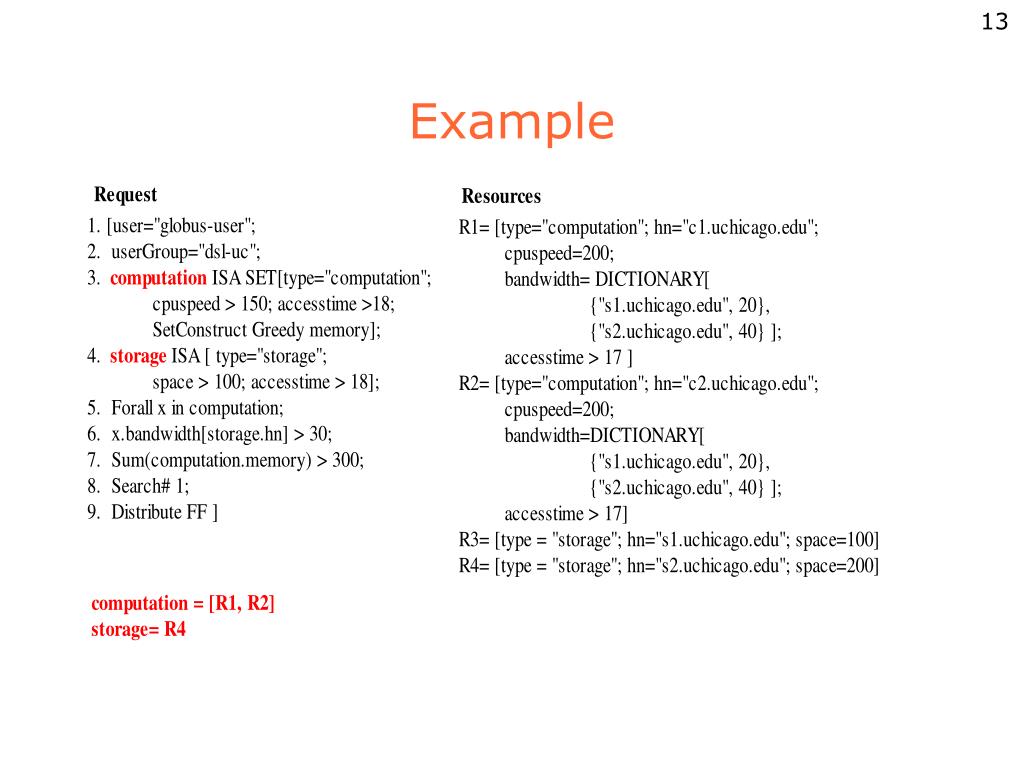

  13. Example

  14. Matchmaking Problem as CSP • A constraint satisfaction problem, or CSP, • A Constraint on variables • Every variable has a finite value domain • Matchmaking as CSP problem • Associate a variable with every requested resource called resource variable • Domain of every resource variable are available resources

  15. Example

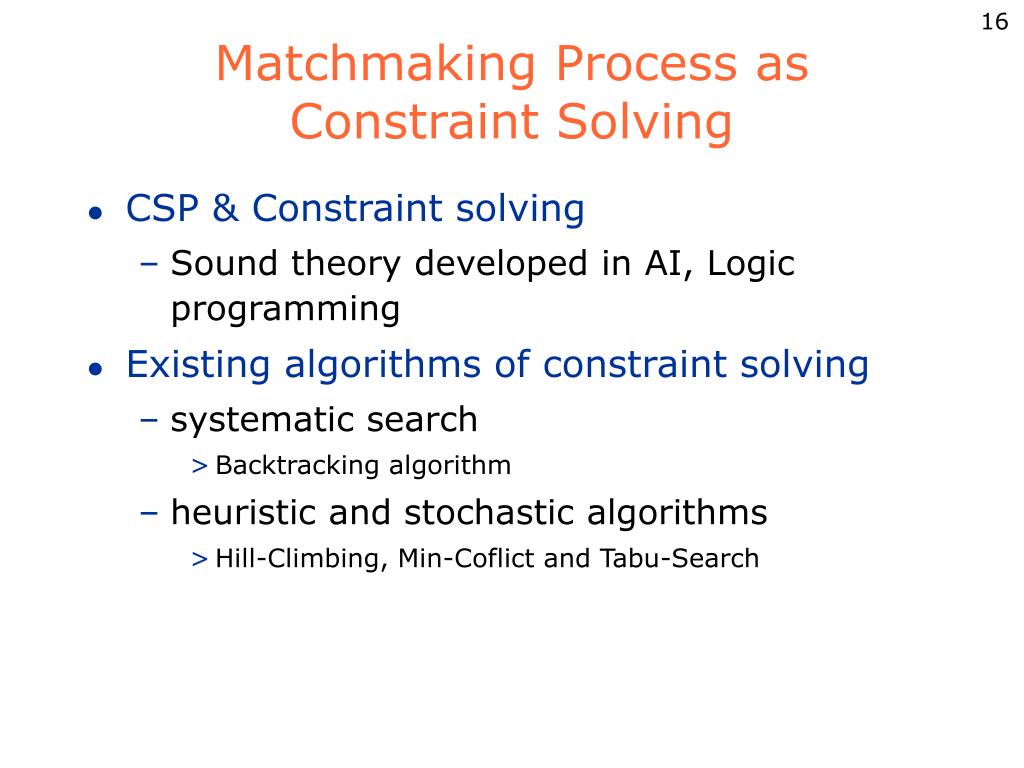

  16. Matchmaking Process as Constraint Solving • CSP & Constraint solving • Sound theory developed in AI, Logic programming • Existing algorithms of constraint solving • systematic search • Backtracking algorithm • heuristic and stochastic algorithms • Hill-Climbing, Min-Coflict and Tabu-Search

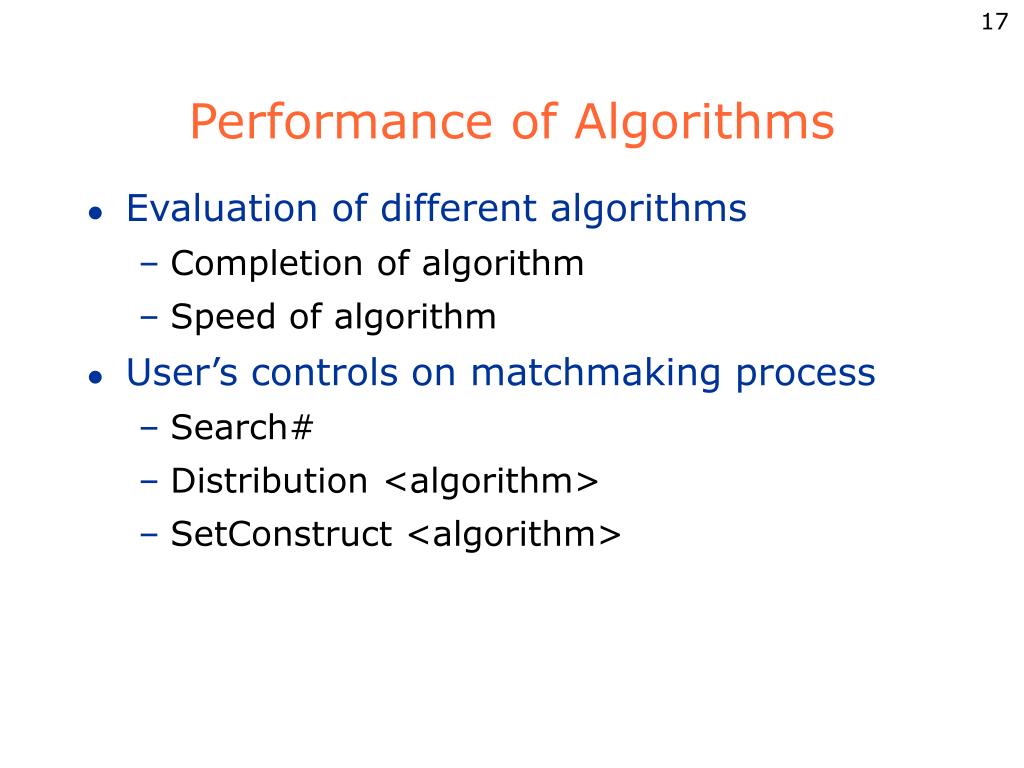

  17. Performance of Algorithms • Evaluation of different algorithms • Completion of algorithm • Speed of algorithm • User’s controls on matchmaking process • Search# • Distribution <algorithm> • SetConstruct <algorithm>

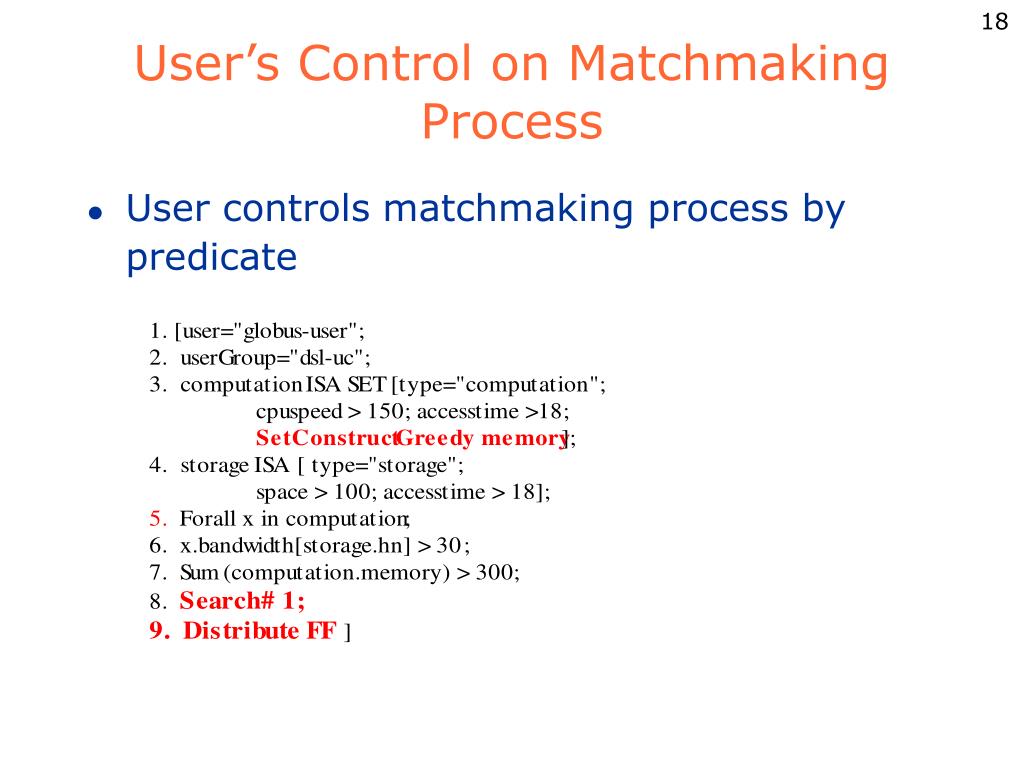

  18. User’s Control on Matchmaking Process • User controls matchmaking process by predicate

  19. Summary • Describe resource properties whose value is expressed as a feature set or a range • Describe set-based requirement for a resource set • Formalize matchmaking problem into a Constraint Satisfaction problem and utilize algorithms developed in CSP area to solve it • Future: Service Interface implementation, Organization of descriptions in matchmaker, and study performance of the algorithm in in realistic application settings • Thanks to • NSF Next Generation Software Program • Alain Roy, GrADS colleagues • http://dsl.cs.uchicago.edu

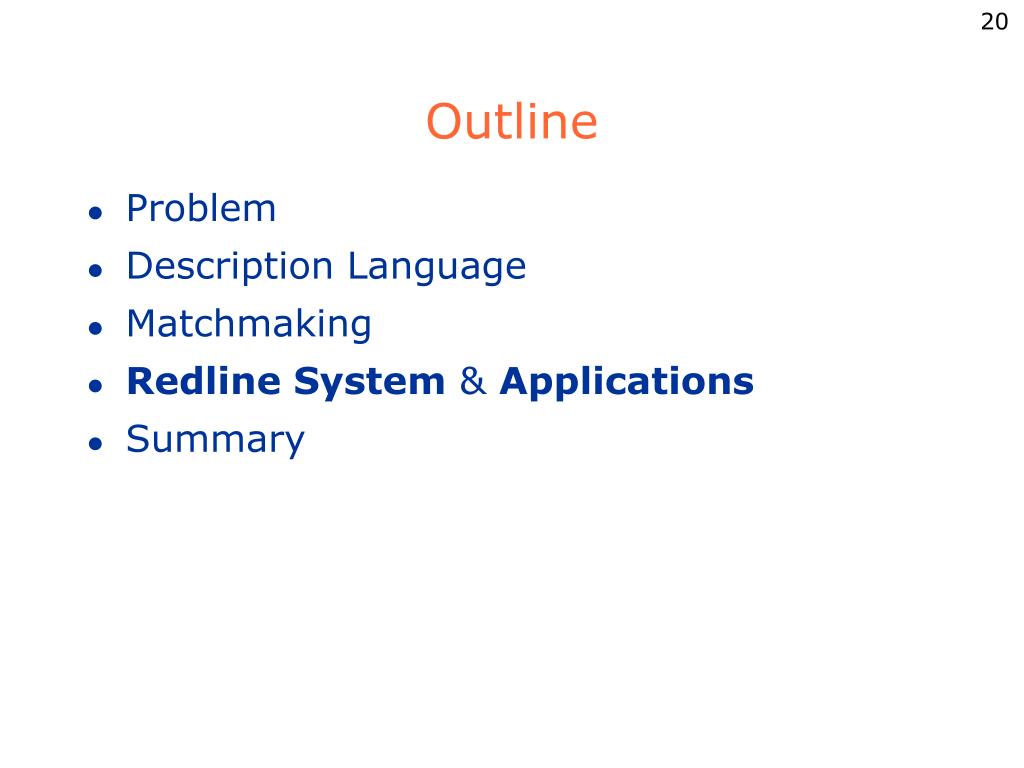

  20. Outline • Problem • Description Language • Matchmaking • Redline System & Applications • Summary

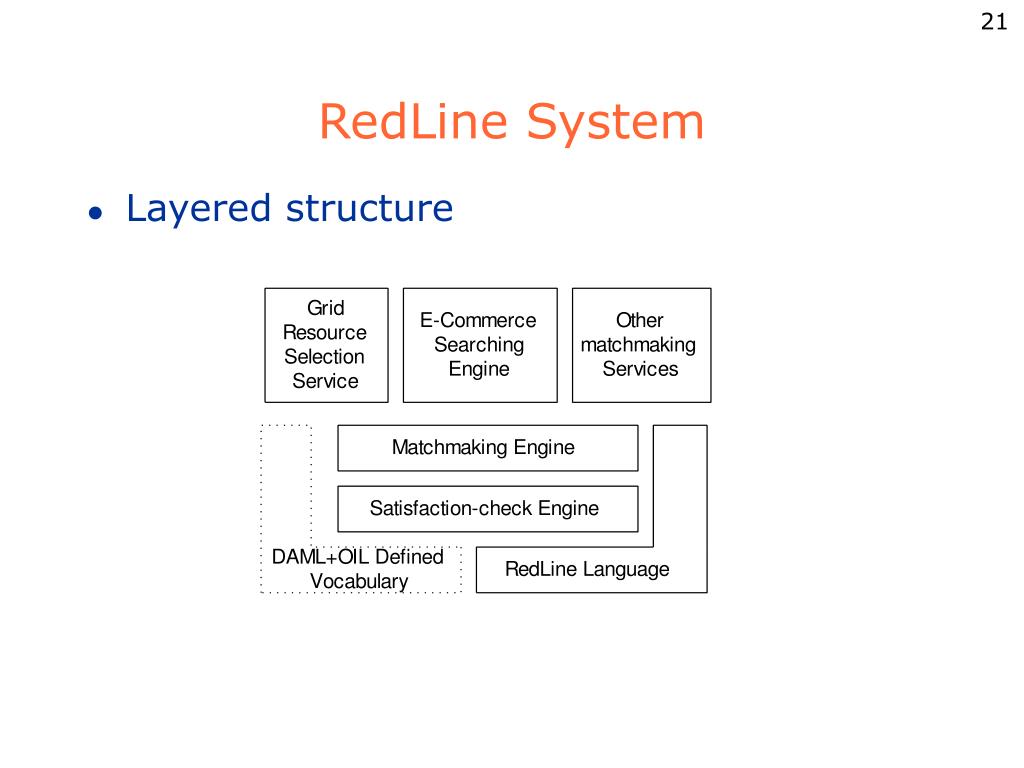

  21. RedLine System • Layered structure

  22. Applications • Data Grid Example

  23. Applications • Access Grid Example

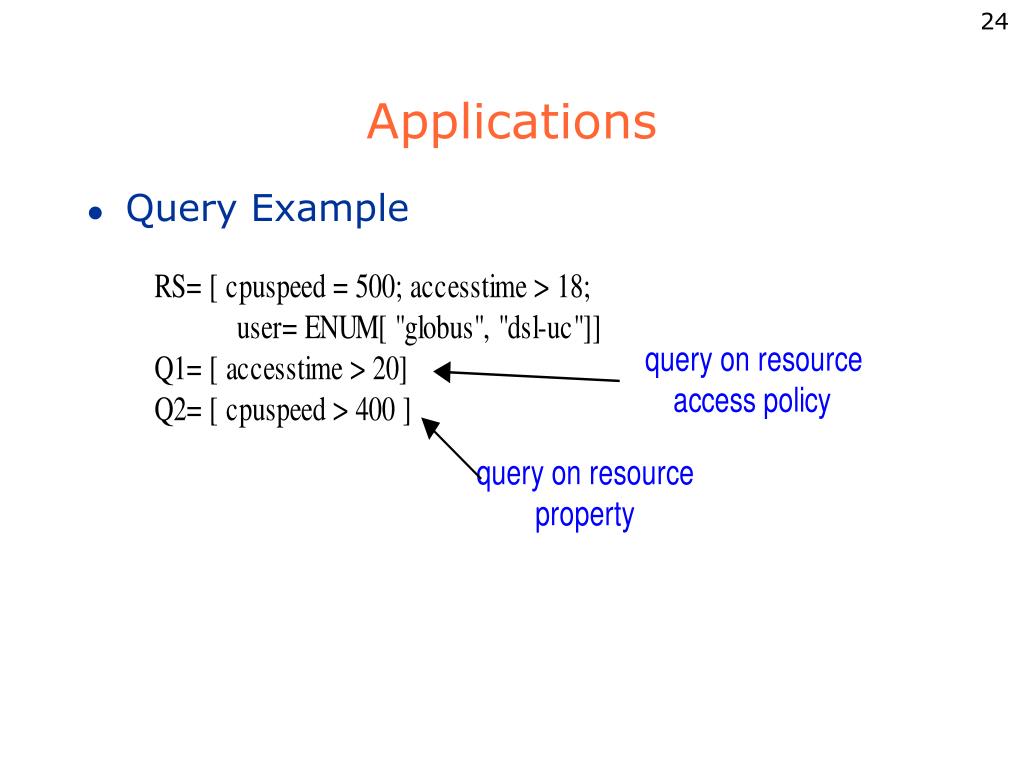

  24. Applications • Query Example

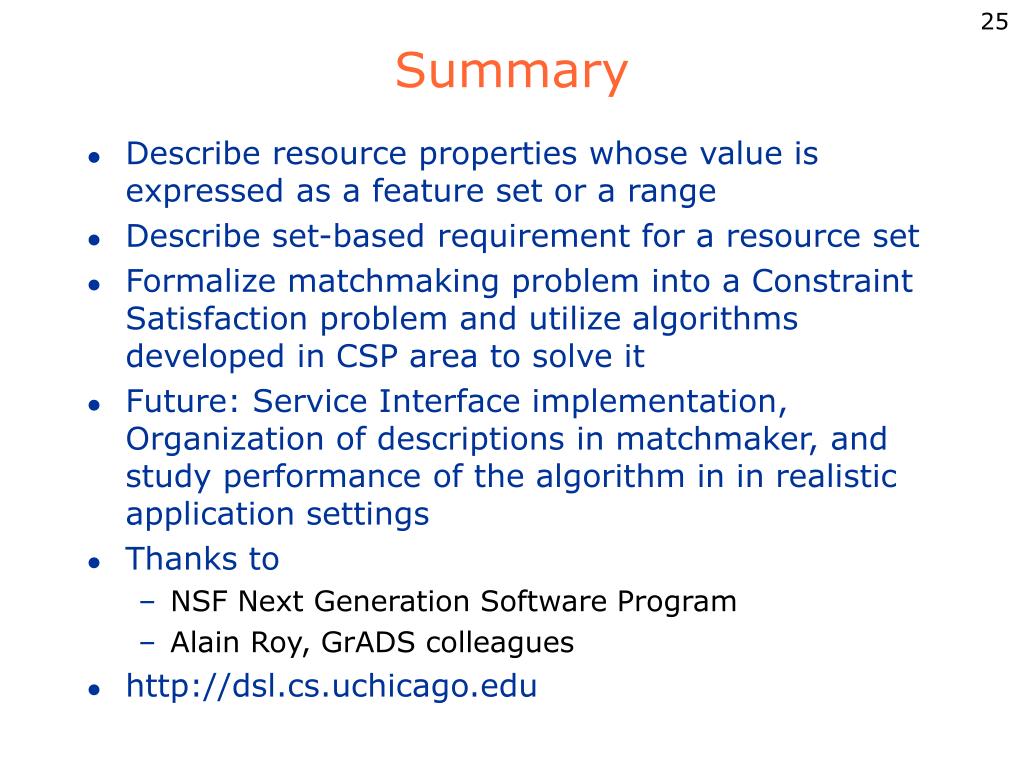

  25. Summary • Describe resource properties whose value is expressed as a feature set or a range • Describe set-based requirement for a resource set • Formalize matchmaking problem into a Constraint Satisfaction problem and utilize algorithms developed in CSP area to solve it • Future: Service Interface implementation, Organization of descriptions in matchmaker, and study performance of the algorithm in in realistic application settings • Thanks to • NSF Next Generation Software Program • Alain Roy, GrADS colleagues • http://dsl.cs.uchicago.edu

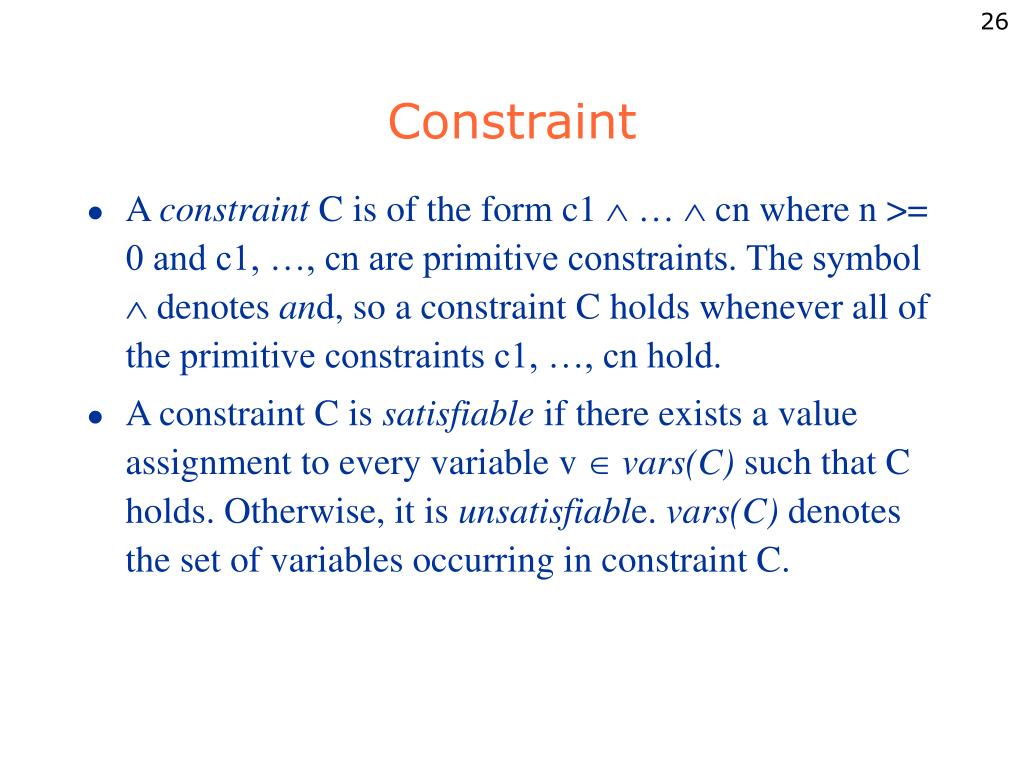

  26. Constraint • A constraint C is of the form c1 Ù … Ù cn where n >= 0 and c1, …, cn are primitive constraints. The symbol Ù denotes and, so a constraint C holds whenever all of the primitive constraints c1, …, cn hold. • A constraint C is satisfiable if there exists a value assignment to every variable v Î vars(C) such that C holds. Otherwise, it is unsatisfiable. vars(C) denotes the set of variables occurring in constraint C.

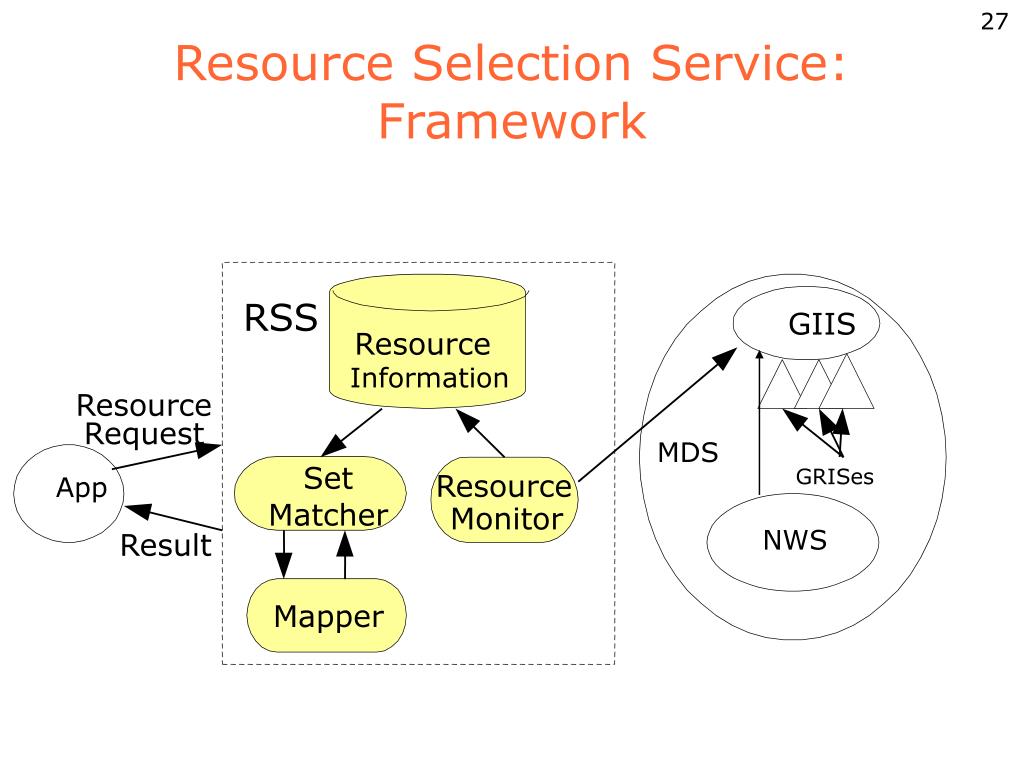

  27. Resource Selection Service: Framework RSS GIIS Resource Information Resource Request MDS Set GRISes Resource App Matcher Monitor NWS Result Mapper
