  1. PH24010 MathCAD More Curve Fitting

  2. Previously on PH24010 • Linear Fitting • slope(), intercept() • line() • Pre-process Y-data: • y = k/x • y = ekx

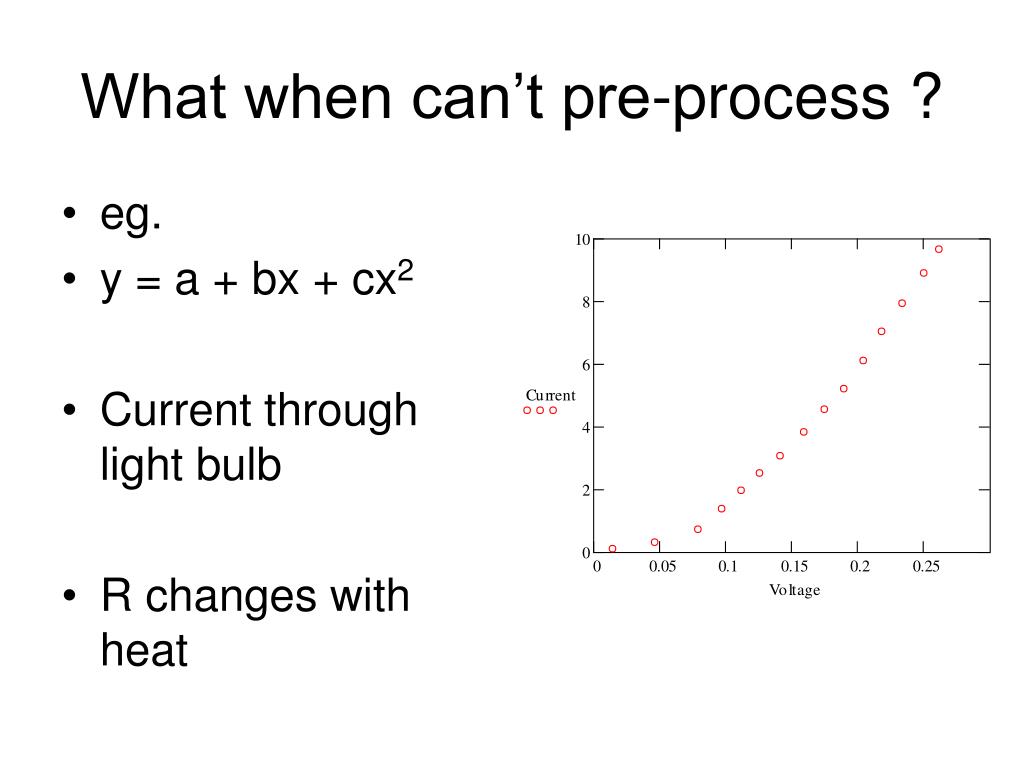

  3. What when can’t pre-process ? • eg. • y = a + bx + cx2 • Current through light bulb • R changes with heat

  4. linfit() • Fitting routine for ‘linear’ combinations of functions. • eg: y = A + B ln(x) + C ex + D x3 Find A,B,C & D to give best fit to data. • Needs ‘vector of functions’

  5. A vector of functions • Define function of variable x • Create vector with n rows & 1 column • Fill placeholders with expressions involving x

  6. Lightbulb Example • Quadratic • A + B x + C x2 • Call linfit() to get coeffients

  7. Create model from linfit() results • Explicitly put Coeffs into model • better to use vector maths…(dot product)

  8. Compare model with data

  9. Peak fitting • Applications in spectroscopy • Gaussian peak • need to find: • position • amplitude • background • width

  10. Gaussian Peak Fit

  11. genfit() • Generalised fit of any function • Need: • model function • partial derivatives of model wrt parameters • vector of initial guesses for each parameter

  12. Gaussian Peak Function • Where: • y0 is the background level • m is the x value of the peak centre • w is the width of the peak at half amplitude • A is the amplitude of the peak maximum

  13. Function parameters • Re-write as P0, P1, P2 … P0 is the background level (y0) P1 is the amplitude of the peak maximum (A) P2 is the x value of the peak centre (m) P3 is the width of the peak at half amplitude (w)

  14. Form Partial Derivatives • Use symbolic differentiation

  15. Create Function Vector for genfit() • Function takes 2 parameters: • Independent variable, x • Parameter Vector, P • Re-write P0,P1,P2 etc to use vector subscripts P0, P1, P2

  16. Vector function for Gaussian fit • Function to fit • dF/dP0 • dF/dP1 • dF/dP2 • dF/dP3

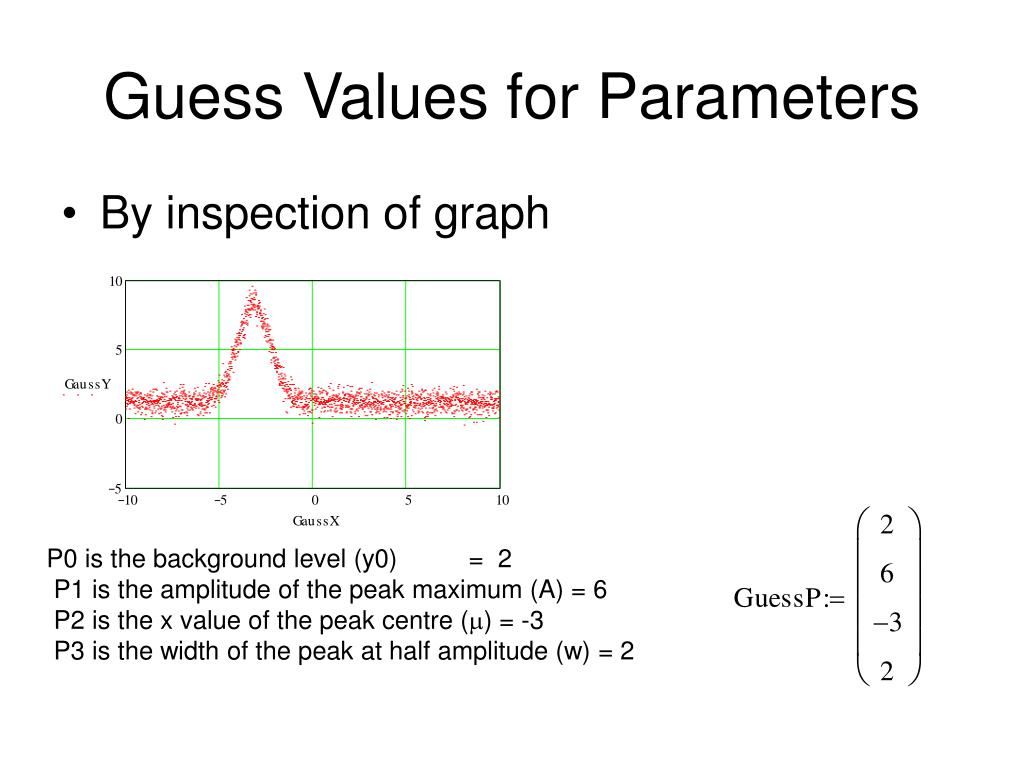

  17. Guess Values for Parameters • By inspection of graph P0 is the background level (y0) = 2 P1 is the amplitude of the peak maximum (A) = 6 P2 is the x value of the peak centre (m) = -3 P3 is the width of the peak at half amplitude (w) = 2

  18. Call genfit() • Form model as before from coeffients & fit function Use vector subscript to extract correct function from vector function

  19. Plot model with data
