  1. Power Point Prepared By N K Srivastava KV NTPC Shaktinagar

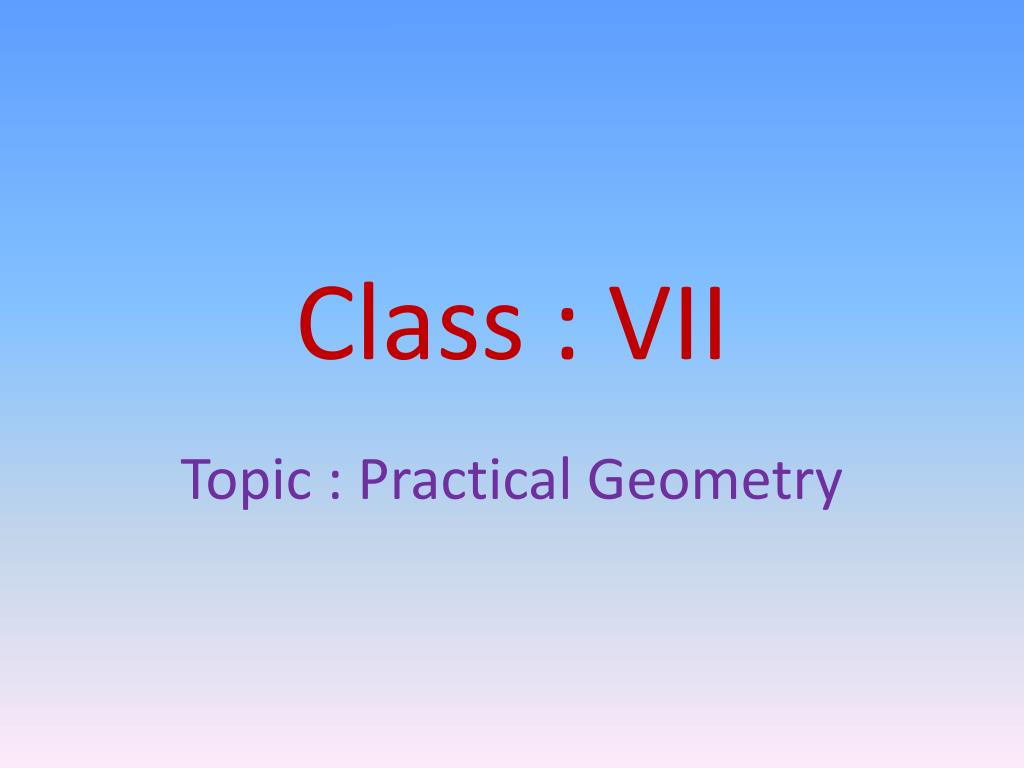

  2. Class : VII Topic : Practical Geometry

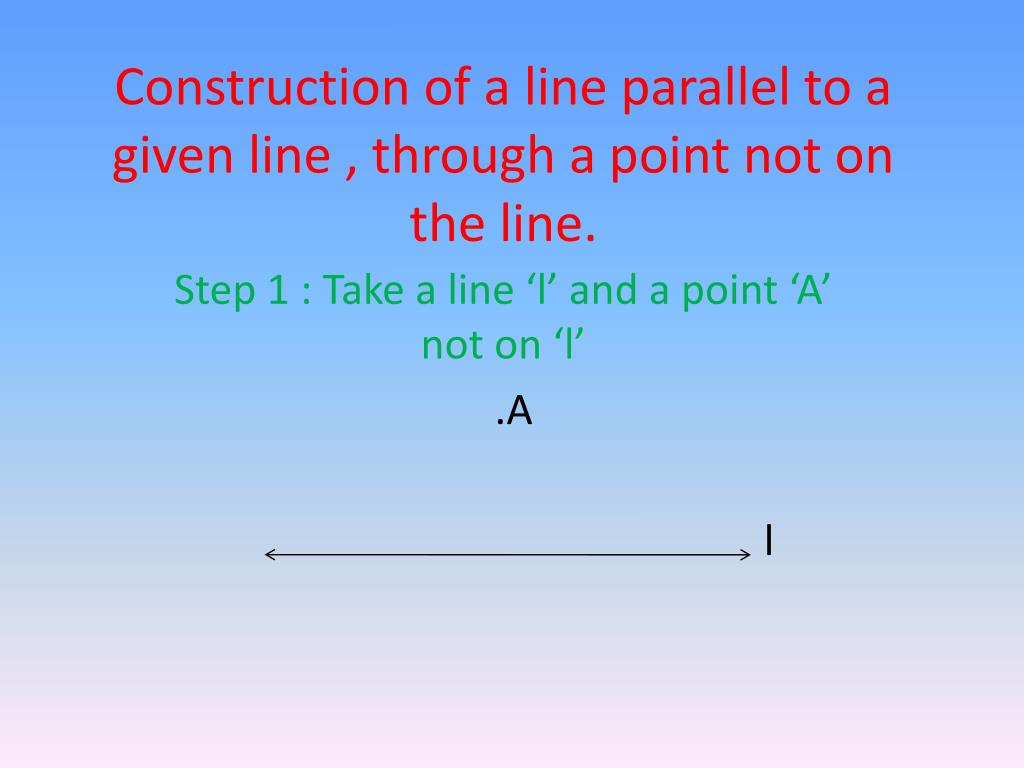

  3. Construction of a line parallel to a given line , through a point not on the line. Step 1 : Take a line ‘l’ and a point ‘A’ not on ‘l’ .A l

  4. Step 2: Take any point B on ‘l’ and join B to A . A l B

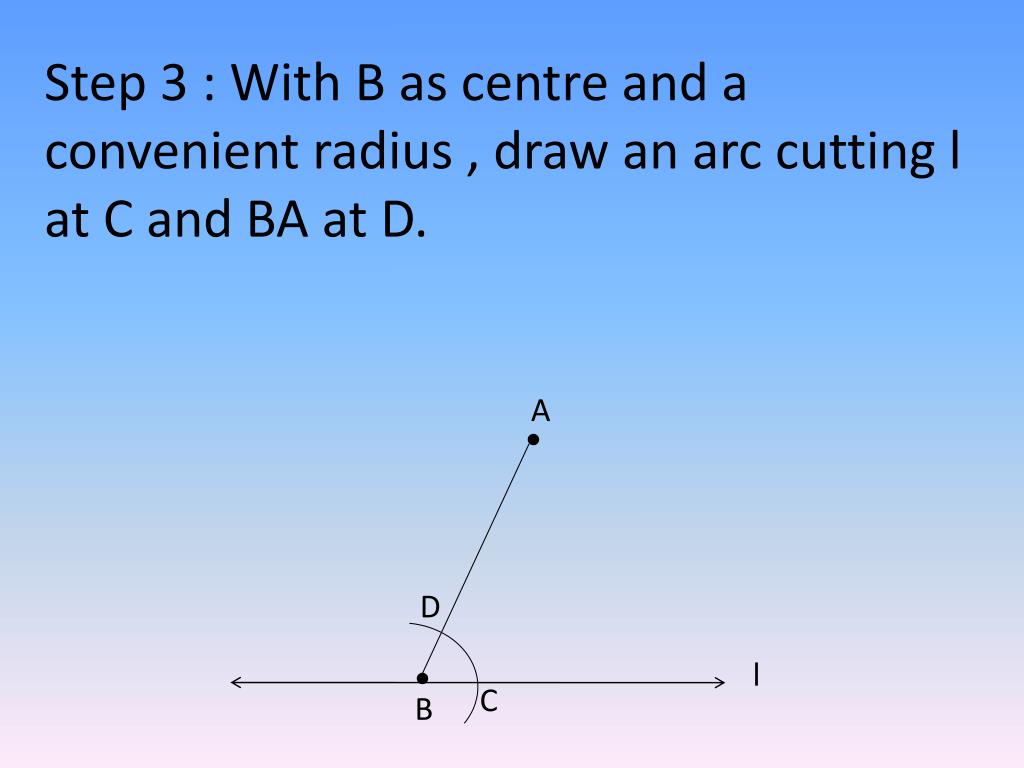

  5. Step 3 : With B as centre and a convenient radius , draw an arc cutting l at C and BA at D. A D l C B

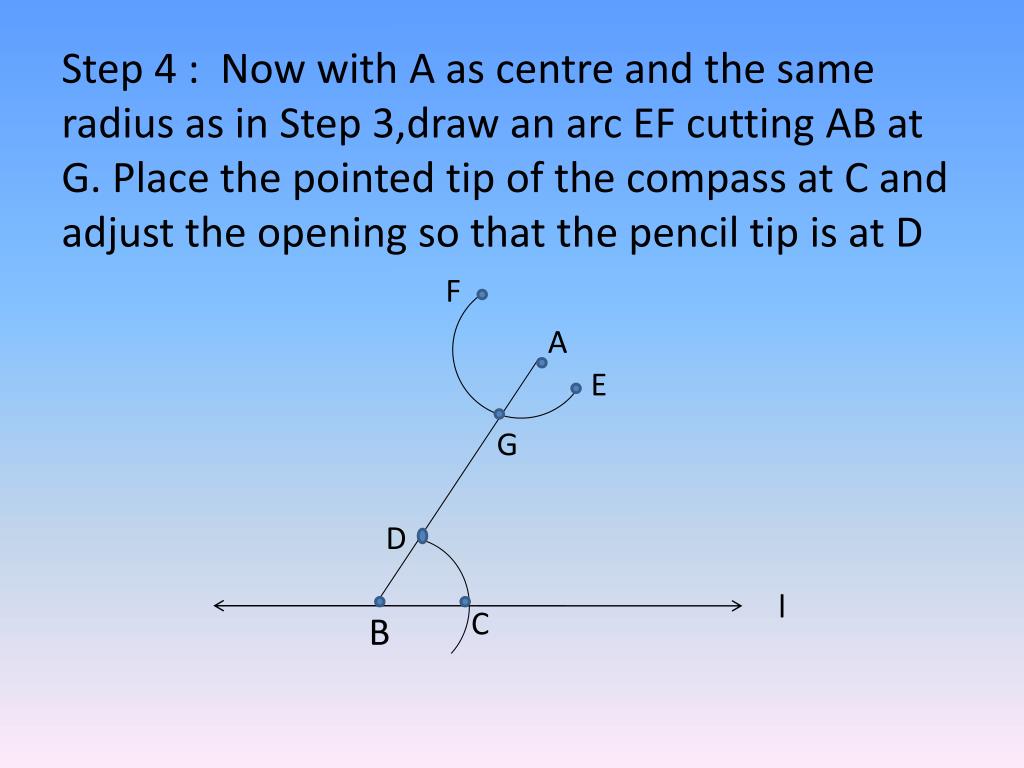

  6. Step 4 : Now with A as centre and the same radius as in Step 3,draw an arc EF cutting AB at G. Place the pointed tip of the compass at C and adjust the opening so that the pencil tip is at D F A E G D B l C

  7. Step 5 : With the same opening as in step 4 and with G as centre draw an arc cutting the arc EF at H. F A H E G D B l C

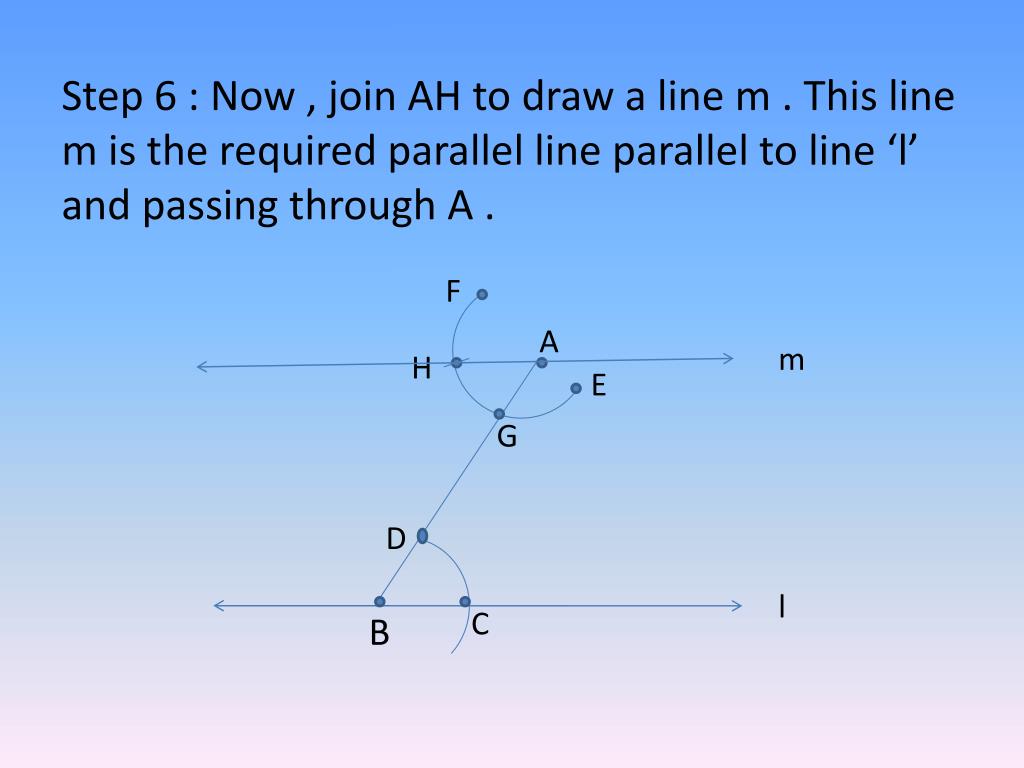

  8. Step 6 : Now , join AH to draw a line m . This line m is the required parallel line parallel to line ‘l’ and passing through A . F A m H E G D B l C

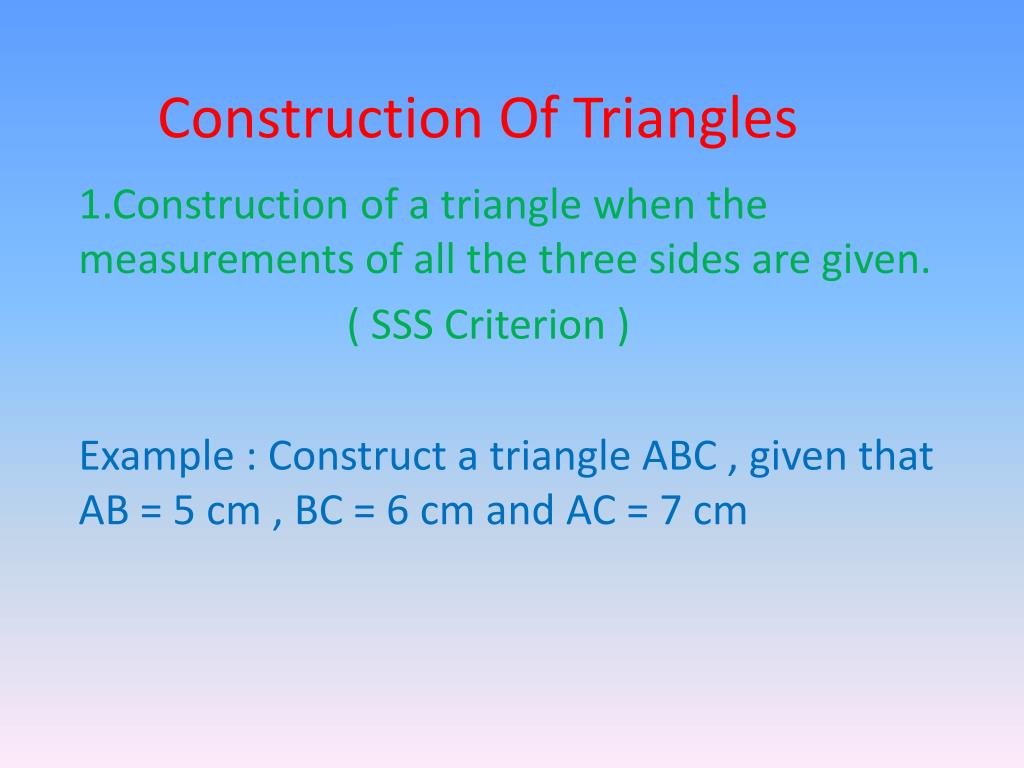

  9. Construction Of Triangles 1.Construction of a triangle when the measurements of all the three sides are given. ( SSS Criterion ) Example : Construct a triangle ABC , given that AB = 5 cm , BC = 6 cm and AC = 7 cm

  10. SolutionStep 1 : First , we draw a rough sketch with given measures. A 7 cm 5 cm B C 6 cm

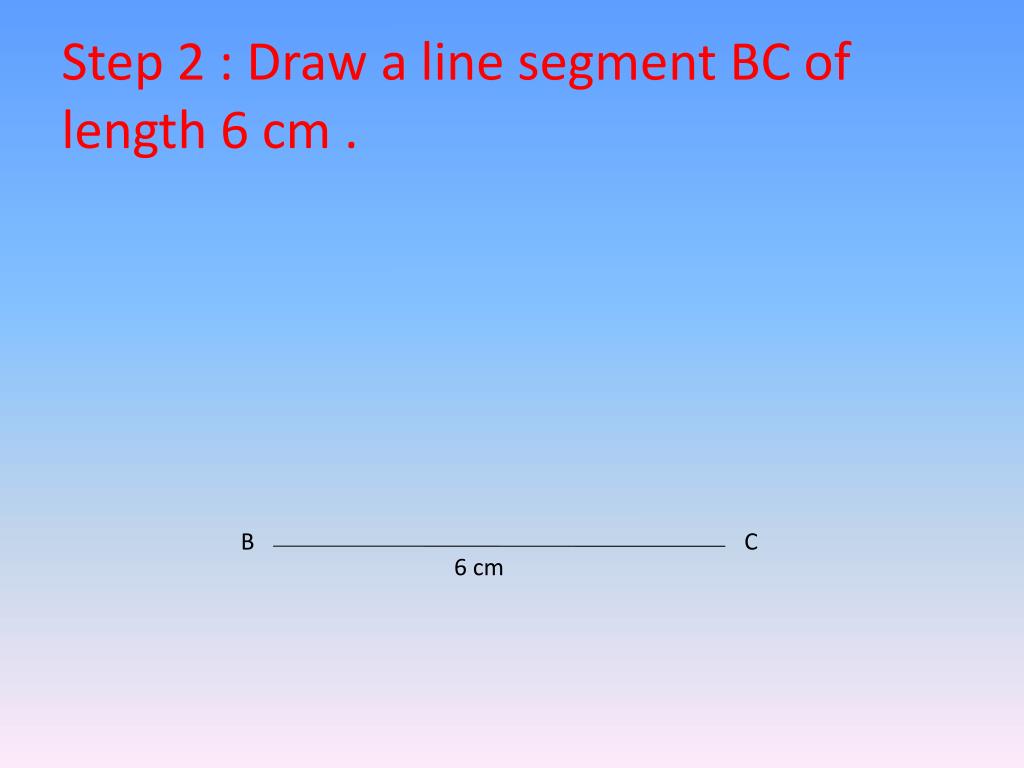

  11. Step 2 : Draw a line segment BC of length 6 cm . B C 6 cm

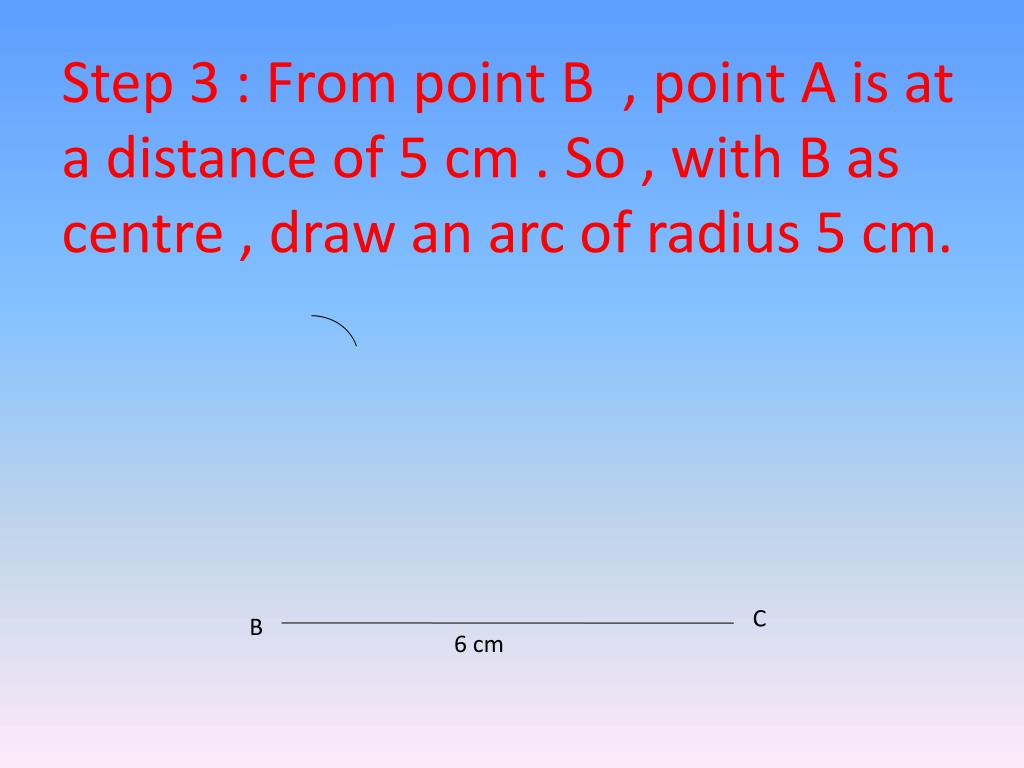

  12. Step 3 : From point B , point A is at a distance of 5 cm . So , with B as centre , draw an arc of radius 5 cm. C B 6 cm

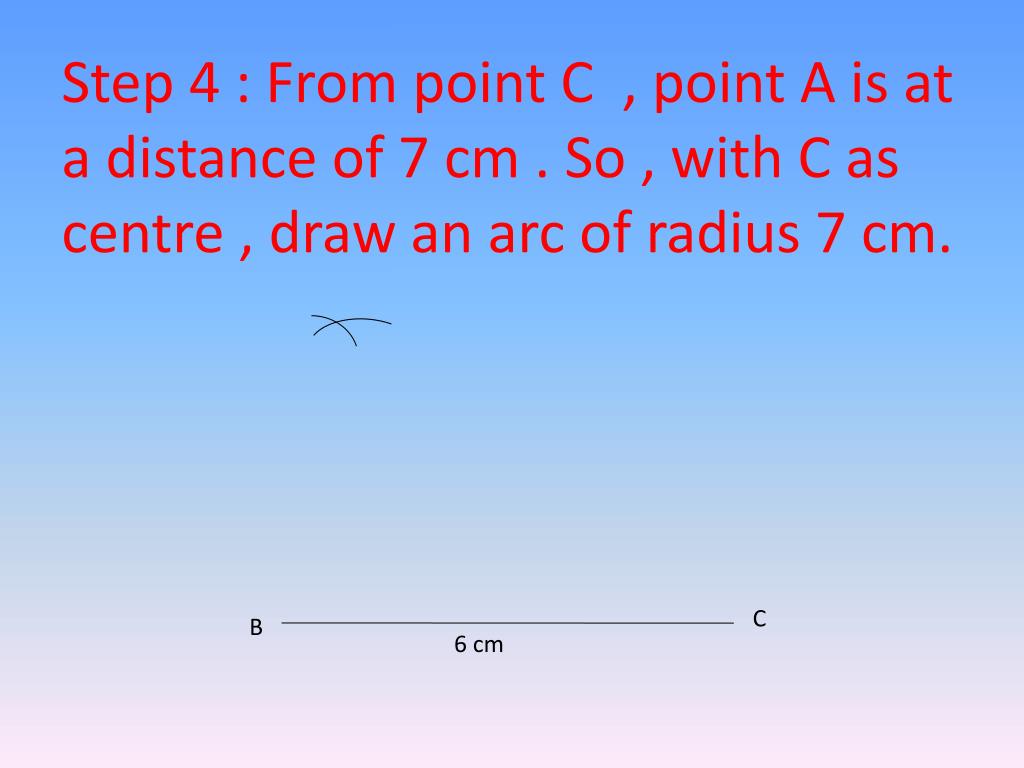

  13. Step 4 : From point C , point A is at a distance of 7 cm . So , with C as centre , draw an arc of radius 7 cm. C B 6 cm

  14. Step 5 : Mark the point of intersection of arcs as A . Join AB and AC .Δ ABC is the required triangle. A 7 cm 5 cm C B 6 cm

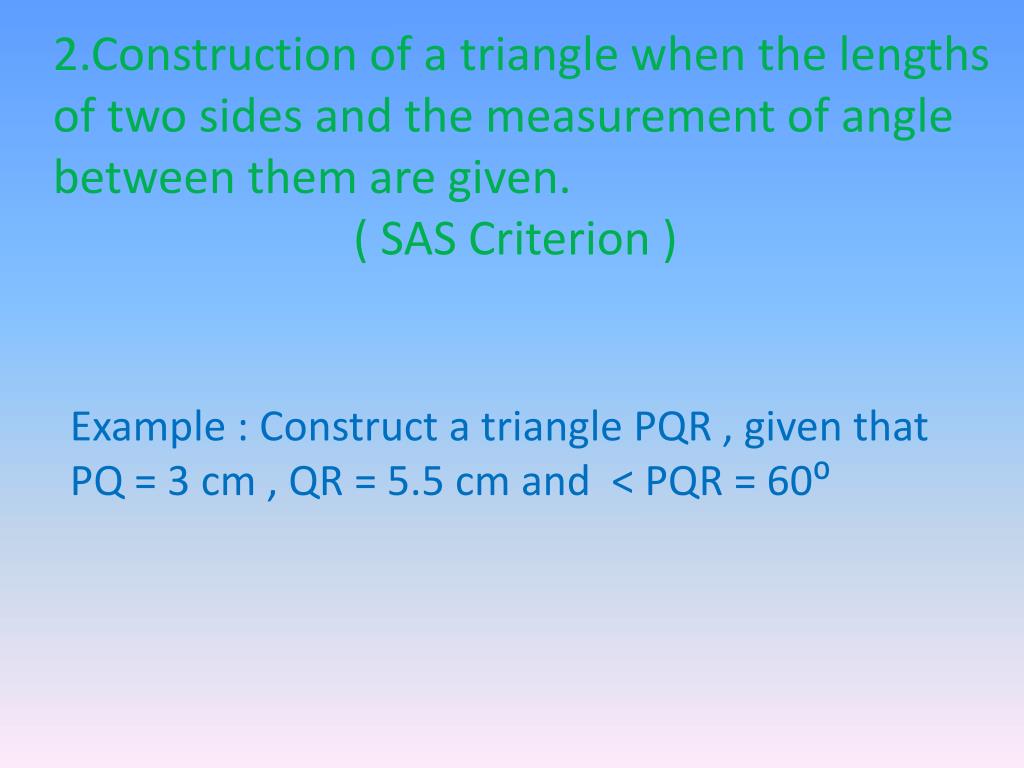

  15. 2.Construction of a triangle when the lengths of two sides and the measurement of angle between them are given. ( SAS Criterion ) Example : Construct a triangle PQR , given that PQ = 3 cm , QR = 5.5 cm and ˂ PQR = 60⁰

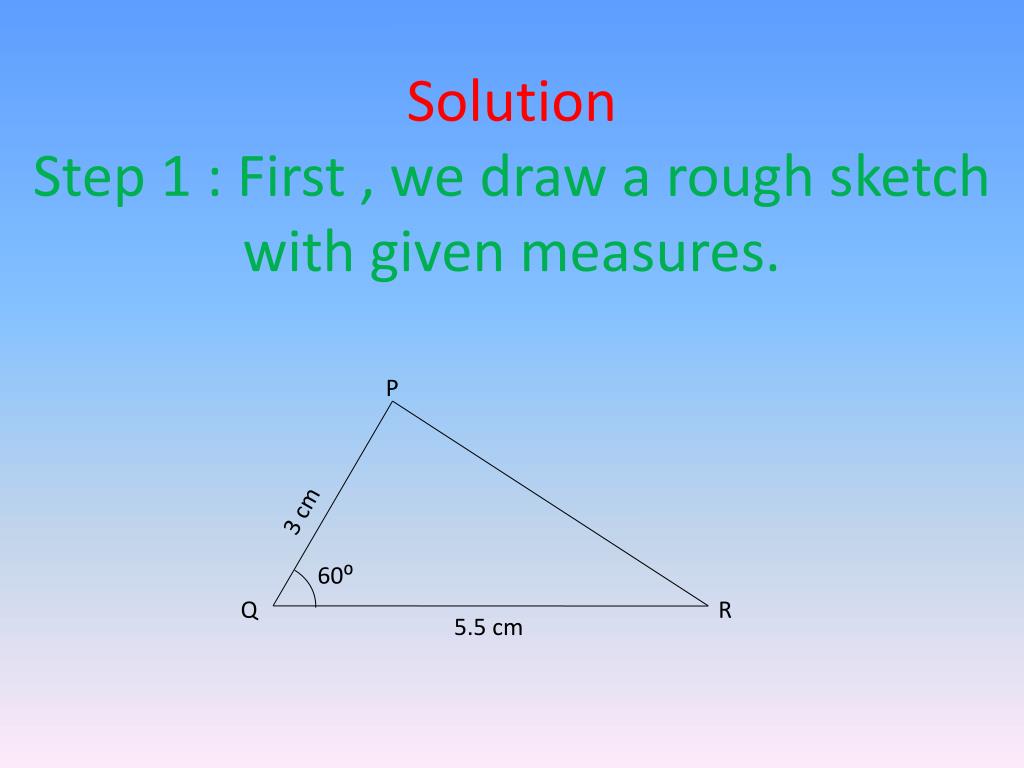

  16. SolutionStep 1 : First , we draw a rough sketch with given measures. P 3 cm 60⁰ Q R 5.5 cm

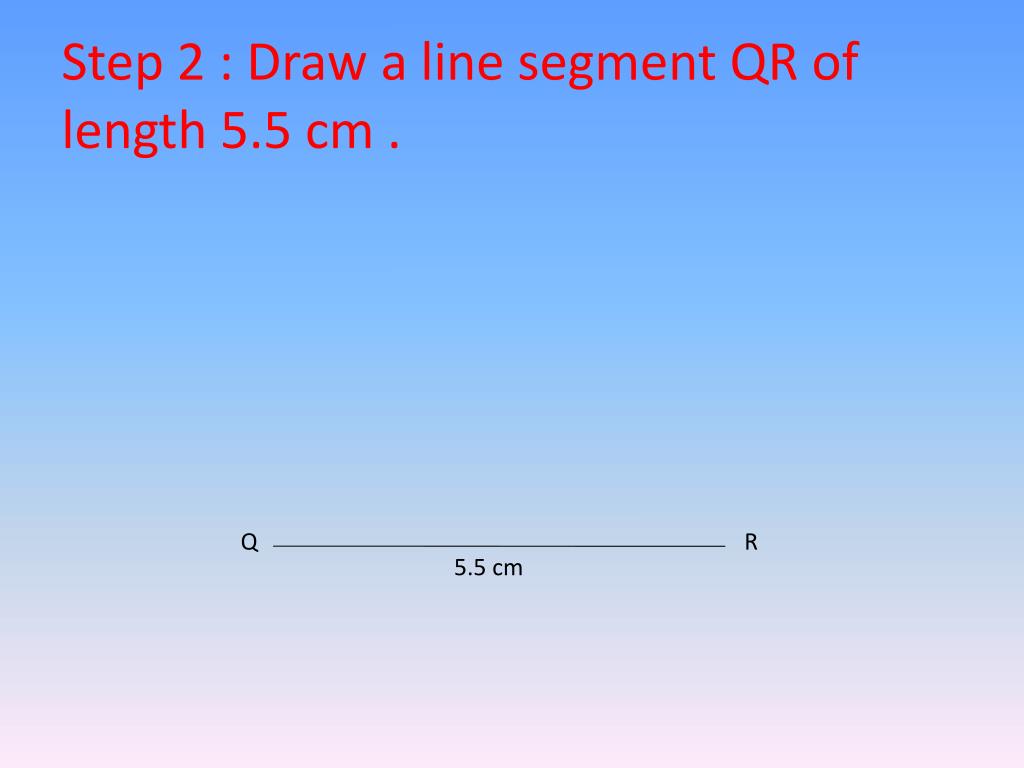

  17. Step 2 : Draw a line segment QR of length 5.5 cm . Q R 5.5 cm

  18. Step 3 : AT point Q , Draw QX making 60⁰ with QR. X 60⁰ R Q 5.5 cm

  19. Step 4 : With Q as centre draw an arc of radius 3 cm. IT cuts QX at point P. X P 60⁰ R Q 5.5 cm

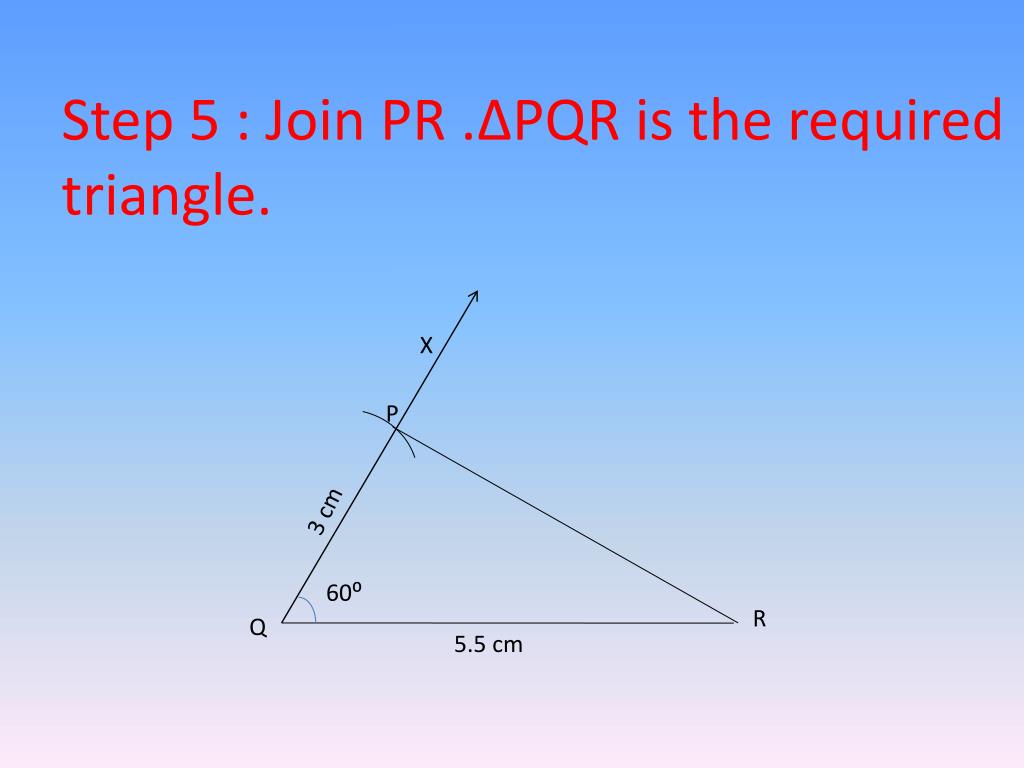

  20. Step 5 : Join PR .ΔPQR is the required triangle. X P 3 cm 60⁰ R Q 5.5 cm

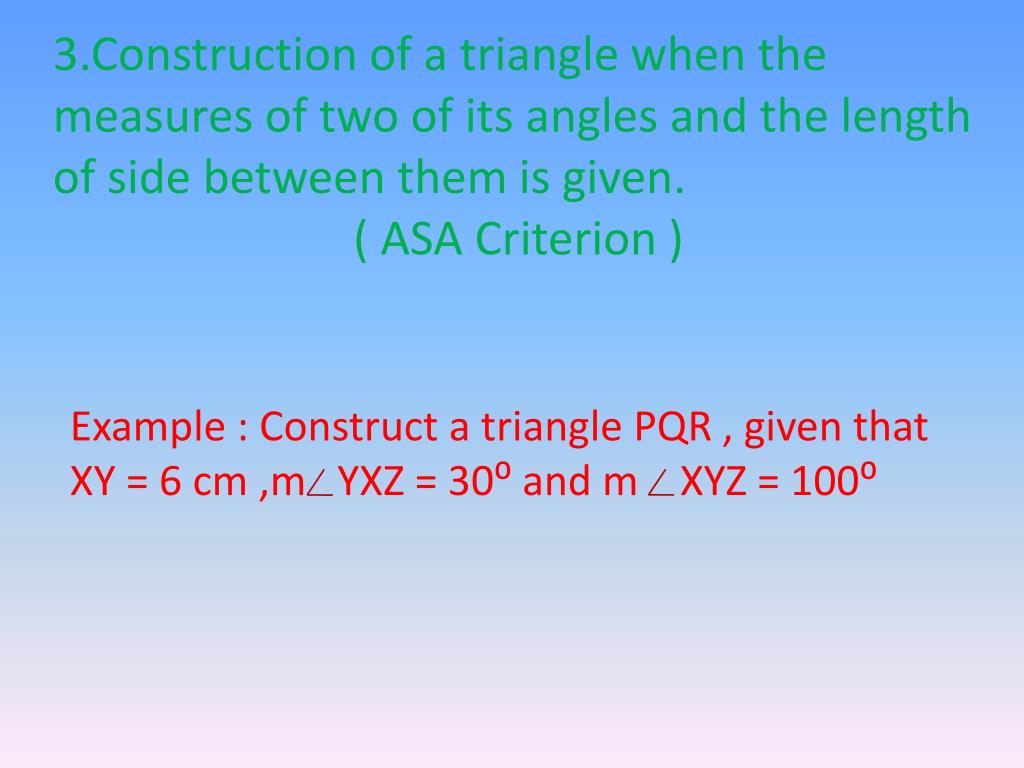

  21. 3.Construction of a triangle when the measures of two of its angles and the length of side between them is given. ( ASA Criterion ) Example : Construct a triangle PQR , given that XY = 6 cm ,m YXZ = 30⁰ and m XYZ = 100⁰

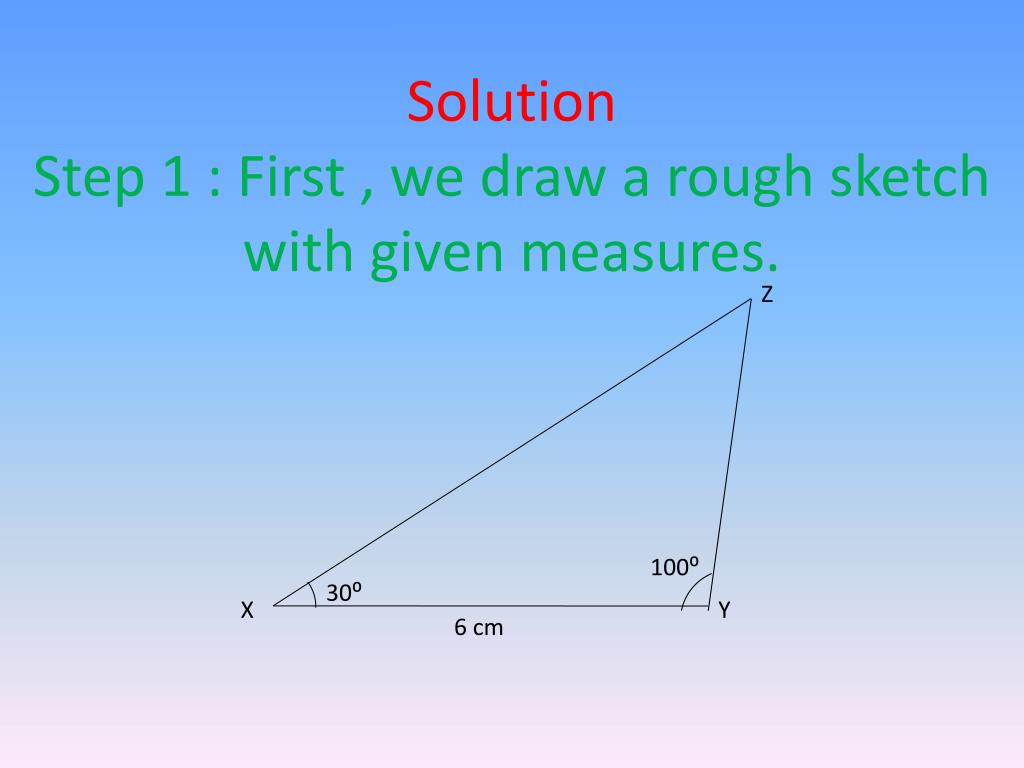

  22. SolutionStep 1 : First , we draw a rough sketch with given measures. Z 100⁰ 30⁰ X Y 6 cm

  23. Step 2 : Draw a line segment XY of length 6 cm . X Y 6 cm

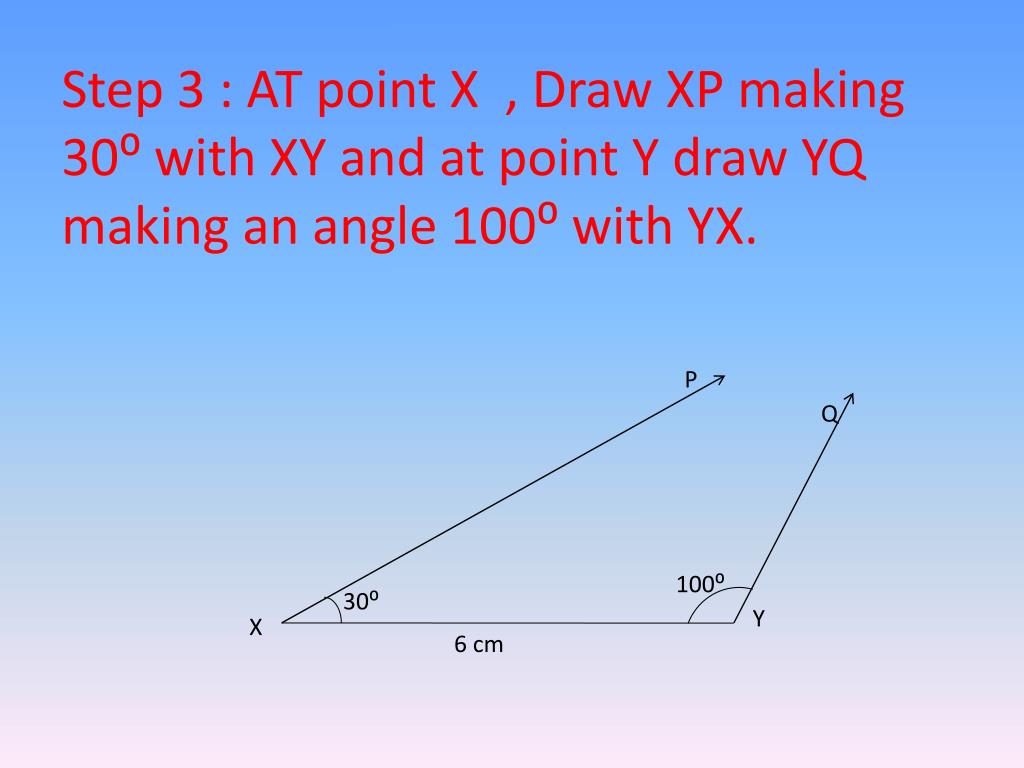

  24. Step 3 : AT point X , Draw XP making 30⁰ with XY and at point Y draw YQ making an angle 100⁰ with YX. P Q 100⁰ 30⁰ Y X 6 cm

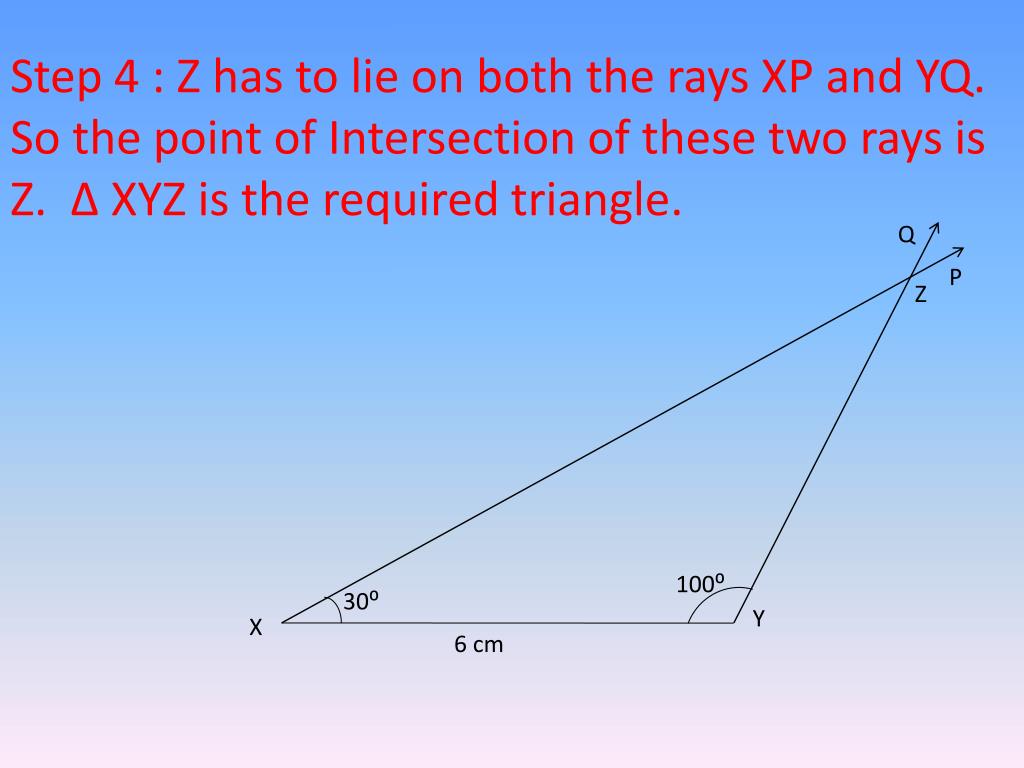

  25. Step 4 : Z has to lie on both the rays XP and YQ. So the point of Intersection of these two rays is Z. Δ XYZ is the required triangle. Q P Z 100⁰ 30⁰ Y X 6 cm

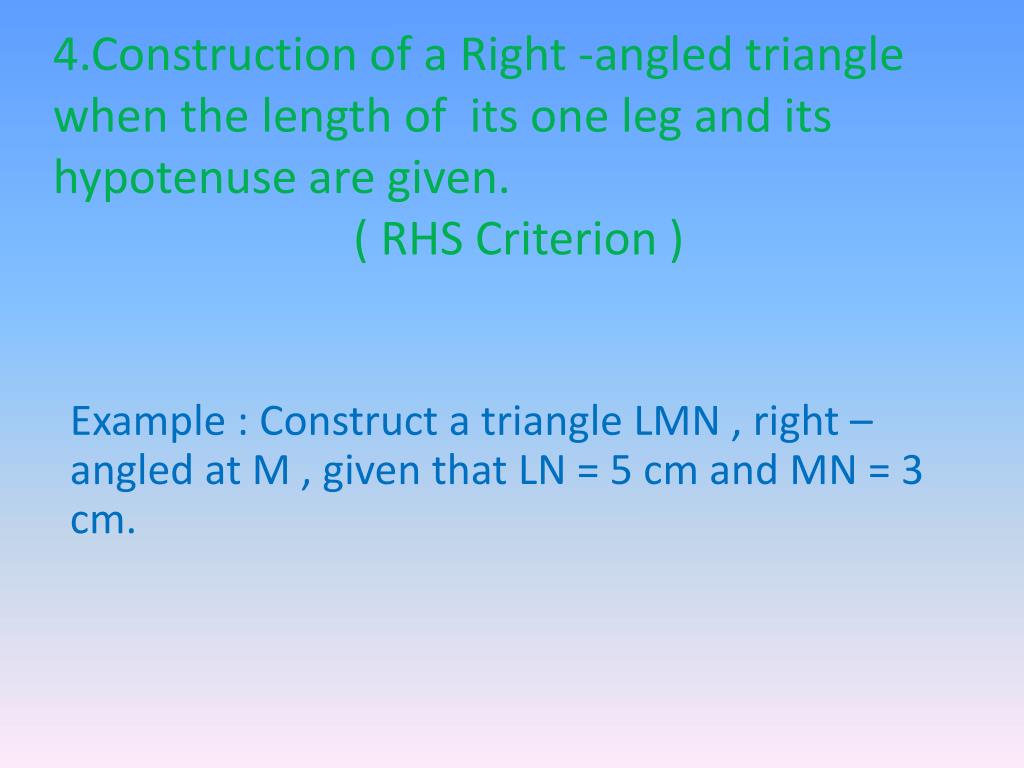

  26. 4.Construction of a Right -angled triangle when the length of its one leg and its hypotenuse are given. ( RHS Criterion ) Example : Construct a triangle LMN , right –angled at M , given that LN = 5 cm and MN = 3 cm.

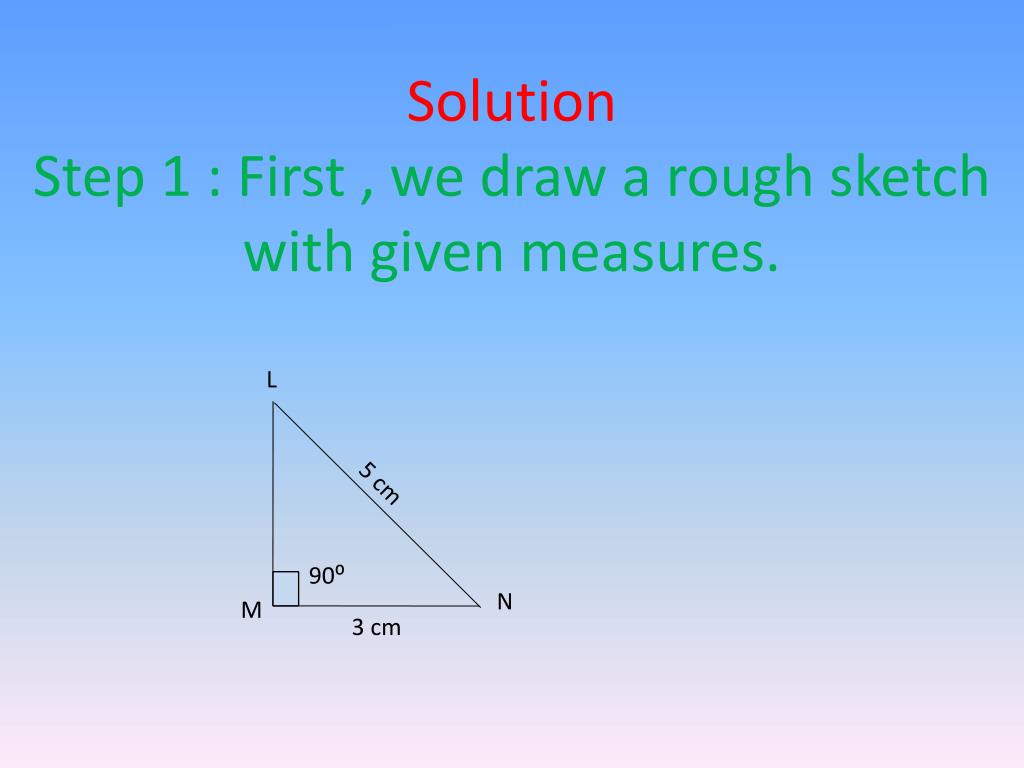

  27. SolutionStep 1 : First , we draw a rough sketch with given measures. L 5 cm 90⁰ N M 3 cm

  28. Step 2 : Draw a line segment MN of length 3 cm . M N 3 cm

  29. Step 3 : AT point M , Draw MX perpendicular to MN. X 90⁰ N M 3 cm

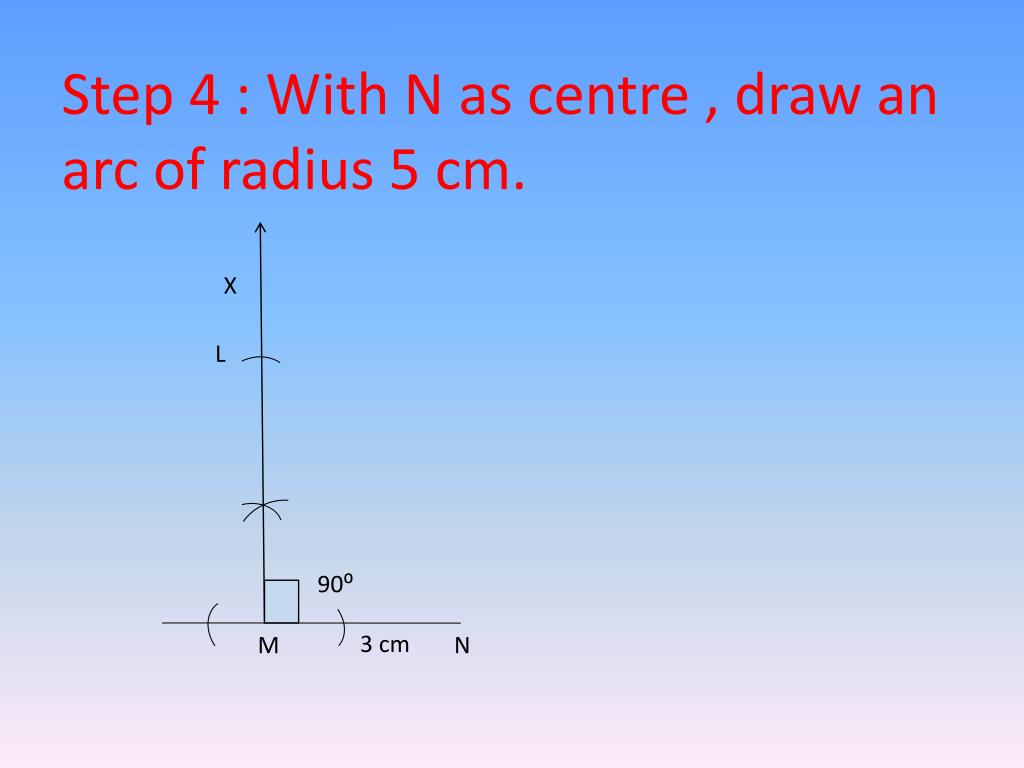

  30. Step 4 : With N as centre , draw an arc of radius 5 cm. X L 90⁰ 3 cm M N

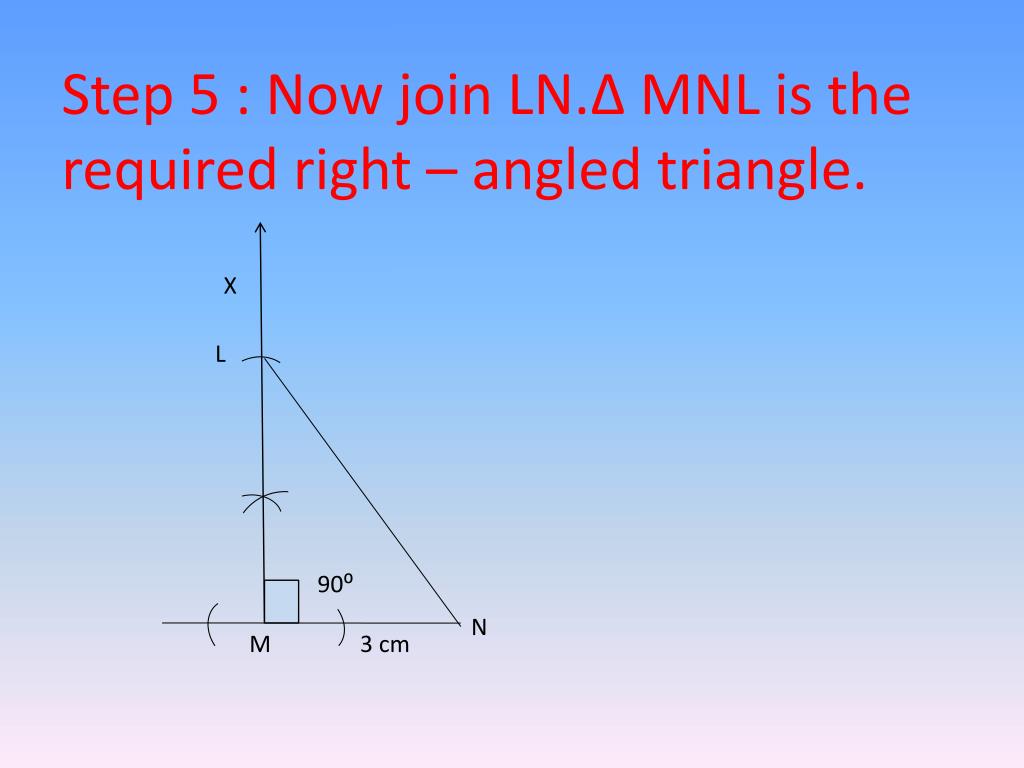

  31. Step 5 : Now join LN.Δ MNL is the required right – angled triangle. X L 90⁰ N M 3 cm

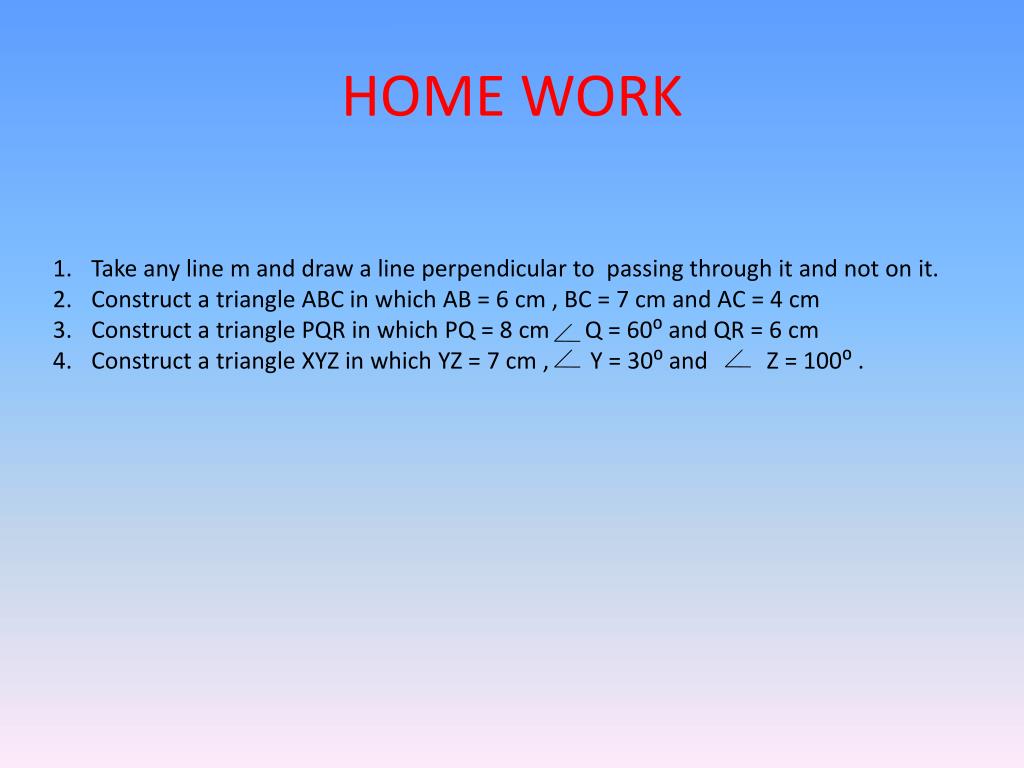

  32. HOME WORK Take any line m and draw a line perpendicular to passing through it and not on it. Construct a triangle ABC in which AB = 6 cm , BC = 7 cm and AC = 4 cm Construct a triangle PQR in which PQ = 8 cm Q = 60⁰ and QR = 6 cm Construct a triangle XYZ in which YZ = 7 cm , Y = 30⁰ and Z = 100⁰ .
