  1. Chapter 14The Behavior of Gases Did you hear about the chemist who was reading a book about Helium?  He just couldn't put it down.

  2. 14.1 Properties of Gases • OBJECTIVES: • Explain why gases are easier to compress than solids or liquids are • Describe the three factors that affect gas pressure

  3. Compressibility • Gases can ______to fill its container, unlike solids or liquids • The reverse is also true: • They are easily compressed, or squeezed into a smaller volume • Compressibility is a measure of how much the ______of matter decreases under _________

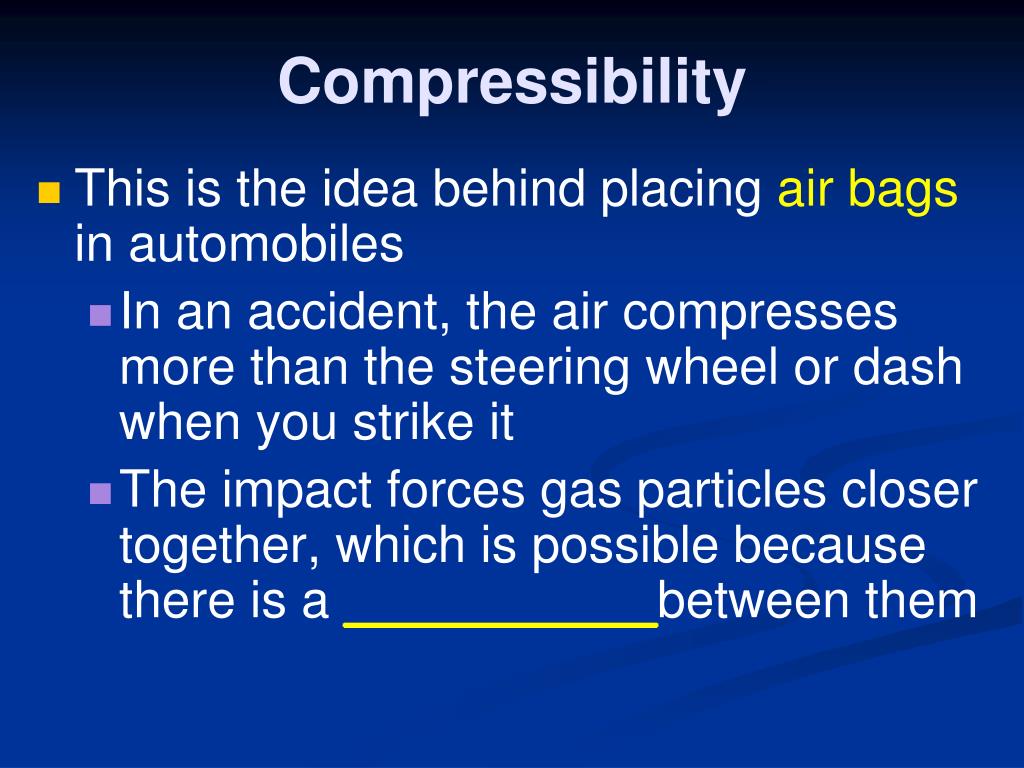

  4. Compressibility • This is the idea behind placing air bags in automobiles • In an accident, the air compresses more than the steering wheel or dash when you strike it • The impact forces gas particles closer together, which is possible because there is a ___________between them

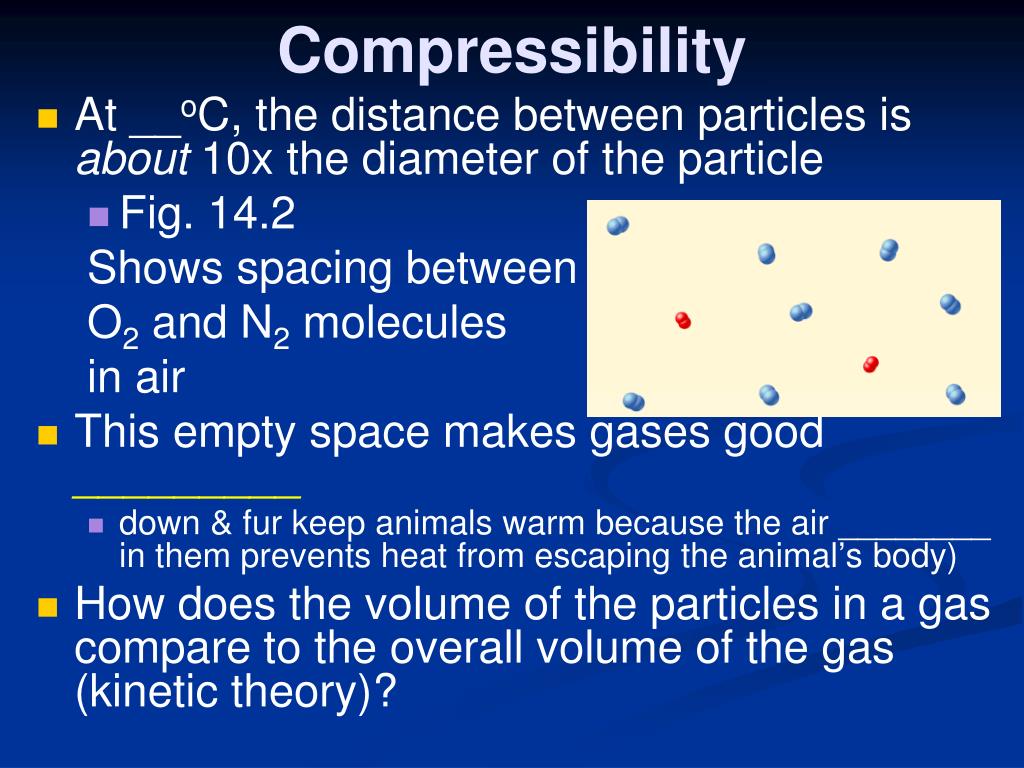

  5. Compressibility • At __oC, the distance between particles is about 10x the diameter of the particle • Fig. 14.2 Shows spacing between O2 and N2 molecules in air • This empty space makes gases good _________ • down & fur keep animals warm because the air ________in them prevents heat from escaping the animal’s body) • How does the volume of the particles in a gas compare to the overall volume of the gas (kinetic theory)?

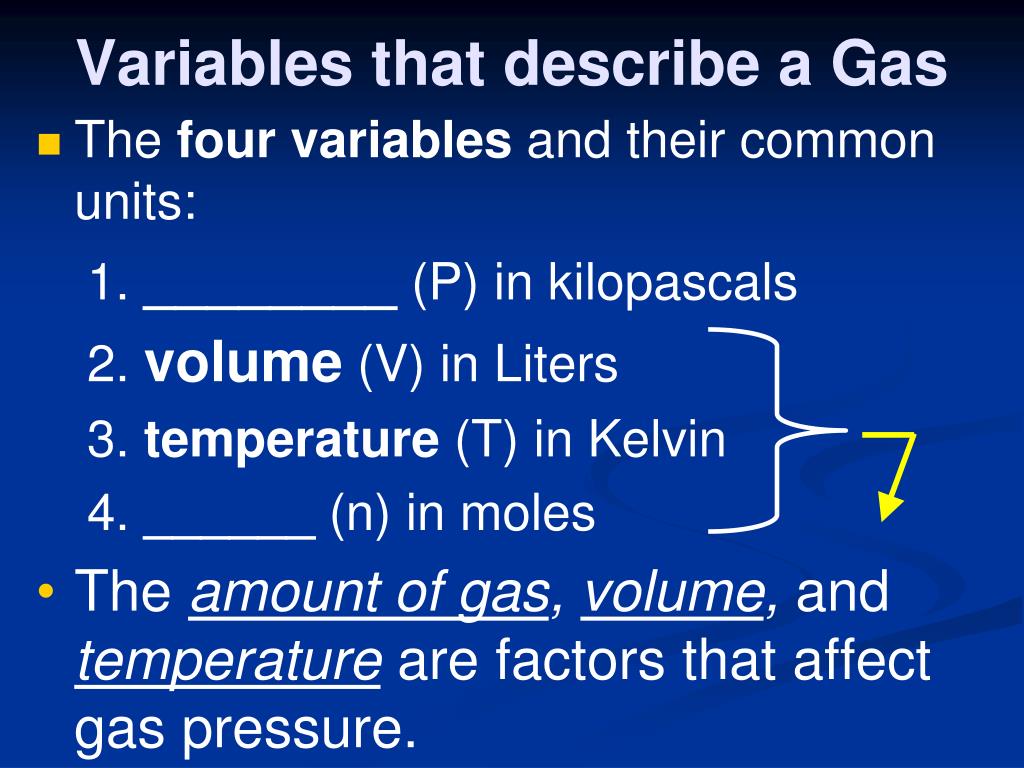

  6. Variables that describe a Gas • The four variables and their common units: 1. ________(P) in kilopascals 2. volume (V) in Liters 3. temperature (T) in Kelvin 4. ______(n) in moles • The amount of gas, volume, andtemperature are factors that affect gas pressure.

  7. 1. Amount of Gas • When we inflate a balloon, we are adding gas molecules. • Increasing the number of gas particles increases the number of _______ • thus, pressure increases • If temperature is constant, then doubling the number of particles doubles the ________

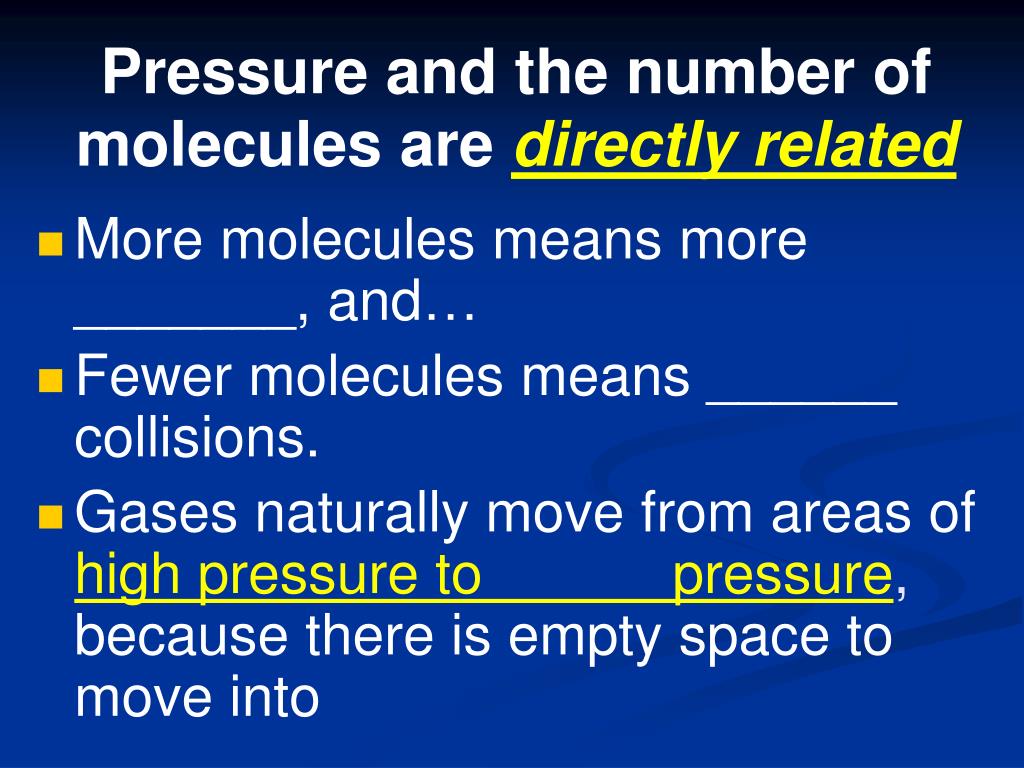

  8. Pressure and the number of molecules aredirectly related • More molecules means more _______, and… • Fewer molecules means ______collisions. • Gases naturally move from areas of high pressure to _____pressure, because there is empty space to move into

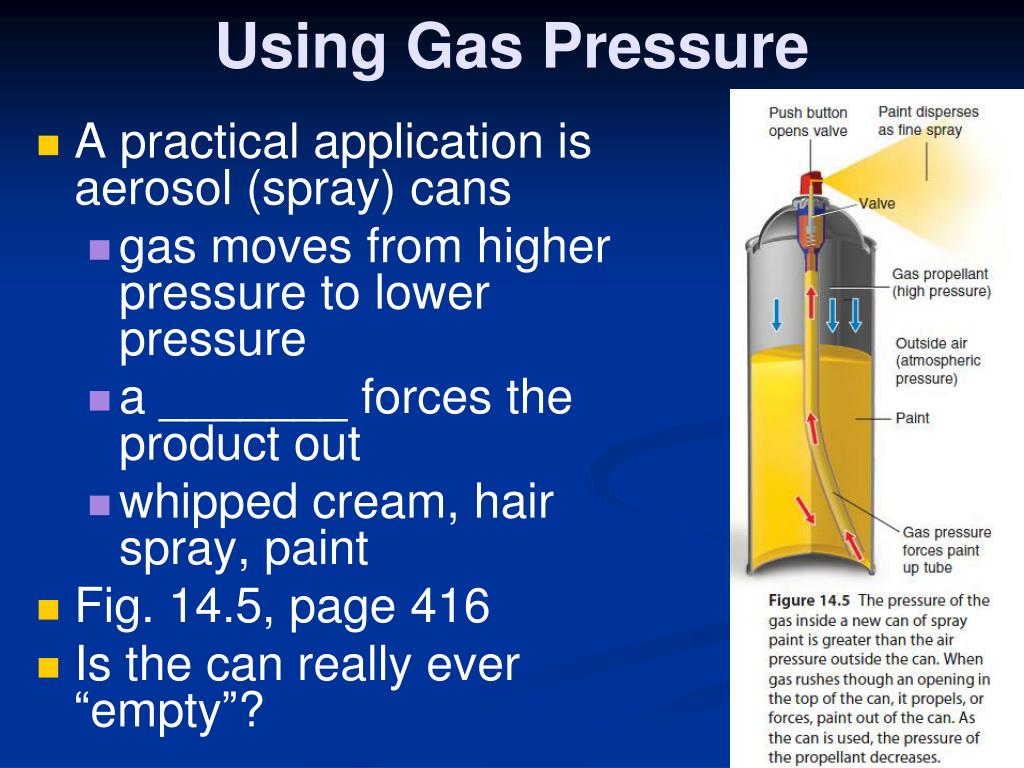

  9. Using Gas Pressure • A practical application is aerosol (spray) cans • gas moves from higher pressure to lower pressure • a _______forces the product out • whipped cream, hair spray, paint • Fig. 14.5, page 416 • Is the can really ever “empty”?

  10. 2. Volume of Gas • In a smaller container, the molecules have _____room to move. • The particles hit the _____of the ________more often. • As volume decreases, pressure increases. (syringe example) • Thus, volume and pressure are ________related to each other

  11. 3. Temperature of Gas • Raising the temperature of a gas increases the pressure, if the volume is held _________. (T and P are directly related) • The faster moving molecules hit the walls harder, and more frequently! • Should you throw an aerosol can into a fire? • When should your automobile tire pressure be checked?

  12. 14.2 The Gas Laws • OBJECTIVES: • Describe the relationships among the temperature, pressure, and volume of a gas • Use the combined gas law to solve problems

  13. The Gas Laws are mathematical • The gas laws will describe HOW gases behave. • Gas behavior can be predicted by the _______. • The ______________can be calculated with mathematical equations. • You need to know both of these: the theory, and the math

  14. Robert Boyle(1627-1691) • Boyle was born into an aristocratic _____family • Became interested in ______ and the new science of Galileo and studied chemistry.  • A founder and an influential fellow of the Royal Society of London • Wrote extensively on science, philosophy, and theology. Don’t you love my swell scarf??

  15. #1. Boyle’s Law - 1662 Gas pressure is ________proportional to volume, at a constant _________(Check out this cool animation) Pressure x Volume = a constant Equation: P1V1 = P2V2 (at a constant T) As volume increases, pressure decreases An inverse relationship!

  16. - Page 419

  17. Jacques Charles (1746-1823) • French Physicist • Part of a scientific balloon flight in 1783 – one of three passengers in the second balloon ascension that carried humans • This is how his interest in gases started • It was a _________filled balloon – good thing they were careful!

  18. #2. Charles’ Law - 1787 • For a fixed ____(moles), gas volume is directly proportional to the _____temperature, when pressure is _______. • This extrapolates to zero volume at a temperature of zero Kelvin. Charles’ Law Animation

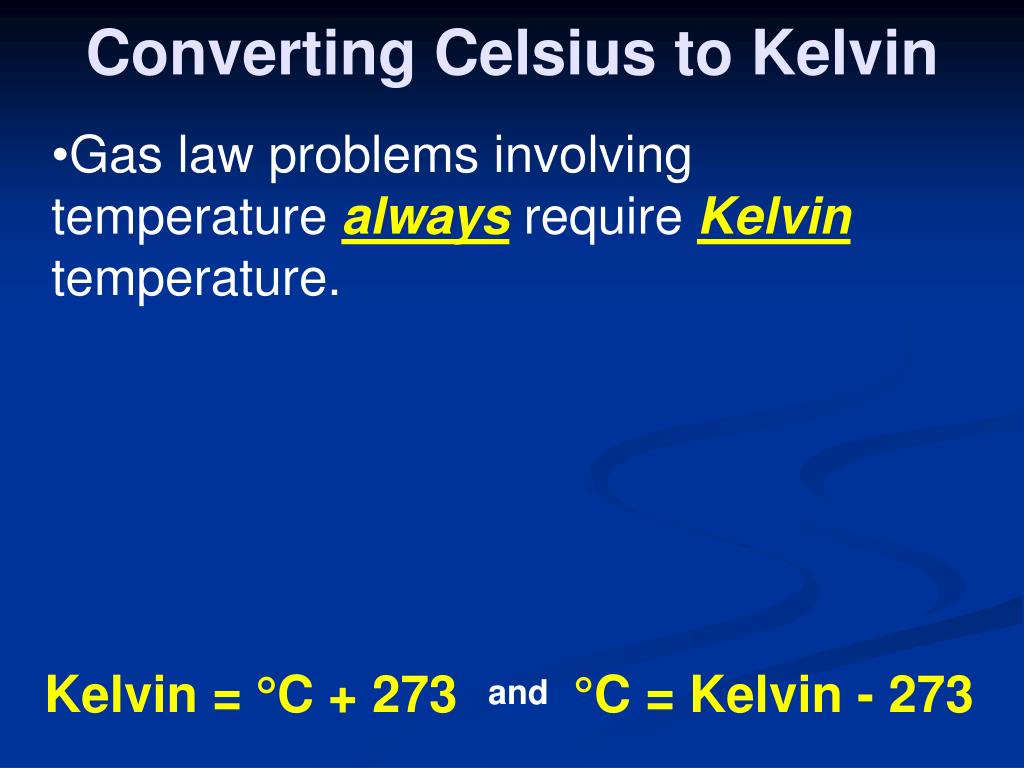

  19. Converting Celsius to Kelvin • Gas law problems involving temperature always require Kelvin temperature. Kelvin = C + 273 °C = Kelvin - 273 and

  20. - Page 421

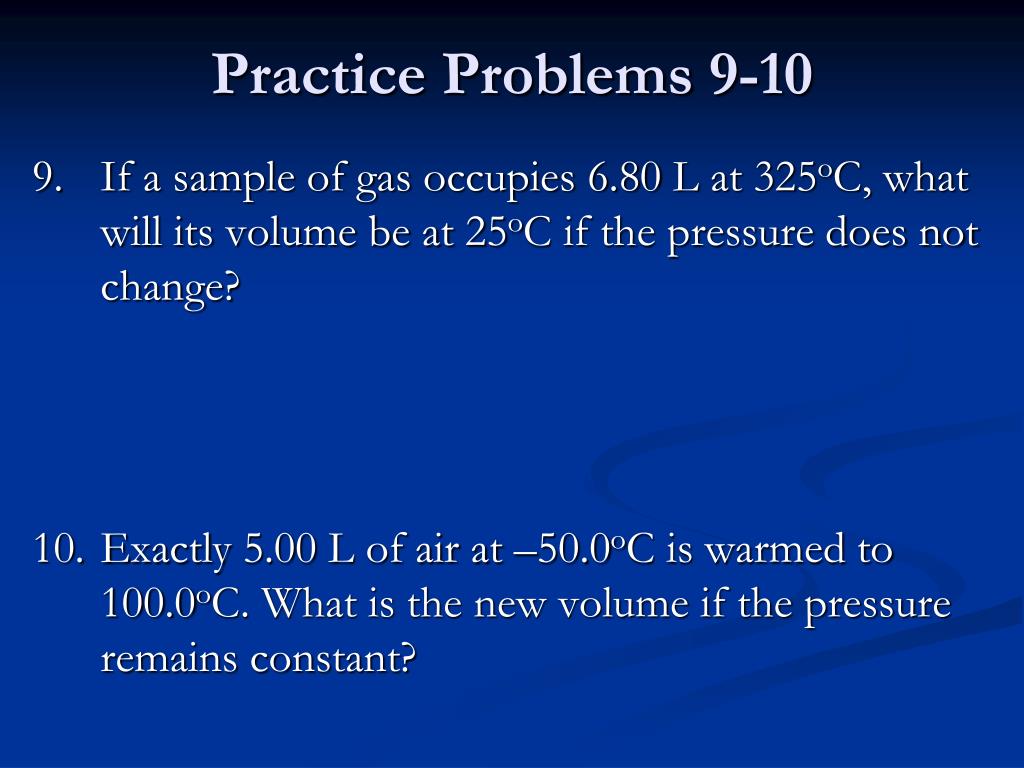

  21. Practice Problems 9-10 • If a sample of gas occupies 6.80 L at 325oC, what will its volume be at 25oC if the pressure does not change? • Exactly 5.00 L of air at –50.0oC is warmed to 100.0oC. What is the new volume if the pressure remains constant?

  22. Joseph Louis Gay-Lussac (1778 – 1850) • ____chemist and physicist • Known for his studies on the _________properties of gases. • In 1804 he made balloon ascensions to study magnetic forces and to observe the composition and temperature of the air at different altitudes.

  23. #3. Gay-Lussac’s Law - 1802 • The pressure and Kelvin temperature of a gas are directly proportional, provided that the ________remains constant. • How does a pressure cooker affect the time needed to cook food? (Note page 422)

  24. Practice Problems 11-12 • A sample of nitrogen gas has a pressure of 6.58 kPa at 539 K. If the volume does not change, what will the pressure be at 211 K? • The pressure in a car tire is 198 kPa at 27oC. After a long drive, the pressure is 225 kPa. What is the temperature of the air in the tire (assume the volume is constant).

  25. #4. The Combined Gas Law The combined gas law expresses the relationship between ______, volume and _________of a fixed amount of gas.

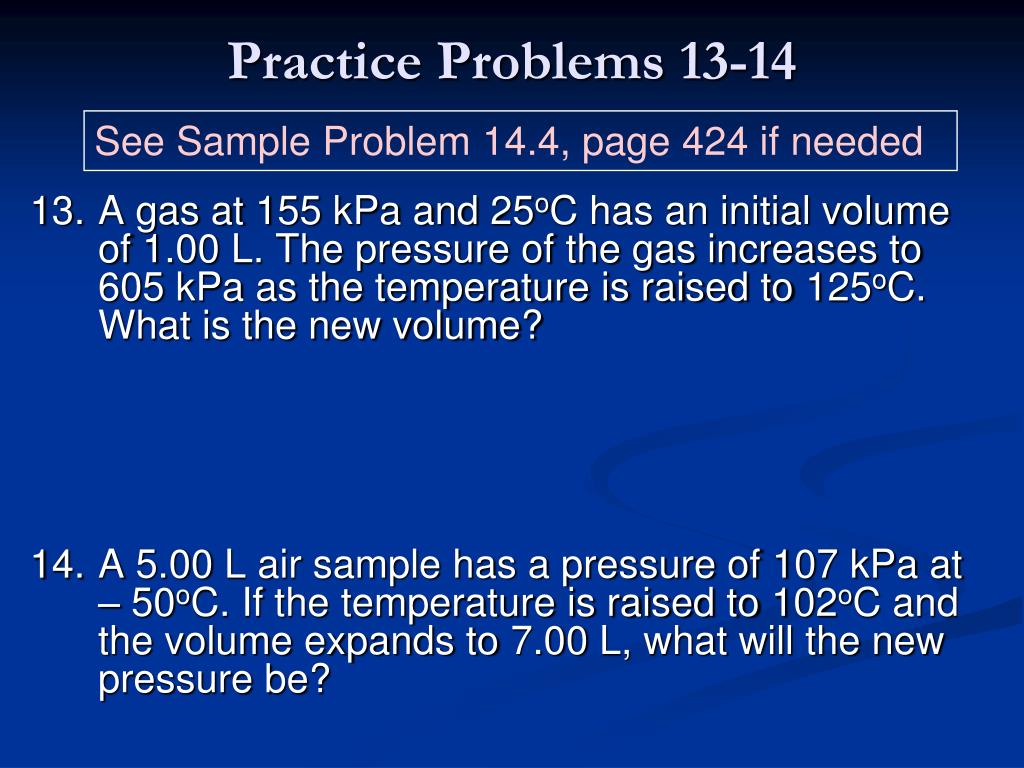

  26. Practice Problems 13-14 See Sample Problem 14.4, page 424 if needed • A gas at 155 kPa and 25oC has an initial volume of 1.00 L. The pressure of the gas increases to 605 kPa as the temperature is raised to 125oC. What is the new volume? • A 5.00 L air sample has a pressure of 107 kPa at – 50oC. If the temperature is raised to 102oC and the volume expands to 7.00 L, what will the new pressure be?

  27. The combined gas law contains all the other gas laws! • If the temperature remains constant... P1 V1 P2 x V2 x = T1 T2 ______Law

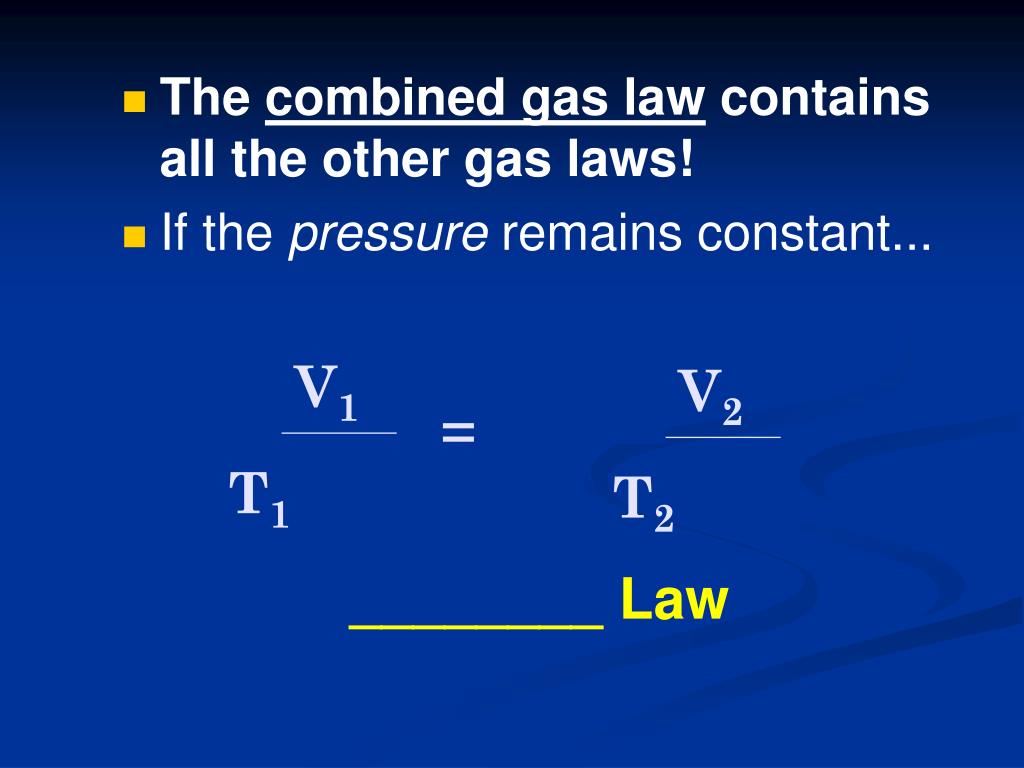

  28. The combined gas law contains all the other gas laws! • If the pressure remains constant... P1 V1 P2 x V2 x = T1 T2 ________Law

  29. The combined gas law contains all the other gas laws! • If the volume remains constant... P1 V1 P2 x V2 x = T1 T2 _________Law

  30. 14.3 Ideal Gases • OBJECTIVES: • Compute the value of an unknown using the ____gas law • Compare and contrast real an ideal gases

  31. 5. The Ideal Gas Law #1 • Equation: P x V = n x R x T • Pressure times Volume equals the number of moles (n) times the _________________(R) times the Temperature in Kelvin. • R = ______(L x kPa) / (mol x K) • The other units must match the value of the constant, in order to cancel out. • The value of R could change, if other units of measurement are used for the other values (namely pressure changes)

  32. Units and the Ideal Gas Law • R = 8.31L·kPa/K·mol (when P in kPa) • R = ______L·atm/K·mol (when P in atm) • R = 62.4L·mmHg/K·mol (when P in mmHg) • Temperature always in _______!!

  33. The Ideal Gas Law • We now have a new way to count _____(the amount of matter), by measuring T, P, and V. We aren’t restricted to only STP conditions: P x V R x T n =

  34. Practice Problems • A rigid container holds 685 L of He(g). At a temperature of 621 K, the pressure of the gas is 1.89 x 103 kPa. How many grams of gas does the container hold? • A child’s lungs hold 2.20 L. How many moles of air (mostly N2 and O2) do the lungs hold at 37oC and a pressure of 102 kPa.

  35. Ideal Gases • We are going to assume the gases behave “ideally”- in other words, they obey the Gas Laws under all conditions of temperature and pressure • Ideal gases do not really exist, but it makes the math easier and is a very close approximation. • Particles have no volume? ______! • No attractive forces __________!

  36. Ideal Gases • There are no gases that are absolutely “ideal” however… • Real gases do behave “ideally” at • high temperature, and low pressure • Because under these conditions, the gas particles themselves are so far apart they take up a very small proportion of the gas’s volume and the IM forces are so weak that they can be ignored

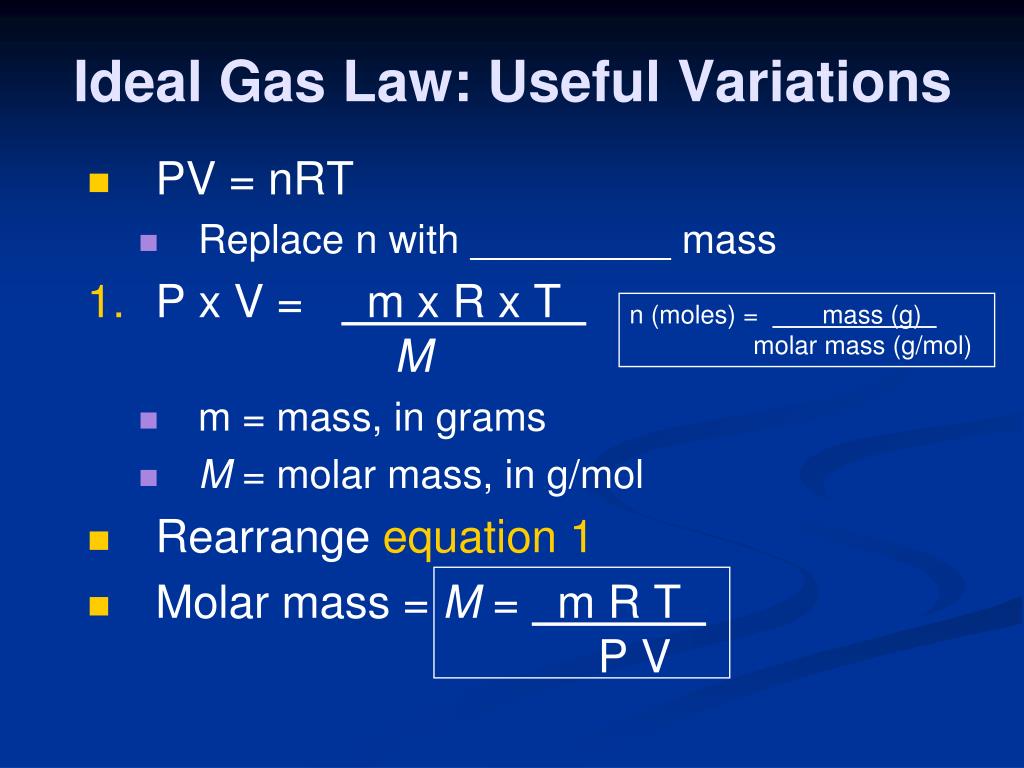

  37. Ideal Gas Law: Useful Variations • PV = nRT • Replace n with _________mass • P x V = m x R x T M • m = mass, in grams • M = molar mass, in g/mol • Rearrange equation 1 • Molar mass = M = m R T P V n (moles) = mass (g) molar mass (g/mol)

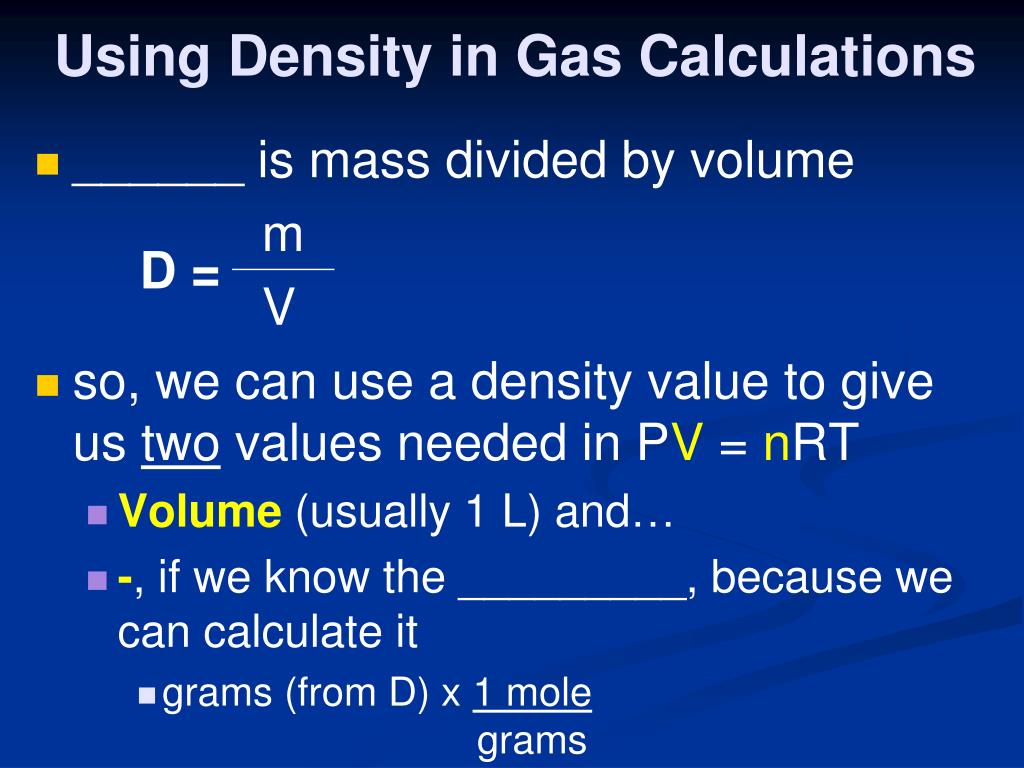

  38. Using Density in Gas Calculations • ______is mass divided by volume m V • so, we can use a density value to give us two values needed in PV = nRT • Volume (usually 1 L) and… • -, if we know the _________, because we can calculate it • grams (from D) x 1 mole grams D =

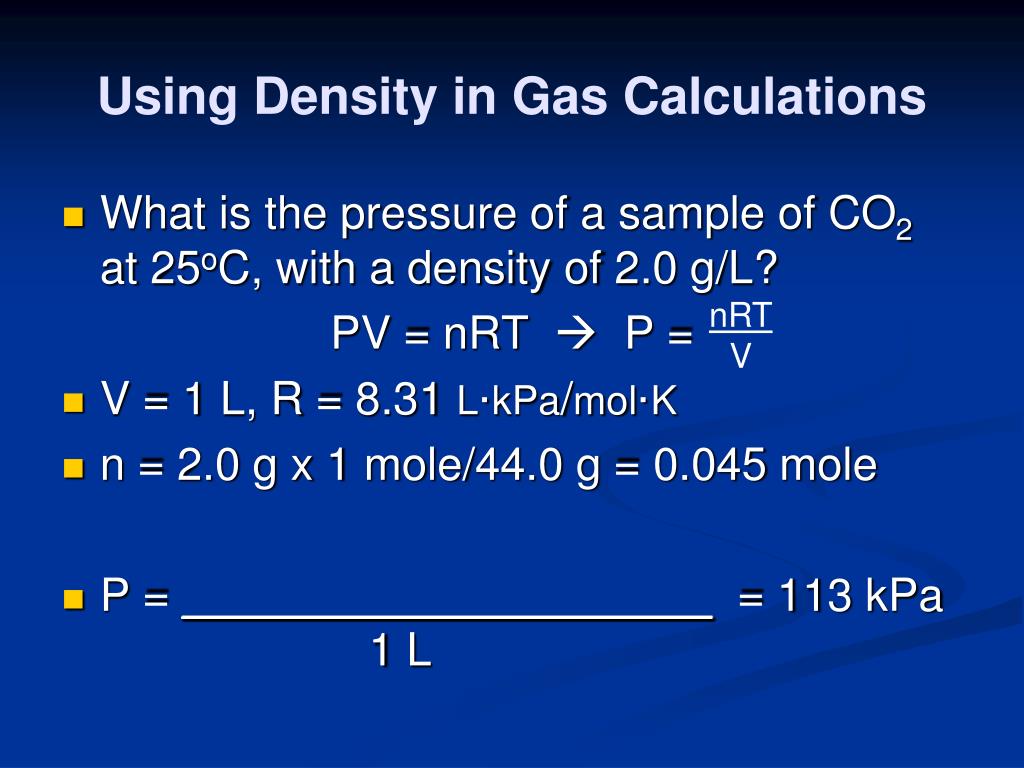

  39. Using Density in Gas Calculations • What is the pressure of a sample of CO2 at 25oC, with a density of 2.0 g/L? PV = nRT P = • V = 1 L, R = 8.31 L·kPa/mol·K • n = 2.0 g x 1 mole/44.0 g = 0.045 mole • P = _____________________= 113 kPa 1 L nRT V

  40. Real Gases and Ideal Gases

  41. Ideal Gases don’t exist, because: • Molecules __ take up space • There ____ ________ forces between particles - otherwise there would be no liquids

  42. Real Gases behave like Ideal Gases... • When the molecules are far apart. • The molecules take up a very small percentage of the space • We can ignore the particle volume. • True at low pressures and/or high temperatures

  43. Real Gases behave like Ideal Gases… • When molecules are moving fast • = _____________ • Collisions are harder and ____. • Molecules are not next to each other very long. • __________forces can’t play a role.

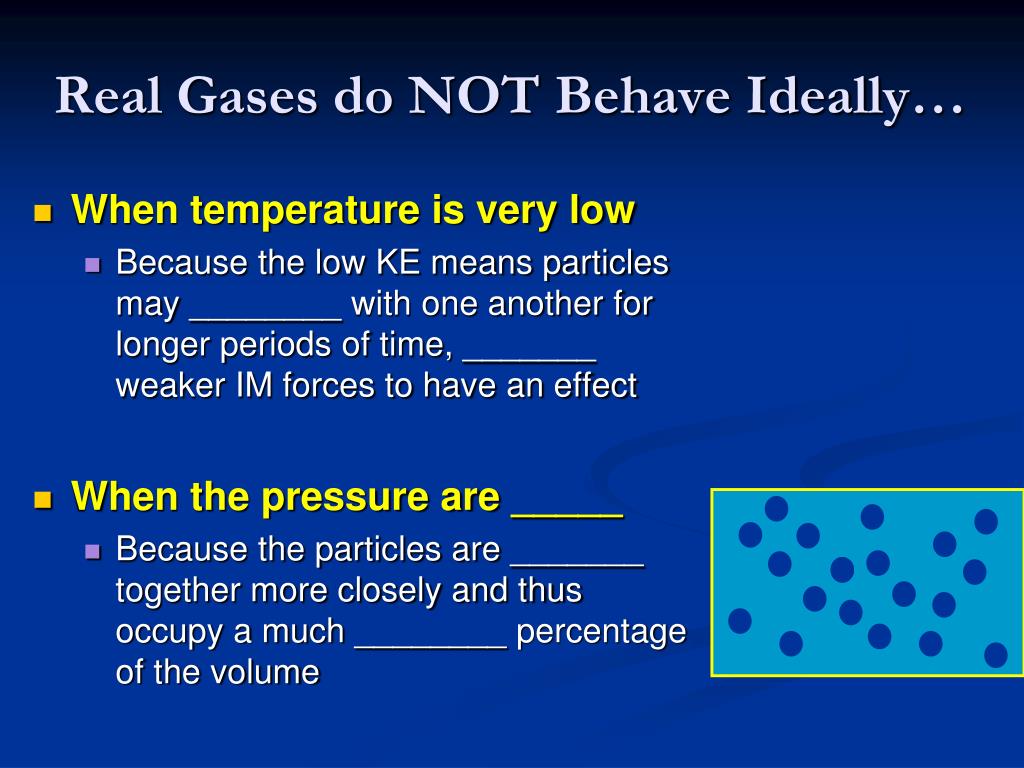

  44. Real Gases do NOT Behave Ideally… • When temperature is very low • Because the low KE means particles may ________with one another for longer periods of time, _______weaker IM forces to have an effect • When the pressure are _____ • Because the particles are _______together more closely and thus occupy a much ________percentage of the volume

  45. 14.4 Gas Mixtures & Movements • OBJECTIVES: • Relate the total pressure of a mixture of gases to the partial pressures of its component gases • Explain how the molar mass of a gas affects the rate at which it diffuses and effuses

  46. #7 Dalton’s Law of Partial Pressures For a mixture of gases in a container, PTotal = P1 + P2 + P3 + . . . • P1 represents the “___________”,or the contribution by that gas. • Dalton’s Law is useful in calculating the pressure of gases ________over water – a common lab technique

  47. Collecting a Gas over Water Gas being produced • A common lab technique for collecting and measuring a gas produced by a chemical reaction • The bottle is filled with water and inverted in a pan of water • As the gas is produced in a separate container, tubing is used to carry it to the bottle where it displaces the water in the bottle • When the level of the gas in the bottle is even with the water in the pan, the pressure in the bottle = atmospheric pressure • A graduated cylinder is often used to collect the gas (for ease of measuring the gas volume) Atmospheric pressure

  48. Dalton’s Law of Partial Pressures • If the gas in containers 1, 2 & 3 are all put into the fourth, the pressure in container 4 = the ____of the pressures in the first 3 2 atm + 1 atm = _ atm + 3 atm 4 3 2 1

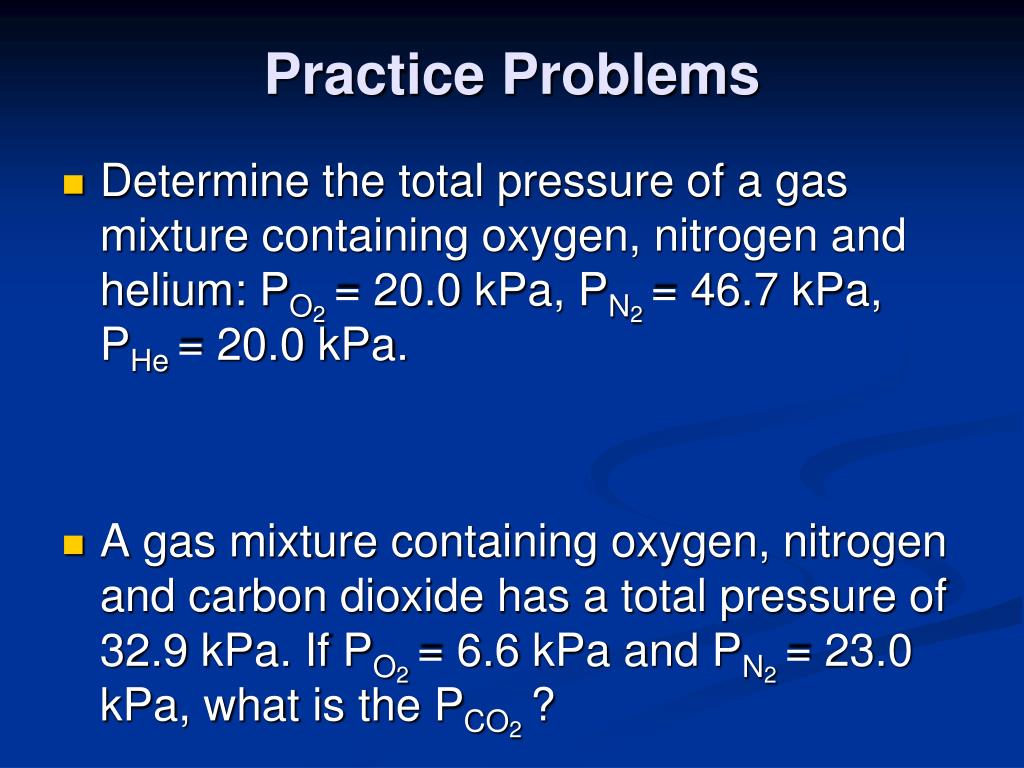

  49. Practice Problems • Determine the total pressure of a gas mixture containing oxygen, nitrogen and helium: PO2= 20.0 kPa, PN2= 46.7 kPa, PHe= 20.0 kPa. • A gas mixture containing oxygen, nitrogen and carbon dioxide has a total pressure of 32.9 kPa. If PO2= 6.6 kPa and PN2= 23.0 kPa, what is the PCO2?

  50. Diffusion and Effusion • Diffusion = molecules moving from areas of ____to areas of ____concentration • Is mathematical phenomenon caused by random movements of gas particles • Effusion = gas particles escaping through a tiny hole in a container • Both diffusion and effusion depend on the molar mass of the particle, which determines the _______at a given ________(= average KE)
