  1. ECE 665 - Project Ideas Test complexity of TED operationsUse canonical property of TED for- Software Verification- Algorithm Equivalence check- High Level Synthesis Maciej Ciesielski ECE Department University of Massachusetts, Amherst

  2. F(x) x … F(0) F’(0) F’’(0)/2 Taylor Expansion Diagram (TED) • Compact, canonical representation for arithmetic functions (F: Int  Int ) • Treat discrete function as continuous (polynomial) • Taylor Expansion (around x=0): F(x) = F(0) + x F’(0) + ½ x2 F’’(0) + … • Notation F(x=0) 0-child- - - - -- F’(x=0) 1-child---------- ½ F’’(x=0) 2-child====== etc. F(x) = 0-child+ x (1-child) + x2(2-child) + …

  3. X2 = (8x3 + 4x2 + 2x1 + x0)2 (A+B)(A+2C) 64 x3 A 1 16 1 16 x2 x2 B B 8 1 4 C 4 x1 x1 2 4 1 2 1 x0 x0 1 0 1 1 1 1 0 TED – a few Examples A,B,C: arbitrary word width X decomposed in bits TED: not a BDD, not a *BMD, not a decision diagram

  4. TED: Composition & Manipulation • Analogous to BDD and *BMD, TED: • Requires an ordering of variables • Has to be reduced • Has to be normalized • Reduced ordered normalized TED is canonical • Composition of TED: • f = g + h; APPLY(+, g, h) • f = g * h; APPLY(*, g, h) • f = g – h; APPLY(+, g, APPLY(*, -1, h))

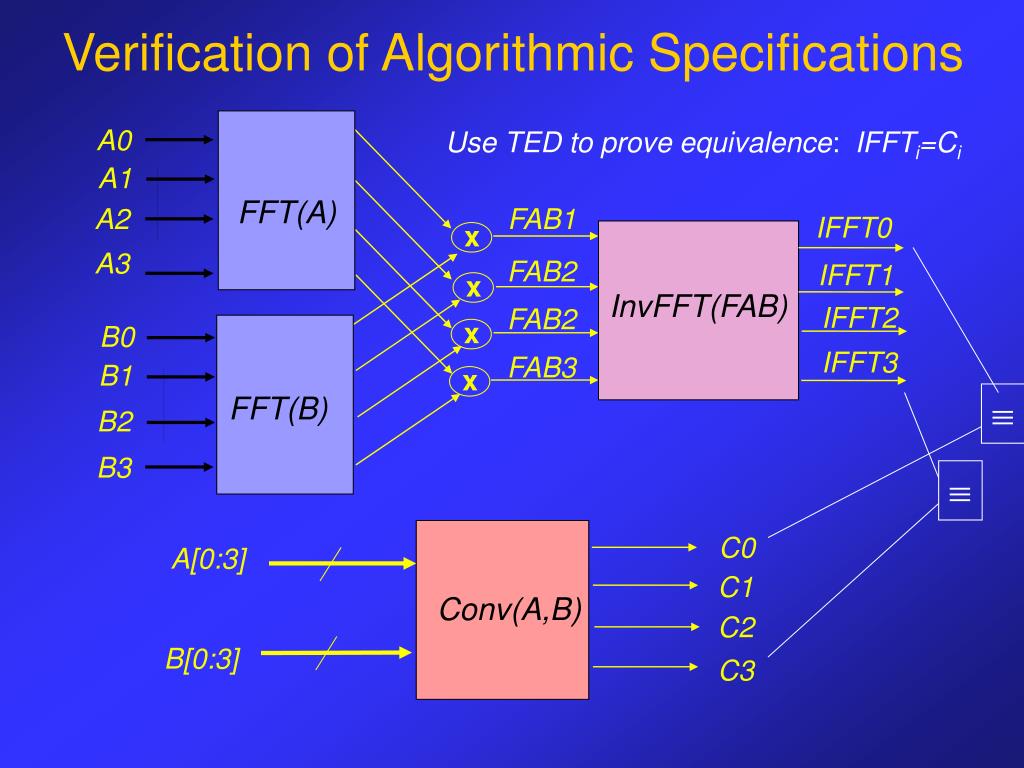

  5. A0 A1 FFT(A) A2 FAB1 IFFT0 A3 IFFT1 FAB2 InvFFT(FAB) IFFT2 FAB2 B0 IFFT3 FAB3 B1 FFT(B)  B2 B3  x x x x C0 A[0:3] C1 Conv(A,B) C2 B[0:3] C3 Verification of Algorithmic Specifications Use TED to prove equivalence: IFFTi=Ci

  6. A0 A2 A1 A3 B0 • B2 B3 B1 4 0 Isomorphic TEDs: IFFT(i) Conv(i) IFFT0 = C0 = 4{ A0*B0 + A1*B3 + A2*B2 + A3*B1}

  7. TED for High Level Synthesis • Trends and problems in industry • Design Flow • High level synthesis • Prior art • Problems with prior art • New canonical method • TED’s

  8. Need for abstraction • International Technology Roadmap for Semiconductors (ITRS 2001) Report highlights • Moore’s law will be valid for 10 more years • 10 billion transistors • 10 Ghz • 30nm technology • Enormous complexity can only handled by targeting at high levels of design

  9. Design Flow HDL Behavioral High-level Synthesis RTL Description Pre-Layout Simulation Structural Logic Synthesis Design Iteration Floorplanning Post-Layout Simulation Placement Physical Circuit Extraction Routing Tape-out

  10. Specification (HDL) Area Power Latency Objectives, constraints: ... Data Flow Graph Architectural solution minimized for given objective, constraints Architecture High Level Synthesis

  11. A B A C A C Cycle 1 x + x x x + A B Cycle 1 Cycle 2 Cycle 2 Cycle 3 F F Architecture 1: 2 Mult, 1 Add, L = 2 cycles Architecture 2: 1 Mult, 1 Add, L = 3 cycles High Level Synthesis Example Inputs: A, B, C, D Output: F ……… assign F = A*B + A*C ………. Common Data Flow Graph (DFG)

  12. B C + x Cycle 1 A Cycle 2 F Alternative architecture: 1 Mult, 1 Add, L = 2 cycles Alternative solution • To derive alternative solutions, need new Data Flow Graph • user must rewrite the initial specification (HDL) • replace (A B + A C) by A (B + C) • The data flows are derived directly from user’s specification • There is a need for a higher level of synthesis: • Transformation A*B + A*C = A*(B+C) • Abstract level synthesis should provide • Canonical representation • Basis for optimal solutions for different objectives

  13. x + x x + x x x + High Level Synthesis F = A*B + A*C Specification • Algorithms • Scheduling • Allocation • Resource binding Data flow graph Latency Area A C A B A C Cycle 1 Cycle 1 A B Cycle 2 Cycle 2 Cycle 3

  14. Current HL Transformation Methods • Ad-hoc methods (algebraic) • Commutativity: A + B = B + A • Associativity: A + (B +C) = (A + B) + C • Distributivity: A * (B +C) = (A * B) + (A * C) • Term rewriting, etc. • Tools • Matlab, Maple • Mathematica • Problems: • not canonical • cannot scale with design size • require manual intervention

  15. Taylor Expansion Diagrams • Features of TED • Canonical, minimal, normalized • Compact (linear for polynomials) • Represents word-level blocks and Boolean logic • Applications • Equivalence checking, RTL verification • Symbolic simulation (representation) • Algorithm verification NEW: Application to Behavioral Synthesis

  16. HLD AB + AC A A B C A B C B +   C  + 0 1 F2 = A (B + C) F1 = AB + AC Application to Behavioral Synthesis • Given an algorithm, derive several implementations using common (canonical) structure of TED

  17. + x + x B C Cycle 1 A Cycle 2 Alternative Architecture F = A*(B+C) Specification Data flow graph Area
