Secure Routing in Wireless Sensor Networks Using Directed Diffusion Techniques
This project examines secure routing methodologies in wireless sensor networks through a focused study of the Directed Diffusion protocol. Given the constraints of sensor nodes, such as limited battery life and memory, we analyze both the scalability and energy efficiency of directed diffusion. The project addresses various attacks such as denial of service and data spoofing, and proposes countermeasures including symmetric key cryptographic schemes. By exploring these aspects, we aim to enhance reliable data collection while ensuring robust security in dynamic sensor environments.
Secure Routing in Wireless Sensor Networks Using Directed Diffusion Techniques
E N D
Presentation Transcript
CS 265 PROJECT Secure Routing in Wireless Sensor Networks : Directed Diffusion a study Ajay Kalambur

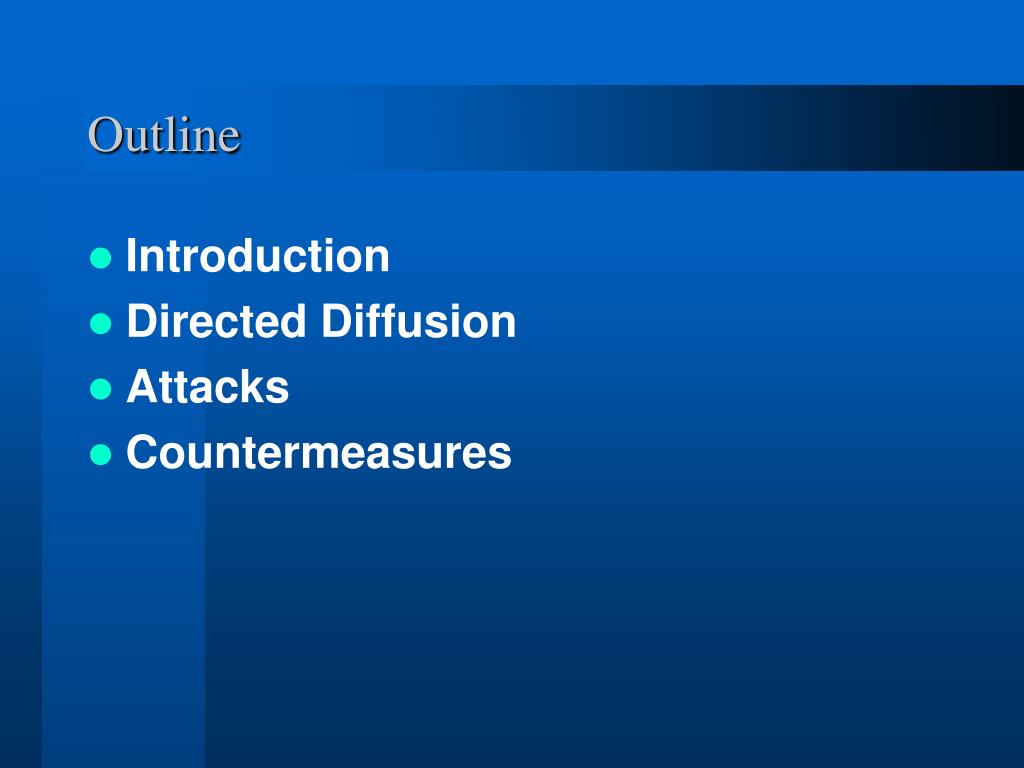

Outline • Introduction • Directed Diffusion • Attacks • Countermeasures
Introduction • Array of sensors deployed to monitor real time events • The concepts derived from adhoc networks • Much more energy starved than adhoc networks • Sensor nodes limited battery and memory
Introduction(contd) • Scalability • Self Organization • Data Collection , aggregation and processing • All protocols must be designed such that they are energy efficient
Sensor Node Architecture Location finding system Sensing Unit Processing Unit Processor Transceiver Sensor ADC Storage Power Unit(Battery)

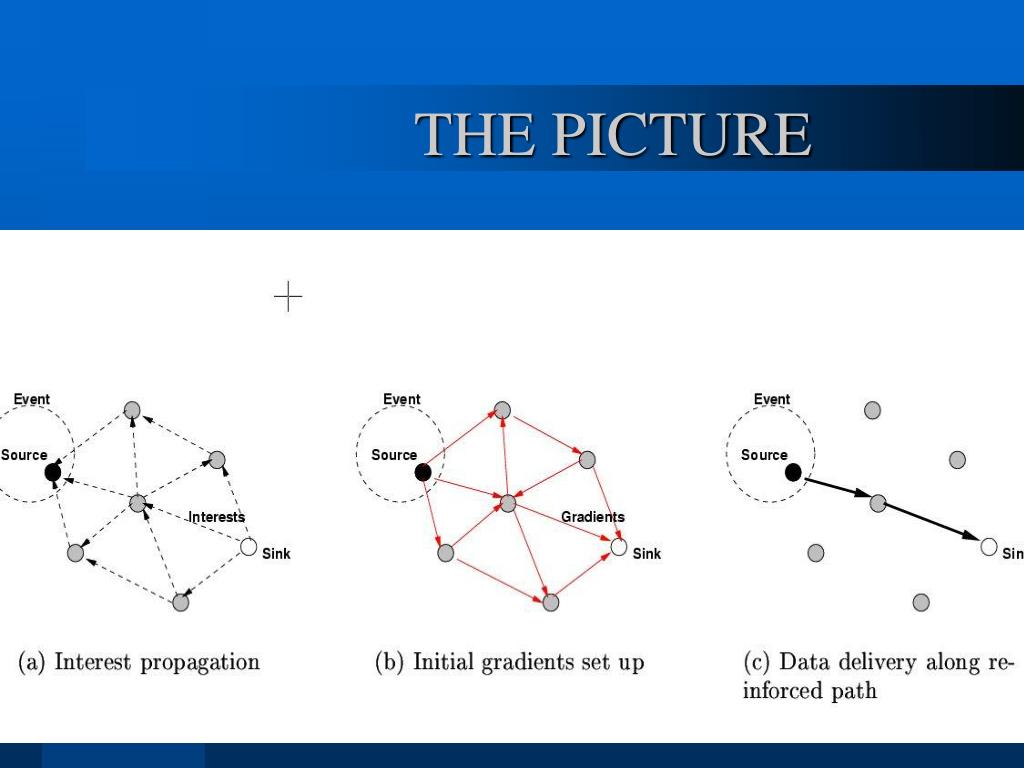

Directed Diffusion • Data centric , interest-based routing protocol • Base station or sink node disseminates interest • Gradient established in opposite direction for data flow • Positive and Negative Reinforcements possible • Interests also stored in interest cache at each node
Example Interest from Base station or sink node • Type=toxin • Interval=1s //send every second • Duration=50 seconds //for next 50 seconds • Rect=[-100,100,250,300]
Response from sensor node detecting the event • Type=toxin • Instance=mercury • Location=[120,225] • Intensity=0.6 • Confidence=0.7 • Timestamp=03:14:45
Attacks on Directed Diffusion • Denial of Service -jamming • Modification and spoofing of routing info • Dropping or selective forwarding of data
Dropping or selective forwarding of data • Previous attack enables malicious node to get into path of data flow • The spoofed positive and negative reinforcements and spoofed data, Selective forwarding is trivial to achieve • Dropping all packets- similar to node being non existent. • Selective forwarding is a more dangerous security issue

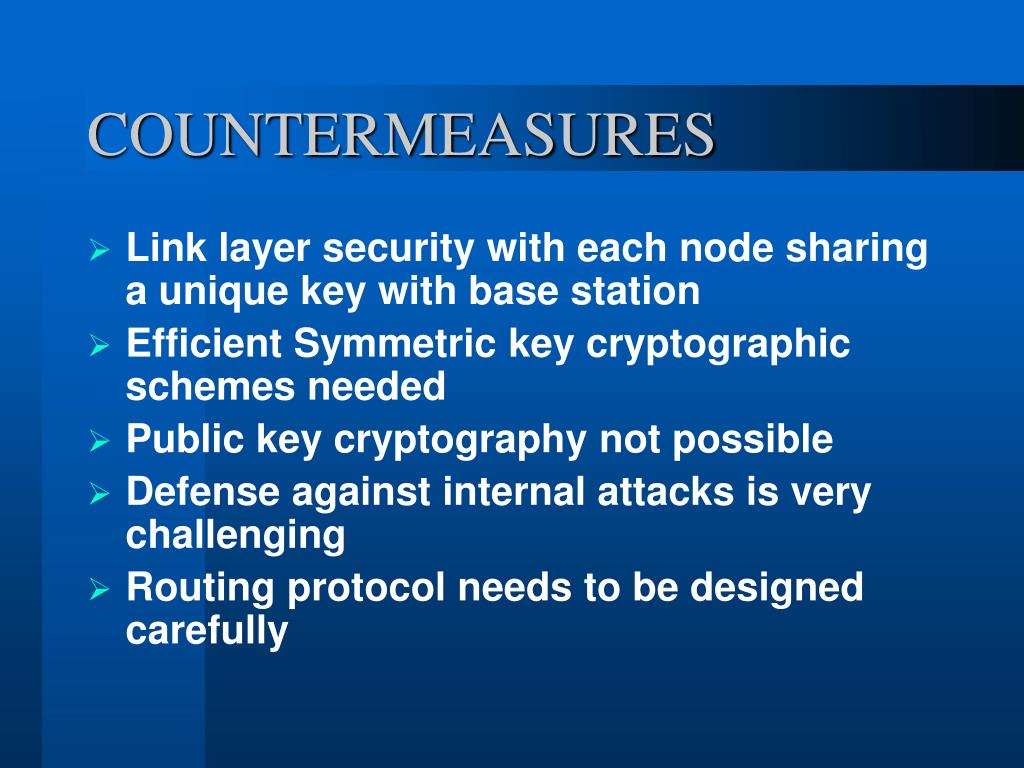

COUNTERMEASURES • Link layer security with each node sharing a unique key with base station • Efficient Symmetric key cryptographic schemes needed • Public key cryptography not possible • Defense against internal attacks is very challenging • Routing protocol needs to be designed carefully

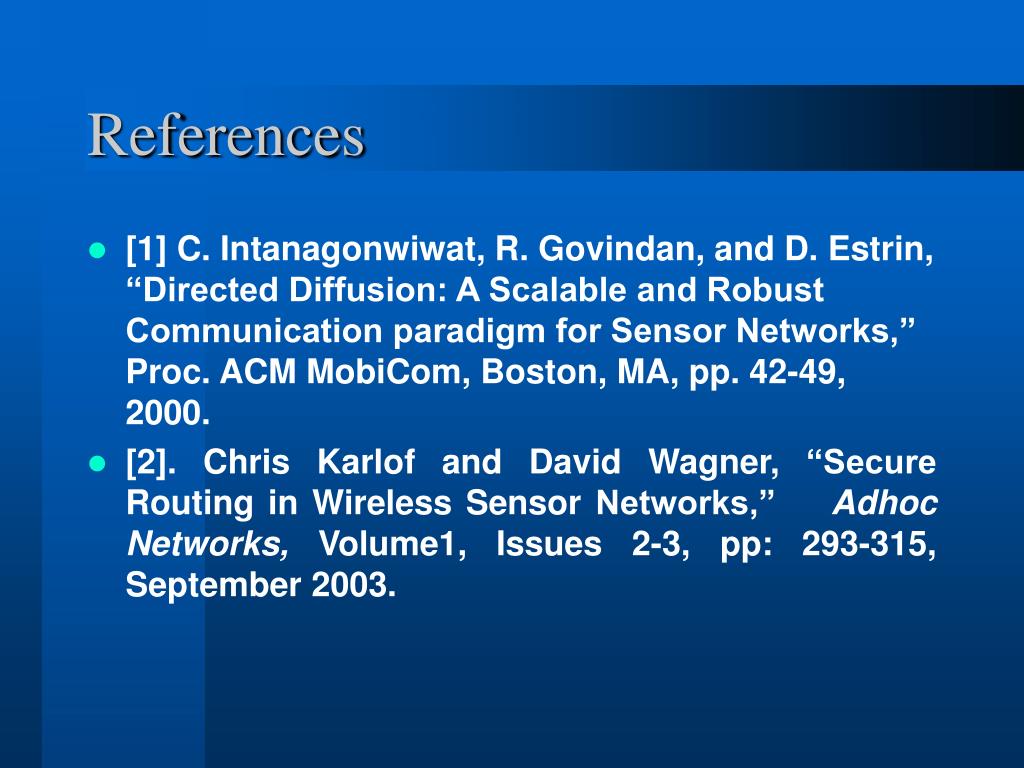

References • [1] C. Intanagonwiwat, R. Govindan, and D. Estrin, “Directed Diffusion: A Scalable and Robust Communication paradigm for Sensor Networks,” Proc. ACM MobiCom, Boston, MA, pp. 42-49, 2000. • [2]. Chris Karlof and David Wagner, “Secure Routing in Wireless Sensor Networks,” Adhoc Networks, Volume1, Issues 2-3, pp: 293-315, September 2003.
