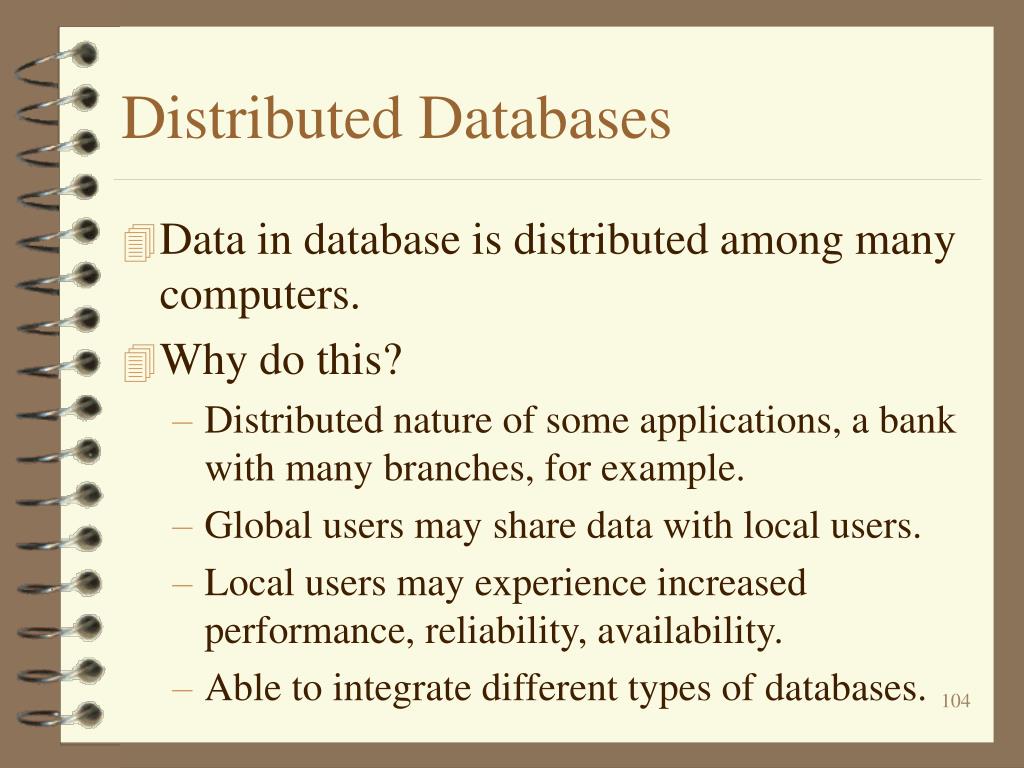

  1. Distributed Databases • Data in database is distributed among many computers. • Why do this? • Distributed nature of some applications, a bank with many branches, for example. • Global users may share data with local users. • Local users may experience increased performance, reliability, availability. • Able to integrate different types of databases.

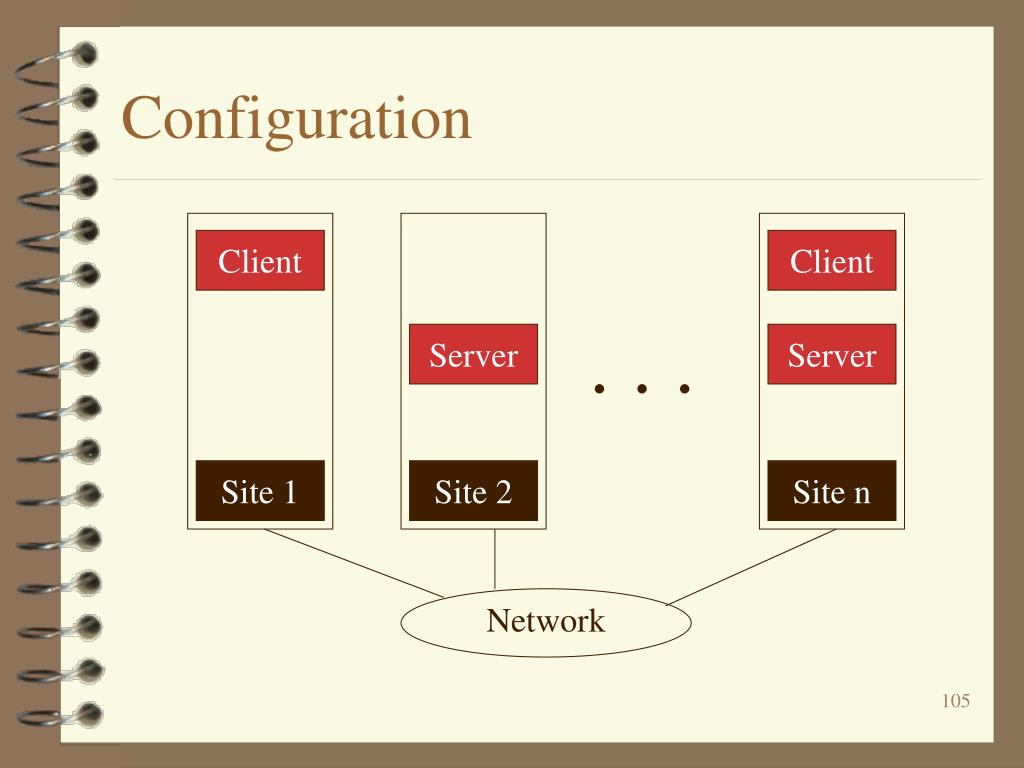

  2. Configuration Client Client . . . Server Server Site 1 Site 2 Site n Network

  3. DBMS Requirements for DDBs • Persistence • Not a problem • Querying • Global vs. Local queries. • Network communication changes query optimization heuristic. • Versioning • As long as network is up, this is no problem

  4. Requirements II • Concurrency Control • Problem: what if a client from site 1 requests a write lock on site 2, then site 1 crashes? • Site 2 has a write lock which will not be released. • Security • If site 1 requests data from site 2, can site 2’s server expect site 1 to protect its data from invalid users?

  5. Requirements III • Integrity • Not a problem as long as network is up. • Transactions • Should there be one log or a distributed logging mechanism? • If site 1 makes a change to site 2, who logs it? • Recovery • If site 2 needs to run the recovery algorithm, where are the transactions to examine?

  6. Types of Distributed Databases: • There is a hierarchy of types of Distributed DB’s. • What follows is a “tree” of DDB types:

  7. Distributed DB Systems Homogeneous Heterogeneous Autonomous Non-Autonomous Integrated via Systems Integrated via Gateways Partial DBMS Functionality Full DBMS Functionality Federated Unfederated Loose Integration Tight Integration Single-Scheme Multi-Scheme

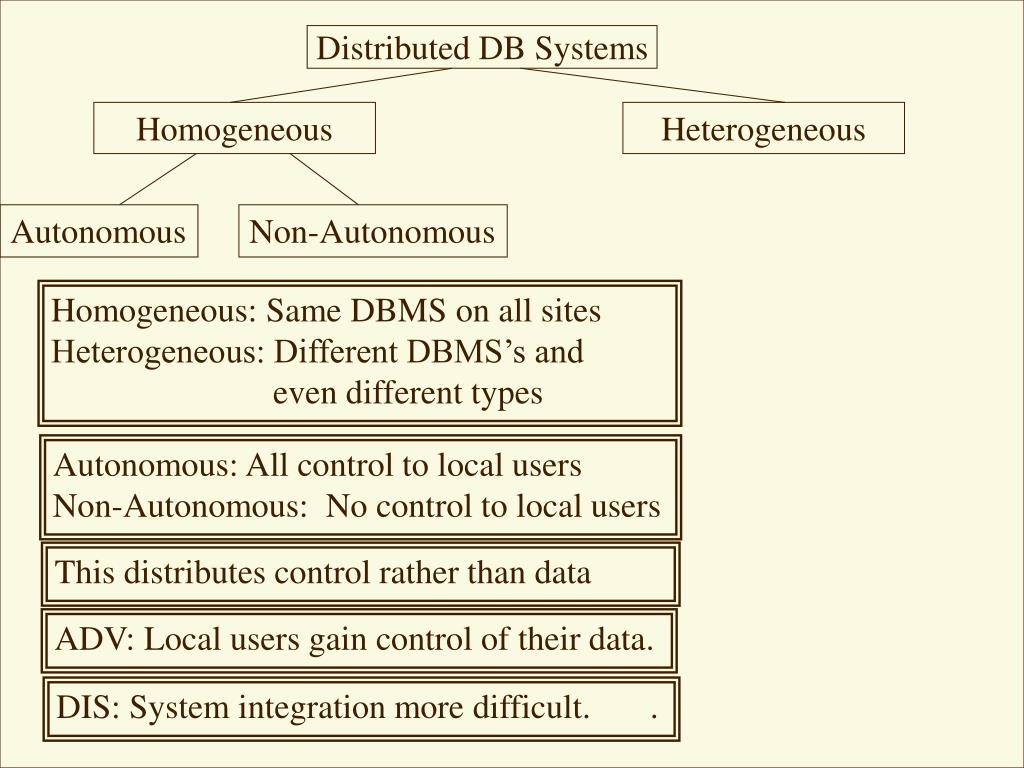

  8. Homogeneous Heterogeneous Autonomous Non-Autonomous Distributed DB Systems Homogeneous: Same DBMS on all sites Heterogeneous: Different DBMS’s and even different types Autonomous: All control to local users Non-Autonomous: No control to local users This distributes control rather than data ADV: Local users gain control of their data. DIS: System integration more difficult. .

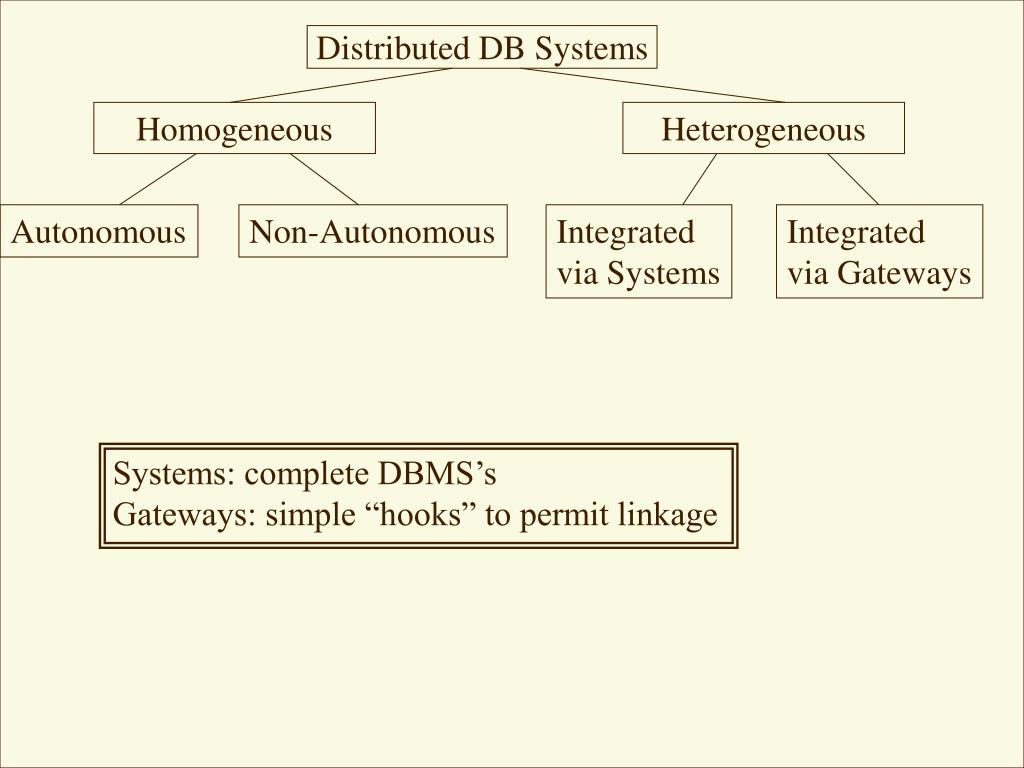

  9. Distributed DB Systems Homogeneous Heterogeneous Autonomous Non-Autonomous Integrated via Systems Integrated via Gateways Systems: complete DBMS’s Gateways: simple “hooks” to permit linkage

  10. Distributed DB Systems Homogeneous Heterogeneous Autonomous Non-Autonomous Integrated via Systems Integrated via Gateways Partial DBMS Functionality Full DBMS Functionality Federated Unfederated Federated: Local users exist. Unfederated: no local users. How much of DBMS functionality is available?

  11. Distributed DB Systems Homogeneous Heterogeneous Autonomous Non-Autonomous Integrated via Systems Integrated via Gateways Partial DBMS Functionality Full DBMS Functionality Federated Unfederated Loose Integration Tight Integration Single-Scheme Multi-Scheme How many global schemas exist? Loose Integration: no global schema; Tight: with global schema.

  12. Building Distributed DB Systems • Normal DBMS has 3 levels: • Internal Level • Conceptual Level • External Level • Distributed complexity comes from • Global vs. local users • Global vs. local schemas

  13. Normal DBMS Level Diagram External View 1 External View 2 External View n Conceptual Level Internal Level

  14. Distributed DBMS Diagram • Each Server Site will have its own normal 3 level version. • Global Users will have an external and conceptual level. • Conceptual level will not be mapped to a global Internal level, but to the Server Sites. • How?

  15. Global External View 1 Global External View n Global Conceptual Level Fragmentation Schema Allocation Schema Server Site 1 Server Site 2 Server Site n Loc Ext 1 Loc Ext n Loc Ext 1 Loc Ext n Loc Ext 1 Loc Ext n Concep. Level Concep. Level Concep. Level Int Level Int Level Int Level

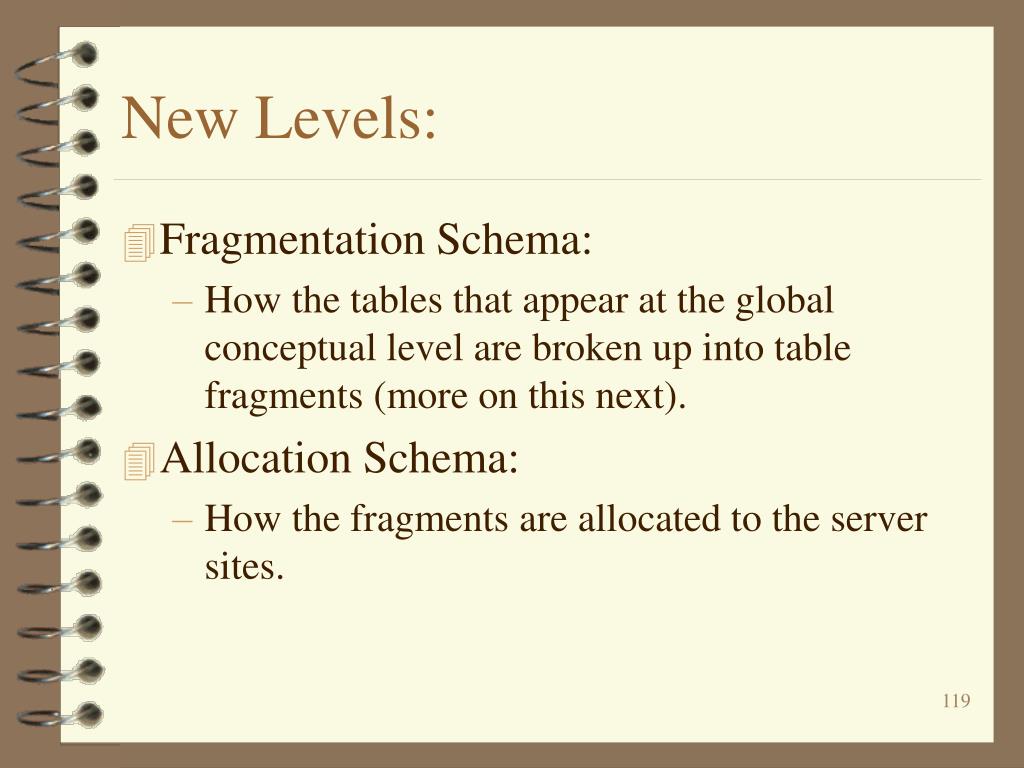

  16. New Levels: • Fragmentation Schema: • How the tables that appear at the global conceptual level are broken up into table fragments (more on this next). • Allocation Schema: • How the fragments are allocated to the server sites.

  17. Fragmentation • Horizontal Fragmentation • A table is split so that some of its rows go into one fragment and some into another. • Vertical Fragmentation • A table is split so that some of its columns go into one fragment and some into another. • Don’t forget the primary key in all fragments! • Mixed Fragmentation • Both Horizontal and Vertical Fragmentation.

  18. Data Replication • Full Replication -- replicate all data on all machines • Fast querying time • Updates require synchronization • Partial Replication -- replicate some elements, but not all. • Optimize query time while minimizing synchronization • Problem: how to decide?

  19. Data Replication II • Question: how to keep copies current? • Synchronous Replication: • A transaction wishing to update a replicated table must update all copies before it can commit. • Asynchronous Replication: • Copies are updated only periodically

  20. Data Replication III • If all copies aren’t updated, what is updated? • Primary Copy Data Replication: • There is one copy designated the primary copy that is updated; these changes propagate to the other copies periodically. • Equal Participation Replication (Peer-to-Peer): • Any copy may be updated any time.

  21. Data Replication IV • With Equal Participation, how are concurrent updates restricted to ensure no two copies have incompatible updates? • In general, it is impossible to guarantee that no two updates will be changing the same piece of data. • In practice, it may be possible: a company with offices in Chicago and Peoria may allow each site a complete copy of the employee table, but allow them to change only there own ones.

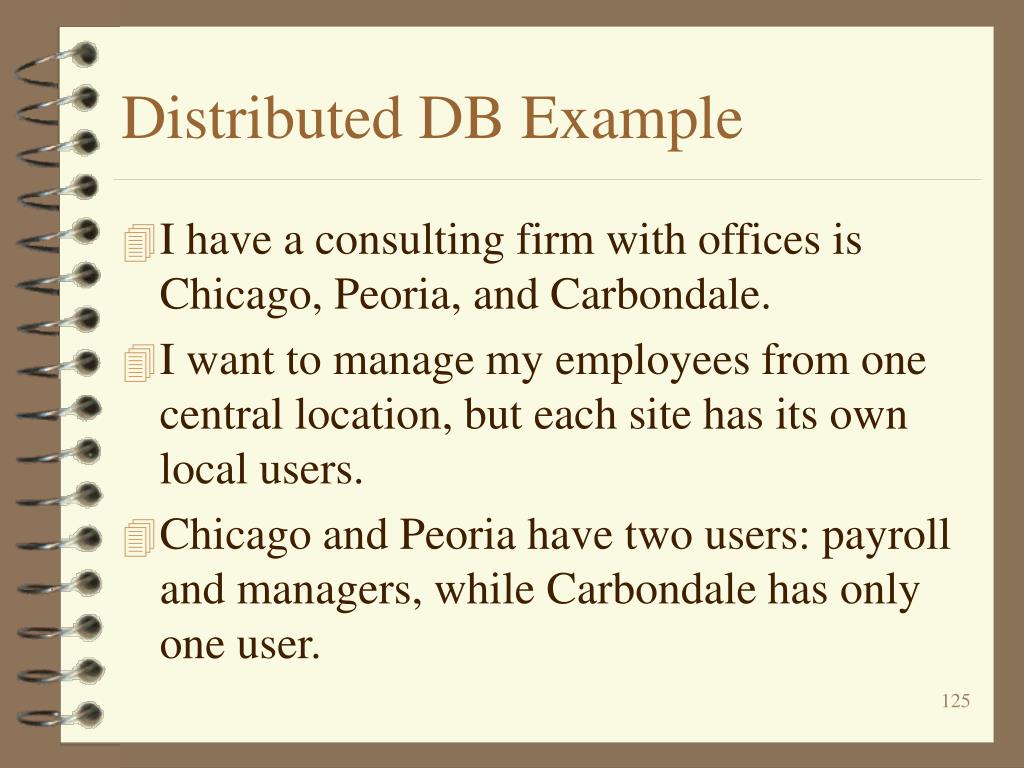

  22. Distributed DB Example • I have a consulting firm with offices is Chicago, Peoria, and Carbondale. • I want to manage my employees from one central location, but each site has its own local users. • Chicago and Peoria have two users: payroll and managers, while Carbondale has only one user.

  23. Example Partitioning • Chicago: • payroll: EmpCP(ID#, Name, Salary, #deducts) • MGRs: EmpCM(ID#, Job, Mgr-ID#) • Peoria: • payroll: EmpPP(ID#, Salary, #deducts) • MGRs: EmpPM(ID#, Name, Job, Mgr-ID#) • Carbondale: • EmpDS(ID#, Name, Salary, #deducts, Job, Mgr-ID#)

  24. Example: Global Schema • Global Conceptual Level: • EmpGlobal(ID#, Name, Salary, #deducts, Job, Mgr-ID#) • Fragmentation Schema: • Three horizontal fragments (one for each location) • Two of these horizontal fragments are then fragmented vertically. • This is a mixed scheme.

  25. Example: Global Schema II • Global Allocation Schema: • Chicago: two fragments, one to Payroll, one to Managers. • Peoria: two fragments, one to Payroll, one to Managers. • Carbondale: just one fragment.

  26. Example: Architecture Steps • Examine User’s External View • Determine access rights • Examine Ext/Conceptual Level Mapping • Determine how view is mapped to tables. • Examine Conceptual Level • Determine what tables are needed • Examine Fragmentation Schema • Determine how tables are fragmented

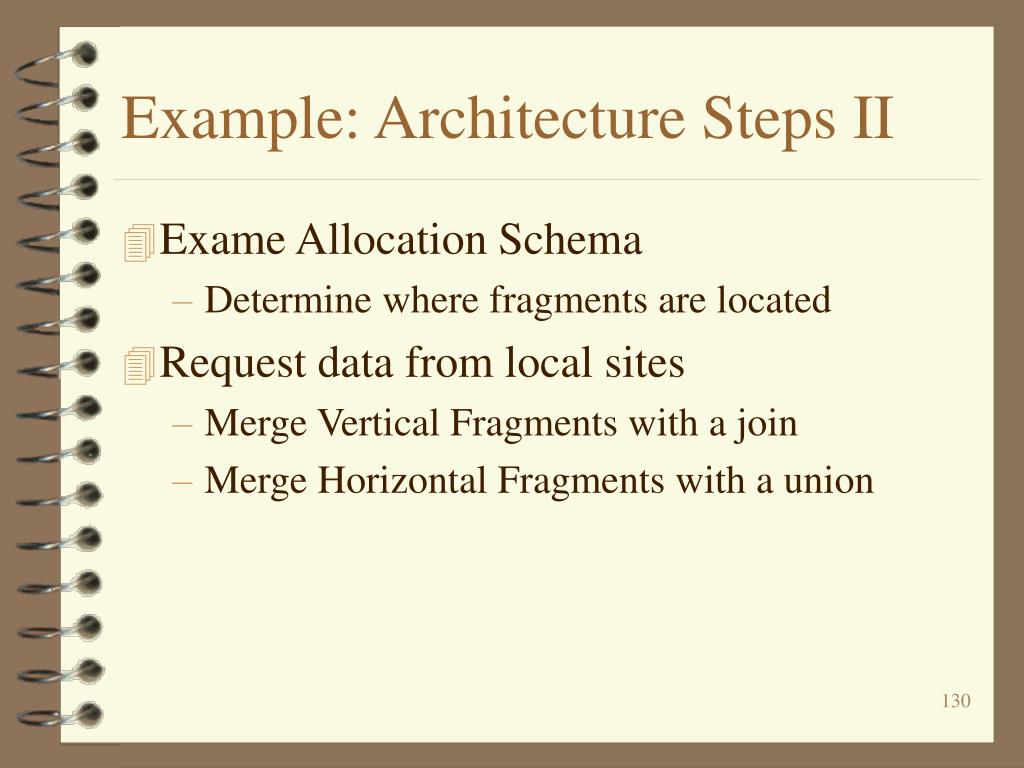

  27. Example: Architecture Steps II • Exame Allocation Schema • Determine where fragments are located • Request data from local sites • Merge Vertical Fragments with a join • Merge Horizontal Fragments with a union

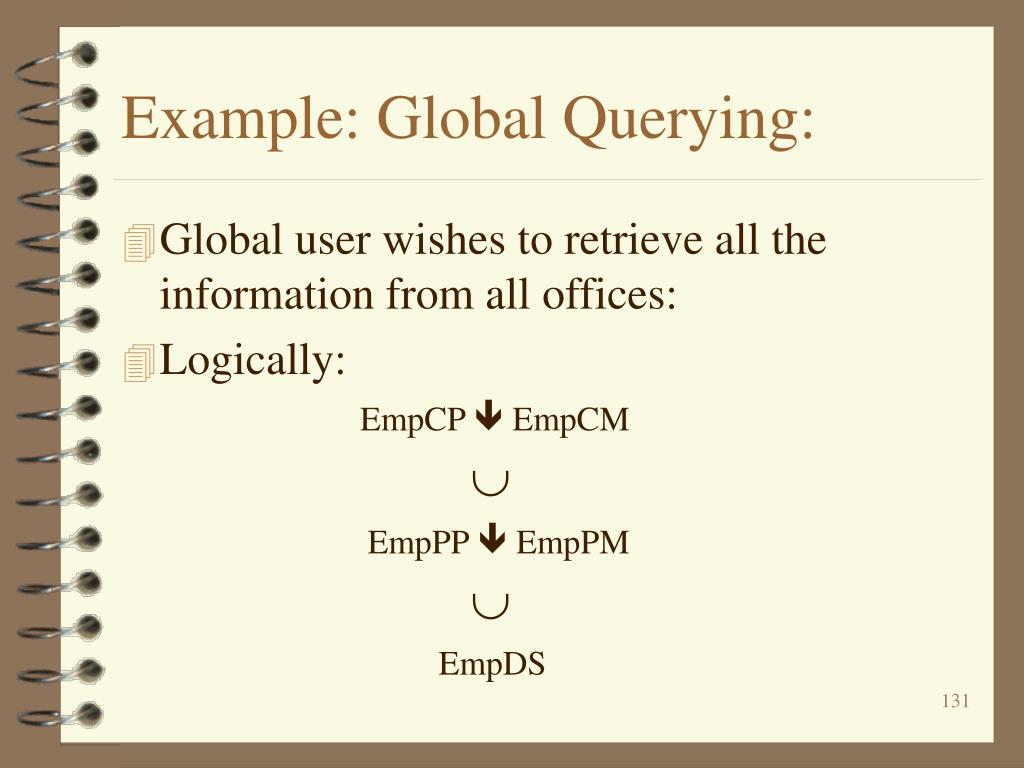

  28. Example: Global Querying: • Global user wishes to retrieve all the information from all offices: • Logically: EmpCP  EmpCM  EmpPP  EmpPM  EmpDS

  29. Query Processing • Example: • Emp(Name, SSN, Bdate, Addr, Sex, Salary, Mgr, Date) • 10,000 Records, each is 100 bytes • Name is 30 bytes, SSN: 9, DNO: 4 • AT SITE 1 • Dept(D#, Dname, MgrSSn, MgrStartDate) • 100 records, 35 bytes each • D#: 4 byts, Dname: 10 bytes, Mgr: 9 Bytes • AT SITE 2

  30. Querying • FROM SITE 3: • “Retrieve every employee’s name, and the name of his/her department.” • Easy in SQL: • Select Ename, DnameFrom Emp, DeptWhere Dno = D# • Hard part: • Where to join them?

  31. Querying II: Where to join? • Where should the join be done? • Let’s look at each possibility, and calculate total number of bytes that need to be transferred to do the join there.

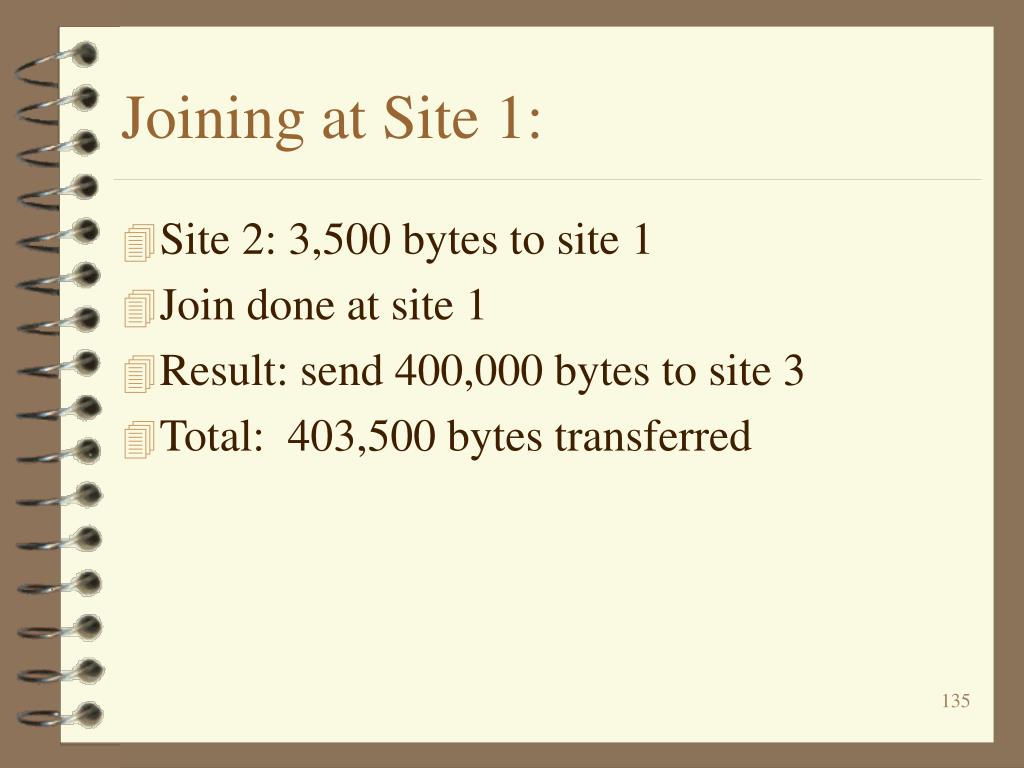

  32. Joining at Site 1: • Site 2: 3,500 bytes to site 1 • Join done at site 1 • Result: send 400,000 bytes to site 3 • Total: 403,500 bytes transferred

  33. Joining at Site 2: • Site 1: 1,000,000 bytes to site 2 • Join done at Site 2 • Result: send 400,000 bytes to site 3 • Total: 1,400,000 bytes transferred

  34. Joining at Site 3: • Site 1: 1,000,000 bytes to Site 3 • Site 2: 3,500 bytes to Site 3 • Join done at Site 3 • Total: 1,003,500 bytes transferred

  35. Query Analysis • Joining at Site 1: • Total: 403,500 bytes transferred • Joining at Site 2: • Total: 1,400,000 bytes transferred • Joining at Site 3: • Total: 1,003,500 bytes transferred • PICK JOINING AT SITE 1

  36. Query with Optimization • Now, optimize query: • (EN,DN) [(EN,D#) (Emp)  (D#,DN) (Dept)] • Projection on Emp has 340,000 bytes • Projection on Dept has 1,400 bytes • Result will have 400,000 bytes.

  37. Optimized Join • Join at Site 1: • 1,400 + 400,000 = 401,400 bytes transferred. • Join at Site 2: • 340,000 + 400,000 = 740,000 bytes transferred. • Join at Site 3: • 340,000 + 1,400 = 341,400 bytes transferred. • DO JOIN AT SITE 3.

  38. Distributed Transactions • From the previous example: suppose I wish to add a new department and also add some employees to it. • This requires updating the Dept table at Site 2 and also the Emp table at site 1. THESE UPDATES MUST BE IN THE SAME TRANSACTION.

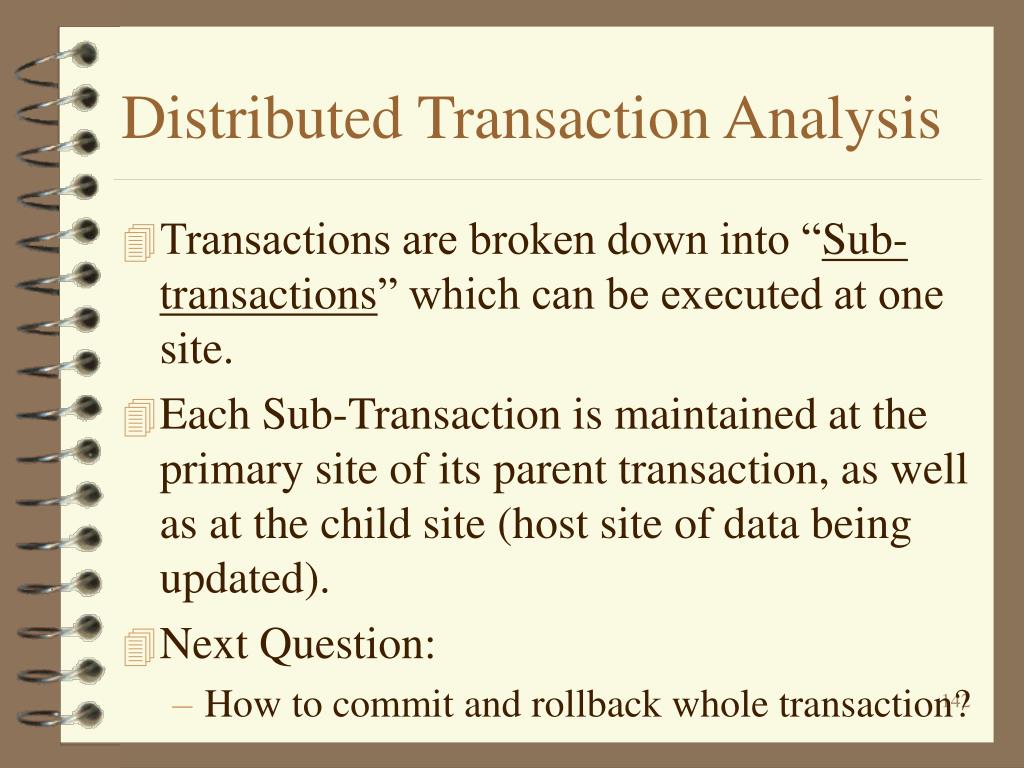

  39. Distributed Transaction Analysis • Transactions are broken down into “Sub-transactions” which can be executed at one site. • Each Sub-Transaction is maintained at the primary site of its parent transaction, as well as at the child site (host site of data being updated). • Next Question: • How to commit and rollback whole transaction?

  40. Commit and Rollback Problems • To commit, all actions of the transaction must be completed. • In the distributed environment, it means all sub-transactions must be completed before the whole transaction can be completed. • How does main transaction processor (coordinator) know if all sub-transactions at their sites (subordinates) have been completed?

  41. New Commit Protocol • Two-Phase Commit: • When the main transaction is completed, the coordinator sends a “prepare to commit” message to all subordinates. This is also written to its transaction log. • These sites write a “prepare sent” message to their transaction logs and return either “Yes” or “No” back to coordinator. This signals whether or not their sub-transaction was completed.

  42. New Commit Protocol II • If coordinator receives all “Yes” responses from all subordinates: • It issues a commit to its transaction log and sends “Commit” to all subordinates. • If coordinator receives at least one “No”, or it times-out waiting for a response from any site: • it must rollback the entire transaction. • What does the subordinates do next?

  43. New Commit Protocol II • If subordinate receives a rollback request: • It performs this action on its transaction log and sends an acknowledgement back to the coordinator. • If it receives a commit: • It writes this to its transaction log and sends an acknowledgement back to the coordinator. • If coordinator receives all acknowledgements: • It writes an end-of-transaction notice to its log.

  44. Distributed Recovery • Problem: a site crashes and then comes back up. • What to do about transactions for which it was the coordinator? • What to do about transactions for which it was a subordinate? • What to do if a site you are communicating with goes down?

  45. Dist. Recovery -- Coordinator • If a transaction has been committed • the send a commit to each subordinate. • Same idea for a rollback (abort). • If no commit or rollback appears in the log • It must be undone, but the site doesn’t know if it is coordinator or subordinate. • To decide, wait for a coordinator or subordinate request.

  46. Dist. Recovery -- Subordinate • If a transaction has been prepared and committed • send an ACK to coordinator. • Same idea for a rollback (abort). • If a PREPARE is found, but no commit or rollback • Contact coordinator and ask for a commit or rollback.

  47. Dist. Recovery -- Subordinate II • If no PREPARE appears in the log, • It must be undone, but the site doesn’t know if it is coordinator or subordinate. • To decide, wait for a coordinator or subordinate request.
