This supplemental slide presentation by Prof. Jeff Heflin covers the implementation of the Minimax algorithm in the context of the Tic-Tac-Toe game. It elaborates on the concept of successor functions, decision-making using MAX-VALUE and MIN-VALUE functions, and the utility evaluations involved in terminal states. The slides also introduce the Minimax decision-making process with cutoff limits, demonstrating the evaluation of state depth and utility values to optimize game strategy. Ideal for students of artificial intelligence and game theory.
E N D

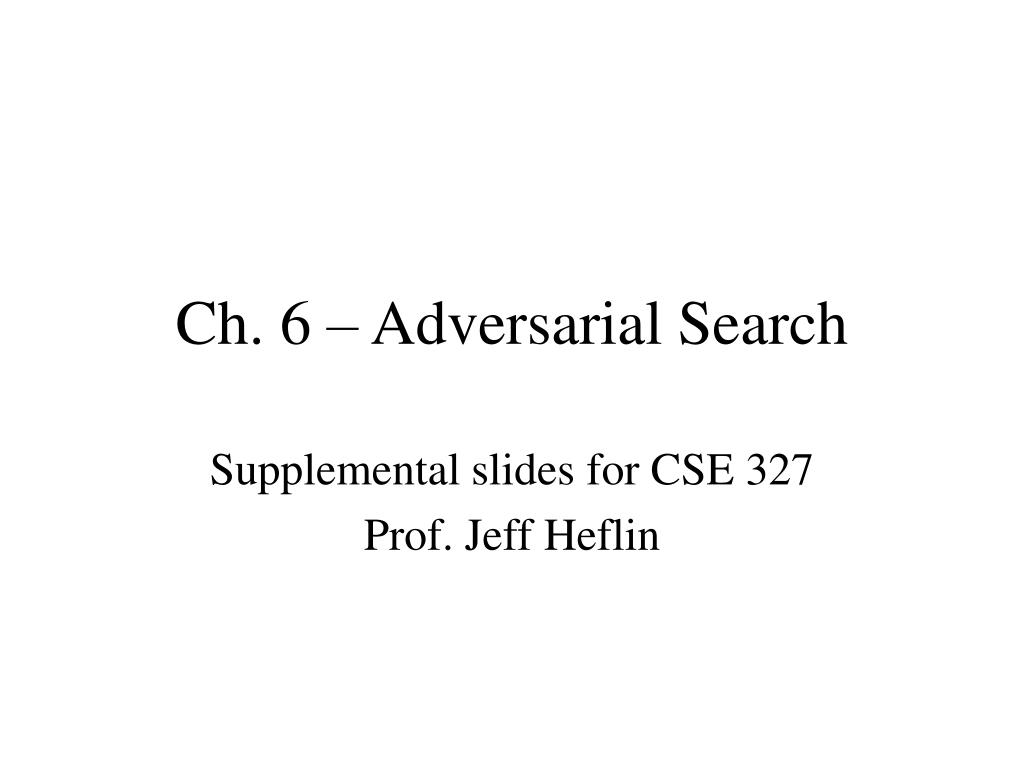

Ch. 6 – Adversarial Search Supplemental slides for CSE 327 Prof. Jeff Heflin

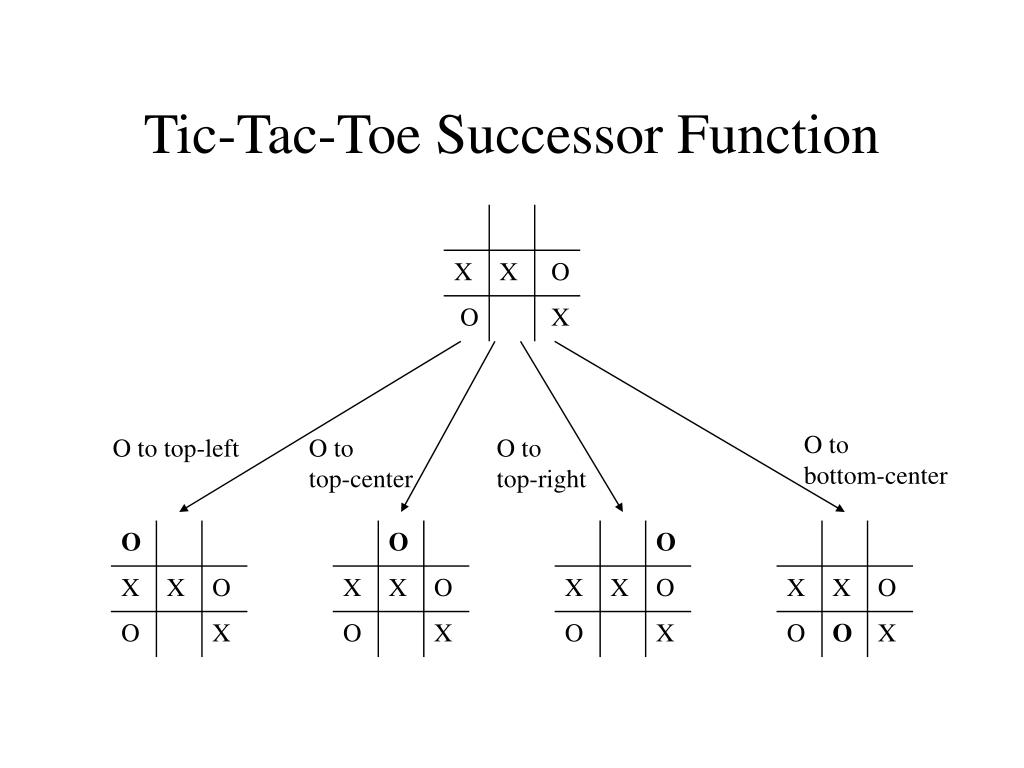

Tic-Tac-Toe Successor Function O tobottom-center O to top-left O totop-center O to top-right
Minimax Algorithm function MINIMAX-DECISION(state) returns an action v MAX-VALUE(state)return the action in SUCCESSORS(state) with value v function MAX-VALUE(state) returns a utility valueif TERMINAL-TEST(state) then return UTILITY(state)v -for each <a,s> in SUCCESSORS(state) dov MAX(v, MIN-VALUE(s))return v function MIN-VALUE(state) returns a utility valueif TERMINAL-TEST(state) then return UTILITY(state)v +for each <a,s> in SUCCESSORS(state) dov MIN(v, MAX-VALUE(s))return v From Figure 6.3, p. 166

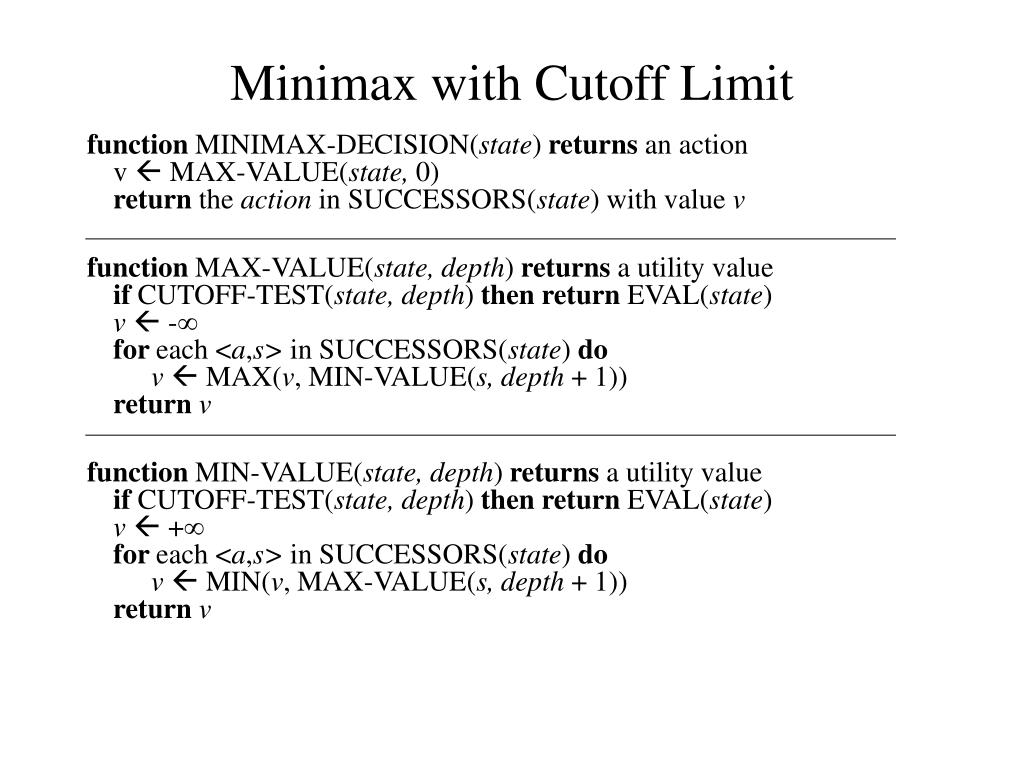

Minimax with Cutoff Limit function MINIMAX-DECISION(state) returns an action v MAX-VALUE(state, 0)return the action in SUCCESSORS(state) with value v function MAX-VALUE(state, depth) returns a utility valueif CUTOFF-TEST(state, depth) then return EVAL(state)v -for each <a,s> in SUCCESSORS(state) dov MAX(v, MIN-VALUE(s, depth + 1))return v function MIN-VALUE(state, depth) returns a utility valueif CUTOFF-TEST(state, depth) then return EVAL(state)v +for each <a,s> in SUCCESSORS(state) dov MIN(v, MAX-VALUE(s, depth + 1))return v
