  1. How to Start Up CCStudio 3 DSP LAB T.A.:

  2. Device Setup • Double-click “Setup CCStudio3” on desktop, and you will see the above dialog.

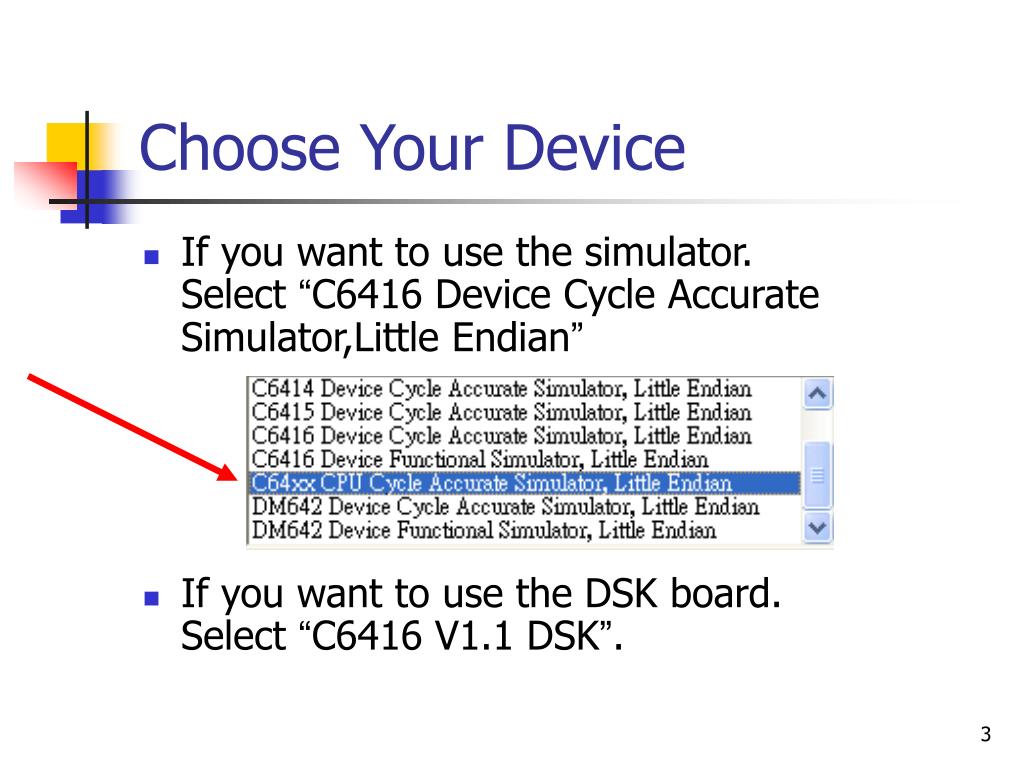

  3. Choose Your Device • If you want to use the simulator.Select “C6416 Device Cycle Accurate Simulator,Little Endian” • If you want to use the DSK board.Select “C6416 V1.1 DSK”.

  4. Click “import”

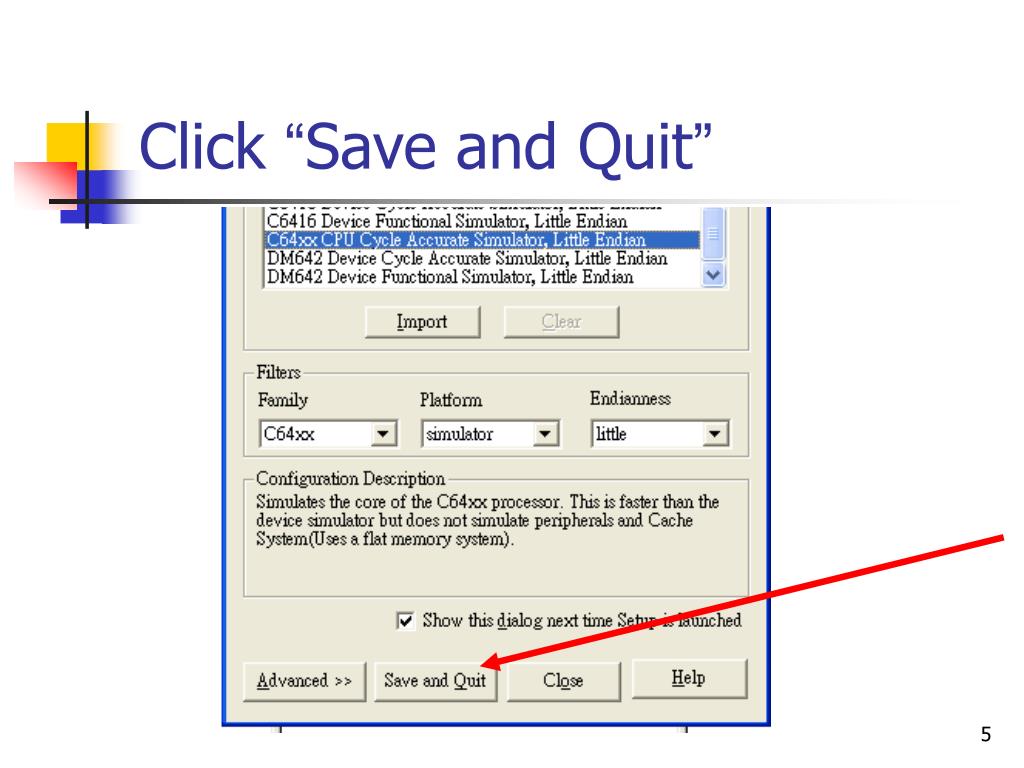

  5. Click “Save and Quit”

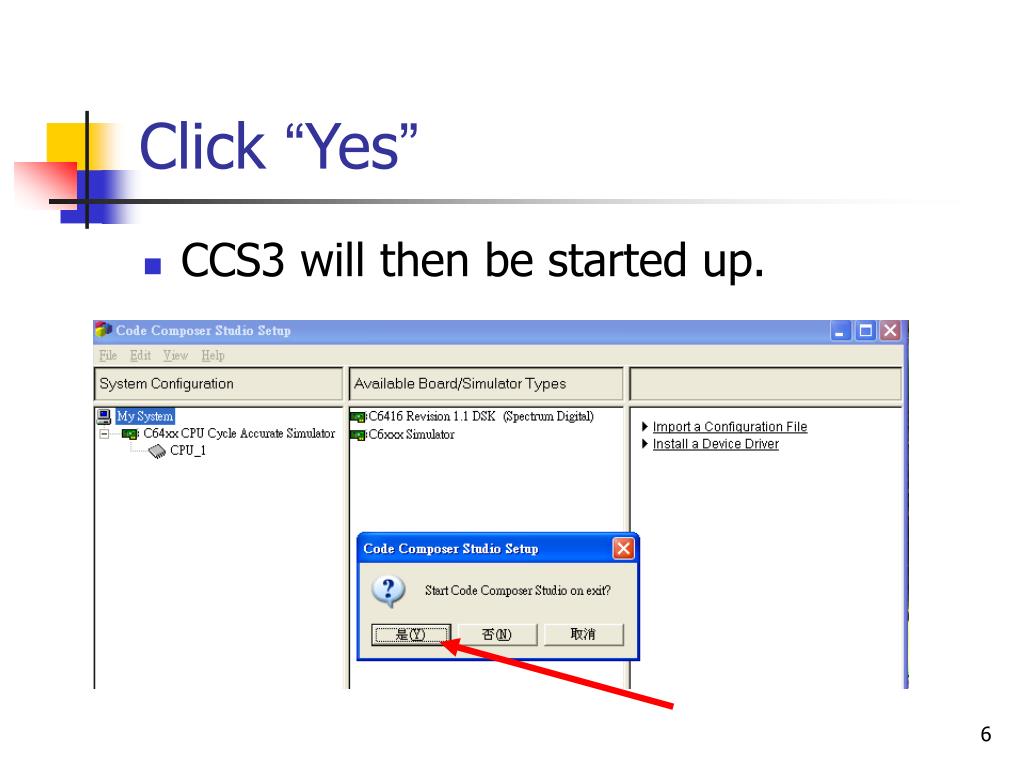

  6. Click “Yes” • CCS3 will then be started up.

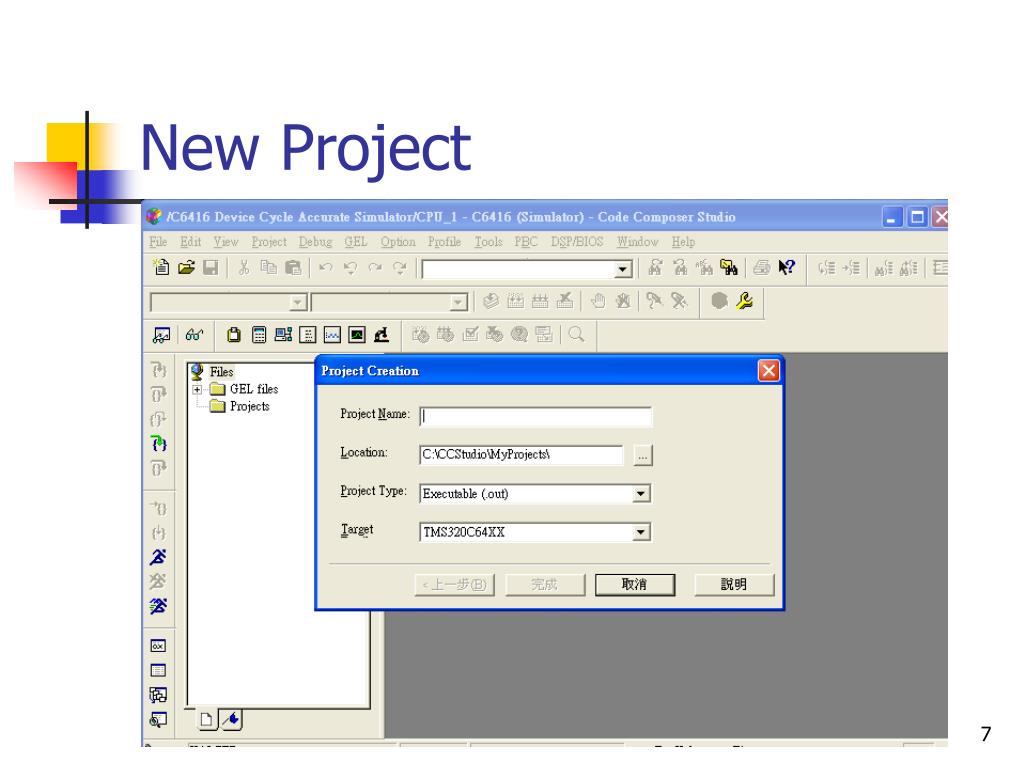

  7. New Project

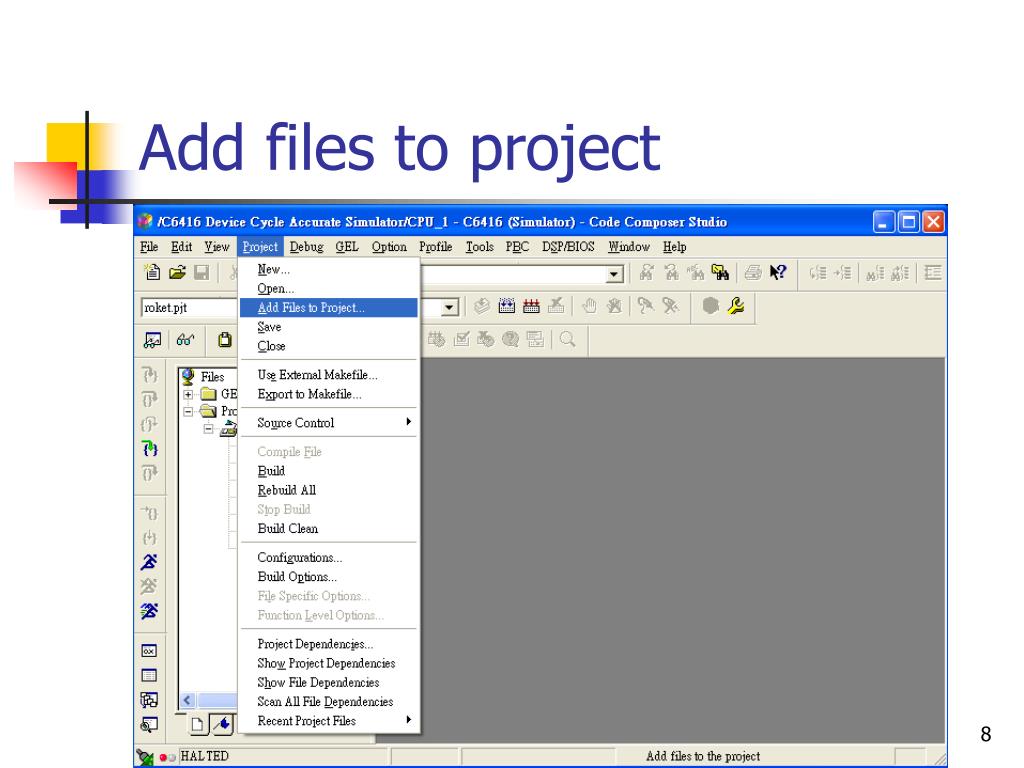

  8. Add files to project

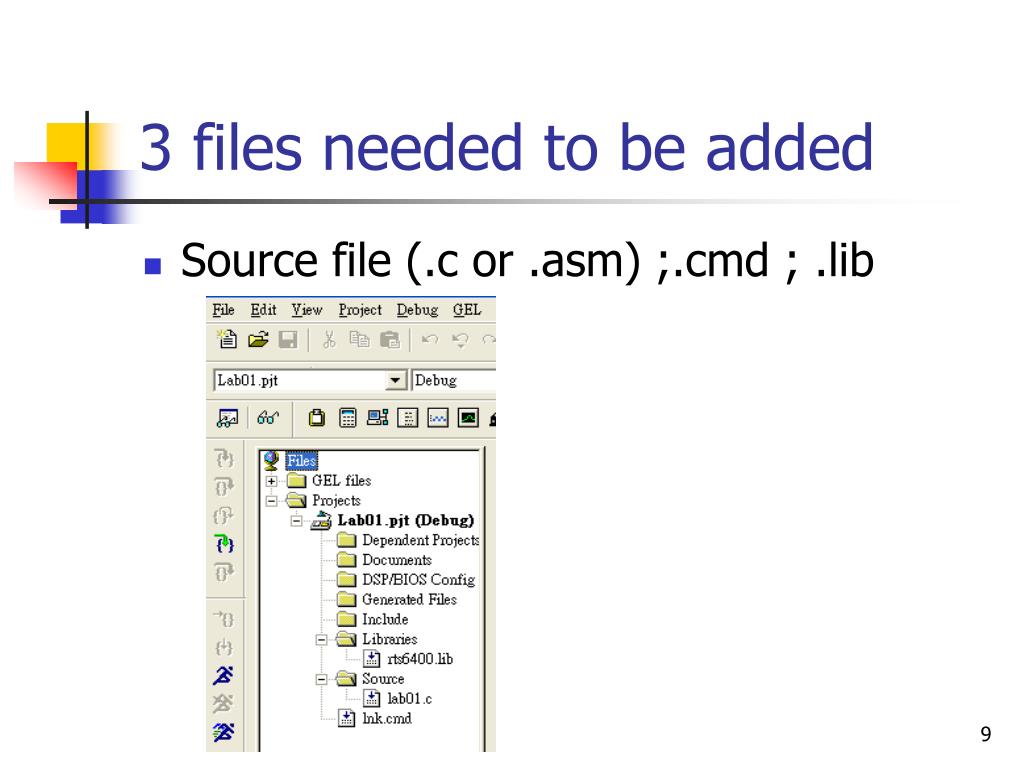

  9. 3 files needed to be added • Source file (.c or .asm) ;.cmd ; .lib

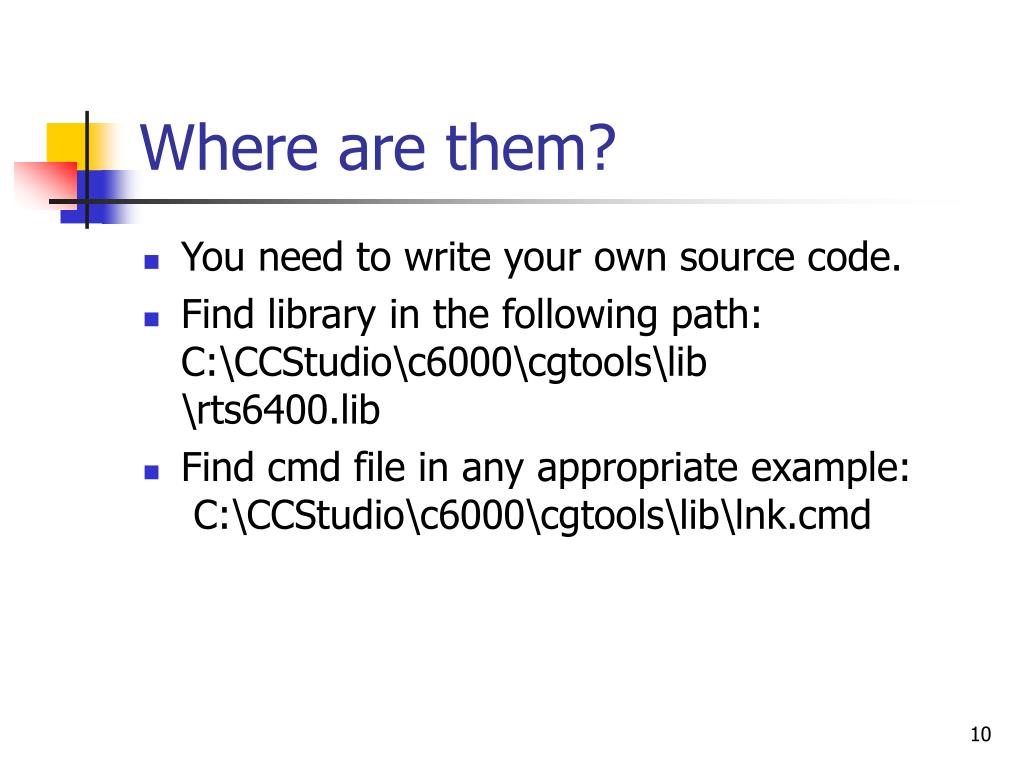

  10. Where are them? • You need to write your own source code. • Find library in the following path:C:\CCStudio\c6000\cgtools\lib\rts6400.lib • Find cmd file in any appropriate example: C:\CCStudio\c6000\cgtools\lib\lnk.cmd

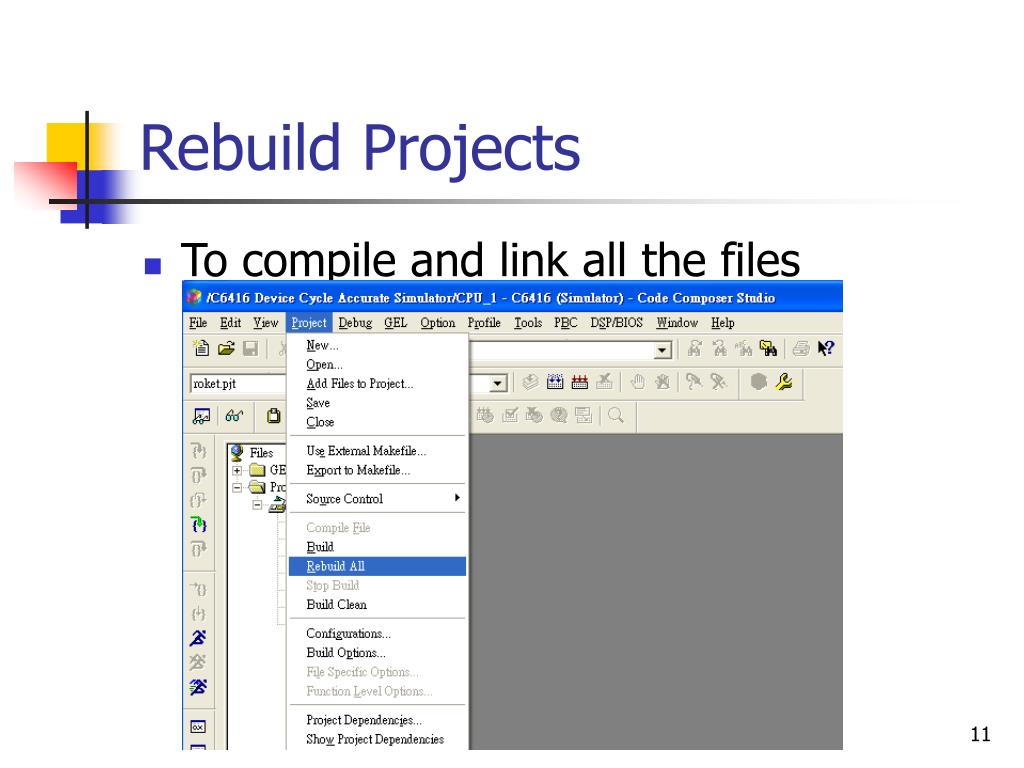

  11. Rebuild Projects • To compile and link all the files

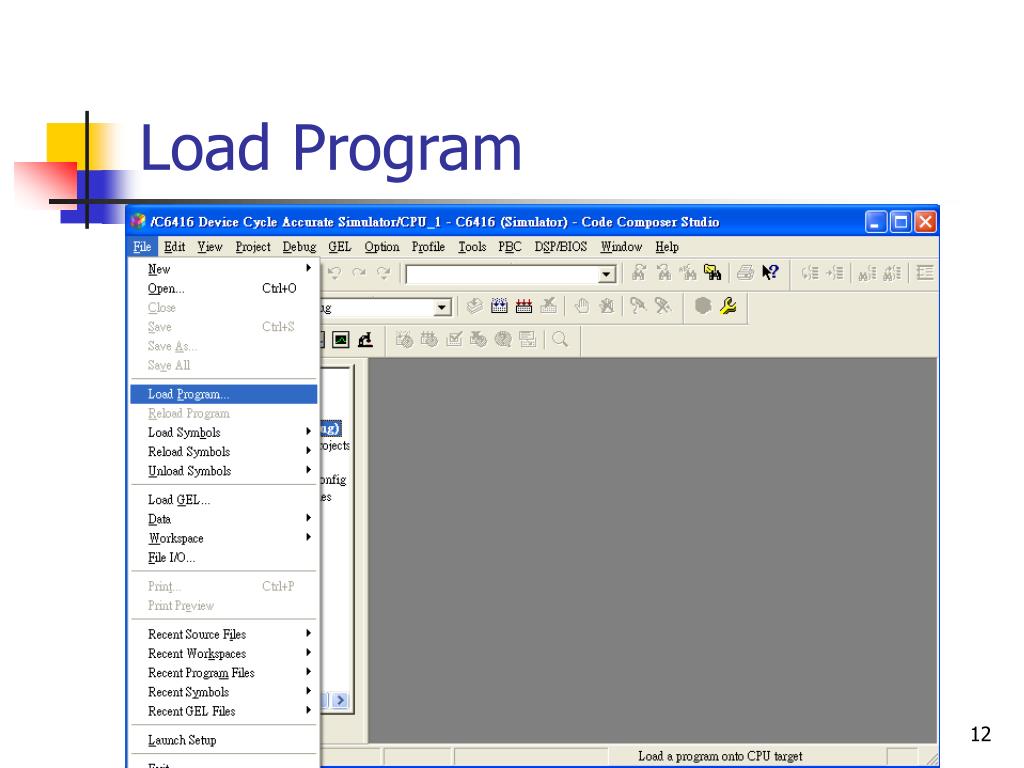

  12. Load Program

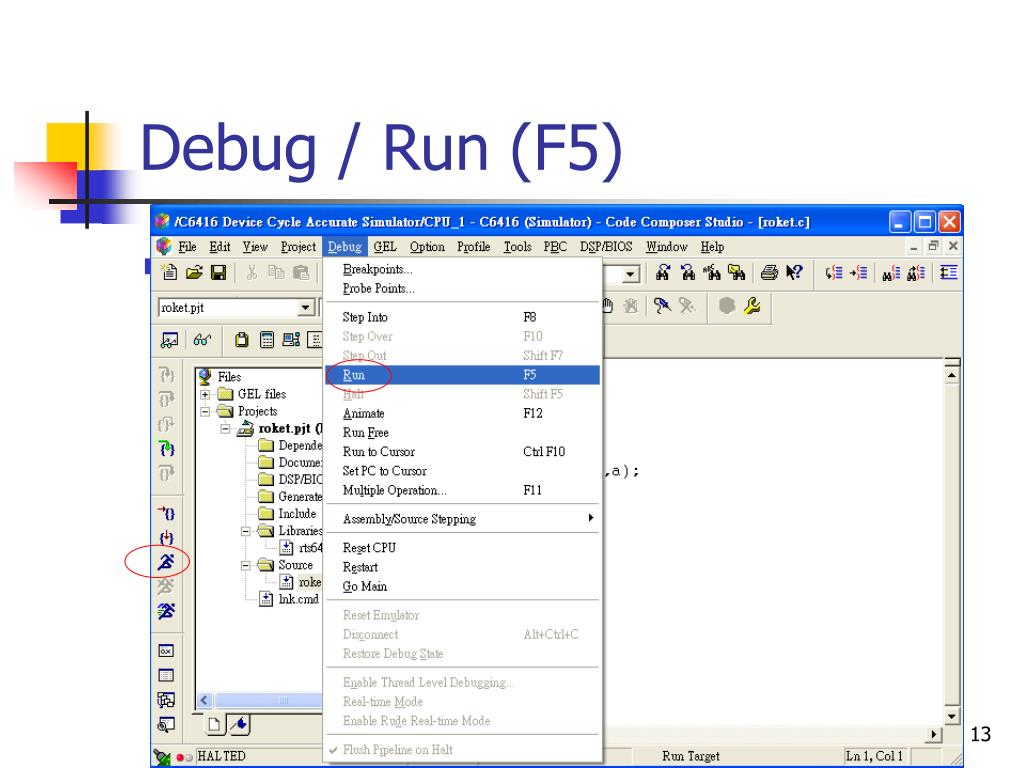

  13. Debug / Run (F5)
