  1. Decentralized Media Streaming Jack Y. B. Lee Department of Information Engineering The Chinese University of Hong Kong

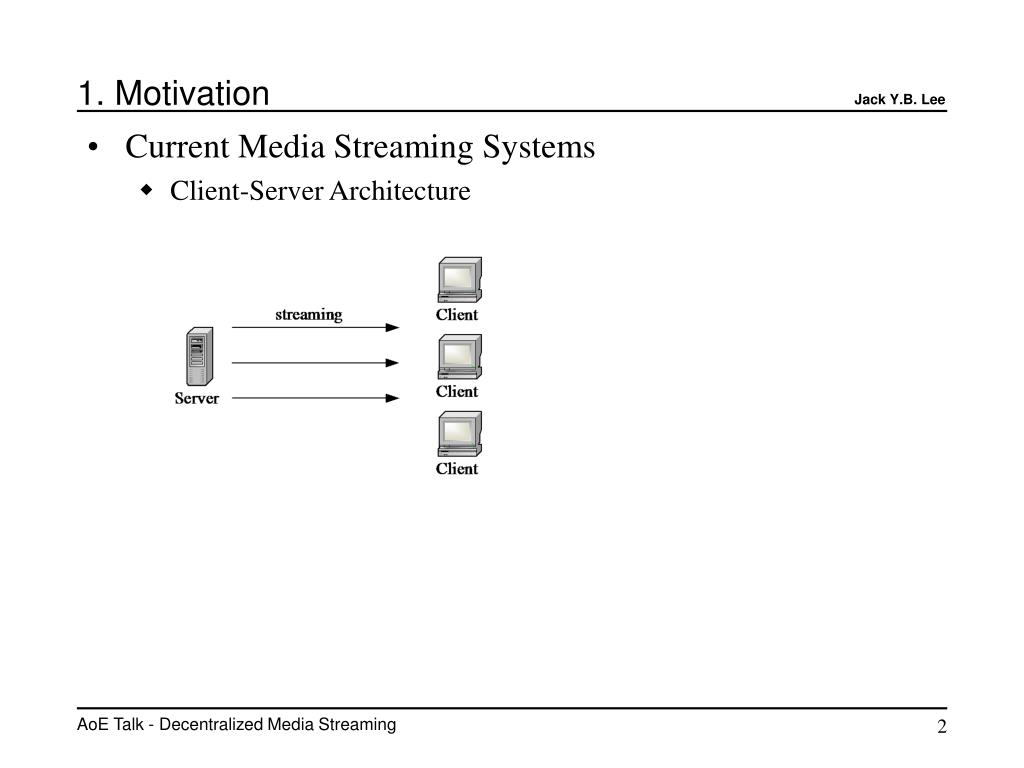

  2. 1. Motivation • Current Media Streaming Systems • Client-Server Architecture AoE Talk - Decentralized Media Streaming

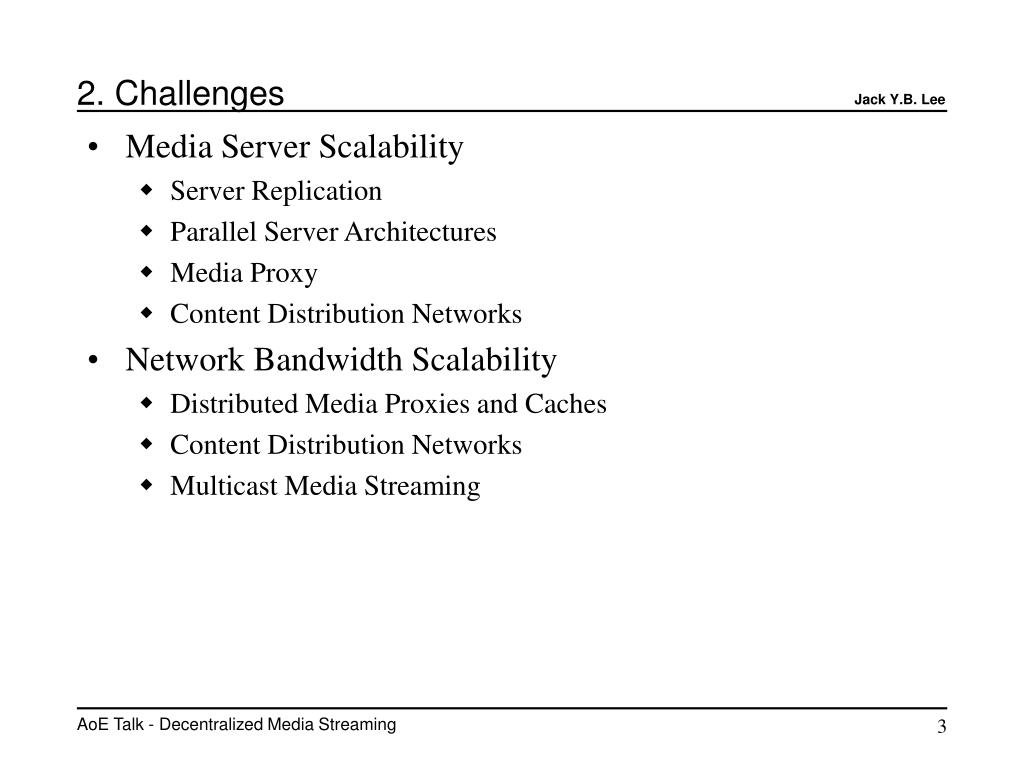

  3. 2. Challenges • Media Server Scalability • Server Replication • Parallel Server Architectures • Media Proxy • Content Distribution Networks • Network Bandwidth Scalability • Distributed Media Proxies and Caches • Content Distribution Networks • Multicast Media Streaming AoE Talk - Decentralized Media Streaming

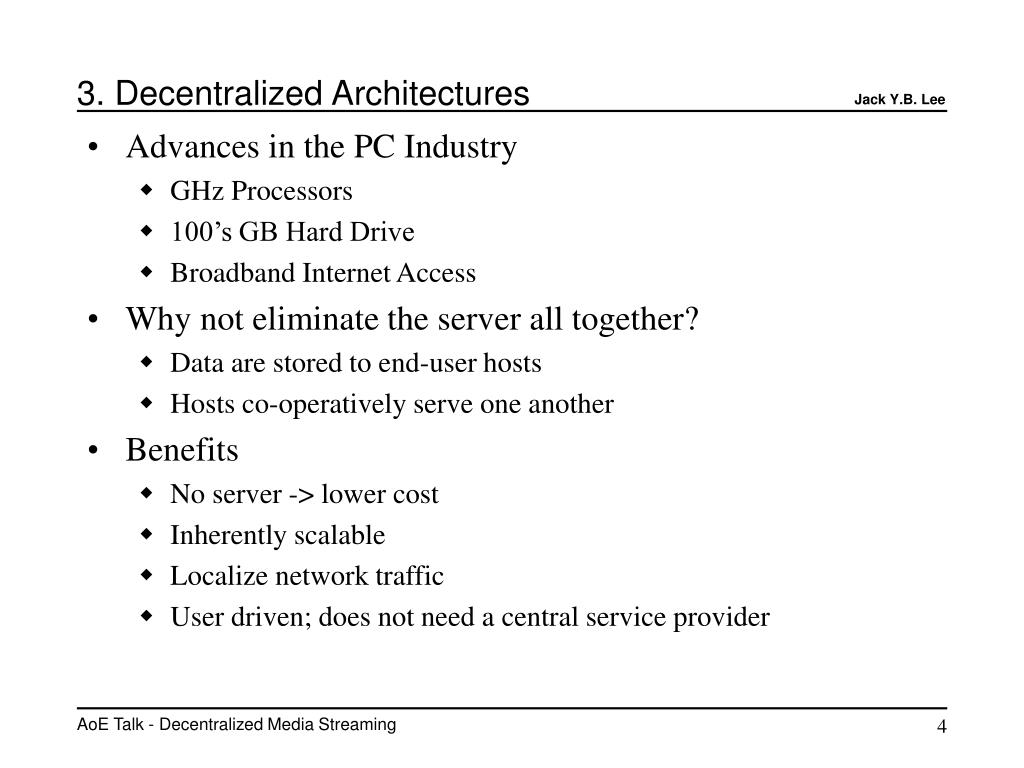

  4. 3. Decentralized Architectures • Advances in the PC Industry • GHz Processors • 100’s GB Hard Drive • Broadband Internet Access • Why not eliminate the server all together? • Data are stored to end-user hosts • Hosts co-operatively serve one another • Benefits • No server -> lower cost • Inherently scalable • Localize network traffic • User driven; does not need a central service provider AoE Talk - Decentralized Media Streaming

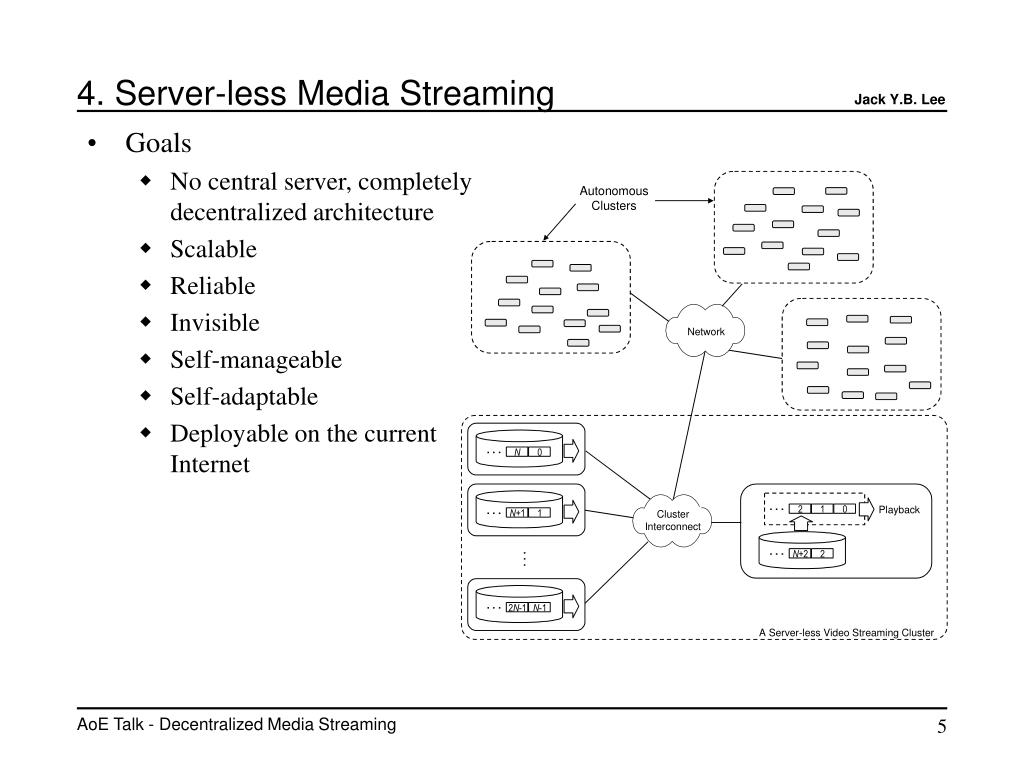

  5. 4. Server-less Media Streaming • Goals • No central server, completely decentralized architecture • Scalable • Reliable • Invisible • Self-manageable • Self-adaptable • Deployable on the current Internet AoE Talk - Decentralized Media Streaming

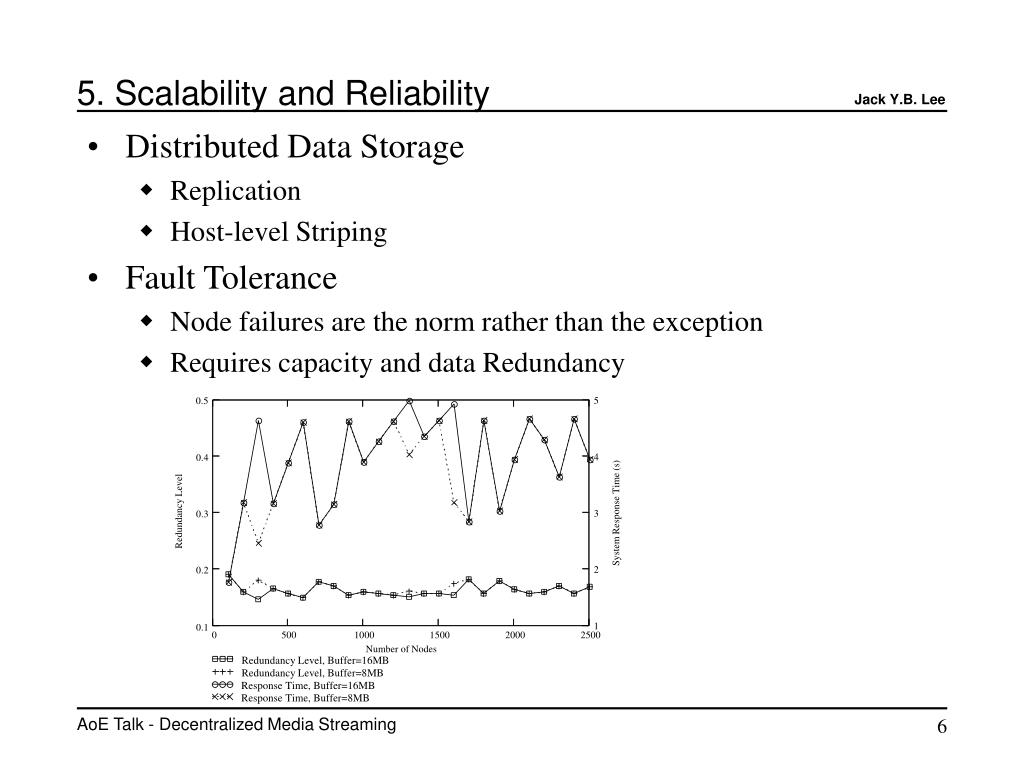

  6. 5. Scalability and Reliability • Distributed Data Storage • Replication • Host-level Striping • Fault Tolerance • Node failures are the norm rather than the exception • Requires capacity and data Redundancy AoE Talk - Decentralized Media Streaming

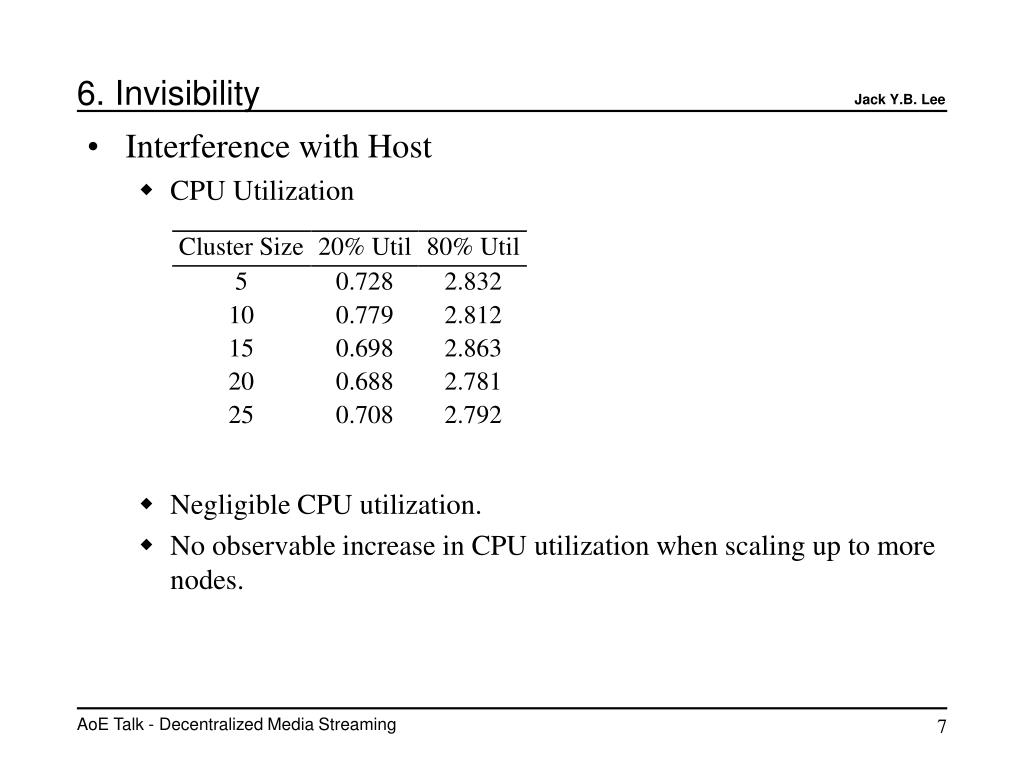

  7. 6. Invisibility • Interference with Host • CPU Utilization • Negligible CPU utilization. • No observable increase in CPU utilization when scaling up to more nodes. AoE Talk - Decentralized Media Streaming

  8. 6. Invisibility • Interference with Host • Disk I/O Interference • Media streaming under 44MB/s interfering disk I/O process: • Mean transmission rate not affected. • Variance does increase but not significantly. AoE Talk - Decentralized Media Streaming

  9. 7. Self-Manageability • Dynamic System Reconfiguration • Data Reorganization (adding a new node) • Distribute data storage and workload • Example - Growing from 4 to 5 nodes: n0 n1 n2 n3 n0 n1 n2 n3 n3 0 1 2 3 0 1 2 3 4 4 5 6 7 5 6 7 8 9 node n4 joins 8 9 10 11 10 11 12 13 14 12 13 14 15 15 16 17 18 19 16 17 18 19 AoE Talk - Decentralized Media Streaming

  10. 7. Self-Manageability • Dynamic System Reconfiguration • Data Reorganization (adding a new node) • Row-Permutated Data Reorganization n0 n1 n2 n3 n0 n1 n2 n3 n4 0 1 3 2 4 0 1 3 2 4 9 8 7 5 6 7 5 6 node n4 joins 8 10 9 11 13 10 14 11 12 13 12 14 15 16 17 19 15 18 16 17 19 18 AoE Talk - Decentralized Media Streaming

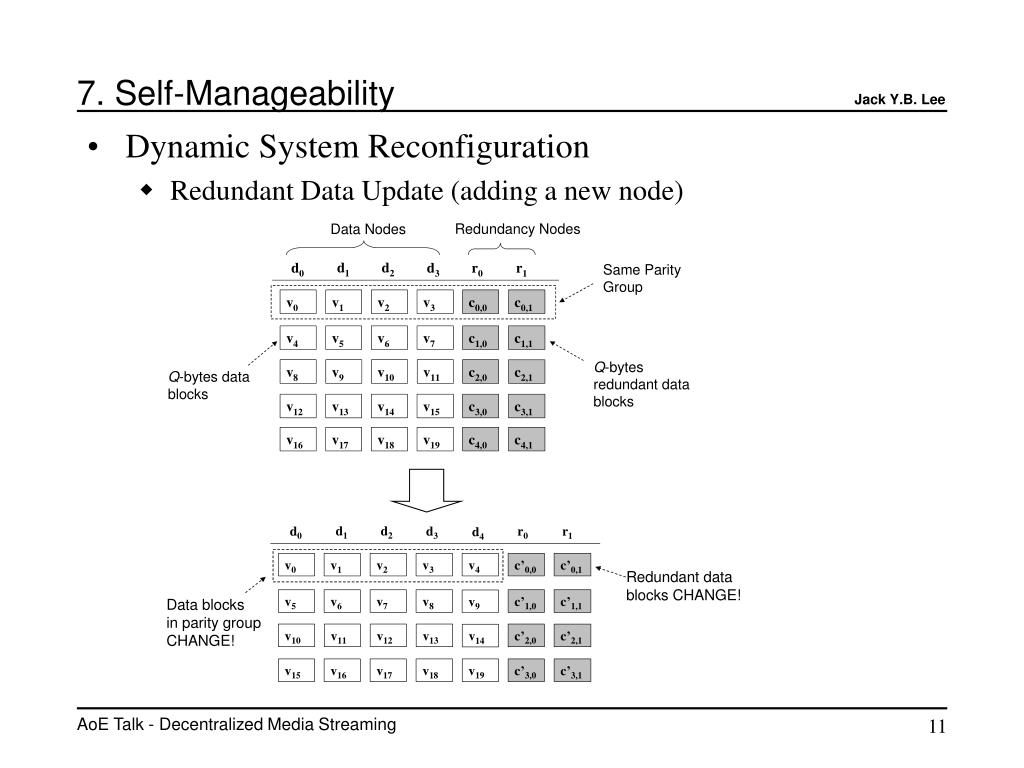

  11. 7. Self-Manageability • Dynamic System Reconfiguration • Redundant Data Update (adding a new node) AoE Talk - Decentralized Media Streaming

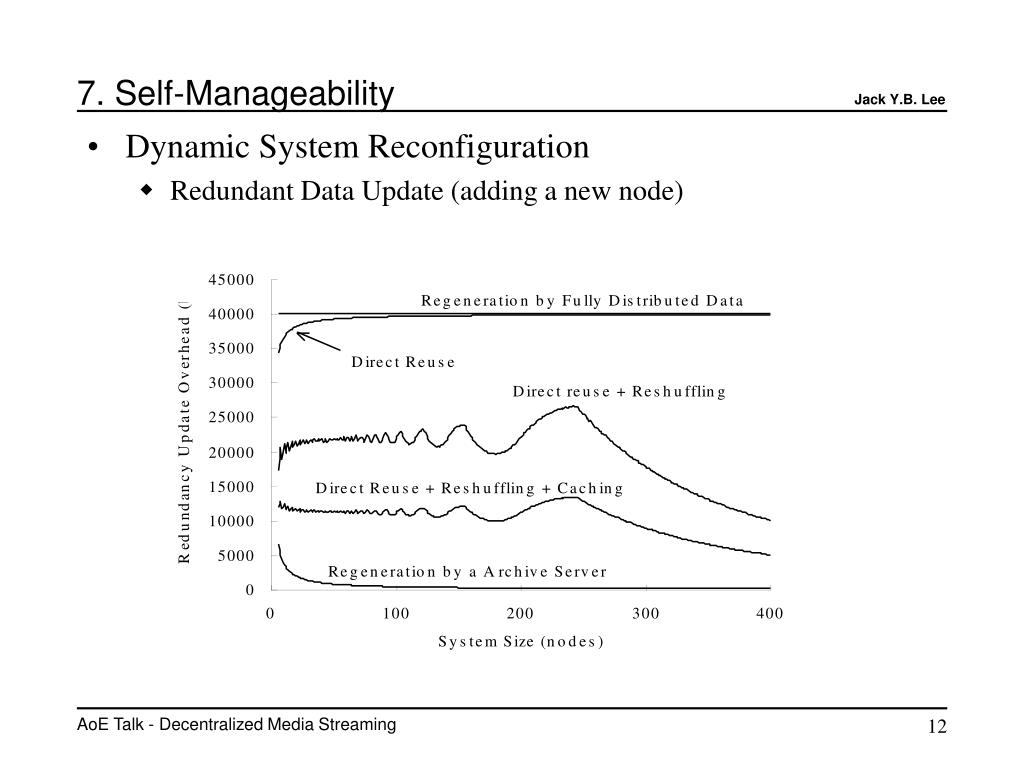

  12. 7. Self-Manageability • Dynamic System Reconfiguration • Redundant Data Update (adding a new node) AoE Talk - Decentralized Media Streaming

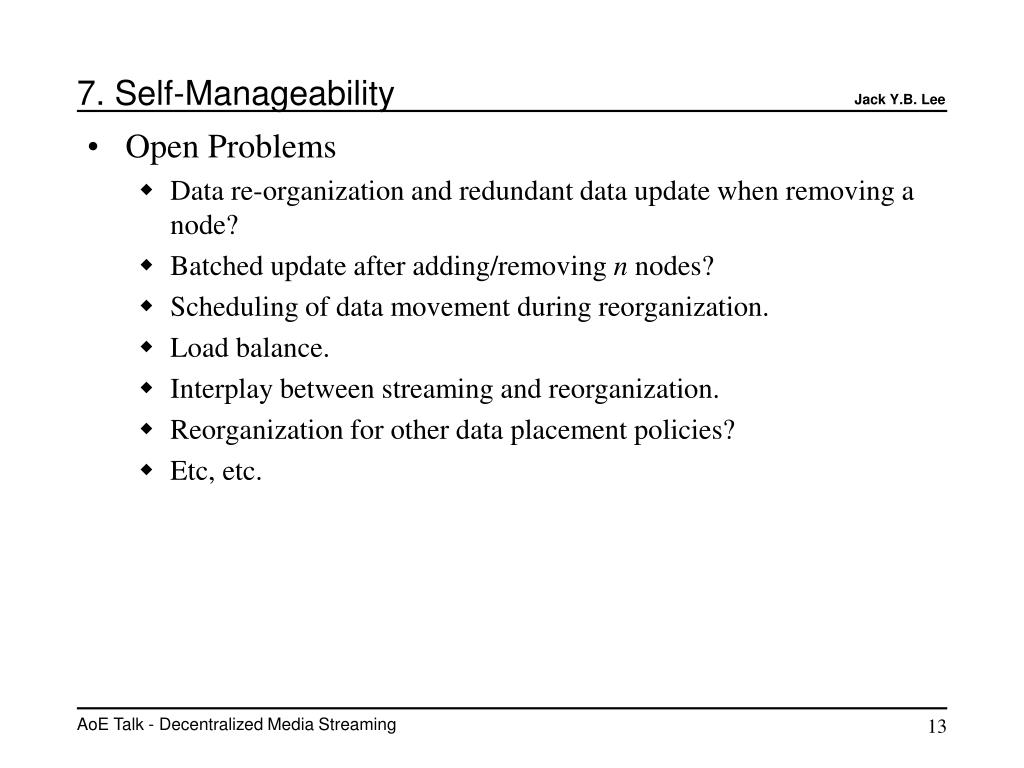

  13. 7. Self-Manageability • Open Problems • Data re-organization and redundant data update when removing a node? • Batched update after adding/removing n nodes? • Scheduling of data movement during reorganization. • Load balance. • Interplay between streaming and reorganization. • Reorganization for other data placement policies? • Etc, etc. AoE Talk - Decentralized Media Streaming

  14. 8. Self-Adaptability • Heterogeneity • Node and Network Heterogeneity • Different storage, streaming, and memory capacities. • Different delays between nodes. • Dynamic Adaptation • Node and Network Availability • Short-term streaming bandwidth variations. • Network congestions. AoE Talk - Decentralized Media Streaming

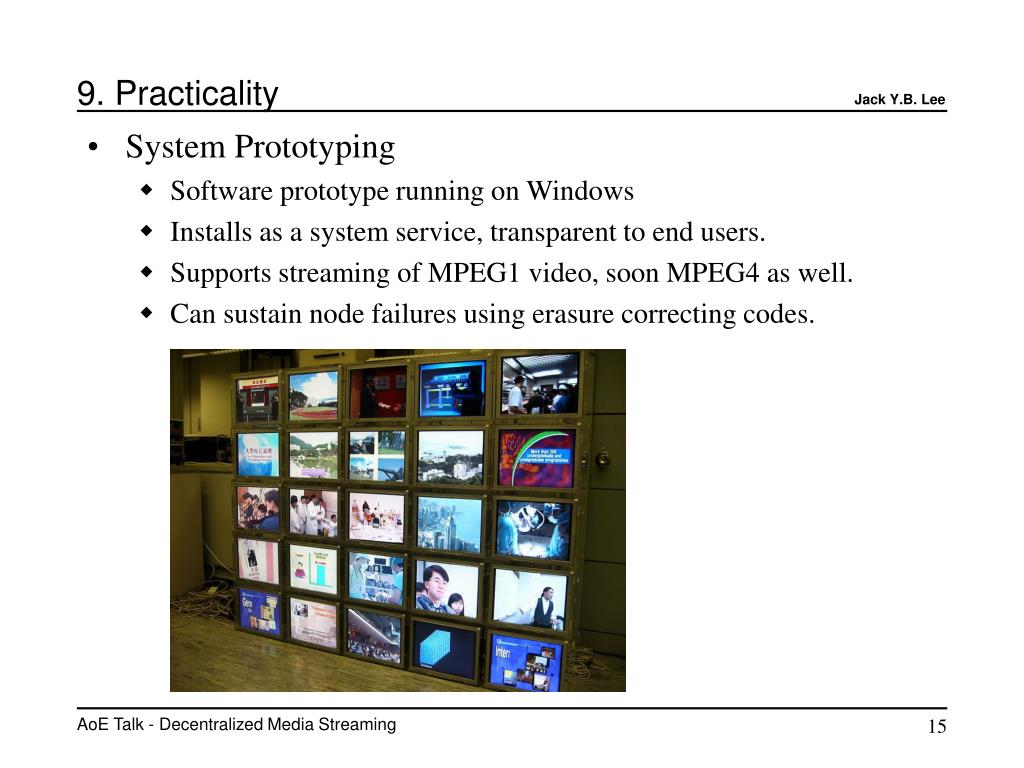

  15. 9. Practicality • System Prototyping • Software prototype running on Windows • Installs as a system service, transparent to end users. • Supports streaming of MPEG1 video, soon MPEG4 as well. • Can sustain node failures using erasure correcting codes. AoE Talk - Decentralized Media Streaming

  16. Related Publications • Jack Y. B. Lee and W. T. Leung, “Design and Analysis of a Fault-Tolerant Mechanism for a Server-Less Video-On-Demand System,” Proc. 2002 International Conference on Parallel and Distributed Systems, Taiwan, Dec 17-20, 2002, pp.489-494. • Jack Y. B. Lee and W. T. Leung, “Study of a Server-less Architecture for Video-on-Demand Applications,” Proc. IEEE International Conference on Multimedia and Expo., Lausanne, Switzerland, 26-29 August 2002, pp.233-236. • T. K. Ho and Jack Y. B. Lee, “A Row-Permutated Data Reorganization Algorithm for Server-less Video-on-Demand Systems,” Proc. 3rd IEEE/ACM International Symposium on Cluster Computing and the Grid (CCGrid 2003), Tokyo, Japan, May 12-15, 2003, pp.44-51. • T. K. Ho and Jack Y. B. Lee, “A Novel Redundant Data Update Algorithm for Fault-Tolerant Server-less Video-on-Demand Systems,” Proc. 2003 High Performance & Large Scale Computing (HP&LSC) Conference, Nottingham, UK, June 9-11, 2003, pp.378-384. • T. K. Ho and Jack Y. B. Lee, “A Transpositional Redundant Data Update Algorithm for Growing Server-less Video Streaming Systems,” Proc. IEEE Third International Conference on Peer-to-Peer Computing, 1-3 Sep 2003, Linköping, Sweden. • C. Y. Chan and Jack Y. B. Lee, “On Transmission Scheduling in a Server-less Video-on-Demand System,” Proc. International Conference on Parallel and Distributed Computing, Klagenfurt, Austria, August 26-29, 2003. AoE Talk - Decentralized Media Streaming
