  1. AQUATESTa.s. consulting and engineering services • The environment • Water management • Recycling lines and waste • Remediation and Remedial supervision • Accredited environmental laboratory

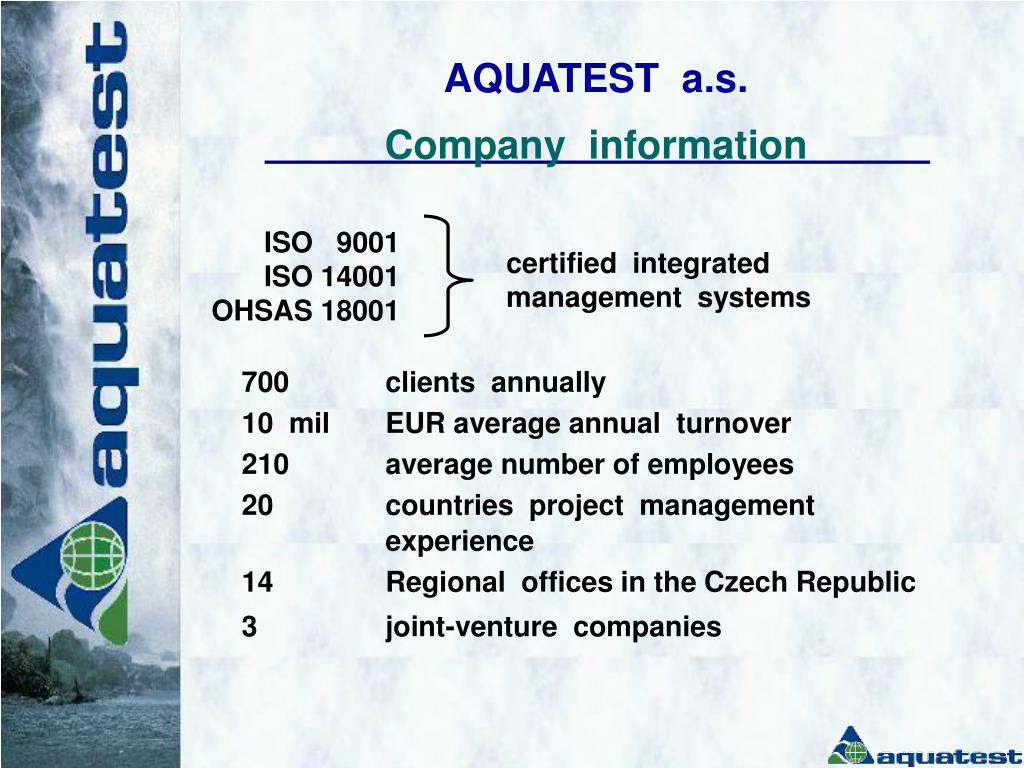

  2. AQUATESTa.s. Company information 700 clients annually 10 milEUR average annual turnover 210 average number of employees countries project managementexperience 14Regional offices in the Czech Republic 3 joint-venture companies ISO 9001 ISO 14001 OHSAS 18001 certifiedintegrated management systems

  3. AQUATESTa.s. consulting and engineering services European activities Regional workplaces

  4. WASTE RECYCLINGoffered services • Supply of complete technological lines including their introduction into operation, staff trainingand servicing. • Comprehensive consulting activities in field of waste recycling and reuse. • Development of new technological procedures. • Laboratory verification, modeling and testing of the proposed solution on equipment in our specialized workplace. • Reprocessing of material using our own equipment. • Rent of technological equipment.

  5. MODULAR TECHNOLOGY FOR THE RECYCLING PLASMA AND LCD SCREENS Capacity 250 kg/h elaboratedat the AQUATEST a.s. workshop in Mníšek pod Brdy, Czech republic is designed as a modular system of individual technological parts which can be changed based on the type of WEEE being processed. VIDEO GRINDINGMODULEandMAGNETIC SEPARATION DUST EXHAUSTOR and FILTRATION UNIT

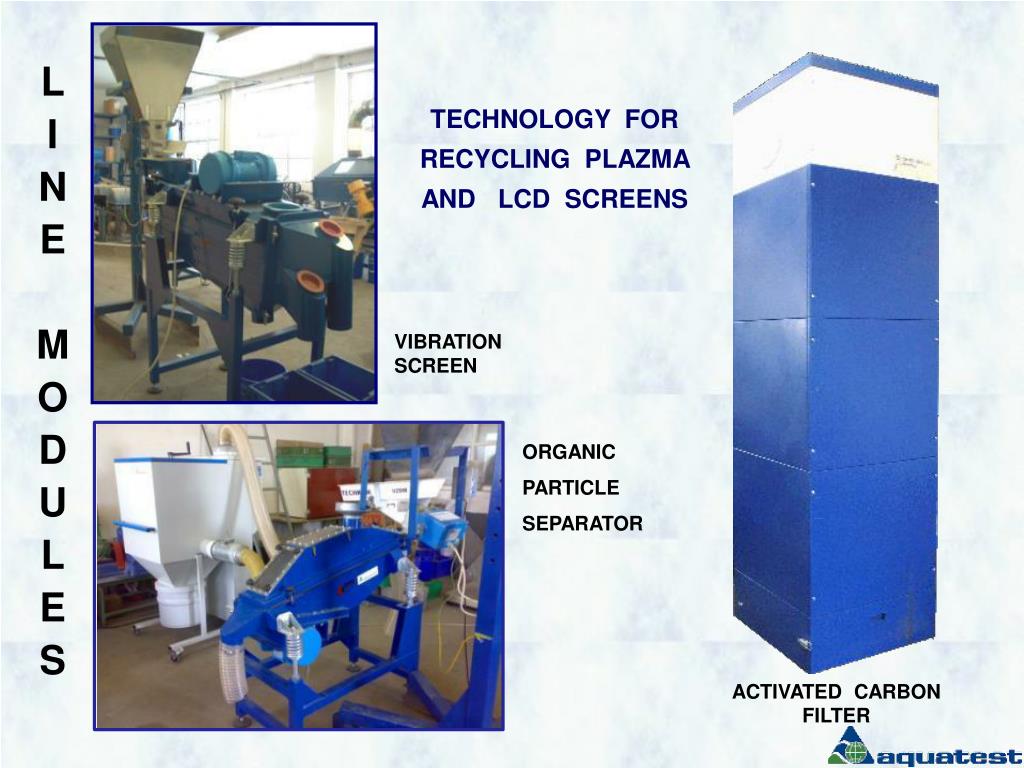

  6. L I N E M O D U L E S TECHNOLOGY FOR RECYCLING PLAZMA AND LCD SCREENS VIBRATION SCREEN ORGANIC PARTICLE SEPARATOR ACTIVATED CARBON FILTER

  7. INPUT Exhaustion C - filter DISASSEMBLY WORKPLACE Tubes: separate processing Electronic parts with precious metals Exhaustion C - filter DIMENDIONAL SEPARATION – hydraulic scissors Mobile feeder Exhaustion C - filter MODULE CRUSHING MAGNETIC SEPARATION Fe product VIBRATION SCREEN Fraction 0 – 6 mm Fraction + 6 mm ORGANIC PARTS SEPARATOR ELECTRODYNAMIC SEPARATOR Plastic Dust Plastic Non-ferrous metals Clean mixed glass TECHNOLOGICAL DIAGRAM Grinding is performed in a special grinder which grinds the screens with a very selective effect i.e. easily-ground parts like glass and ceramics are ground into fine particles. ELECTRODYNAMIC SEPARATOR

  8. LINE FOR WEEE RECYCLINGcapacity: 280 až 400 kg/hour • Line consist of : • Crushing • Magnetic separation • Sorting • Electrodynamic separation • Industrial suction

  9. LINE FOR WEEE RECYCLING

  10. MODULAR LINE FOR RECYCLINGOF CABLES, CHIPBOARDS AND PLASTICScapacity: 350 kg/h VIDEO Input section – crusher, magnetic separator

  11. MODULAR LINE FOR RECYCLINGOF CABLES, CHIPBOARDS AND PLASTICScapacity: 350 kg/h Section of milling – blade mill, dedusting chamber, electric control panel Fluid separaion section – container with vibrational feeder, fluid separator, industrial exhauster

  12. COMBINATED TECHNOLOGY FOR RECYCLING OF COMPLETE CRT, PLAZMA AND LCD SCREENS Capacity 1 t/h BARREL CRUSHER GRINDING BARREL INDUSTRIAL FILTR X-RAY SEPARATOR

  13. CRT SCREEN DISASSEMBLING TECHNOLOGY Resistive separation by thermal shock VIDEO */ the stated time does not take into account removal of metal frames and the luminophore

  14. CERTIFICATION recycling of screens screen disassembling machine pursuant to Directive 2006/42/ES, 2006/95/ES a 2004/108/ES Issued by the Brno Institute for Mechanical Testing

  15. CRT SCREEN DISASSEMBLING TECHNOLOGY by diamondcuttingtool Due to dry disassembling technology is the luminophore layer easily removed by the exhauster (HEPA microfiltration) and collected in a special collecting bag VIDEO *) capacity with addition of separate exhaust digester

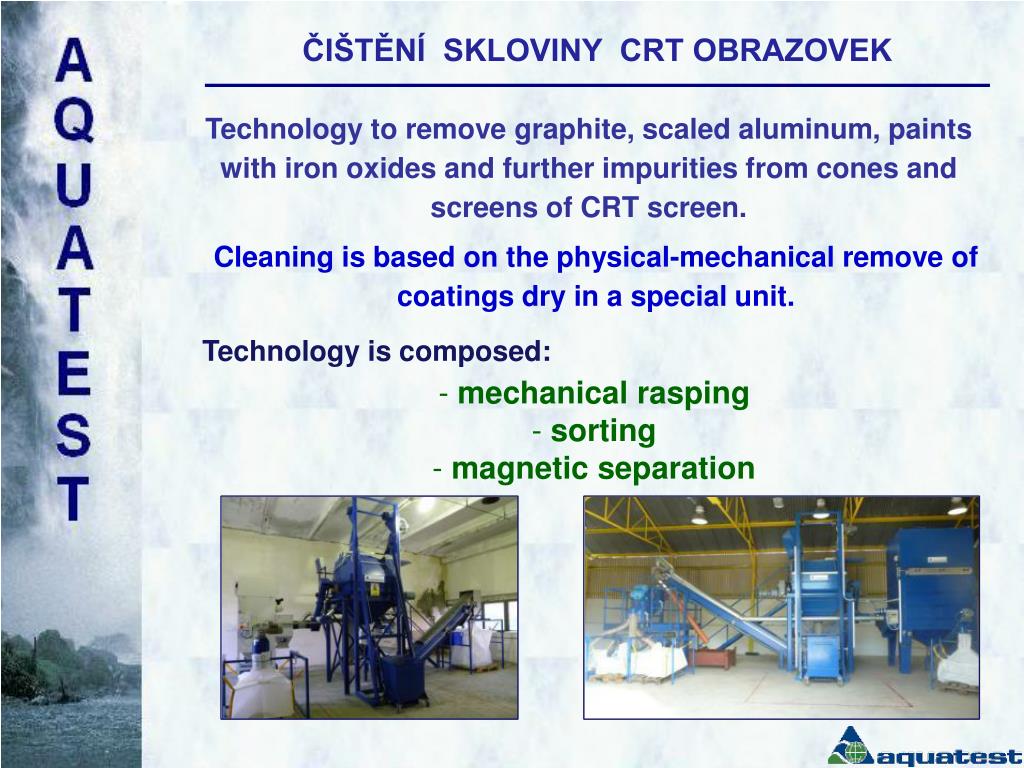

  16. ČIŠTĚNÍ SKLOVINY CRT OBRAZOVEK Technology to remove graphite, scaled aluminum, paints with iron oxides and further impurities from cones and screens of CRT screen. Cleaning is based on the physical-mechanical remove of coatings dry in a special unit. Technology is composed: • mechanical rasping • sorting • magnetic separation

  17. TECHNOLOGY FOR RASPING OF IMPURITIES INPUT OUTPUT

  18. CRT GLASS CLEANING LINE Discontinual line Can be cleaned not only the cones,but also mixed glass or front parts VIDEO This technology can be use for recycling of lighting fluorescent tubes and bulb,after addition of capture mercury vapors section

  19. CERTIFICATION Glass Screen Cleaning line pursuant to Directive 2006/42/ES, 2006/95/ES a 2004/108/ES Issued by the Brno Institute for Mechanical Testing

  20. SEPARATION TECHNOLOGY FLUID SEPARATION pneumatic fluid separator for loose dry mixtures containing particles of varying mass Operational pilot tests e.g.: - separation of Cu-product During treatment of electric cables and conductors - separation of metal concentrate with the content of precious metals during treatment of chipboards - final cleaning of granulates from pneumatic tyres (removal of textile fibres)

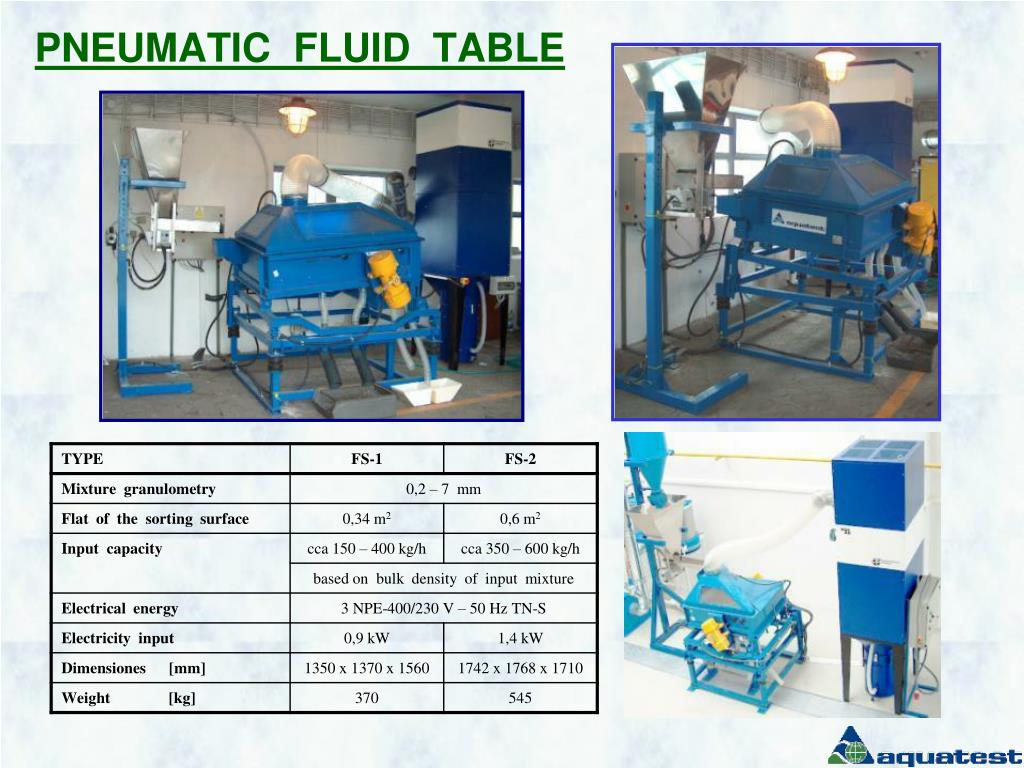

  21. PNEUMATIC FLUID TABLE

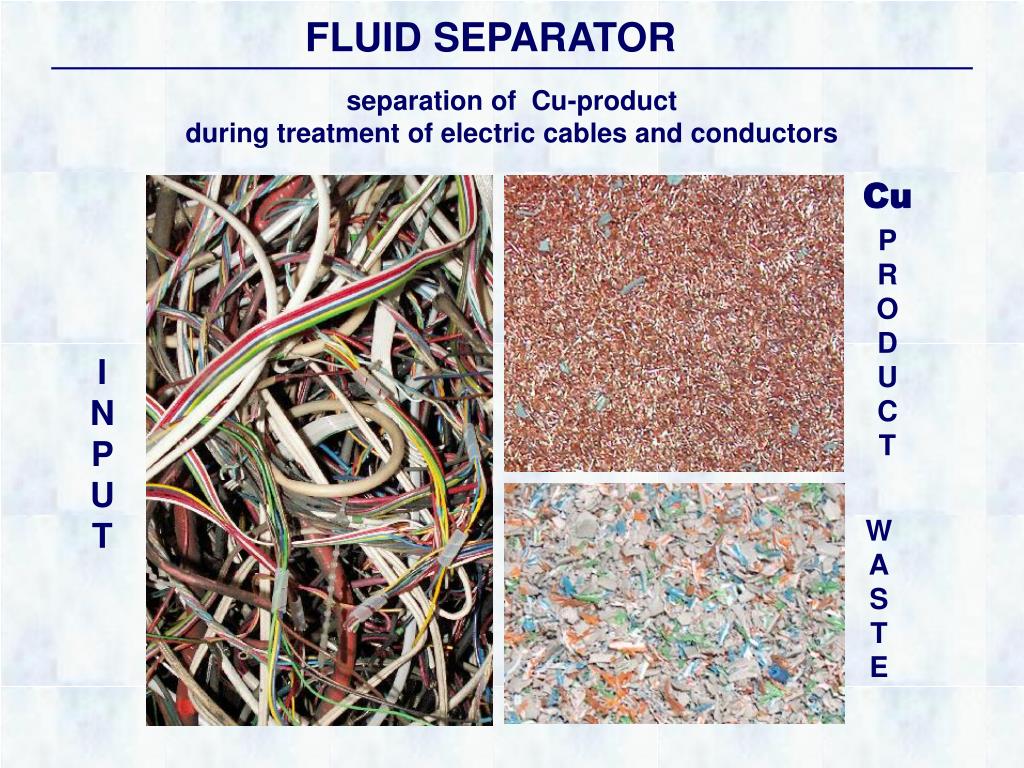

  22. FLUID SEPARATOR separation of Cu-product during treatment of electric cables and conductors Cu PRODUCT INPUT WASTE

  23. FLUIDNÍ SPLAV separation of metal concentrate with the content of precious metals during treatment of chipboards PRODUCT INPUT WASTE

  24. FINAL CLEANING OF GRANULATES FROM PNEUMATIC TYRES(REMOVAL OF TEXTILE FIBRES) OUTPUT MATERIAL FLUID SEPARATION Pneumatic fluid separator INPUT MATERIAL

  25. ELECTRODYNAMIC SEPARATOR

  26. ELECTRODYNAMIC SEPARATORexample of application LINE FOR RECYCLING OF CHIPBOARDS input capacity 1 t/h MODULAR LINE FOR TREATMENT OF Al-caps FROM TUBES

  27. AQUATEST a.s. BRANCH Module technology – operational testing of recycling methods.

  28. VIDEO AQUATEST a.s. workshop Available technology: • Crushing and grinding • - barrel, hammer and jaw crusher • - ball mill, cutter mill • Separation • - elektrodynamic separator – nonferrous metals • - magnetic drum separator • - dry fluid separation – coarse materials (units in mm) • - wet gravitational separation – very fine - grained • material • Sorting–vibration or pneumatic sorters

  29. CRUSHING AND MILLING Barrel crusher Hammer crusher Ball mill Granulator Jaw crusher

  30. SEPARATION Dry fluid (pneumatic) table Wet gravitational table Elektrodynamic separator Magneticdrum separator

  31. AQUATEST a.s. workshop Kovohutě Mníšek pod Brdy Site • Services provided in the field of recycling secondary raw materials: • crushing of waste containing bonded metals, plastics and other non-metallic elements • sorting of chippings according to size using various types of separators • magnetic separation • separation of colored metals using electrodynamic separators • separation of colored and precious metals using fluid pneumatic separators or gravitational separation in wet environment • dust removal, drainage and pelletizing of fine parts • waste solidification

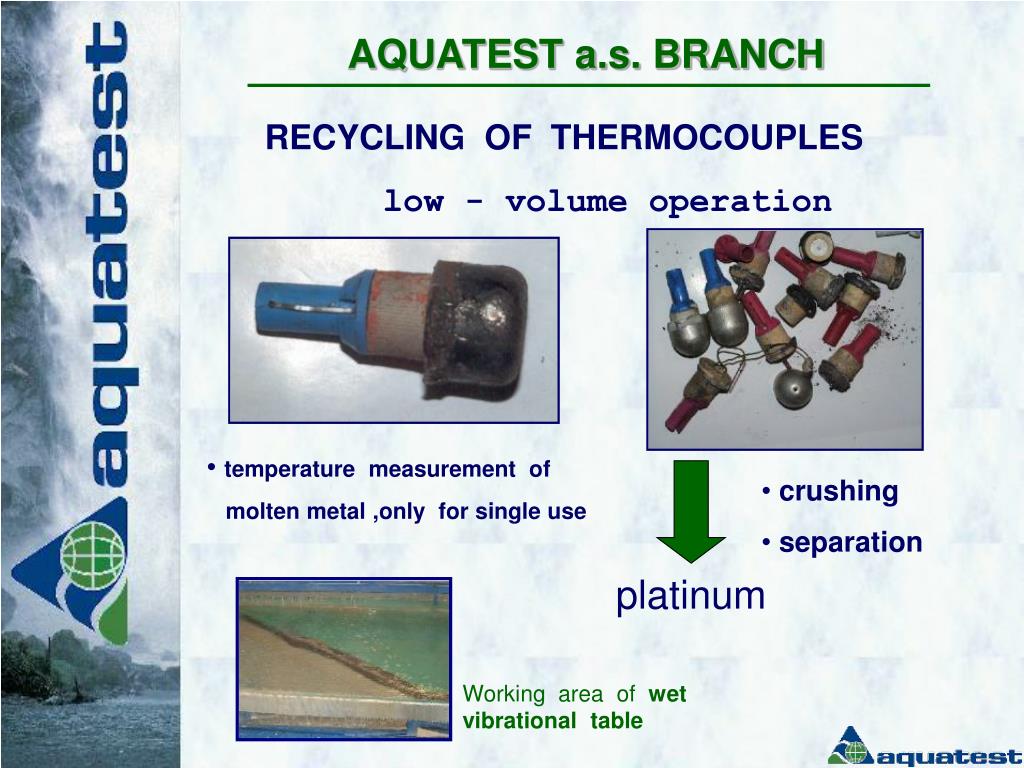

  32. AQUATEST a.s. BRANCH RECYCLING OF THERMOCOUPLES low - volume operation • temperature measurement of • molten metal ,only for single use • crushing • separation platinum Working area of wet vibrational table

  33. REMEDIAL CONTAINER TECHNOLOGY AQUATEST a.s. BRANCH MODULE TECHNOLOGY – MINE WATER STEAM BOILER CERTUSS ACTIVE CARBON FILTER CONTAINER VARIANT STRIPPING TOWER UNITS

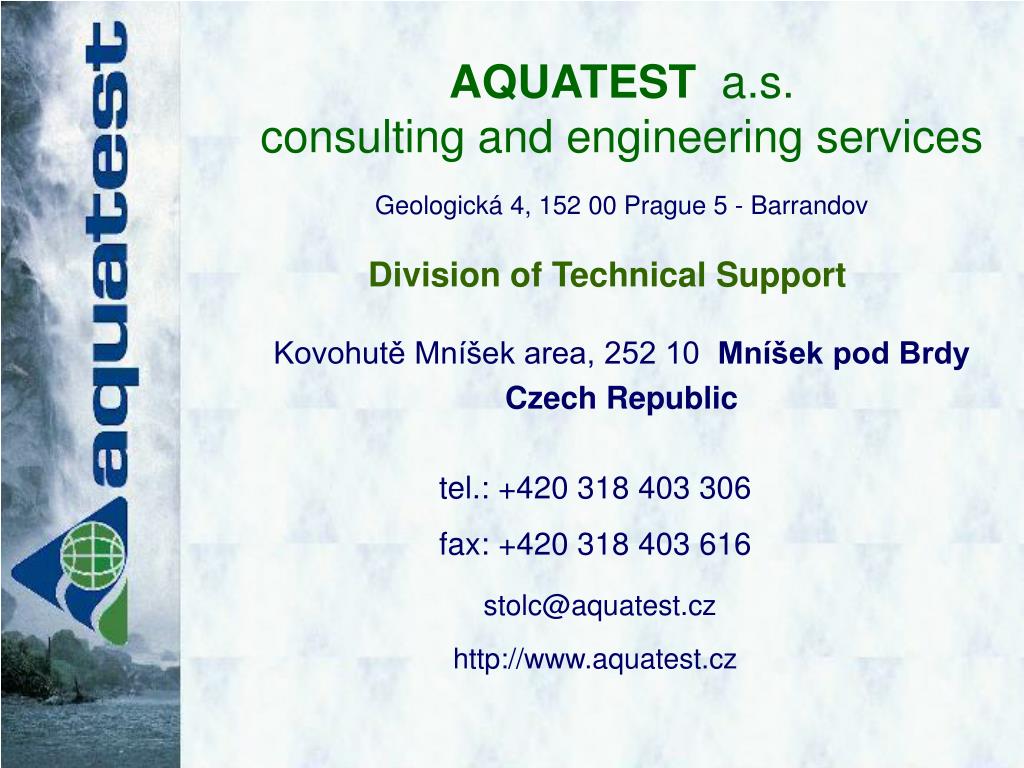

  34. AQUATESTa.s.consulting and engineering services Geologická 4, 152 00 Prague 5 - Barrandov Division of Technical Support Kovohutě Mníšek area, 252 10 Mníšek pod Brdy Czech Republic tel.: +420 318 403 306 fax: +420 318 403 616 stolc@aquatest.cz http://www.aquatest.cz
