Muon tagger. Eun-Ju Jeon October 11, 2007 For MC analysis group. Tyvek. veto. air. PMT position – type I, II. PMT position - typeIII. 8 inch PMT installed on outside wall of Buffer - top: 12 ( 격자형태 ) - side: 27 (3 rings) - bottom: 12 ( 격자형태 ).

kiayada-olson
Télécharger la présentation

Muon tagger

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Muon tagger Eun-Ju Jeon October 11, 2007 For MC analysis group

  2. Tyvek veto air • PMT position – type I, II • PMT position - typeIII • 8 inch PMT installed on outside wall of Buffer • - top: 12 (격자형태) • - side: 27 (3 rings) • - bottom: 12 (격자형태) • 8 inch PMT installed on inside wall of Veto • - top: 12 (격자형태) • - side: 27 (3 rings) • - bottom: 12 (격자형태)

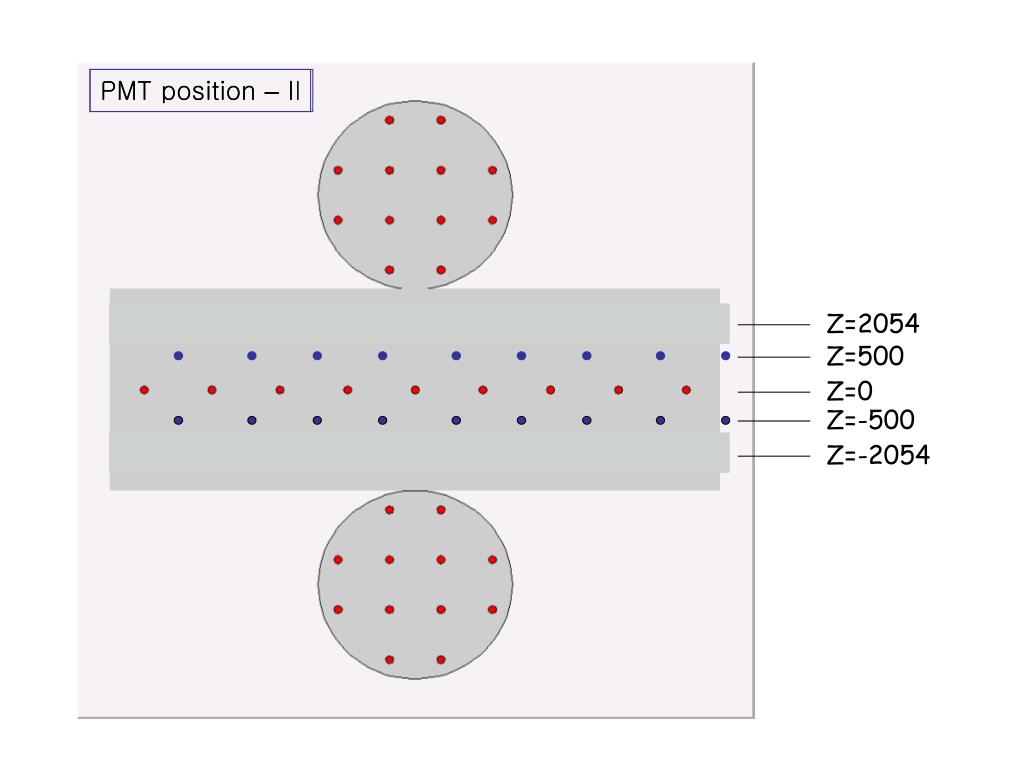

  3. Z=0 Z=2054 Z=-2054 Z=500 Z=-500 PMT position – I PMT position – II

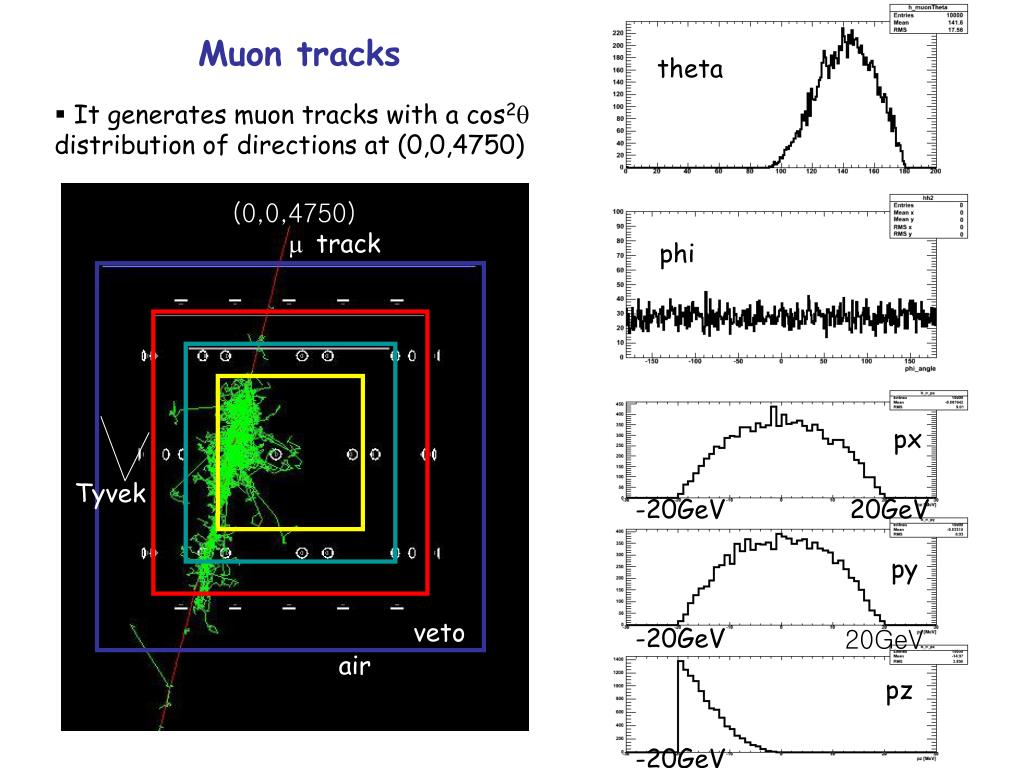

  4. (0,0,4750) m track Tyvek veto air Muon tracks theta • It generates muon tracks with a cos2q • distribution of directions at (0,0,4750) phi px -20GeV 20GeV py 20GeV -20GeV pz -20GeV

  5. Muon tagging efficiency (I, II, III)

  6. Before improvement

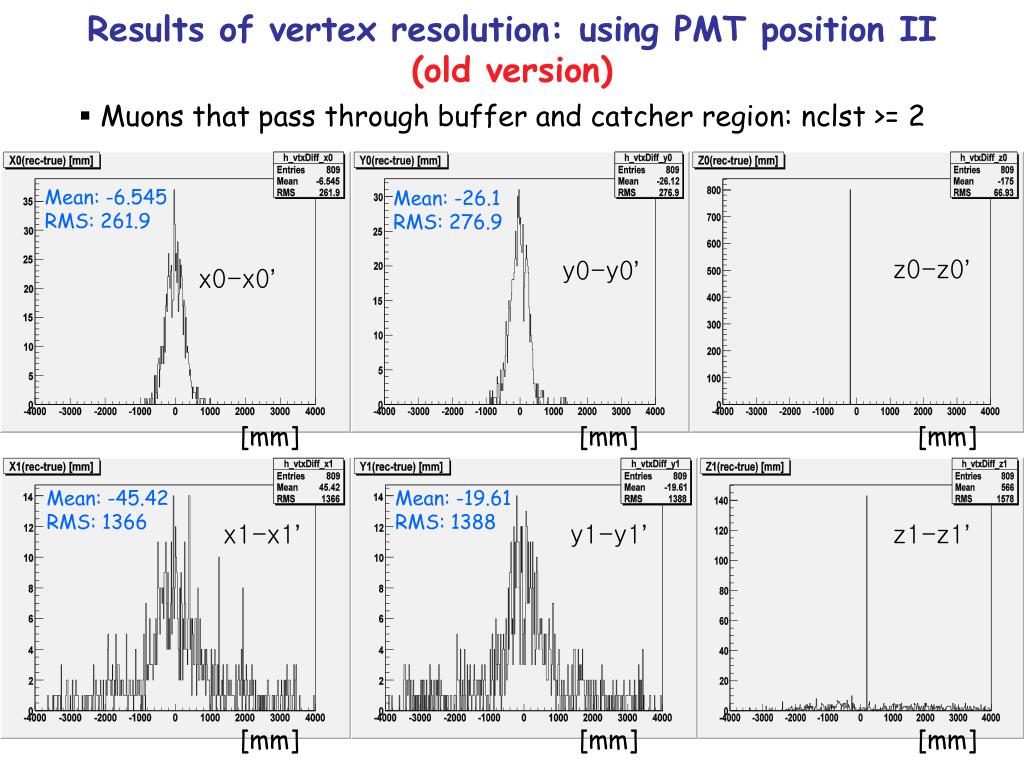

  7. z0-z0’ y0-y0’ x0-x0’ x1-x1’ y1-y1’ z1-z1’ Results of vertex resolution: using PMT position II (old version) • Muons that pass through buffer and catcher region: nclst >= 2 Mean: -6.545 RMS: 261.9 Mean: -26.1 RMS: 276.9 [mm] [mm] [mm] Mean: -45.42 RMS: 1366 Mean: -19.61 RMS: 1388 [mm] [mm] [mm]

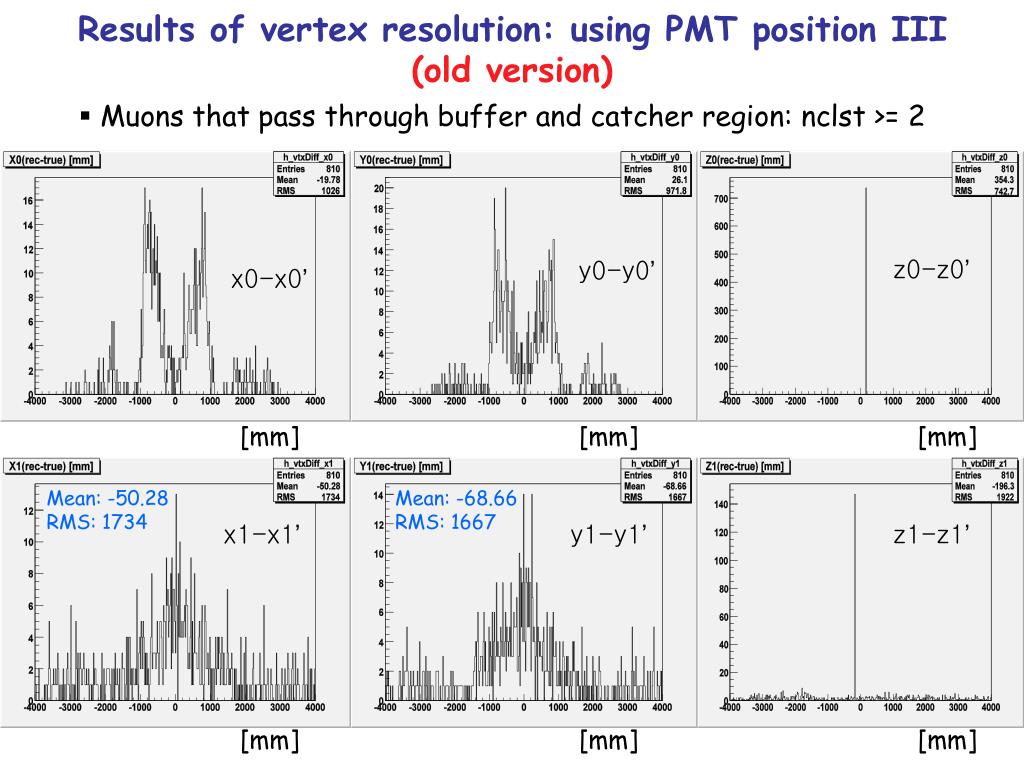

  8. Results of vertex resolution: using PMT position III (old version) • Muons that pass through buffer and catcher region: nclst >= 2 z0-z0’ y0-y0’ x0-x0’ [mm] [mm] [mm] Mean: -50.28 RMS: 1734 Mean: -68.66 RMS: 1667 x1-x1’ y1-y1’ z1-z1’ [mm] [mm] [mm]

  9. After improvement (what is changed?) • Select entering and outgoing clusters • nCluster>=2 인 경우 • Cluster의 평균시간이 가장 빠른 cluster를 entering cluster로 정하고, 가장 느린 cluster를 outgoing cluster로 정함. • Cluster를 구성하는 hitPMT들의 평균시간대신에 각각의 cluster에서 charge가 가장 큰 hitPMT들의 시간을 비교하여 가장 빠른 시간의 hitPMT를 포함하는 cluster를 entering cluster로 정하고, • 나머지 cluster들 중에서 charge가 가장 큰 hitPMT를 포함하는 cluster를 outgoing cluster로 정했음. • Find entering position and outgoing postion • entering position : entering cluster를 구성하는 hitPMT들의 position과 hitPMT_charge를 이용해서 전하중심점을 entering position으로 정함.  동일함. • outgoing position : outgoing cluster를 구성하는 hitPMT 중에서 hitPMT_charge가 가장큰전하의 1/10보다는 크고, hitPMT_time이 가장 작으나 entering cluster의 time보다는 큰 hitPMT의 위치를 outgoing position으로 정함.  entering position과 같은 방법을 사용했음.

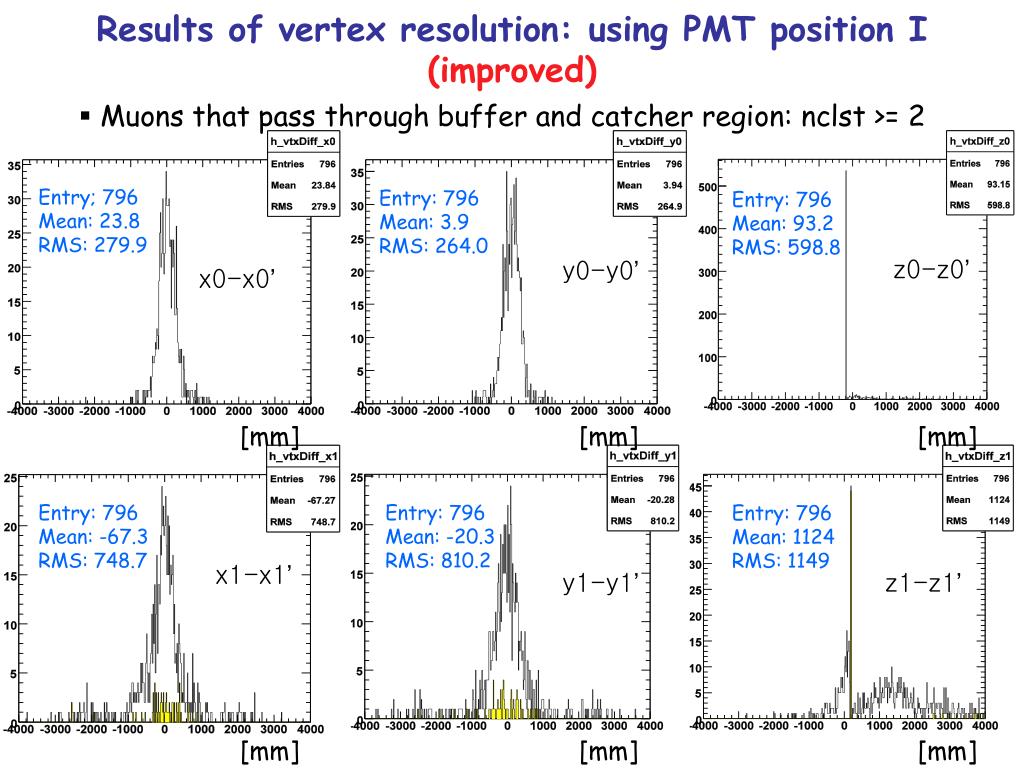

  10. Results of vertex resolution: using PMT position I (improved) • Muons that pass through buffer and catcher region: nclst >= 2 Entry; 796 Mean: 23.8 RMS: 279.9 Entry: 796 Mean: 3.9 RMS: 264.0 Entry: 796 Mean: 93.2 RMS: 598.8 z0-z0’ y0-y0’ x0-x0’ [mm] [mm] [mm] Entry: 796 Mean: -67.3 RMS: 748.7 Entry: 796 Mean: -20.3 RMS: 810.2 Entry: 796 Mean: 1124 RMS: 1149 x1-x1’ y1-y1’ z1-z1’ [mm] [mm] [mm]

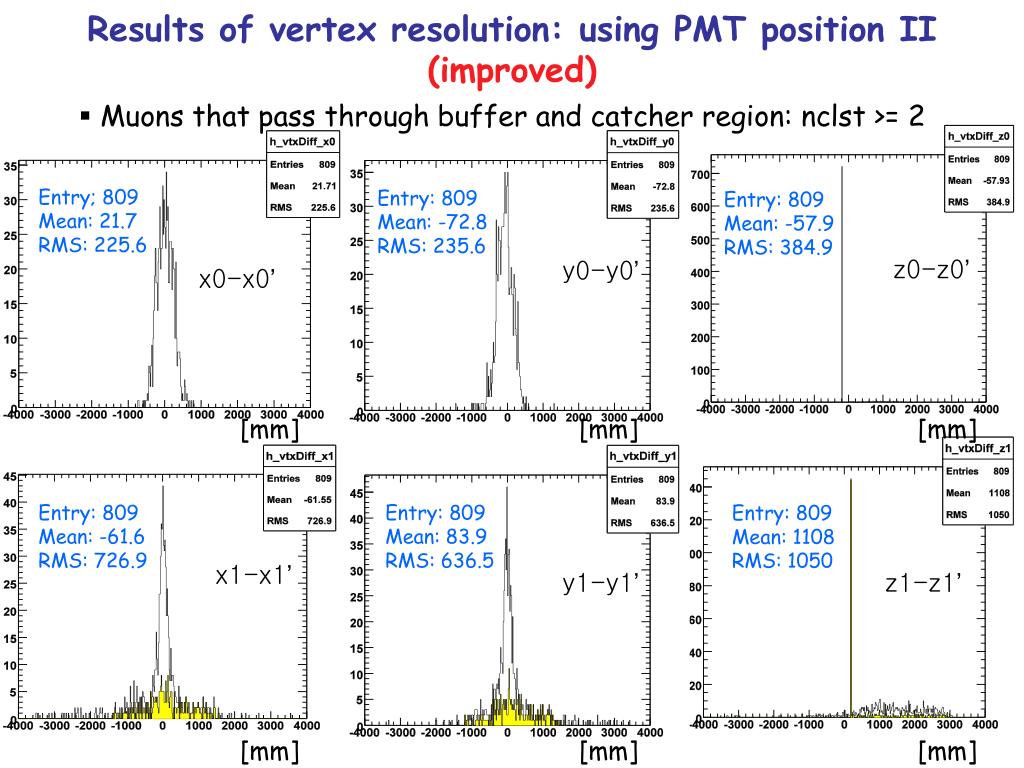

  11. Results of vertex resolution: using PMT position II (improved) • Muons that pass through buffer and catcher region: nclst >= 2 Entry; 809 Mean: 21.7 RMS: 225.6 Entry: 809 Mean: -72.8 RMS: 235.6 Entry: 809 Mean: -57.9 RMS: 384.9 z0-z0’ y0-y0’ x0-x0’ [mm] [mm] [mm] Entry: 809 Mean: -61.6 RMS: 726.9 Entry: 809 Mean: 83.9 RMS: 636.5 Entry: 809 Mean: 1108 RMS: 1050 x1-x1’ y1-y1’ z1-z1’ [mm] [mm] [mm]

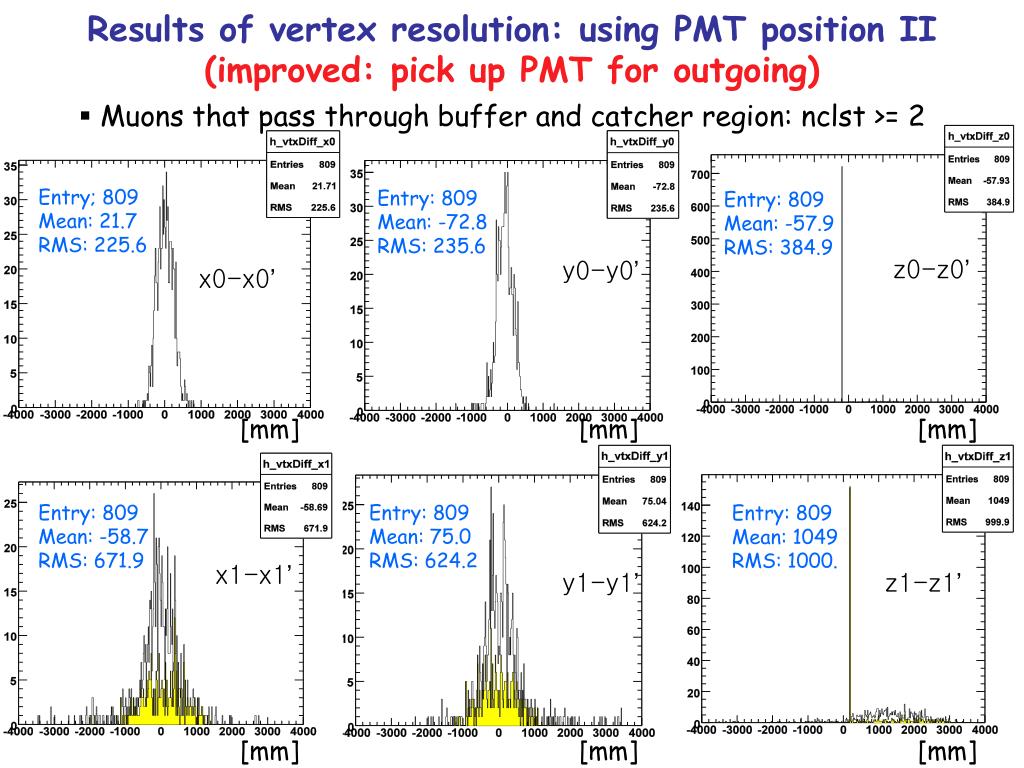

  12. Results of vertex resolution: using PMT position II (improved: pick up PMT for outgoing) • Muons that pass through buffer and catcher region: nclst >= 2 Entry; 809 Mean: 21.7 RMS: 225.6 Entry: 809 Mean: -72.8 RMS: 235.6 Entry: 809 Mean: -57.9 RMS: 384.9 z0-z0’ y0-y0’ x0-x0’ [mm] [mm] [mm] Entry: 809 Mean: -58.7 RMS: 671.9 Entry: 809 Mean: 75.0 RMS: 624.2 Entry: 809 Mean: 1049 RMS: 1000. x1-x1’ y1-y1’ z1-z1’ [mm] [mm] [mm]
