4 Hole Thermostatic Bath

4 Hole Thermostatic Bath is a 12.8 L bottom heating bath with a temperature range of 5 u00b0C ~ 100 u00b0C. Water sink is surface electrolysis treated with cold rolled<br>outer shell. Equipped with multi-section programmed control, touch button temperature setting mode and 3 digit temperature display. Easy to use controls allow<br>the user to monitor and set temperature and time. Easy to use functions like deviation correction, menu key lock, power failure backup and restoration of<br>parameters on power off included.

kibmer
Télécharger la présentation

4 Hole Thermostatic Bath

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

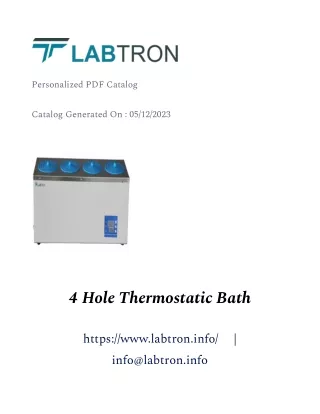

  1. Personalized PDF Catalog Catalog Generated On : 05/12/2023 4 Hole Thermostatic Bath https://www.labtron.info/ info@labtron.info |

  2. Description : 4 Hole Thermostatic Bath is a 12.8 L bottom heating bath with a temperature range of 5 °C ~ 100 °C. Water sink is surface electrolysis treated with cold rolled outer shell. Equipped with multi-section programmed control, touch button temperature setting mode and 3 digit temperature display. Easy to use controls allow the user to monitor and set temperature and time. Easy to use functions like deviation correction, menu key lock, power failure backup and restoration of parameters on power off included. Specifications : Volume 12.8 L

  3. Rows 1 Holes 4 Internal dimension ( 600 x 165 x 130 mm W x L x H ) Heating mode Bottom heating Temperature range RT + 5 °C ~ 100 °C Temperature 0.1°C resolution Temperature motion ± 0.5°C

  4. Temperature ± 1°C uniformity Temperature setting Touch mode mode Temperature display 3 digit display mode Temperature control PID mode Inner water sink Electrolysis treated Cold rolled steel Outer shell plate

  5. Heater U type heating tube Sensor Thermal resistor Timer 0 ~ 999 min Fixed temperature ( Timing function auto stop ) Multi-section Programme program control Cover apperture Diameter of 120 mm Cover material PP plastic

  6. Cover number per 5 hole External dimension ( 635 x 165 x 210 mm W x L x H ) Power 1000 W ; AC 220 V Power supply 50 / 60 Hz Net weight 7 kg

  7. Features : Surface electrolysis treated water sink Cold rolled steel plate outer shell Touch button temperature setting Automated stop Multi section programme control Thermal resistor sensor

  8. Three digit temperature display Over temperature alarm , short-circuit protection Automated back-up and retrieval in case of power off Applications : Used in tissue culture application, enzyme reaction studies, growth observation studies, fermentation analysis, incubate samples etc.

  9. www.labtron.info

  10. Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
