  1. Rough Sets Theory Speaker:Kun Hsiang

  2. Outline • Introduction • Basic concepts of the rough sets theory • Decision table • Main steps of decision table analysis • An illustrative example of application of the rough set approach • Discussion

  3. Introduction • Often, information on the surrounding world is • Imprecise • Incomplete • uncertain. • We should be able to process uncertain and/or incomplete information.

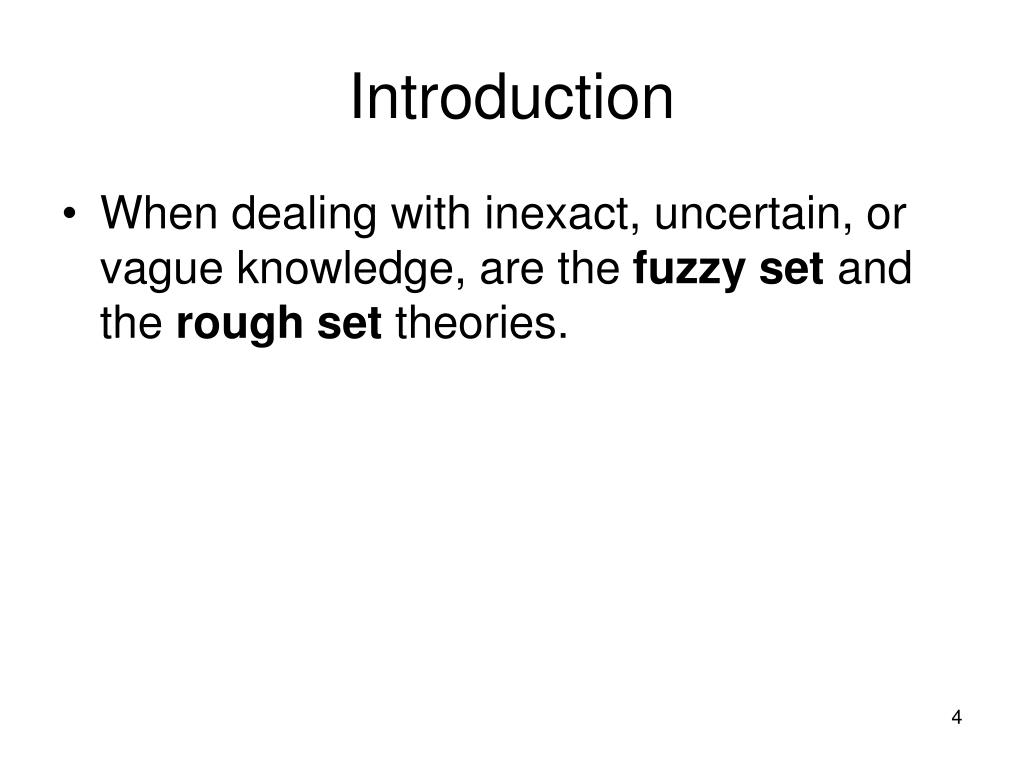

  4. Introduction • When dealing with inexact, uncertain, or vague knowledge, are the fuzzy set and the rough set theories.

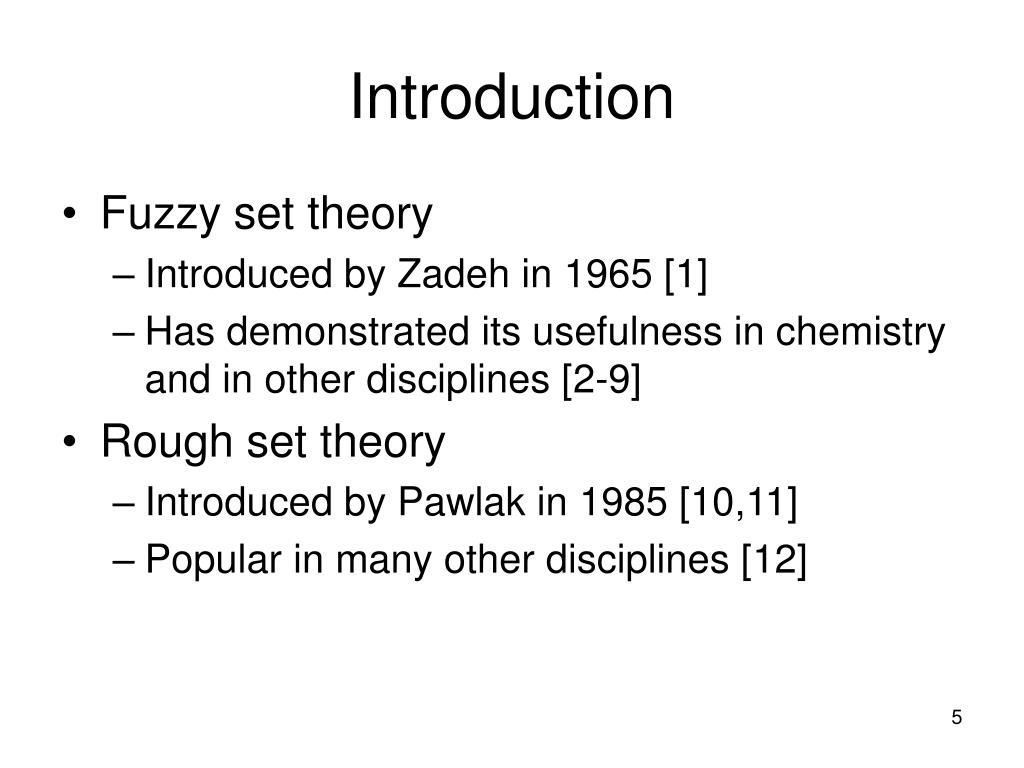

  5. Introduction • Fuzzy set theory • Introduced by Zadeh in 1965 [1] • Has demonstrated its usefulness in chemistry and in other disciplines [2-9] • Rough set theory • Introduced by Pawlak in 1985 [10,11] • Popular in many other disciplines [12]

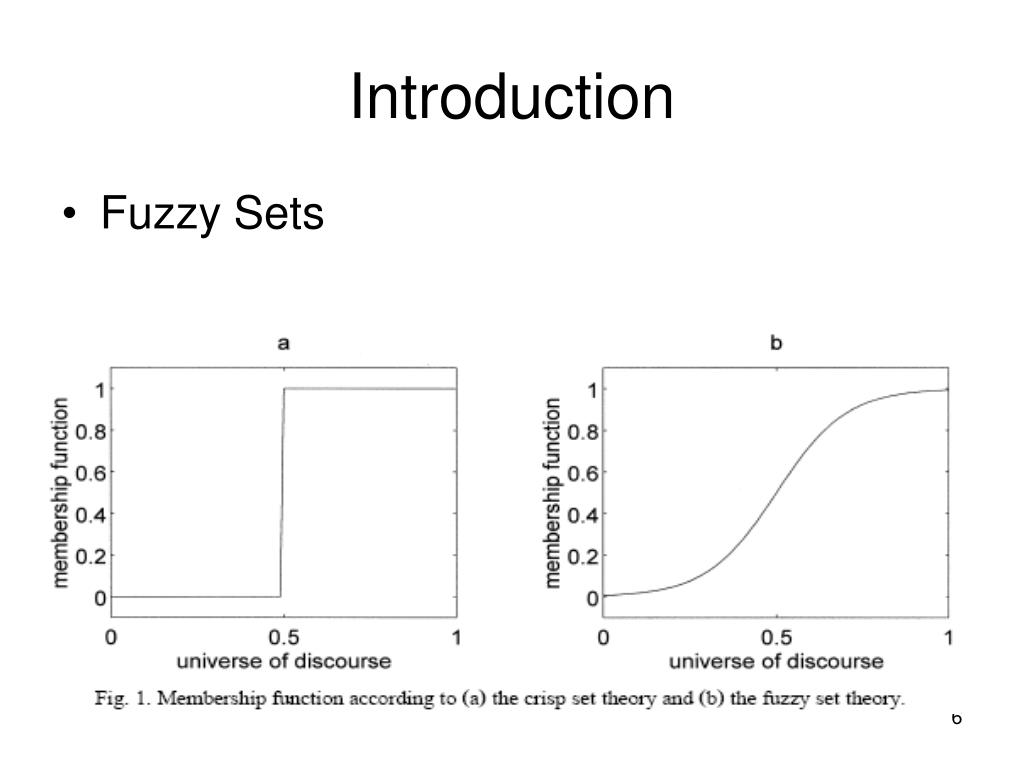

  6. Introduction • Fuzzy Sets

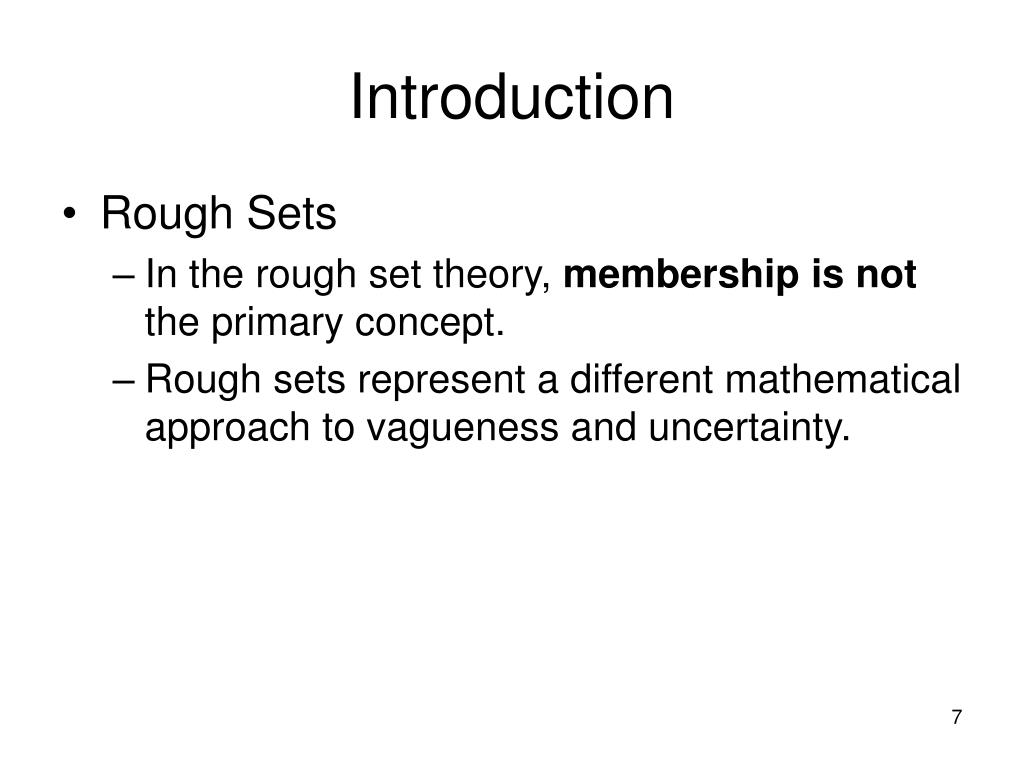

  7. Introduction • Rough Sets • In the rough set theory, membership is not the primary concept. • Rough sets represent a different mathematical approach to vagueness and uncertainty.

  8. Introduction • Rough Sets • The rough set methodology is based on the premise that lowering the degree of precision in the data makes the data pattern more visible. • Consider a simple example. Two acids with pKs of respectively pK 4.12 and 4.53 will, in many contexts, be perceived as so equally weak, that they are indiscernible with respect to this attribute. • They are part of a rough set ‘weak acids’ as compared to ‘strong’ or ‘medium’ or whatever other category, relevant to the context of this classification.

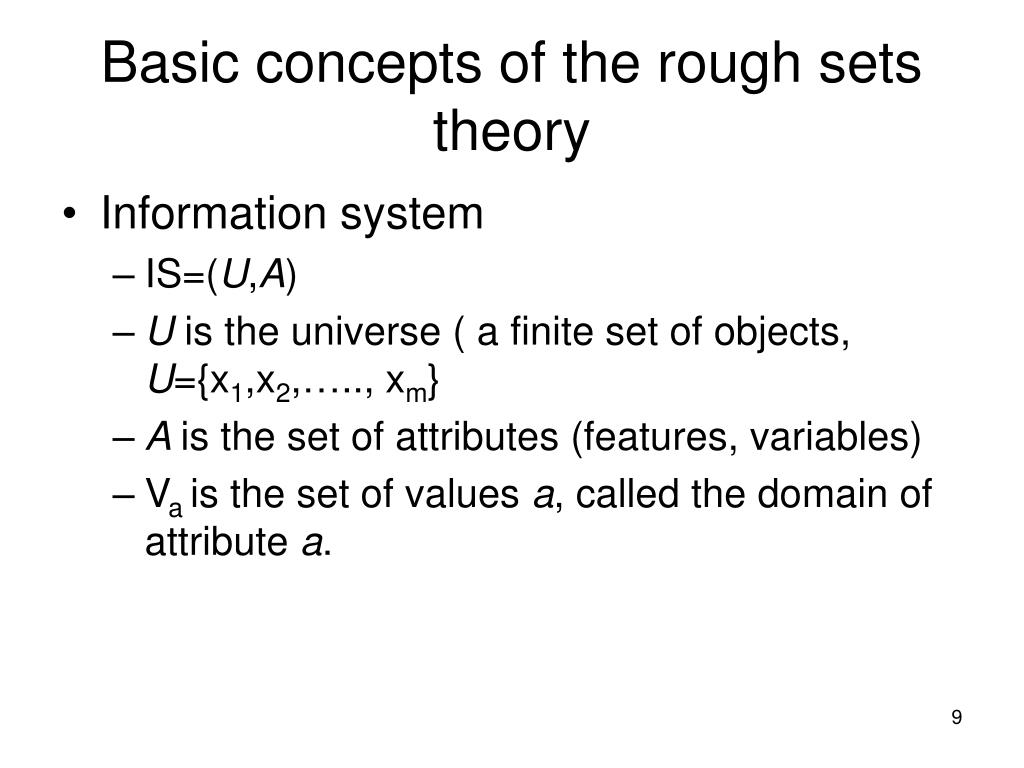

  9. Basic concepts of the rough sets theory • Information system • IS=(U,A) • U is the universe ( a finite set of objects, U={x1,x2,….., xm} • A is the set of attributes (features, variables) • Va is the set of values a, called the domain of attribute a.

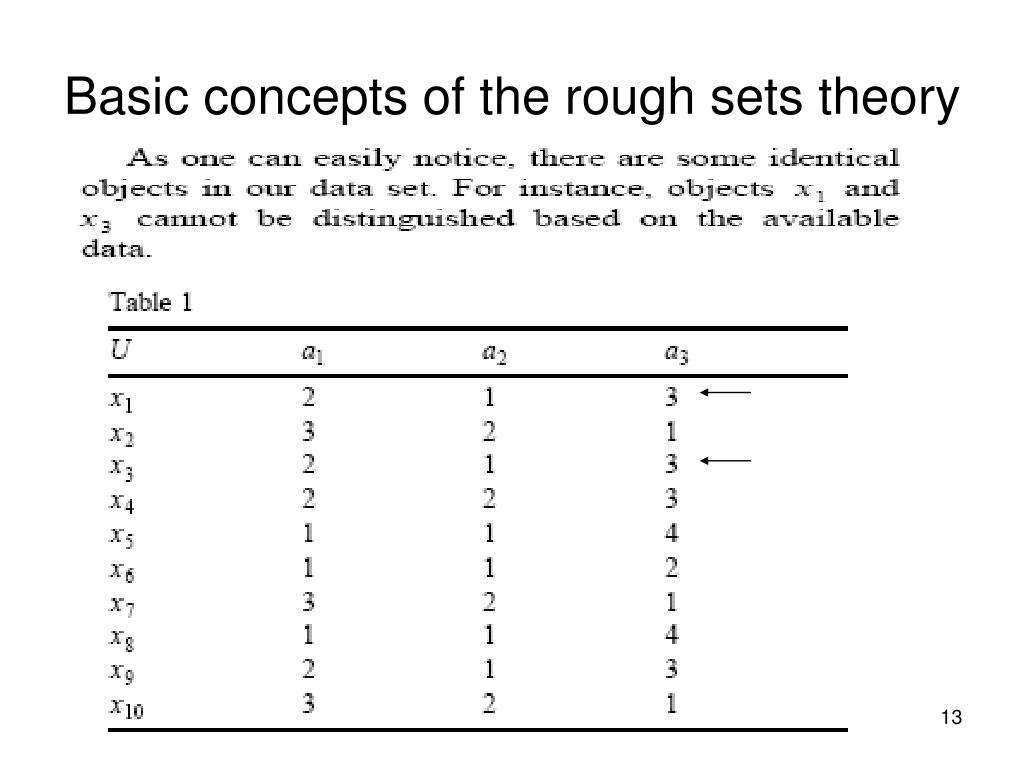

  10. Basic concepts of the rough sets theory Consider a data set containing the results of three measurements performed for 10 objects. The results can be organized in a matrix10x3. Measurements Objects

  11. Basic concepts of the rough sets theory • IS=(U,A) • U={x1,x2,x3,x4,x5,x6….., x10} • A={a1,a2,a3} • The domains of attributes are: V1={1,2,3} V2={1,2} V3={1,2,3,4}

  12. Basic concepts of the rough sets theory

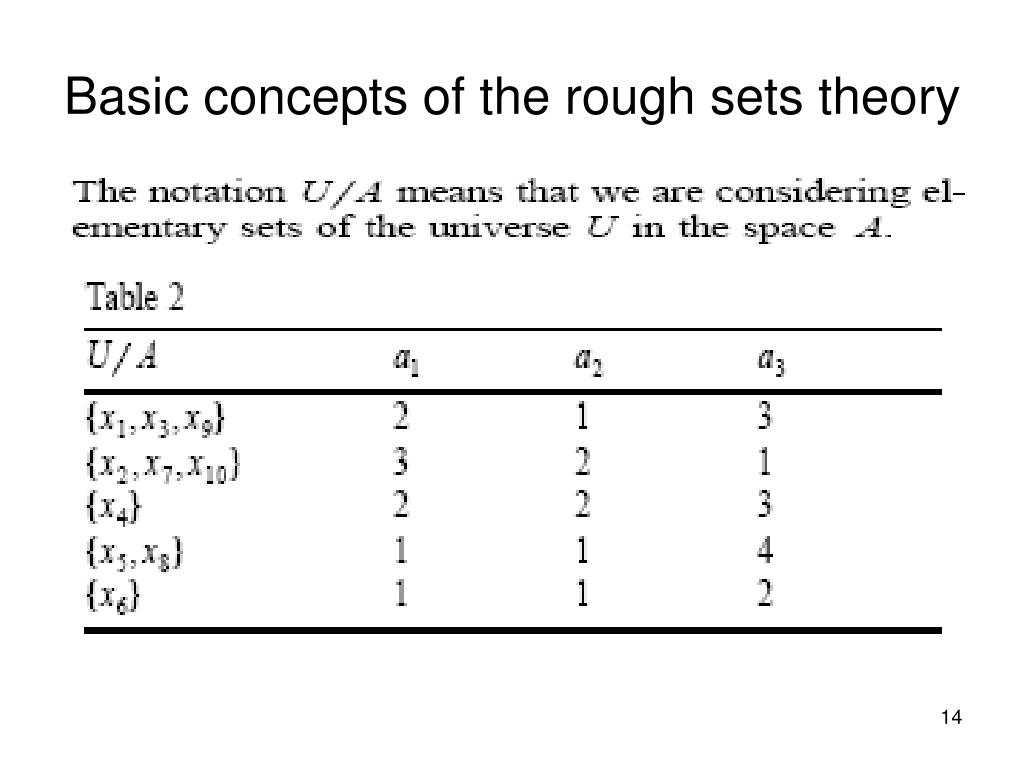

  13. Basic concepts of the rough sets theory

  14. Basic concepts of the rough sets theory

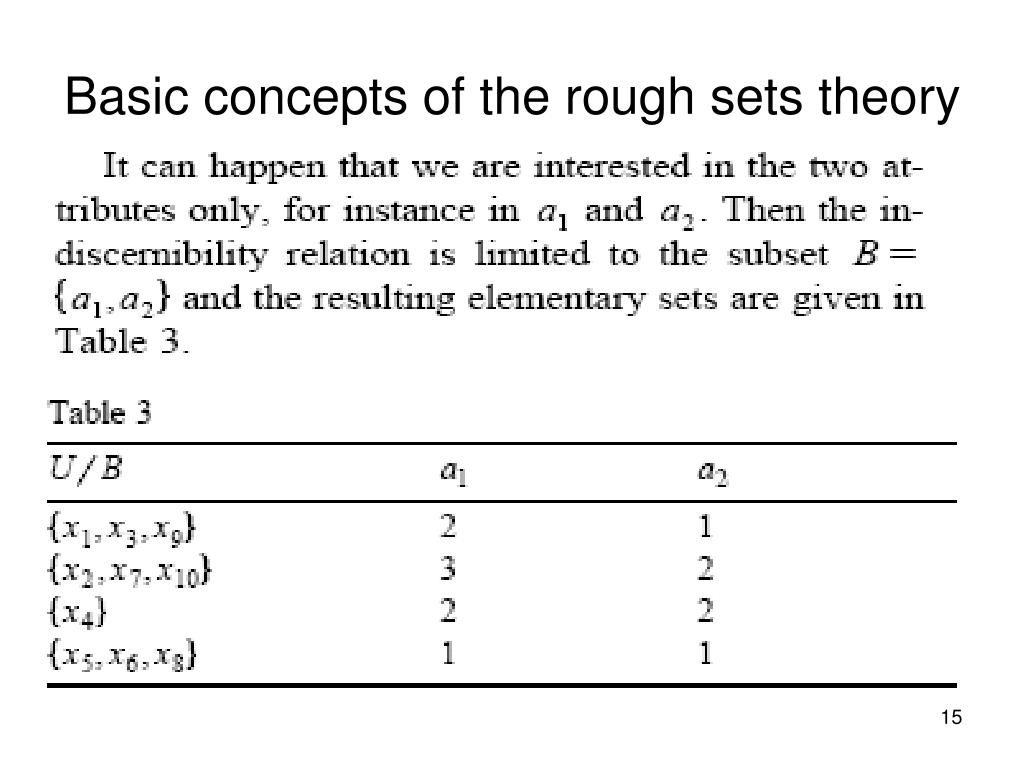

  15. Basic concepts of the rough sets theory

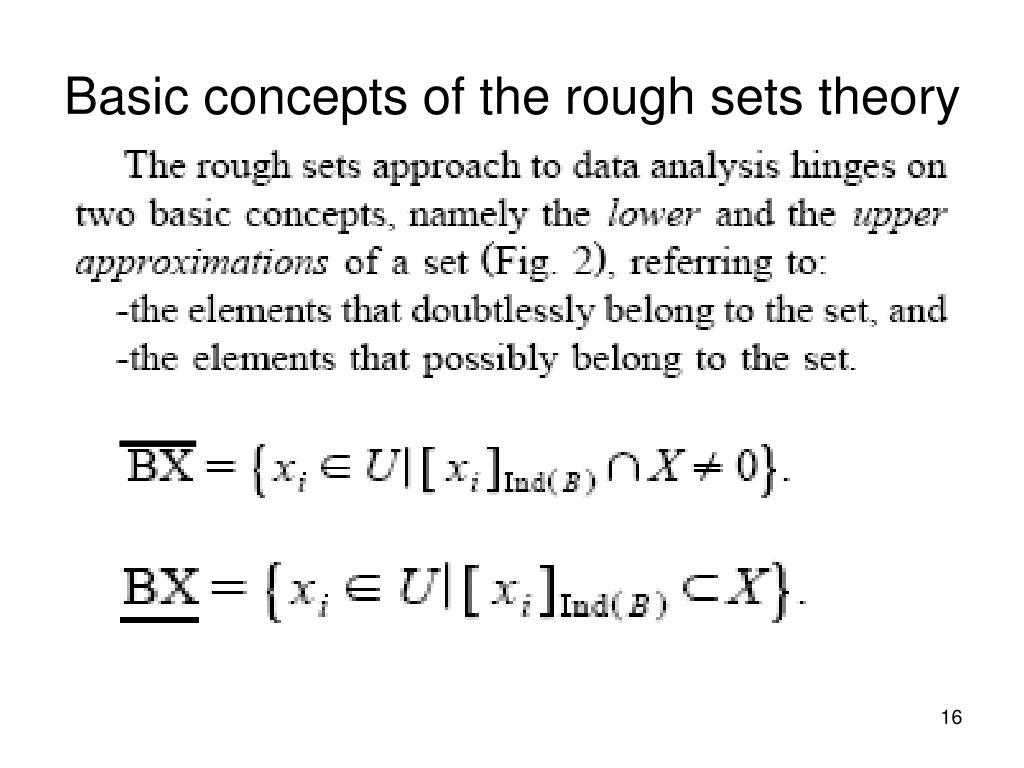

  16. Basic concepts of the rough sets theory

  17. Basic concepts of the rough sets theory

  18. Basic concepts of the rough sets theory

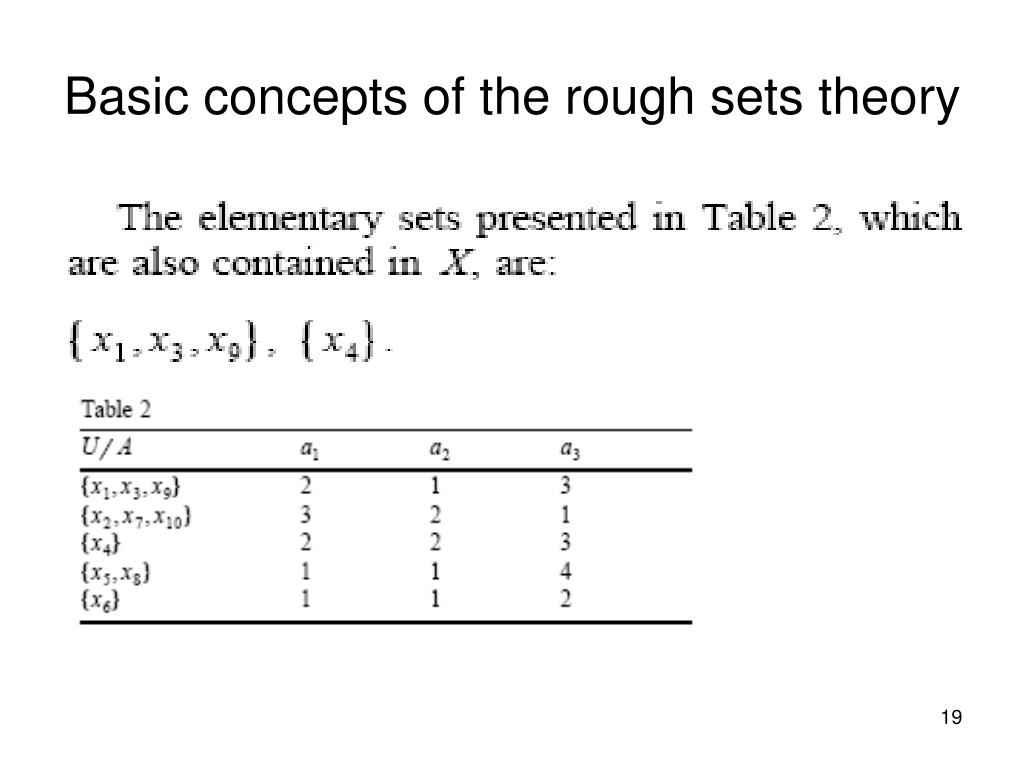

  19. Basic concepts of the rough sets theory

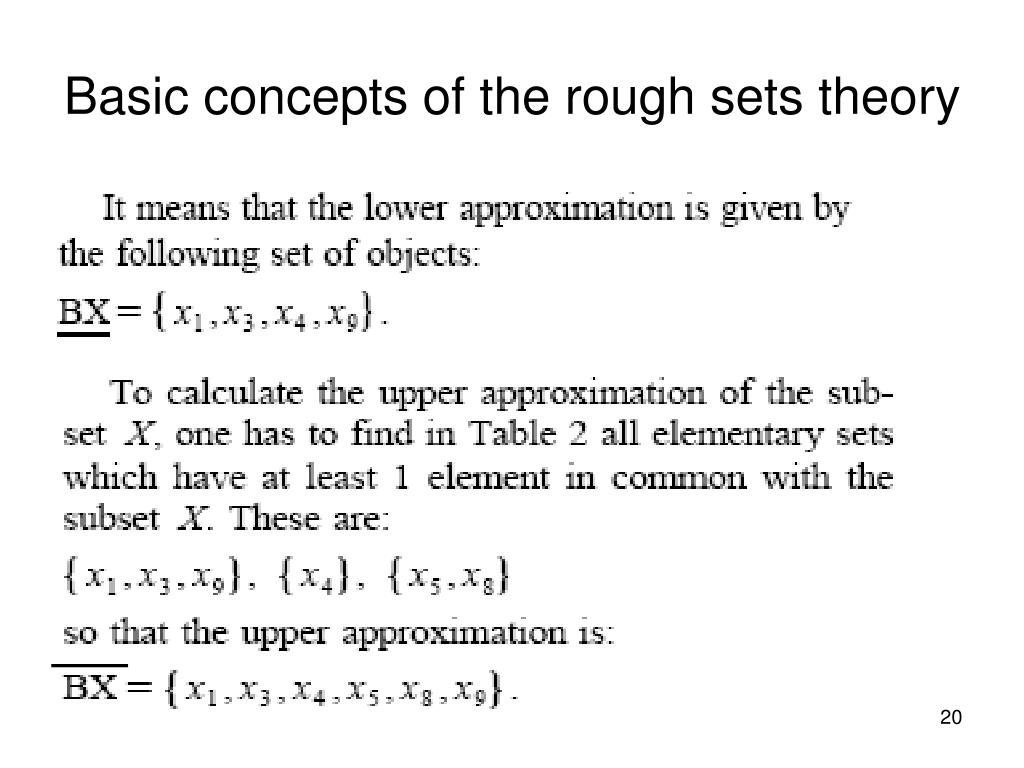

  20. Basic concepts of the rough sets theory

  21. Basic concepts of the rough sets theory

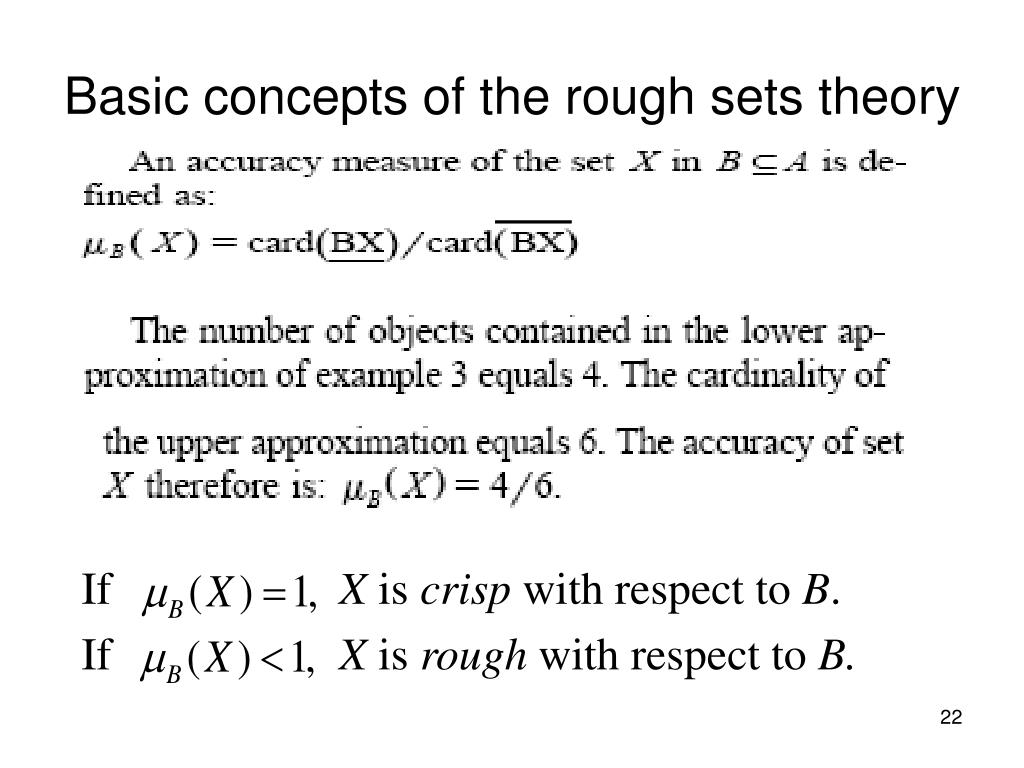

  22. Basic concepts of the rough sets theory If X is crisp with respect to B. If X is rough with respect to B.

  23. Basic concepts of the rough sets theory

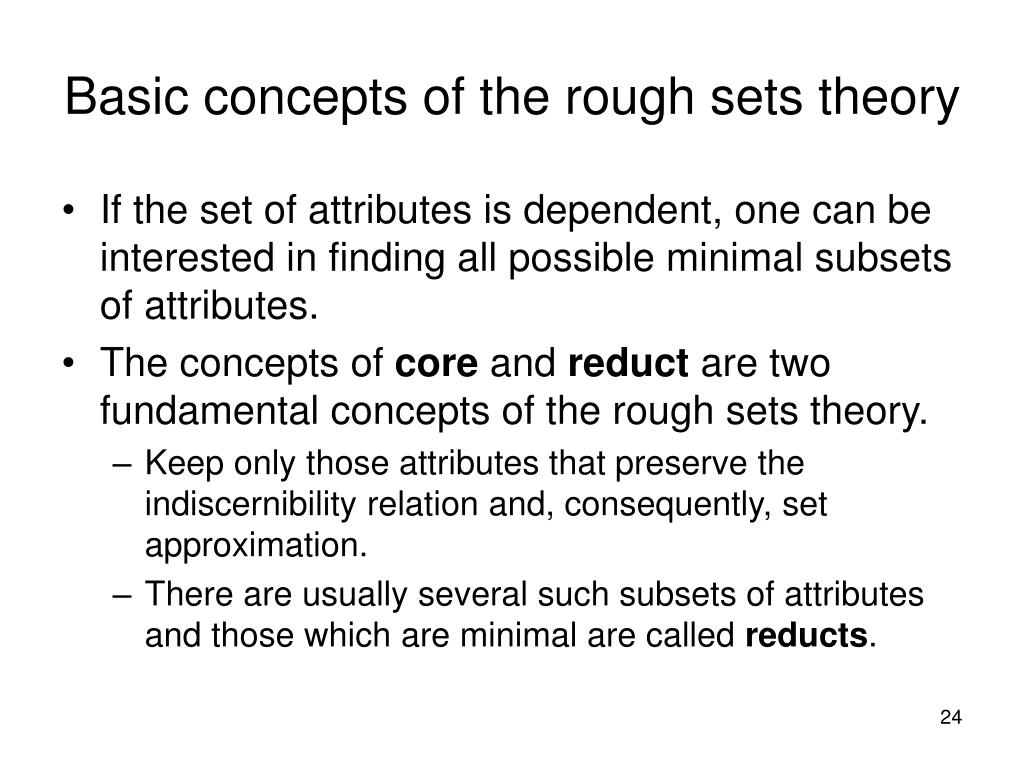

  24. Basic concepts of the rough sets theory • If the set of attributes is dependent, one can be interested in finding all possible minimal subsets of attributes. • The concepts of core and reduct are two fundamental concepts of the rough sets theory. • Keep only those attributes that preserve the indiscernibility relation and, consequently, set approximation. • There are usually several such subsets of attributes and those which are minimal are called reducts.

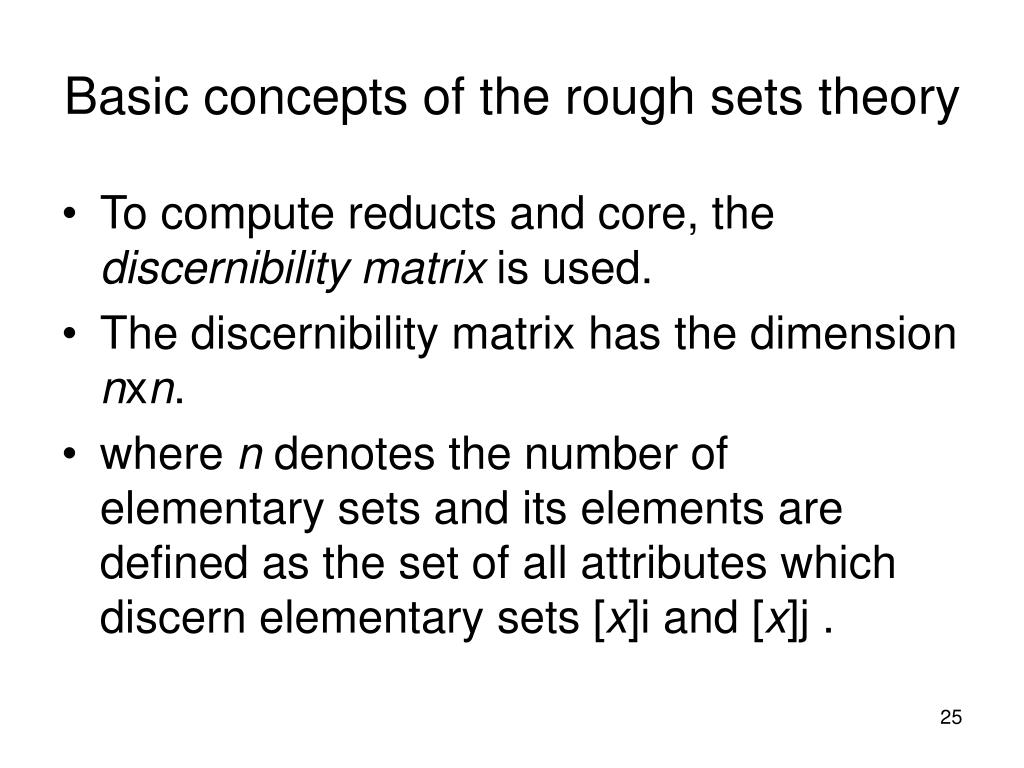

  25. Basic concepts of the rough sets theory • To compute reducts and core, the discernibility matrix is used. • The discernibility matrix has the dimension nxn. • where n denotes the number of elementary sets and its elements are defined as the set of all attributes which discern elementary sets [x]iand [x]j.

  26. Basic concepts of the rough sets theory

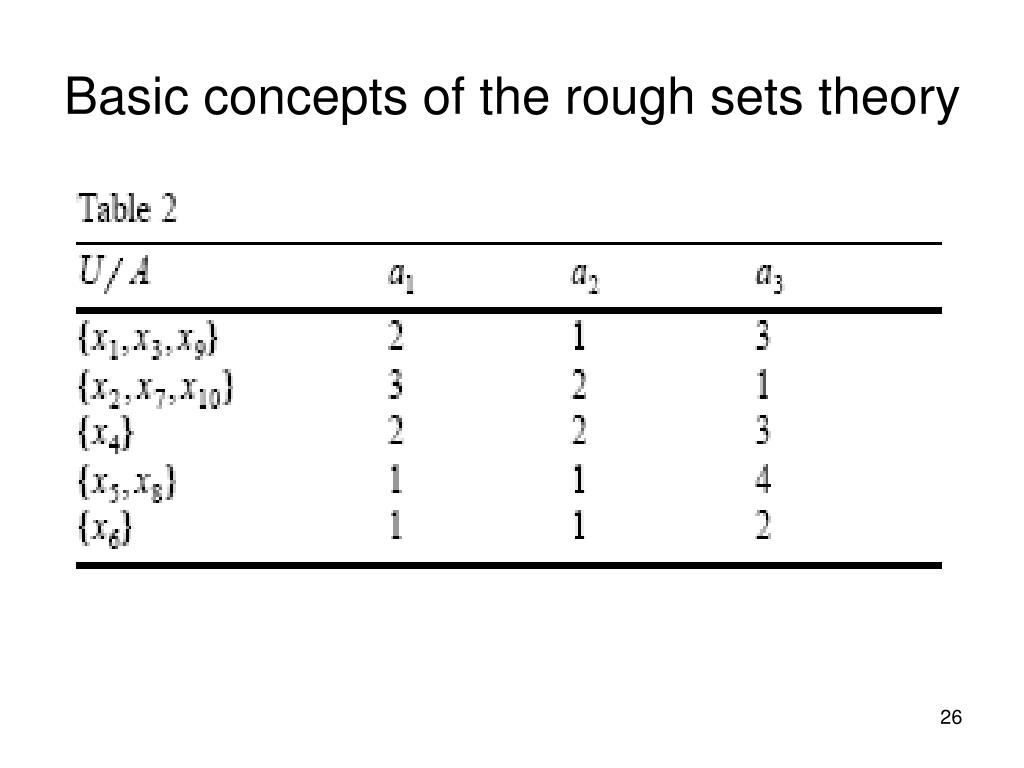

  27. Basic concepts of the rough sets theory

  28. Basic concepts of the rough sets theory Discerns set 1 from both set 2 and set 3 Discerns set 1 from sets 2,3,4 and set 5

  29. Basic concepts of the rough sets theory The discernibility function has the following form:

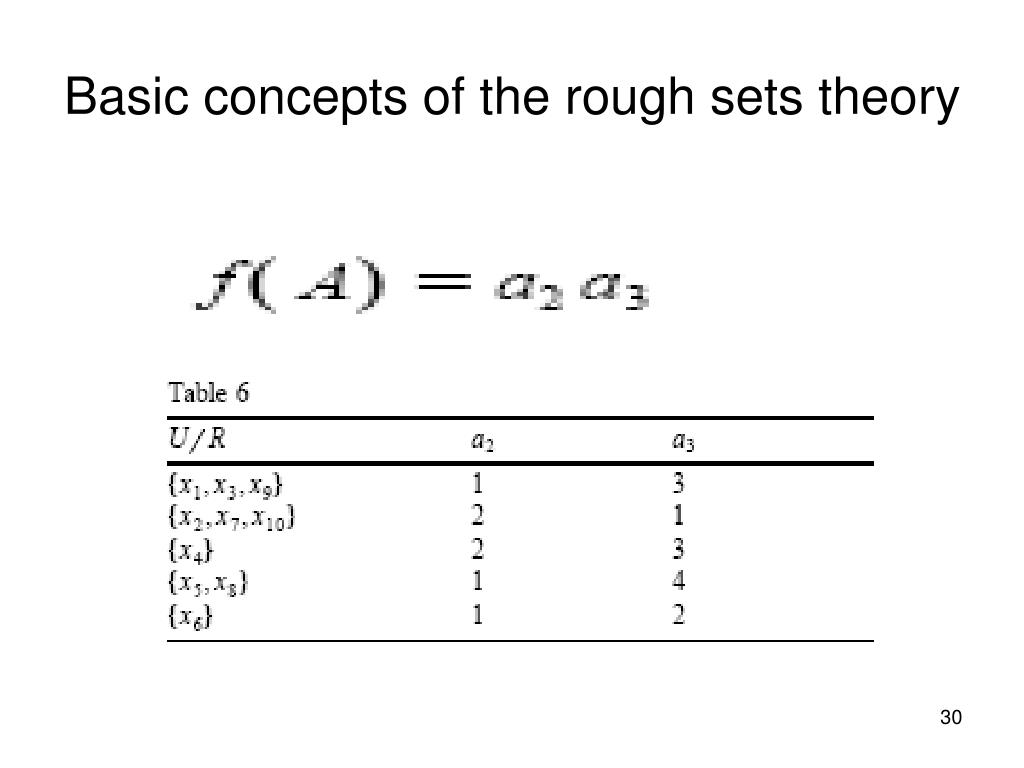

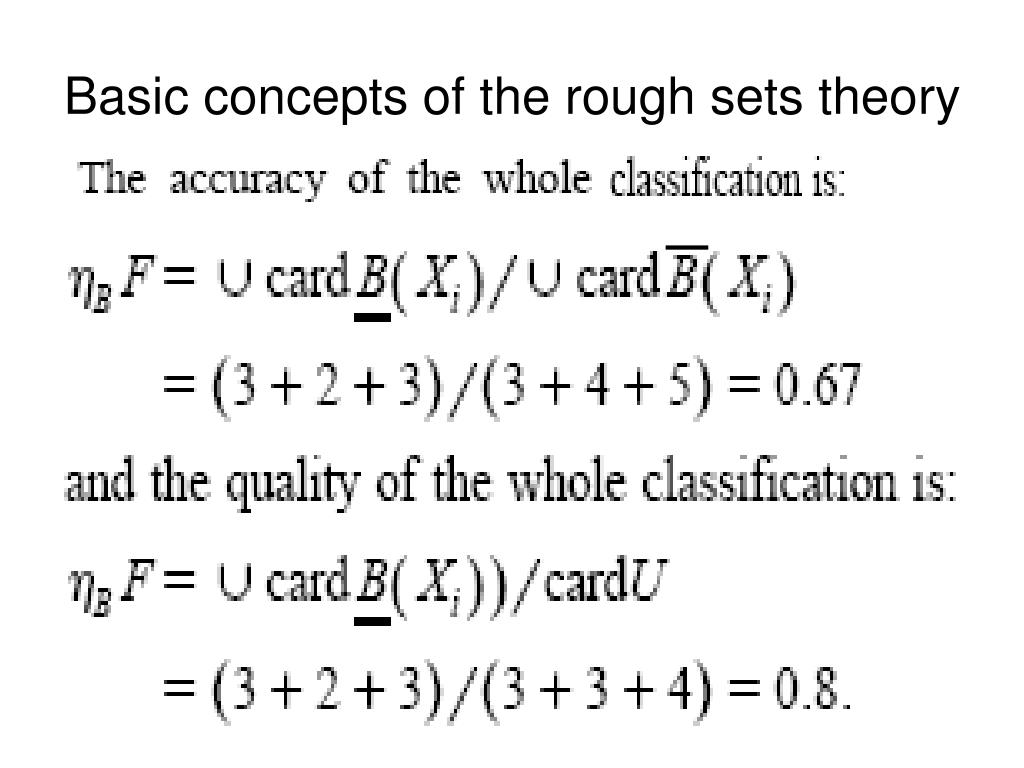

  30. Basic concepts of the rough sets theory

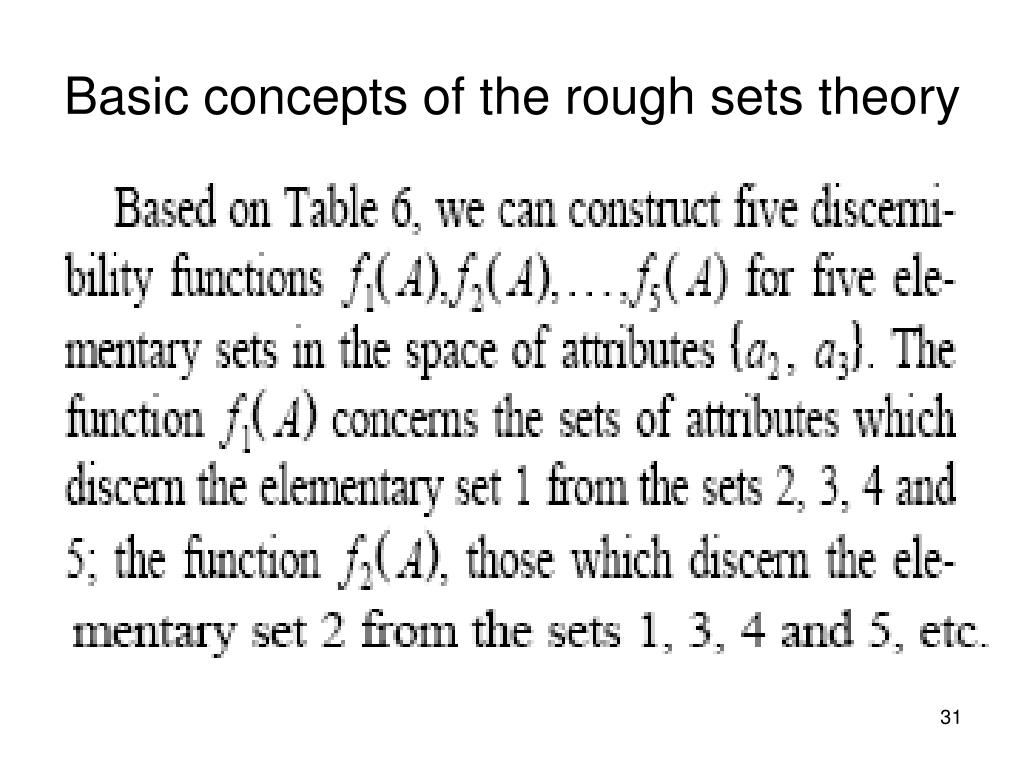

  31. Basic concepts of the rough sets theory

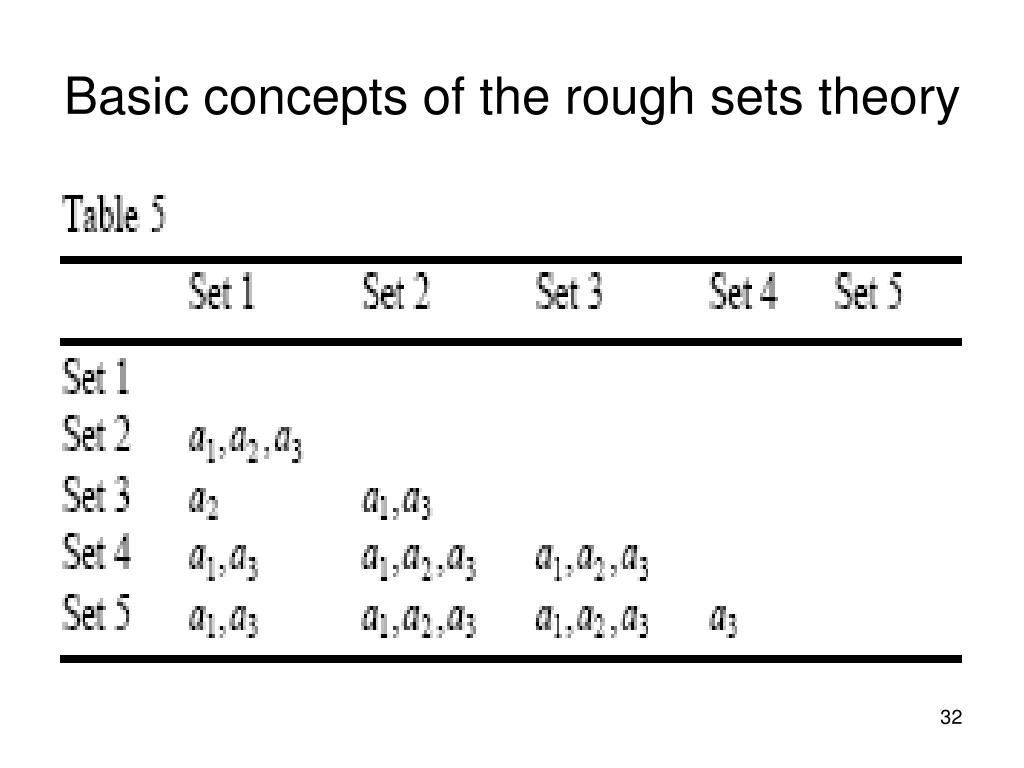

  32. Basic concepts of the rough sets theory

  33. Basic concepts of the rough sets theory

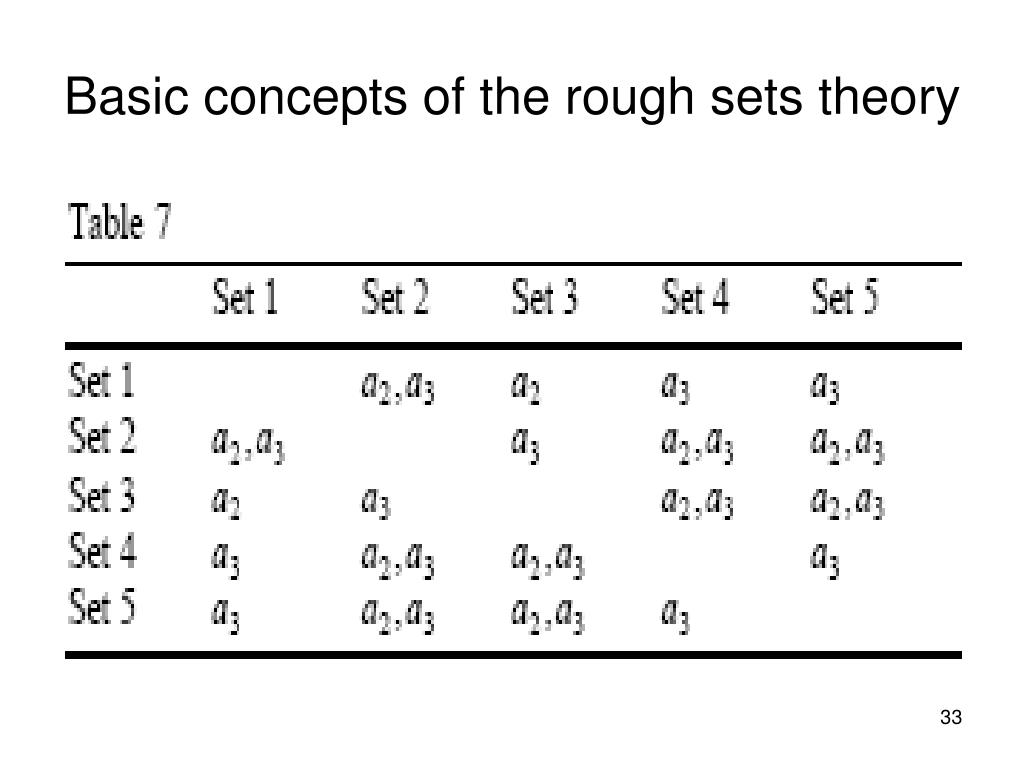

  34. Basic concepts of the rough sets theory

  35. Basic concepts of the rough sets theory

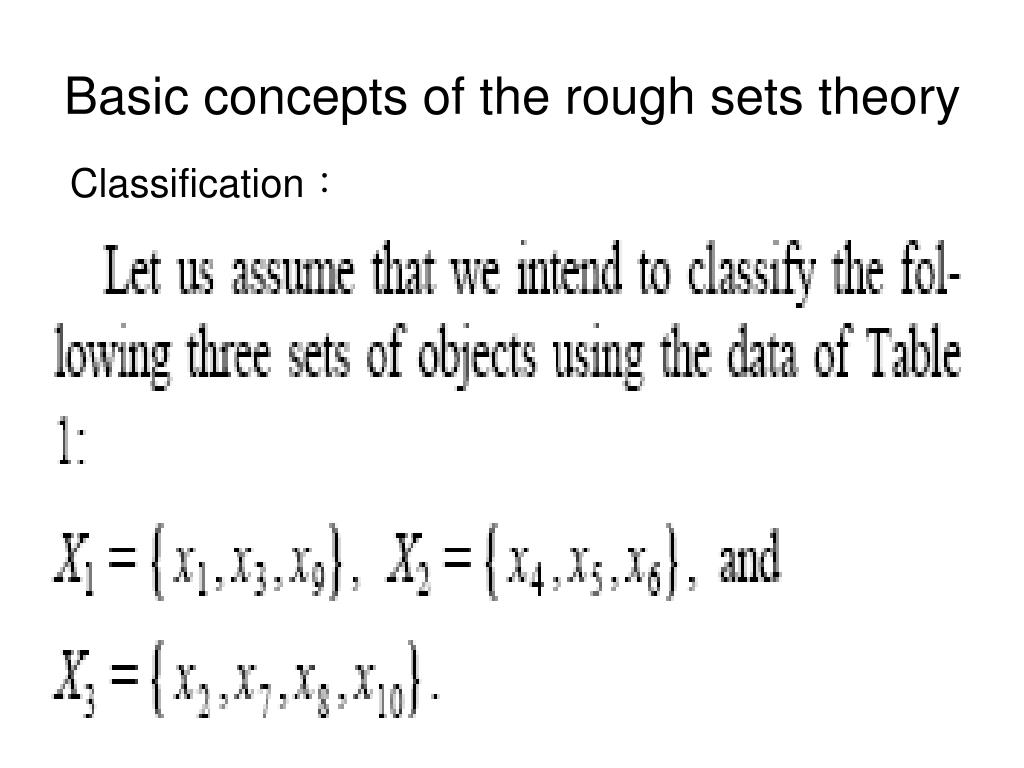

  36. Basic concepts of the rough sets theory Classification:

  37. Basic concepts of the rough sets theory

  38. Basic concepts of the rough sets theory

  39. Basic concepts of the rough sets theory

  40. Basic concepts of the rough sets theory

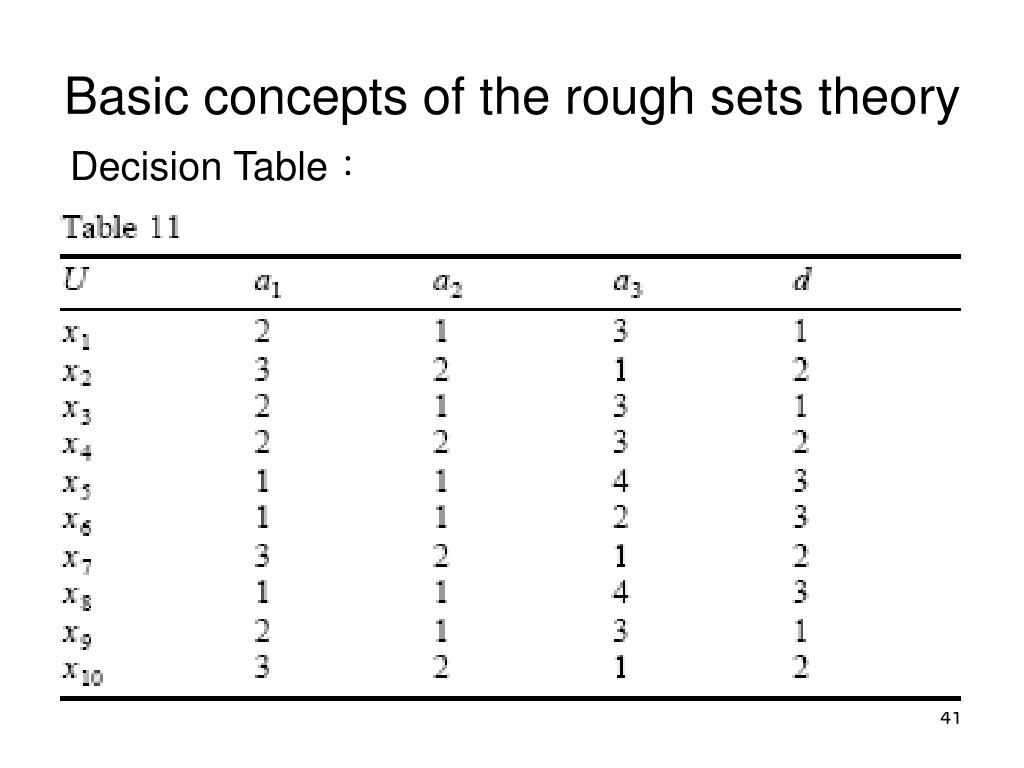

  41. Basic concepts of the rough sets theory Decision Table:

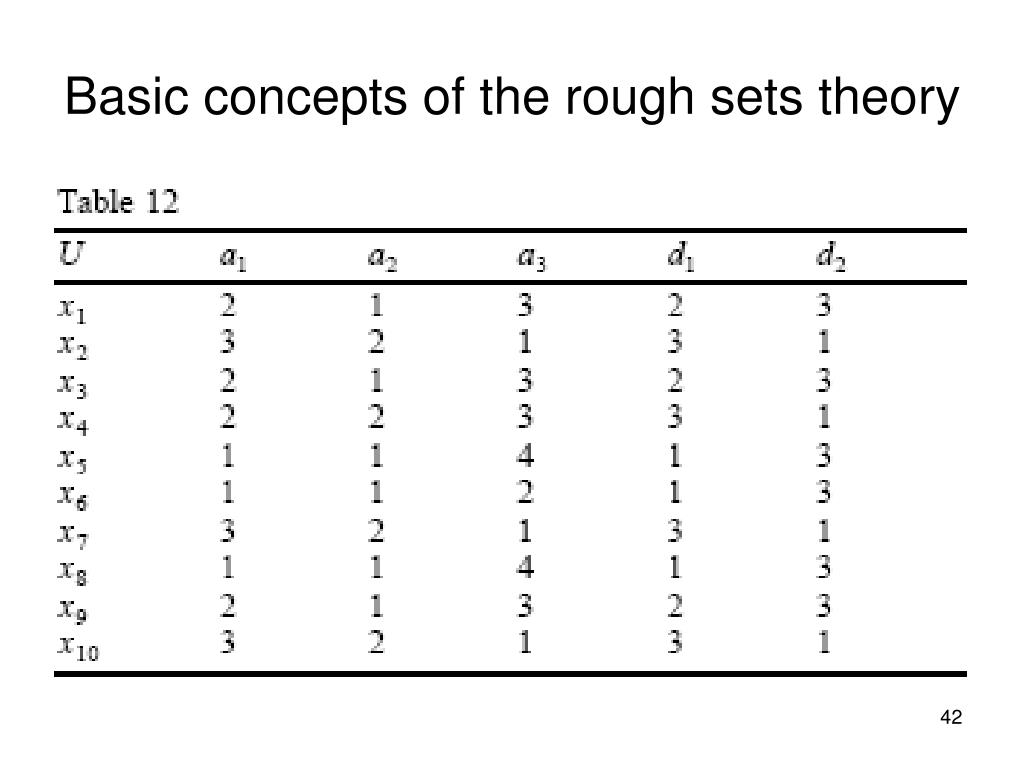

  42. Basic concepts of the rough sets theory

  43. Basic concepts of the rough sets theory

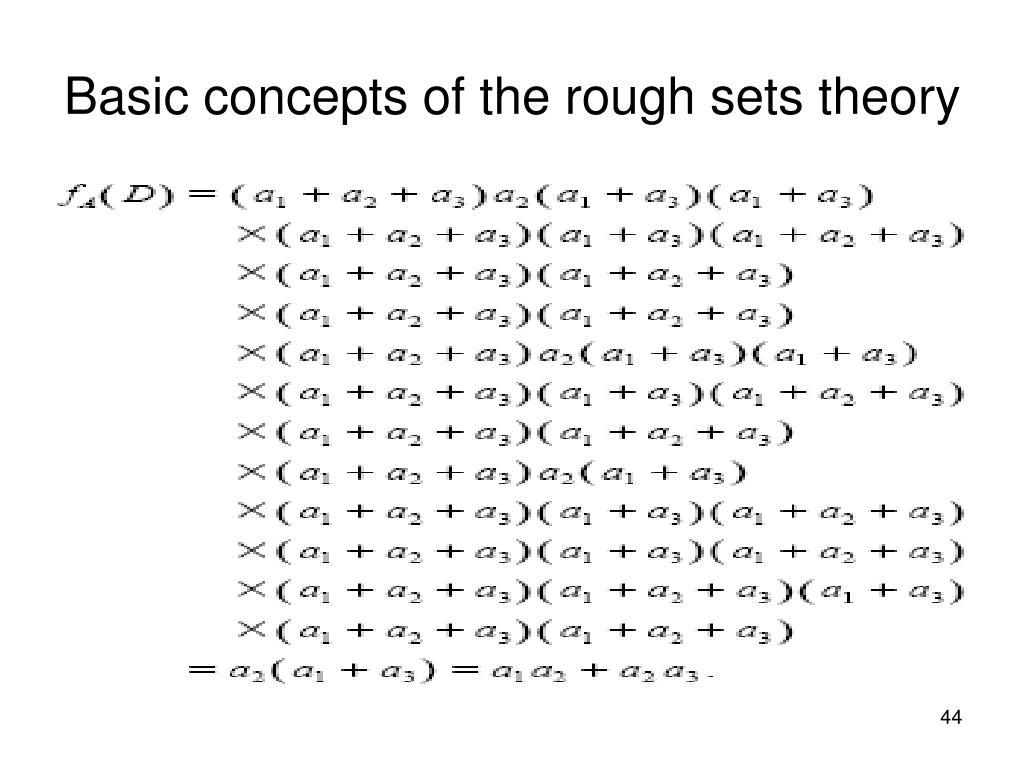

  44. Basic concepts of the rough sets theory

  45. Basic concepts of the rough sets theory

  46. Basic concepts of the rough sets theory

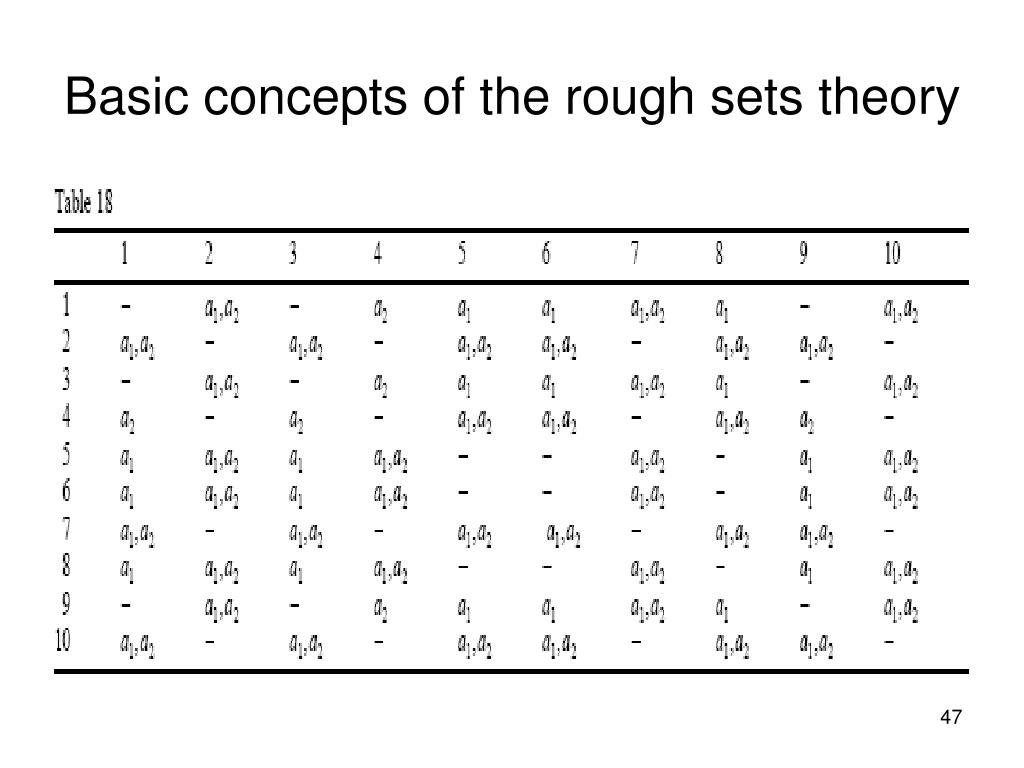

  47. Basic concepts of the rough sets theory

  48. Basic concepts of the rough sets theory

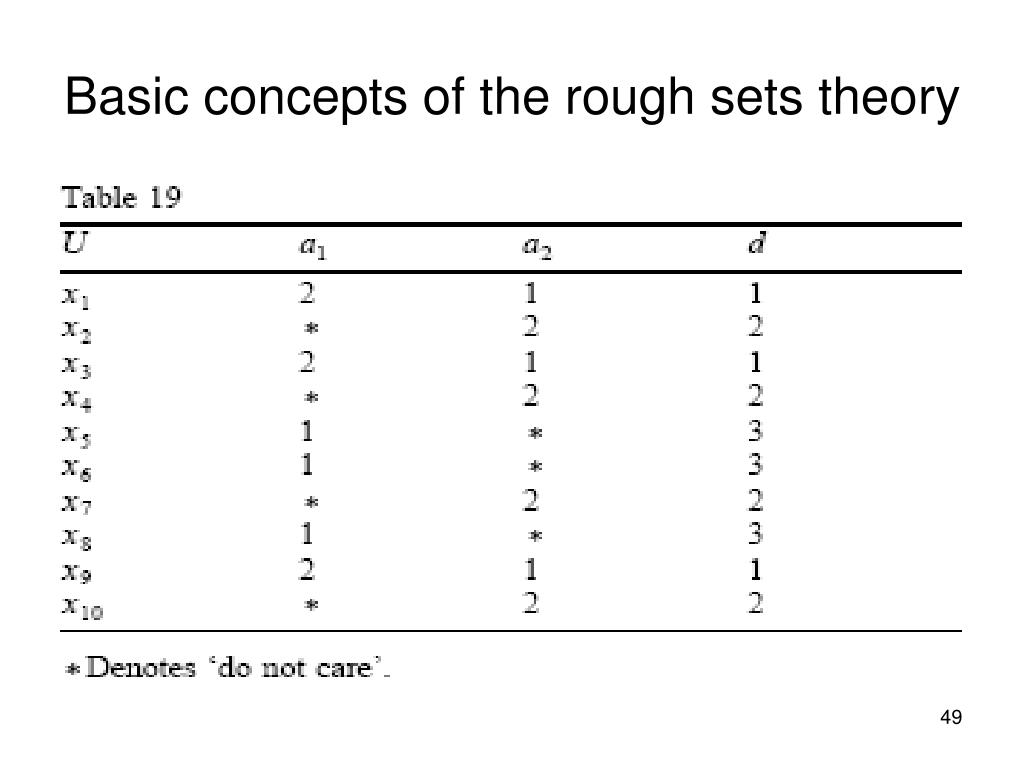

  49. Basic concepts of the rough sets theory

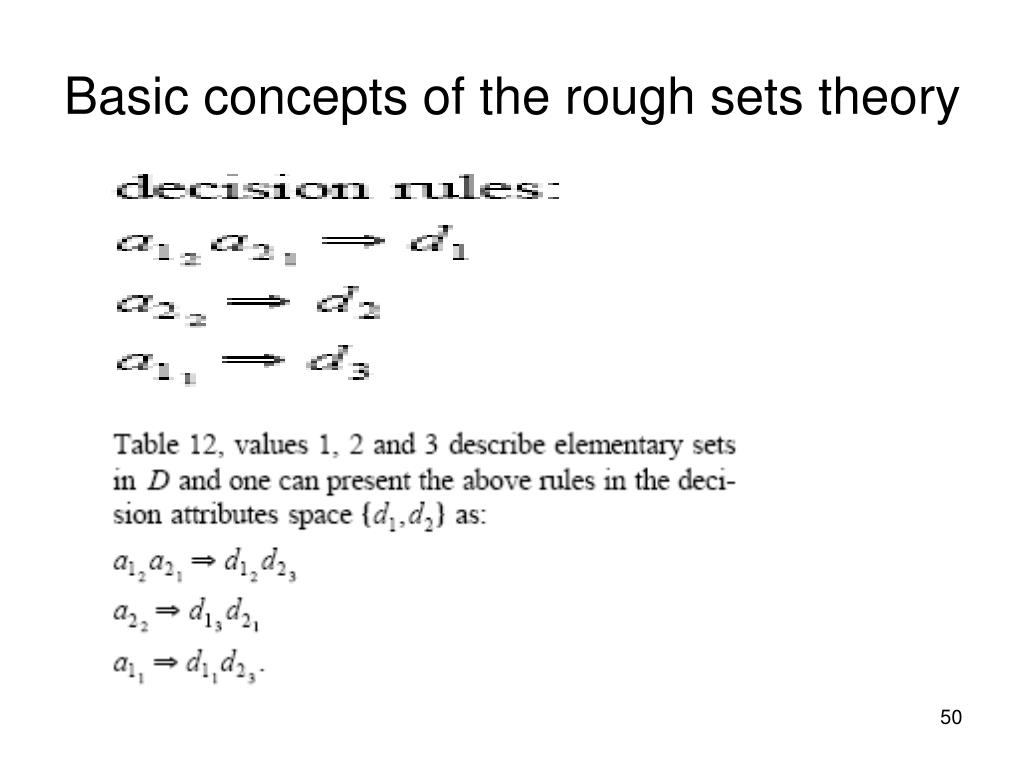

  50. Basic concepts of the rough sets theory
