  1. CSE 190: Internet E-Commerce Lecture 16: Performance

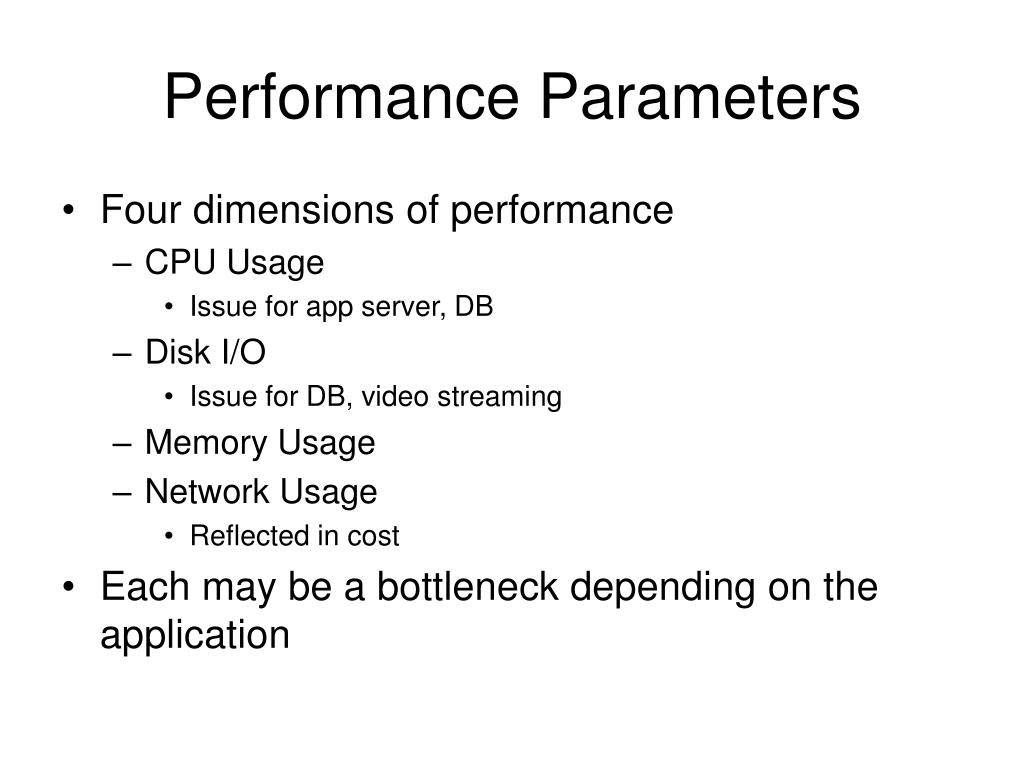

  2. Performance Parameters • Four dimensions of performance • CPU Usage • Issue for app server, DB • Disk I/O • Issue for DB, video streaming • Memory Usage • Network Usage • Reflected in cost • Each may be a bottleneck depending on the application

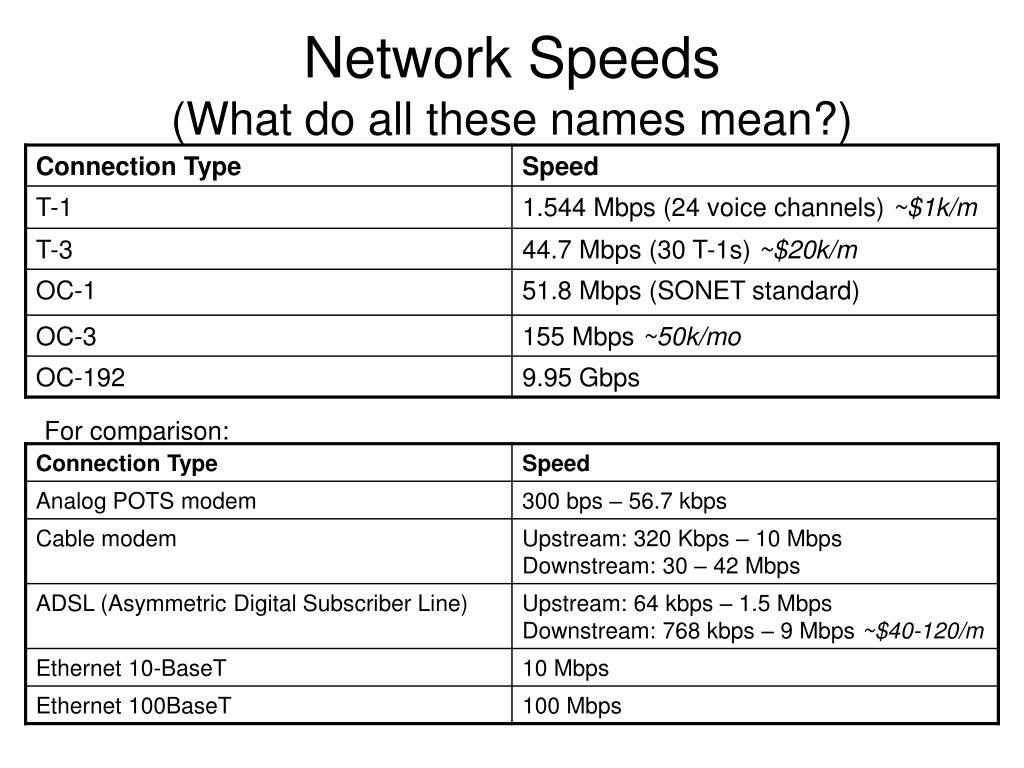

  3. Network Speeds(What do all these names mean?) For comparison:

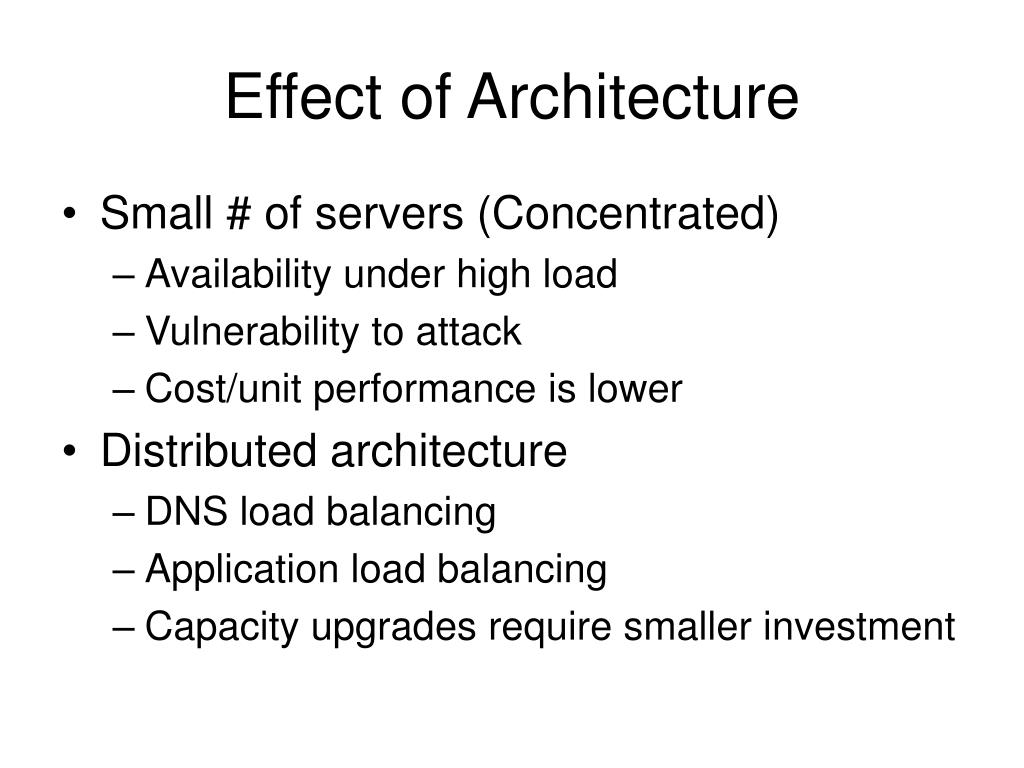

  4. Effect of Architecture • Small # of servers (Concentrated) • Availability under high load • Vulnerability to attack • Cost/unit performance is lower • Distributed architecture • DNS load balancing • Application load balancing • Capacity upgrades require smaller investment

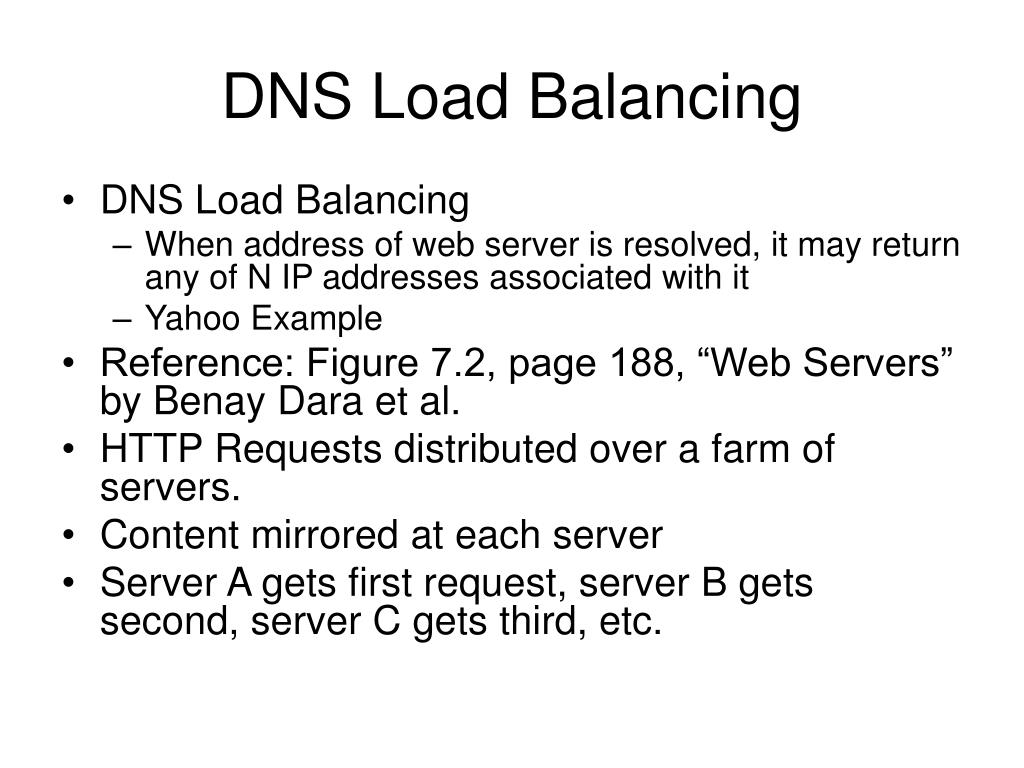

  5. DNS Load Balancing • DNS Load Balancing • When address of web server is resolved, it may return any of N IP addresses associated with it • Yahoo Example • Reference: Figure 7.2, page 188, “Web Servers” by Benay Dara et al. • HTTP Requests distributed over a farm of servers. • Content mirrored at each server • Server A gets first request, server B gets second, server C gets third, etc.

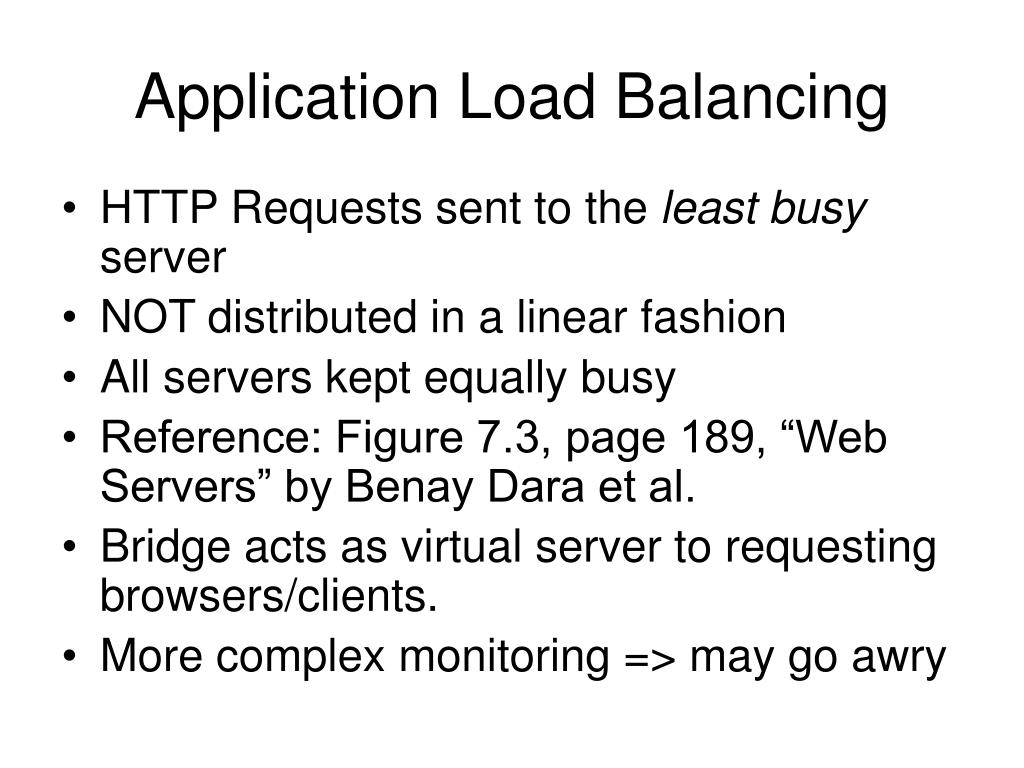

  6. Application Load Balancing • HTTP Requests sent to the least busy server • NOT distributed in a linear fashion • All servers kept equally busy • Reference: Figure 7.3, page 189, “Web Servers” by Benay Dara et al. • Bridge acts as virtual server to requesting browsers/clients. • More complex monitoring => may go awry

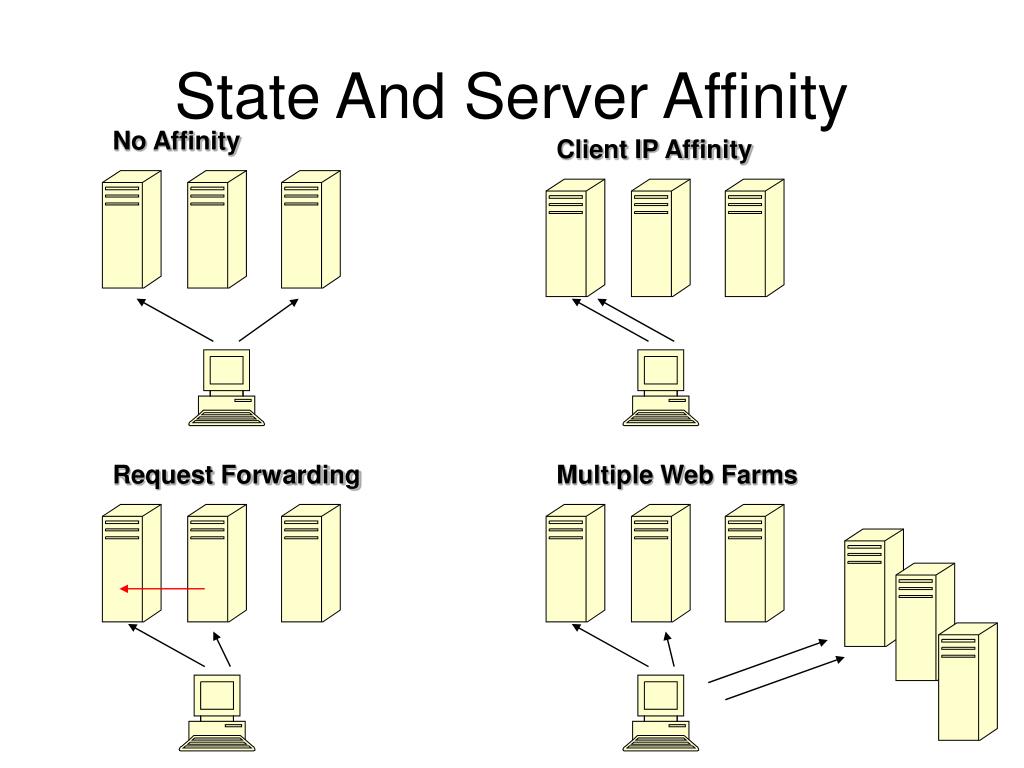

  7. No Affinity Client IP Affinity Request Forwarding Multiple Web Farms State And Server Affinity

  8. Proxy Servers • Proxy, cache, and mirror techniques: for improving web performance • reduce latency of access to most frequently accessed web documents • Reduce network bandwidth congestion • Increase security of electronic services • Proxies provide web gateway on private networks • Configurable within browser (e.g. in IE, Tools | Options | Connections) • Reference: Figure 7.4, page 189, “Web Servers” by Benay Dara et al.

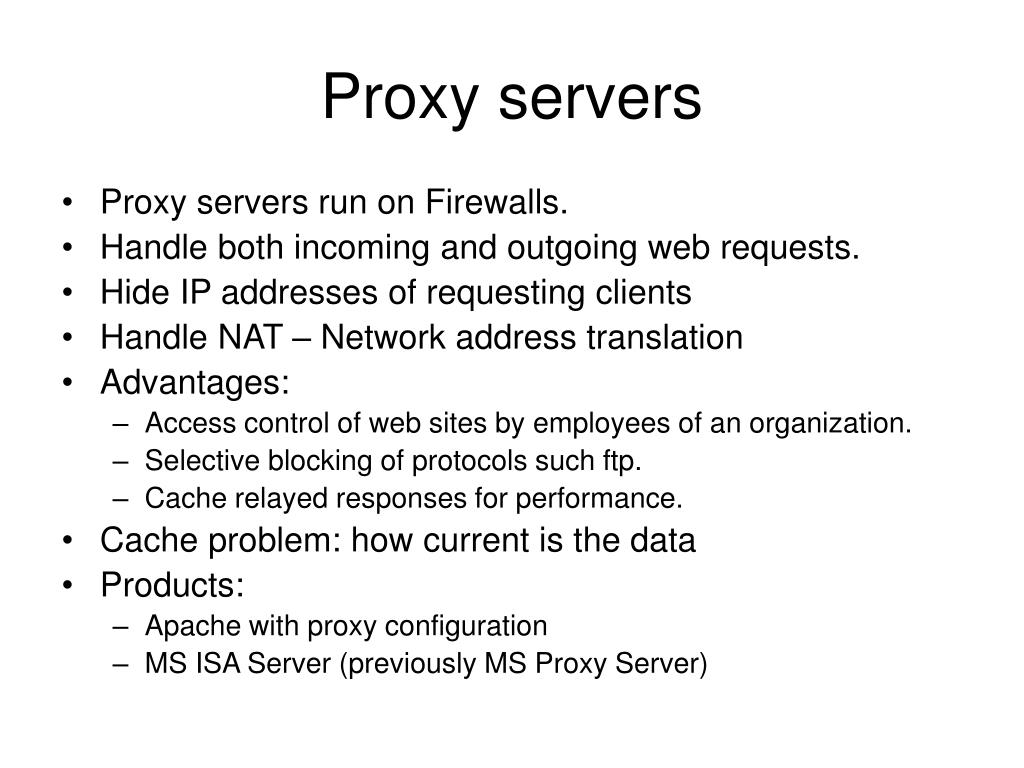

  9. Proxy servers • Proxy servers run on Firewalls. • Handle both incoming and outgoing web requests. • Hide IP addresses of requesting clients • Handle NAT – Network address translation • Advantages: • Access control of web sites by employees of an organization. • Selective blocking of protocols such ftp. • Cache relayed responses for performance. • Cache problem: how current is the data • Products: • Apache with proxy configuration • MS ISA Server (previously MS Proxy Server)

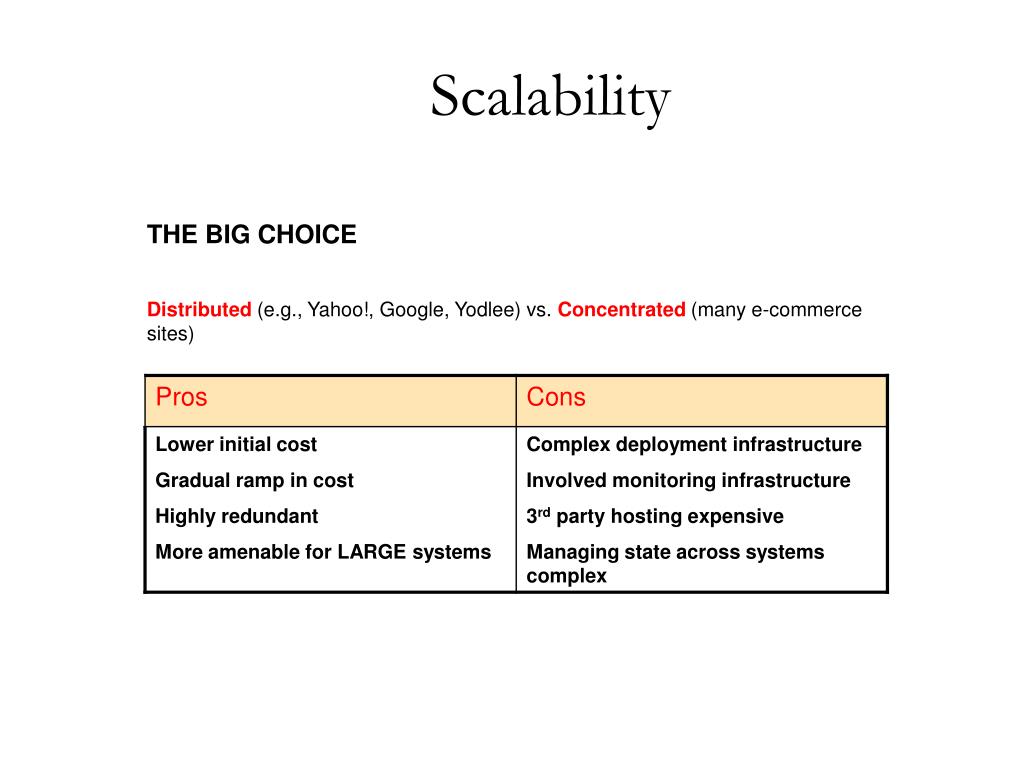

  10. Scalability THE BIG CHOICE Distributed (e.g., Yahoo!, Google, Yodlee) vs. Concentrated (many e-commerce sites)

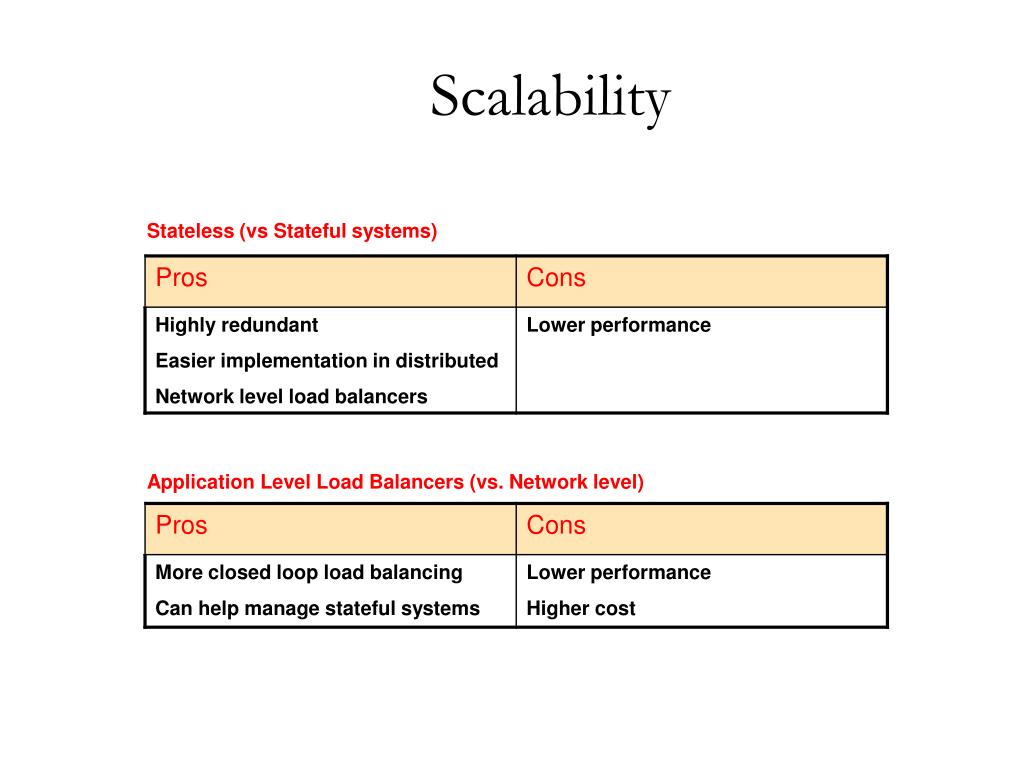

  11. Scalability Stateless (vs Stateful systems) Application Level Load Balancers (vs. Network level)

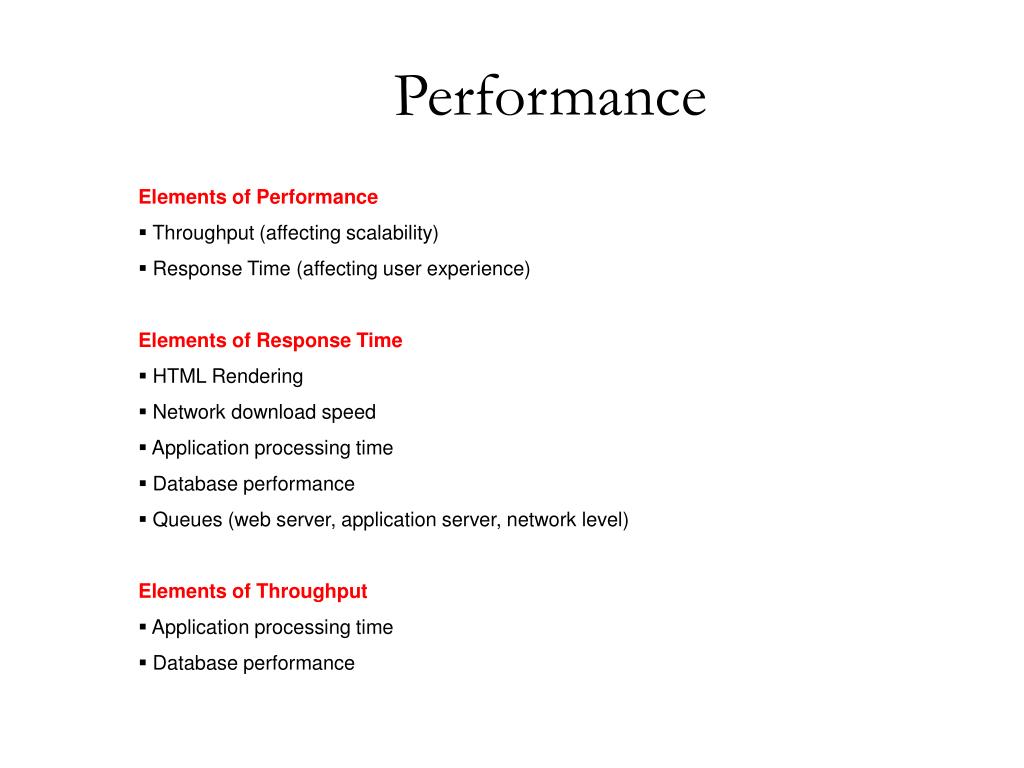

  12. Performance Elements of Performance • Throughput (affecting scalability) • Response Time (affecting user experience) Elements of Response Time • HTML Rendering • Network download speed • Application processing time • Database performance • Queues (web server, application server, network level) Elements of Throughput • Application processing time • Database performance
