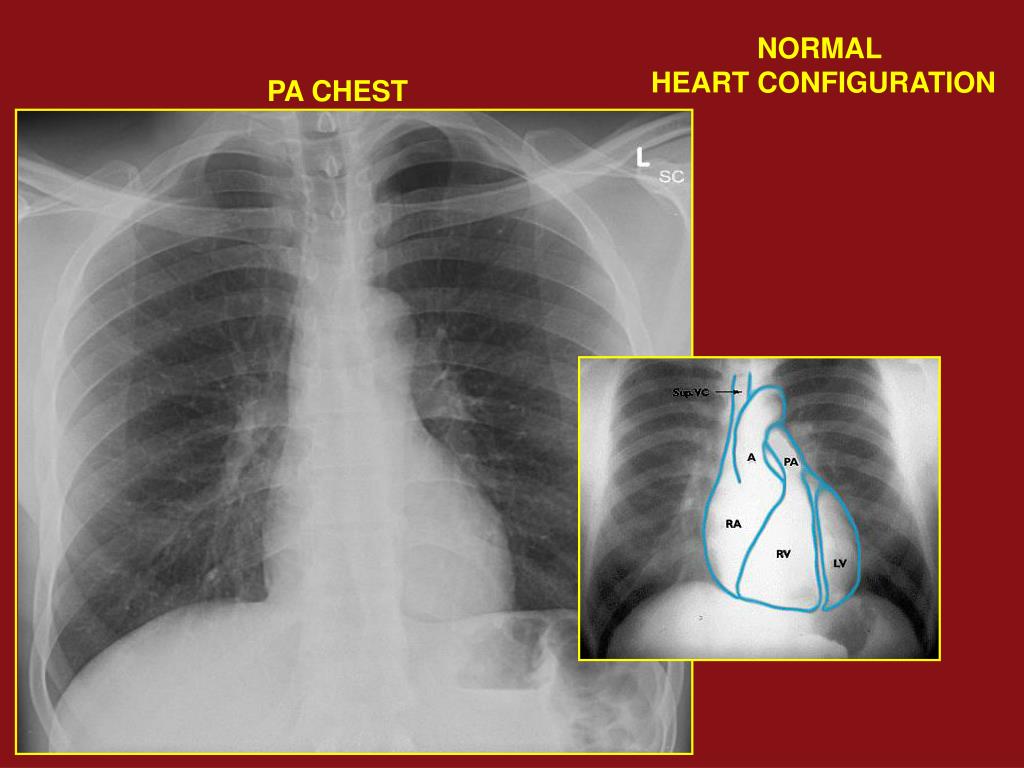

  1. NORMAL HEART CONFIGURATION PA CHEST

  2. LATERAL CHEST NORMAL HEART CONFIGURATION

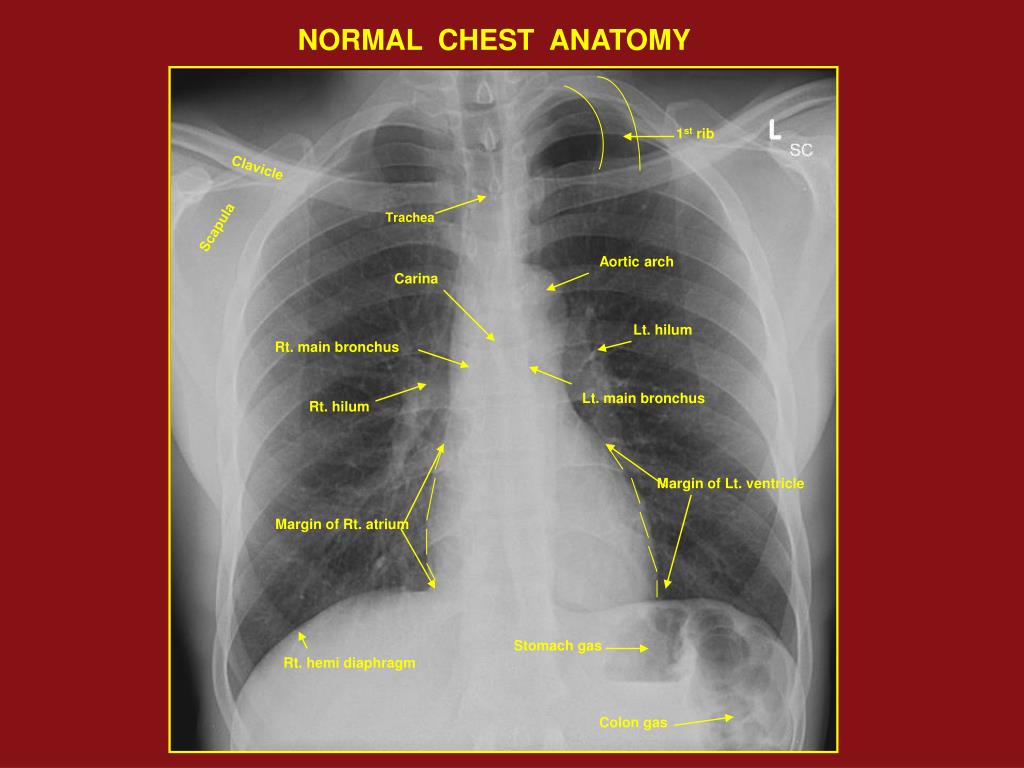

  3. NORMAL CHEST ANATOMY 1st rib Clavicle Trachea Scapula Aortic arch Carina Lt. hilum Rt. main bronchus Lt. main bronchus Rt. hilum Margin of Lt. ventricle Margin of Rt. atrium Stomach gas Rt.hemi diaphragm Colon gas

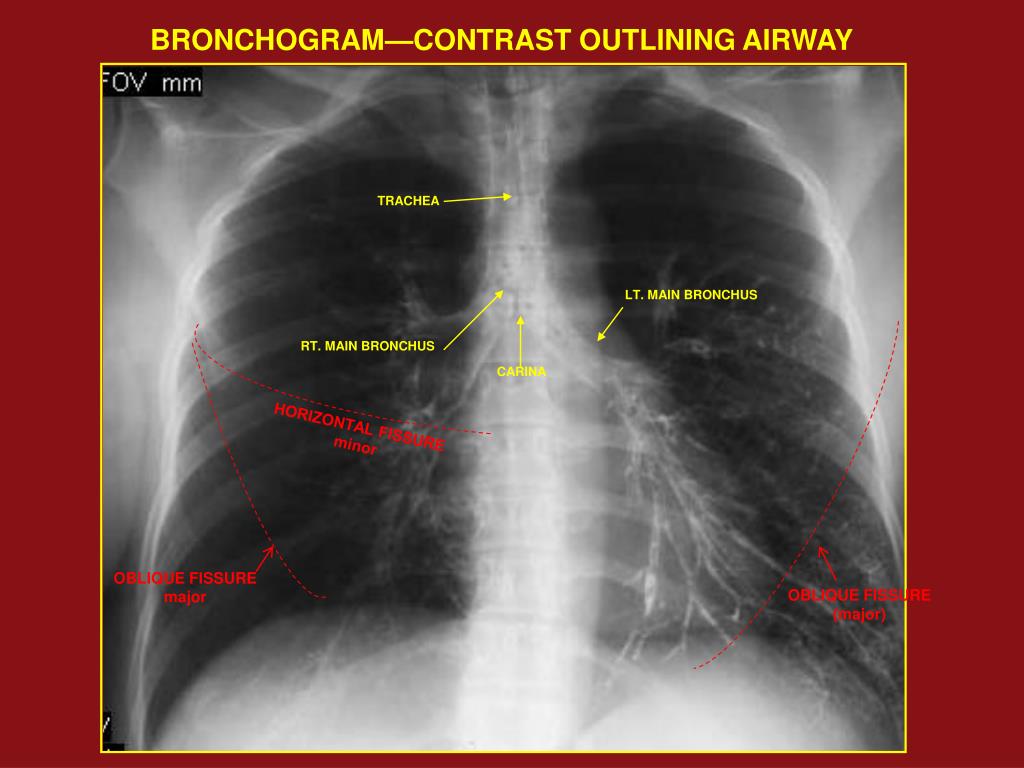

  4. BRONCHOGRAM—CONTRAST OUTLINING AIRWAY TRACHEA LT. MAIN BRONCHUS RT. MAIN BRONCHUS CARINA HORIZONTAL FISSURE minor OBLIQUE FISSURE major OBLIQUE FISSURE (major)

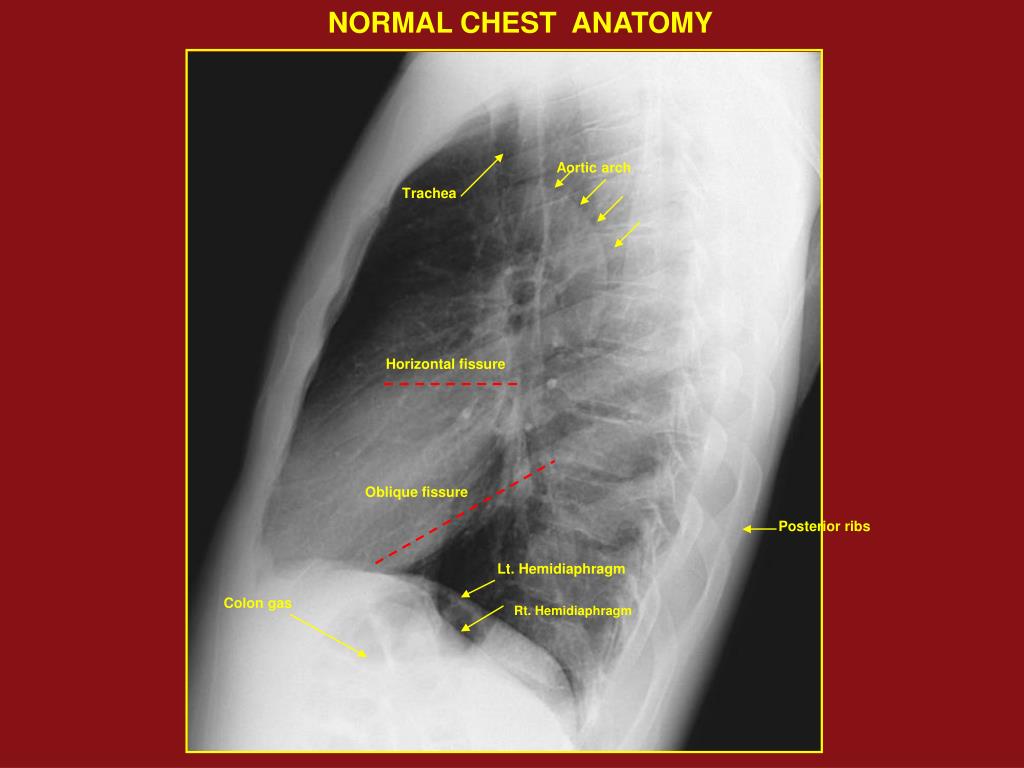

  5. NORMAL CHEST ANATOMY Aortic arch Trachea Horizontal fissure Oblique fissure Posterior ribs Lt. Hemidiaphragm Colon gas Rt. Hemidiaphragm

  6. CHEST POST - OP CABG CORNARY ARTERY BYPASS GRAFT ENDO TRACHEAL TUBE x CATHETER ENTERS SKIN AT LT SUBCLAVIAN VEIN LT. BCV STERNAL WIRES SVC RT. PUL .ART. PA RA CARDIAC ELECTRODES RV LV CATHETER PATH SUBCLAVIAN VEIN LT. BRACHIOCEPHALIC VEIN SUPERIOR VENA CAVA RIGHT ATRIUM THROUGH TRICUSPID VALVE RT VENTRICLE MAIN PULMONARY ARTERY RT PULMONARY ARTERY

  7. POST- OP CHEST LEFT MASTECTOMY , CABG and PACEMAKER ENTRY POINT RT. SUBCLAVIAN VEIN POST MASTECTOMY SURGICAL CLIPS STERNAL WIRES PACEMAKER TIP OF PACING WIRE IN RT. VENTRICLE BREAST SHADOW

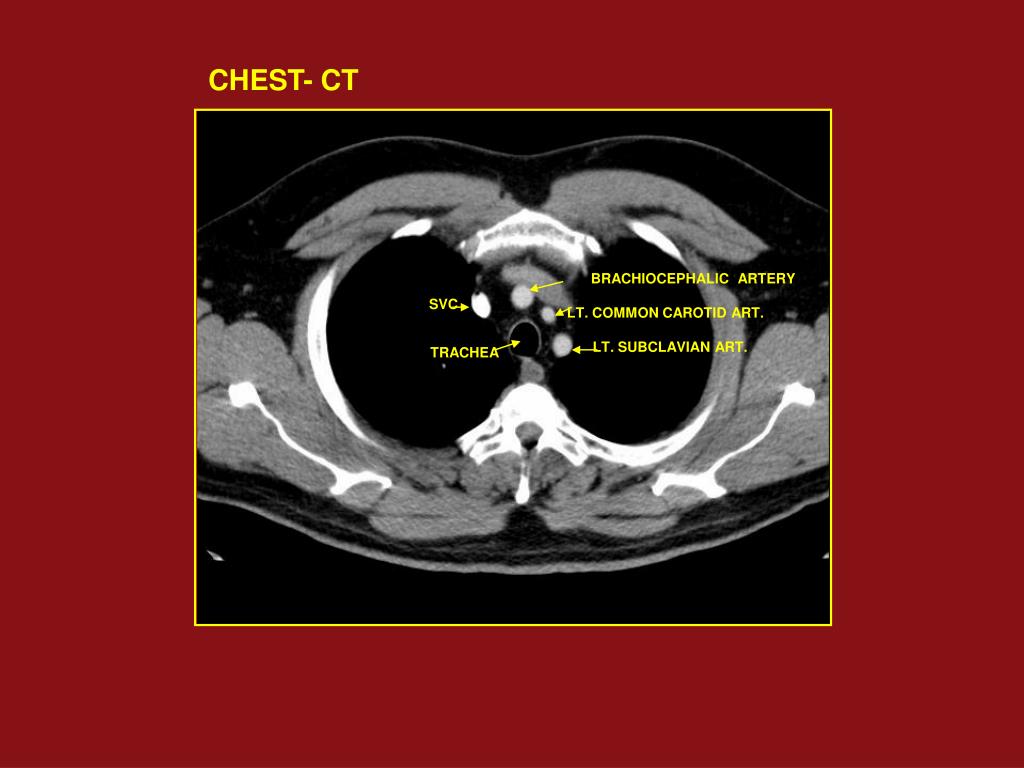

  8. CHEST- CT BRACHIOCEPHALIC ARTERY SVC LT. COMMON CAROTID ART. LT. SUBCLAVIAN ART. TRACHEA

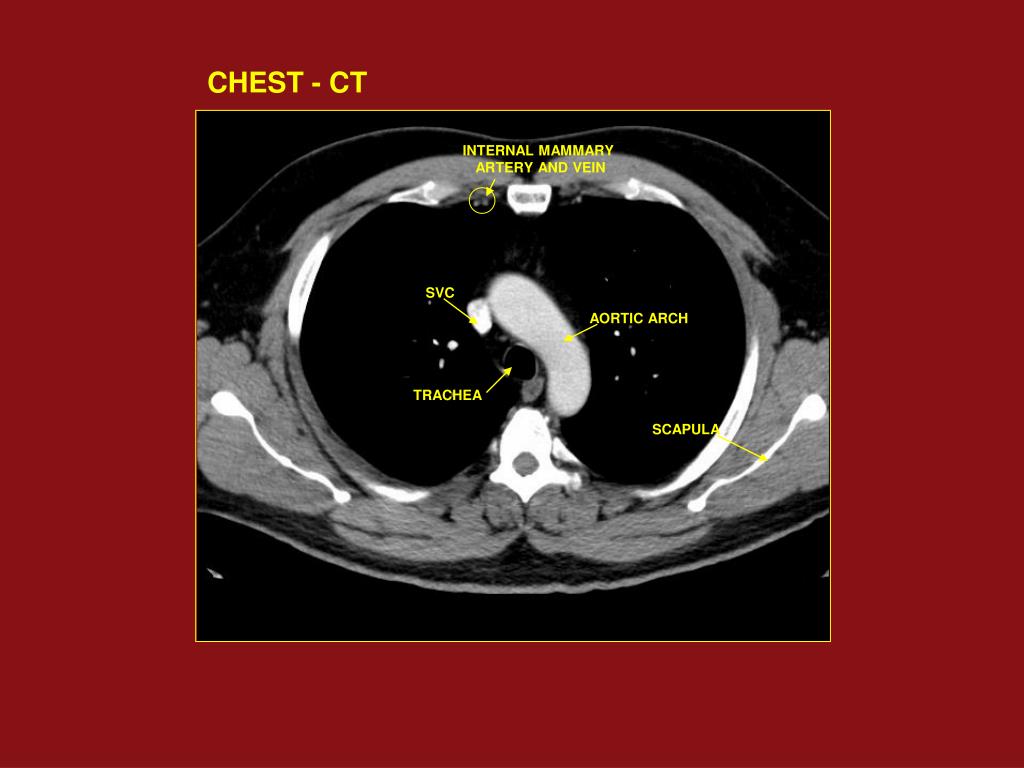

  9. CHEST - CT INTERNAL MAMMARY ARTERY AND VEIN SVC AORTIC ARCH TRACHEA SCAPULA

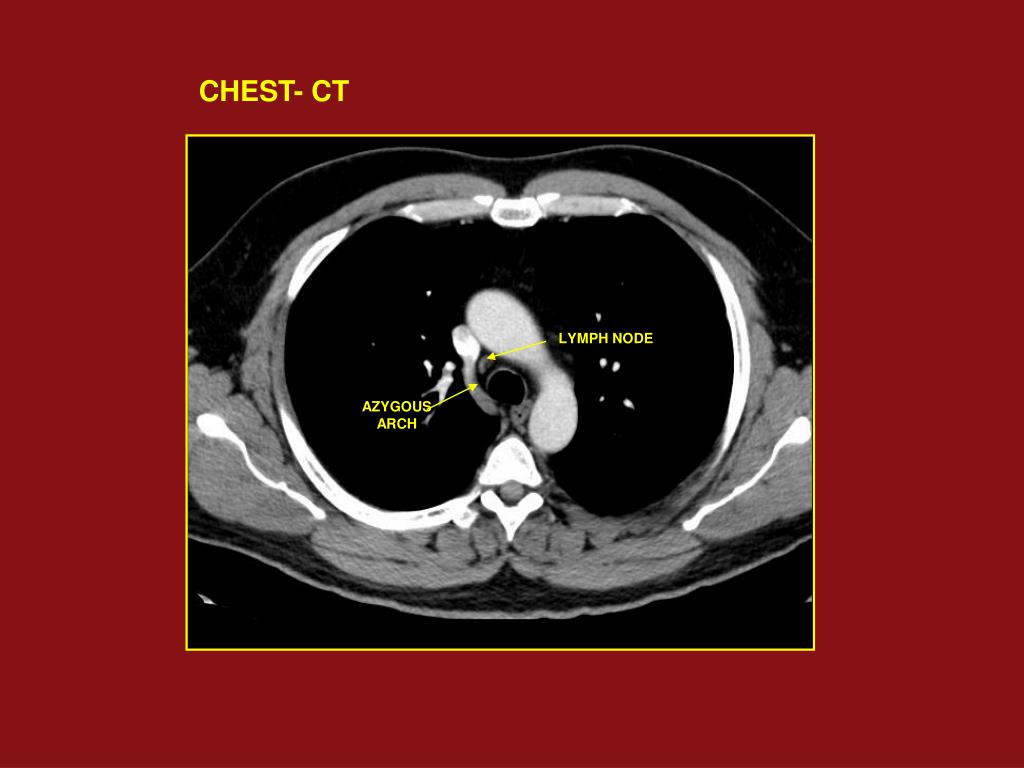

  10. CHEST- CT LYMPH NODE AZYGOUS ARCH

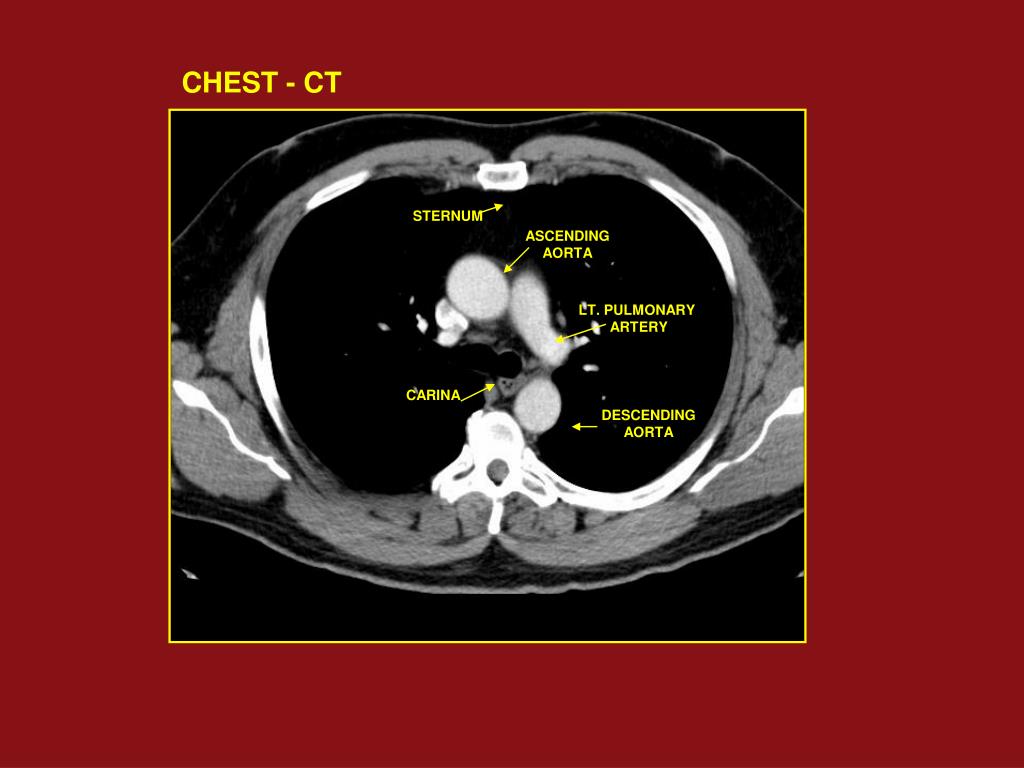

  11. CHEST - CT STERNUM ASCENDING AORTA LT. PULMONARY ARTERY CARINA DESCENDING AORTA

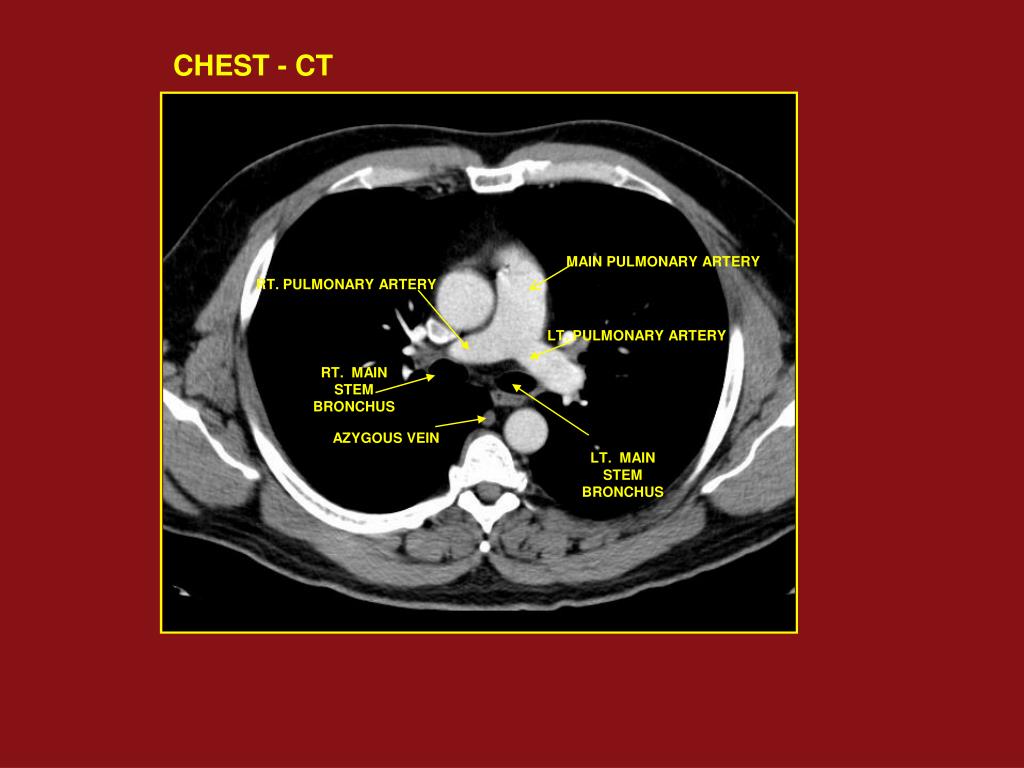

  12. CHEST - CT MAIN PULMONARY ARTERY RT. PULMONARY ARTERY LT. PULMONARY ARTERY RT. MAIN STEM BRONCHUS AZYGOUS VEIN LT. MAIN STEM BRONCHUS

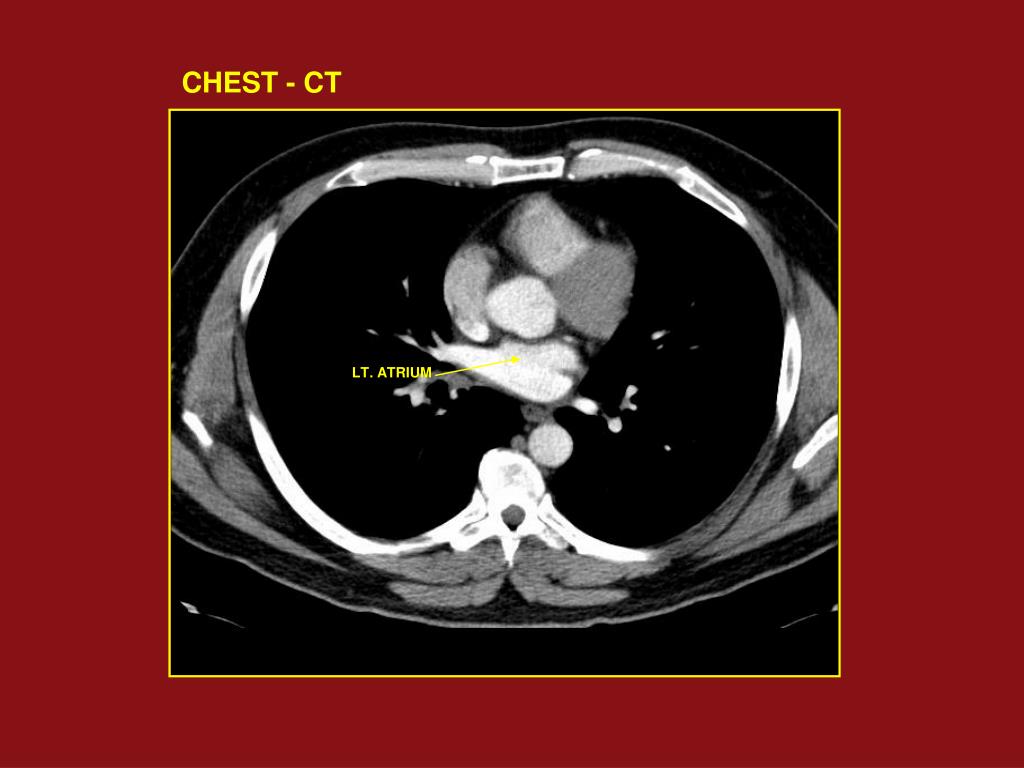

  13. CHEST - CT LT. ATRIUM

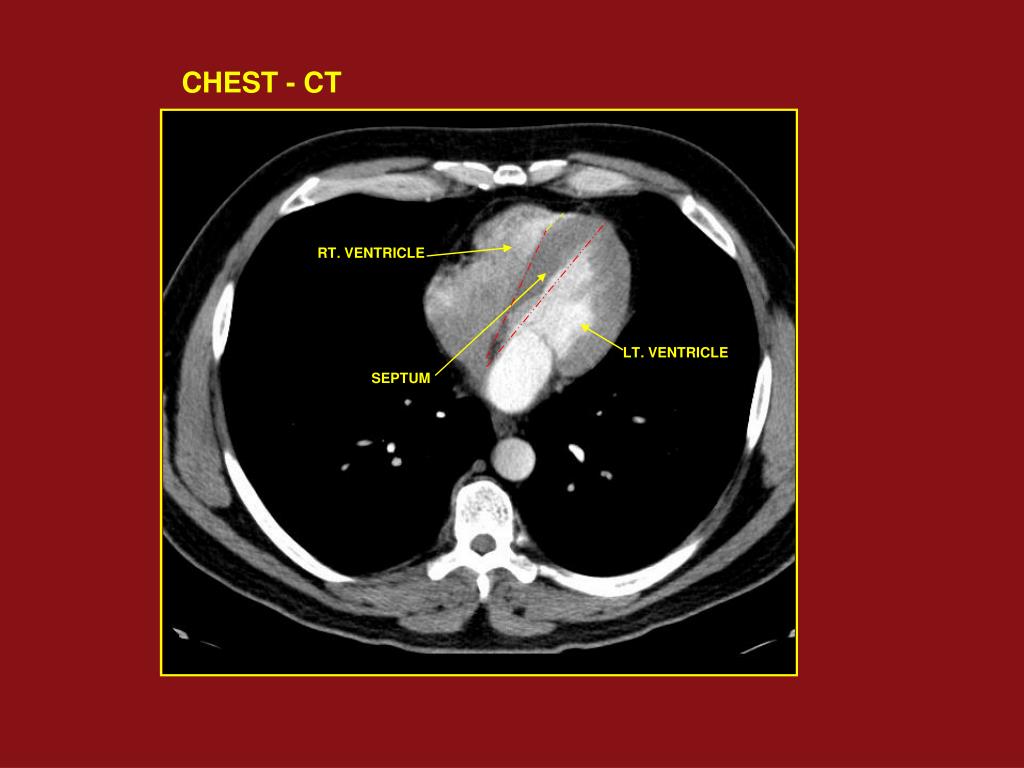

  14. CHEST - CT RT. VENTRICLE LT. VENTRICLE SEPTUM

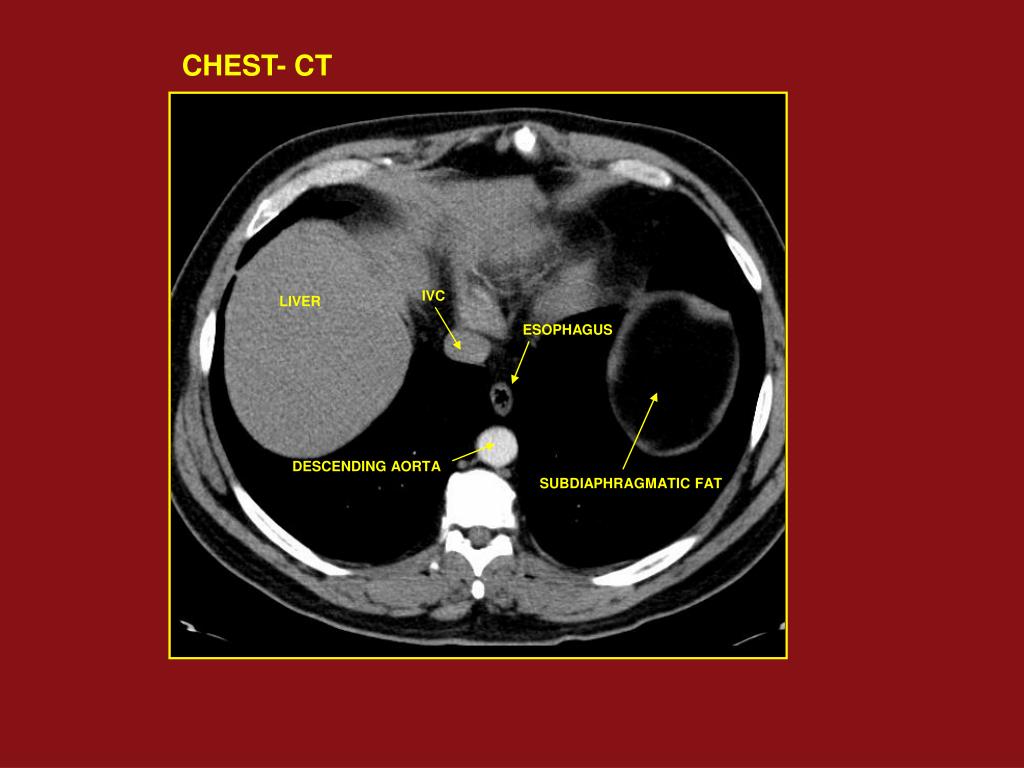

  15. CHEST- CT IVC LIVER ESOPHAGUS DESCENDING AORTA SUBDIAPHRAGMATIC FAT

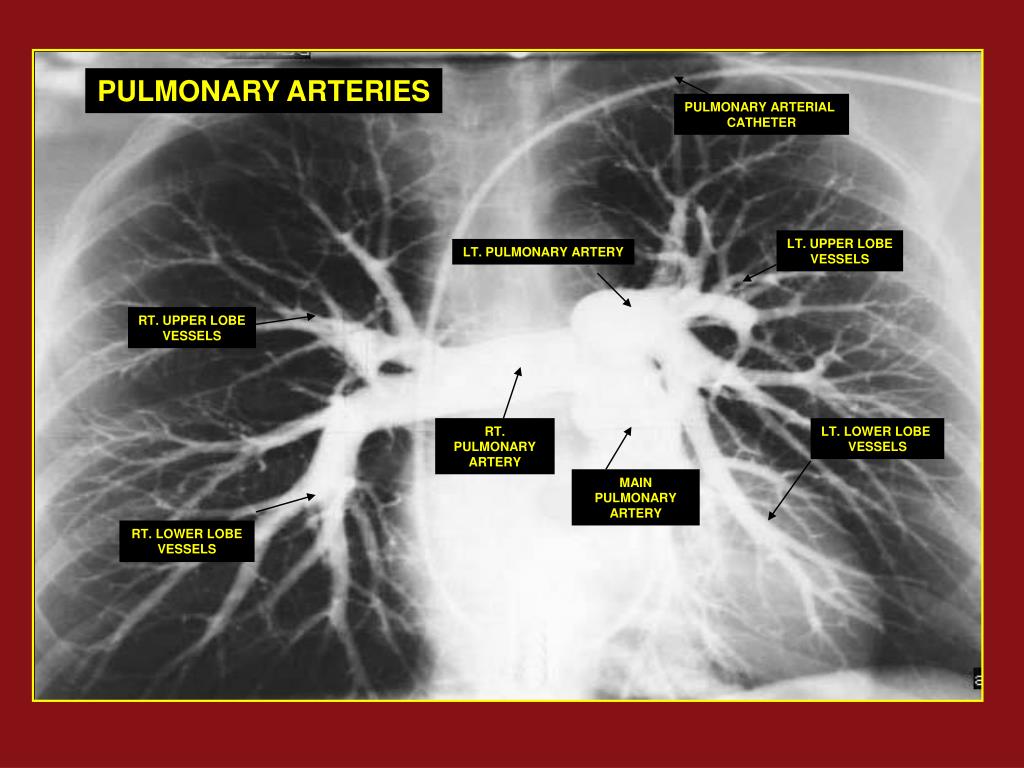

  16. PULMONARY ARTERIES PULMONARY ARTERIAL CATHETER LT. UPPER LOBE VESSELS LT. PULMONARY ARTERY RT. UPPER LOBE VESSELS RT. PULMONARY ARTERY LT. LOWER LOBE VESSELS MAIN PULMONARY ARTERY RT. LOWER LOBE VESSELS

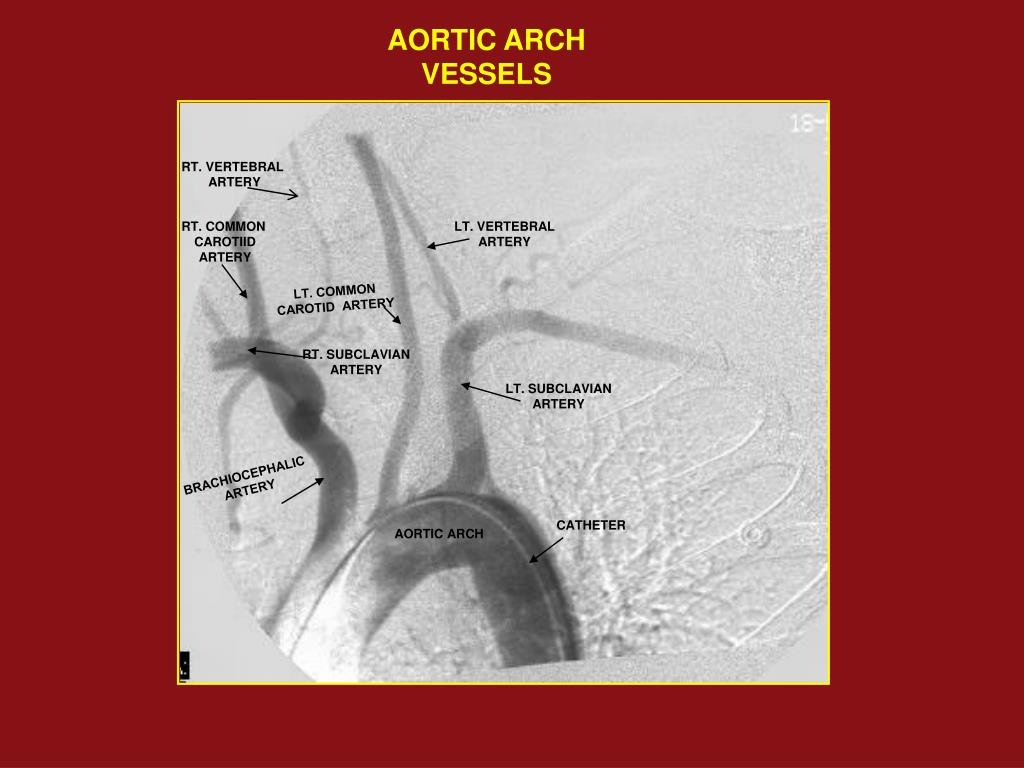

  17. AORTIC ARCH VESSELS RT. VERTEBRAL ARTERY RT. COMMON CAROTIID ARTERY LT. VERTEBRAL ARTERY LT. COMMON CAROTID ARTERY RT. SUBCLAVIAN ARTERY LT. SUBCLAVIAN ARTERY BRACHIOCEPHALIC ARTERY CATHETER AORTIC ARCH

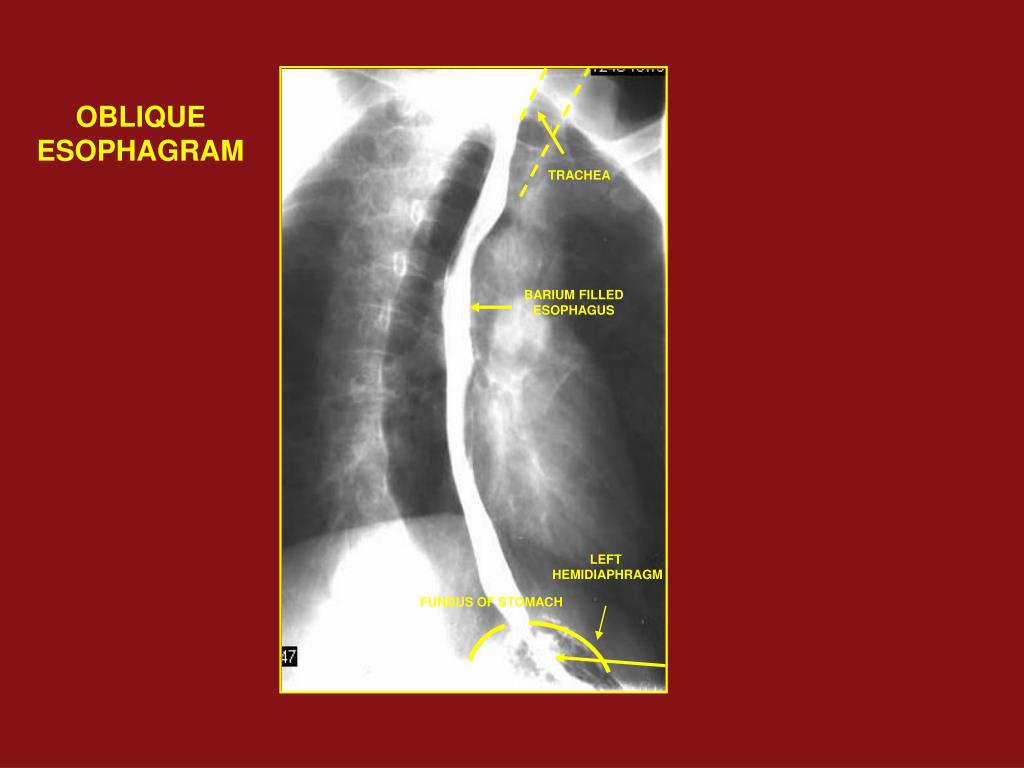

  18. OBLIQUE ESOPHAGRAM TRACHEA BARIUM FILLED ESOPHAGUS LEFT HEMIDIAPHRAGM FUNDUS OF STOMACH

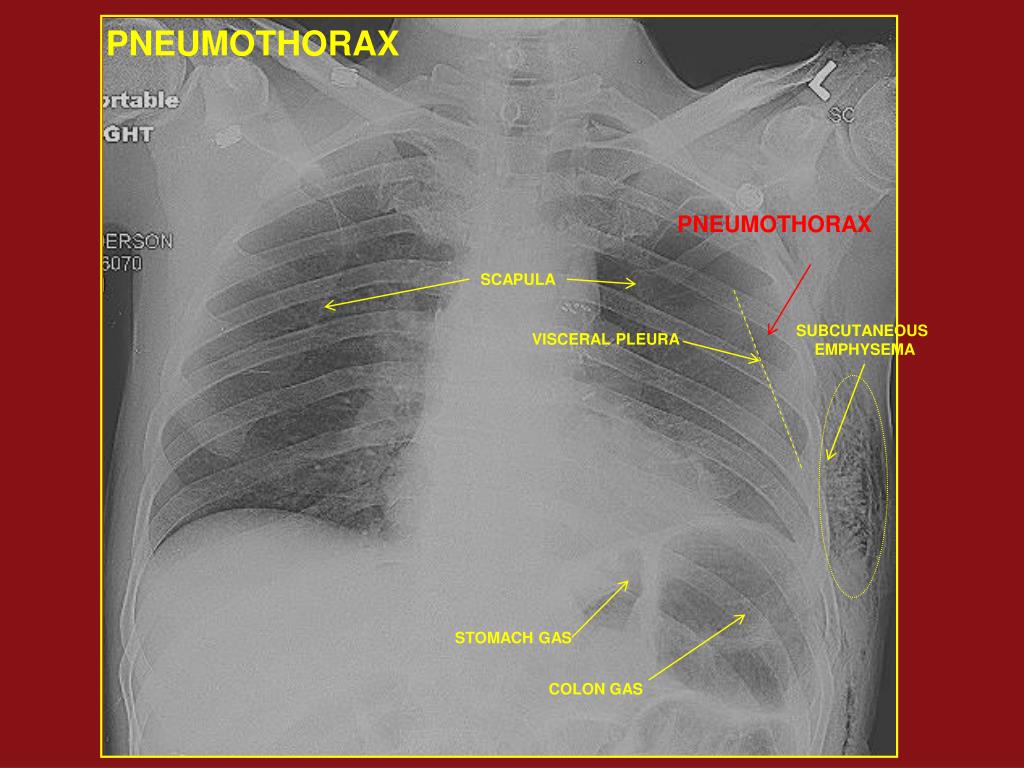

  19. PNEUMOTHORAX PNEUMOTHORAX SCAPULA SUBCUTANEOUS EMPHYSEMA VISCERAL PLEURA STOMACH GAS COLON GAS

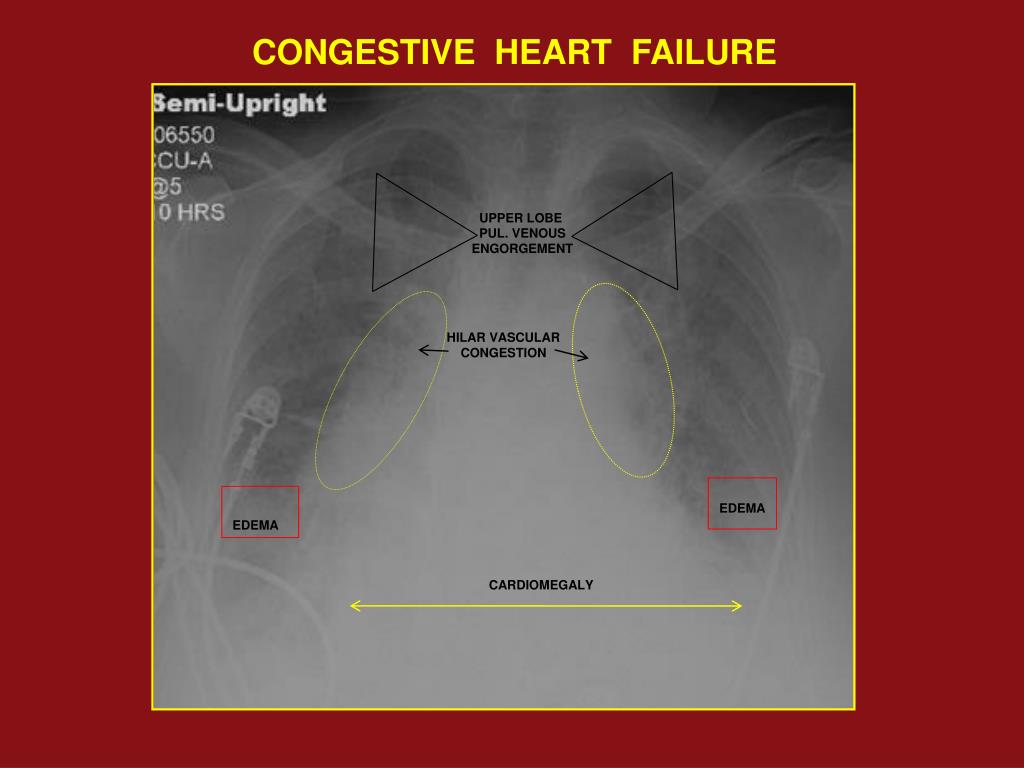

  20. CONGESTIVE HEART FAILURE UPPER LOBE PUL. VENOUS ENGORGEMENT HILAR VASCULAR CONGESTION EDEMA EDEMA CARDIOMEGALY

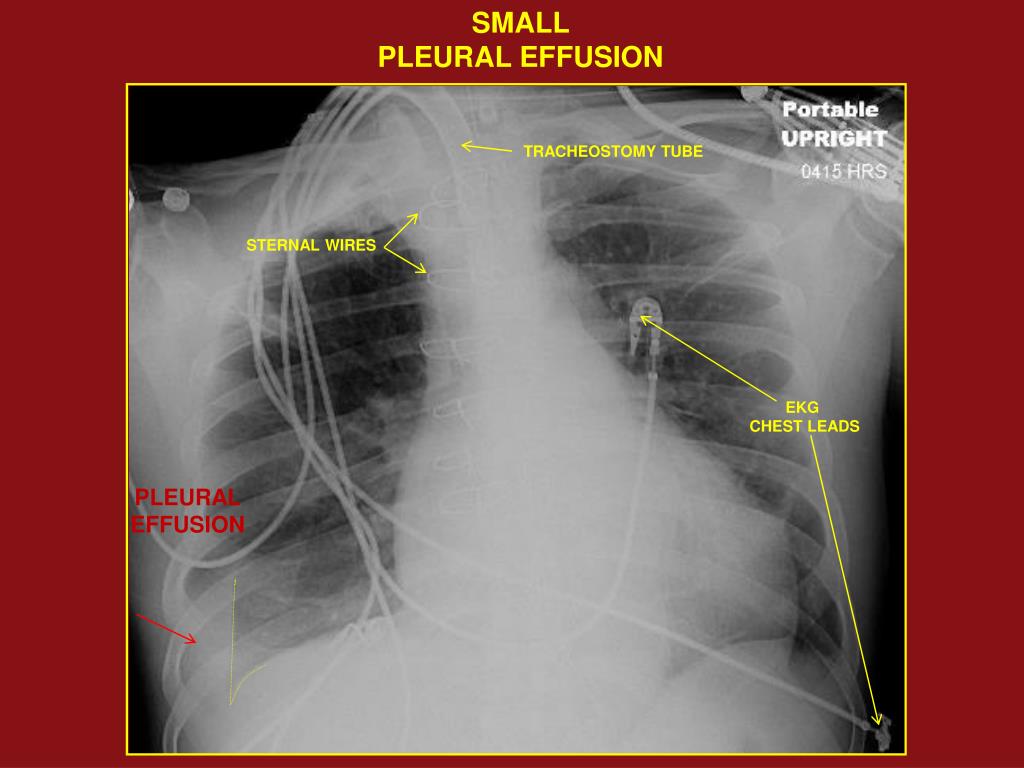

  21. SMALL PLEURAL EFFUSION TRACHEOSTOMY TUBE STERNAL WIRES EKG CHEST LEADS PLEURAL EFFUSION

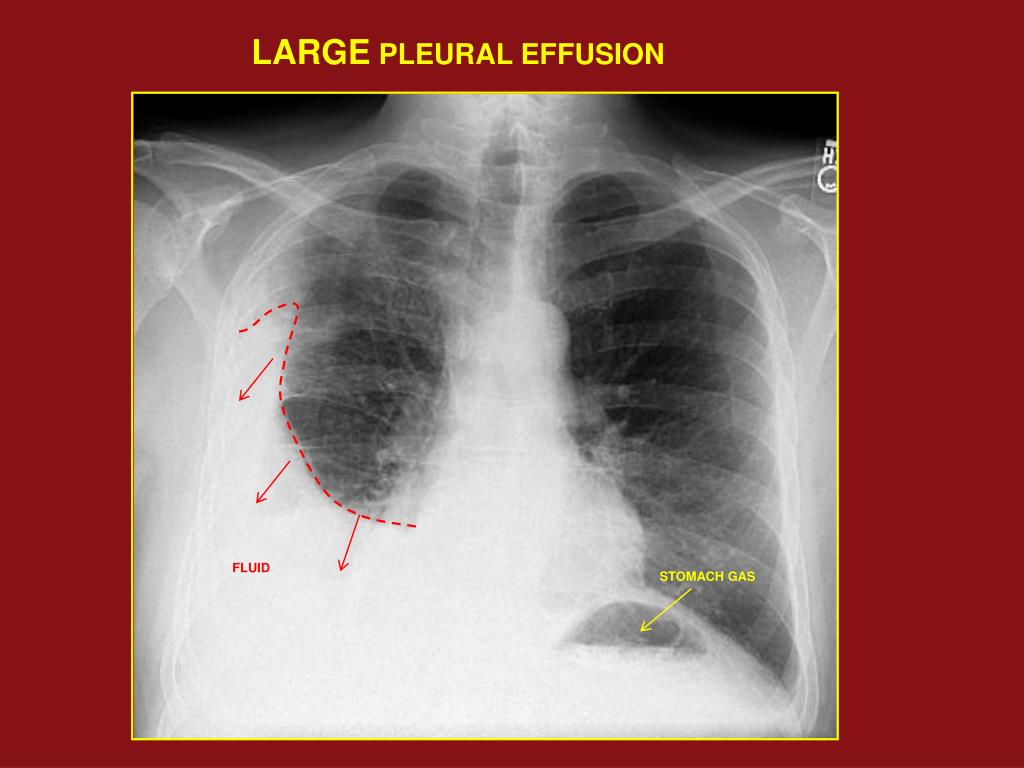

  22. LARGE PLEURAL EFFUSION FLUID STOMACH GAS

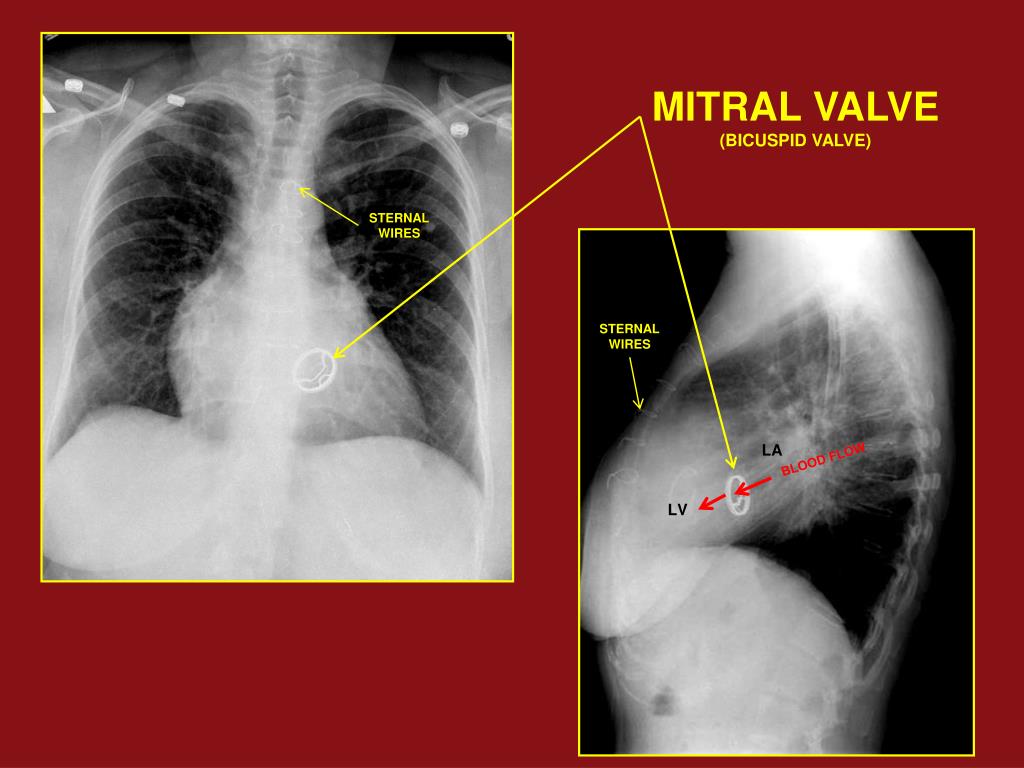

  23. MITRAL VALVE (BICUSPID VALVE) STERNAL WIRES STERNAL WIRES LA BLOOD FLOW LV

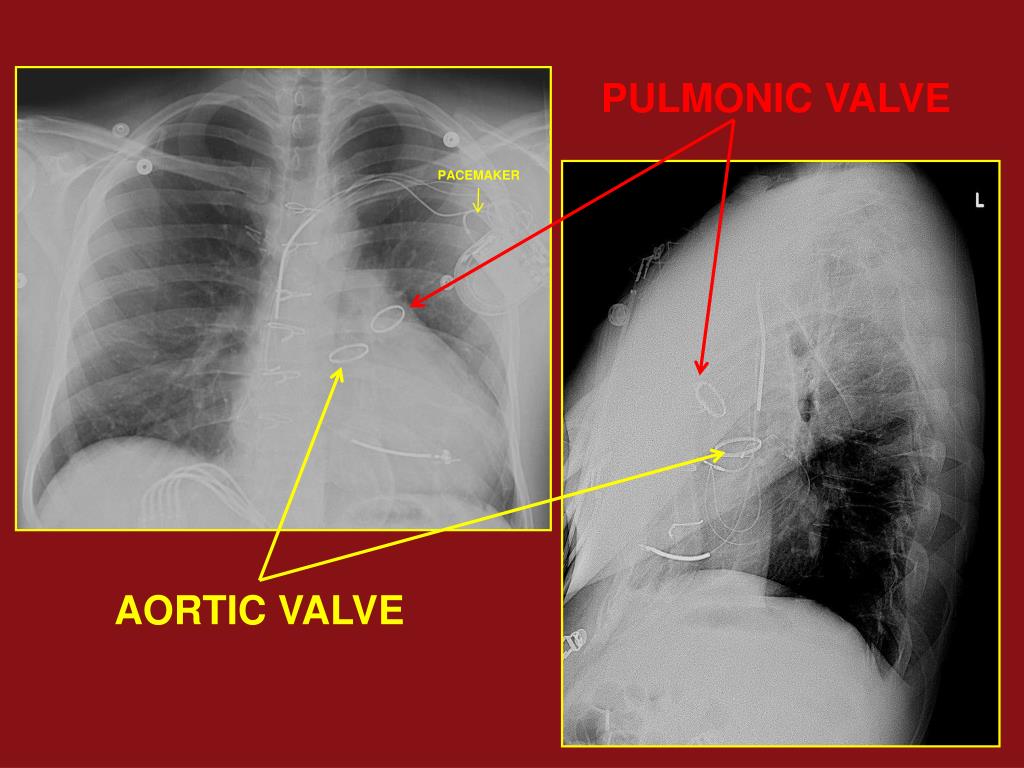

  24. PULMONIC VALVE PACEMAKER AORTIC VALVE

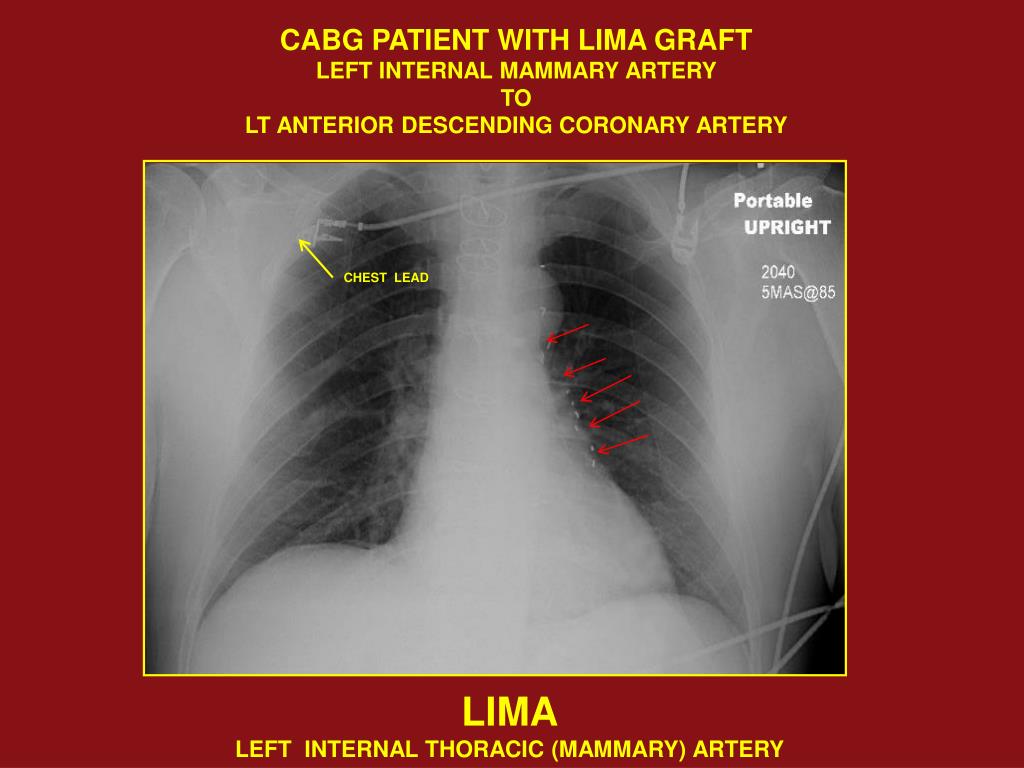

  25. CABG PATIENT WITH LIMA GRAFT LEFT INTERNAL MAMMARY ARTERY TO LT ANTERIOR DESCENDING CORONARY ARTERY CHEST LEAD LIMA LEFT INTERNAL THORACIC (MAMMARY) ARTERY

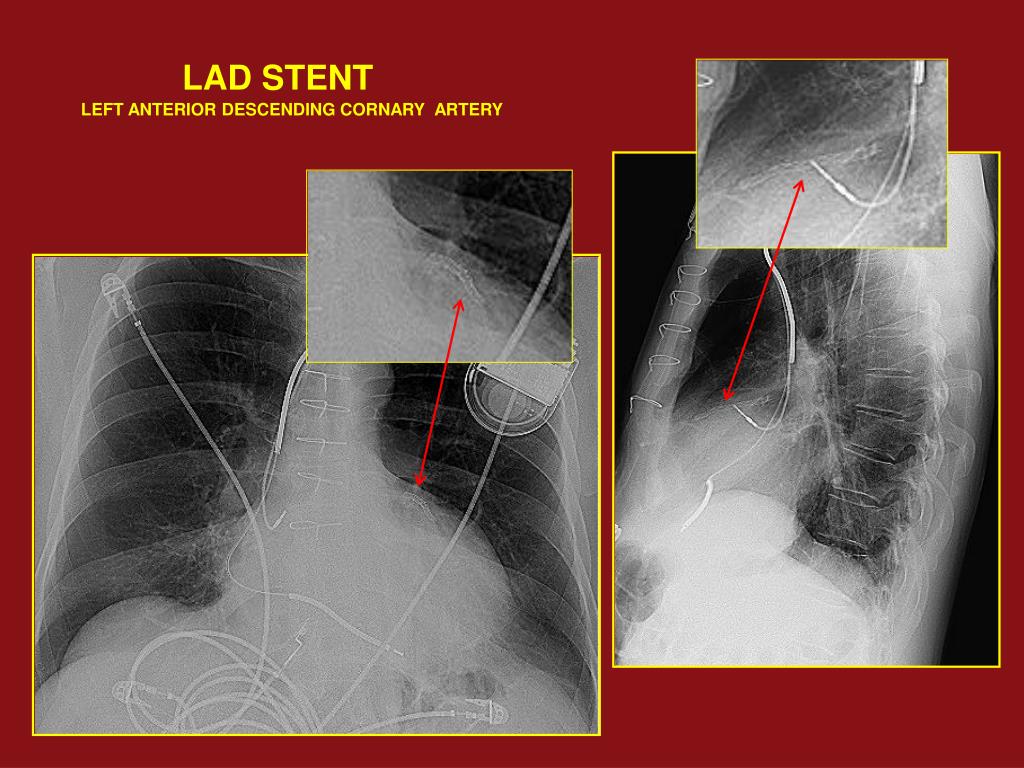

  26. LAD STENT LEFT ANTERIOR DESCENDING CORNARY ARTERY

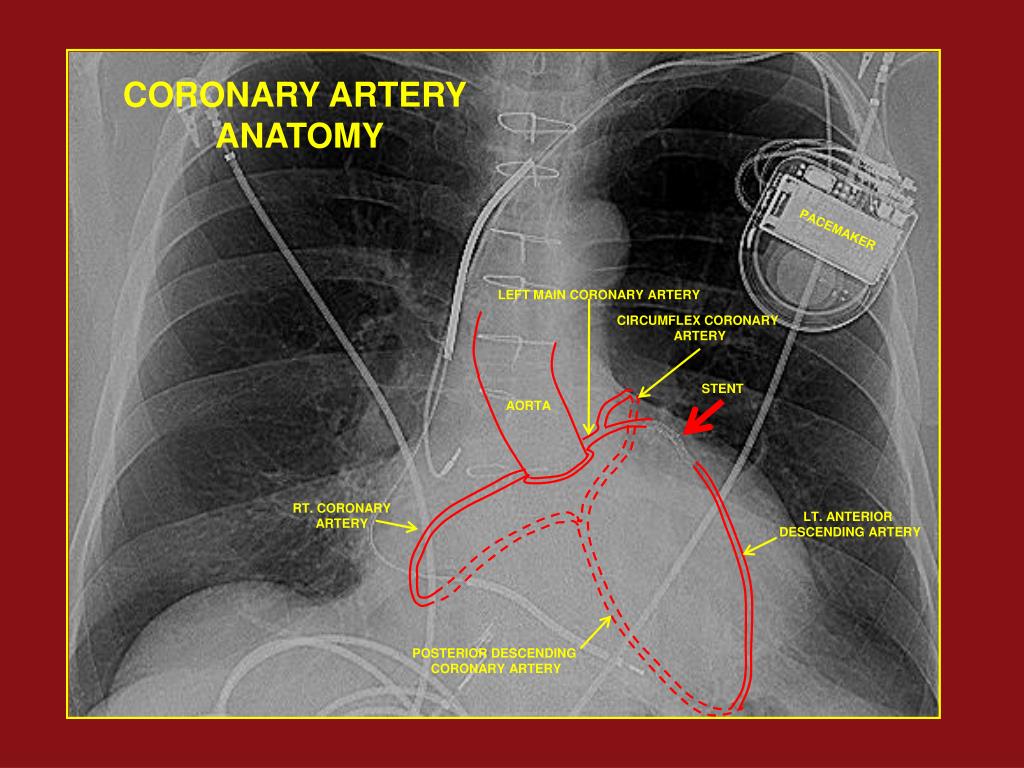

  27. CORONARY ARTERY ANATOMY PACEMAKER LEFT MAIN CORONARY ARTERY CIRCUMFLEX CORONARY ARTERY STENT AORTA RT. CORONARY ARTERY LT. ANTERIOR DESCENDING ARTERY POSTERIOR DESCENDING CORONARY ARTERY
