Presentation Transcript

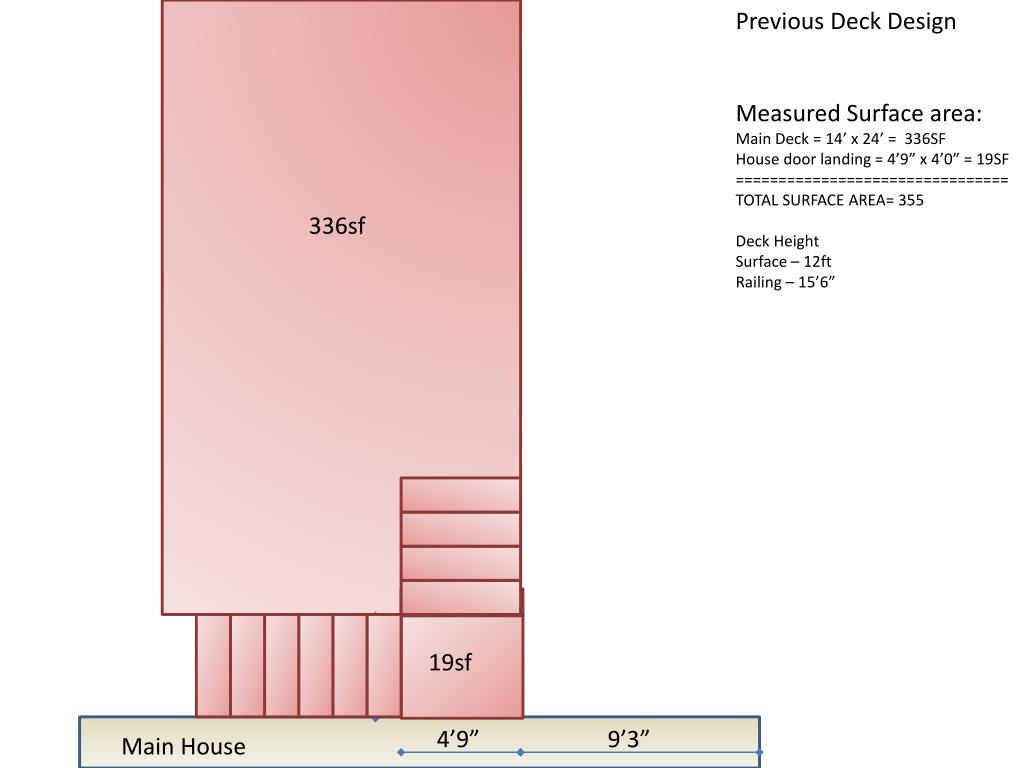

  1. Previous Deck Design Measured Surface area: Main Deck = 14’ x 24’ = 336SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 355 Deck Height Surface – 12ft Railing – 15’6” 336sf 19sf 4ft 4’9” 9’3” Main House

  2. Proposed Deck Design #1 Permitted Surface area: 100.8 Measured Surface area: Stairs Landing = 4’0” x 3’3” = 13SF Main Deck = 15’0” x 9’3” = 92.50SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 124.50 Railing length on deck: 4’0” + 4’9” + 5’3” + 6’0” + 3’3” + 4’ + 10’ = 37’3” Deck Height Surface – 6ft Railing – 9’6” 6ft 3’3”ft 4ft 10ft 14ft 92.5sf 19sf 4ft 4’9” 9’3” Main House

  3. Proposed Deck Design #2 Permitted Surface area above .6m: 100.8 Measured Surface area: Main Deck = 4’0” x 14’0” = 56SF Raised patio = 11’3” x 15’0” = 168.75SF ================================ TOTAL SURFACE AREA= 224.75 Main Deck Height Surface – 6ft Railing – 9’6” Raised Wood Patio Height Surface – 1.5ft 11.25ft Raised Wood Patio (1.5ft) 15ft Main Deck (6ft) 19sf 4ft 14ft Main House

  4. Proposed Deck Design Permitted Surface area: 100.8 Measured Surface area: Stairs Landing = 4’0” x 3’3” = 13SF Main Deck = 15’0” x 9’3” = 92.50SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 124.50 Measured Surface area: Main Deck = 4’0” x 14’0” = 92.50SF Raised patio = 11’3” x 15’0” ================================ TOTAL SURFACE AREA= 124.50 Main Deck Height Surface – 6ft Railing – 9’6” Raised Wood Patio Height Surface – 1.5ft 3’3”ft 4ft 11ft 92.5sf 19ft 19sf 4ft 4’9” 9’3” Main House

  5. 5259 Taunton St - Deck Design • Lot size (3756 SF) • 40% of lot size = 1502SF • Current Coverage • Laneway House (19.5*22) + (3.9x10.75)=429+41.925=470.925SF • Main House (26.55*32.47)+(18.34*3.72)=862.07+68.2=930.27SF • Total of Laneway + Main = (930.27+470.925)= 1401.195SF • Total coverage available for deck: (1502-1401.195)=100.805SF • Requested deck size: 124.50SF

  6. Old vs. New Old Deck Design Measured Surface area: Main Deck = 14’ x 24’ = 336SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 355 Deck Height Surface – 12ft Railing – 15’6” New Deck Design Measured Surface area: Stairs Landing = 4’0” x 3’3” = 13SF Main Deck = 15’0” x 9’3” = 92.50SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 124.50 Deck Height Surface – 6ft Railing – 9’6”

  7. Proposed Deck Design in blue with previous deck superimposed in red Permitted Surface area: 100.8 Measured Surface area: Stairs Landing = 4’0” x 3’3” = 13SF Main Deck = 15’0” x 9’3” = 92.50SF House door landing = 4’9” x 4’0” = 19SF ================================ TOTAL SURFACE AREA= 124.50 Railing length on deck: 4’0” + 4’9” + 5’3” + 6’0” + 3’3” + 4’ + 10’ = 37’3” 336sf 6ft 3’3”ft 4ft 10ft 14ft 92.5sf 19sf 4ft 4’9” 9’3” Main House
