  1. Starting SAP : Windows Server

  2. SAP System SAP GUI Presentation Layer (Windows based) R/3 Instance Application Layer (Windows Server/UNIX) Dispatcher M Queue SAP Buffer (Shared Mem) D D B V S E G Oracle Informix DB2 MS SQL Server ADABUS(SAP DB) Database Layer (Windows Server/UNIX) Database Server

  3. Windows Services : SAP/Oracle RDBMS

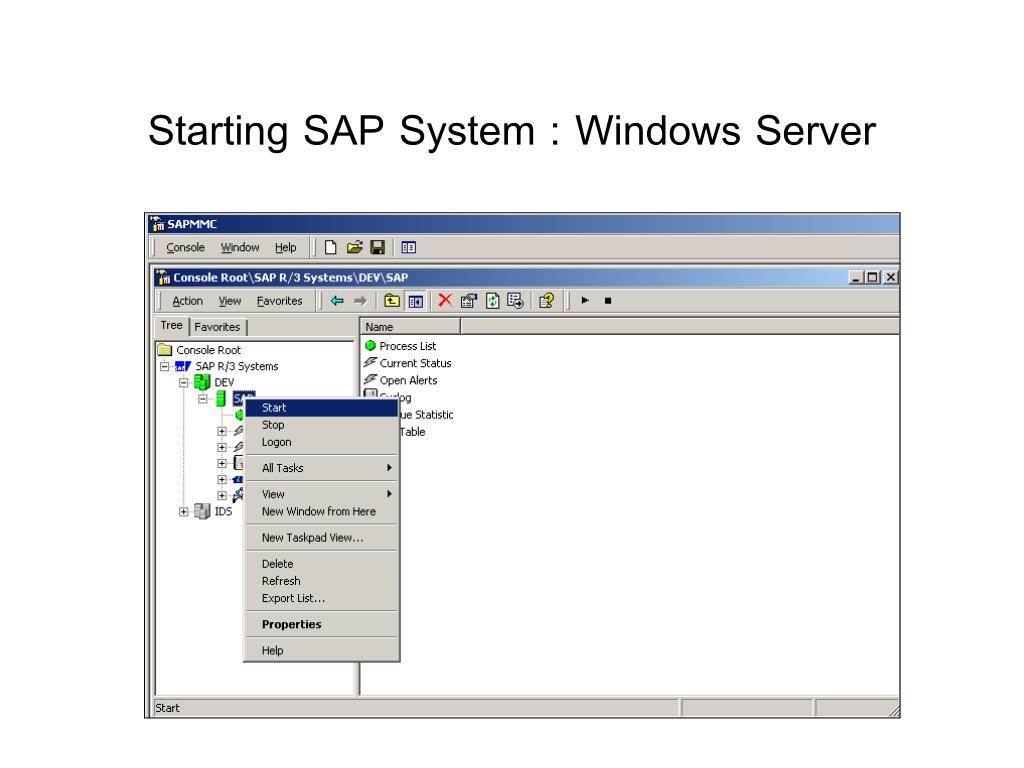

  4. Starting SAP System : Windows Server

  5. right-click MMC DEV Start send message via name-pipe Startup Profile strdbs.cmd msg_server.exe disp+work.exe sapstart.trc sapstart.log SAPDEV_00 (service) read Start alert_DEV.log DB (if not) stderr2 dev_ms Message Server read dev_disp Dispatcher Default Profile Start Instance Profile Start dev_rd Gateway Start dev_icm ICM dev_w0..w<n> WPs Connect DB DB

  6. Checking Oracle Database Status using SAPDBA(<= 4.7)

  7. Starting SAP : Command Line • C:\startsap name=<SID> nr=<System Number> SAPDIAHOST=<Host Name> Example : C:\startsap name=DEV nr=00 SAPDIAHOST=sap

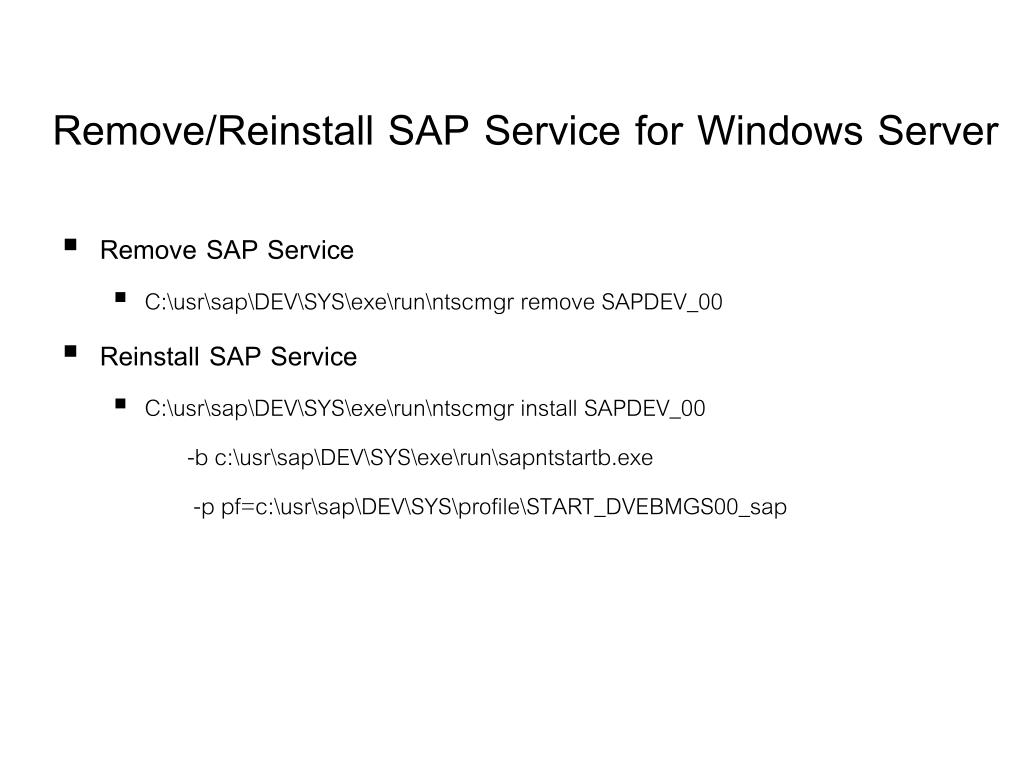

  8. Remove/Reinstall SAP Service for Windows Server • Remove SAP Service • C:\usr\sap\DEV\SYS\exe\run\ntscmgr remove SAPDEV_00 • Reinstall SAP Service • C:\usr\sap\DEV\SYS\exe\run\ntscmgr install SAPDEV_00 -b c:\usr\sap\DEV\SYS\exe\run\sapntstartb.exe -p pf=c:\usr\sap\DEV\SYS\profile\START_DVEBMGS00_sap

  9. Starting SAP : UNIX Server

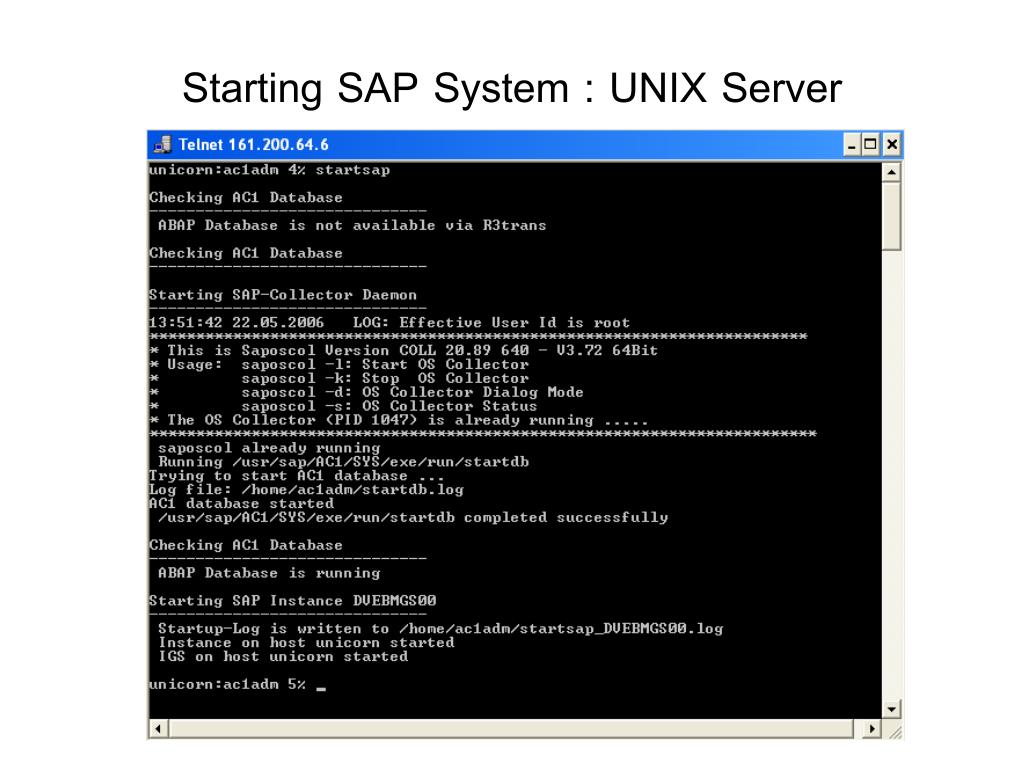

  10. Starting SAP System : UNIX Server

  11. $ startsap start SAPosCOL(if not) alert_DEV.log startdb.log startdb script Startup Profile msg_server disp+work read startsap_DVEBMGS00.log sapstart Start dev_ms Message Server read Default Profile dev_disp Dispatcher Instance Profile Start Start dev_rd Gateway Start ICM dev_icm WPs dev_w0..w<n> Connect DB DB

  12. Checking Oracle Database Status using brtools

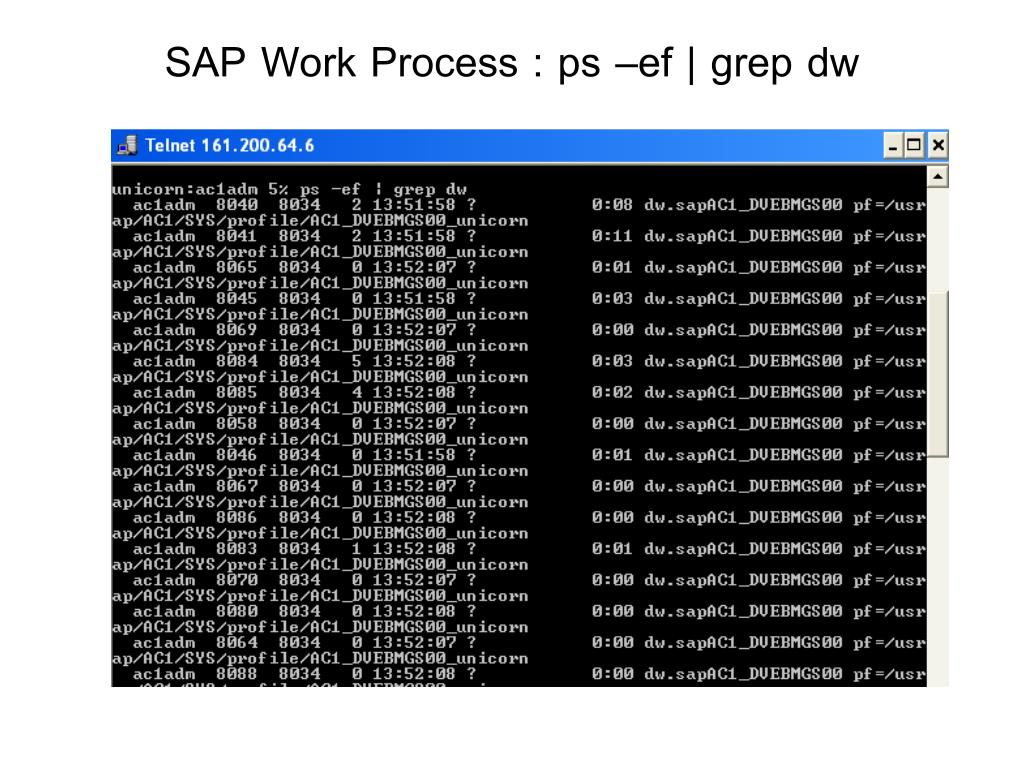

  13. SAP Work Process : ps –ef | grep dw

  14. Starting SAP Options : UNIX Server • Startup Database Server • $ startsap db • Startup SAP Instance • $ startsap r3

  15. Stopping SAP : Windows Server

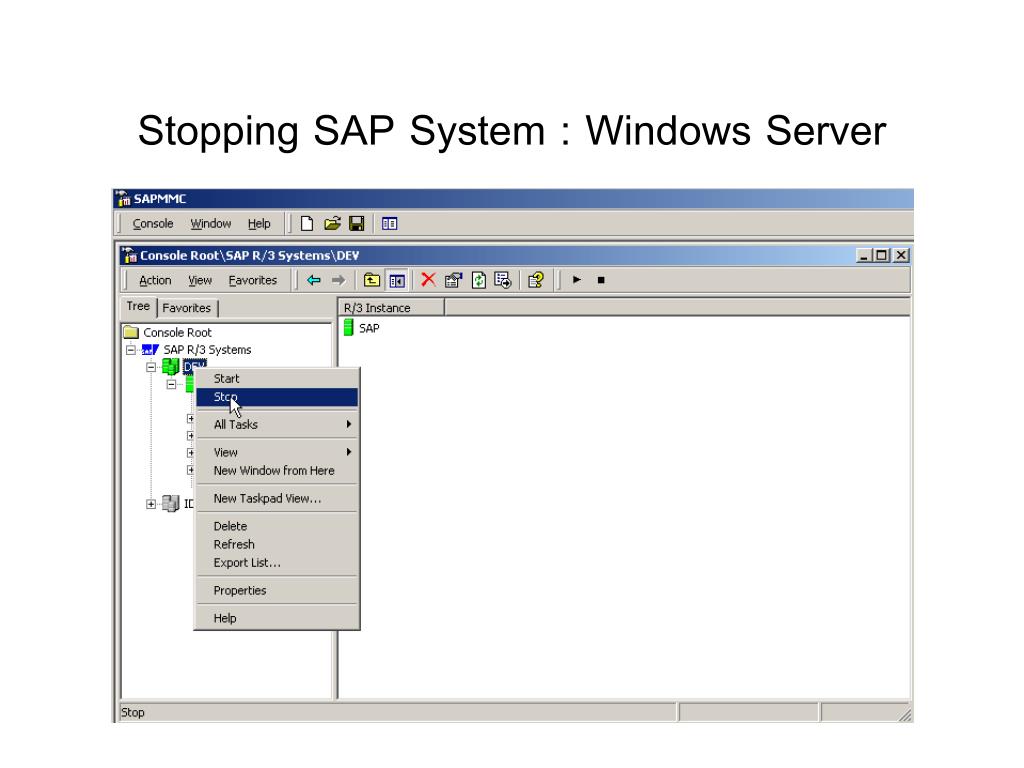

  16. Stopping SAP System : Windows Server

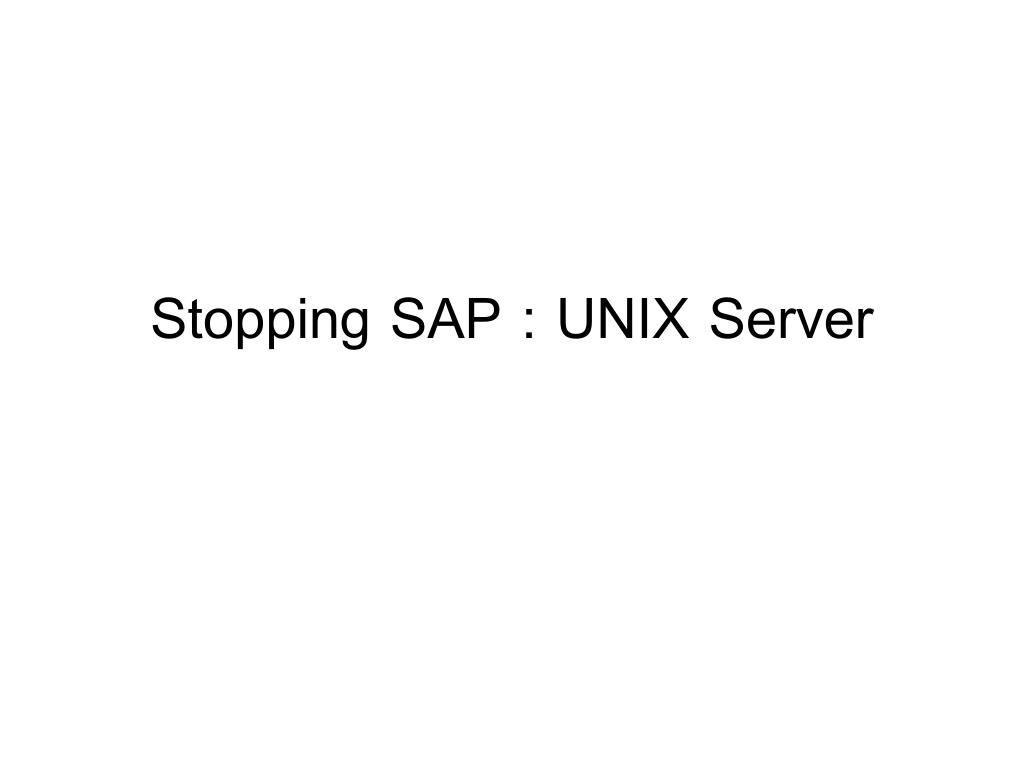

  17. Stopping SAP : UNIX Server

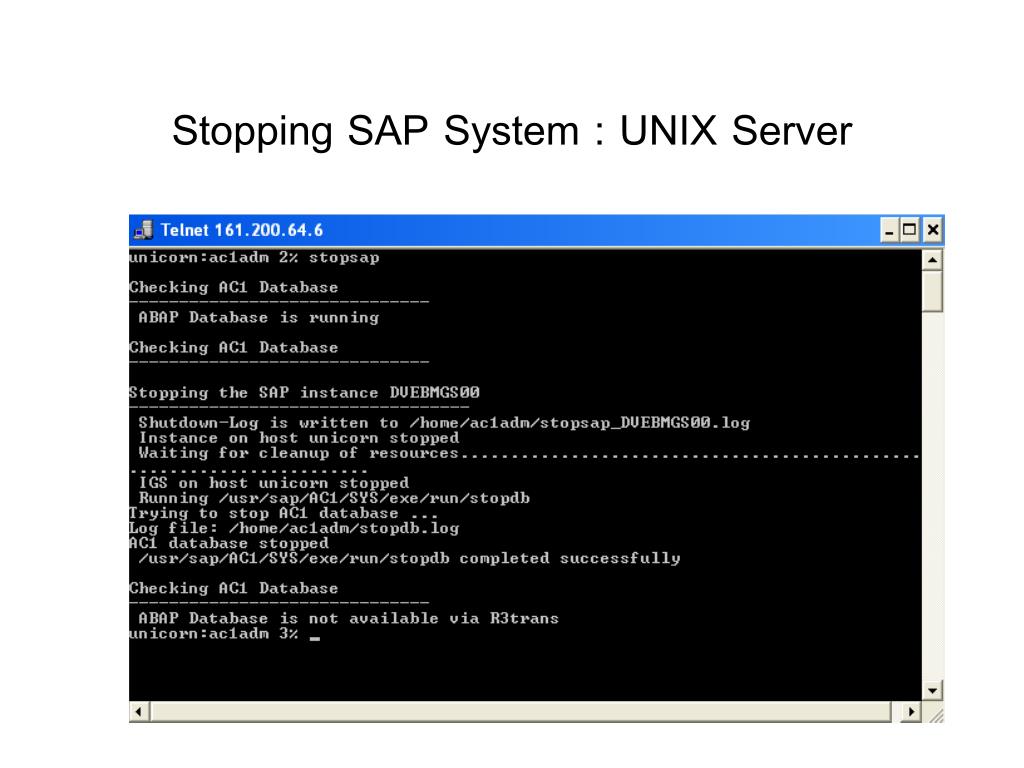

  18. Stopping SAP System : UNIX Server

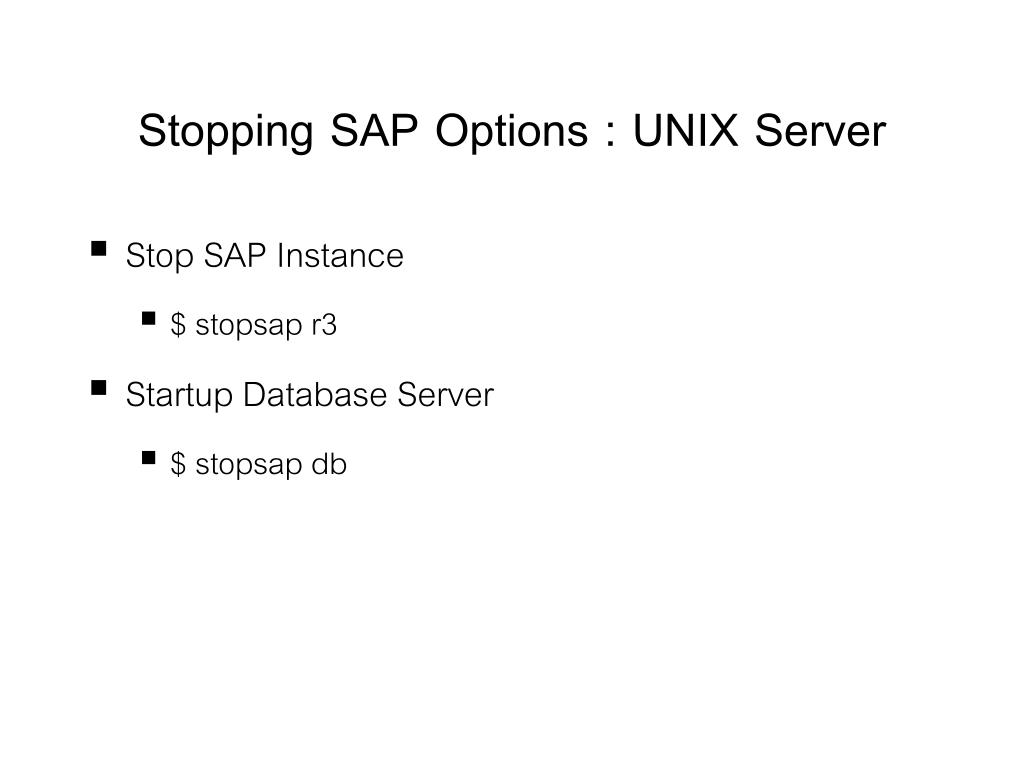

  19. Stopping SAP Options : UNIX Server • Stop SAP Instance • $ stopsap r3 • Startup Database Server • $ stopsap db
