  1. SECURITYISSUES IN NETWORKS WITH INTERNET ACCESS PRESENTED BY Sri Vallabh Aida Janciragic Sashidhar Reddy

  2. Topics of Discussion • Principles for secure networking • Internet Vulnerabilities • Security building blocks

  3. Internet Security • Why do we need to study security in the internet? Here are some reasons … • Computer networks have lots of vulnerabilities and threats • A hacker can log into my machine remotely and destroy the information • A malicious program can wipe out data on hundreds of computers causing huge losses

  4. Principles for Secure Networking • Questions to consider • What are we trying to protect? • What operations are authorized? • What is security parameter?

  5. Principles continued… • Know the configuration of the network hardware and software • Know the vulnerabilities of the configuration • Know the threats and consider it in relation to the vulnerabilities to asses the risk • Authenticate and authorize the accessto network resources

  6. Principles Continued.. • Maintain audit logs • Have a plan to detect and respond to security incidents • Ensure individual accountability

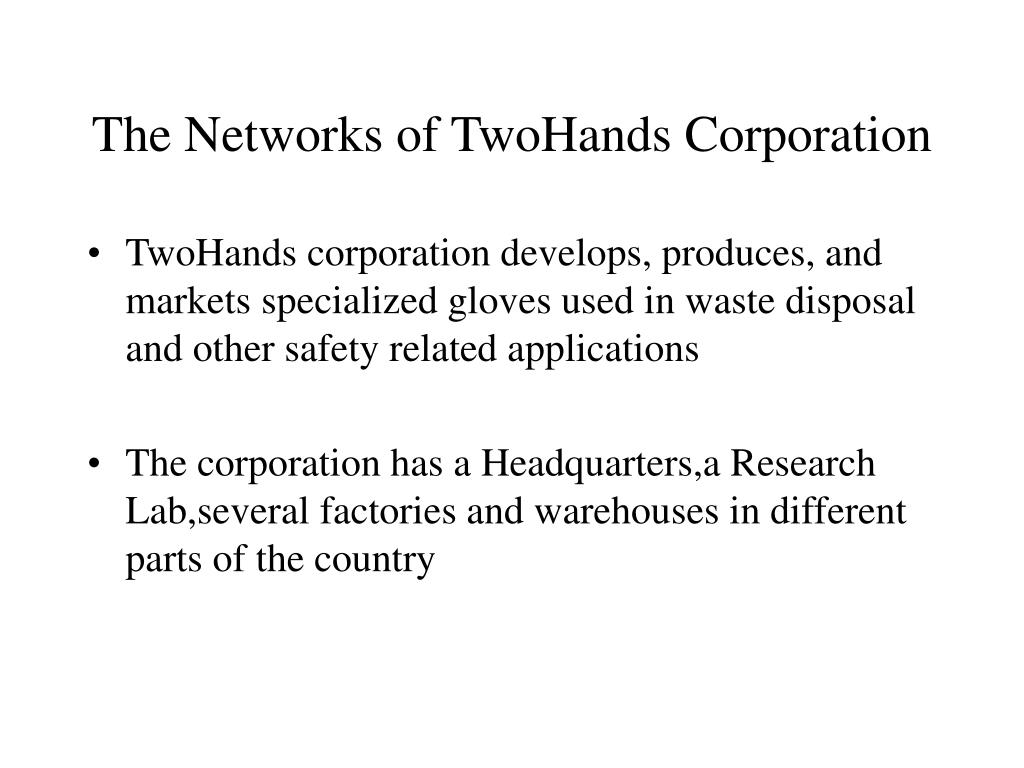

  7. The Networks of TwoHands Corporation • TwoHands corporation develops, produces, and markets specialized gloves used in waste disposal and other safety related applications • The corporation has a Headquarters,a Research Lab,several factories and warehouses in different parts of the country

  8. Continued… • Let us discuss the five stages of development in TwoHands Networks and consider in each stage the problems associated with the network and the possible remedies

  9. Stage1:Private Networks Only Security Problems 1. Any user can access network traffic 2. Diskette drives on the client workstations 3. PCs with modem connections 4. Insufficient training to authorized users

  10. Continued… Possible Countermeasures 1. Introduction of an authentication system for each user 2. Installation of virus detection software and configuration monitors 3. Installation of temper resistant hardware 4. Security awareness training for authorized users

  11. Stage 2:Private Networks plus Read-only Web Server Security Problems 1. All the problems in stage 1 2. Denial of service attack 3. Unauthorized change to data on web server 4. Web address spoofing

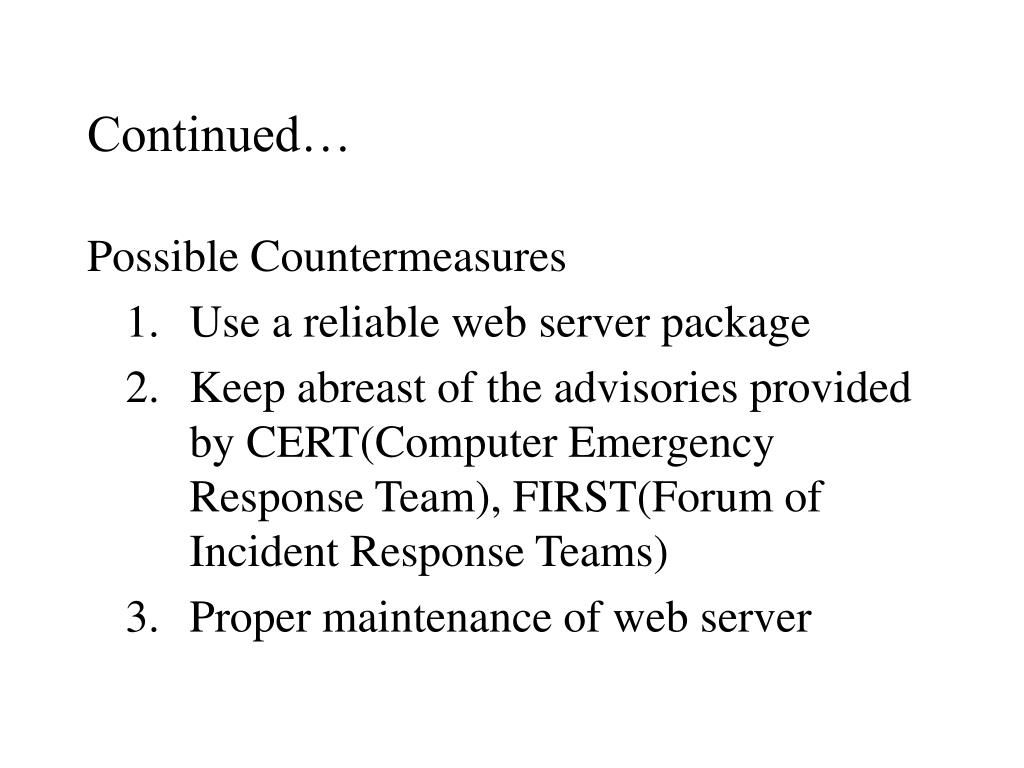

  12. Continued… Possible Countermeasures 1. Use a reliable web server package 2. Keep abreast of the advisories provided by CERT(Computer Emergency Response Team), FIRST(Forum of Incident Response Teams) 3. Proper maintenance of web server

  13. Stage 3:Private Nets Plus Forms-Based WWW Server Security Problems 1. Compromise of order information 2. Spoofing of order information 3. Loss of control over the web site 4. Customer information stored on ISP host.

  14. Continued… Possible Countermeasures 1. Using a secure web server like HTTP 2. Double checking the CGI scripts 3. Customer authentication

  15. Stage 4:Internet Service through Firewall with Forms-Based WWW Server Security Problems 1. Attacks on internal systems via misconfigured firewalls 2. Importing of malicious software or exporting of sensitive information via properly configured firewall 3. Compromise of identity of correspondents 4. Back doors into internal networks

  16. Continued… Possible Countermeasures 1. Proper firewall configuration 2. Vigilant management of firewall and the website 3. Provide proper awareness of security to the internal users

  17. Stage 5:Virtual Private Networks Security Problems 1. Contamination of internal database via actions of cooperating companies 2. Service delays/denial for intranet traffic due to Internet/ISP problems 3. Compromise or delay of intranet traffic due to crypto mismanagement 4. Compromise of internal traffic patterns

  18. Continued… Possible Countermeasures 1. Using proper encryption methodology 2. Avoid same company as ISP all the sites

  19. Network Security Policy and Services • For any level of network security to be established • and maintained we need to understand: • what assets we need to protect • against what threats • to what degree • identify the elements of security policies • appropriate for networks • construct a security policy to meet the needs of network • decide on means for enforcing the policy

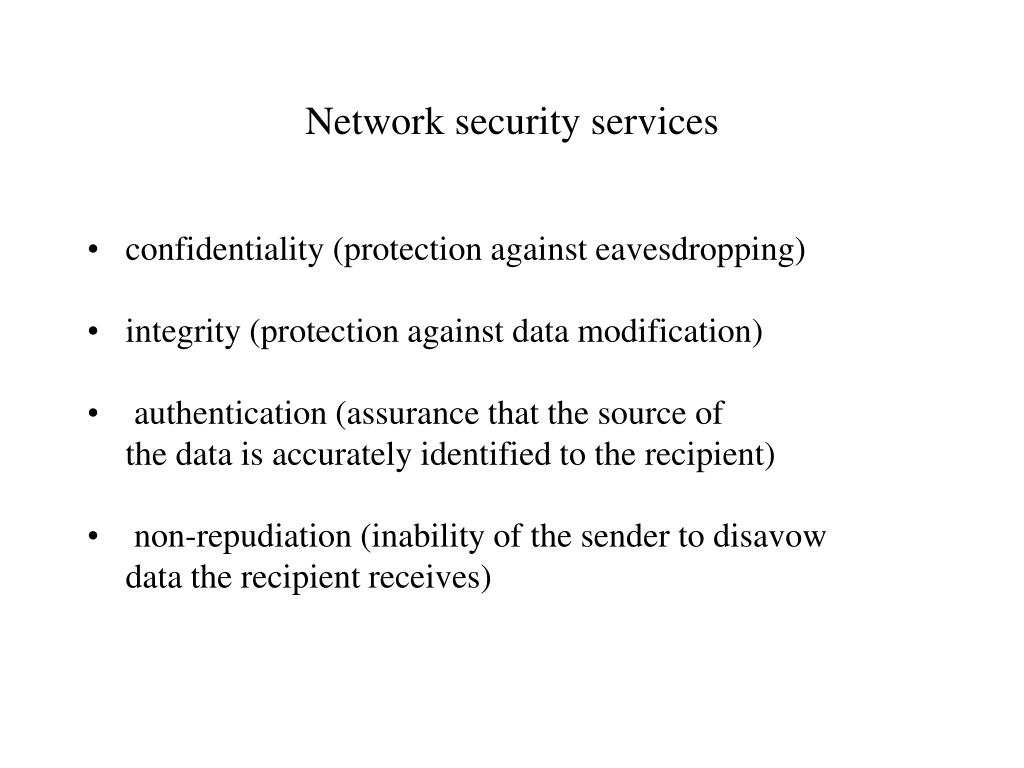

  20. Network security services • confidentiality (protection against eavesdropping) • integrity (protection against data modification) • authentication (assurance that the source of the data is accurately identified to the recipient) • non-repudiation (inability of the sender to disavow data the recipient receives)

  21. Vulnerabilities • Network • Sniffing • War Dialing • Protocol • Data-link-layer security • Network-layer security • Transport-layer security • IP origin forgery

  22. Above the application layer • System access control and authorization data structures • Malicious Software • Hidden Application Features

  23. Types of Encryption Algorithms • Symmetric • DES ( Digital Encryption Standard) • Asymmetric ( Public Key Cryptography) • RSA (Rivest Shamir Adleman)

  24. DES

  25. RSA

  26. Authentication • Cryptographic Hash Functions • MAC (Message Authentication Code) • Digital Signatures

  27. Security in TCP/IP Protocol Stack • Application Layer Encryption • Session Encryption • IP Layer Encryption

  28. Relative Location of Security in TCP/IP Protocol Stack

  29. SSL Protocol Operation

  30. IP Security Scenario

  31. The Kerberos Architecture Ticket Granting Service Kerberos (1) request/receive TGS ticket (2) request/receive server ticket (3) request service Client Server

  32. Intrusion Detection • Network Based • Network Security Monitor, Network IDS, Net Ranger, Tripwire etc… • Host Based • Probes of host ports, password guessing etc…

  33. Taxonomy of Malicious Programs

  34. Security Management Tools • SATAN (Security Analysis Tool for Auditing Networks) • ISS (Internet Security Scanner) • Tiger • Crack • Snoop

  35. Firewall • Firewall :a method used to prevent unauthorized access to a private network Internet Trust

  36. Types of Firewalls

  37. SOCKS Internet Firewall Protected Network SOCKS daemon on firewall parses request, checks access control rules, and makes connection (proxy); copy data back in through firewall. Target of communication sends information back through SOCKS daemon, which routes it to the user desktop. Socksified user app asks SOCKS daemon for circuit
