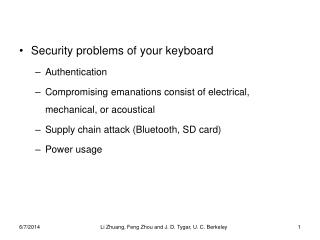

  1. Security problems of your keyboard • Authentication • Compromising emanations consist of electrical, mechanical, or acoustical • Supply chain attack (Bluetooth, SD card) • Power usage Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  2. Key stroke biometrics with number-pad input (DSN 2010) • 28 users typed the same 10 digit number • Use statistical machine learning techniques • Detection rate 99.97% • False alarm rate 1.51% • Can be used for real life two-factor authentication Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  3. Keyboard Acoustic Emanations Revisited Li Zhuang, Feng Zhou and J. D. Tygar U. C. Berkeley

  4. Motivation • Emanations of electronic devices leak information • How much information is leaked by emanations? • Apply statistical learning methods to security • What is learned from recordings of typing on a keyboard? Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  5. Alicepassword Keyboard Acoustic Emanations • Leaking information by acoustic emanations Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  6. Acoustic Information in Typing • Frequency information in sound of each typed key • Why do keystrokes make different sounds? • Different locations on the supporting plate • Each key is slightly different • [Asonov and Agrawal 2004] Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  7. Timing Information in Typing • Time between two keystrokes • Lasting time of a keystroke • E.g. [Song, Wagner and Tian, 2001] Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  8. Previous Work vs. Our Approach Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  9. Key Observation • Build acoustic model for keyboard & typist • Non-random typed text (English) • Limited number of words • Limited letter sequences (spelling) • Limited word sequences (grammar) • Build language model • Statistical learning theory • Natural language processing Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  10. Language Model Correction keystroke classifierrecovered keystrokes Overview Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  11. Language Model Correction keystroke classifierrecovered keystrokes Feature Extraction Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  12. Sound of a Keystroke • How to represent each keystroke? • Vector of features: FFT, Cepstrum • Cepstrum features used in speech recognition Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  13. Linear Classification Neural Networks Gaussian Mixtures Training Test 1 Test 2 Training Test 1 Test 2 Training Test 1 Test 2 Cepstrum vs. FFT • Repeat experiments from [Asonov and Agrawal 2004] 1 accuracy 0 Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  14. Language Model Correction keystroke classifierrecovered keystrokes Unsupervised Learning Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  15. Unsupervised Learning • Group keystrokes into N clusters • Assign keystroke a label, 1, …, N • Find best mapping from cluster labels to characters • Some character combinations are more common • “th” vs. “tj” • Hidden Markov Models (HMMs) Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  16. “t” “h” “e” Bi-grams of Characters • Colored circles: cluster labels • Empty circles: typed characters • Arrows: dependency 5 11 2 EM Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  17. keystroke classifierrecovered keystrokes Language Model Correction Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  18. Word Tri-grams • Spelling correction • Simple statistical model of English grammar • Use HMMs again to model Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  19. Two Copies of Recovered Text Before spelling and grammar correction After spelling and grammar correction _____ = errors in recovery = errors in corrected by grammar Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  20. keystroke classifierrecovered keystrokes Sample Collector Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  21. keystroke classifierrecovered keystrokes Feedback-based Training Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  22. Feedback-based Training • Recovered characters • Language correction • Feedback for more rounds of training • Output: keystroke classifier • Language independent • Can be used to recognize random sequence of keys • E.g. passwords • Representation of keystroke classifier • Neural networks, linear classification, Gaussian mixtures Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  23. keystroke classifierrecovered keystrokes Keystroke Classifier Initial training Subsequent recognition wave signal wave signal Feature Extraction Feature Extraction Unsupervised Learning Keystroke Classifier Language Model Correction Language Model Correction (optional) Sample Collector Classifier Builder recovered keystrokes Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  24. Experiment (1) • Single keyboard • Logitech Elite Duo wireless keyboard • 4 data sets recorded in two settings • Quiet & noisy • Keystrokes are clearly separable from consecutive keys • Automatically extract keystroke positions in the signal with some manual error correction Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  25. Data sets Initial & final recognition rate Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  26. Experiment (2) • Multiple Keyboards • Keyboard 1: DELL QuietKey PS/2, P/N: 2P121 • In use for about 6 months • Keyboard 2: DELL QuietKey PS/2, P/N: 035KKW • In use for more than 5 years • Keyboard 3: DELL Wireless Keyboard, P/N: W0147 • New Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  27. 12-minute recording with ~2300 characters Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  28. Experiment (3) • Classification methods in feedback-based training • Neural Networks (NN) • Linear Classification (LC) • Gaussian Mixtures (GM) Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  29. Limitations of Our Experiments • Considered letters, period, comma, space, enter • Did not consider numbers, other punctuation, backspace, shift, etc. • Easily separable keystrokes • Only considered white noise (e.g. fans) Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  30. Defenses • Physical security • Two-factor authentication • Masking noise • Keyboards with uniform sound (?) Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley

  31. Summary • Recover keys from only the sound • Using typing of English text for training • Apply statistical learning theory to security • Clustering, HMMs, supervised classification, feedback incremental learning • Recover 96% of typed characters Li Zhuang, Feng Zhou and J. D. Tygar, U. C. Berkeley
