1. Building GUIs in Java III A picture's worth a thousand words CS 102-02 Lecture 8-2

2. Agenda • Events: Interfaces and adapters • Keyboard events • Layout managers • FlowLayout • BorderLayout • GridLayout • Panels

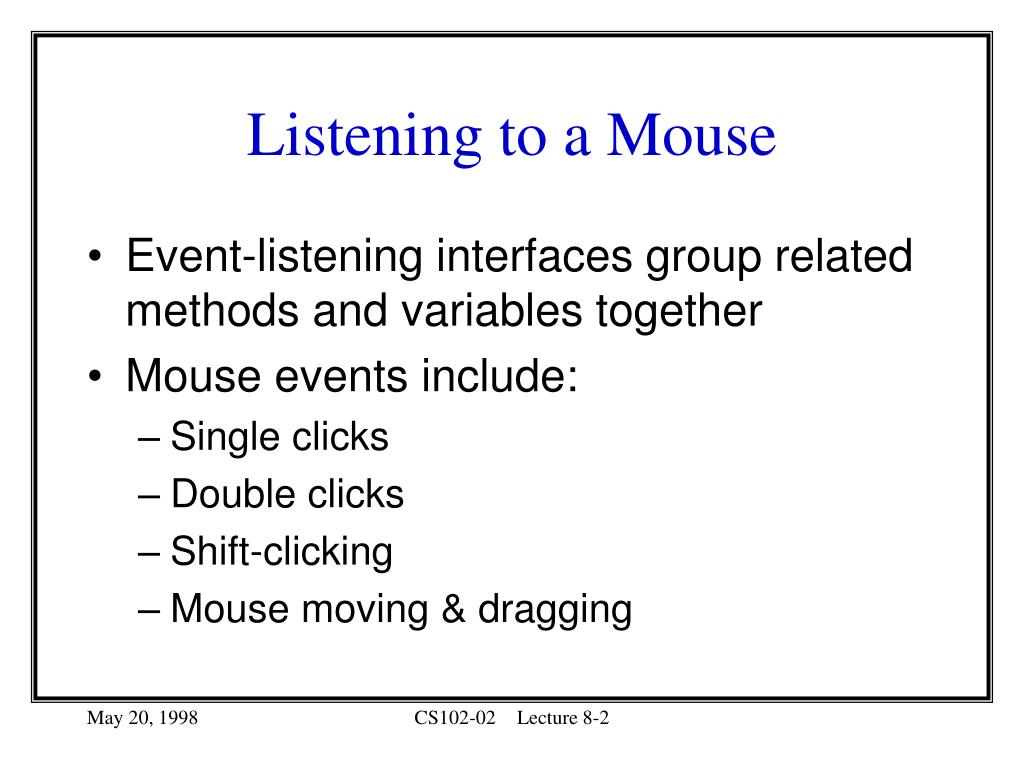

3. Listening to a Mouse • Event-listening interfaces group related methods and variables together • Mouse events include: • Single clicks • Double clicks • Shift-clicking • Mouse moving & dragging

4. MouseListener Interface • mouseClicked(MouseEvent) • Invoked when the mouse has been clicked on a component. • mouseEntered(MouseEvent) • Invoked when the mouse enters a component. • mouseExited(MouseEvent) • Invoked when the mouse exits a component. • mousePressed(MouseEvent) • Invoked when a mouse button has been pressed on a component. • mouseReleased(MouseEvent) • Invoked when a mouse button has been released on a component.

5. MouseMotionListener Interface • mouseDragged(MouseEvent) • Invoked when a mouse button is pressed on a component and then dragged. • mouseMoved(MouseEvent) • Invoked when the mouse button has been moved on a component (with no buttons down).

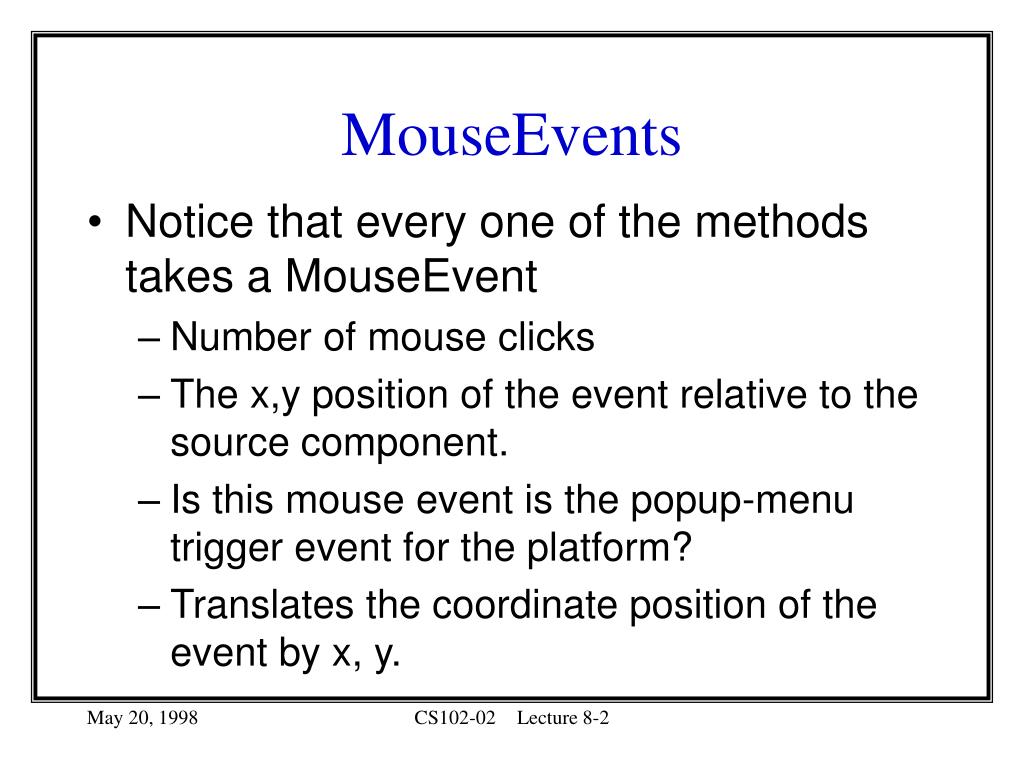

6. MouseEvents • Notice that every one of the methods takes a MouseEvent • Number of mouse clicks • The x,y position of the event relative to the source component. • Is this mouse event is the popup-menu trigger event for the platform? • Translates the coordinate position of the event by x, y.

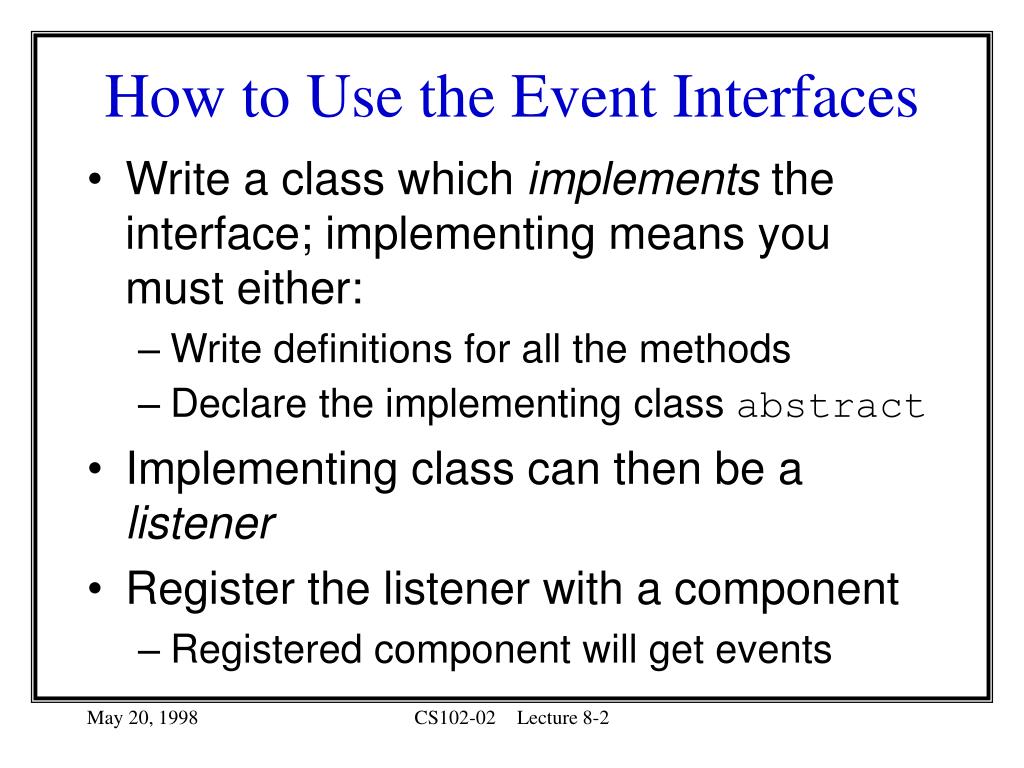

7. How to Use the Event Interfaces • Write a class which implements the interface; implementing means you must either: • Write definitions for all the methods • Declare the implementing class abstract • Implementing class can then be a listener • Register the listener with a component • Registered component will get events

8. Listeners in Action • Write a listener: public class MouseTracker extends Applet implements MouseListener, MouseMotionListener : public void mouseClicked(MouseEvent e){ setValues( "Clicked", e.getX(), e.getY() ); } • Register the listener addMouseListener( this ); addMouseMotionListener( this );

9. A la carte Events • What if you don't want the whole interface? • Adapter classes enable you to pick and and choose • Every event listener interface with more than one method has a corresponding adapter class

10. Using Event Adapters for Fun and Profit • Event adapter class has already implemented the interface for you (What do you think the method definitions look like?) • Pick the methods you really want and override them

11. Overriding Adapter Methods • To override a method, you must first create a subclass of the class • Next, write your own implementation of the method

12. Using MouseMotionAdapter Subclass the adapter class MotionHandler extends MouseMotionAdapter { private Drag dragger; public MotionHandler( Drag d ) { dragger = d; } public void mouseDragged(MouseEvent e) { dragger.setCoordinates( e.getX(), e.getY() ); } } Override the methods you want

13. Putting It to Work • Got the mouseDragged event, so use it public class Drag extends Applet { private int xValue = -10; private yValue = -10; public void init() { addMouseMotionListener( new MotionHandler( this ) ); } • Where's the MouseMotionListener in this picture? Our custom event handler

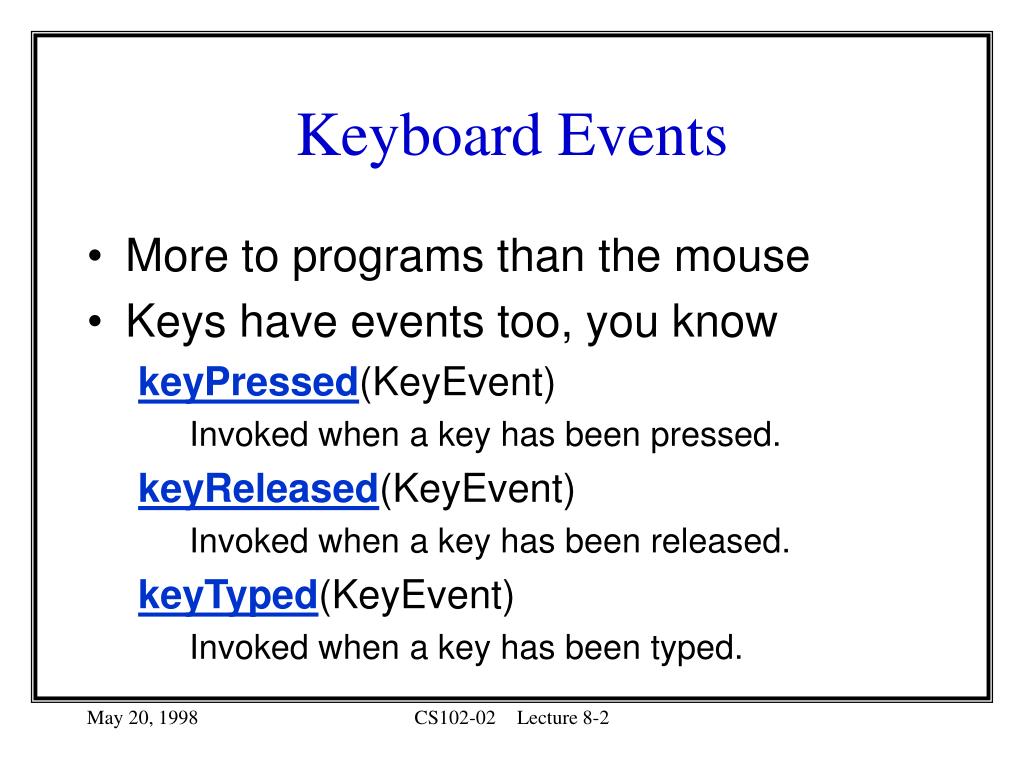

14. Keyboard Events • More to programs than the mouse • Keys have events too, you know keyPressed(KeyEvent) Invoked when a key has been pressed. keyReleased(KeyEvent) Invoked when a key has been released. keyTyped(KeyEvent) Invoked when a key has been typed.

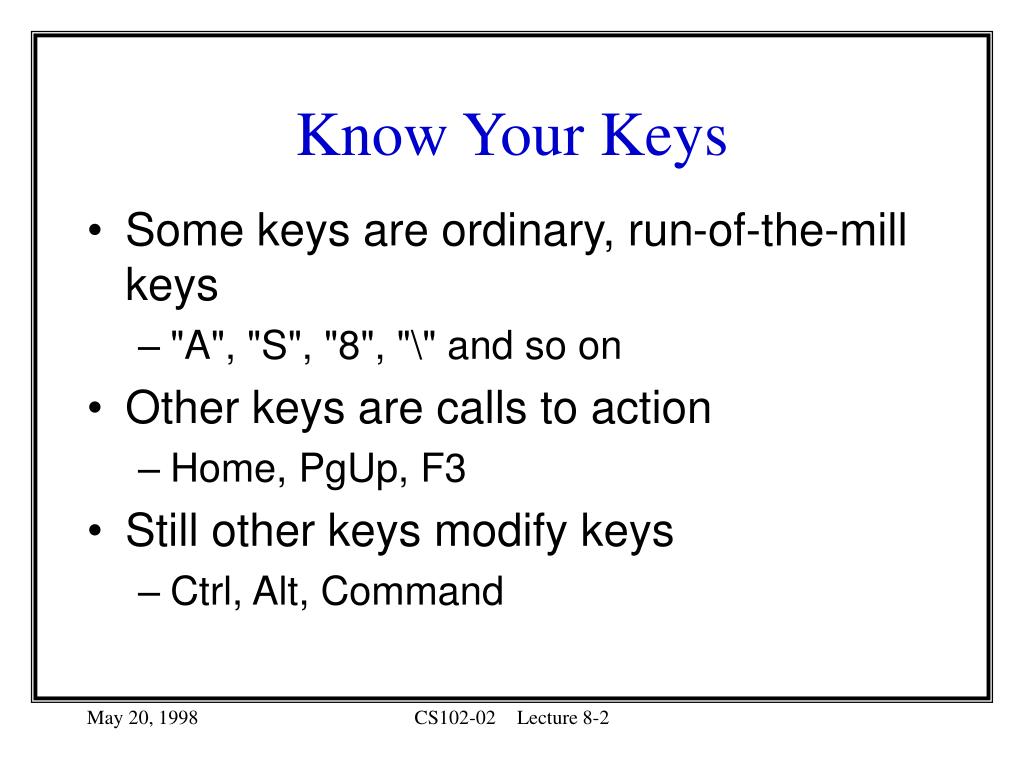

15. Know Your Keys • Some keys are ordinary, run-of-the-mill keys • "A", "S", "8", "\" and so on • Other keys are calls to action • Home, PgUp, F3 • Still other keys modify keys • Ctrl, Alt, Command

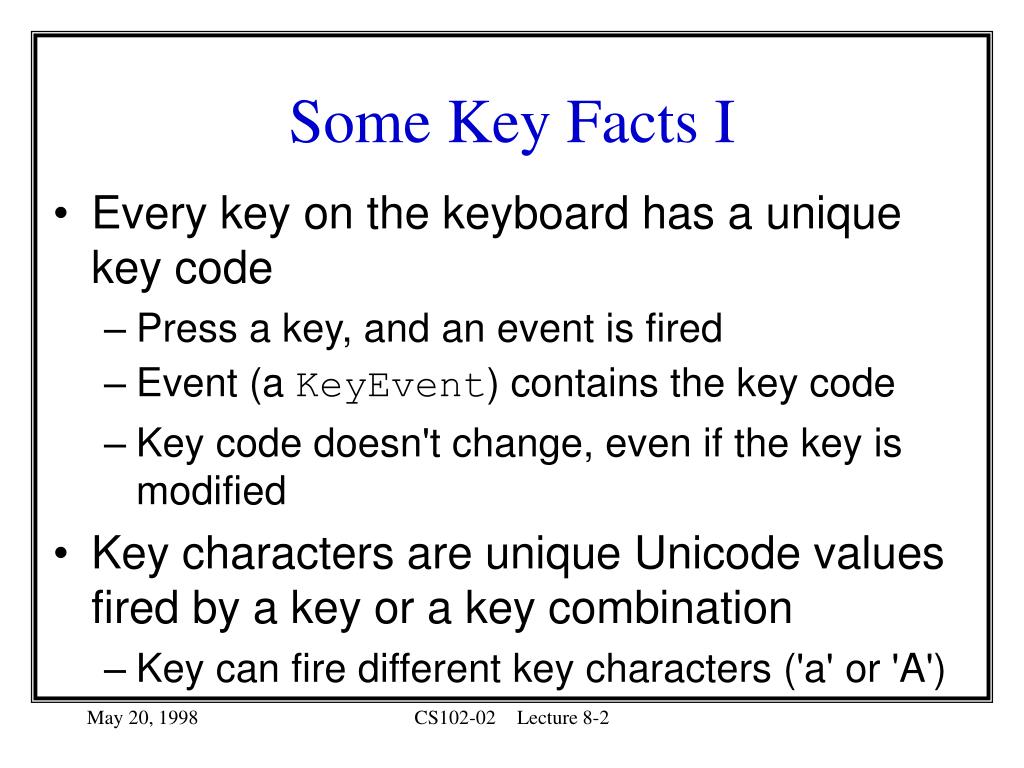

16. Some Key Facts I • Every key on the keyboard has a unique key code • Press a key, and an event is fired • Event (a KeyEvent) contains the key code • Key code doesn't change, even if the key is modified • Key characters are unique Unicode values fired by a key or a key combination • Key can fire different key characters ('a' or 'A')

17. Some Key Facts II • Action keys are usually keys which don't fire Unicode characters (For example, Home) • Key character is CHAR_UNDEFINED • Key events are usually generated by users, through the AWT but • Programs can generate key events on their own • Example: Testing a TextField

18. Laying It On the Line • Java's really cross-platform • Small screens, big screens, PDAs • Toasters? • Graphics are different on different platforms • Use LayoutManagers to control placement and appearance of GUIs • Different LayoutManagers have different effects

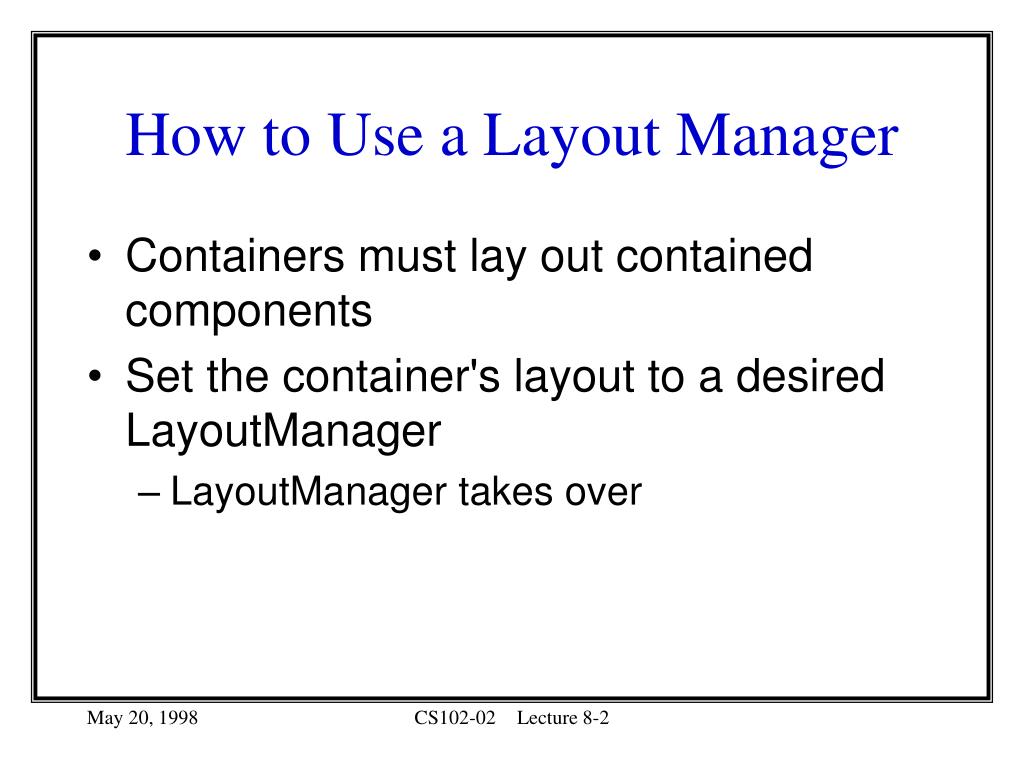

19. How to Use a Layout Manager • Containers must lay out contained components • Set the container's layout to a desired LayoutManager • LayoutManager takes over

20. Go With the Flow • FlowLayout is the most basic • Place a component, add some space, place another component • Filled a row? Start another one! • Default for Panels

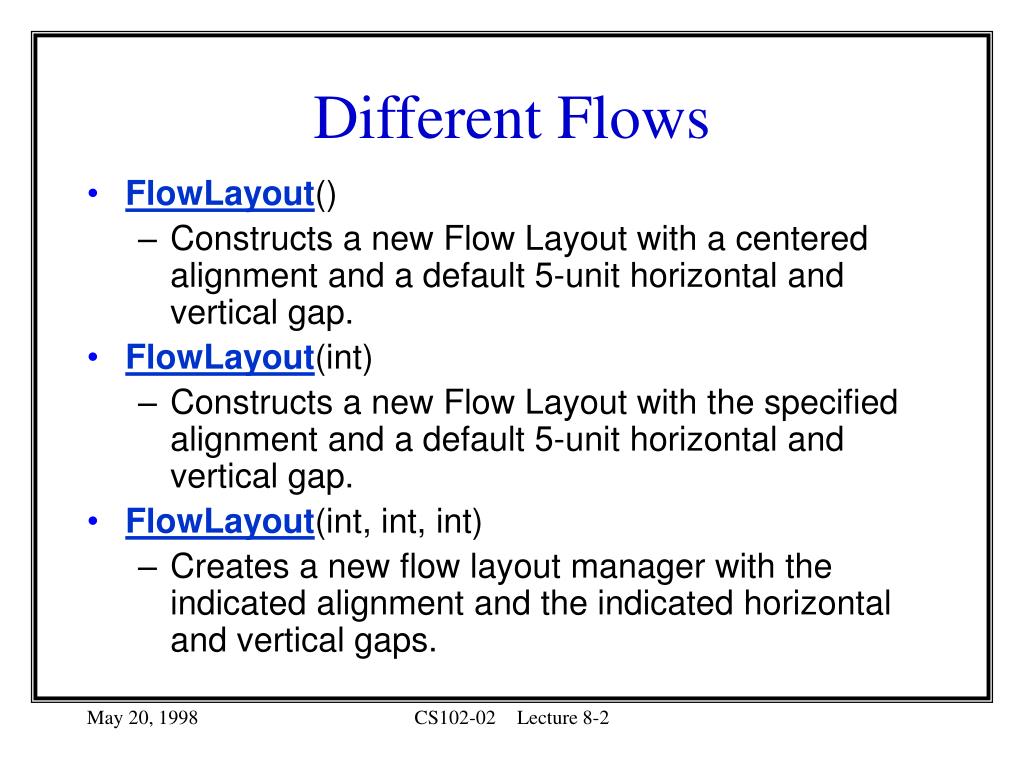

21. Different Flows • FlowLayout() • Constructs a new Flow Layout with a centered alignment and a default 5-unit horizontal and vertical gap. • FlowLayout(int) • Constructs a new Flow Layout with the specified alignment and a default 5-unit horizontal and vertical gap. • FlowLayout(int, int, int) • Creates a new flow layout manager with the indicated alignment and the indicated horizontal and vertical gaps.

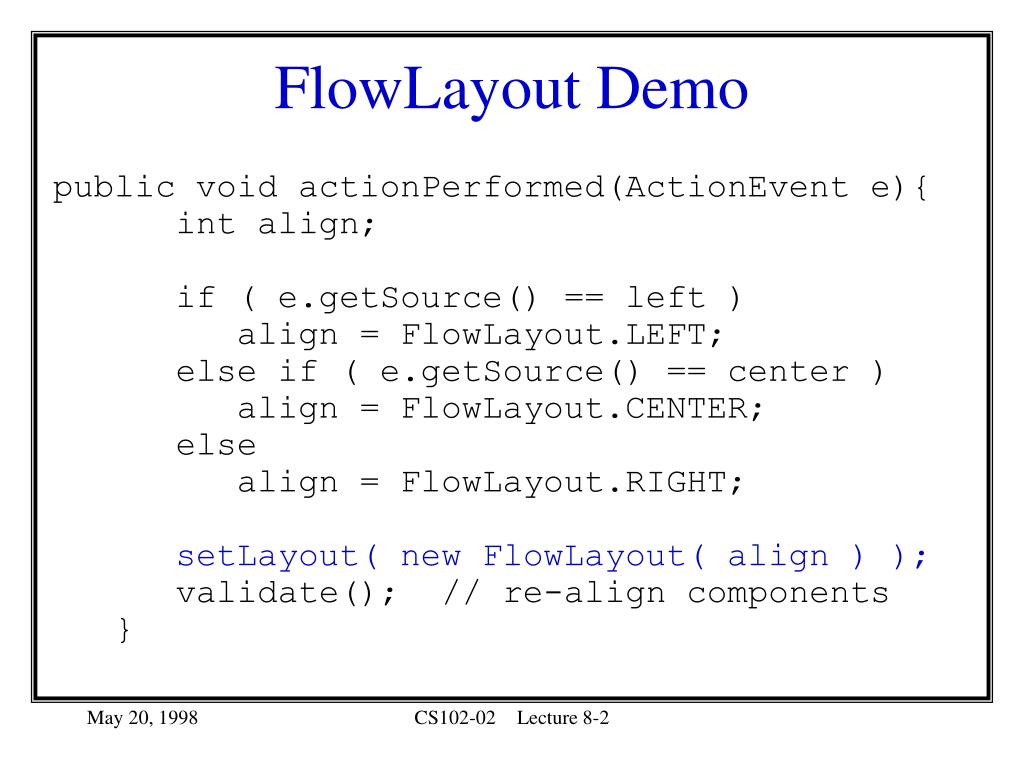

22. FlowLayout Demo public void actionPerformed(ActionEvent e){ int align; if ( e.getSource() == left ) align = FlowLayout.LEFT; else if ( e.getSource() == center ) align = FlowLayout.CENTER; else align = FlowLayout.RIGHT; setLayout( new FlowLayout( align ) ); validate(); // re-align components }

23. BorderLayout • Arrange up to 5 components • North, South, East and West • Center: Allocated al the leftover space

24. BorderLayout in Action In the init() method: // set layout to border layout setLayout( new BorderLayout( 5, 5 ) ); : // b is an array of Buttons //order not important add( b[ 0 ], BorderLayout.NORTH ); add( b[ 1 ], BorderLayout.SOUTH ); add( b[ 2 ], BorderLayout.EAST ); add( b[ 3 ], BorderLayout.WEST ); add( b[ 4 ], BorderLayout.CENTER );

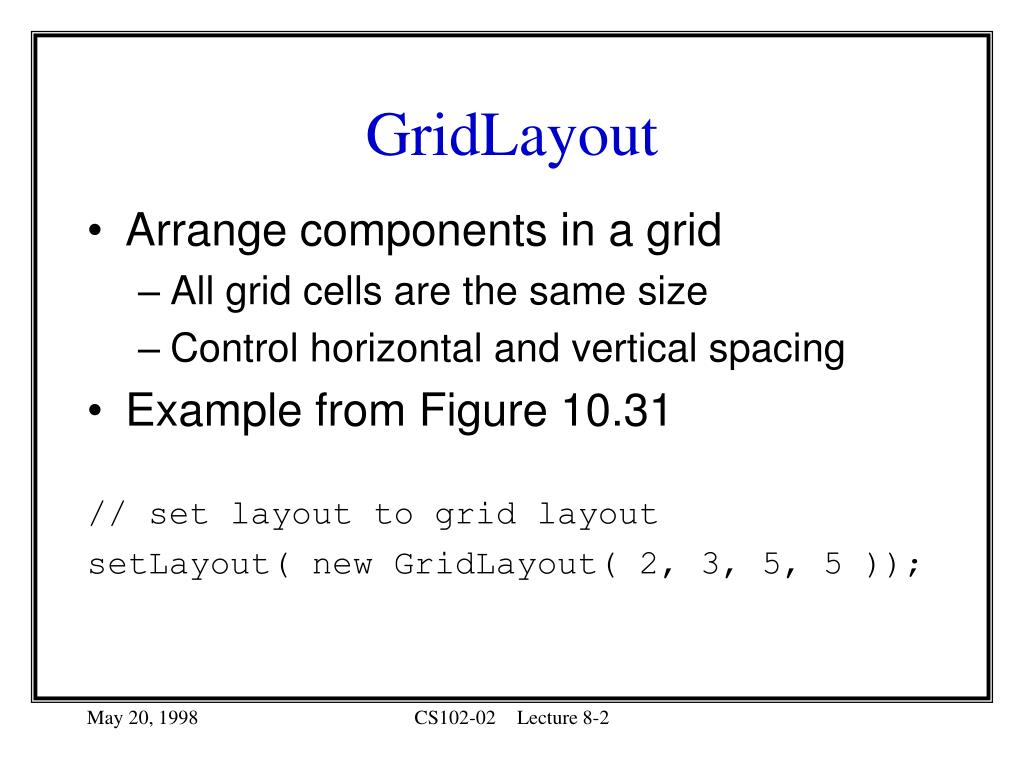

25. GridLayout • Arrange components in a grid • All grid cells are the same size • Control horizontal and vertical spacing • Example from Figure 10.31 // set layout to grid layout setLayout( new GridLayout( 2, 3, 5, 5 ));

26. Creating GridLayouts • GridLayout() • Creates a grid layout with a default of one column per component, in a single row. • GridLayout(int, int) • Creates a grid layout with the specified number of rows and columns. • GridLayout(int, int, int, int) • Creates a grid layout with the specified number of rows and columns.

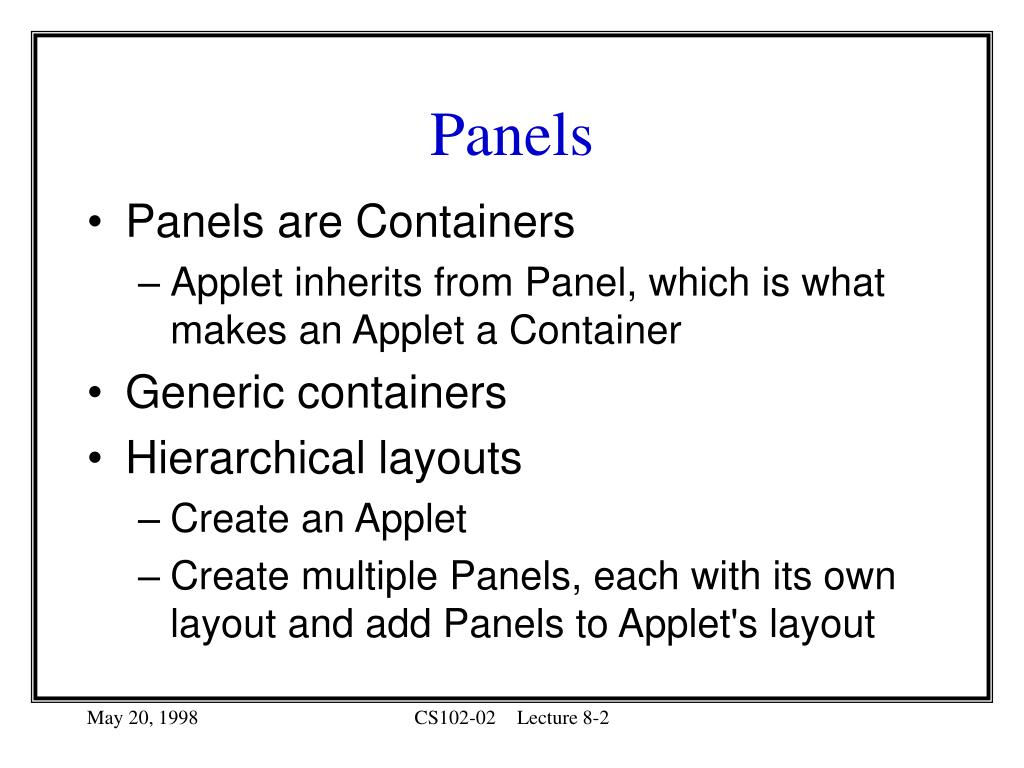

27. Panels • Panels are Containers • Applet inherits from Panel, which is what makes an Applet a Container • Generic containers • Hierarchical layouts • Create an Applet • Create multiple Panels, each with its own layout and add Panels to Applet's layout

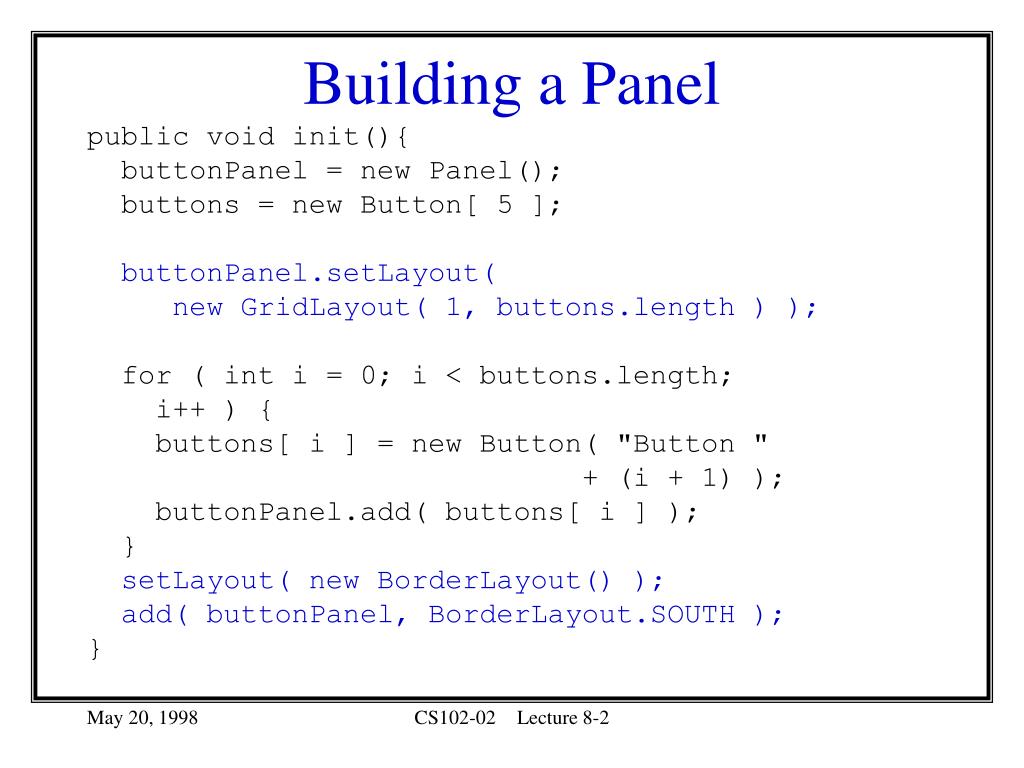

28. Building a Panel public void init(){ buttonPanel = new Panel(); buttons = new Button[ 5 ]; buttonPanel.setLayout( new GridLayout( 1, buttons.length ) ); for ( int i = 0; i < buttons.length; i++ ) { buttons[ i ] = new Button( "Button " + (i + 1) ); buttonPanel.add( buttons[ i ] ); } setLayout( new BorderLayout() ); add( buttonPanel, BorderLayout.SOUTH ); }
