  1. Building a Service Order System By Michael Hebron

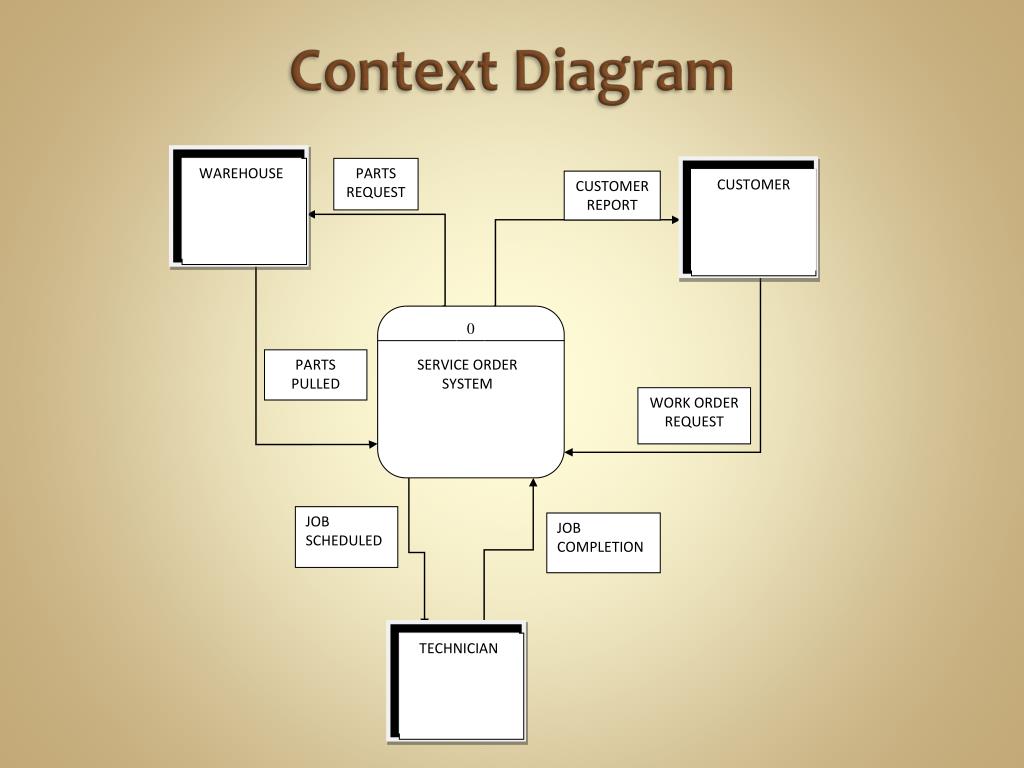

  2. WAREHOUSE CUSTOMER 0 SERVICE ORDER SYSTEM TECHNICIAN Context Diagram PARTS REQUEST CUSTOMER REPORT PARTS PULLED WORK ORDER REQUEST JOB SCHEDULED JOB COMPLETION

  3. 1 2 3 JOB DETAIL FORM PARTS FORM WORK ORDER WAREHOUSE CUSTOMER D1 CUSTOMERS TECHNICIAN Diagram 0 PARTS REQUEST CUSTOMER REPORT PARTS PULLED WORK ORDER REQUEST PARTS DETAIL JOB DETAIL CUSTOMER INFORMATION JOB SCHEDULED JOB COMPLETION

  4. 1.2 1.1 PULL PARTS IDENTIFY PARTS WAREHOUSE D2 PARTS Diagram 1 PARTS REQUEST PARTS PULLED PARTS DISCRIPTION PART NUMBER

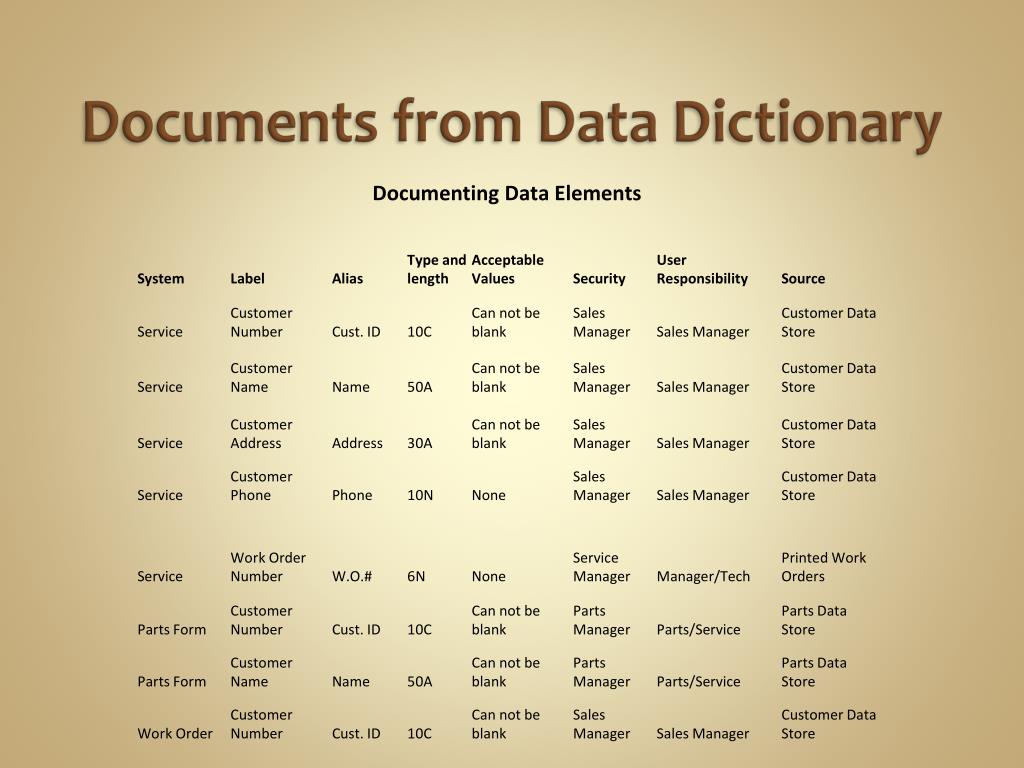

  5. Documents from Data Dictionary

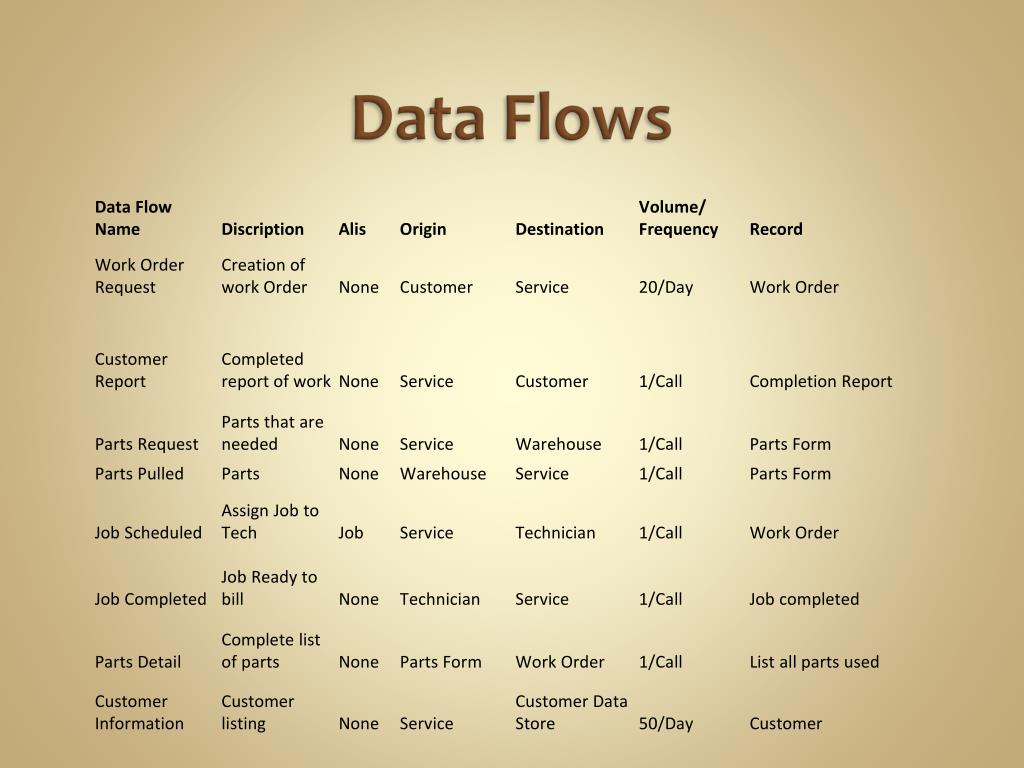

  6. Data Flows

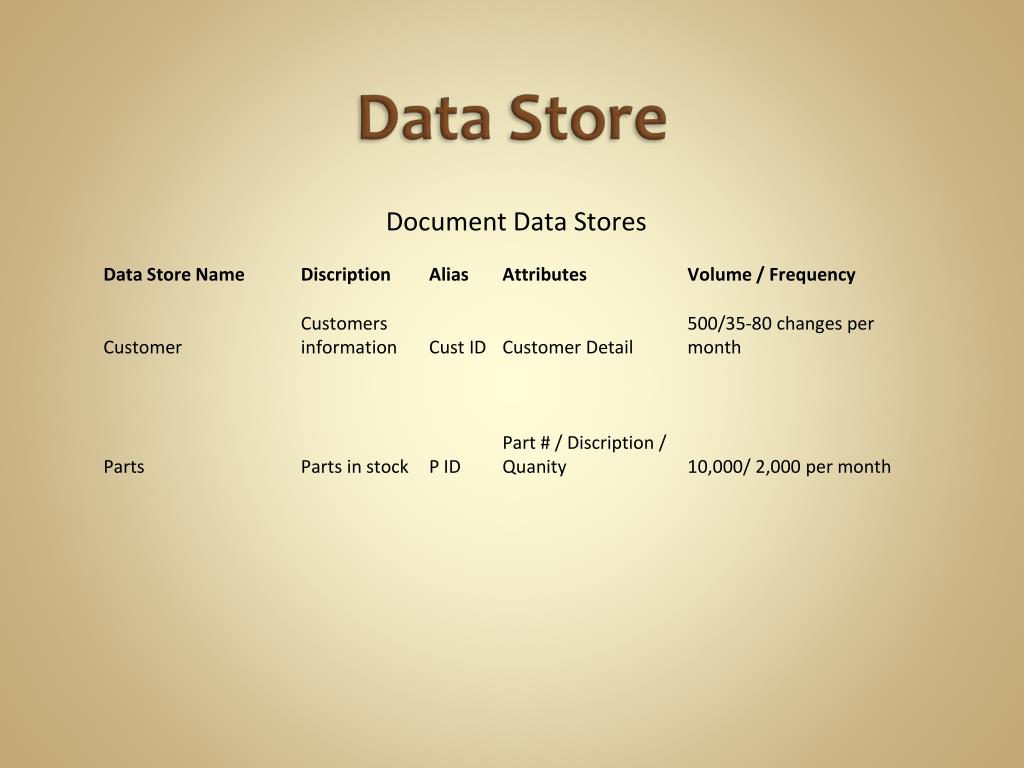

  7. Data Store

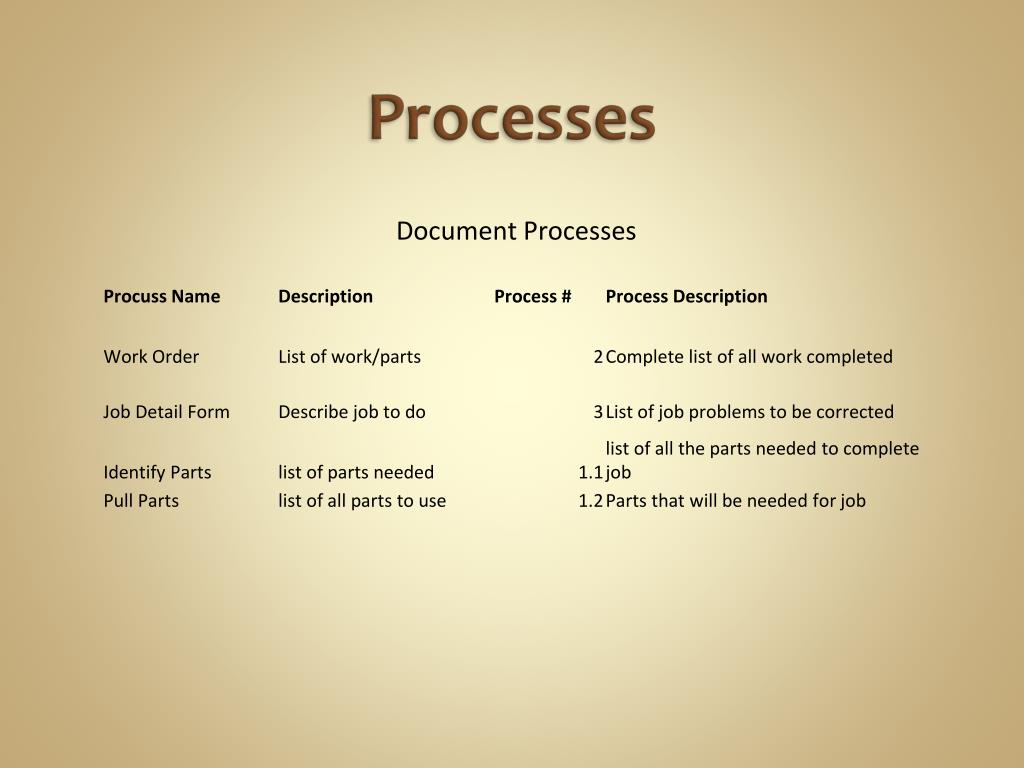

  8. Processes

  9. Entities

  10. Records

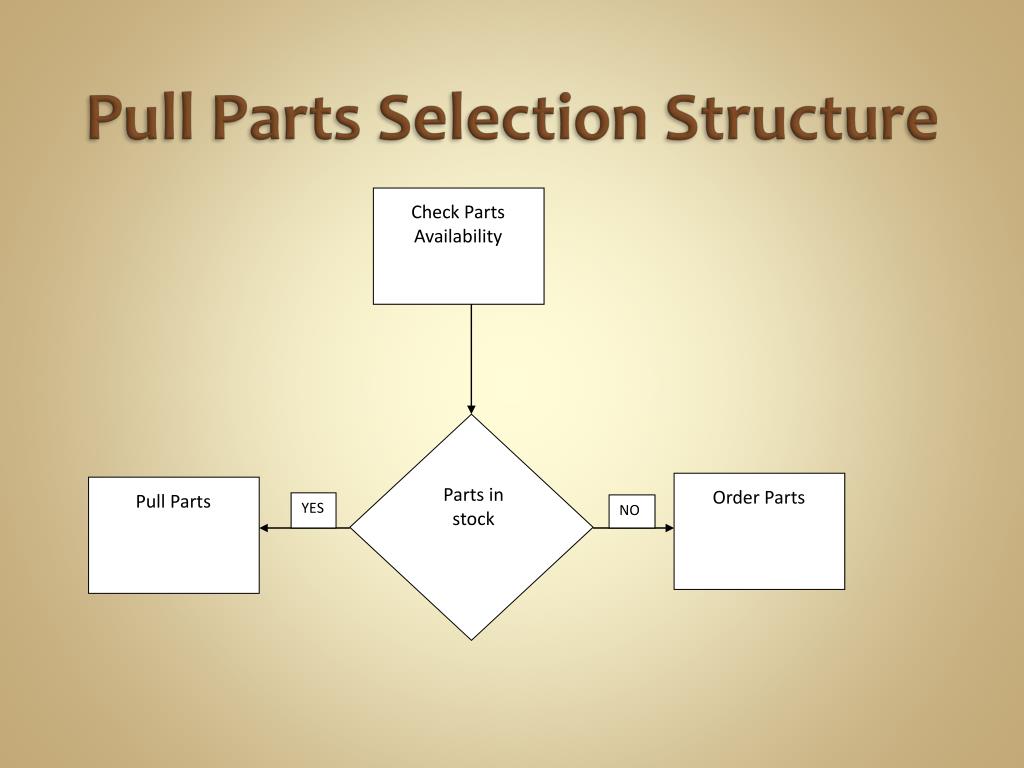

  11. Check Parts Availability Order Parts Pull Parts Parts in stock Pull Parts Selection Structure YES NO

  12. Q & A
