Wavelength Assignment in Optical Network Design

Team 6: Lisa Zhang (Mentor) Brendan Farrell, Yi Huang, Mark Iwen, Ting Wang, Jintong Zheng Progress Report Presenters: Mark Iwen. Wavelength Assignment in Optical Network Design. Wavelength Assignment. Motivated by WDM (wavelength division multiplexing) network optimization Input

kirby
Télécharger la présentation

Wavelength Assignment in Optical Network Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

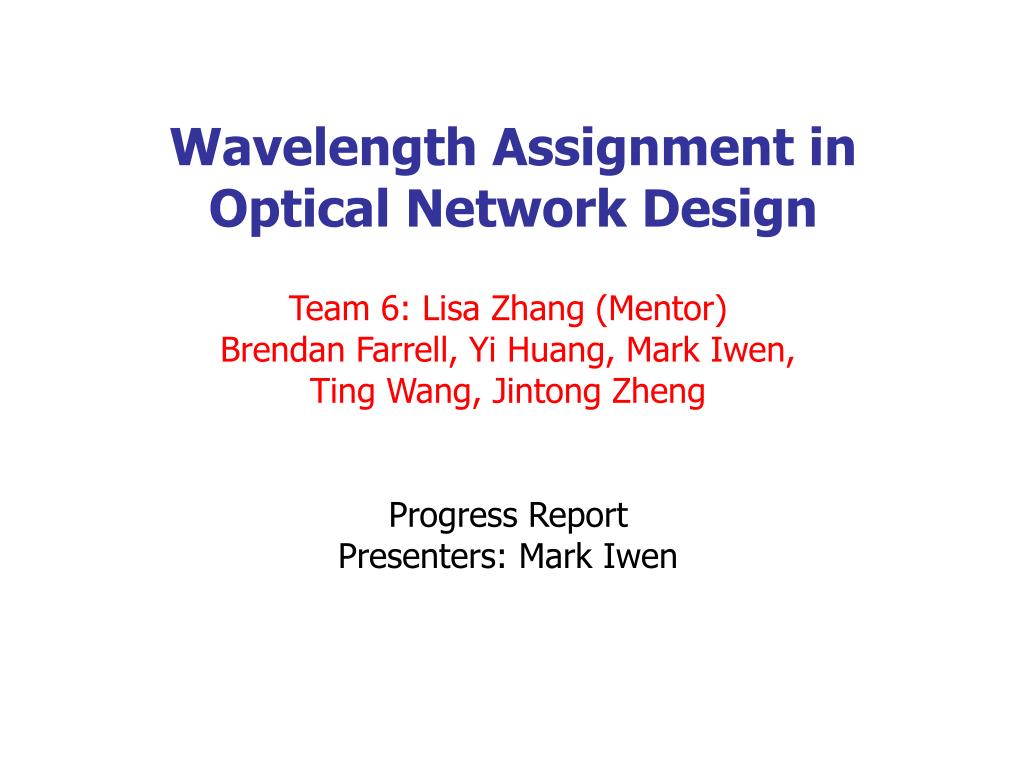

  1. Team 6: Lisa Zhang (Mentor) Brendan Farrell, Yi Huang, Mark Iwen, Ting Wang, Jintong Zheng Progress Report Presenters: Mark Iwen Wavelength Assignment in Optical Network Design

  2. Wavelength Assignment Motivated by WDM (wavelength division multiplexing) network optimization Input • A network G=(V,E) • A set of demands with specified src, dest and routes • demand di = (si, ti, Ri) • WDM fibers • U: fiber capacity, number of wavelengths per fiber Output • Assign a wavelength for each demand route • Demand paths sharing same fiber have distinct wavelengths

  3. Example

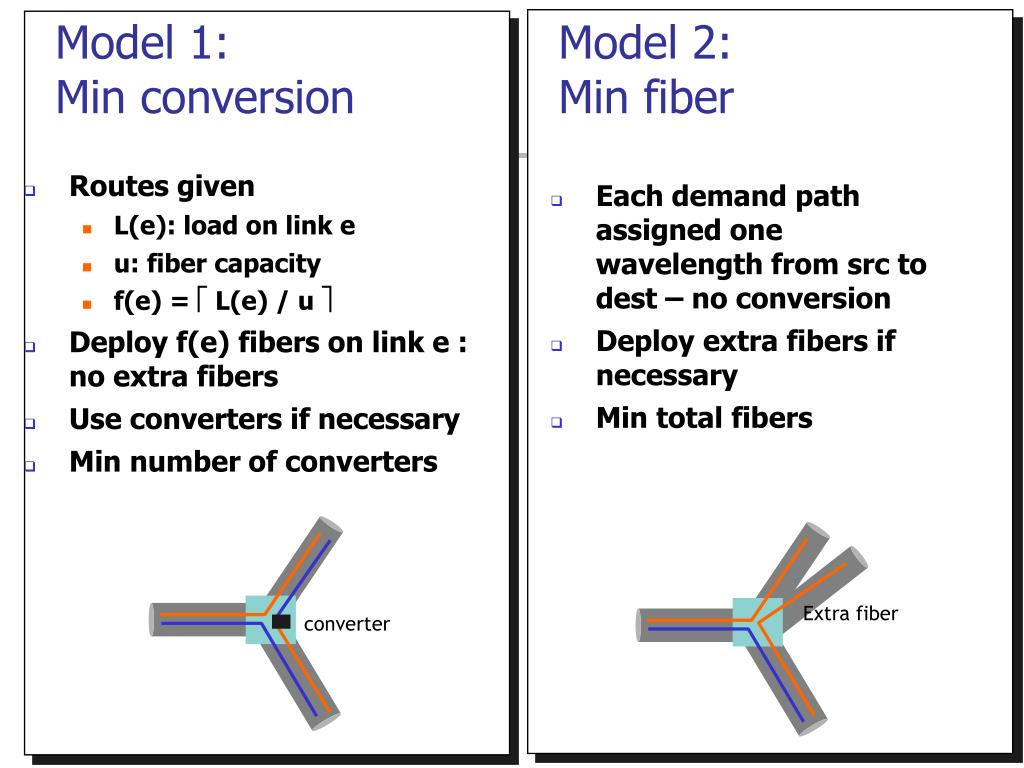

  4. Model 1: Min conversion B A O converter C Fiber capacity u = 2 Demand routes: AOB, BOC, COA • Routes given • L(e): load on link e • u: fiber capacity • f(e) =  L(e) / u  • Deploy f(e) fibers on link e : no extra fibers • Use converters if necessary • Min number of converters

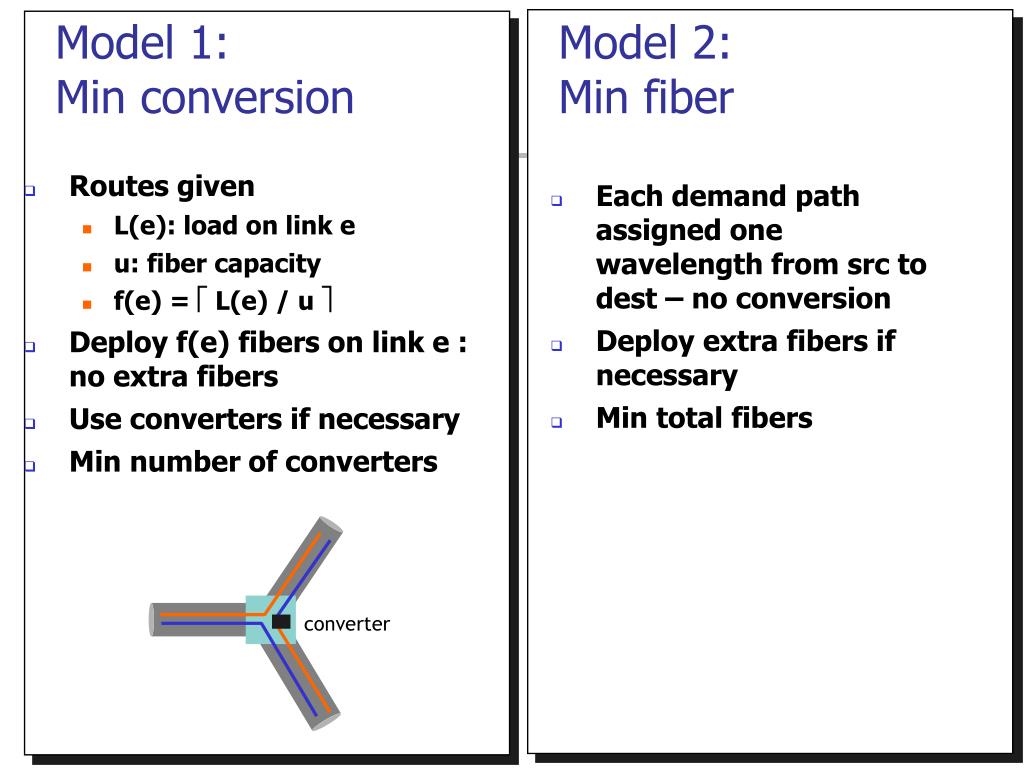

  5. Model 1: Min conversion Model 2: Min fiber converter • Routes given • L(e): load on link e • u: fiber capacity • f(e) =  L(e) / u  • Deploy f(e) fibers on link e : no extra fibers • Use converters if necessary • Min number of converters • Each demand path assigned one wavelength from src to dest – no conversion • Deploy extra fibers if necessary • Min total fibers

  6. Model 1: Min conversion Model 2: Min fiber Extra fiber converter • Routes given • L(e): load on link e • u: fiber capacity • f(e) =  L(e) / u  • Deploy f(e) fibers on link e : no extra fibers • Use converters if necessary • Min number of converters • Each demand path assigned one wavelength from src to dest – no conversion • Deploy extra fibers if necessary • Min total fibers

  7. Complexity Perspective of worst-case analysis NP hard • Cannot expect to find optimal solution efficiently for all instances Hard to approximate • Cannot approximate within any constant [AndrewsZhang] • For any algorithm, there exist instances for which the algo returns a solution more than any constant factor larger than the optimal.

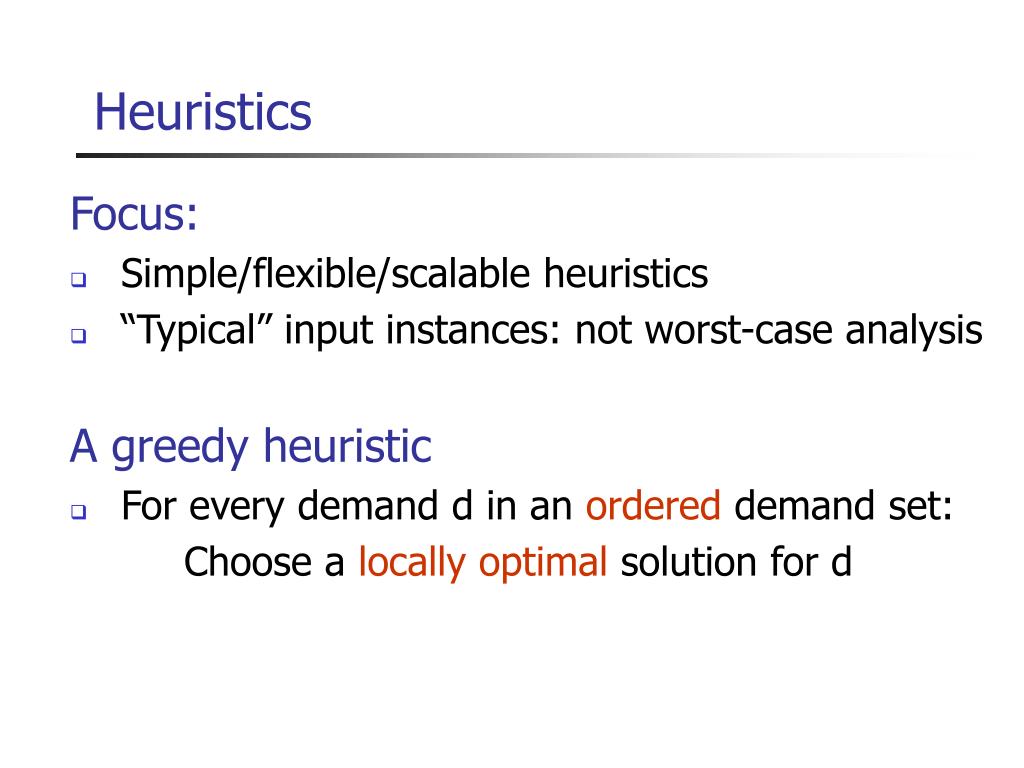

  8. Heuristics Focus: • Simple/flexible/scalable heuristics • “Typical” input instances: not worst-case analysis A greedy heuristic • For every demand d in an ordered demand set: Choose a locally optimal solution for d

  9. Why greedy? Viable approach for many hard problems • Set Cover Problem (NP-hard) • SAT solving(NP-hard) • Planning Problems (PSPACE-hard) • Vertex Coloring (NP-hard) • …

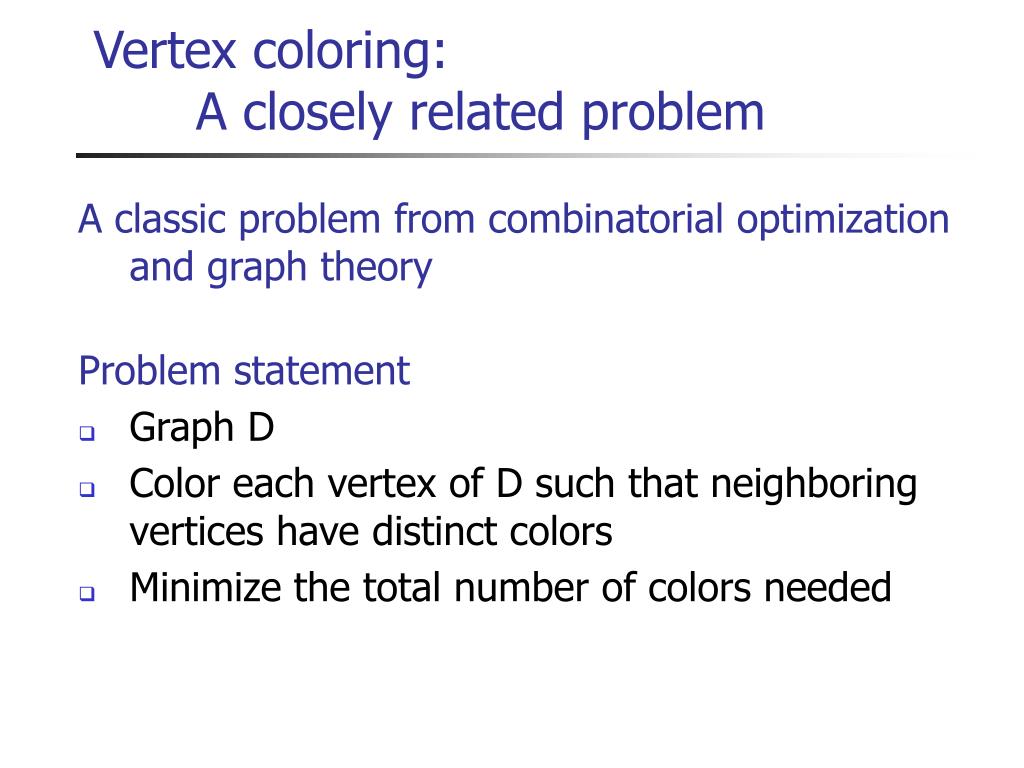

  10. Vertex coloring: A closely related problem A classic problem from combinatorial optimization and graph theory Problem statement • Graph D • Color each vertex of D such that neighboring vertices have distinct colors • Minimize the total number of colors needed

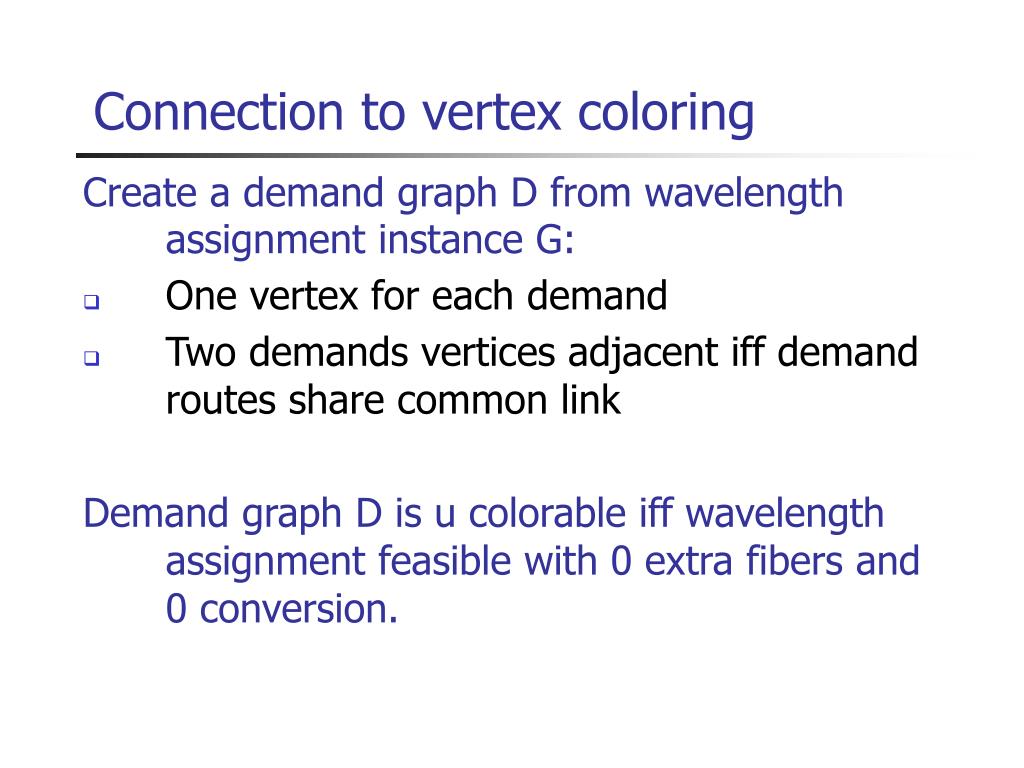

  11. Connection to vertex coloring Create a demand graph D from wavelength assignment instance G: • One vertex for each demand • Two demands vertices adjacent iff demand routes share common link Demand graph D is u colorable iff wavelength assignment feasible with 0 extra fibers and 0 conversion.

  12. What we know about vertex coloring Complexity – worst case • NP-hard • Hard to approximate: cannot be approximated to within a factor of n1-e [FeigeKilian][KnotPonnuswami] Heuristic solutions – common cases • Greedy approaches extremely effective For vertex v in an ordering of vertices: Color v with smallest color not used by v’s neighbors • Example: Brelaz’s algorithm [Turner] gives priority to“most constrained” vertex

  13. Try greedy wavelength assignment For every demand d in an ordered demand set: Choose a locally optimal solution for d - Is there good ordering? - Is it easy to find a good ordering? - Local optimality is easy!

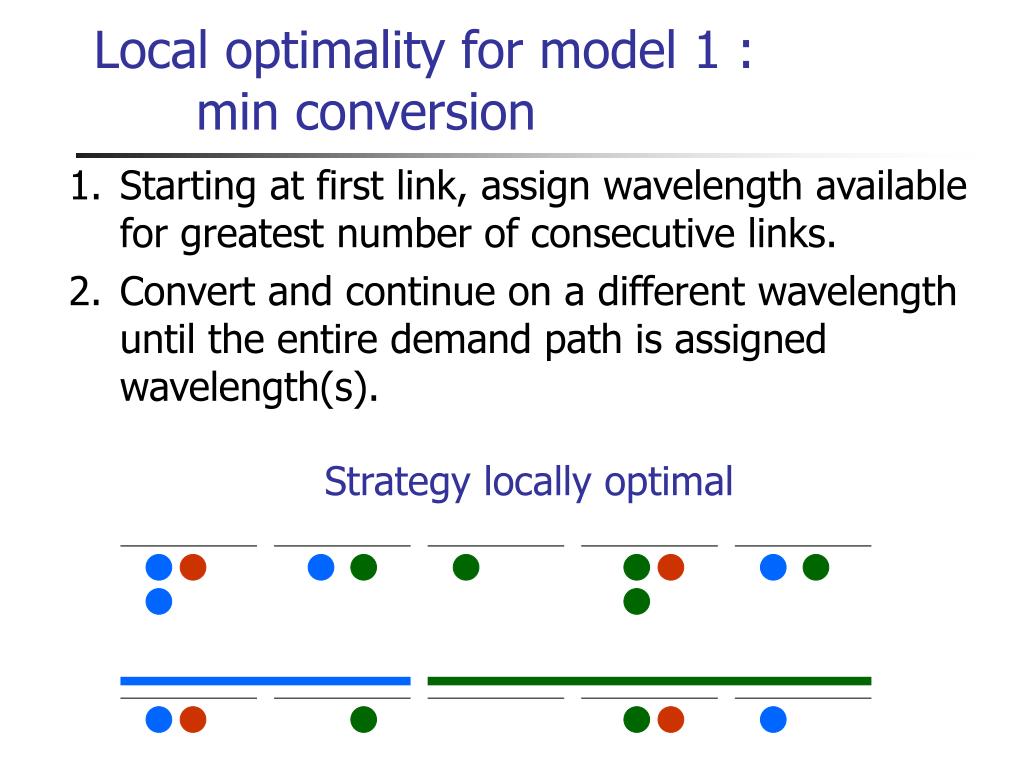

  14. Local optimality for model 1 : min conversion Starting at first link, assign wavelength available for greatest number of consecutive links. Convert and continue on a different wavelength until the entire demand path is assigned wavelength(s). Strategy locally optimal

  15. Local optimality for model 1 : min conversion Starting at first link, assign wavelength available for greatest number of consecutive links. Convert and continue on a different wavelength until the entire demand path is assigned wavelength(s). Strategy locally optimal

  16. Local optimality for model 2: Min fiber Choose wavelength w such that assigning w to demand d requires minimum number of extra fibers

  17. Local optimality for model 2: Min fiber Choose wavelength w such that assigning w to demand d requires minimum number of extra fibers Extra fiber on first link

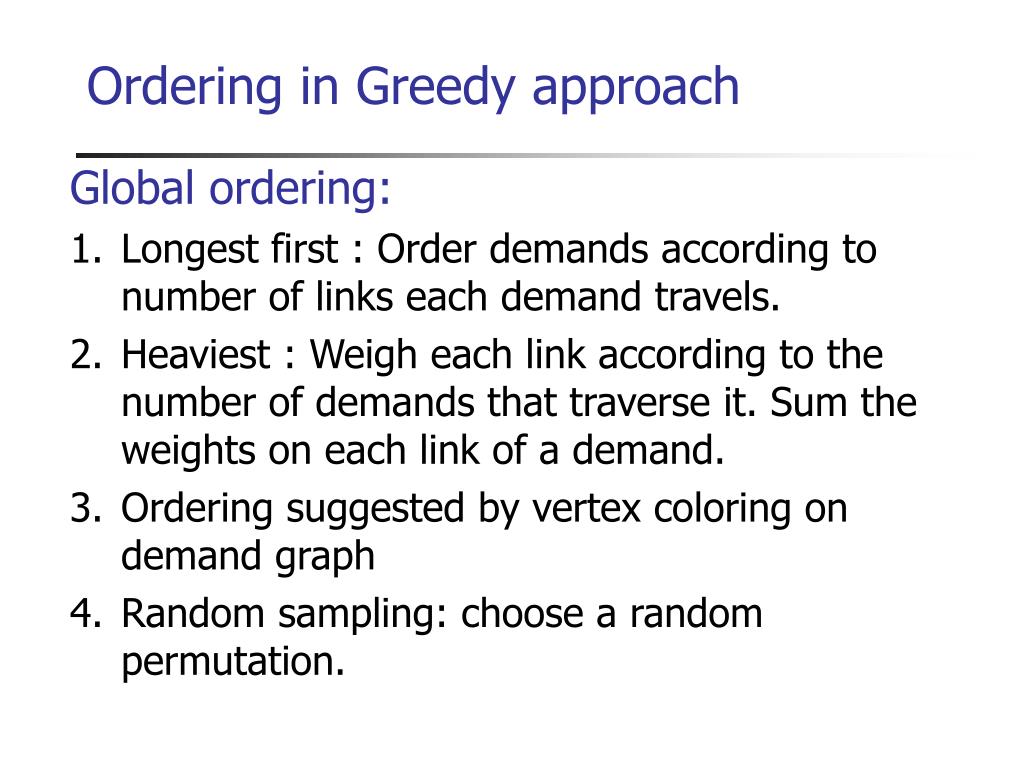

  18. Ordering in Greedy approach Global ordering: Longest first : Order demands according to number of links each demand travels. Heaviest : Weigh each link according to the number of demands that traverse it. Sum the weights on each link of a demand. Ordering suggested by vertex coloring on demand graph Random sampling: choose a random permutation.

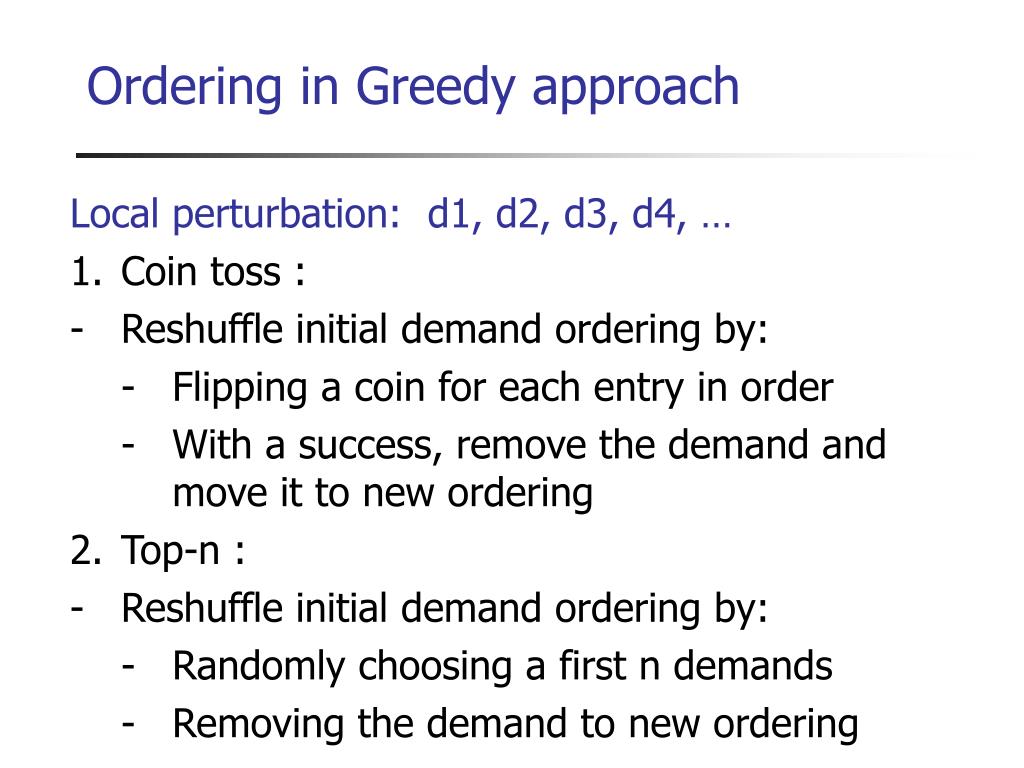

  19. Ordering in Greedy approach Local perturbation: d1, d2, d3, d4, … • Coin toss : • Reshuffle initial demand ordering by: • Flipping a coin for each entry in order • With a success, remove the demand and move it to new ordering 2. Top-n : • Reshuffle initial demand ordering by: • Randomly choosing a first n demands • Removing the demand to new ordering

  20. Iterative refinement Global ordering Greedy Local perturbation Greedy

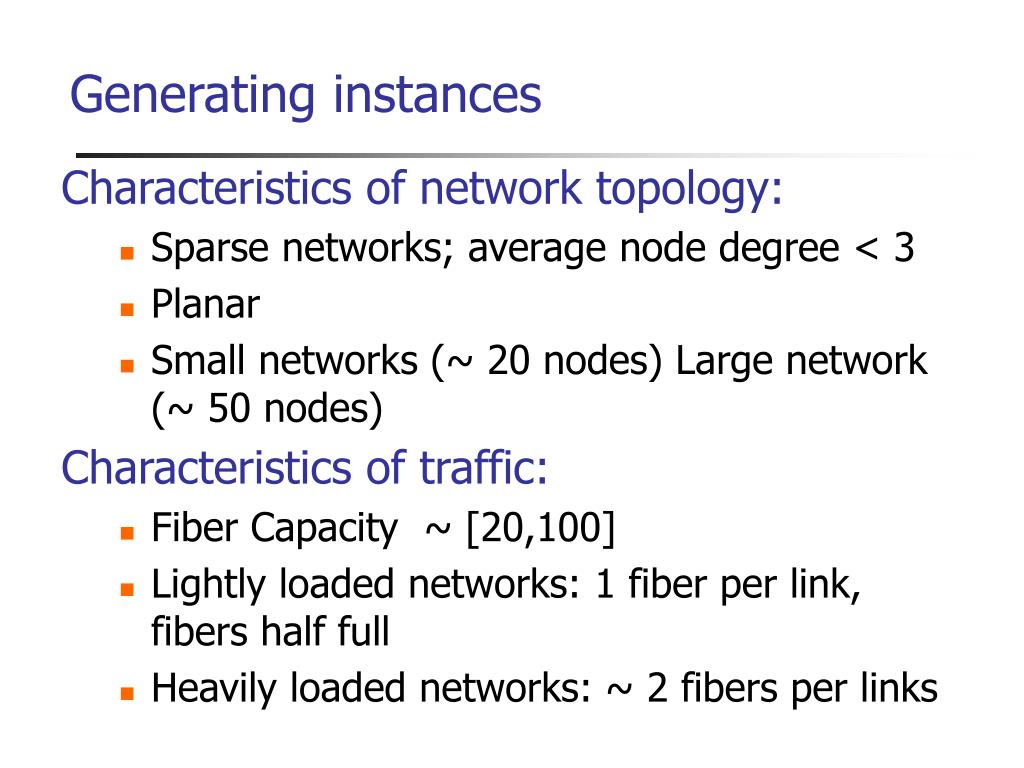

  21. Generating instances Characteristics of network topology: • Sparse networks; average node degree < 3 • Planar • Small networks (~ 20 nodes) Large network (~ 50 nodes) Characteristics of traffic: • Fiber Capacity ~ [20,100] • Lightly loaded networks: 1 fiber per link, fibers half full • Heavily loaded networks: ~ 2 fibers per links

  22. Topologies of real networks

  23. Topologies of real networks

  24. Topologies of real networks

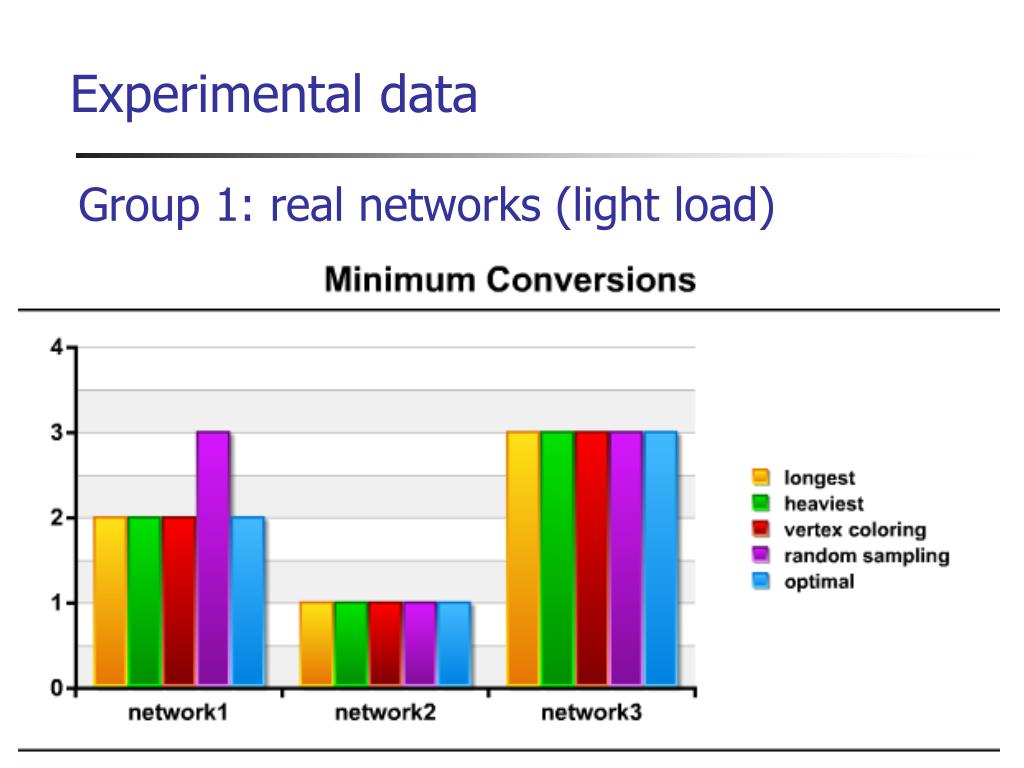

  25. Experimental data Group 1: real networks (light load)

  26. Experimental data Group 1: real networks (light load)

  27. Probability of No Wavelength Conflict vs. Link Load • O(log u) approx.: choose a wavelength uniformly at random for each demand • Birthday Paradox!

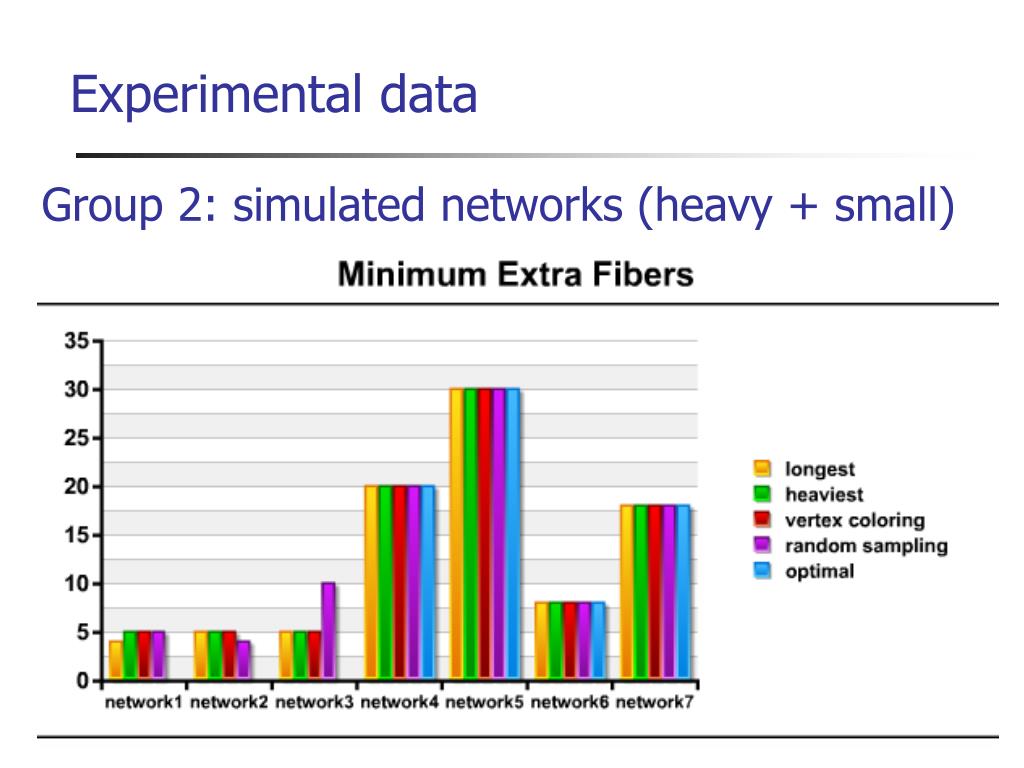

  28. Experimental data Group 2: simulated networks (heavy + small)

  29. Experimental data Group 2: simulated networks (heavy + small)

  30. Experimental data: Large Networks Group 3: simulated networks (heavy + large)

  31. Experimental data Group 3: simulated networks (heavy + large)

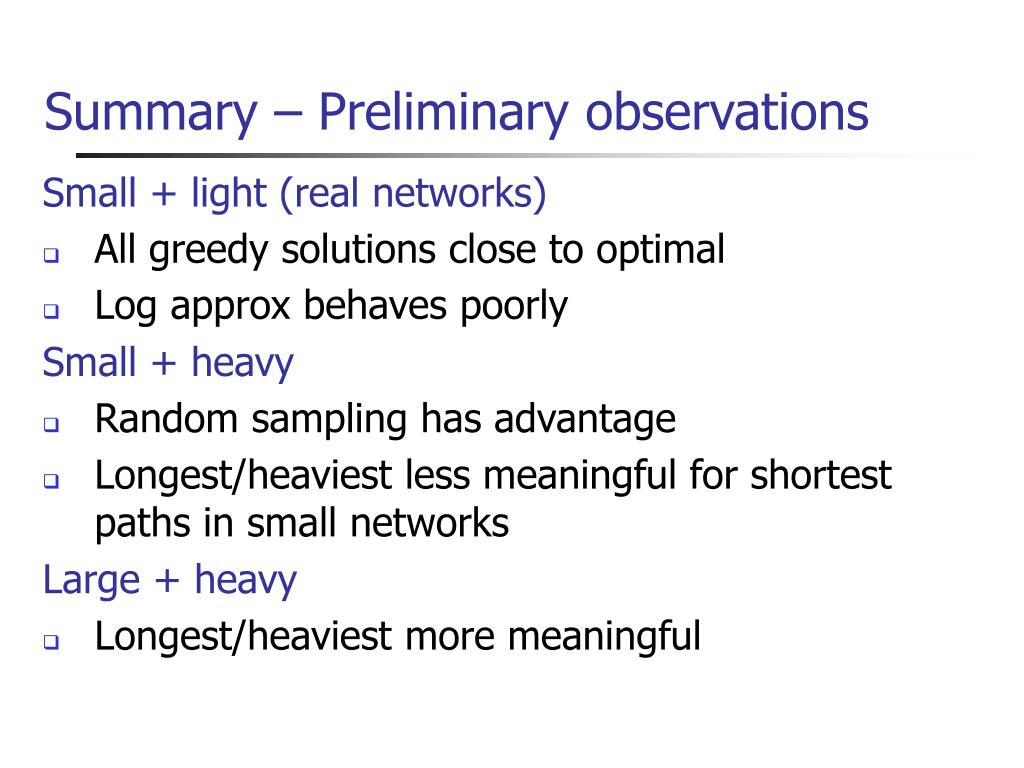

  32. Summary – Preliminary observations Small + light (real networks) • All greedy solutions close to optimal • Log approx behaves poorly Small + heavy • Random sampling has advantage • Longest/heaviest less meaningful for shortest paths in small networks Large + heavy • Longest/heaviest more meaningful

  33. Combined minimization New territory: • Ultimate cost optimization • Combined minimization of fiber and conversion Proposed approach • Compute a min fiber solution (x extra fibers) • From empty network, add one fiber at a time • Compute a min conversion solution for fixed additional fibers.

  34. Combined minimization

  35. QUESTIONS???
