Determining the k a of an acid-base indicator

Determining the k a of an acid-base indicator. Experiment 3. Indicator. HIn + H 2 O ↔ In - + H 3 O + Red blue Ka = [H 3 O + ] [In - ]/[HIn] [H 3 O + ] = Ka [HIn]/[In - ] (-log [H 3 O + ]) = (-log Ka) + (log [In - ]/[HIn]) pH = pKa + log [In - ]/[HIn]. Determining Ka.

kirk-mullins
Télécharger la présentation

Determining the k a of an acid-base indicator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Determining the ka of an acid-base indicator Experiment 3

  2. Indicator HIn + H2O ↔ In- + H3O+ Redblue Ka = [H3O+] [In-]/[HIn] [H3O+] = Ka [HIn]/[In-] (-log [H3O+]) = (-log Ka) + (log [In-]/[HIn]) pH = pKa + log [In-]/[HIn]

  3. Determining Ka • Ka = [H3O+] [In-]/[HIn] • Adjust pH slightly and measure the concentration of all three species, independently • H3O+ (pH meter) • In- and HIn (spectroscopy)

  4. Ka = [H+][In-]/[HIn]

  5. Quantitative Spectroscopy • Beer’s Law Al1 = el1bc e is molar absorptivity (unique for a given compound at l1) b is path length c concentration

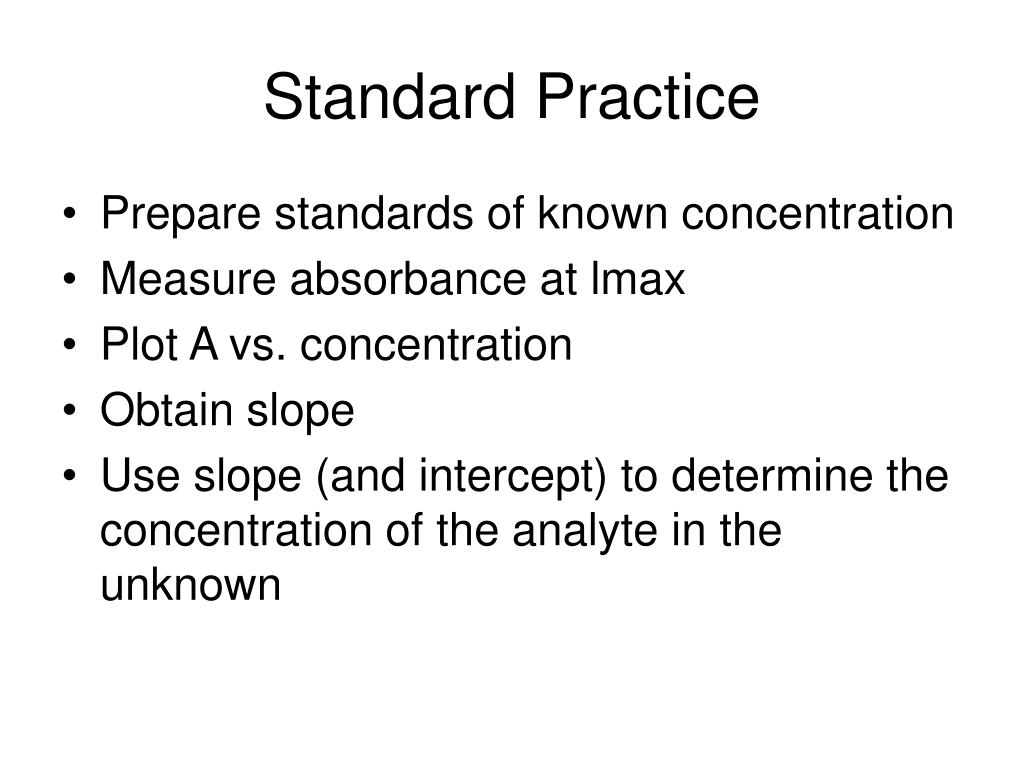

  6. Standard Practice • Prepare standards of known concentration • Measure absorbance at lmax • Plot A vs. concentration • Obtain slope • Use slope (and intercept) to determine the concentration of the analyte in the unknown

  7. Typical Beer’s Law Plot

  8. Spectroscopy • Indicators give fairly broad visible absorption spectra • Blue solution absorbs in the red region • Red solution absorbs in the blue region • But there is usually some significant overlap

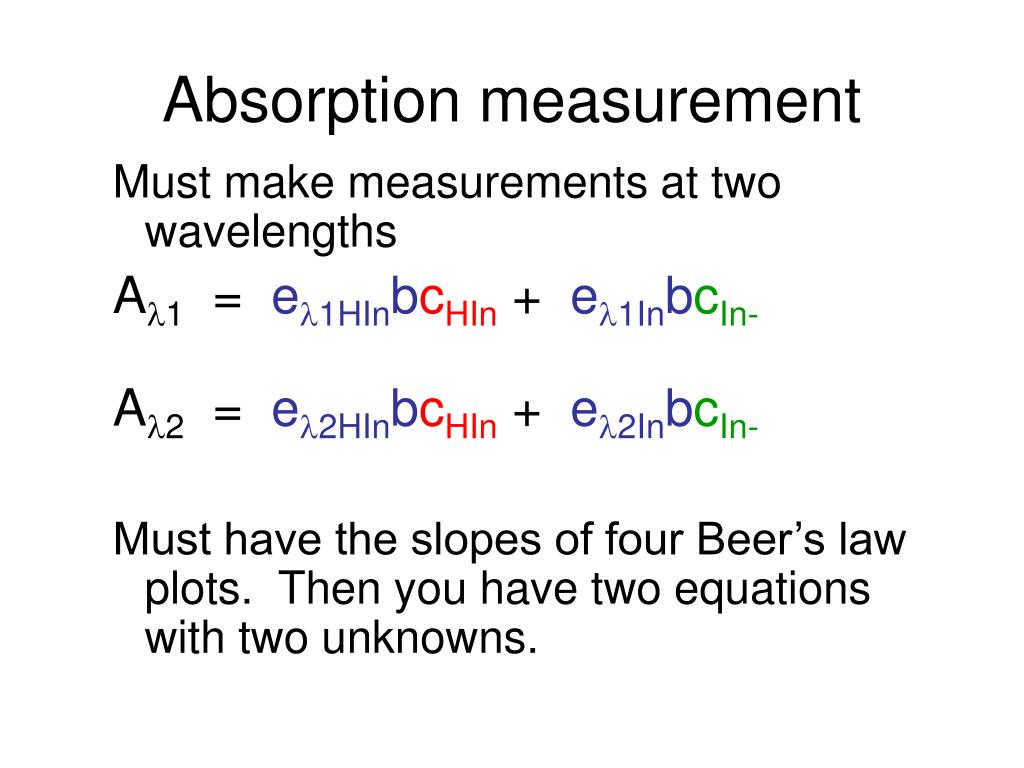

  9. Absorption measurement Must make measurements at two wavelengths Al1 = el1HInbcHIn + el1InbcIn- Al2 = el2HInbcHIn + el2InbcIn- Must have the slopes of four Beer’s law plots. Then you have two equations with two unknowns.

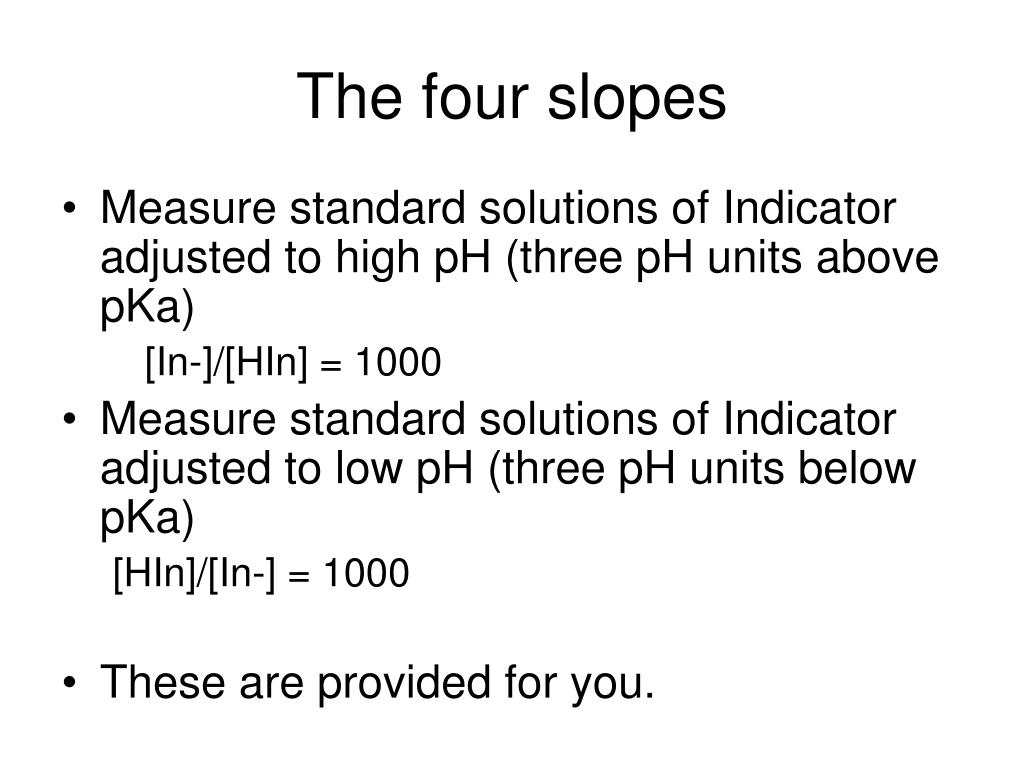

  10. The four slopes • Measure standard solutions of Indicator adjusted to high pH (three pH units above pKa) [In-]/[HIn] = 1000 • Measure standard solutions of Indicator adjusted to low pH (three pH units below pKa) [HIn]/[In-] = 1000 • These are provided for you.

  11. In the lab • Prepare Indicator solution adjusted to the proper pH • Measure its pH and Absorbance at 430 nm and 565 nm • Adjust pH with dilute HCl or NaOH by .2 pH units and remeasure • Continue until you have five measurements above and below the starting pH

  12. Spreadsheet • Type in pH and corresponding absorbance measurements and the spreadsheet will calculate Ka and pKa values automatically • Calculate [H+] from the pH • Solves simultaneous equation for [HIn] and [In-] • Solves for Ka, Ka = [H+][In-]/[HIn] • Solves for pKa, pKa = -logKa • Calculates a standard deviation
