Identifying Conics

Identifying Conics. Unit 7.1 Secondary math III. Review of Conics:. Circle. Parabola. Review of Conics:. Ellipse. Hyperbola. General Form Ax 2 +Bxy+Cy 2 +Dx+Ey+F=0. The equation for any conic section can be written in the form:

kirk
Télécharger la présentation

Identifying Conics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

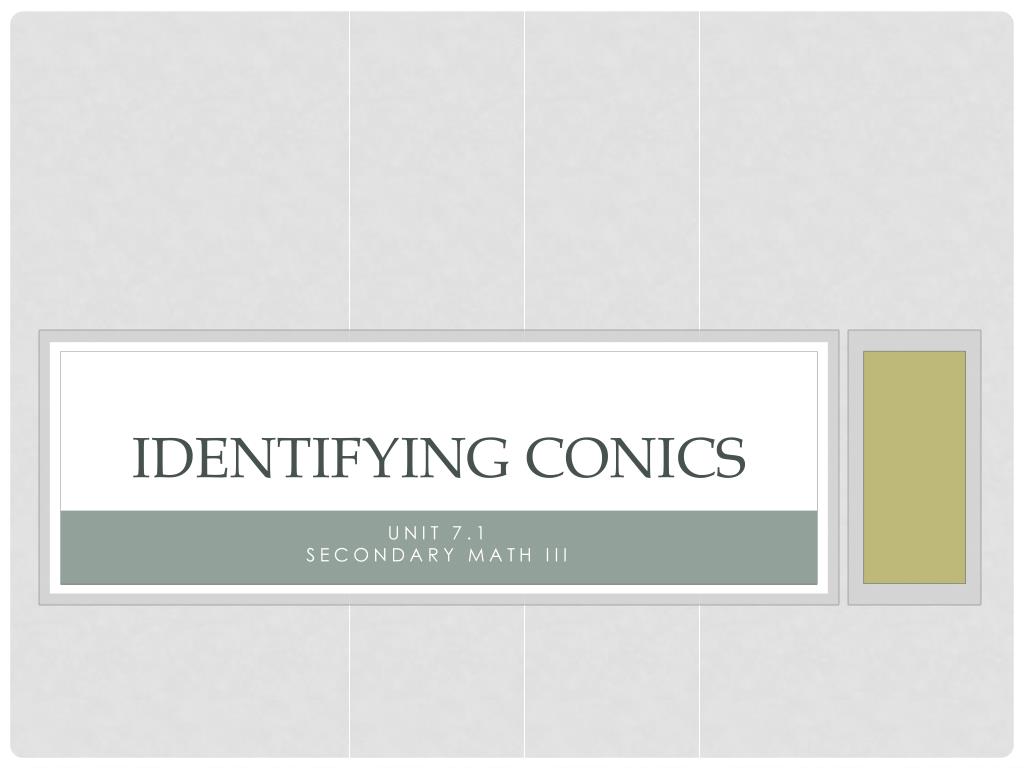

  1. Identifying Conics Unit 7.1 Secondary math III

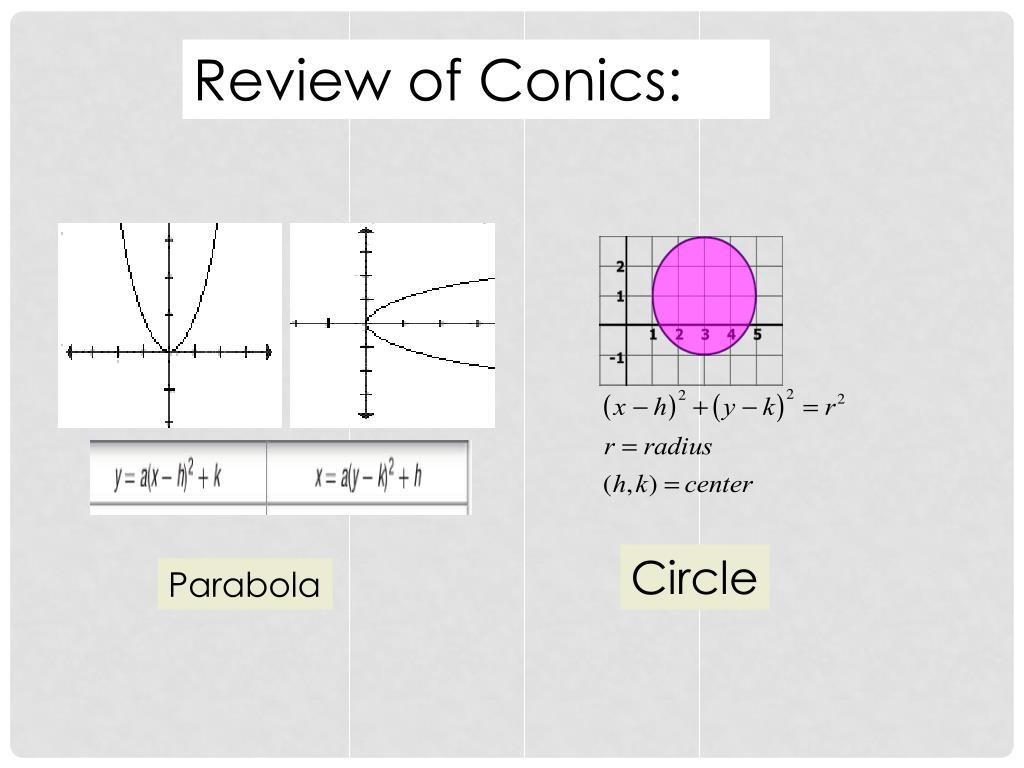

  2. Review of Conics: Circle Parabola

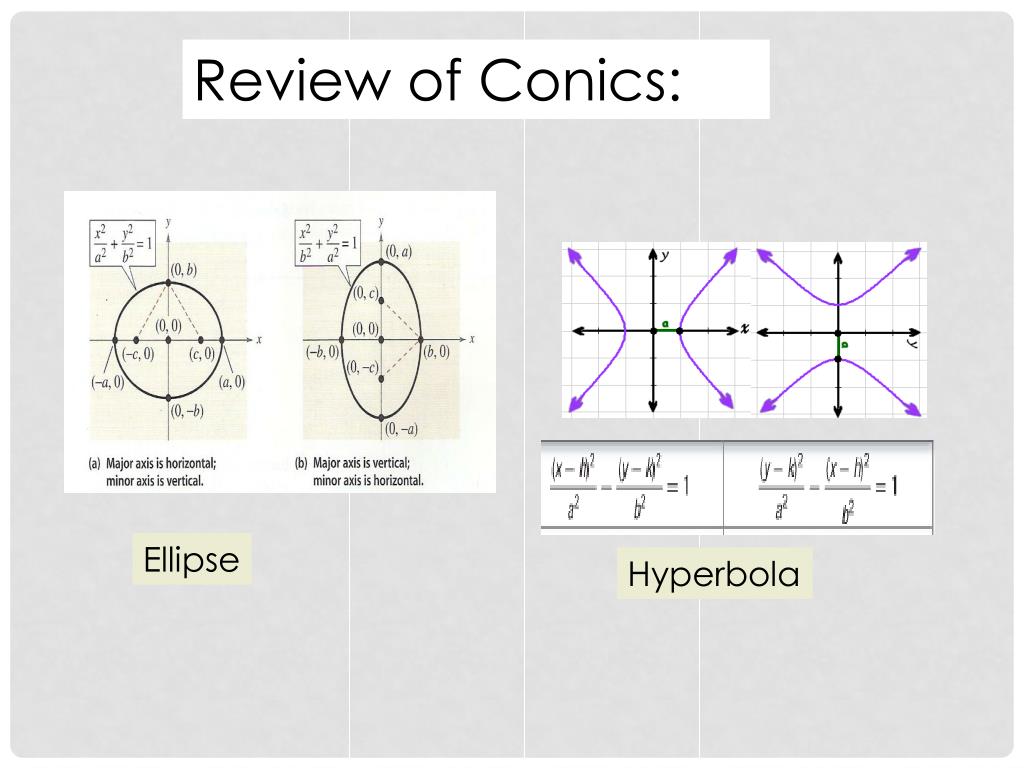

  3. Review of Conics: Ellipse Hyperbola

  4. General FormAx2+Bxy+Cy2+Dx+Ey+F=0 The equation for any conic section can be written in the form: Ax2+Bxy+Cy2+Dx+Ey+F=0, where A, B, and C are not all zero. (When the equation is in standard form, it is much easier to graph)

  5. The Discriminant The equation: B2 - 4AC, is called the discriminant. We use the numbers from the general equation for it. Ax2+Bxy+Cy2+Dx+Ey+F=0 B2 - 4AC

  6. Using the Discriminant to identify the conic. We can use the table below to help identify the equation as either a Circle, Ellipse, Parabola, or hyperbola. Ax2+Bxy+Cy2+Dx+Ey+F=0 Discriminant: B2-4AC

  7. Example 1: Equation: First identify A, B, and C. Remember: Ax2+Bxy+Cy2+Dx+Ey+F=0 Then plug into The equation: B2 - 4AC Remember there is a one in the front if there is no other number. =-7 Lastly, use the table to identify the conic

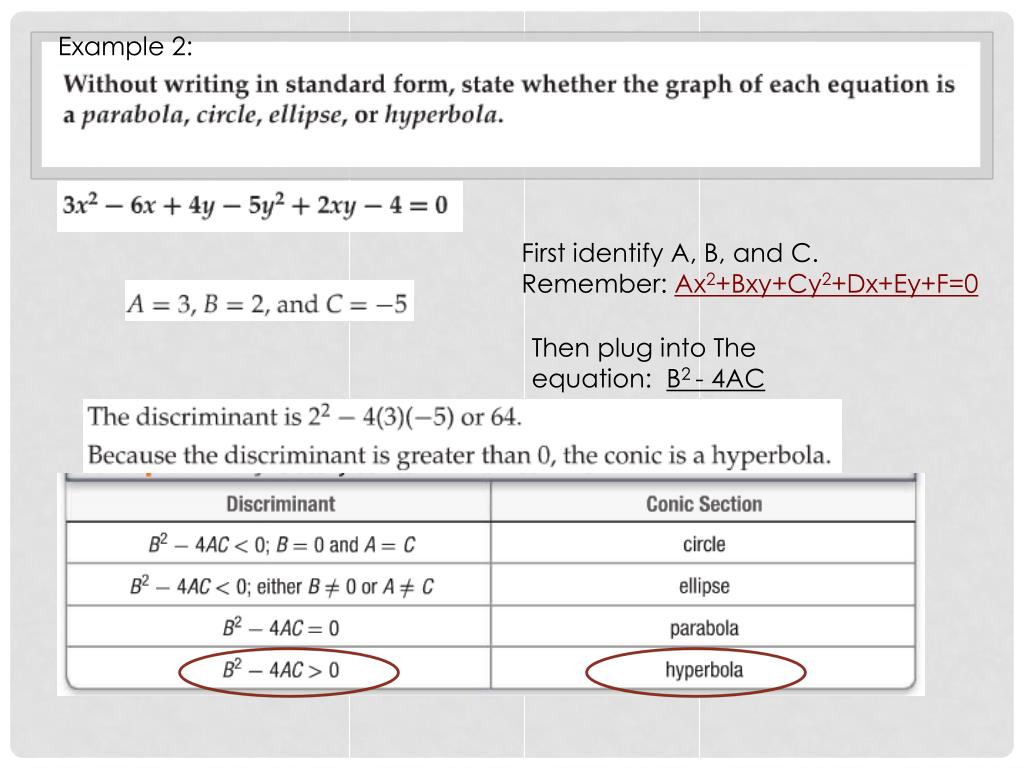

  8. Example 2: First identify A, B, and C. Remember: Ax2+Bxy+Cy2+Dx+Ey+F=0 Then plug into The equation: B2 - 4AC

  9. Example 3: First identify A, B, and C. Remember: Ax2+Bxy+Cy2+Dx+Ey+F=0
