  1. TRACE Code Analysis Resultsfor TRACY and SILENE Benchmark Phase II LIEM Peng Hong and NAITO Yoshitaka NAIS Co., Inc. Japan OECD/NEA/NSC Working Party on Nuclear Criticality Safety Meeting of the Expert Group on Criticality Excursion Analysis Knoxville, Sept. 22, 2005

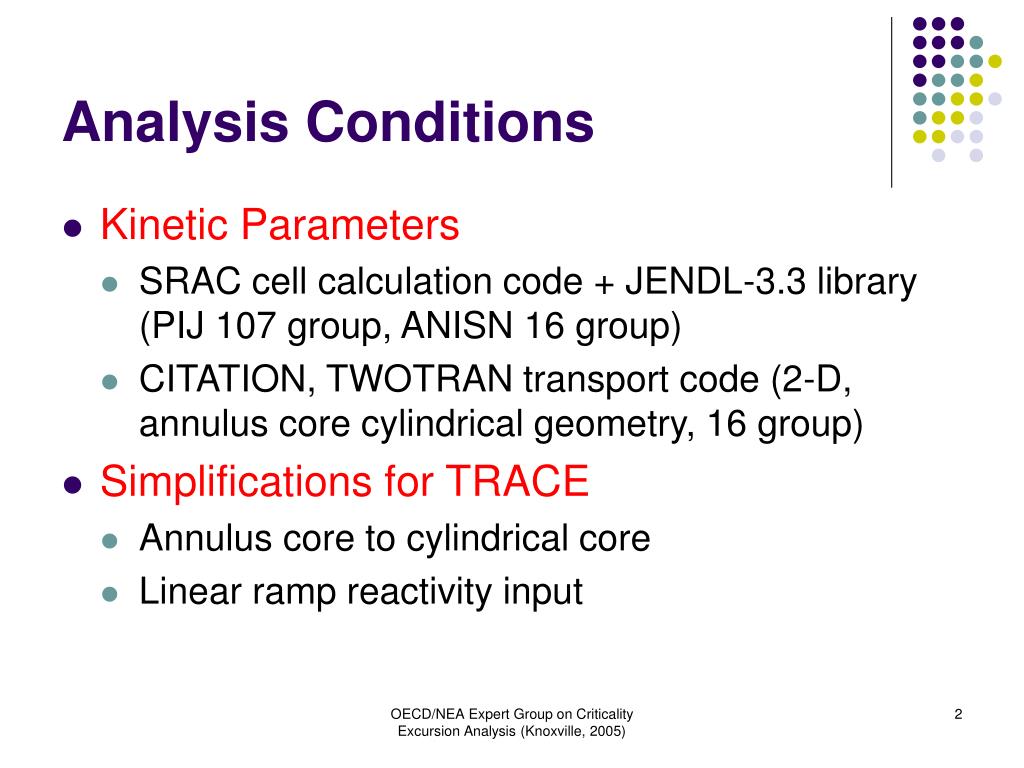

  2. Analysis Conditions • Kinetic Parameters • SRAC cell calculation code + JENDL-3.3 library (PIJ 107 group, ANISN 16 group) • CITATION, TWOTRAN transport code (2-D, annulus core cylindrical geometry, 16 group) • Simplifications for TRACE • Annulus core to cylindrical core • Linear ramp reactivity input OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

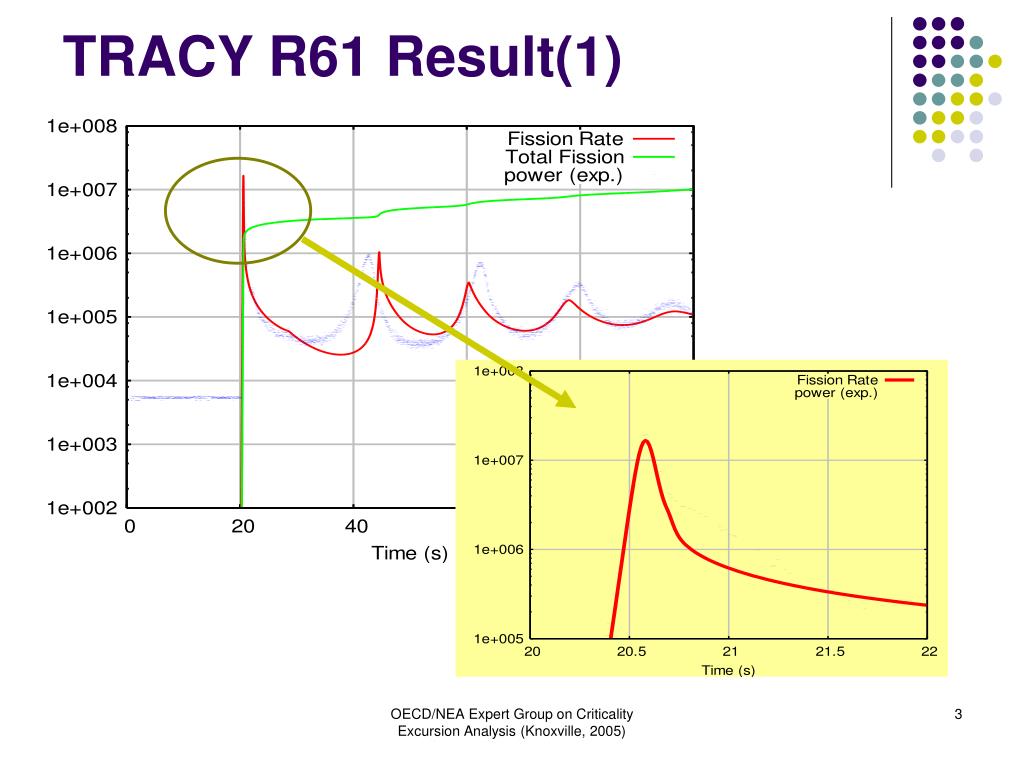

  3. TRACY R61 Result(1) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

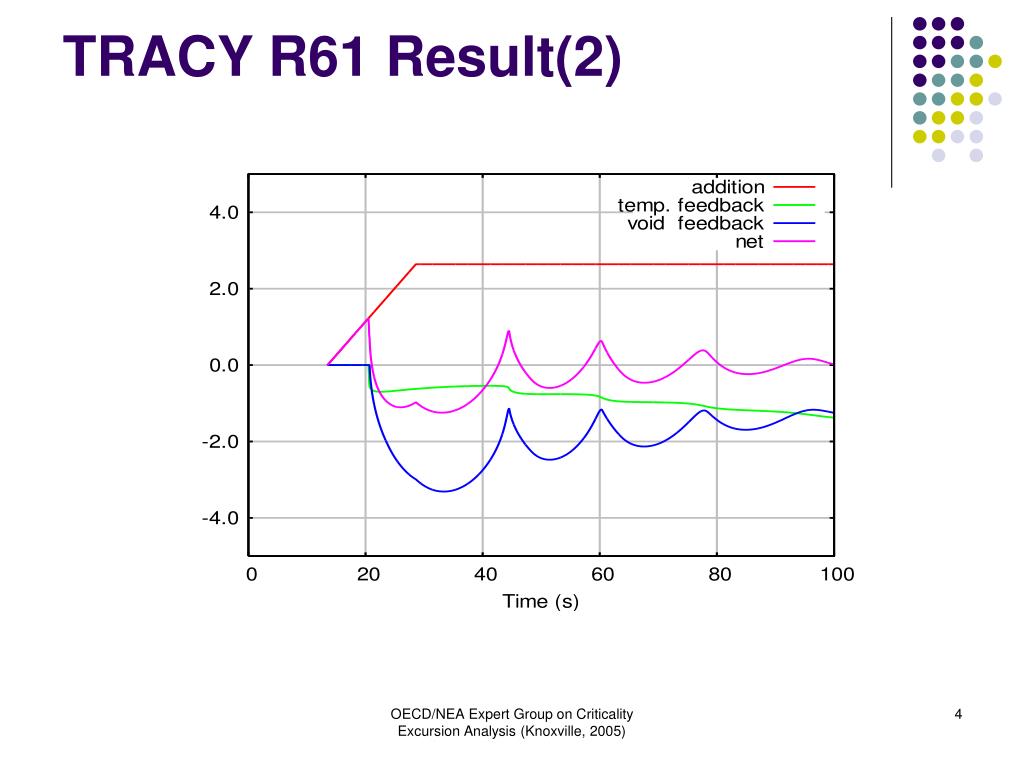

  4. TRACY R61 Result(2) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

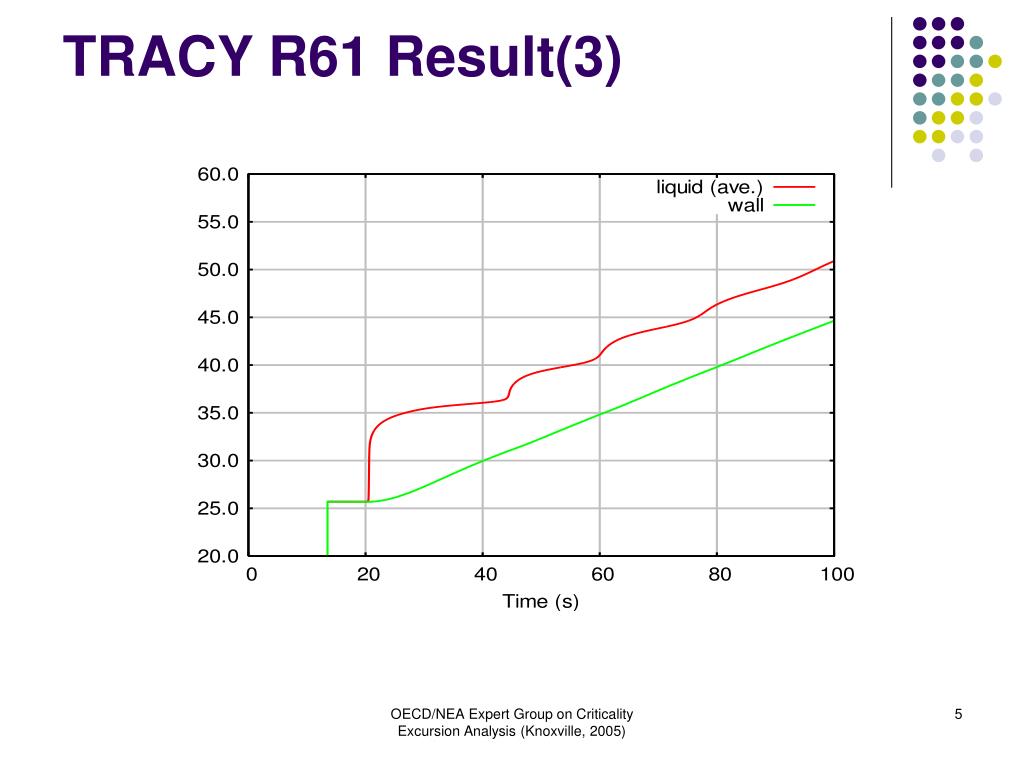

  5. TRACY R61 Result(3) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

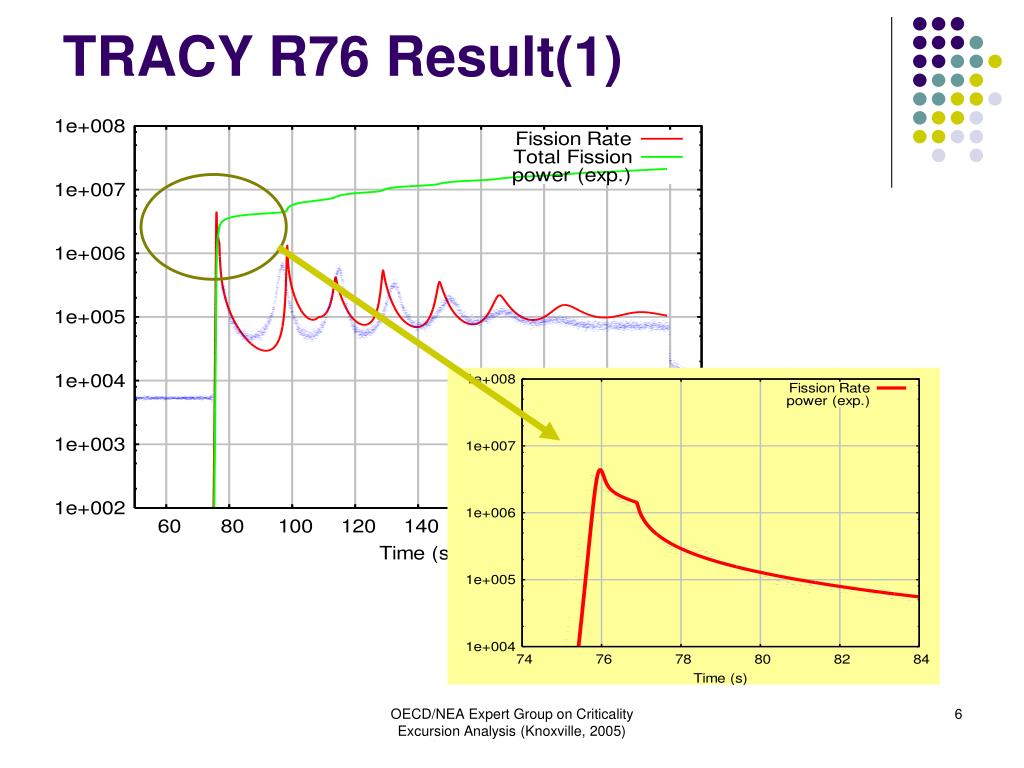

  6. TRACY R76 Result(1) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

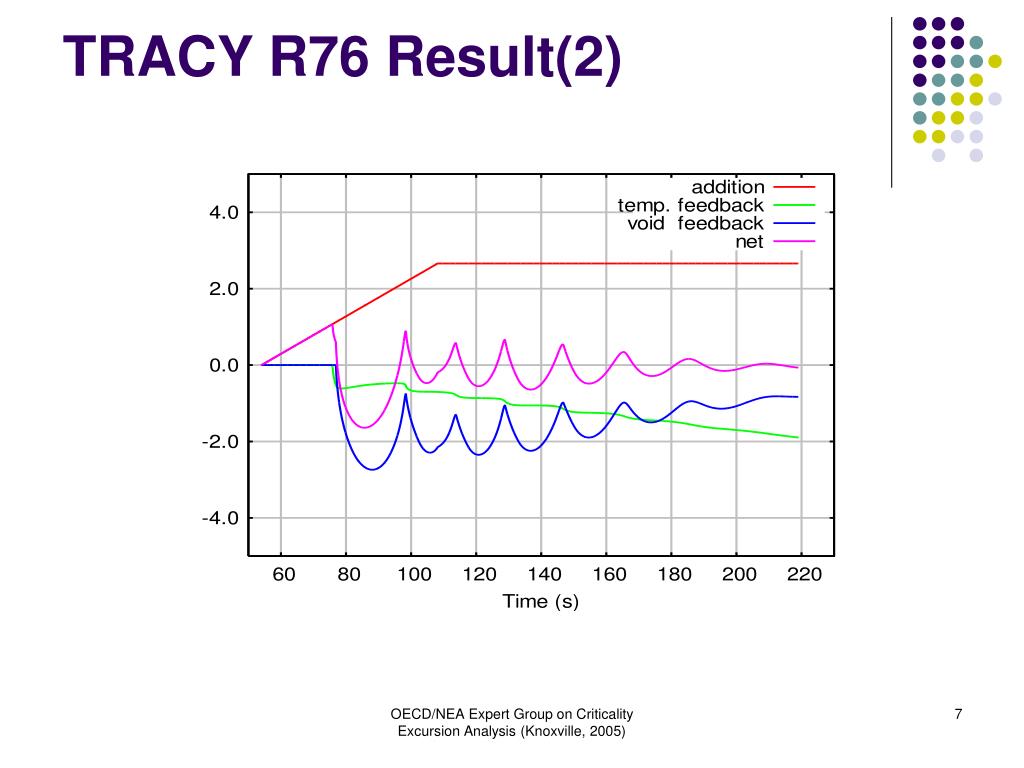

  7. TRACY R76 Result(2) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

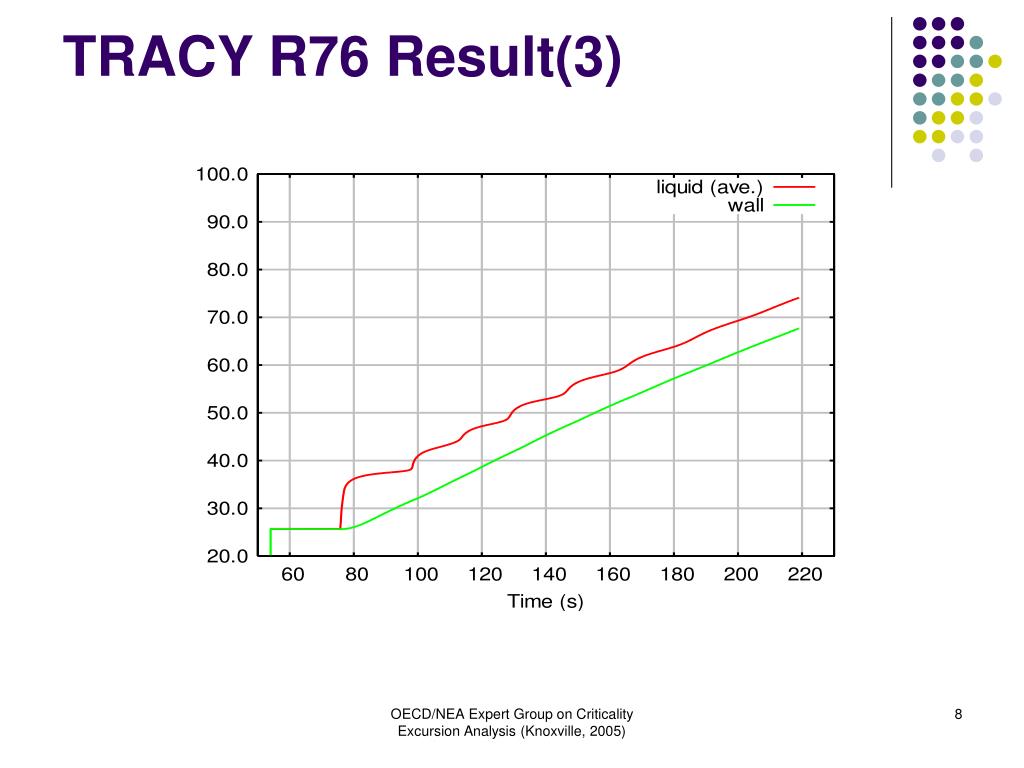

  8. TRACY R76 Result(3) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

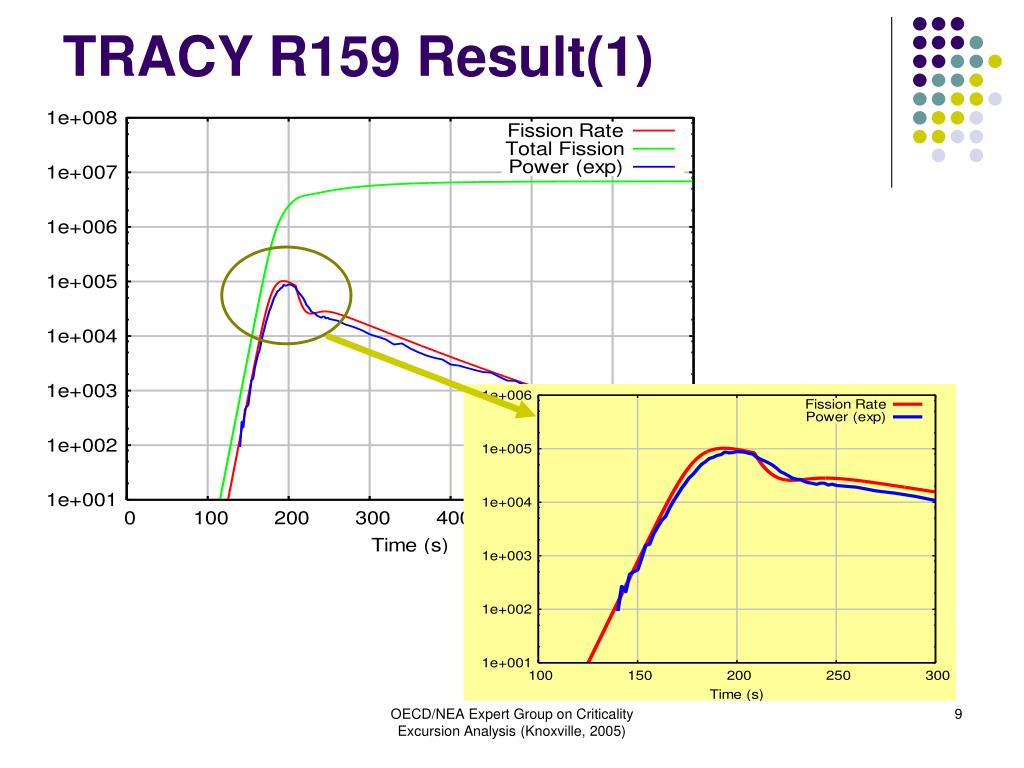

  9. TRACY R159 Result(1) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

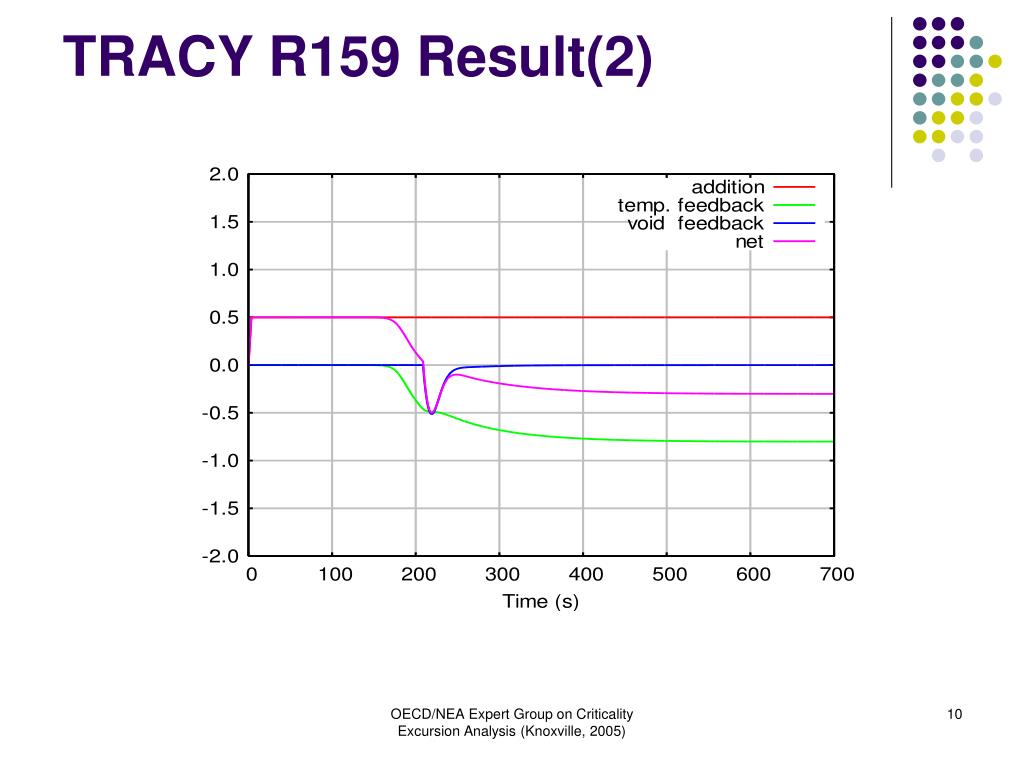

  10. TRACY R159 Result(2) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

  11. TRACY R159 Result(3) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

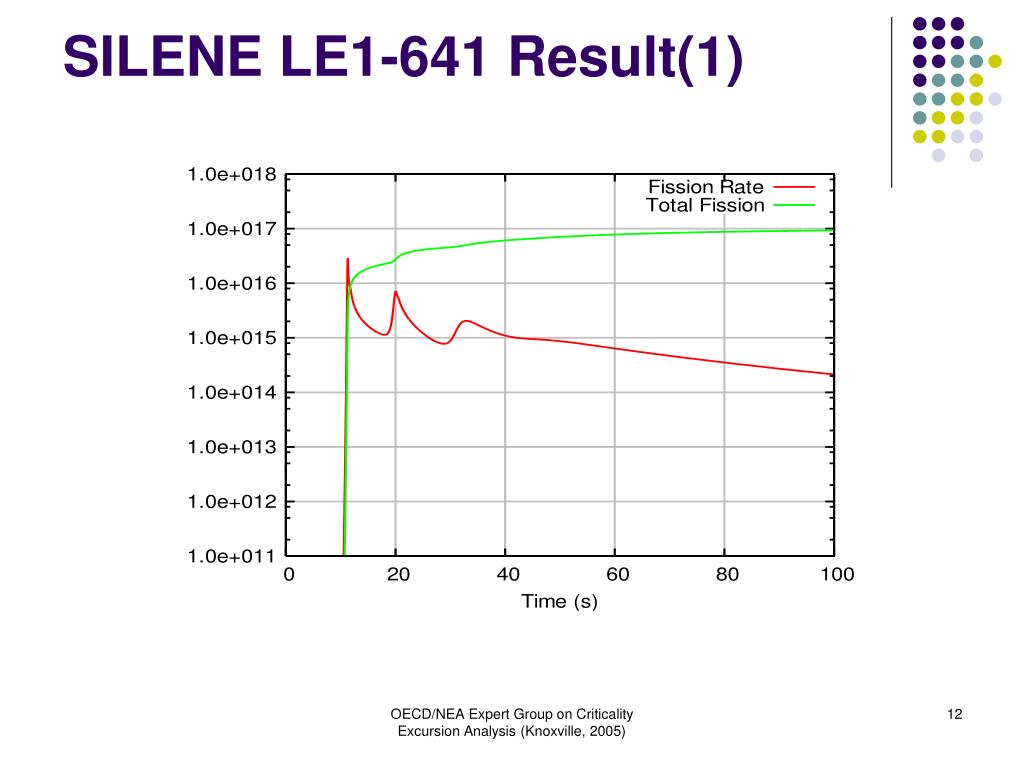

  12. SILENE LE1-641 Result(1) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

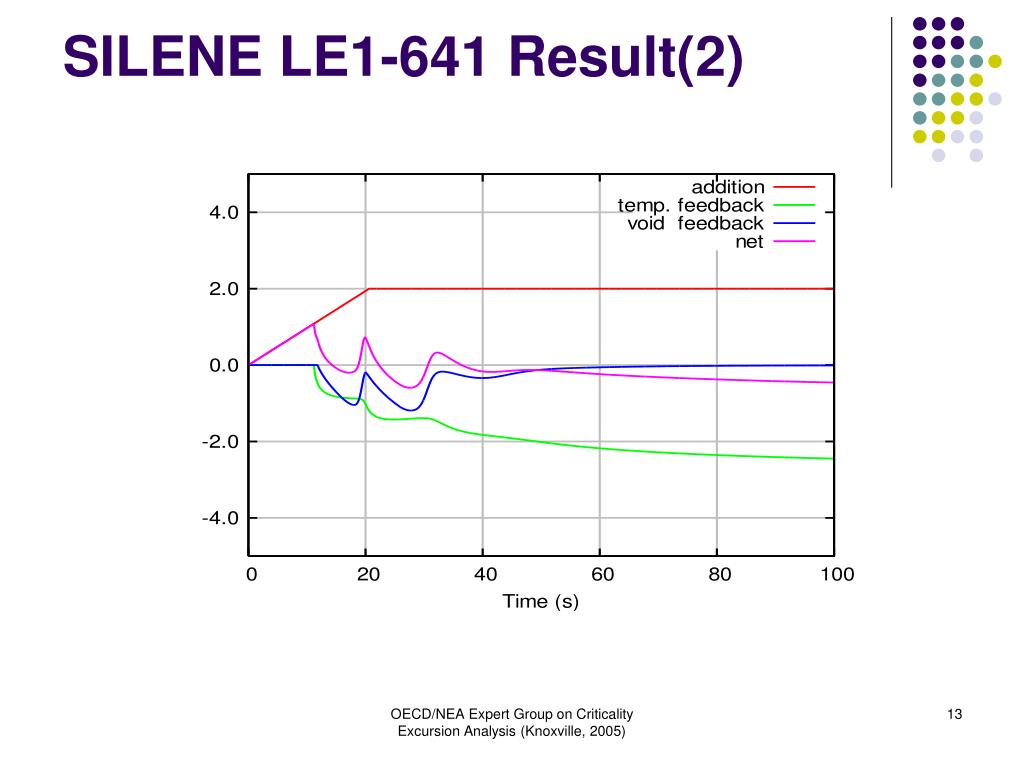

  13. SILENE LE1-641 Result(2) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

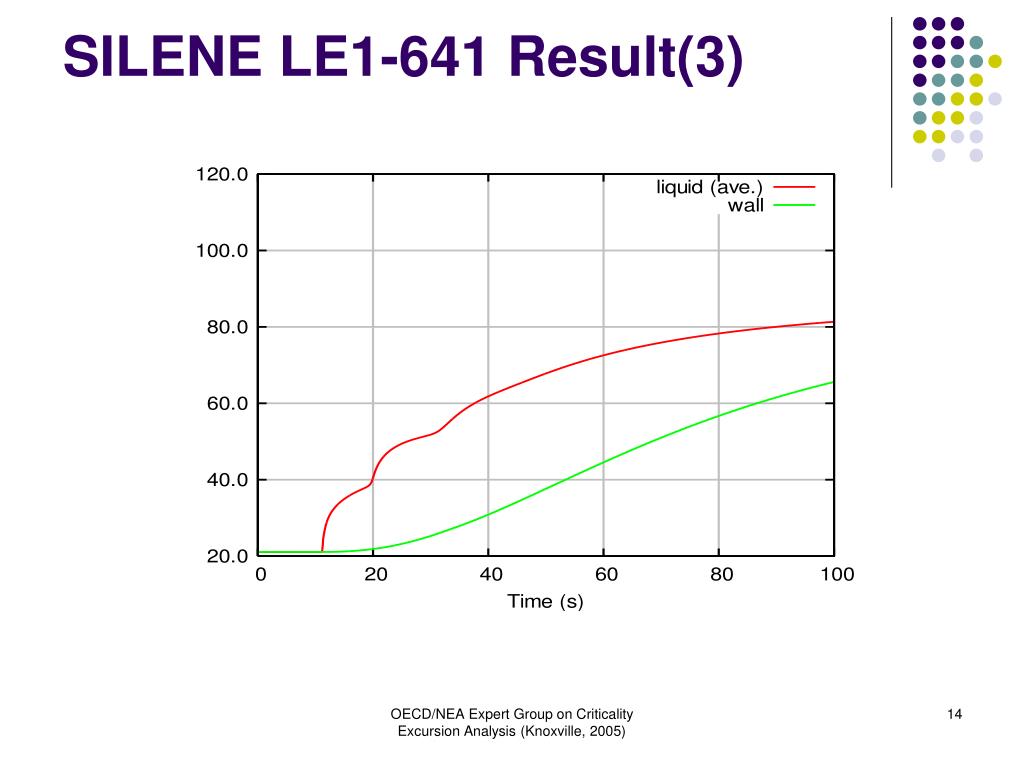

  14. SILENE LE1-641 Result(3) OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

  15. Results Summary OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)

  16. Future Works • Long-term simulation for SILENE LE1-641 • Inclusion of heat removal effect (structural materials and natural circulation of air) • Some revision works for Benchmark Phase I OECD/NEA Expert Group on Criticality Excursion Analysis (Knoxville, 2005)
