  1. Voting Geometry:A Mathematical Study of Voting Methods and Their Properties Alan T. Sherman Dept. of CSEE, UMBC March 27, 2006

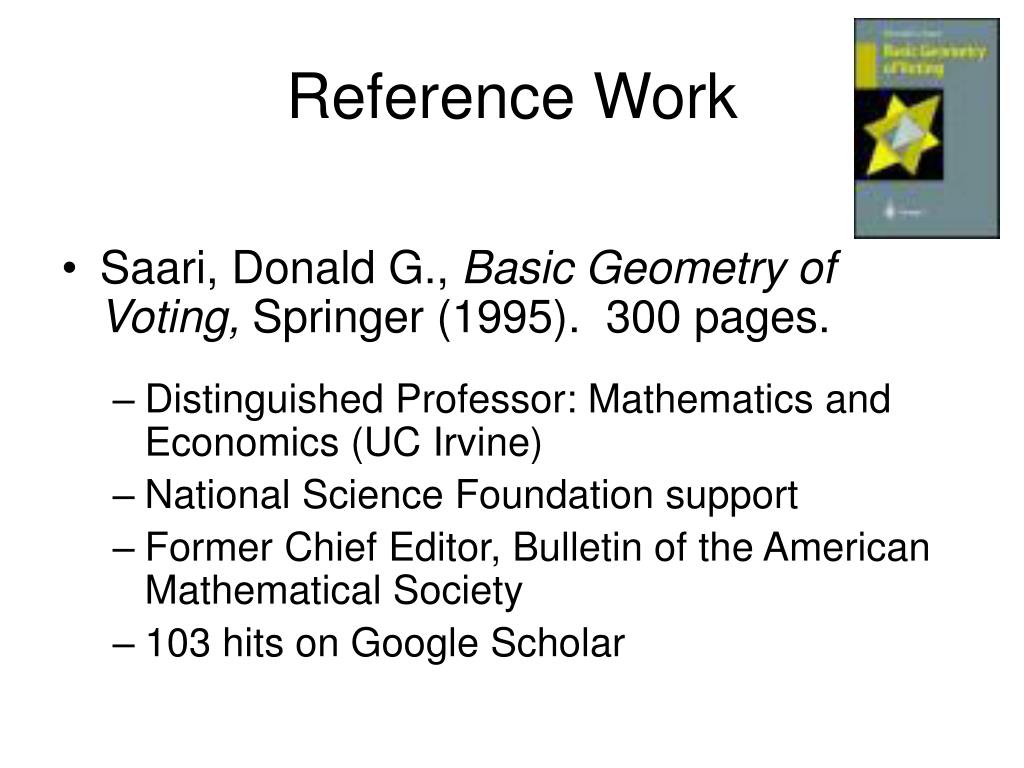

  2. Reference Work • Saari, Donald G., Basic Geometry of Voting, Springer (1995). 300 pages. • Distinguished Professor: Mathematics and Economics (UC Irvine) • National Science Foundation support • Former Chief Editor, Bulletin of the American Mathematical Society • 103 hits on Google Scholar

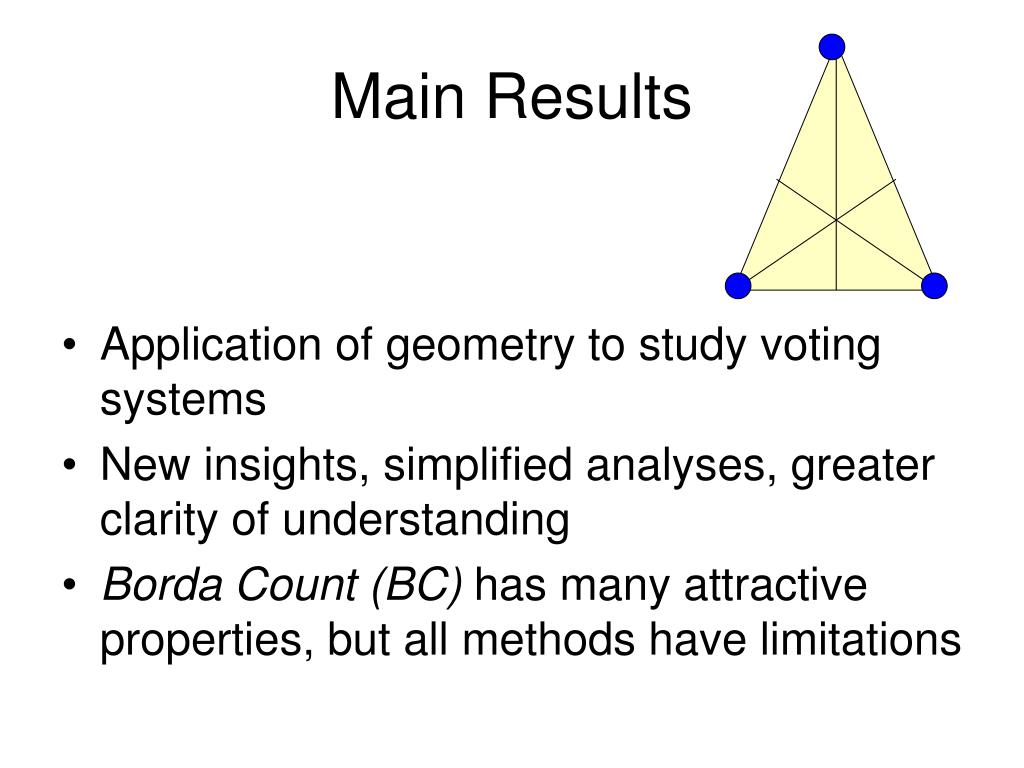

  3. Main Results • Application of geometry to study voting systems • New insights, simplified analyses, greater clarity of understanding • Borda Count (BC) has many attractive properties, but all methods have limitations

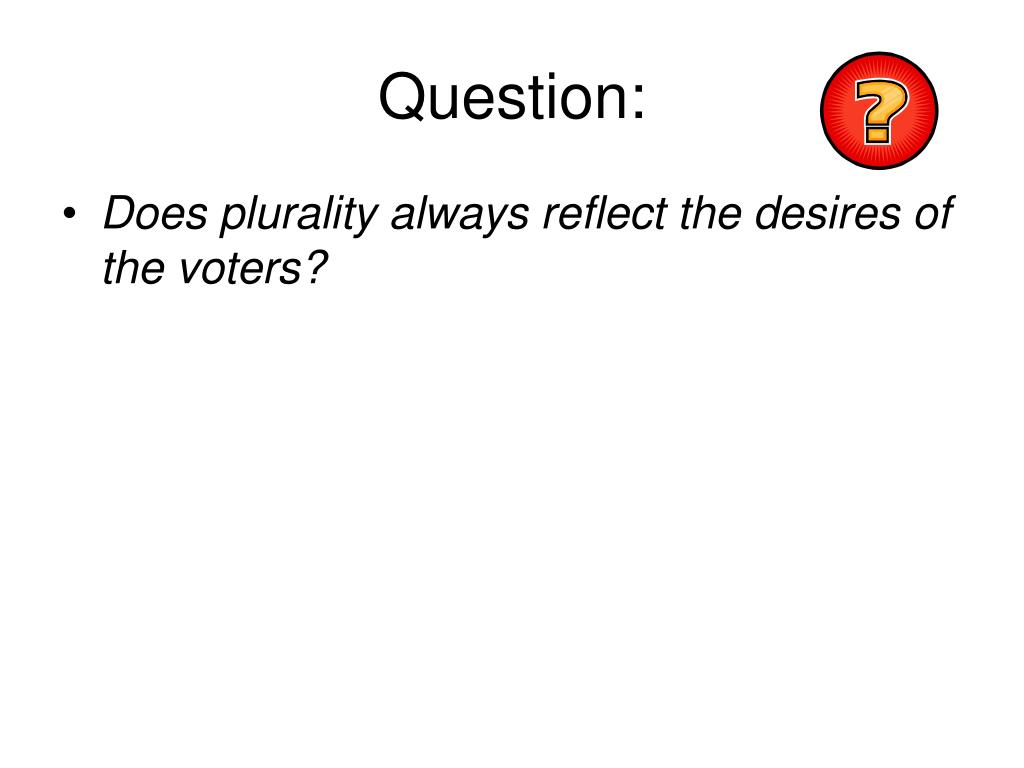

  4. Question: • Does plurality always reflect the desires of the voters?

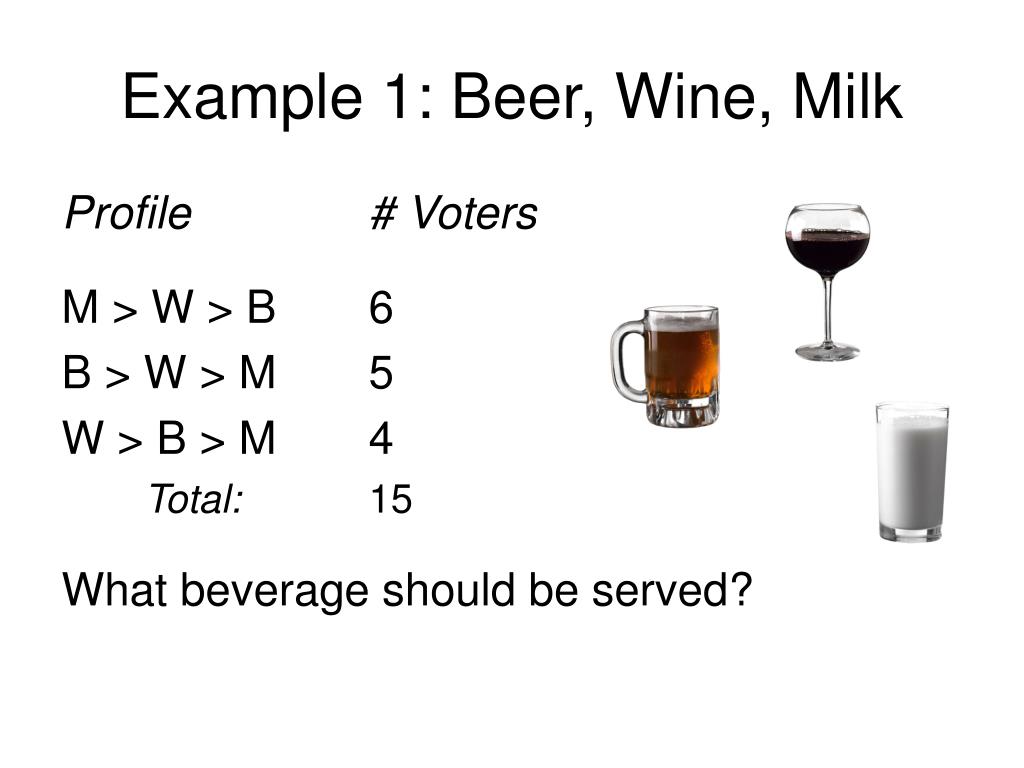

  5. Example 1: Beer, Wine, Milk Profile # Voters M > W > B 6 B > W > M 5 W > B > M 4 Total: 15 What beverage should be served?

  6. Profile # M > W > B 6 B > W > M 5 W > B > M 4 B W M 5 4 6 Example 1: Plurality

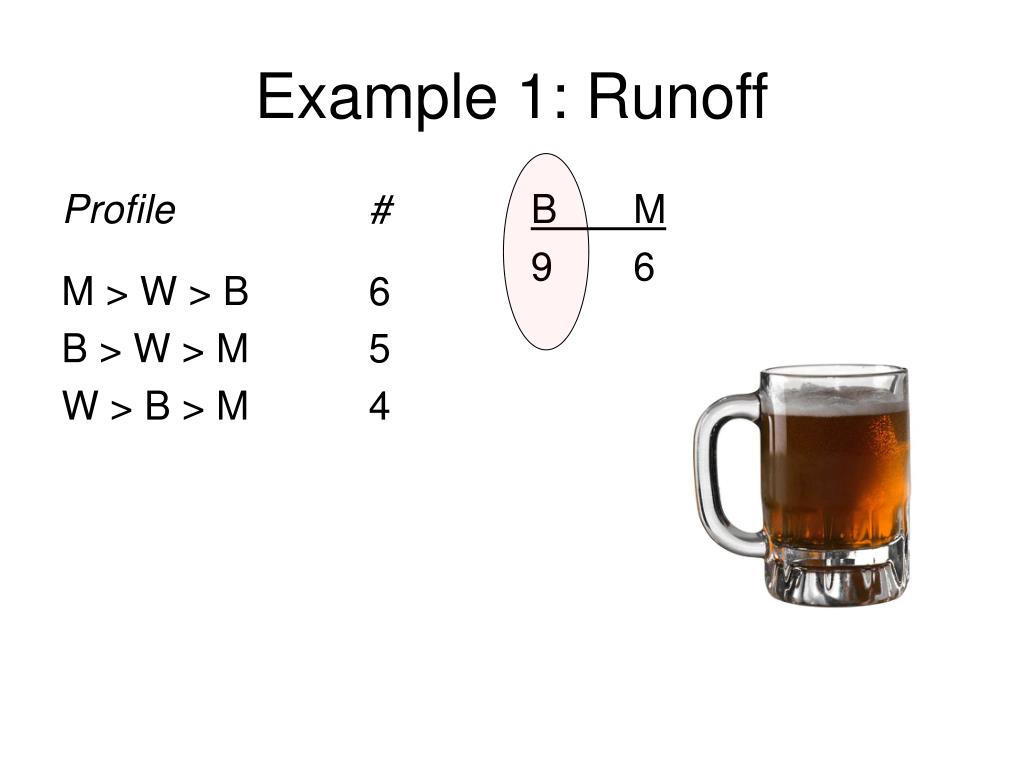

  7. Profile # M > W > B 6 B > W > M 5 W > B > M 4 B M 9 6 Example 1: Runoff

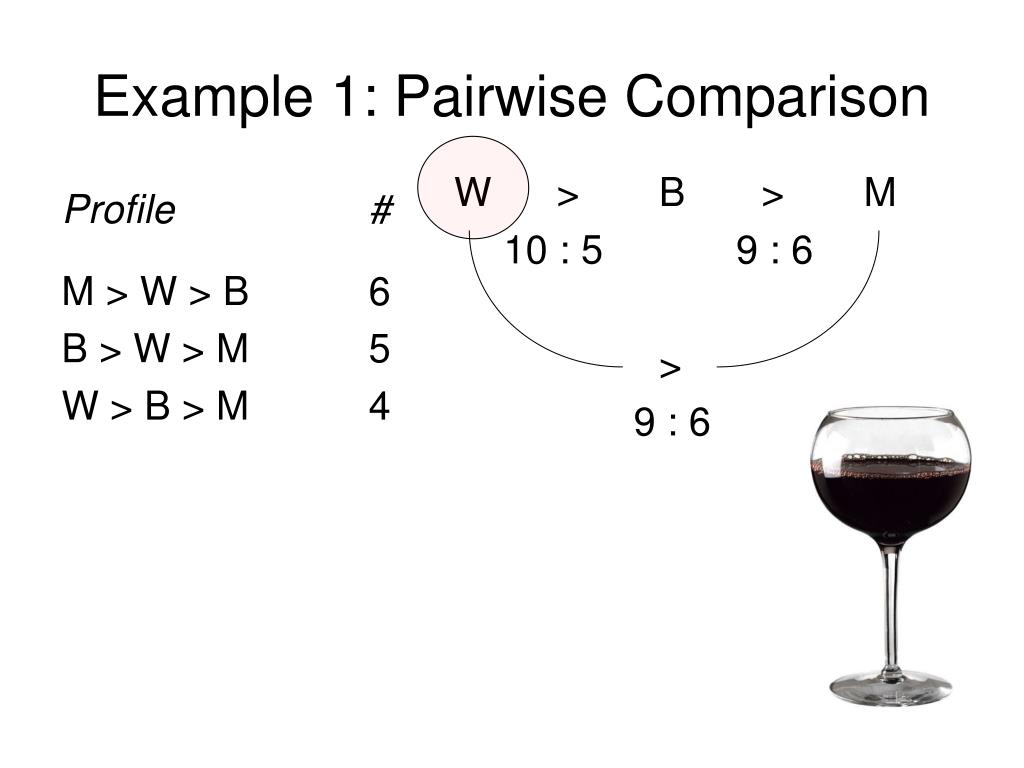

  8. Profile # M > W > B 6 B > W > M 5 W > B > M 4 W > B > M 10 : 5 9 : 6 > 9 : 6 Example 1: Pairwise Comparison

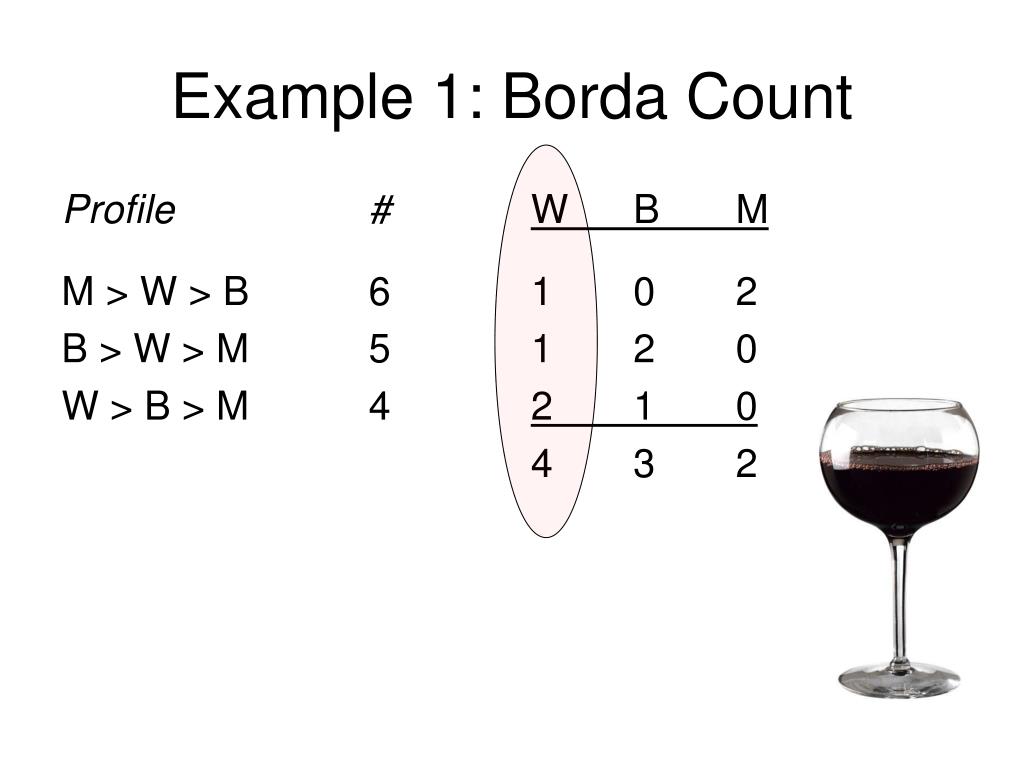

  9. Profile # M > W > B 6 B > W > M 5 W > B > M 4 W B M 1 0 2 1 2 0 2 1 0 4 3 2 Example 1: Borda Count

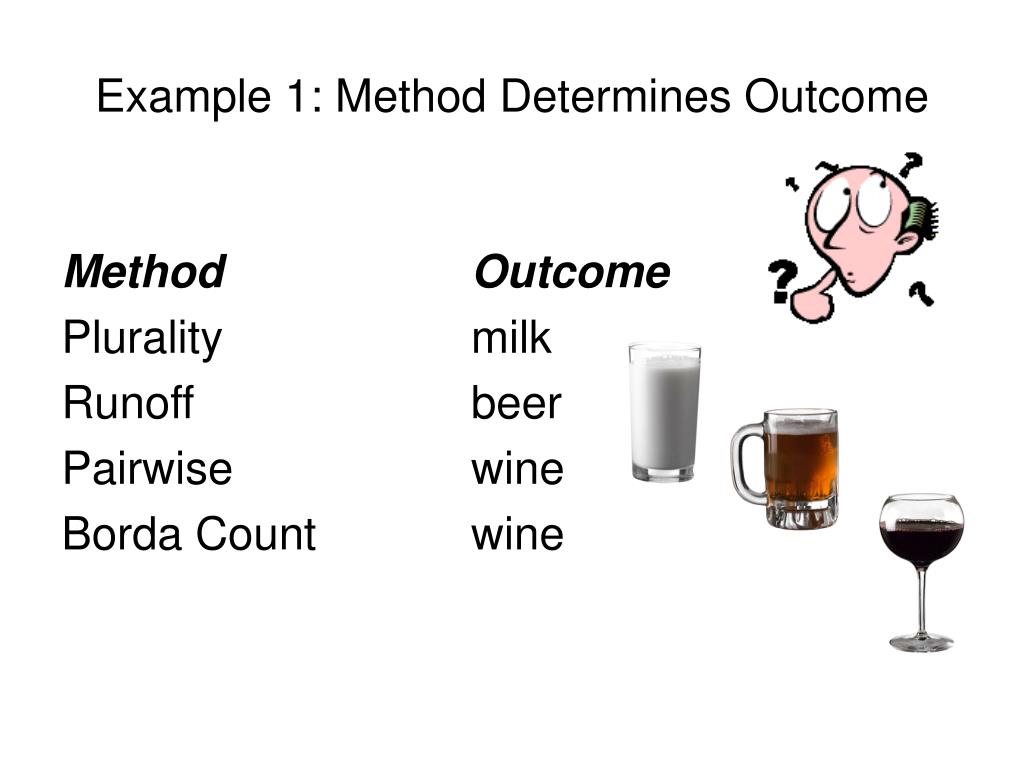

  10. Example 1: Method Determines Outcome Method Outcome Plurality milk Runoff beer Pairwise wine Borda Count wine

  11. Outline • Motivation • Why voting is hard to analyze • History • Modeling voting • Methods: pairwise, positional • Properties: Arrow’s Theorem • Other issues: manipulation, apportionment • Conclusion

  12. Motivation • Understand election results • Understand properties of election methods • Find effective methods for reasoning about election methods • Identify desirable properties of election methods • Help officials make informed decisions in choosing election methods

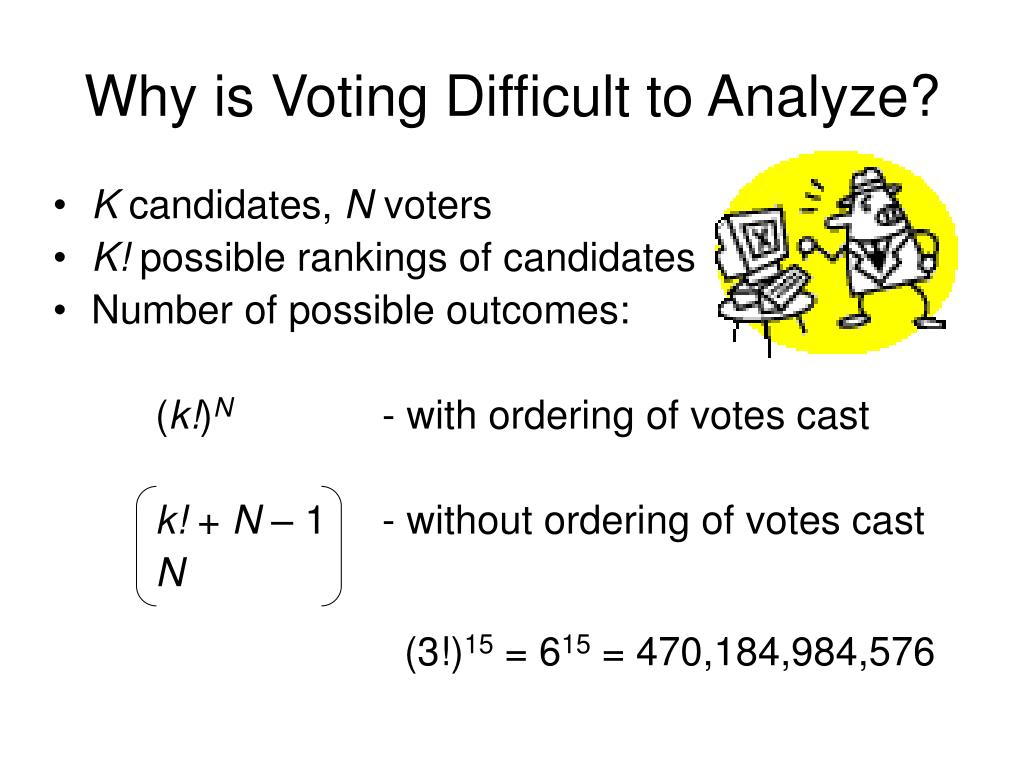

  13. Why is Voting Difficult to Analyze? • K candidates, N voters • K! possible rankings of candidates • Number of possible outcomes: (k!)N - with ordering of votes cast k! + N – 1 - without ordering of votes cast N (3!)15 = 615 = 470,184,984,576

  14. History • Aristotle (384-322 BC) • Politics 335-323 BC • Jean-Charles Borda (1733-1799) • 1770, 1984 • M. Condorcet (1743-1794) • Donald Saari • 1978

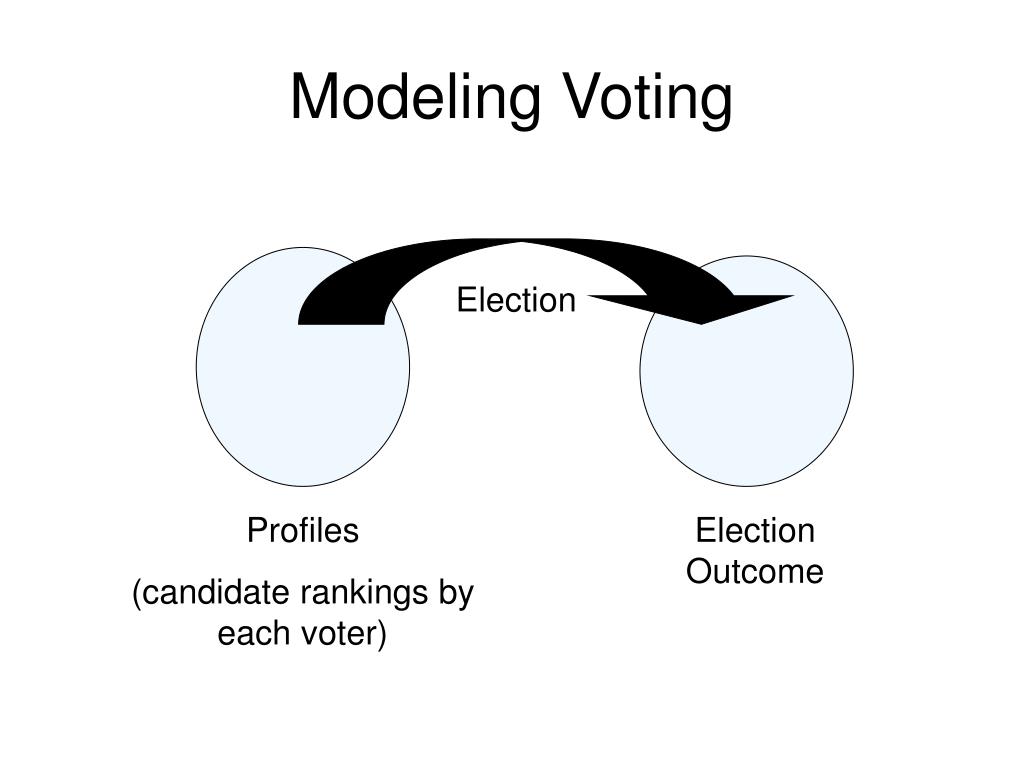

  15. Modeling Voting Election Profiles (candidate rankings by each voter) Election Outcome

  16. W 4 6 5 M B Profiles Frequency counts of rankings by voters P = (p1, p2, …, p6) (k = 3 candidates, P = (6,5,4,0,0,0) N = 15 voters) P = (6/15,5/15,4/15,0,0,0) normalized

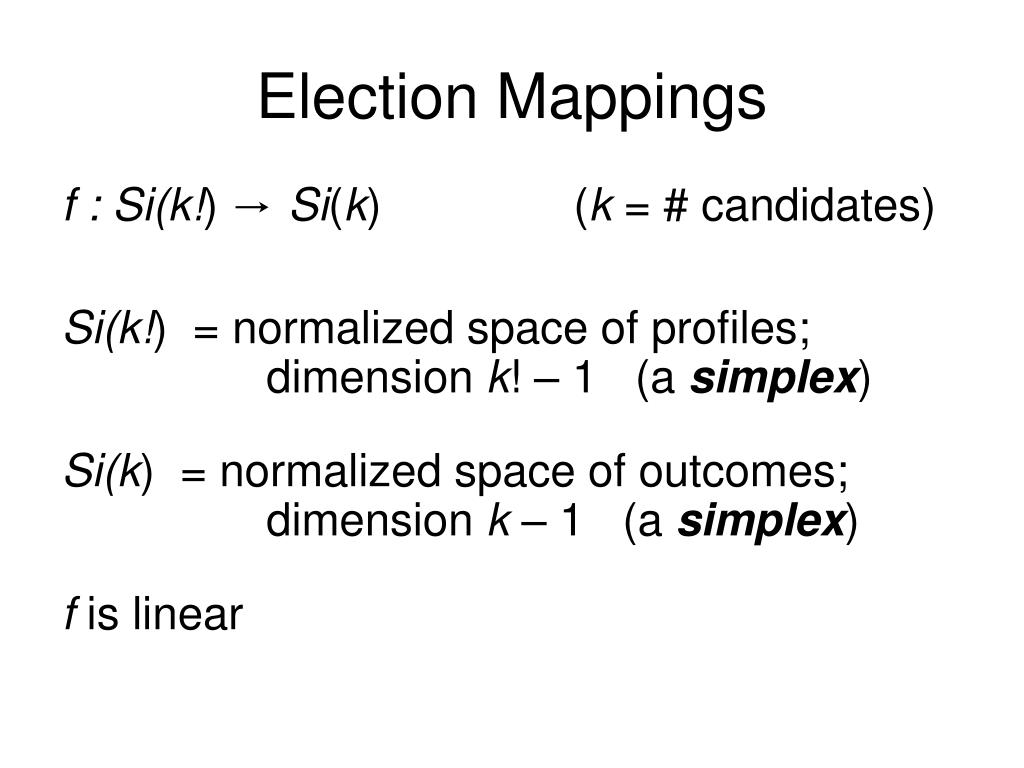

  17. Election Mappings f : Si(k!) → Si(k) (k = # candidates) Si(k!) = normalized space of profiles; dimension k! – 1 (a simplex) Si(k) = normalized space of outcomes; dimension k– 1 (a simplex) f is linear

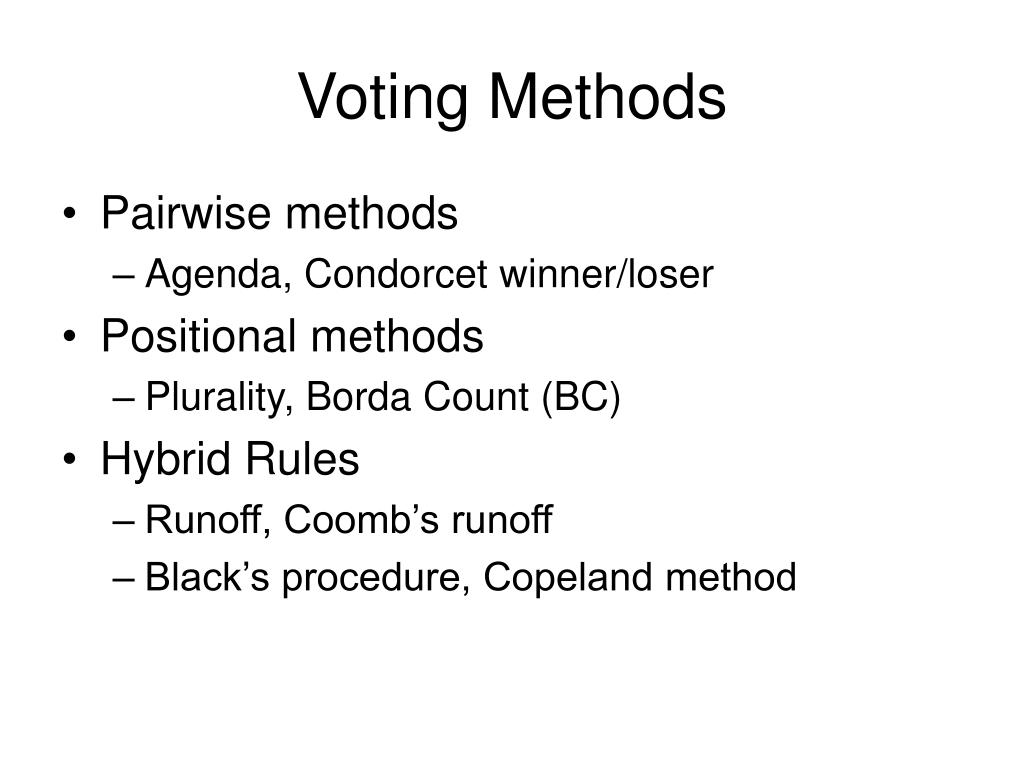

  18. Voting Methods • Pairwise methods • Agenda, Condorcet winner/loser • Positional methods • Plurality, Borda Count (BC) • Hybrid Rules • Runoff, Coomb’s runoff • Black’s procedure, Copeland method

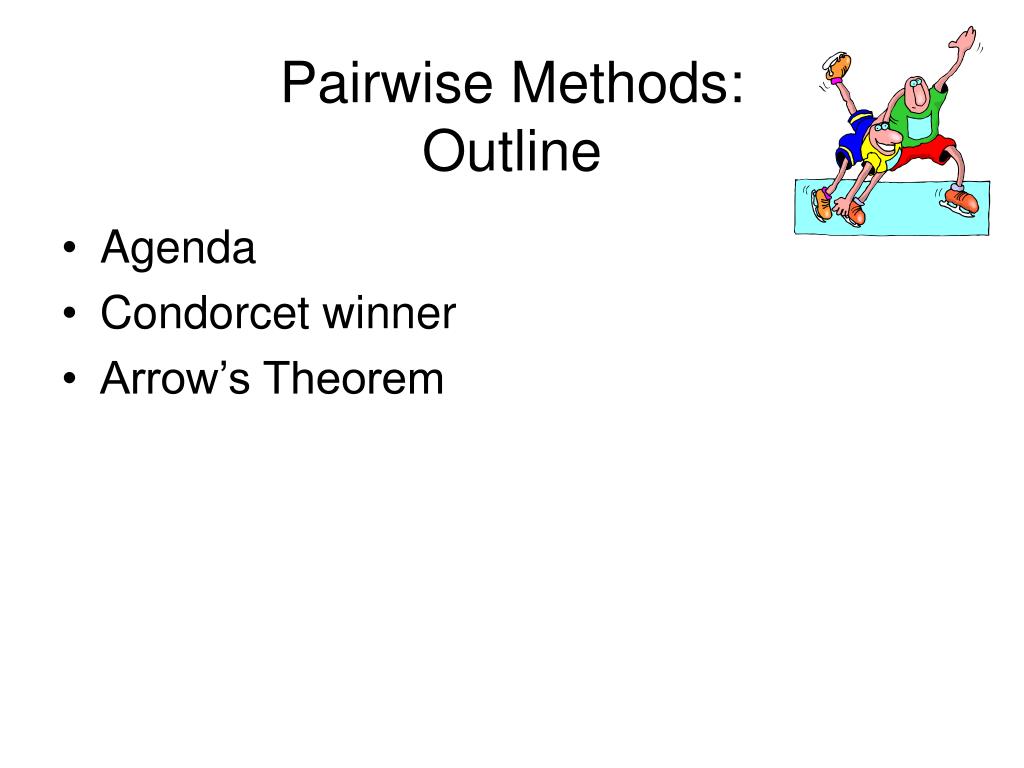

  19. Pairwise Methods:Outline • Agenda • Condorcet winner • Arrow’s Theorem

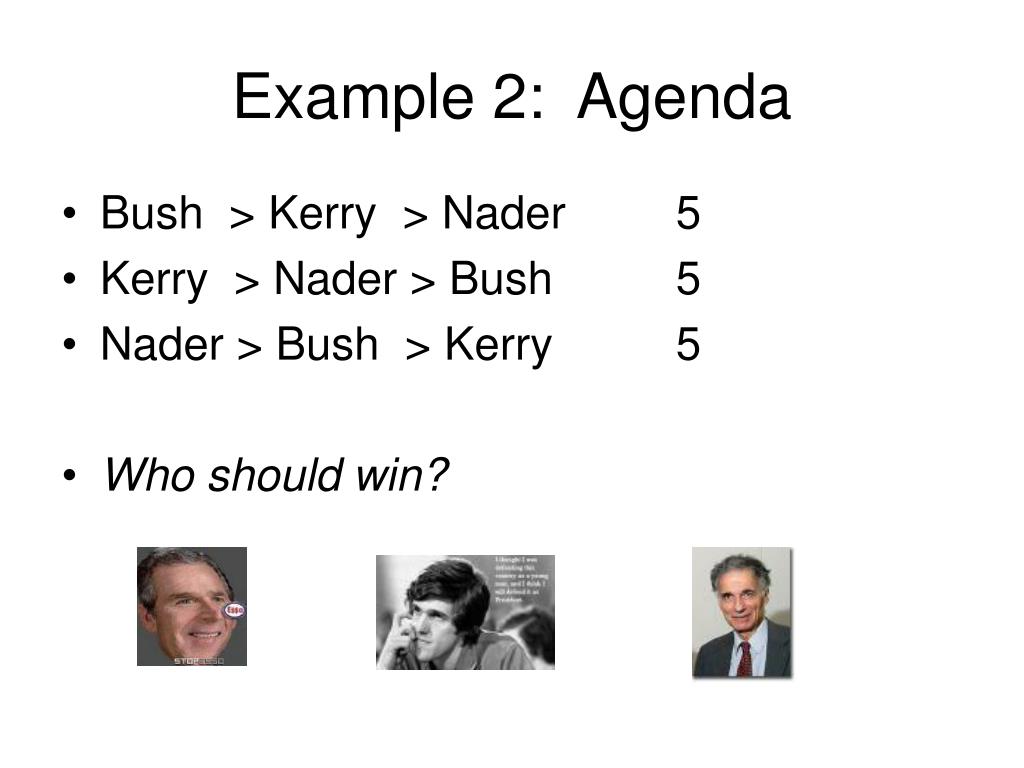

  20. Example 2: Agenda • Bush > Kerry > Nader 5 • Kerry > Nader > Bush 5 • Nader > Bush > Kerry 5 • Who should win?

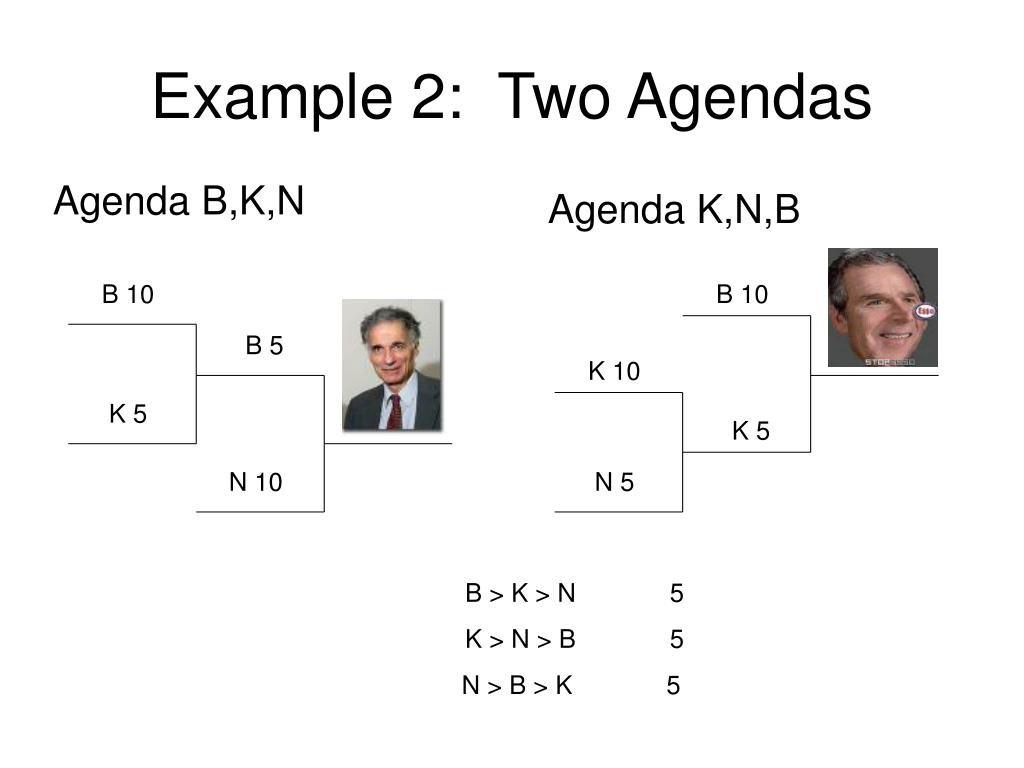

  21. Agenda B,K,N Example 2: Two Agendas Agenda K,N,B B 10 B 10 B 5 K 10 K 5 K 5 N 10 N 5 B > K > N 5 K > N > B 5 N > B > K 5

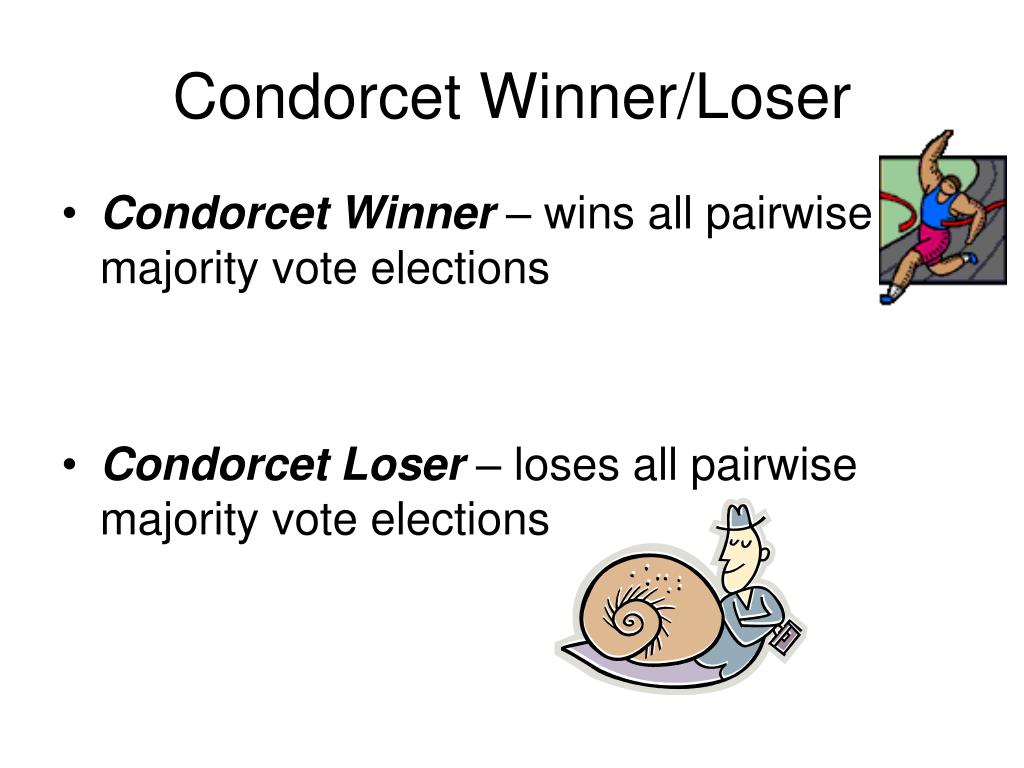

  22. Condorcet Winner/Loser • Condorcet Winner – wins all pairwise majority vote elections • Condorcet Loser – loses all pairwise majority vote elections

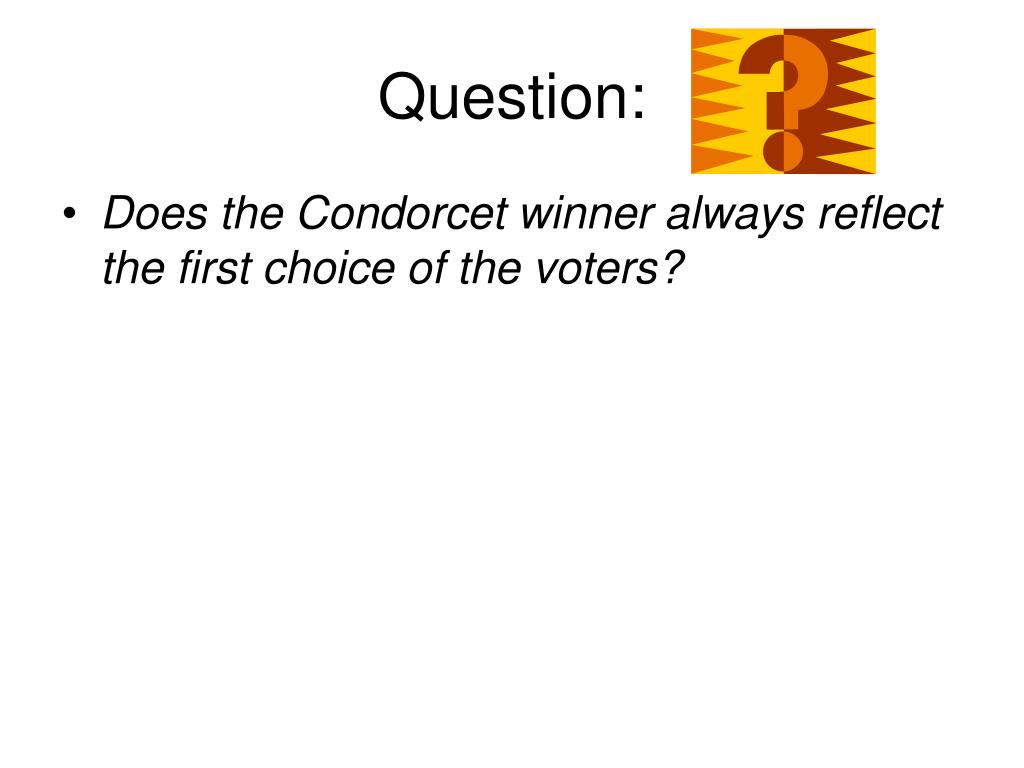

  23. Question: • Does the Condorcet winner always reflect the first choice of the voters?

  24. Problems with Condorcet Winners • Condorcet winner does not always exist • Confused voters (non-transitive preferences) • Missing intensity of comparisons election

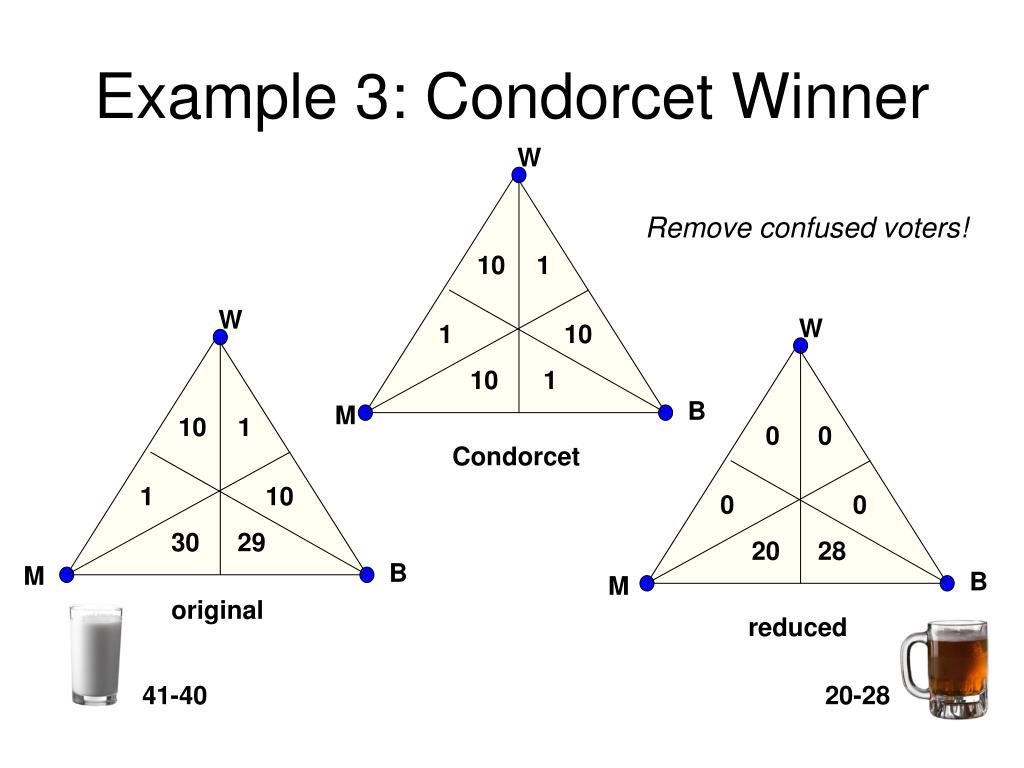

  25. W W W 10 10 0 1 0 1 1 1 0 10 10 0 10 30 20 29 1 28 B B B Example 3: Condorcet Winner Remove confused voters! M Condorcet M M original reduced 41-40 20-28

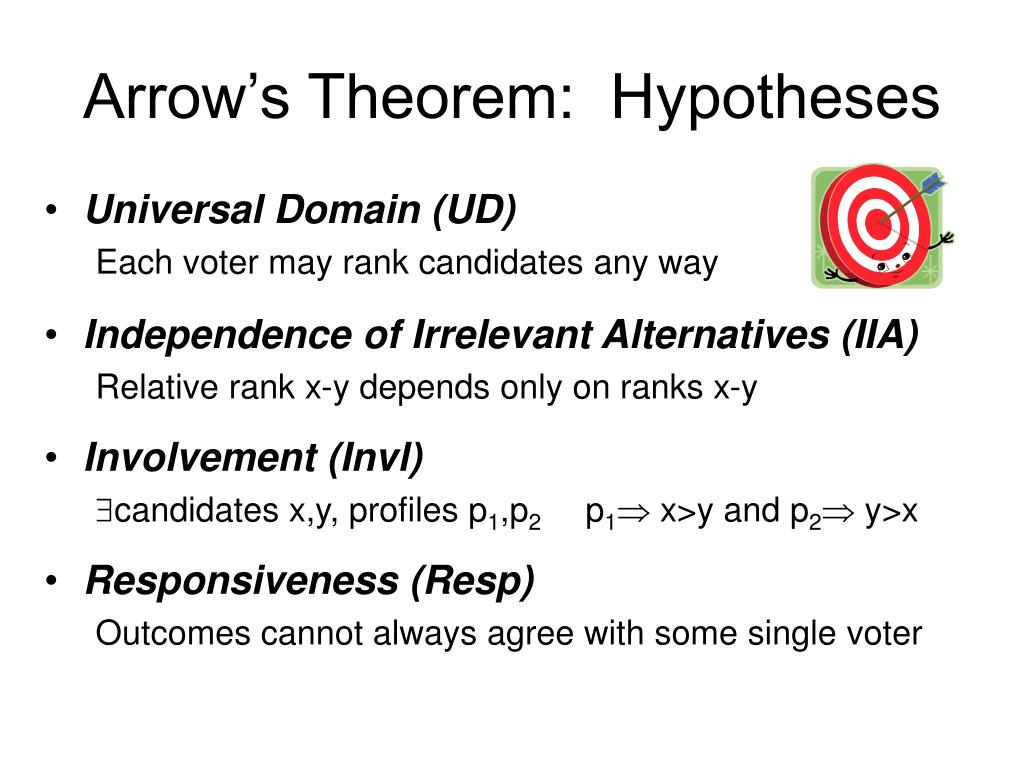

  26. Arrow’s Theorem: Hypotheses • Universal Domain (UD) Each voter may rank candidates any way • Independence of Irrelevant Alternatives (IIA) Relative rank x-y depends only on ranks x-y • Involvement (Invl) candidates x,y, profiles p1,p2 p1 x>y and p2 y>x • Responsiveness (Resp) Outcomes cannot always agree with some single voter

  27. Arrow’s Theorem Theorem (1963). For 3 voters, there is no voting procedure with strict rankings that satisfies UD, IIA, Invl, and Resp. Corollary (Arrow). The only voting procedure that always gives strict rankings of 3 candidates, and that satisfies UD, IIA, and Invl, is dictatorship.

  28. Borda Count • “Appears to be optimal” • Unique method to represent true wishes of voters • Minimizes number and kind of paradoxes • Minimizes manipulation

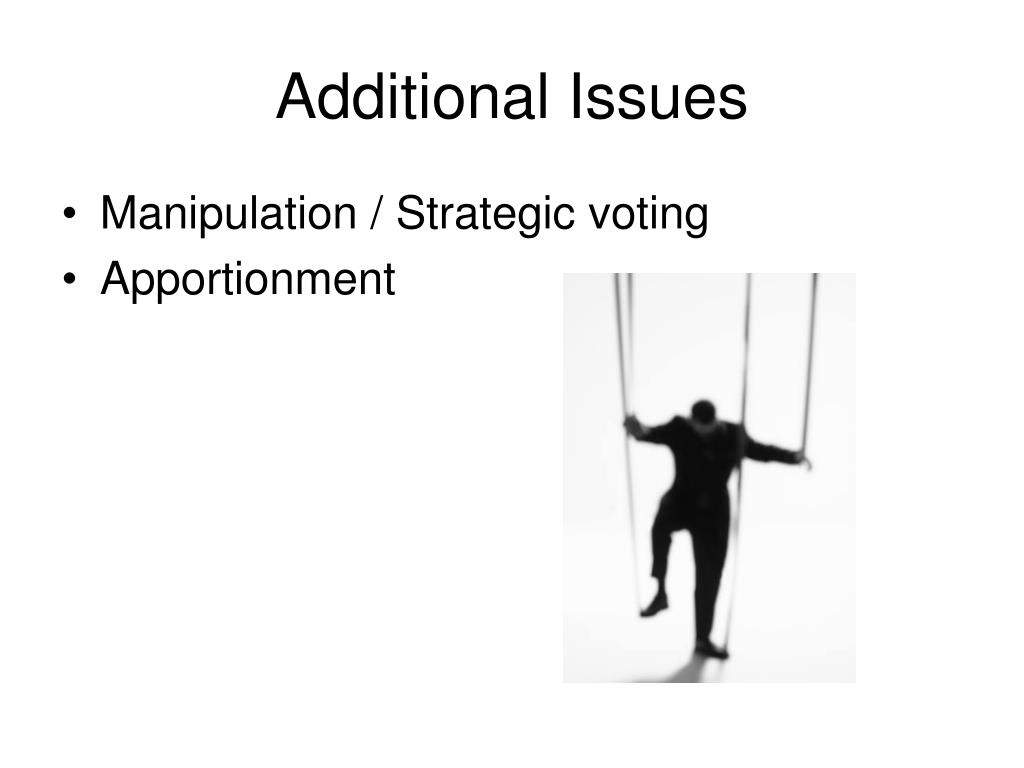

  29. Additional Issues • Manipulation / Strategic voting • Apportionment

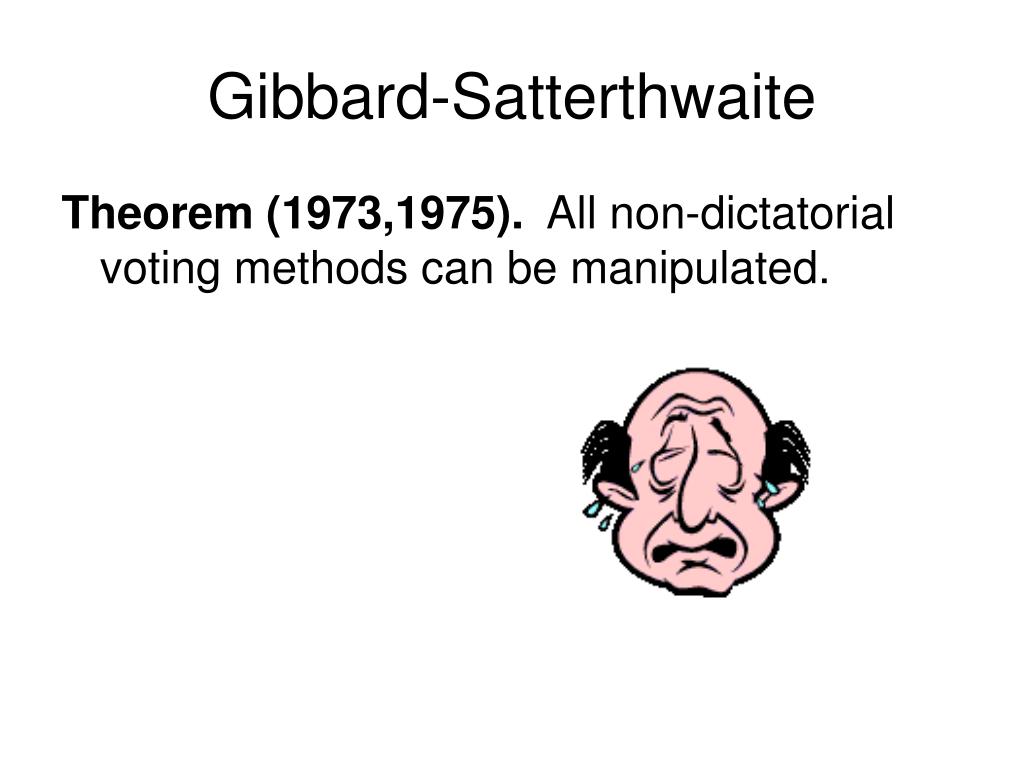

  30. Gibbard-Satterthwaite Theorem (1973,1975). All non-dictatorial voting methods can be manipulated.

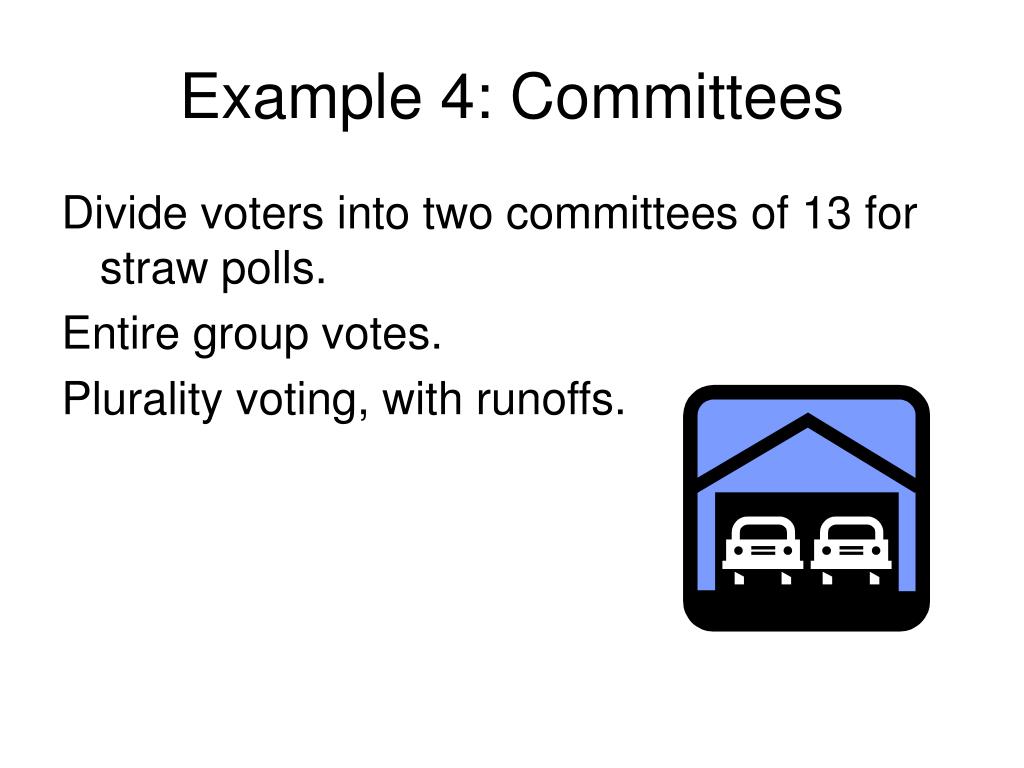

  31. Example 4: Committees Divide voters into two committees of 13 for straw polls. Entire group votes. Plurality voting, with runoffs.

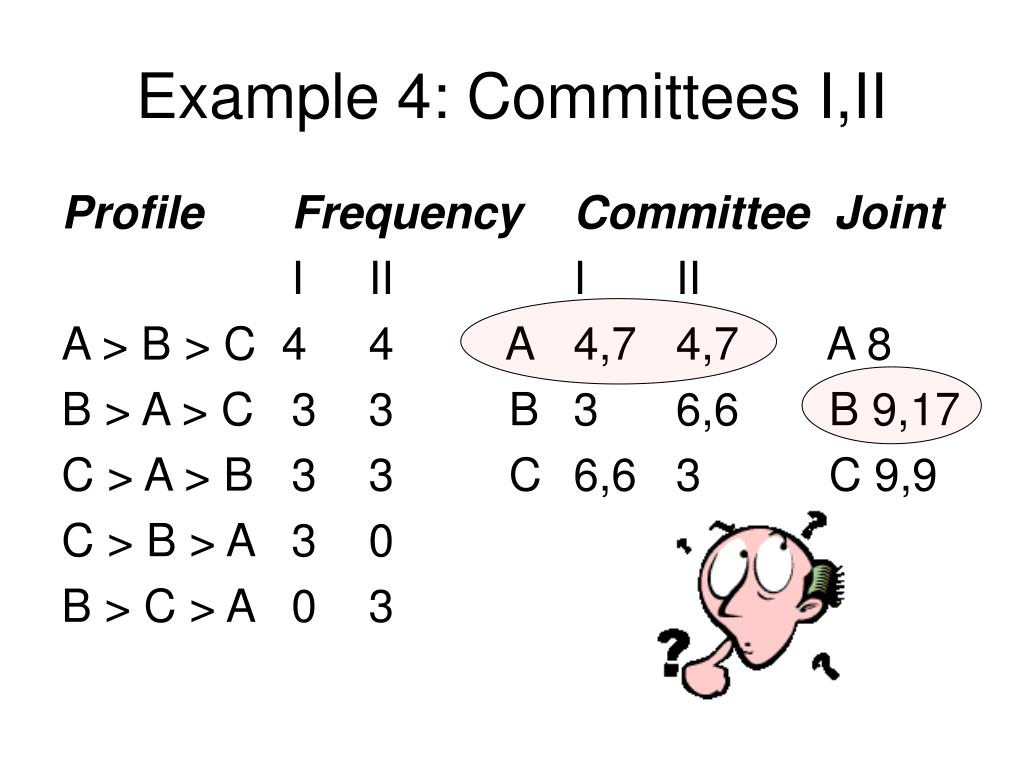

  32. Example 4: Committees I,II Profile Frequency Committee Joint I II I II A > B > C 4 4 A 4,7 4,7 A 8 B > A > C 3 3 B 3 6,6 B 9,17 C > A > B 3 3 C 6,6 3 C 9,9 C > B > A 3 0 B > C > A 0 3

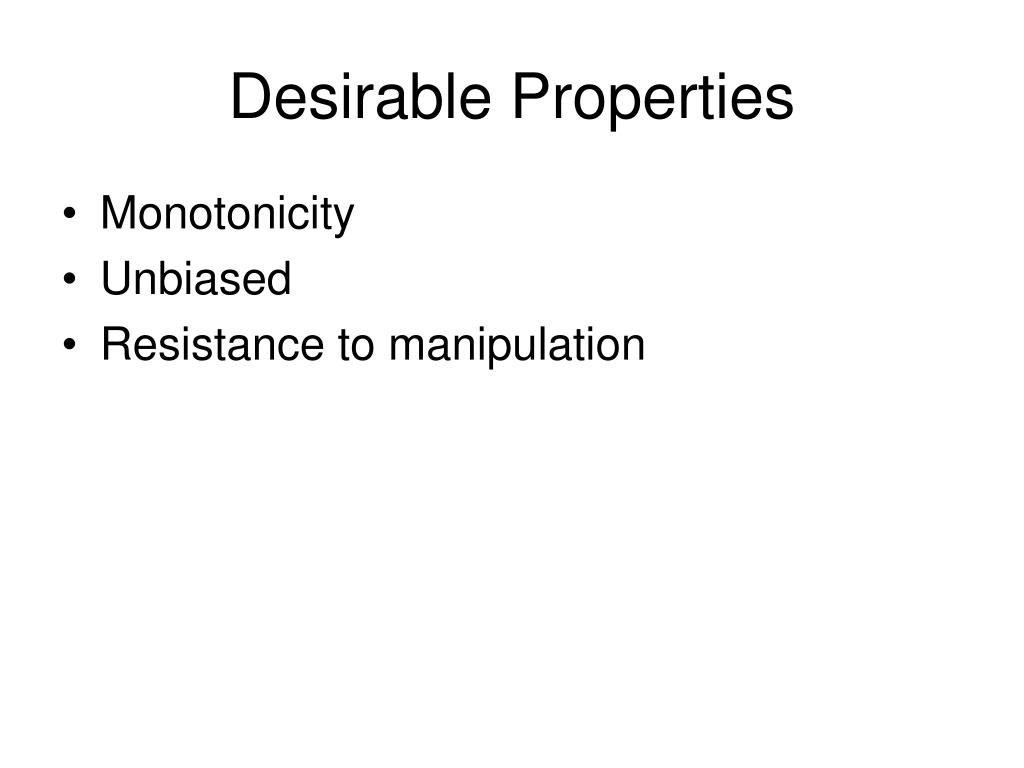

  33. Desirable Properties • Monotonicity • Unbiased • Resistance to manipulation

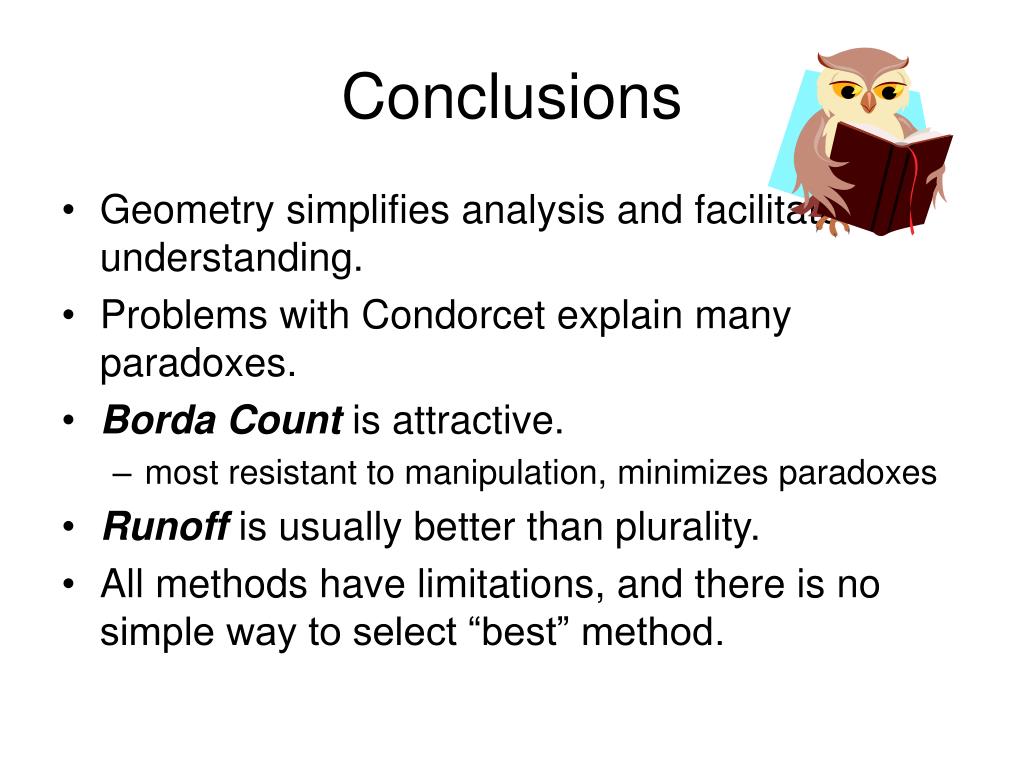

  34. Conclusions • Geometry simplifies analysis and facilitates understanding. • Problems with Condorcet explain many paradoxes. • Borda Count is attractive. • most resistant to manipulation, minimizes paradoxes • Runoff is usually better than plurality. • All methods have limitations, and there is no simple way to select “best” method.
