This lecture, part of the Data Structures course at the College of Science and Technology in Khanyounis, Palestine, provides a comprehensive overview of hashing and hash tables. Presented by Mahmoud Rafeek Alfarra, the session covers key topics including the definition of hashing, hash tables, and hash functions, along with practical examples illustrating hashing techniques using strings. The lecture highlights the efficiency and speed of data retrieval, insertion, and deletion using hash tables. Attendees will gain a foundational understanding of these crucial data structures in information technology.

Data structure - slide 1
01 / 18Data structure
1 / 17

Télécharger la présentation

Data structure
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. MINISTRY OF EDUCATION & HIGHER EDUCATION COLLEGE OF SCIENCE AND TECHNOLOGY KHANYOUNIS- PALESTINE Using C# Information Technology , 3’rd Semester Data structure Lecture 17: An Overview of Hashing Presented By: Mahmoud Rafeek Alfarra

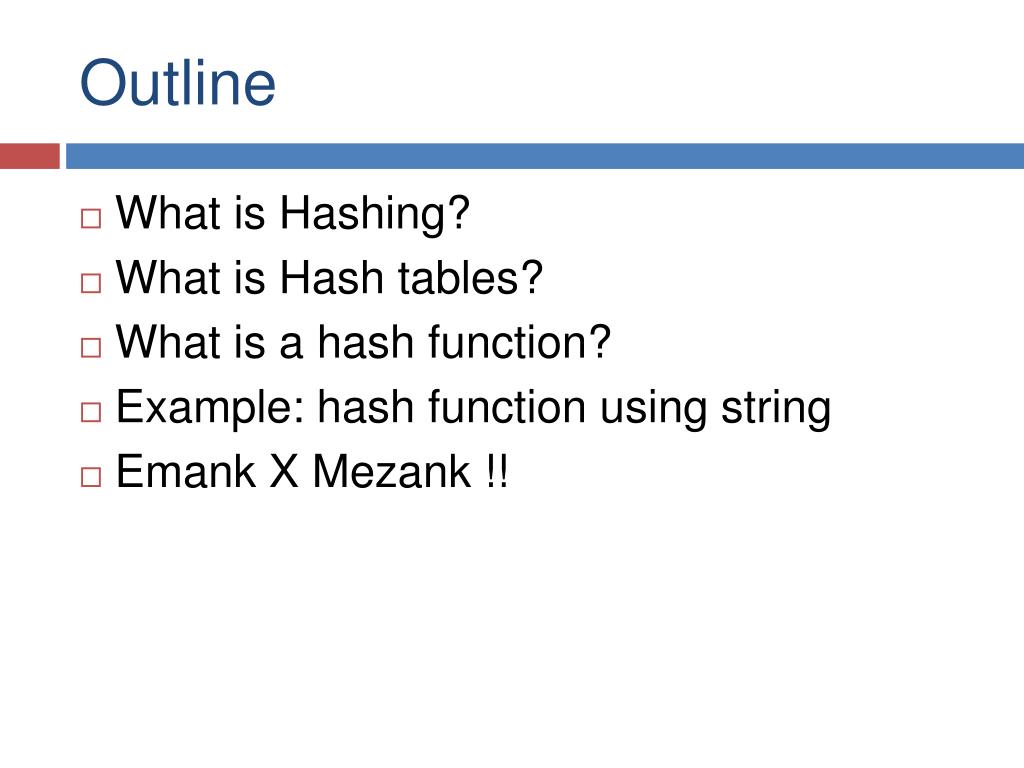

  2. Outline • What is Hashing? • What is Hash tables? • What is a hash function? • Example: hash function using string • Emank X Mezank !!

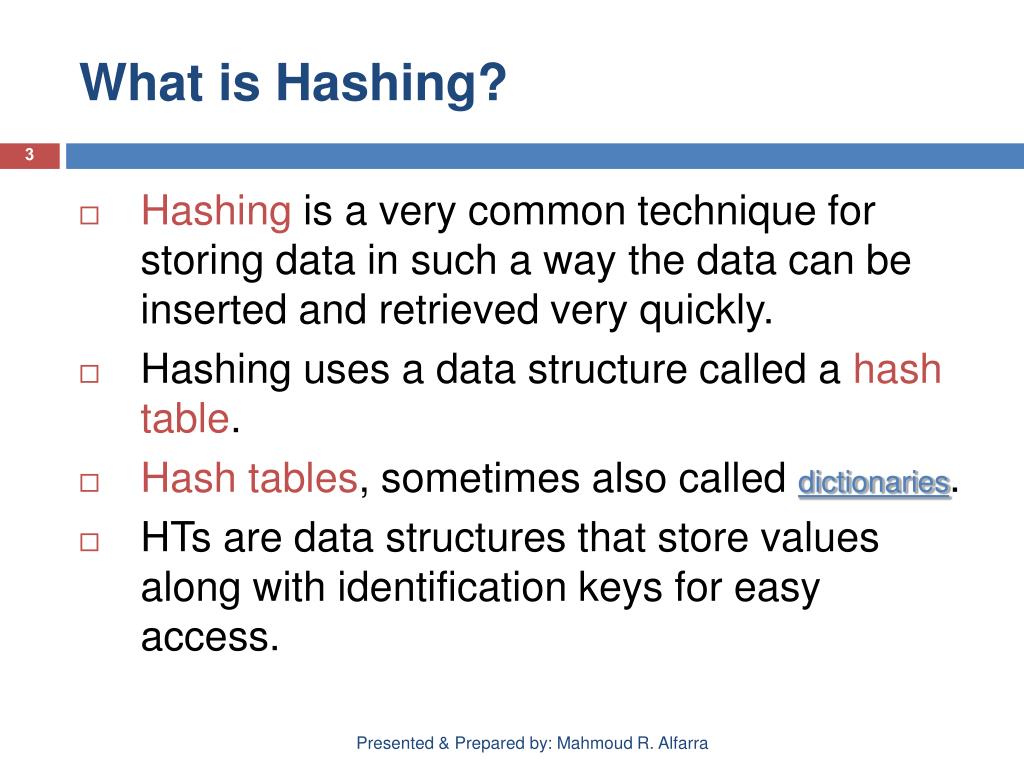

  3. What is Hashing? • Hashing is a very common technique for storing data in such a way the data can be inserted and retrieved very quickly. • Hashing uses a data structure called a hash table. • Hash tables, sometimes also called dictionaries. • HTs are data structures that store values along with identification keys for easy access. Presented & Prepared by: Mahmoud R. Alfarra

  4. What is Hash tables? 4 • Hash tables, sometimes also called dictionaries. • HTs are data structures that store values along with identification keys for easy access. • A hash table data structure is designed around an array. Presented & Prepared by: Mahmoud R. Alfarra

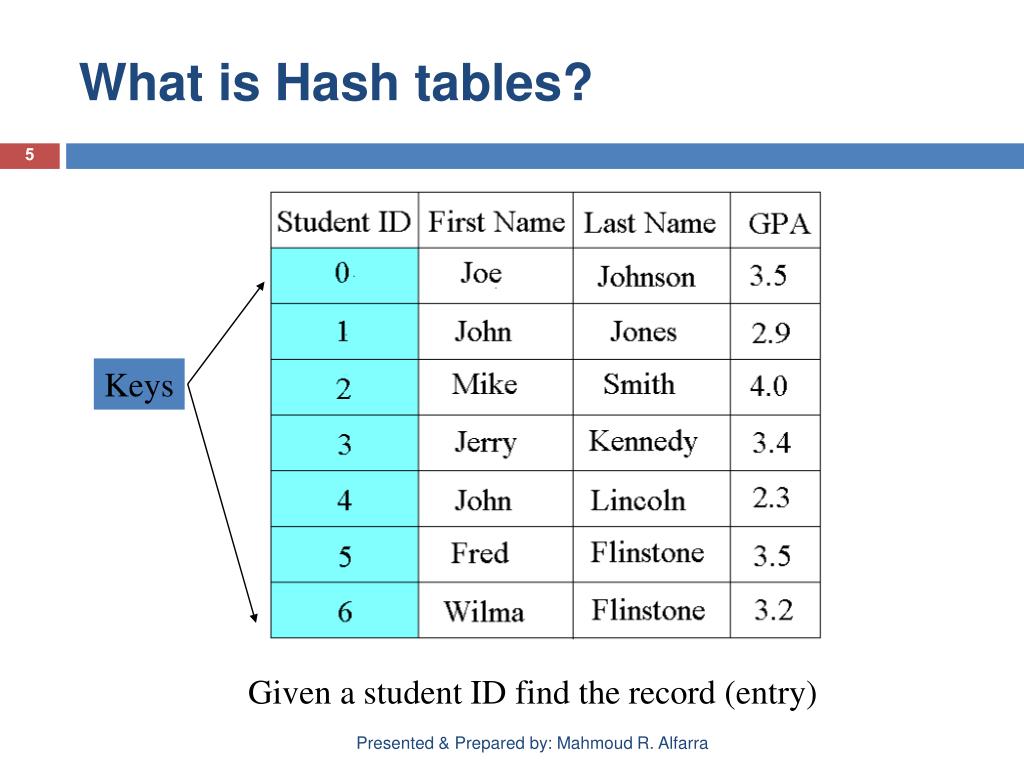

  5. What is Hash tables? 5 Keys Given a student ID find the record (entry) Presented & Prepared by: Mahmoud R. Alfarra

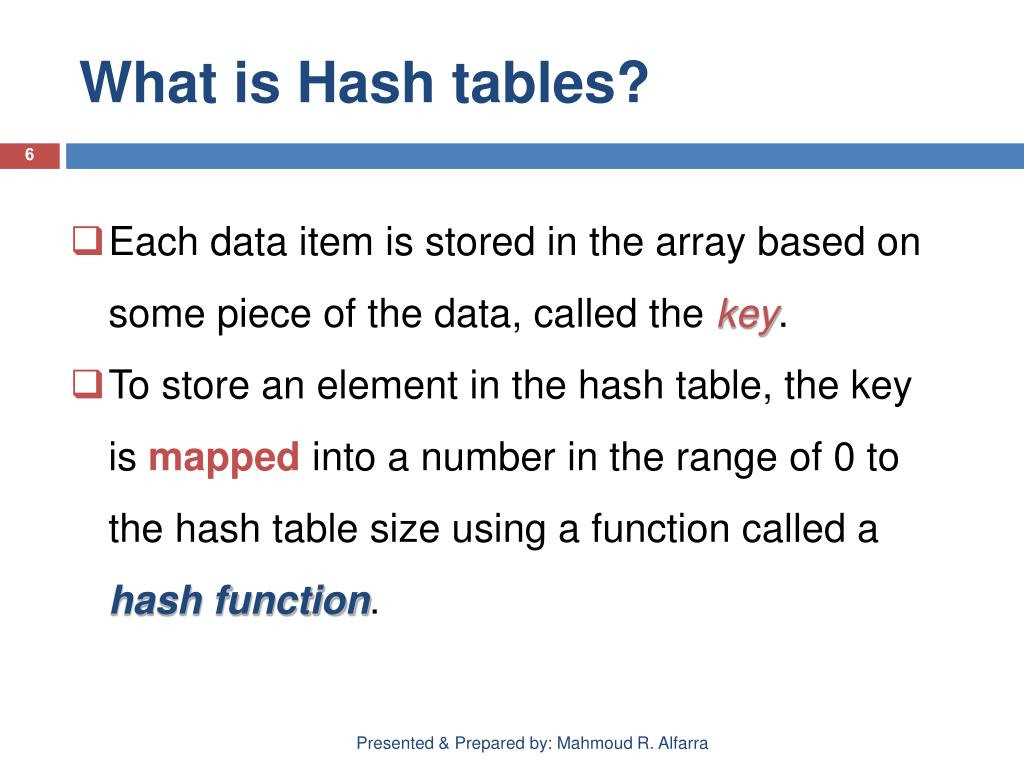

  6. What is Hash tables? 6 • Each data item is stored in the array based on some piece of the data, called the key. • To store an element in the hash table, the key is mapped into a number in the range of 0 to the hash table size using a function called a hash function. Presented & Prepared by: Mahmoud R. Alfarra

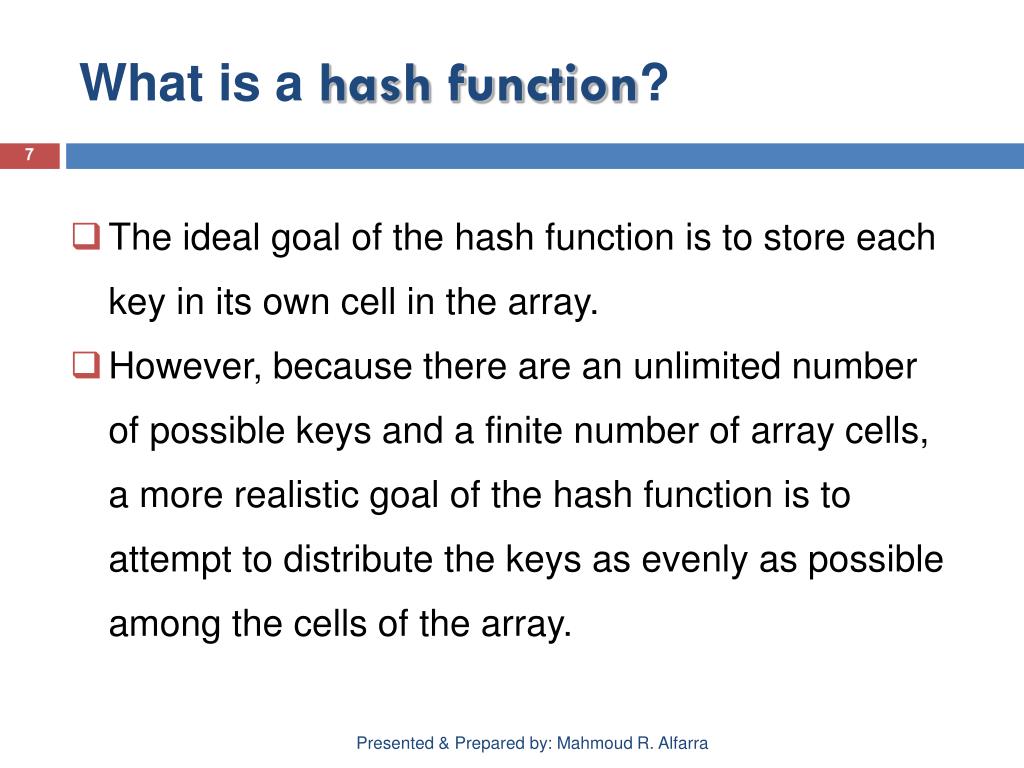

  7. What is a hash function? 7 • The ideal goal of the hash function is to store each key in its own cell in the array. • However, because there are an unlimited number of possible keys and a finite number of array cells, a more realistic goal of the hash function is to attempt to distribute the keys as evenly as possible among the cells of the array. Presented & Prepared by: Mahmoud R. Alfarra

  8. What is a hash function? 8 • Choosing a hash function depends on the data type of the key you are using. • If your key is an integer, the simplest function is to return the key modulo the size of the array. f(k) = k%size f(4) = 4%10 = 4 Presented & Prepared by: Mahmoud R. Alfarra

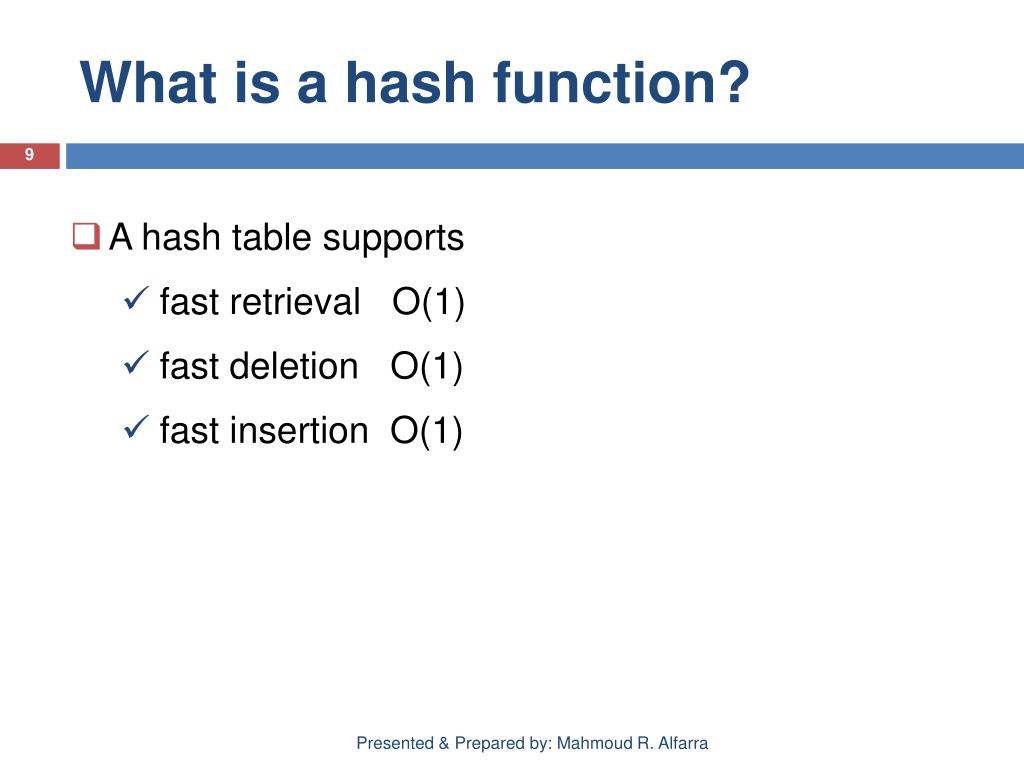

  9. What is a hash function? 9 • A hash table supports • fast retrieval O(1) • fast deletion O(1) • fast insertion O(1) Presented & Prepared by: Mahmoud R. Alfarra

  10. Hash method works something like this Convert a String key into an integer that will be in the range of 0 through the maximum capacity-1 Assume the array capacity is 9997 hash(key) AAAAAAAA 8482 1273 zzzzzzzz hash(key) Domain: "!" .. "zzzzzzzz" Range: 0 ... 9996

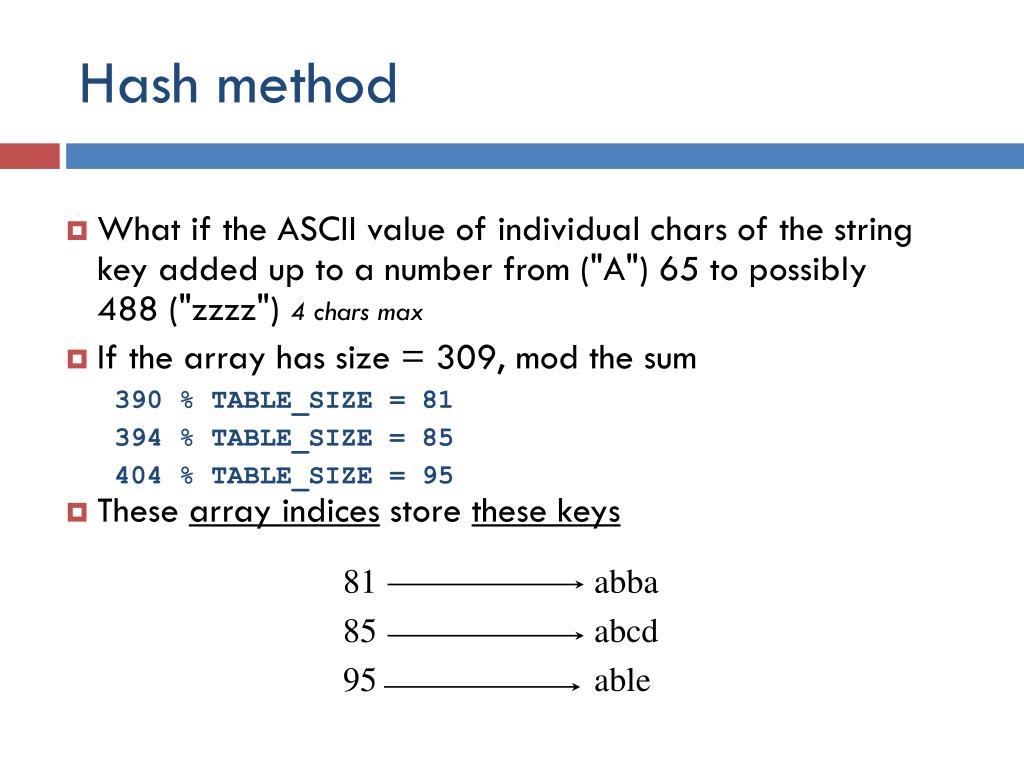

  11. Hash method • What if the ASCII value of individual chars of the string key added up to a number from ("A") 65 to possibly 488 ("zzzz") 4 chars max • If the array has size = 309, mod the sum 390 % TABLE_SIZE = 81 394 % TABLE_SIZE = 85 404 % TABLE_SIZE = 95 • These array indices store these keys 81 85 95 abba abcd able

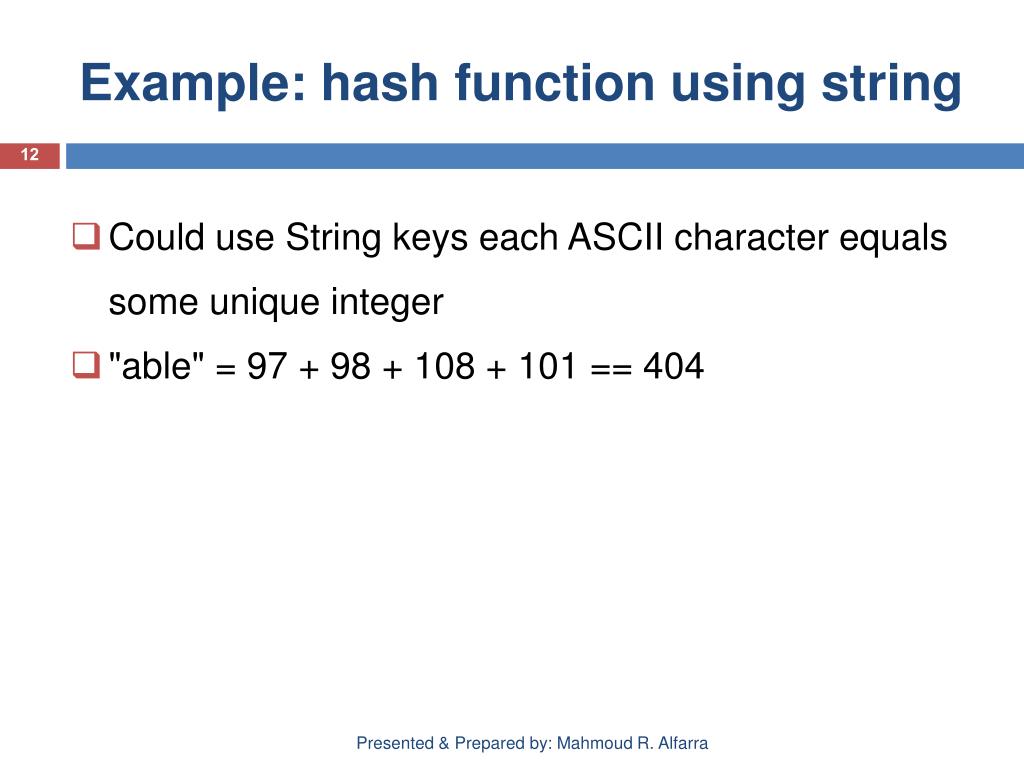

  12. Example: hash function using string 12 • Could use String keys each ASCII character equals some unique integer • "able" = 97 + 98 + 108 + 101 == 404 Presented & Prepared by: Mahmoud R. Alfarra

  13. A hash table after three insertions using the too simple hash code method 0 Keys ... insert objects with these three keys: "abba" "abcd" "abce" 80 "abba" 81 82 83 84 "abcd" 85 "abce" 86 ... 308

  14. Collision occurs while inserting "baab" can't insert "baab" where it hashes to same slot as "abba" 0 ... 80 "baab" Try [81] Put in [82] "abba" 81 "baab" 82 Linear probe forward by 1, inserting it at the next available slot 83 84 "abcd" 85 "abce" 86 ... 308

  15. Wrap around when collision occurs at end "IKLT" 0 Insert "KLMP" "IKLT" both of which have a hash value of 308 ... 80 "abba" 81 "baab" 82 83 84 "abcd" 85 "abce" 86 ... "KLMP" 308

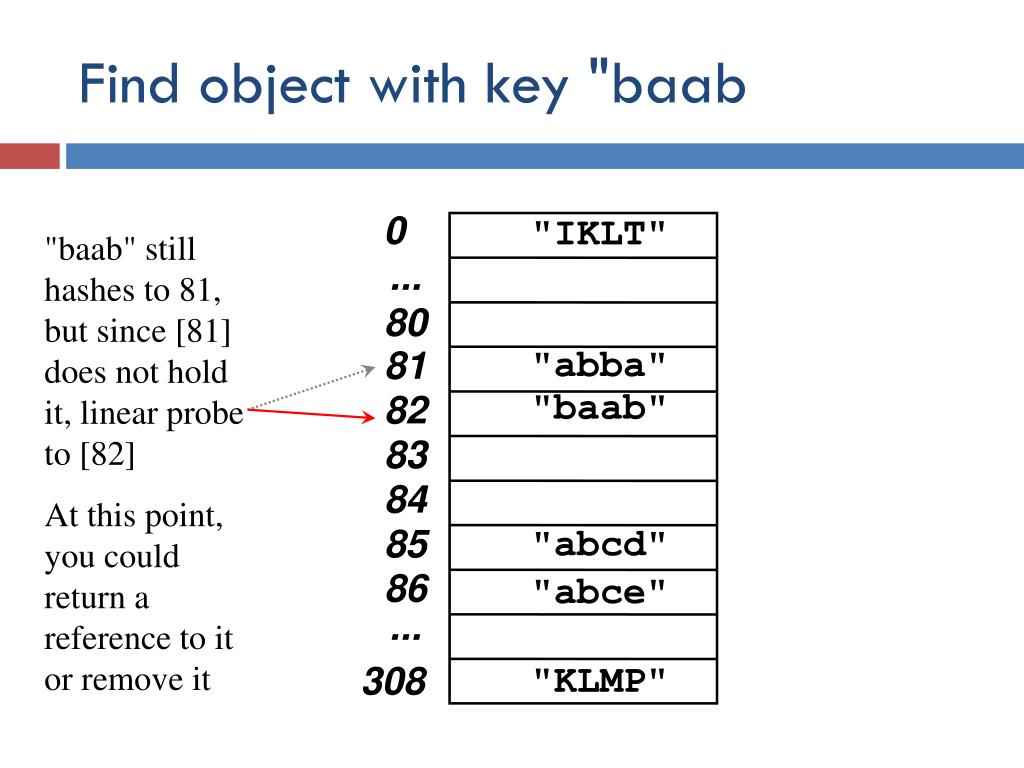

  16. Find object with key "baab "IKLT" 0 "baab" still hashes to 81, but since [81] does not hold it, linear probe to [82] At this point, you could return a reference to it or remove it ... 80 "abba" 81 "baab" 82 83 84 "abcd" 85 "abce" 86 ... "KLMP" 308

  17. Emank X Mezank !! قال النبي صلى الله عليه وسلم: قولوا لا إله إلا الله تُفلحـوا

  18. Next Lecture Graphs
