  1. Developing an Ingest Service for Fedora Ryan Scherle Muzaffer Ozakca

  2. IUDL infrastructure project • 2-year project funded by University Information Technology Services to reengineer digital library infrastructure around Fedora • Builds on experience with Fedora in context of EVIA Digital Archive (ethnomusicology video) • 2 full-time staff, plus part-time from many others • Dozens of legacy collections with roughly 100,000 objects • New collections: some content-focused, some research-focused

  3. Multiple media types Multiple brands Multiple tools Diversity

  4. The goal Aajk fs jkflsf jkds s jfs sdkf Ingest Aajk fs jkflsf jkds s jfs sdkf Jkl id jid whi ahin inpa aialw hwiwl Jkl id jid whi ahin inpa aialw hwiwl Aajk fs jkflsf jkds s jfs sdkf

  5. Required features • Ingest common content types: • Images • Paged documents • Textual documents • Allow for easy creation of new content types • Must support several workflows • Metadata or media may be primary • Most objects include derived media • Systematic changes to metadata may be desired • May need to connect with external tools for metadata generation, validation, etc. • A workflow engine may sit on top of the ingest system

  6. Existing Ingest Tools

  7. Criteria • Ease of install • Native content models • Custom content models (e.g. paged) • Workflow neutrality, including object modification • Batch ingest Remember, we’re evaluating object ingest only, not object delivery!

  8. But first, some disclaimers… • This is not an objective evaluation, just our experiences • We’re not experts in these systems • We’re evaluating ingest only, not delivery! • We’re evaluating ingest with a focus on our needs • We believe in community

  9. Fedora admin client • Comes with Fedora • Geared towards admins rather than end users • No systematic way of entering data or attaching files • Very flexible • The only way to create disseminators • Tedious

  10. Fez • End-to-End GUI system • Highly customizable content models, workflow, security • Customizable role and group based access control • Growing community • Originally developed as an Institutional Repository • Many preset content models • Can create “extension” metadata based on an XSD • External MySQL database for workflow/vocabulary data • GPL

  11. Fez - ingest • Single object ingest • Through Web UI • ImageMagick/JHOVE integration • Bulk ingest: • Upload files to a directory • Also can import existing Fedora objects in bulks • Templates for metadata common to all objects, manual updates for the rest • Batches possible, but only one file per object • No disseminators • Custom metadata can be stored as a simple XML file • Objects must use “compound” content model Fedora

  12. Fez – object organization

  13. Elated overview • End to end complete system for digital collections • Simple customizable metadata and a simple workflow supported • GPL “Elated is a lightweight, general-purpose application for managing digital files. ELATED is built on top of the Fedora Repository System, and could be used as a digital assets management system, an institutional repository, or to meet other collection archiving, publishing and searching needs.”

  14. Elated ingest • Single object ingest • Through Web UI • Focused on DC metadata,custom fields can be added • Multi object ingest via zipped folders and files • Metadata template + manually • Batches possible, but only one file per object • Simple content model • Manually-attached disseminators Fedora

  15. Elated object organization

  16. Valet for ETDs • A component of the VTLS VITAL product focused on ETD submission • Allows submission of thesis and a simple workflow for approval • Part of a larger framework • Highly focused on ETDs

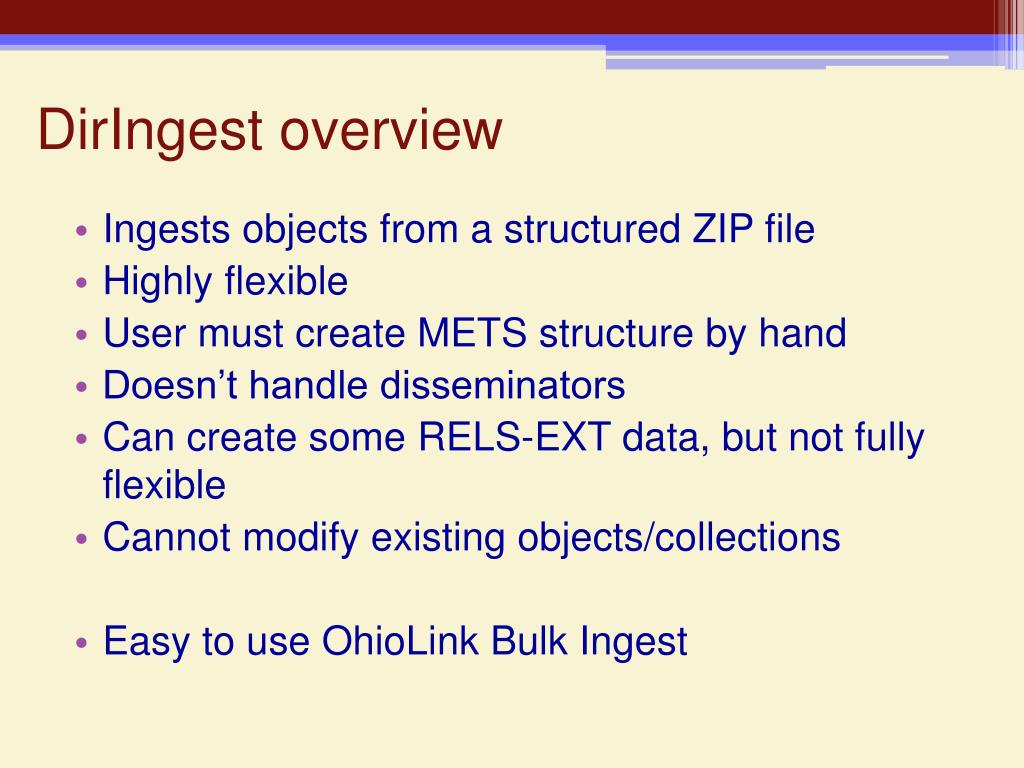

  17. DirIngest overview • Ingests objects from a structured ZIP file • Highly flexible • User must create METS structure by hand • Doesn’t handle disseminators • Can create some RELS-EXT data, but not fully flexible • Cannot modify existing objects/collections • Easy to use OhioLink Bulk Ingest

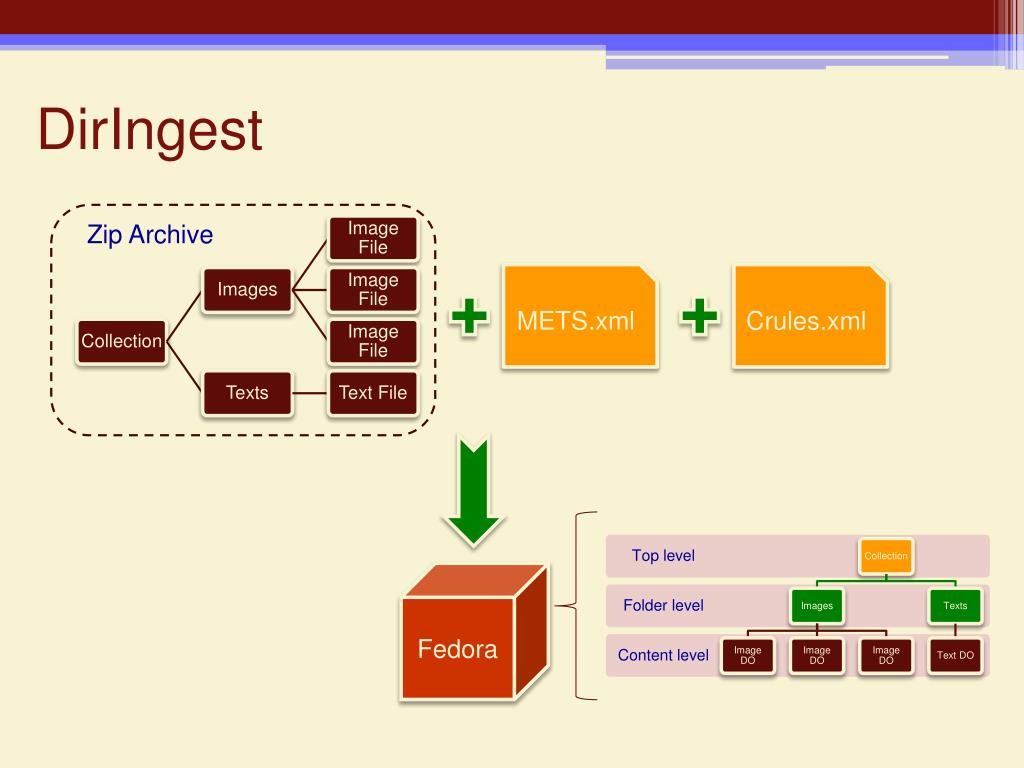

  18. DirIngest Zip Archive METS.xml Crules.xml Fedora

  19. Batch modify • A method of controlling API-M with simple XML statements • Can create “empty” objects and change them in systematic ways. • Requires manual (or programmatic) creation of the modify scripts • Can be used in conjunction with other tools…

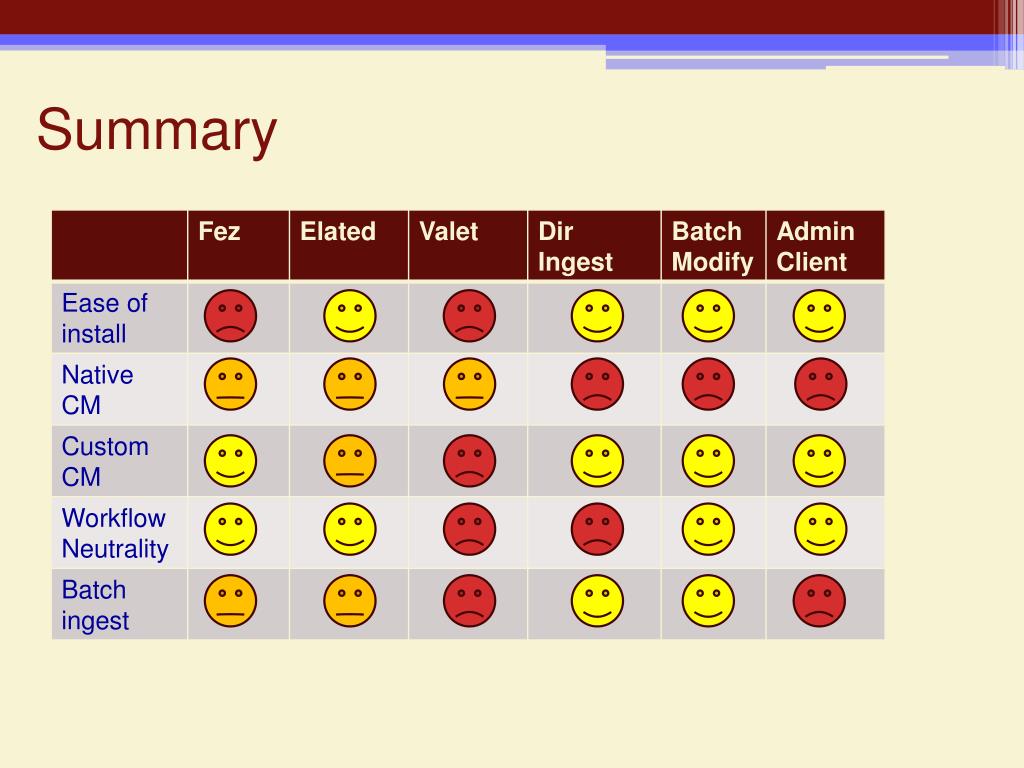

  20. Summary

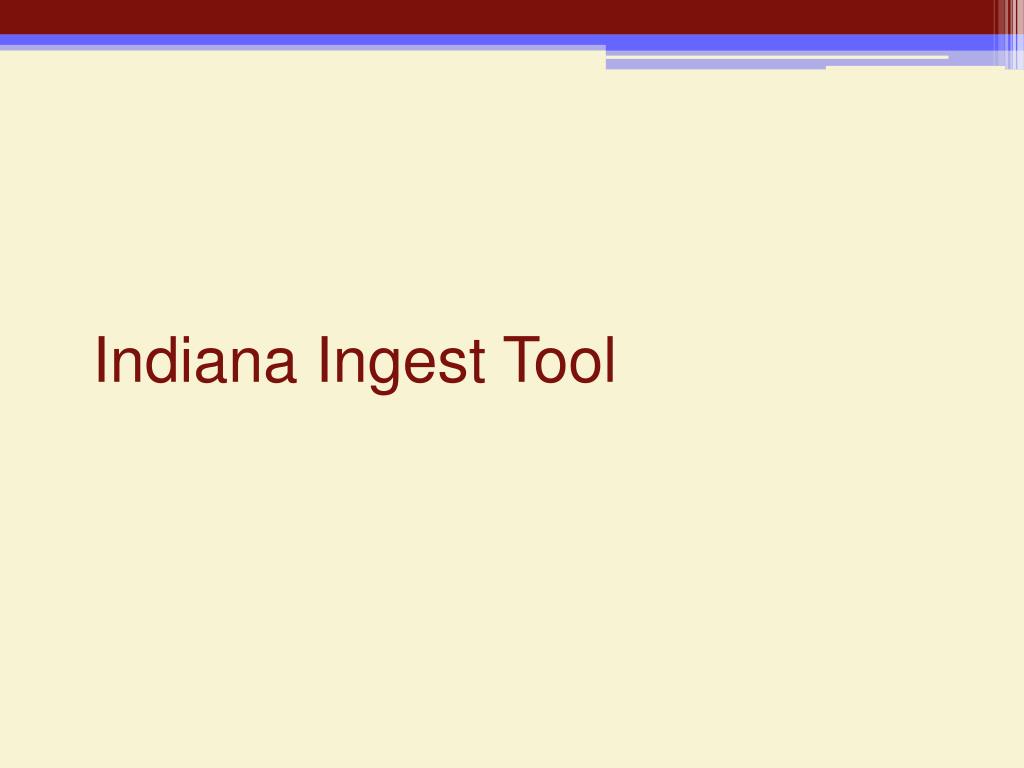

  21. Indiana Ingest Tool

  22. Indiana Ingest Tool • A structured interface between a workflow management or repository management GUI and the Fedora repository • Focused on simple input formats for maximum flexibility • Keeps the tools independent of the repository architecture • Builds the FOXML, rather than requiring a full structure to be pre-built • Binds disseminators • Creates RELS-EXT relationships • Can create and/or alter items in a collection • Auto-generates technical metadata with JHOVE or XSLT.

  23. Image Cataloging Tool Sheet Music Cataloging Tool EAD JPG MODS PDF SIP Ingest Tool FOXML Datastreams Fedora

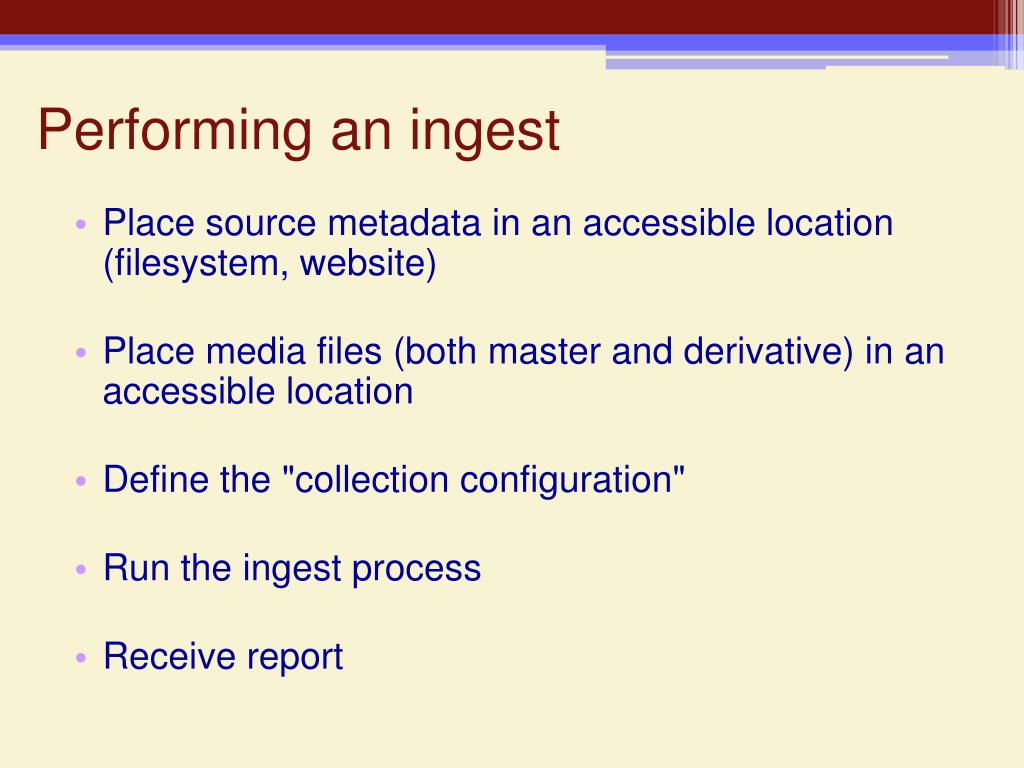

  24. Performing an ingest • Place source metadata in an accessible location (filesystem, website) • Place media files (both master and derivative) in an accessible location • Define the "collection configuration" • Run the ingest process • Receive report

  25. Sample collection config file Collection defn <cc:collectionName>Hoagy Carmichael Correspondence</cc:collectionName> <cc:contentModel>paged</cc:contentModel> <cc:collectionID>hoagy</cc:collectionID> <cc:collectionPid>iudl:6</cc:collectionPid> <cc:existingItem> <cc:fedoraItemExists action="alter"/> </cc:existingItem> <cc:masterContent type="image" subtype="tiff"> <cc:source location="localfs">{path to master images}</cc:source> <cc:extension>.tif</cc:extension> </cc:masterContent> <cc:derivedContent derivativeType="images"> <cc:source location="localfs">{path to dreivative images here}</cc:source> <cc:extension item="thumb">-thumb.jpg</cc:extension> <cc:extension item="screen">-screen.jpg</cc:extension> <cc:extension item="large">-full.jpg</cc:extension> </cc:derivedContent> <cc:descriptiveMetadata> <cc:metadataItem type="ead" authoritative="true" level="collection"> <cc:source location="localfs">{path to ead}</cc:source> </cc:metadataItem> ... <cc:technicalMetadata> <cc:metadataItem type="mix" authoritative="true" level="masterContent"> </cc:metadataItem> ... What to do If item exists File defn Desc. metadata Tech. metadata

  26. Example – Sheet Music Fedora FOXML Ingest Tool Datastreams: Images METS RELS-EXT

  27. Example – preservation package SIP Fedora FOXML Ingest Tool Datastreams: Images METS RELS-EXT

  28. Summary

  29. Major difficulties in any ingest tool • Providing flexibility in “style” of content model • Matching filenames with metadata records • Indicating the sequence of files in complex objects • Abstracting over differing local metadata standards (even in our own collections)

  30. Topics for future discussion • What is the best structure for an ingest tool? • Is our tool of interest to others? • Would it be better to combine our capabilities with an existing tool? • Can we agree on some core content models?

  31. Thank You! • Infrastructure project wiki: • http://wiki.dlib.indiana.edu/confluence/display/INF • Contact info: • Ryan Scherle rscherle@indiana.edu • Muzaffer Ozakca mozakca@indiana.edu
