2. Operator OverloadingMore than just Syntactic Sugar • Binary operators • Unary operators • Conversion Operators • Proxy Classes (simulating a reference) • bitset example • Special operators • Indexing • Pre-post increment/decrement • Function call

3. Complex NumbersA Canonical Example of a Value Type • Complex numbers are pairs of real numbers • (real, imaginary), e.g., (2,3), (1.04, -12.4) • like points in the x-y plane • (a, b) + (c, d) = (a+c, b+d) • applications in Electrical Engineering • Compare function-style operations to using operator functions…

4. A complex Class #include <iostream> class complex { double real; double imag; public: complex(double real=0, double imag=0) { this->real = real; this->imag = imag; } complex add(const complex& c) const { complex result; result.real = this->real + c.real; result.imag = this->imag + c.imag; return result; } void display(std::ostream& os) const { os << '(' << real << ',' << imag << ')'; } };

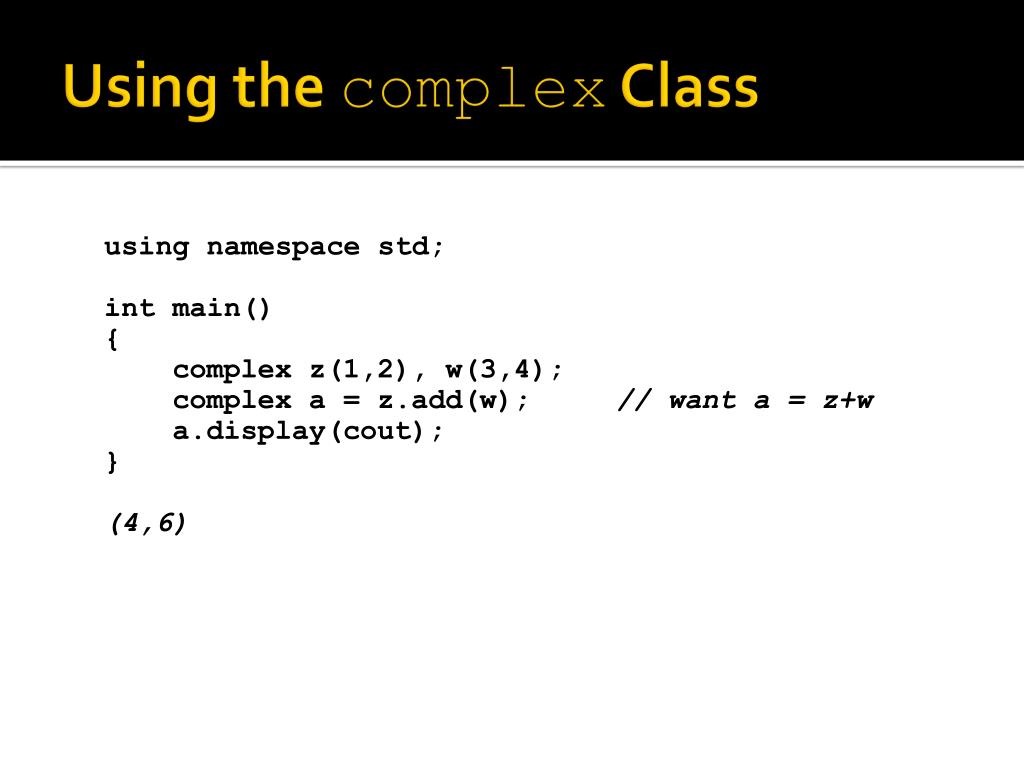

5. Using the complex Class using namespace std; int main() { complex z(1,2), w(3,4); complex a = z.add(w); // want a = z+w a.display(cout); } (4,6)

6. Operator Functions • operator keyword together with an operator token • operator+ • operator- • etc. • Can overload all operators except: • :: • . • .* • ?:

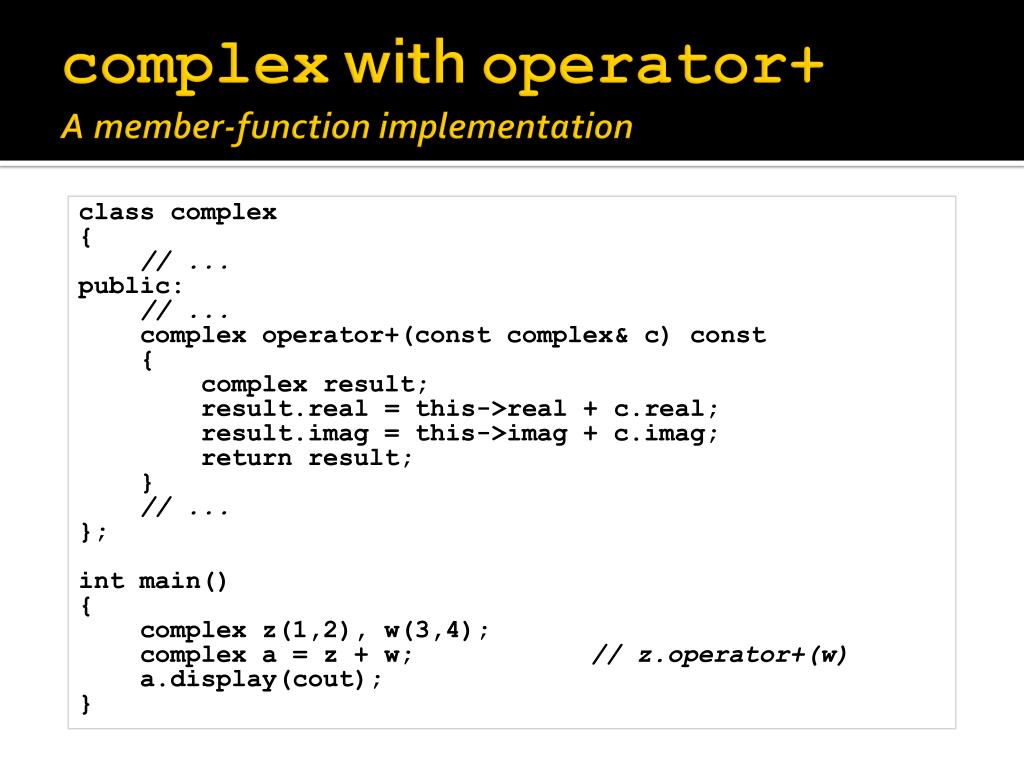

7. complex with operator+A member-function implementation class complex { // ... public: // ... complex operator+(const complex& c) const { complex result; result.real = this->real + c.real; result.imag = this->imag + c.imag; return result; } // ... }; int main() { complex z(1,2), w(3,4); complex a = z + w; // z.operator+(w) a.display(cout); }

8. Rules • operator+ is the function name • you can also invoke it directly as z.operator+(w) • a binary function, of course • Normal precedence rules apply • Can be either a global or member function • If a member, this is the left operand • If global, at least one argument must be user-defined

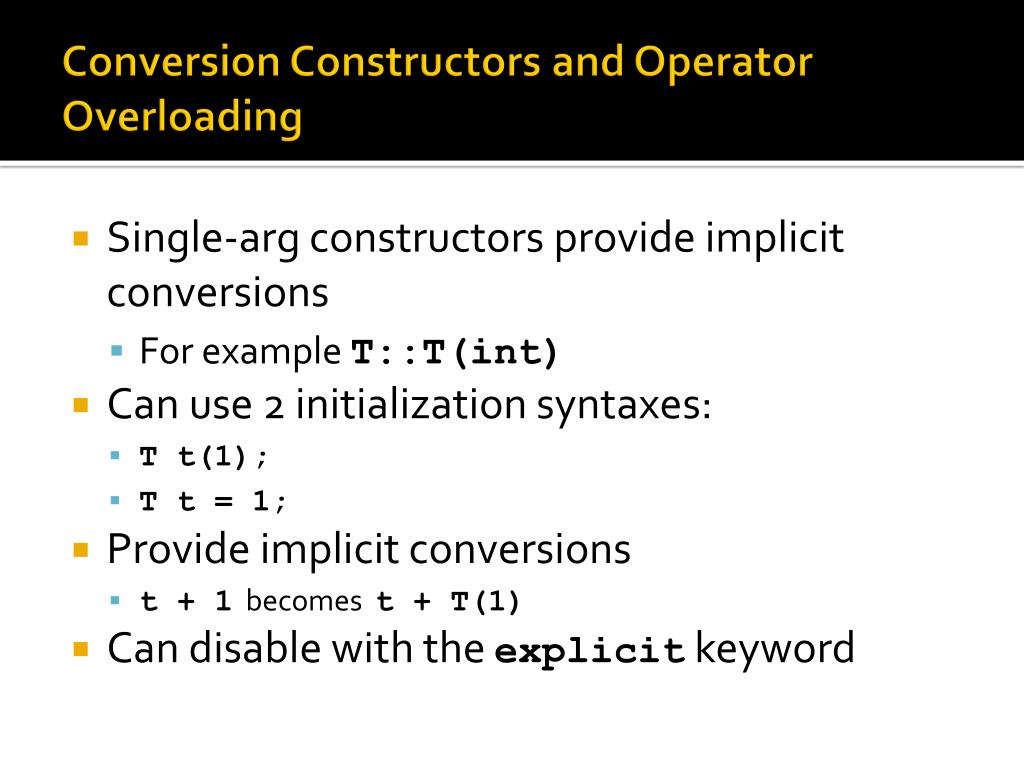

9. Conversion Constructors and Operator Overloading • Single-arg constructors provide implicit conversions • For example T::T(int) • Can use 2 initialization syntaxes: • T t(1); • T t = 1; • Provide implicit conversions • t + 1 becomes t + T(1) • Can disable with the explicitkeyword

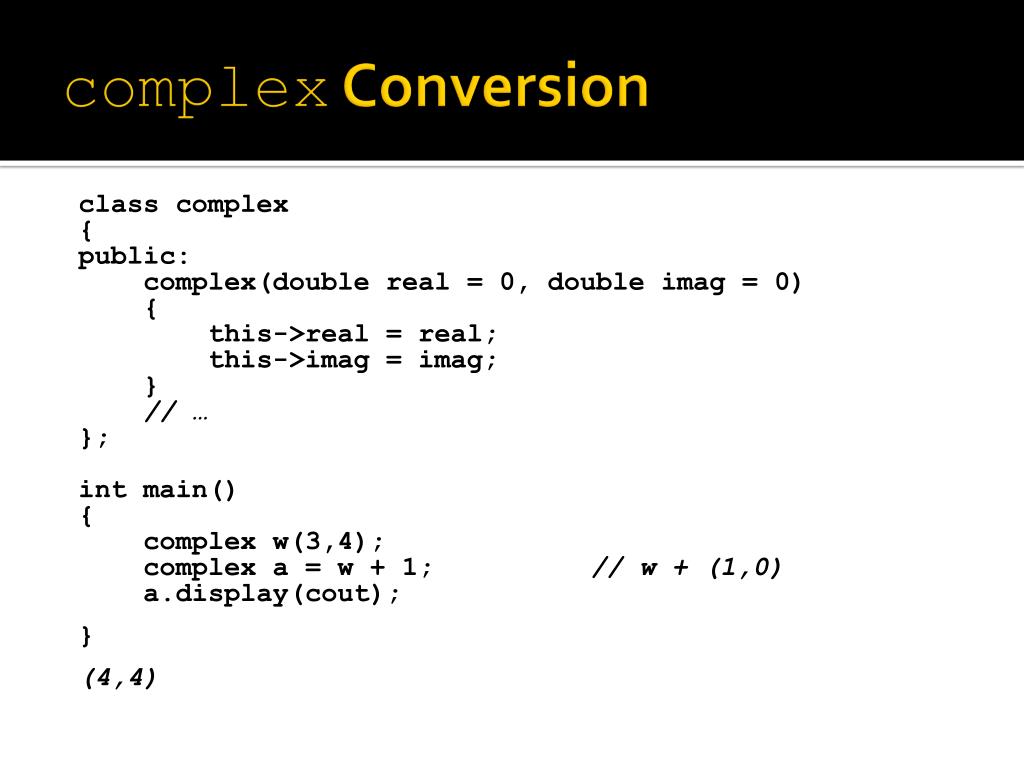

10. complex Conversion class complex { public: complex(double real = 0, double imag = 0) { this->real = real; this->imag = imag; } // … }; int main() { complex w(3,4); complex a = w + 1; // w + (1,0) a.display(cout); } (4,4)

11. Member vs. Non-memberOperators • The expression 1 + wwon’t compile. • Left-operand must be a class object to match a member operator • A non-member operator will apply an implicit conversion to either operand via a single-arg constructor, if available • In general, binary operators should be non-members • For math-like operators, anyway • In general, unary operators should be members

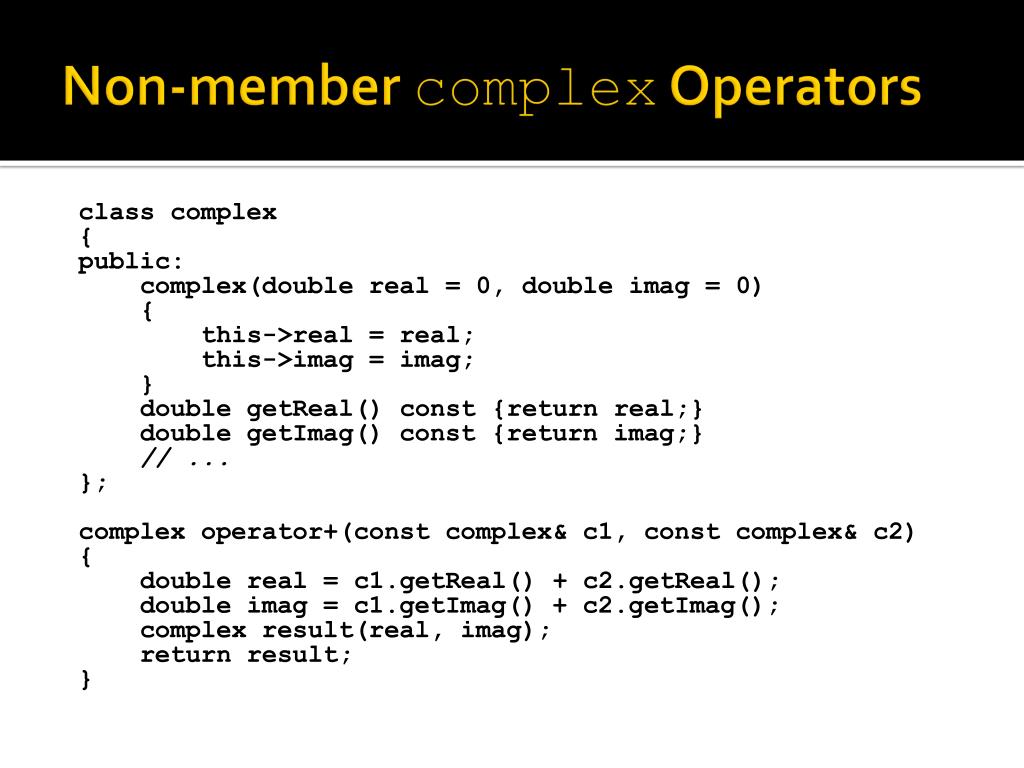

12. Non-member complexOperators class complex { public: complex(double real = 0, double imag = 0) { this->real = real; this->imag = imag; } double getReal() const {return real;} double getImag() const {return imag;} // ... }; complex operator+(const complex& c1, const complex& c2) { double real = c1.getReal() + c2.getReal(); double imag = c1.getImag() + c2.getImag(); complex result(real, imag); return result; }

13. A Unary complex Operator class complex { public: complex operator-() const { return complex(-real, -imag); } // … }; int main() { complex w(3,4); complex a = -w; a.display(cout); } (-3,-4)

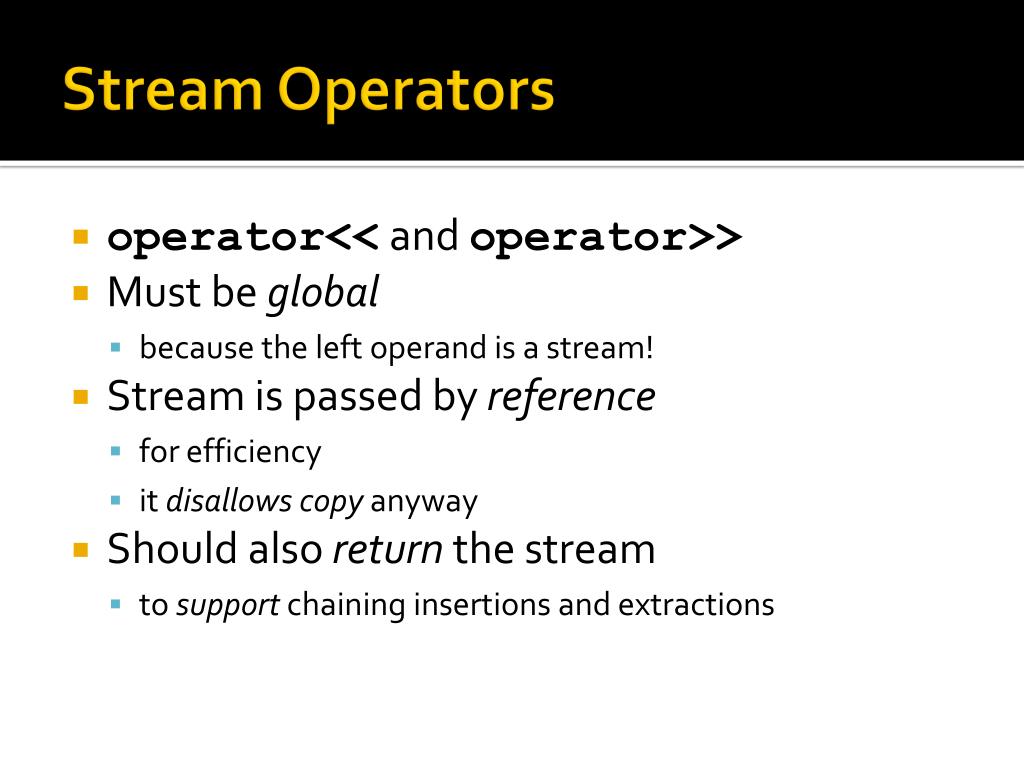

14. Stream Operators • operator<< and operator>> • Must be global • because the left operand is a stream! • Stream is passed by reference • for efficiency • it disallows copy anyway • Should also return the stream • to support chaining insertions and extractions

15. complex Stream Output ostream& operator<<(ostream& os, const complex& c) { os << '(' << c.getReal() << ',’ << c.getImag() << ')'; return os; } int main() { complex w(3,4); complex a = -w; cout << a << endl; } (-3,-4)

16. A “Complete” complex • Would provide all pertinent operators • including assignment ops such as +=, -=, etc. • assignment ops must be members • typically implement op in terms of op= • Provide stream insertion and extraction • Global functions are class friends • not necessary, just a convenience

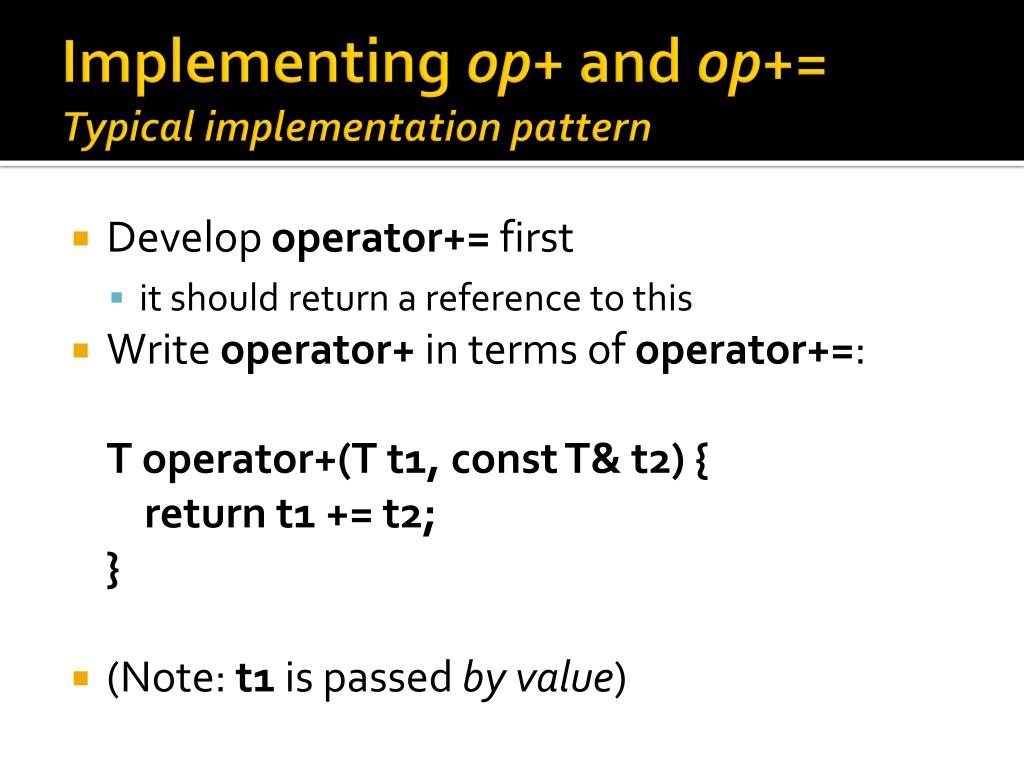

17. Implementing op+ and op+=Typical implementation pattern • Develop operator+= first • it should return a reference to this • Write operator+ in terms of operator+=:T operator+(T t1, const T& t2) { return t1 += t2;} • (Note: t1 is passed by value)

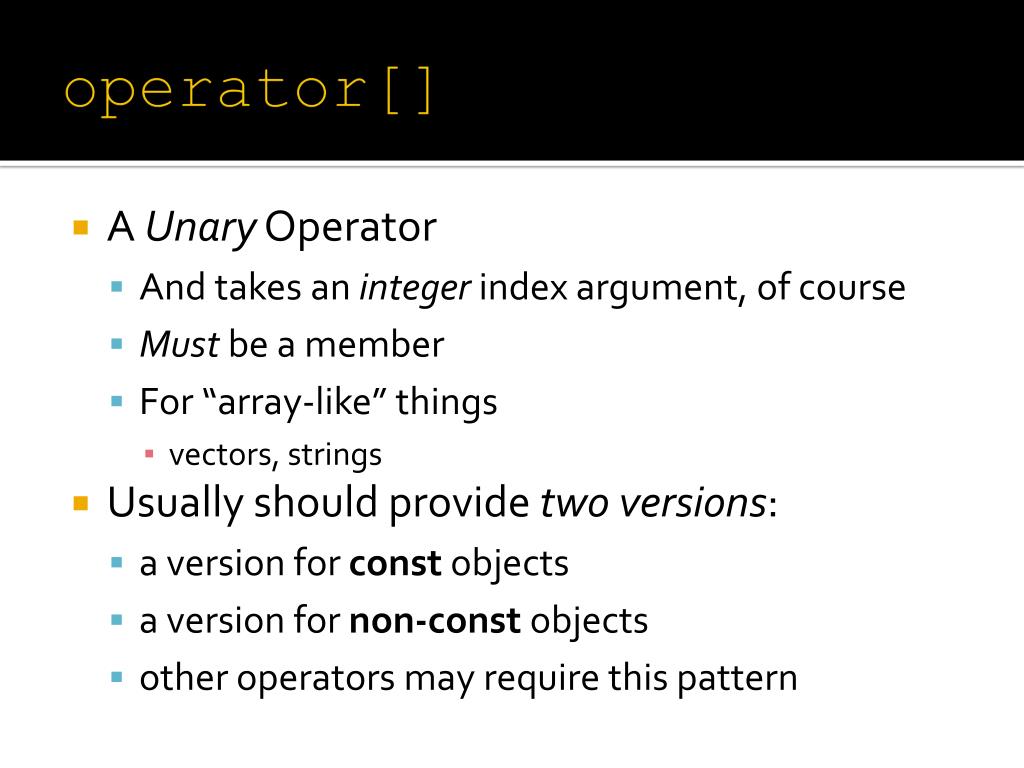

18. operator[] • A Unary Operator • And takes an integer index argument, of course • Must be a member • For “array-like” things • vectors, strings • Usually should provide two versions: • a version for const objects • a version for non-const objects • other operators may require this pattern

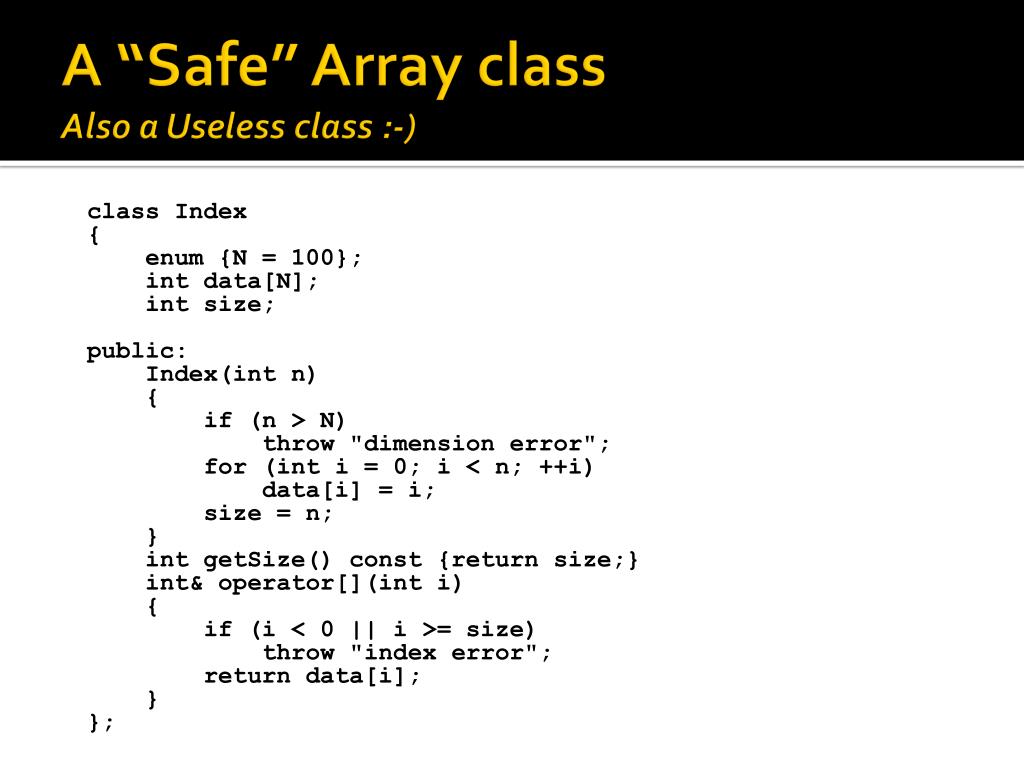

19. A “Safe” Array classAlso a Useless class :-) class Index { enum {N = 100}; int data[N]; int size; public: Index(int n) { if (n > N) throw "dimension error"; for (int i = 0; i < n; ++i) data[i] = i; size = n; } int getSize() const {return size;} int& operator[](int i) { if (i < 0 || i >= size) throw "index error"; return data[i]; } };

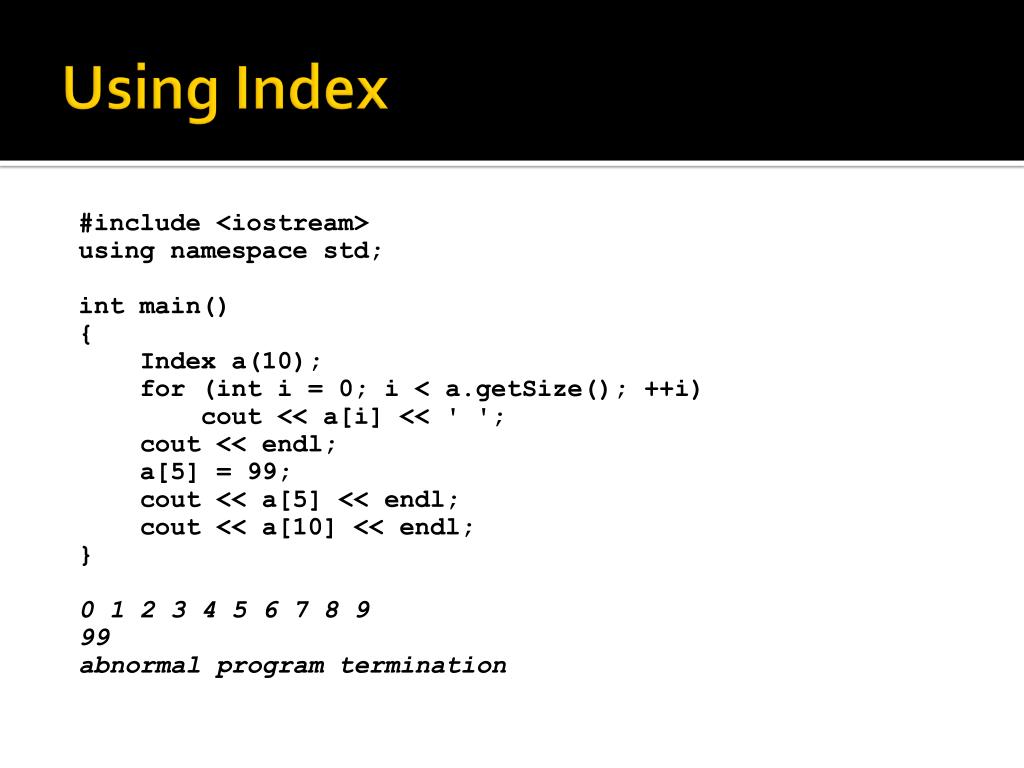

20. Using Index #include <iostream> using namespace std; int main() { Index a(10); for (int i = 0; i < a.getSize(); ++i) cout << a[i] << ' '; cout << endl; a[5] = 99; cout << a[5] << endl; cout << a[10] << endl; } 0 1 2 3 4 5 6 7 8 9 99 abnormal program termination

21. Using a const Index #include <iostream> using namespace std; int main() { const Index a(10); // a const Index for (int i = 0; i < a.getSize(); ++i) cout << a[i] << ' '; // COMPILE ERROR! cout << endl; }

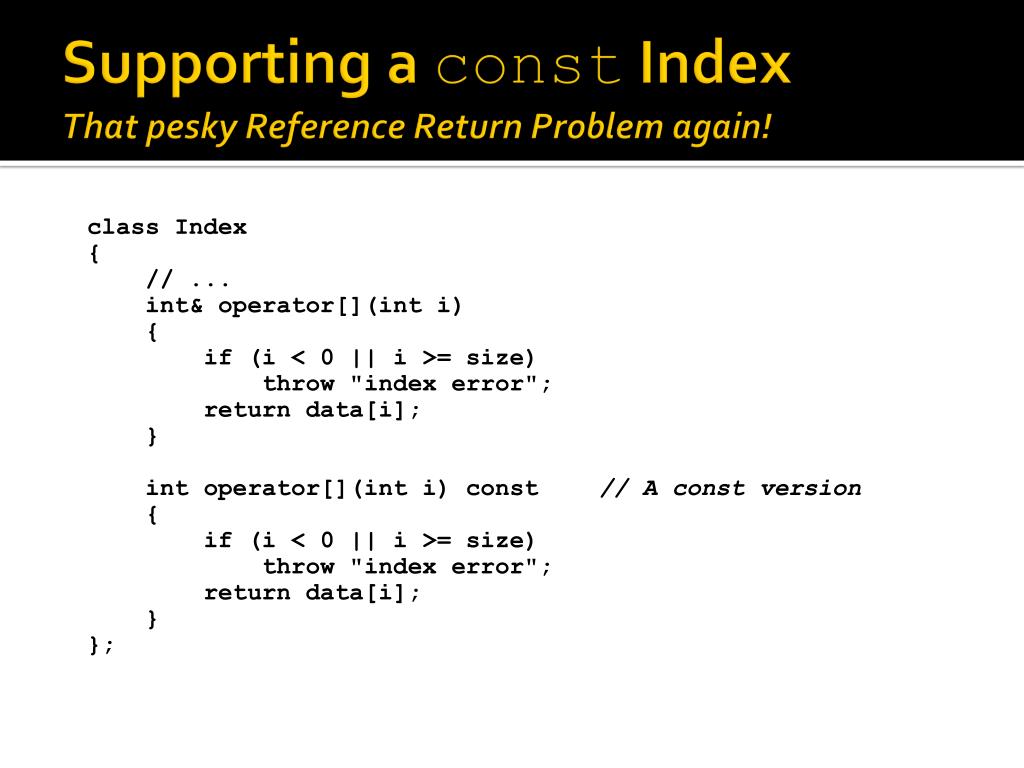

22. Supporting a constIndexThat pesky Reference Return Problem again! class Index { // ... int& operator[](int i) { if (i < 0 || i >= size) throw "index error"; return data[i]; } int operator[](int i) const // A const version { if (i < 0 || i >= size) throw "index error"; return data[i]; } };

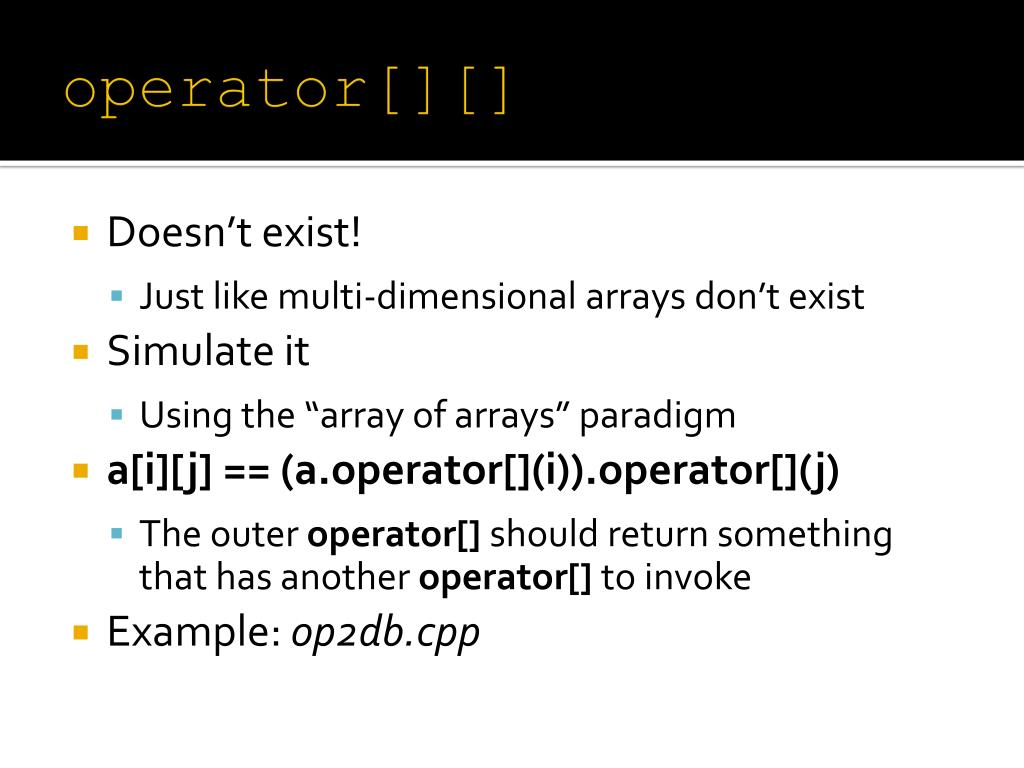

23. operator[][] • Doesn’t exist! • Just like multi-dimensional arrays don’t exist • Simulate it • Using the “array of arrays” paradigm • a[i][j] == (a.operator[](i)).operator[](j) • The outer operator[] should return something that has another operator[] to invoke • Example: op2db.cpp

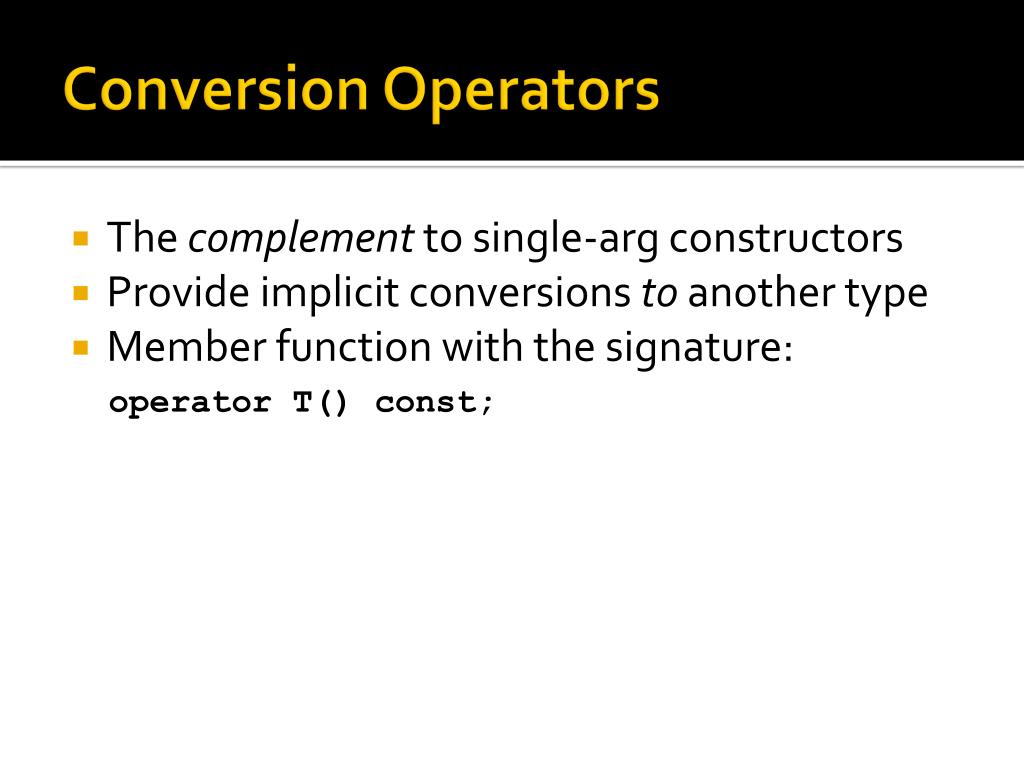

24. Conversion Operators • The complement to single-arg constructors • Provide implicit conversions to another type • Member function with the signature: operator T() const;

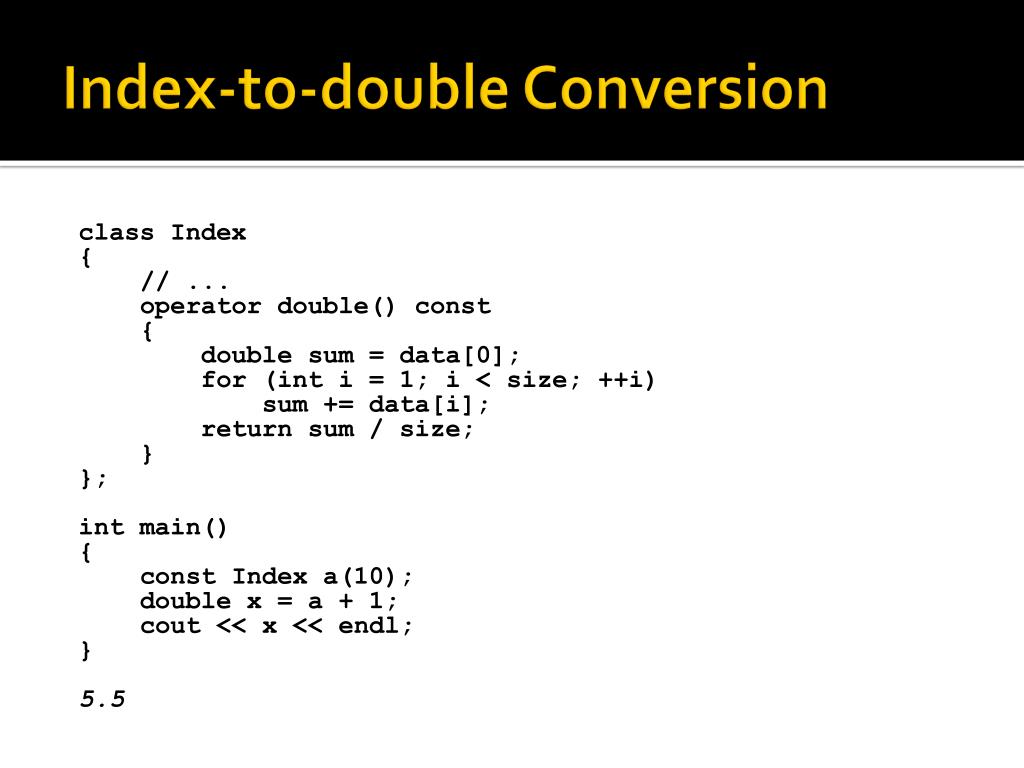

25. Index-to-double Conversion class Index { // ... operator double() const { double sum = data[0]; for (int i = 1; i < size; ++i) sum += data[i]; return sum / size; } }; int main() { const Index a(10); double x = a + 1; cout << x << endl; } 5.5

26. Warning! • Consider the expression w + 1 where w is complex. • Design heuristic: Don’t allow types to be implicitly converted to one another • You can disable implicit conversions via constructors and conversion operators via the explicit keyword

27. lvalue vs. rvalueDetection IdiomUsed in Program 3 (see returnref.cpp) • For operator[ ] • Because bits are not individually addressable • Setting and resetting a bit are very different operations • Uses a Proxy class • Returned by bitset<N>::operator[] • Stores the bit position and a reference to the bitset • Overloads operator=(bool) • Converts implicitly to bool

28. Stream State • if (stream) tests true if the stream state is good (!bad() & !fail() & !eof()) • How is this accomplished? • Two choices: • operator void* (historical) • operator bool • Examples: opbool.cpp, opvoid.cpp

29. Review Program 3 Spec

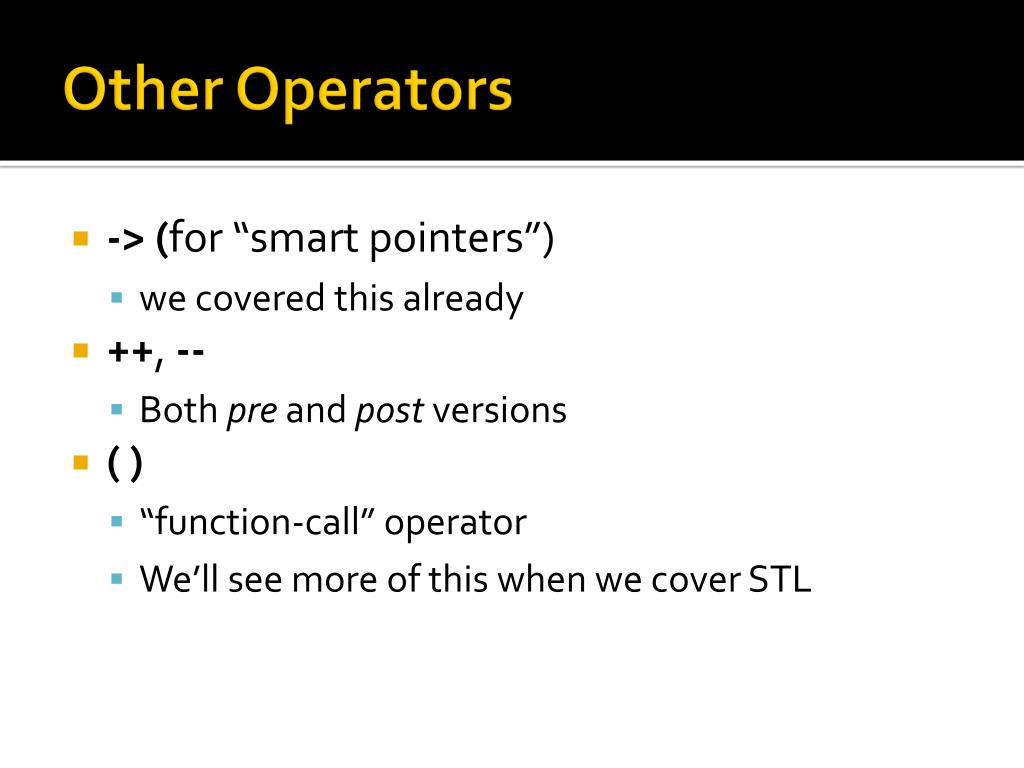

30. Other Operators • -> (for “smart pointers”) • we covered this already • ++, -- • Both pre and post versions • ( ) • “function-call” operator • We’ll see more of this when we cover STL

31. Overloading ++ and -- • Must distinguish between pre and post • Post versions take an extraneous int argument • The post versions must save current value • That’s why the pre versions are more efficient • They should also return a const object • To disallow x++++ • Illegal, modifies temporary • Examples: PrePost.cpp, SafeArrayPtr.cpp

32. Overloading operator( ) • The “Function Call” Operator • Constitutes a Function Object • An object that behaves like a function • If class T::operator( ) exists: • Then t( ) acts like a function call • Example: findGreater.cpp, findGreater2.cpp

33. Operator Overloading Checkpoint  • When should you make an operator function a member? • When should you make an operator function a non-member? • Why should you provide two versions of operator[]? • What side effect ensues from defining a constructor that can called with a single argument? • When should you use a conversion operator? • When shouldn’t you use a conversion operator?
