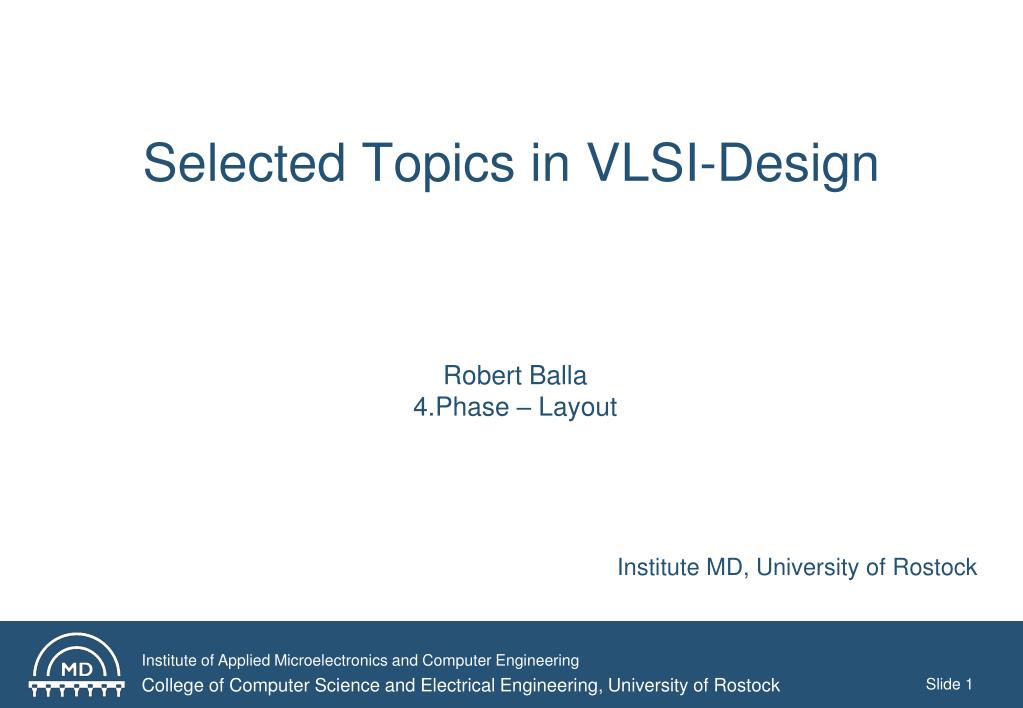

  1. Selected Topics in VLSI-Design Robert Balla4.Phase – Layout Institute MD, University of Rostock

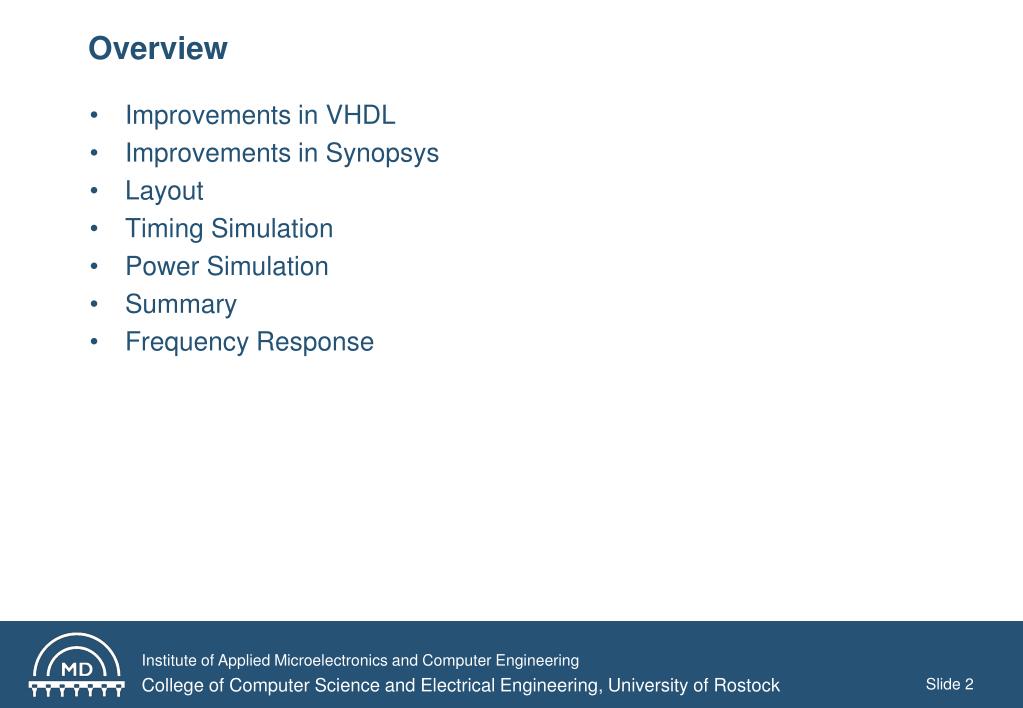

  2. Overview • Improvements in VHDL • Improvements in Synopsys • Layout • Timing Simulation • Power Simulation • Summary • Frequency Response

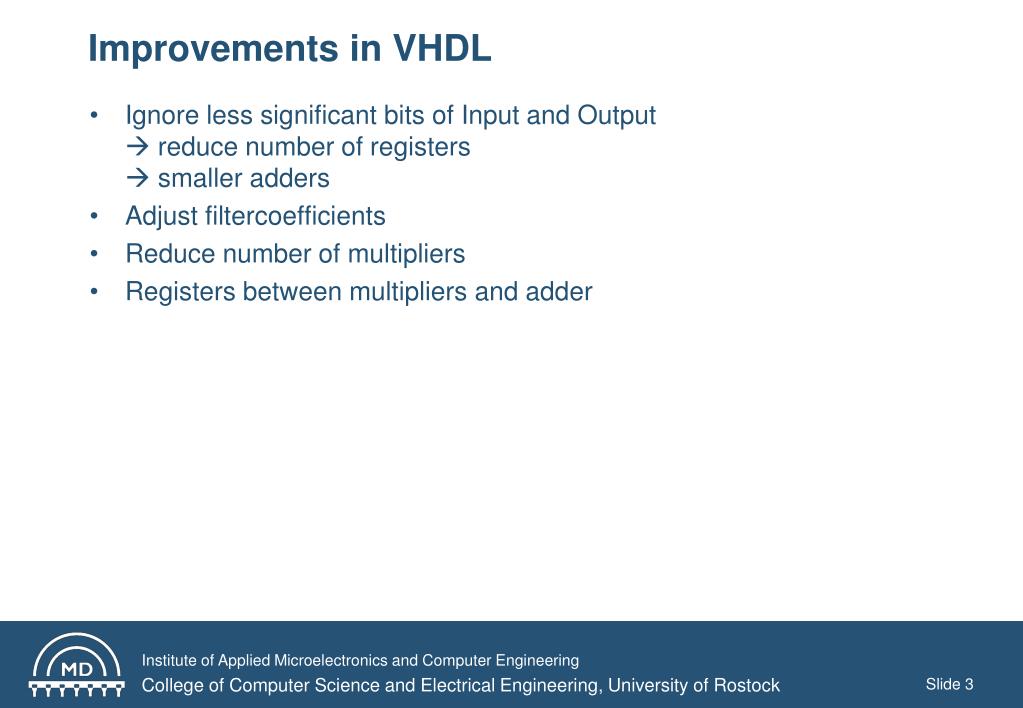

  3. Improvements in VHDL • Ignore less significant bits of Input and Output reduce number of registers smaller adders • Adjust filtercoefficients • Reduce number of multipliers • Registers between multipliers and adder

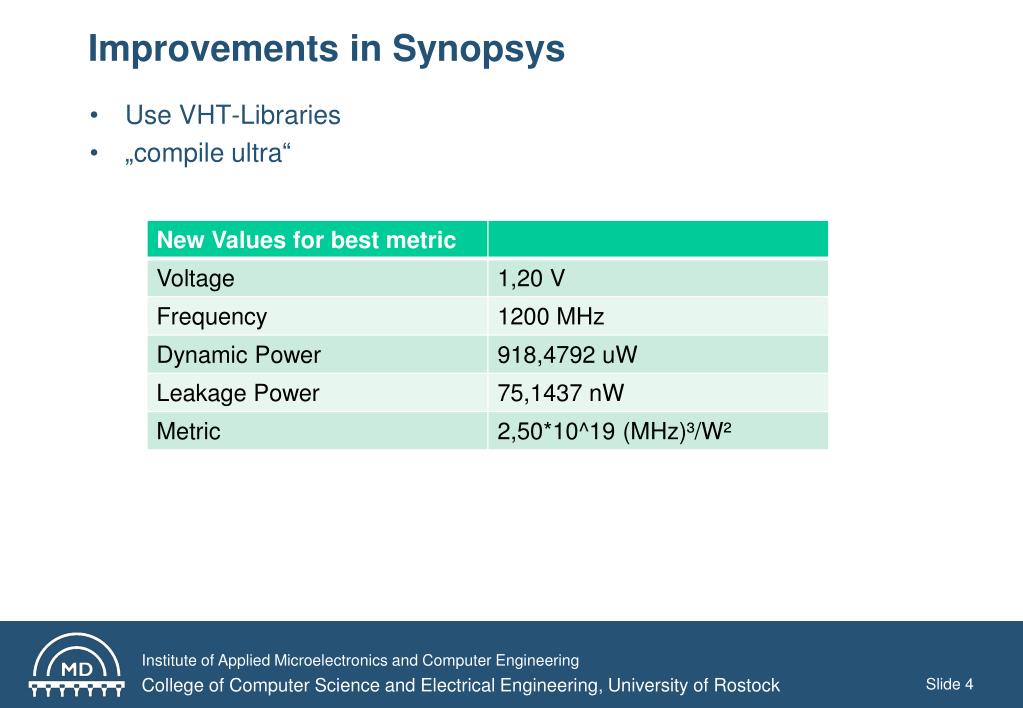

  4. Improvements in Synopsys • Use VHT-Libraries • „compileultra“

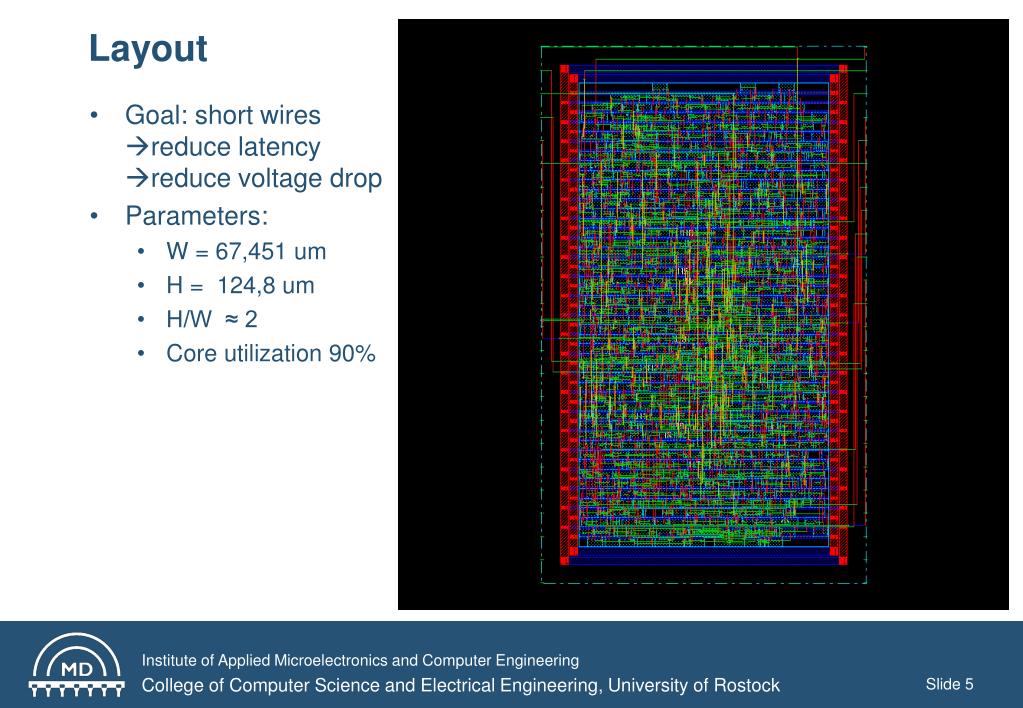

  5. Layout • Goal: short wiresreduce latencyreduce voltage drop • Parameters: • W = 67,451 um • H = 124,8 um • H/W ≈ 2 • Core utilization 90%

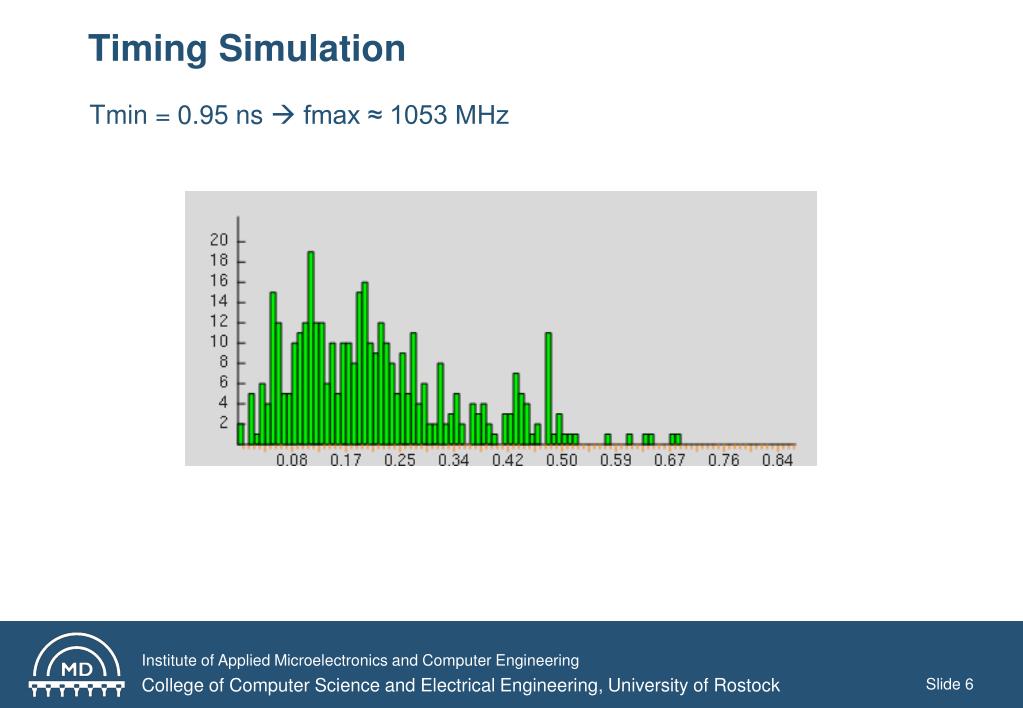

  6. Timing Simulation • Tmin = 0.95 ns  fmax ≈ 1053 MHz

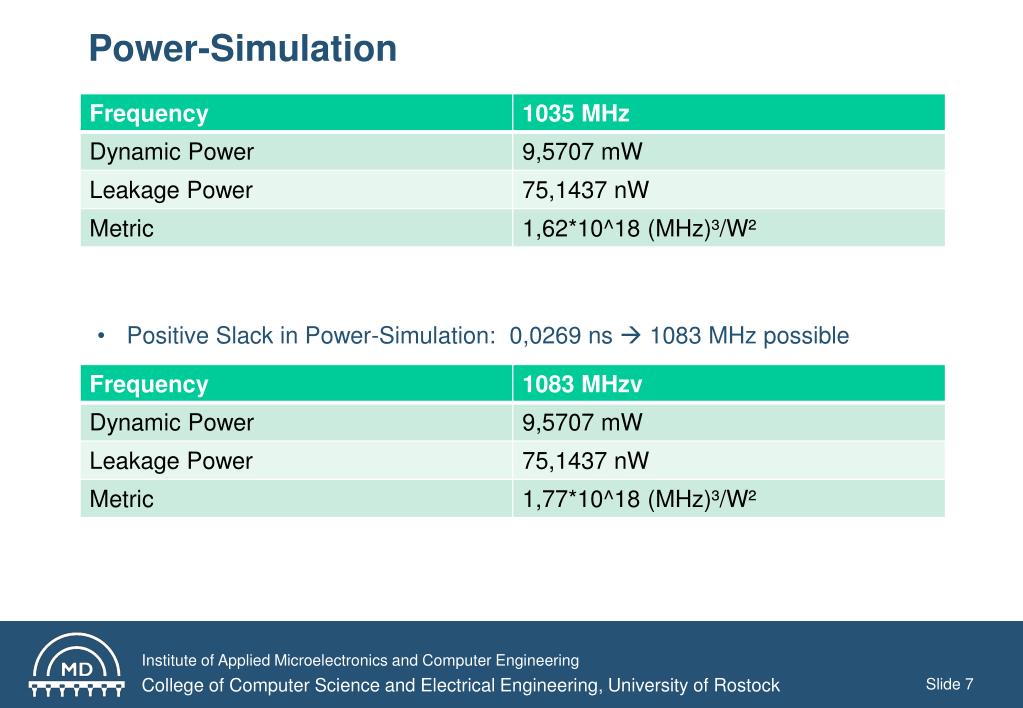

  7. Power-Simulation • Positive Slack in Power-Simulation: 0,0269 ns  1083 MHz possible

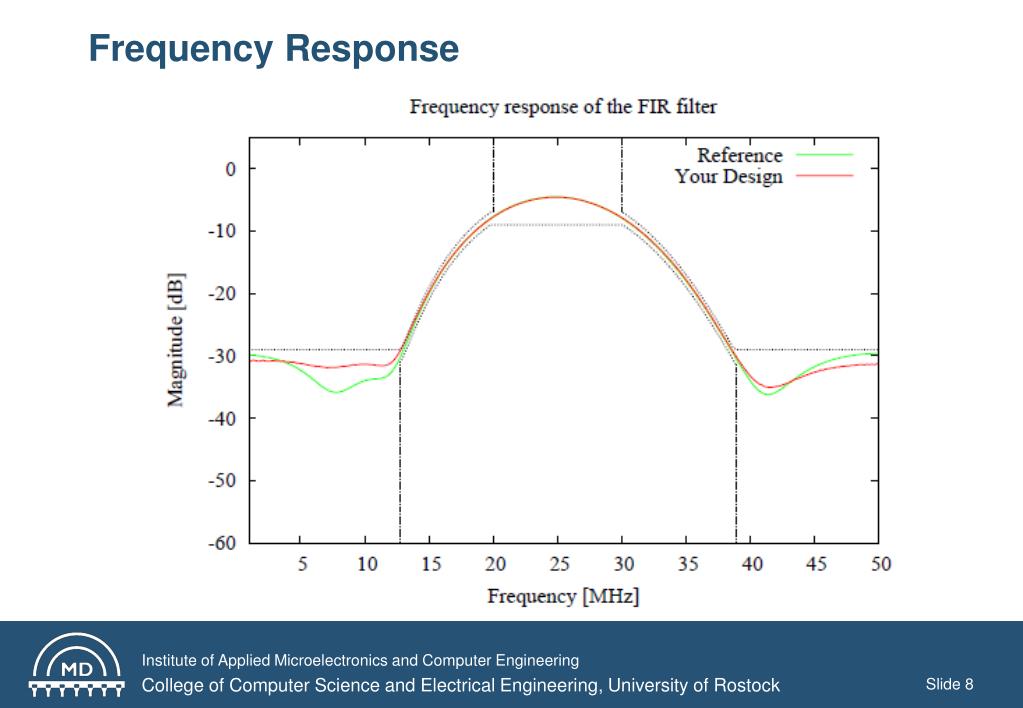

  8. Frequency Response

  9. Summary
