Enhancing FIB Aggregation with SMALTA: A Comparative Analysis

This document delves into the implementation of SMALTA (Static Multi-Level Aggregation) for improving FIB (Forwarding Information Base) aggregation. Introduced at IETF 76, it explores levels 1-5 aggregation efficiency, comparing original and aggregated tables. The analysis includes performance metrics, update processing times, and implications for routing updates. By examining robust data from RIB snapshots since 2004, this work presents insights into the opportunities and limitations of FIB aggregation, specifically focusing on SMALTA's operational characteristics and update methodologies.

kizzy
Télécharger la présentation

Enhancing FIB Aggregation with SMALTA: A Comparative Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FIB Aggregation with SMALTA Zartash Uzmi Ahsan Tariq Paul Francis draft-uzmi-smalta-00

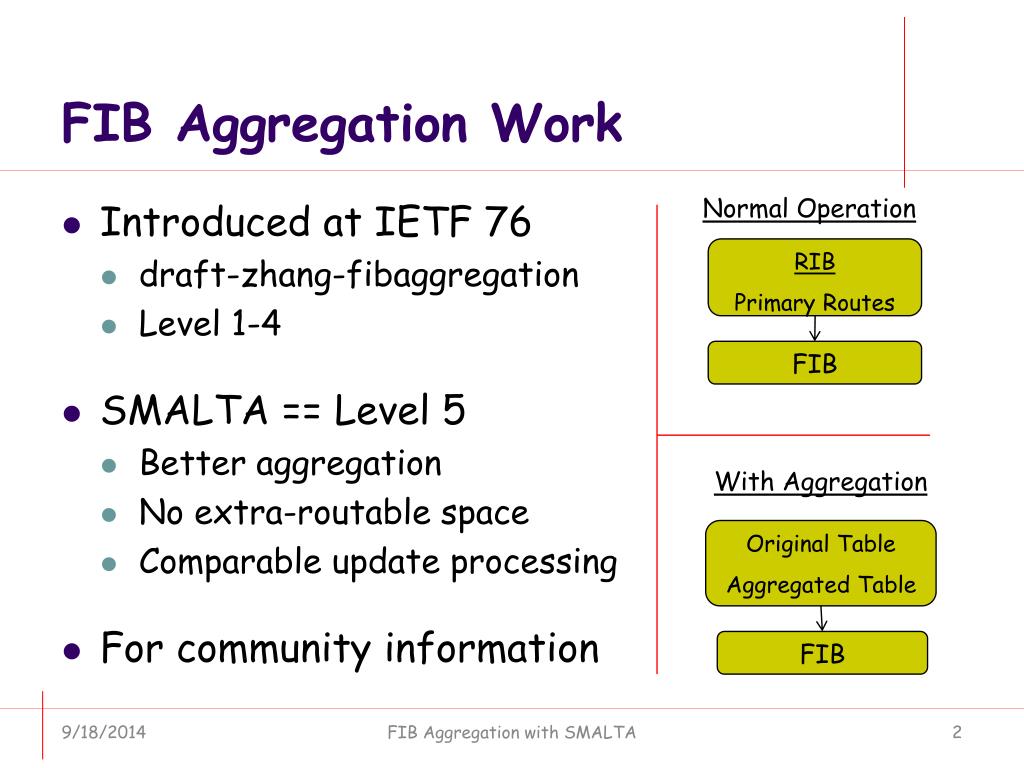

  2. FIB Aggregation Work Normal Operation • Introduced at IETF 76 • draft-zhang-fibaggregation • Level 1-4 • SMALTA == Level 5 • Better aggregation • No extra-routable space • Comparable update processing • For community information RIB Primary Routes FIB With Aggregation Original Table Aggregated Table FIB FIB Aggregation with SMALTA

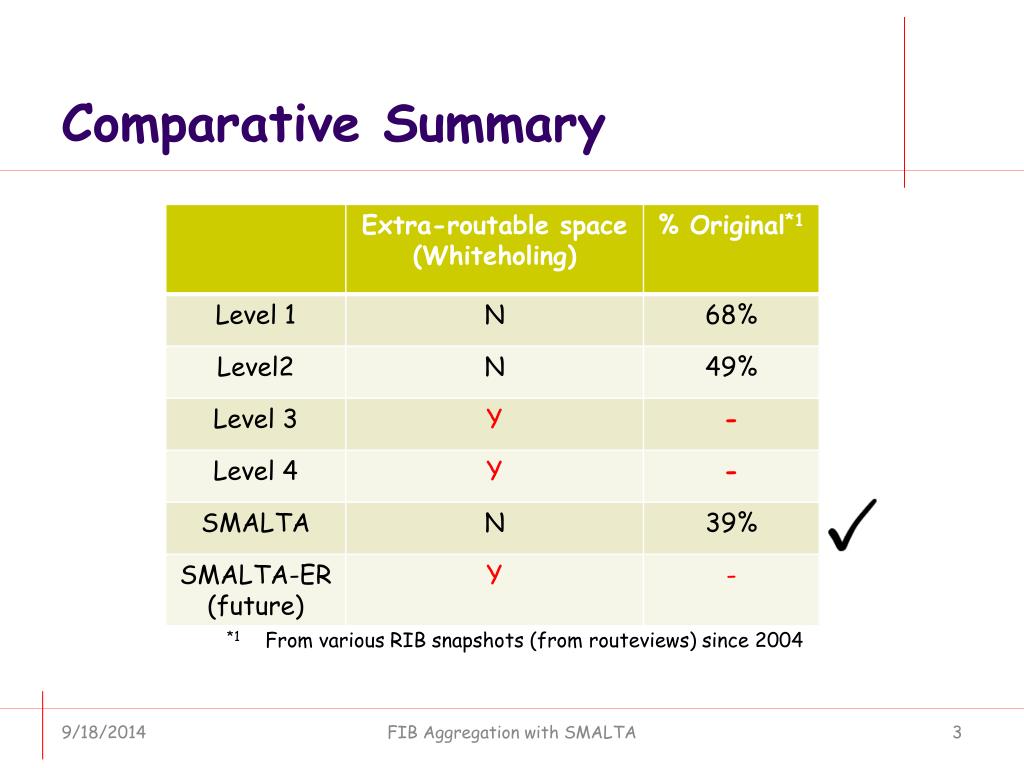

  3. Comparative Summary *1 From various RIB snapshots (from routeviews) since 2004 FIB Aggregation with SMALTA

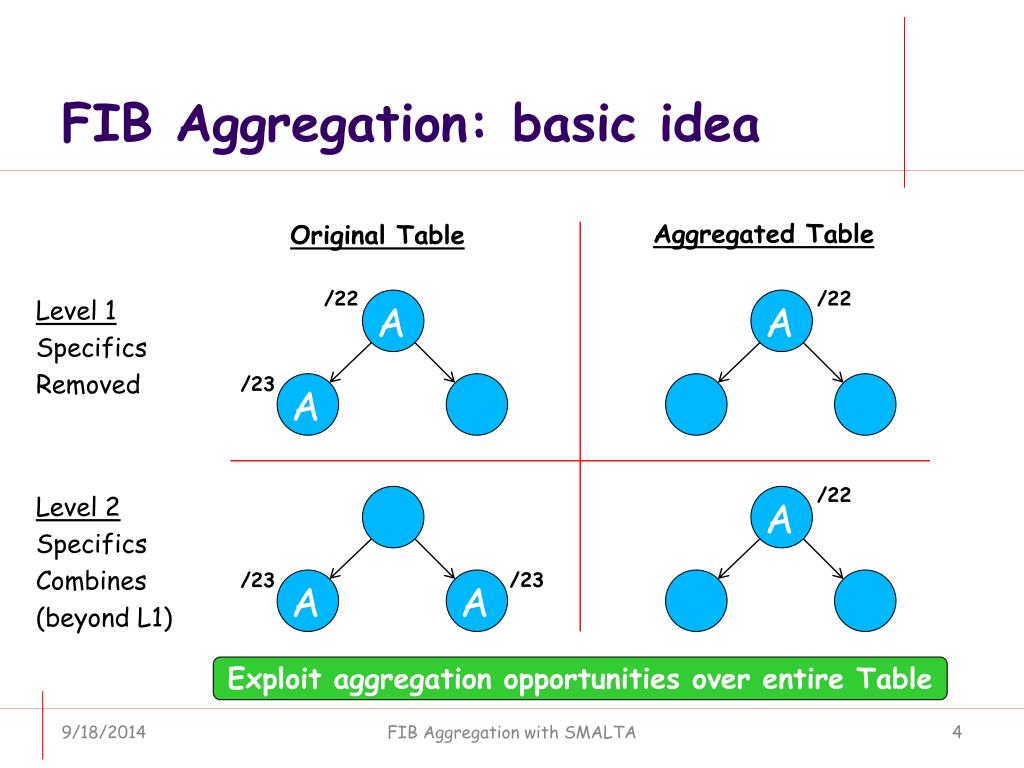

  4. FIB Aggregation: basic idea Aggregated Table Original Table /22 /22 Level 1 Specifics Removed A A /23 A /22 Level 2 Specifics Combines (beyond L1) A /23 /23 A A Exploit aggregation opportunities over entire Table FIB Aggregation with SMALTA

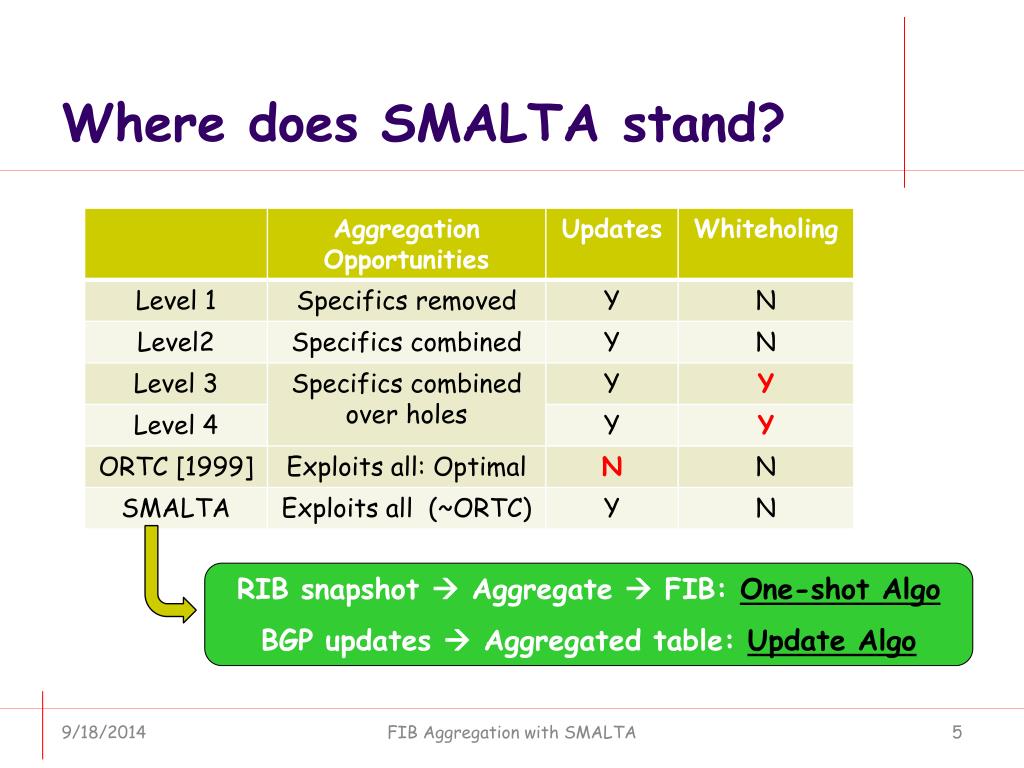

  5. Where does SMALTA stand? RIB snapshot  Aggregate  FIB: One-shot Algo BGP updates  Aggregated table: Update Algo FIB Aggregation with SMALTA

  6. One-shot and WITHDRAW Original Aggregated (SMALTA) C C With Level 1-4 Can’t aggregate any further! • Deaggregation • Opportunities to • aggregate more A B A A A A B Withdraw Withdraw C C A B A B B FIB Aggregation with SMALTA

  7. SMALTA Update 1. How far aggregated you are after N updates? After applying a full-day update trace: SMALTA loses between 1-6% of fully-aggregated state (one-shot) Measured for numerous routing tables across different years! 2. How many RIB-to-FIB downloads per update? Each update may result in just ONE change in Original Table RIB-to-FIB downloads: Exactly 1 (No Aggregation) 0/1/more (With Aggregation) FIB Aggregation with SMALTA

  8. Remarks • SMALTA One-Shot (300-400ms) ~3-4x more processing than L1 and L2 Applied very infrequently • SMALTA Update ~ same processing time as L1 and L2 Fewer avg. RIB-to-FIB downloads FIB Aggregation with SMALTA

  9. Comments / Questions

  10. Backup Slides

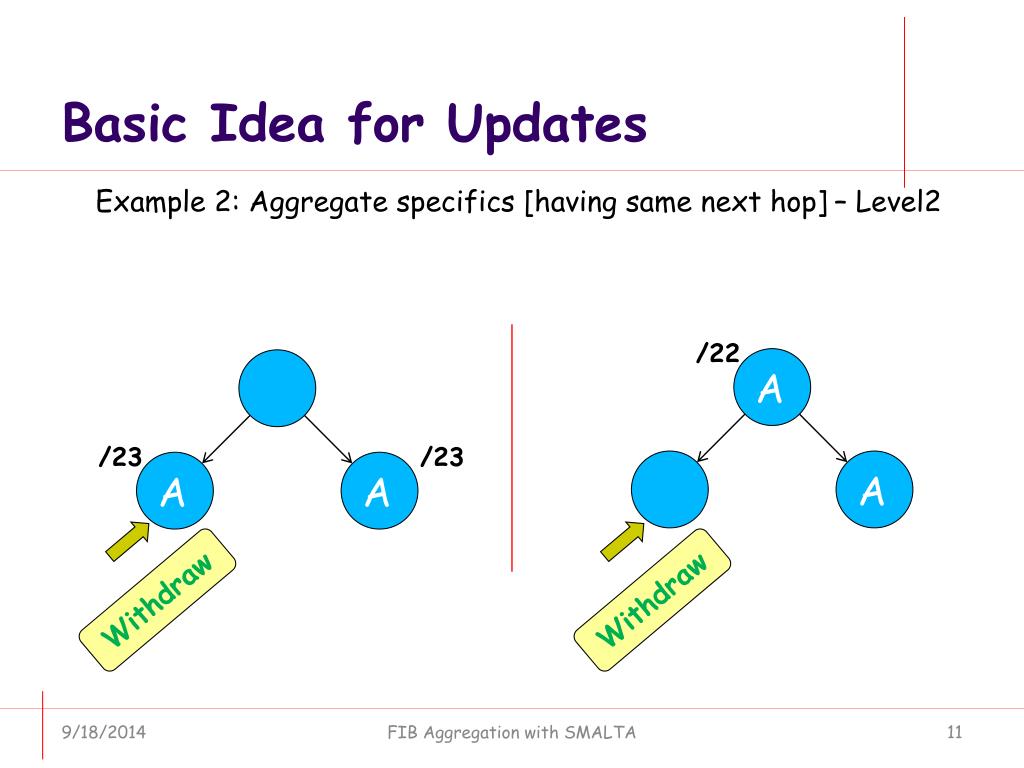

  11. Withdraw Withdraw Basic Idea for Updates Example 2: Aggregate specifics [having same next hop] – Level2 /22 A /23 /23 A A A FIB Aggregation with SMALTA

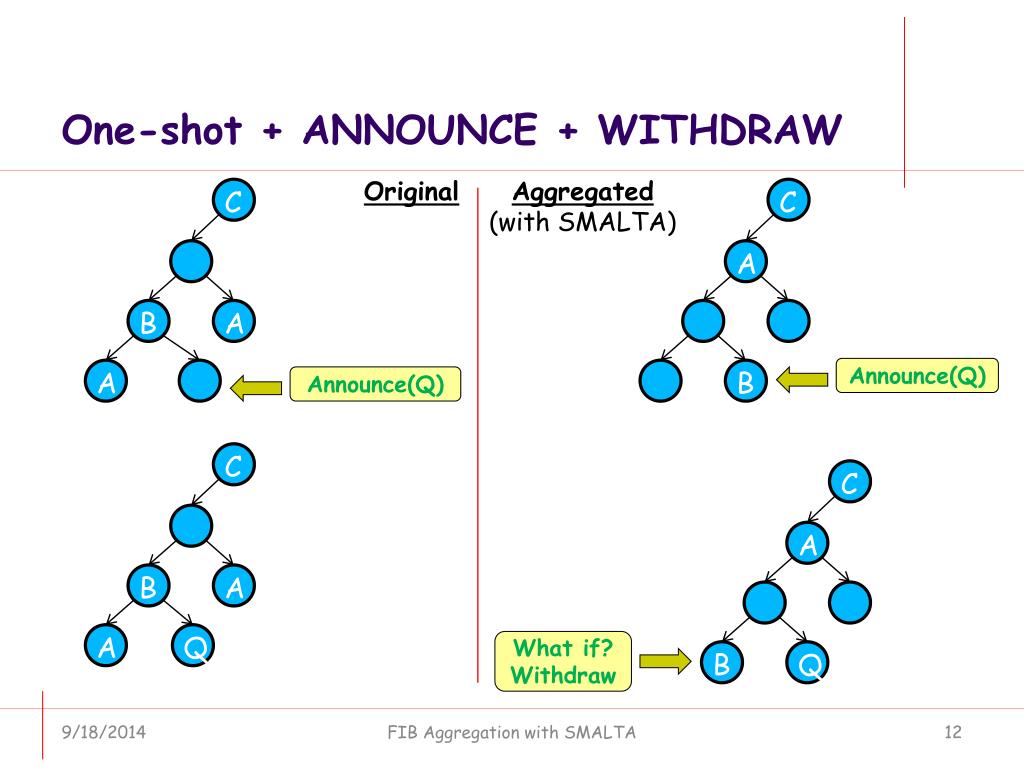

  12. One-shot + ANNOUNCE + WITHDRAW Original Aggregated (with SMALTA) C C A B A Announce(Q) A B Announce(Q) C C A B A A Q What if? Withdraw B Q FIB Aggregation with SMALTA

  13. Incremental Updates: Analysis • How far aggregated you are after N updates? • How long does it take to incorporate updates? • How many RIB to FIB downloads per update? FIB Aggregation with SMALTA

  14. Practicalities • Can’t aggregate entire table on every update • One-shot aggregation • Take current snapshot of RIB and Aggregate • On “significant” routing changes (e.g., BGP hard reset) • Perform a monolithic download after one-shot • To reflect BGP updates in FIB • Incremental updates to aggregated table FIB Aggregation with SMALTA

  15. Status: FIB Aggregation Work • Problem well-understood in GROW • draft-zhang-fibaggregation With Aggregation Normal Operation RIB Primary Routes Original Table [RIB] Aggregated Table Routing Updates Routing Updates IGP IGP FIB FIB FIB Aggregation with SMALTA

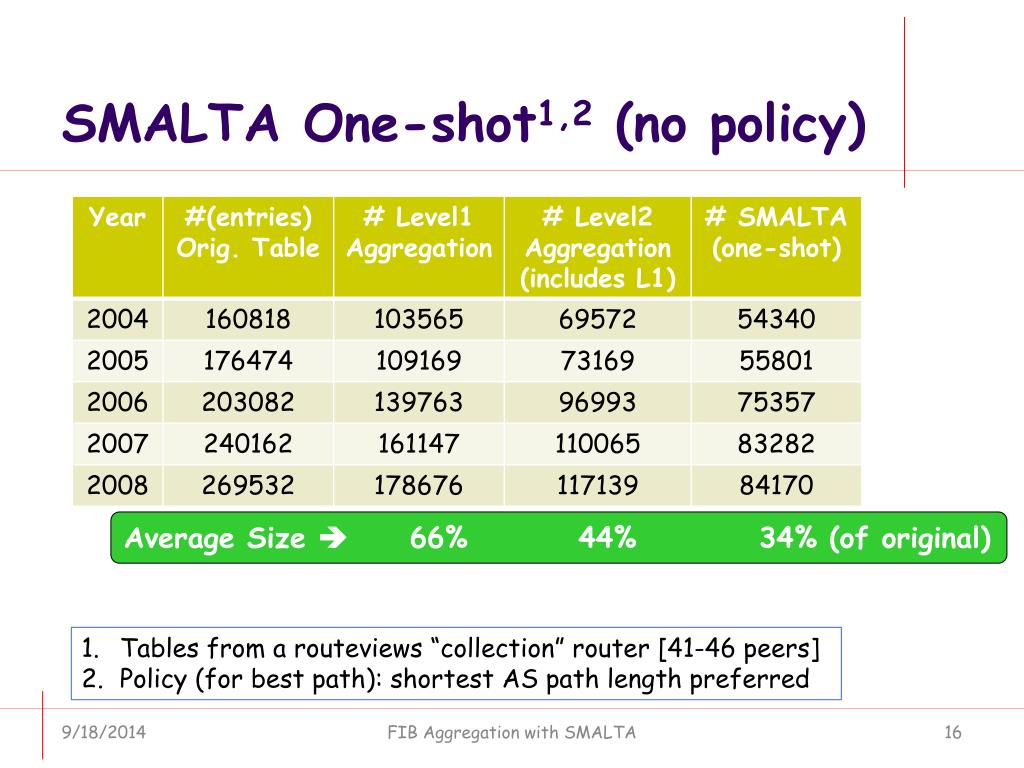

  16. SMALTA One-shot1,2 (no policy) Average Size  66% 44% 34% (of original) • Tables from a routeviews “collection” router [41-46 peers] • Policy (for best path): shortest AS path length preferred FIB Aggregation with SMALTA

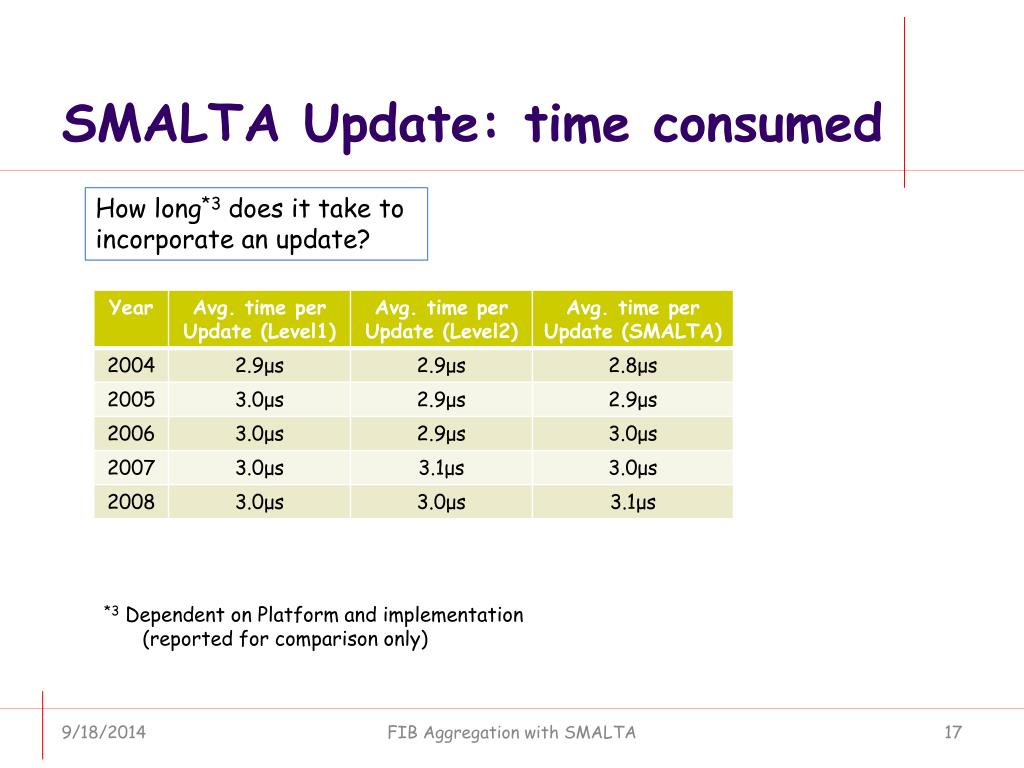

  17. SMALTA Update: time consumed How long*3 does it take to incorporate an update? *3 Dependent on Platform and implementation (reportedfor comparison only) FIB Aggregation with SMALTA

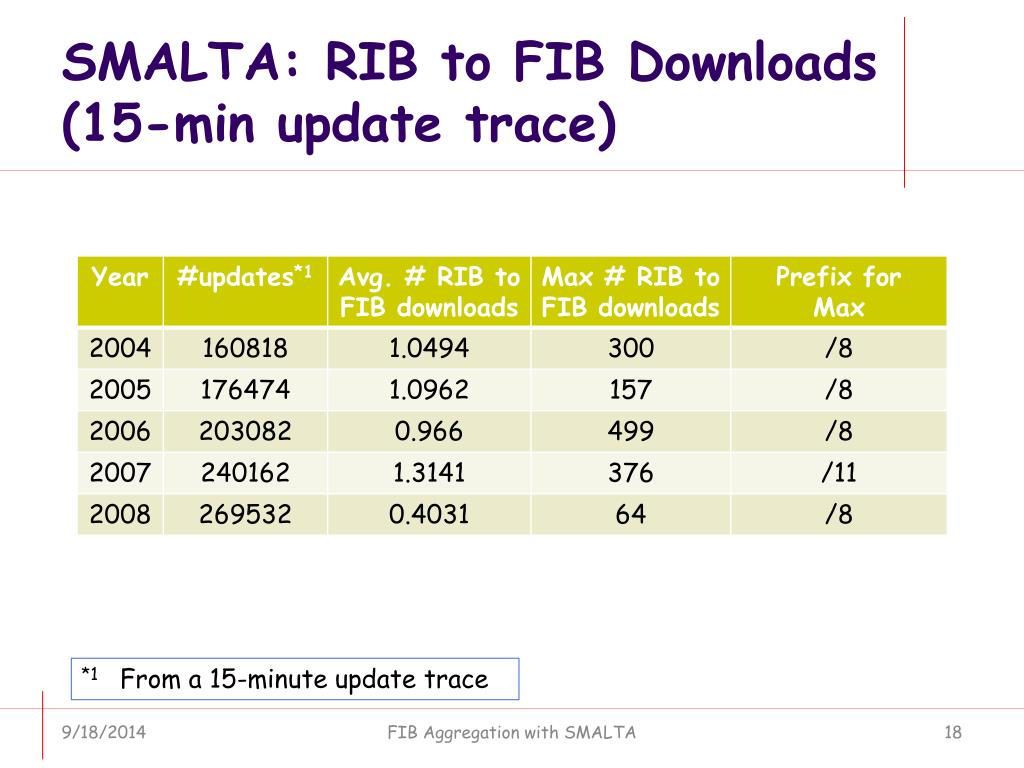

  18. SMALTA: RIB to FIB Downloads(15-min update trace) *1 From a 15-minute update trace FIB Aggregation with SMALTA
