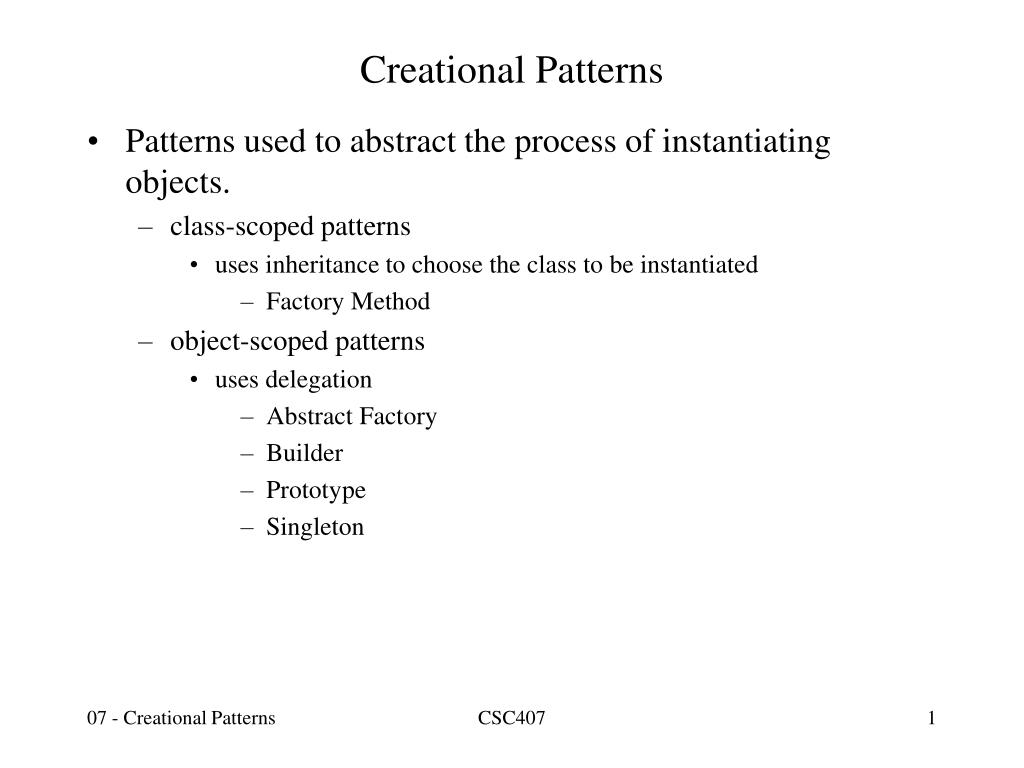

  1. Creational Patterns • Patterns used to abstract the process of instantiating objects. • class-scoped patterns • uses inheritance to choose the class to be instantiated • Factory Method • object-scoped patterns • uses delegation • Abstract Factory • Builder • Prototype • Singleton CSC407

  2. Importance • Becomes important as emphasis moves towards dynamically composing smaller objects to achieve complex behaviours. • need more than just instantiating a class • need consistent ways of creating related objects. CSC407

  3. Recurring Themes • Hide the secret about which concrete classes the system uses. • Hide the secret about how instances are created and associated. • Gives flexibility in • what gets created • who creates it • how it gets created • when it get gets created CSC407

  4. Running Example • Building a maze for a computer game. • A Maze is a set of Rooms. • A Room knows its neighbours. • another room • a wall • a door CSC407

  5. Maze Example CSC407

  6. d Creating Mazes public class MazeGame { public static void main(String args[]) { Maze m = new MazeGame().createMaze(); } public Maze createMaze() { Room r1 = new Room(1); Room r2 = new Room(2); Door d = new Door(r1,r2); r1.setSide(Direction.North, new Wall()); r1.setSide(Direction.East, d); r1.setSide(Direction.West, new Wall()); r1.setSide(Direction.South, new Wall()); r2.setSide(Direction.North, new Wall()); r2.setSide(Direction.West, d); r2.setSide(Direction.East, new Wall()); r2.setSide(Direction.South, new Wall()); Maze m = new Maze(); m.addRoom(r1); m.addRoom(r2); return m; } } r1 r2 CSC407

  7. MapSite enter() Wall enter() Maze Classes public abstract class MapSite { public abstract void enter(); } public class Wall extends MapSite { public void enter() { } } CSC407

  8. MapSite enter() Door open: boolean enter() otherSideFrom(Room): Room Maze Classes public class Door extends MapSite { Door(Room s1, Room s2) { side1 = s1; side2 = s2; } public void enter() { } public Room otherSideFrom(Room r) { if( r == side1 ) return side2; else if( r == side2 ) return side1; else return null; } public void setOpen(boolean b) { open = b; } public boolean getOpen() { return open; } private Room side1; private Room side2; boolean open; } side1, side2 [0..4] 2 Room CSC407

  9. Maze Classes public class Direction { public final static int First = 0; public final static int North = First; public final static int South = North+1; public final static int East = South+1; public final static int West = East+1; public final static int Last = West; public final static int Num = Last-First+1; } CSC407

  10. MapSite enter() Room enter() Maze Classes public class Room extends MapSite { public Room(int r) { room_no = r; } public void enter() { } public void setSide(int direction, MapSite ms) { side[direction] = ms; } public MapSite getSide(int direction) { return side[direction]; } public void setRoom_no(int r) { room_no = r; } public int getRoom_no() { return room_no; } private int room_no; private MapSite[] side = new MapSite[Direction.Num]; } 4 CSC407

  11. Maze Classes import java.util.Vector; public class Maze { public void addRoom(Room r) { rooms.addElement(r); } public Room getRoom(int r) { return (Room)rooms.elementAt(r); } public int numRooms() { return rooms.size(); } private Vector rooms = new Vector(); } Maze * Room CSC407

  12. Maze Creation public Maze createMaze() { Room r1 = new Room(1); Room r2 = new Room(2); Door d = new Door(r1,r2); r1.setSide(Direction.North, new Wall()); r1.setSide(Direction.East, d); r1.setSide(Direction.West, new Wall()); r1.setSide(Direction.South, new Wall()); r2.setSide(Direction.North, new Wall()); r2.setSide(Direction.East, d); r2.setSide(Direction.West, new Wall()); r2.setSide(Direction.South, new Wall()); Maze m = new Maze(); m.addRoom(r1); m.addRoom(r2); return m; } CSC407

  13. Maze Creation • Fairly complex member just to create a maze with two rooms. • Obvious simplification: • Room() could initialize sides with 4 new Wall() • That just moves the code elsewhere. • Problem lies elsewhere: inflexibility • Hard-codes the maze creation • Changing the layout can only be done by re-writing, or overriding and re-writing. CSC407

  14. Creational Patterns Benefits • Will make the maze more flexible. • easy to change the components of a maze • e.g., DoorNeedingSpell, EnchantedRoom • How can you change createMaze() so that it creates mazes with these different kind of classes? • Biggest obstacle is hard-coding of class names. CSC407

  15. Creational Patterns • If createMaze() calls virtuals to construct components • Factory Method • If createMaze() is passed a parameter object to create rooms, walls, … • Abstract Factory • If createMaze() is passed a parameter object to create and connect-up mazes • Builder • If createMaze is parameterized with various prototypical rooms, doors, walls, … which it copies and then adds to the maze • Prototype • Need to ensure there is only one maze per game, and everybody can access it, and can extend or replace the maze without touching other code. • Singleton CSC407

  16. Factory Method • Define an interface for creating an object, but let subclasses decide which class to instantiate. • a.k.a. Virtual Constructor • e.g., app framework factory method CSC407

  17. Applicability • Use when: • A class can’t anticipate the kind of objects to create. • Hide the secret of which helper subclass is the current delegate. CSC407

  18. Structure • Product • defines the interface of objects the factory method creates • ConcreteProduct • implements the Product interface CSC407

  19. Structure • Creator • declares the factory method which return a Product type. • [define a default implementation] • [call the factory method itself] • ConcreteCreator • overrides the factory method to return an instance of a ConcreteProduct CSC407

  20. Sample Code public class MazeGame { public static void main(String args[]) { Maze m = new MazeGame().createMaze(); } private Maze makeMaze() { return new Maze(); } private Wall makeWall() { return new Wall(); } private Room makeRoom(int r) { return new Room(r); } private Door makeDoor(Room r1, Room r2) { return new Door(r1,r2); } public Maze createMaze() { … } } CSC407

  21. Sample Code public Maze createMaze() { Room r1 = makeRoom(1); Room r2 = makeRoom(2); Door d = makeDoor(r1,r2); r1.setSide(Direction.North, makeWall()); r1.setSide(Direction.East, d); r1.setSide(Direction.West, makeWall()); r1.setSide(Direction.South, makeWall()); r2.setSide(Direction.North, makeWall()); r2.setSide(Direction.East, d); r2.setSide(Direction.West, makeWall()); r2.setSide(Direction.South, makeWall()); Maze m = makeMaze(); m.addRoom(r1); m.addRoom(r2); return m; } CSC407

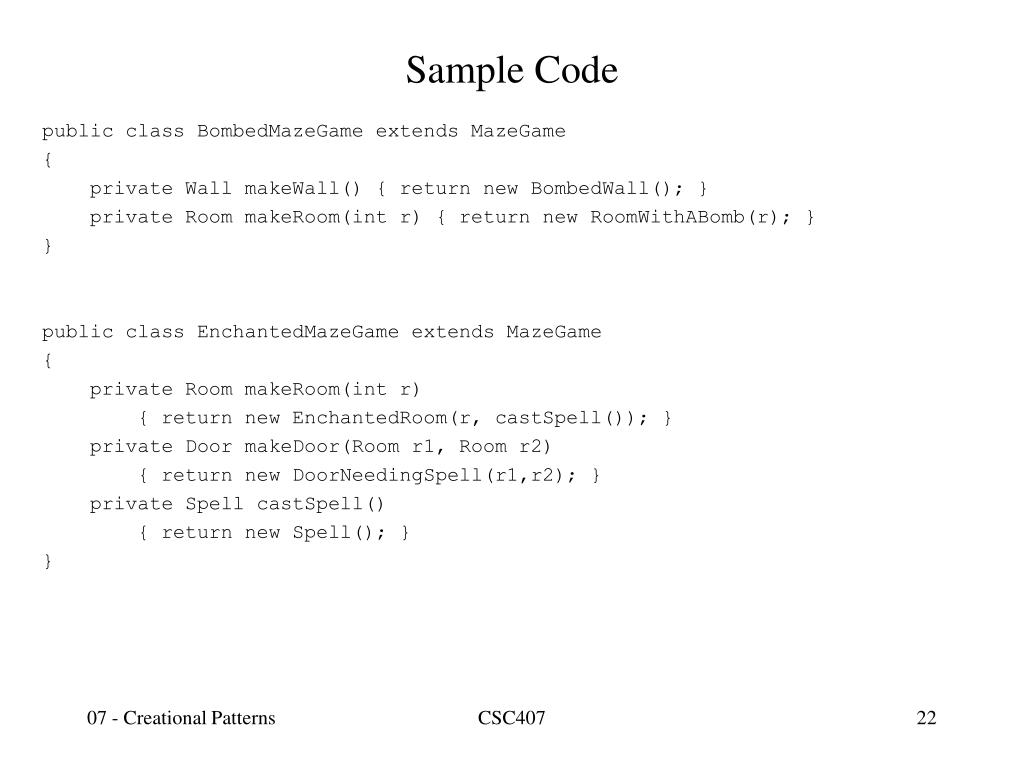

  22. Sample Code public class BombedMazeGame extends MazeGame { private Wall makeWall() { return new BombedWall(); } private Room makeRoom(int r) { return new RoomWithABomb(r); } } public class EnchantedMazeGame extends MazeGame { private Room makeRoom(int r) { return new EnchantedRoom(r, castSpell()); } private Door makeDoor(Room r1, Room r2) { return new DoorNeedingSpell(r1,r2); } private Spell castSpell() { return new Spell(); } } CSC407

  23. Sample Code public static void main(String args[]) { Maze m = new EnchantedMazeGame().createMaze(); } public static void main(String args[]) { Maze m = new BombedMazeGame().createMaze(); } CSC407

  24. Consequences • Advantage: • Eliminates the need to bind to specific implementation classes. • Can work with any user-defined ConcreteProduct classes. • Disadvantage: • Uses an inheritance dimension • Must subclass to define new ConcreteProduct objects • interface consistency required CSC407

  25. Consequences • Provides hooks for subclasses • always more flexible than direct object creation • Connects parallel class hierarchies • hides the secret of which classes belong together CSC407

  26. Implementation • Two major varieties • creator class is abstract • requires subclass to implement • creator class is concrete, and provides a default implementation • optionally allows subclass to re-implement • Parameterized factory methods • takes a class id as a parameter to a generic make() method. • (more on this later) • Naming conventions • use ‘makeXXX()’ type conventions (e.g., MacApp – DoMakeClass()) • Can use templates instead of inheritance • Return class of object to be created • or, store as member variable CSC407

  27. Question • What gets printed? public class Main { public static void main(String args[]) { new DerivedMain(); } public String myClass() { return "Main"; } } class DerivedMain extends Main { public DerivedMain() { System.out.println(myClass()); } public String myClass() { return "DerivedMain"; } } CSC407

  28. Implementation • Lazy initialization • In C++, subclass vtable pointers aren’t installed until after parent class initialization is complete. • DON’T CREATE DURING CONSTRUCTION! • can use lazy instatiation: Product getProduct() { if( product == null ) { product = makeProduct(); } return product; } CSC407

  29. Abstract Factory • Provide an interface for creating families of related or dependent objects without specifying their concrete classes. • e.g., look-and-feel portability • independence • enforced consistency CSC407

  30. Applicability • Use when: • a system should be independent of how its products are created, composed, and represented • a system should be configured with one of multiple families of products. • a family of related product objects is designed to be used together, and you need to enforce this constraint. • you want to provide a class library of products, and you want to reveal just their interfaces, not their implementations. • you want to hide and reuse awkward or complex details of construction CSC407

  31. Structure • AbstractFactory • declares an interface for operations that create product objects. • ConcreteFactory • implements the operations to create concrete product objects. CSC407

  32. Structure • AbstractProduct • declares an interface for a type of product object. • ConcreteFactory • defines a product to be created by the corresponding concrete factory. • implements th AbstractProduct interface. CSC407

  33. Structure • Client • uses only interfaces declared by AbstractFactory and AbstractProduct classes. CSC407

  34. Sample Code public class MazeFactory { Maze makeMaze() { return new Maze(); } Wall makeWall() { return new Wall(); } Room makeRoom(int r) { return new Room(r); } Door makeDoor(Room r1, Room r2) { return new Door(r1,r2);} } CSC407

  35. Maze Creation (old way) public Maze createMaze() { Room r1 = new Room(1); Room r2 = new Room(2); Door d = new Door(r1,r2); r1.setSide(Direction.North, new Wall()); r1.setSide(Direction.East, d); r1.setSide(Direction.West, new Wall()); r1.setSide(Direction.South, new Wall()); r2.setSide(Direction.North, new Wall()); r2.setSide(Direction.East, d); r2.setSide(Direction.West, new Wall()); r2.setSide(Direction.South, new Wall()); Maze m = new Maze(); m.addRoom(r1); m.addRoom(r2); return m; } CSC407

  36. Sample Code public Maze createMaze(MazeFactory factory) { Room r1 = factory.makeRoom(1); Room r2 = factory.makeRoom(2); Door d = factory.makeDoor(r1,r2); r1.setSide(Direction.North, factory.makeWall()); r1.setSide(Direction.East, d); r1.setSide(Direction.West, factory.makeWall()); r1.setSide(Direction.South, factory.makeWall()); r2.setSide(Direction.North, factory.makeWall()); r2.setSide(Direction.East, d); r2.setSide(Direction.West, factory.makeWall()); r2.setSide(Direction.South, factory.makeWall()); Maze m = factory.makeMaze() m.addRoom(r1); m.addRoom(r2); return m; } CSC407

  37. Sample Code public class EnchantedMazeFactory extends MazeFactory { public Room makeRoom(int r) { return new EnchantedRoom(r, castSpell()); } public Door makeDoor(Room r1, Room r2) { return new DoorNeedingSpell(r1,r2); } private protected castSpell() { // randomly choose a spell to cast; … } } CSC407

  38. Sample Code public class MazeGame { public static void main(String args[]) { Maze m = new MazeGame().createMaze(new MazeFactory()); } } public class MazeGame { public static void main(String args[]) { Maze m = new MazeGame().createMaze(new EnchantedMazeFactory()); } } CSC407

  39. Consequences • It isolates concrete classes • Helps control the classes of objects that an application creates. • Isolates clients from implementation classes • Clients manipulate instances through abstract interfaces • Product class names are isolated in the implementation of the concrete factory • they do not appear in the client code CSC407

  40. Consequences • It makes exchanging product families easy • The class of a concrete factory appears only once in the app. • where it’s instantiated • Easy to change the concrete factory an app uses. • The whole product family changes at once CSC407

  41. Consequences • It promotes consistency among products • When products are designed to work together, it’s important that an application use objects only from one family at a time. • AbstractFactory makes this easy to enforce. CSC407

  42. Consequences • Supporting new kinds of products is difficult. • Extending AbstractFactory to produce new product types isn’t easy • extend factory interface • extend all concrete factories • add a new abstract product • + the usual (implement new class in each family) CSC407

  43. Implementation • Factories as Singletons • An app typically needs only one instance of a ConcreteFactory per product family. • Best implemented as a Singleton CSC407

  44. Implementation • Defining extensible factories • Hard to extend to new product types • Add parameter to operations that create products • need only make() • less safe • more flexible • easier in languages that have common subclass • e.g. java Object • easier in more dynamically-typed languages • e.g., Smalltalk • all products have same abstract interface • can downcast – not safe • classic tradeoff for a very flexible/extensible interface CSC407

  45. Implementation • Creating the products • AbstractFactory declares an interface for product creation • ConcreteFactory implements it. How? • Factory Method • virtual overrides for creation methods • simple • requires new concrete factories for each family, even if they only differ slightly • Prototype • concrete factory is initialized with a prototypical instance of each product in the family • creates new products by cloning • doesn’t require a new concrete factory class for each product family • variant: can register class objects CSC407

  46. Prototype-based Implementation abstract class AbstractProduct implements Cloneable { public abstract int geti(); public abstract Object clone(); } class ConcreteProduct extends AbstractProduct { public ConcreteProduct(int j) { i = j; } public Object clone() { return new ConcreteProduct(i); } public int geti() { return i; } private int i; } CSC407

  47. Prototype-based Implementation import java.util.Hashtable; public class ConcreteFactory { void addProduct(AbstractProduct p, String name) { map.put(name, p); } AbstractProduct make(String name) { return (AbstractProduct) ((AbstractProduct)map.get(name)).clone(); } private Hashtable map = new Hashtable(); } CSC407

  48. Prototype-based Implementation public class Main { public static void main(String args[]) { ConcreteFactory f = new ConcreteFactory(); f.addProduct(new ConcreteProduct(42), “ap"); AbstractProduct p = f.make(“ap"); System.out.println(p.geti()); } } CSC407

  49. Class Registration Implementation abstract class AbstractProduct { public abstract int geti(); } class ConcreteProduct extends AbstractProduct { public int geti() { return i; } private int i = 47; } public class ConcreteFactory { void addProduct(Class c, String name) { map.put(name, c); } Product make(String name) throws Exception { Class c = (Class)map.get(name); return (Product) c.newInstance(); } private Hashtable map = new Hashtable(); } CSC407

  50. Class Registration Implementation public class Main { public static void main(String args[]) throws Exception { ConcreteFactory f = new ConcreteFactory(); f.addProduct(Class.forName("ConcreteProduct"), “ap"); AbstractProduct p = f.make(“ap"); System.out.println(p.geti()); } } CSC407
