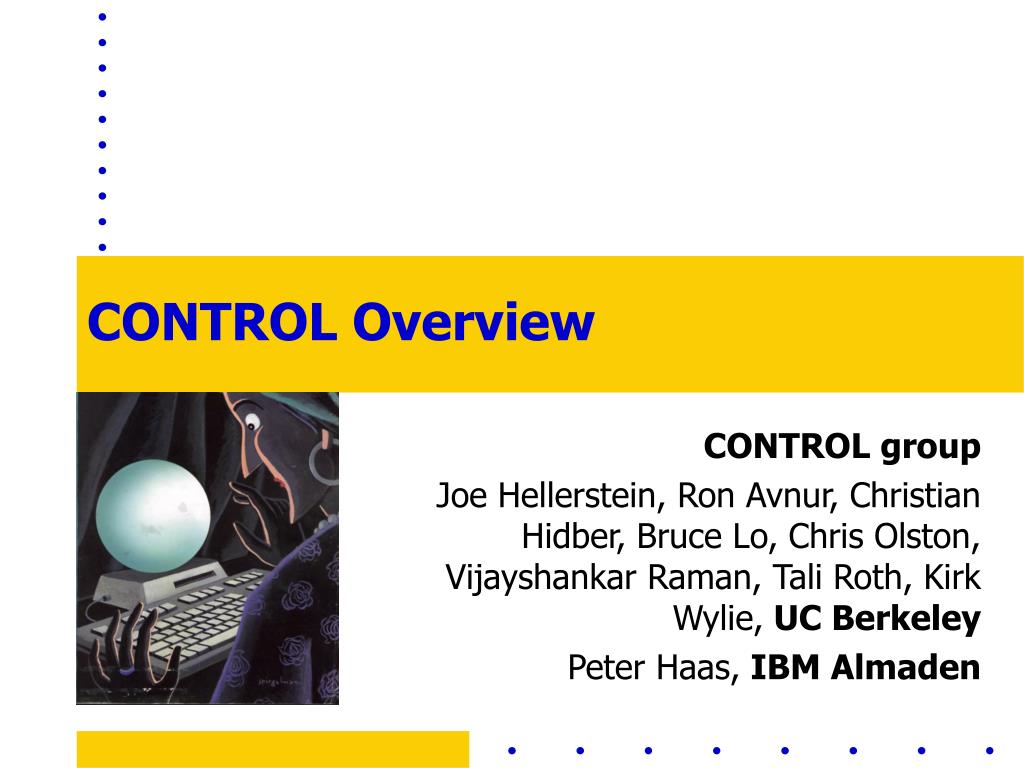

  1. CONTROL Overview CONTROL group Joe Hellerstein, Ron Avnur, Christian Hidber, Bruce Lo, Chris Olston, Vijayshankar Raman, Tali Roth, Kirk Wylie, UC Berkeley Peter Haas, IBM Almaden

  2. Context (wild assertions) • Value from information • The pressing problem in CS (?) (!!) • “Point” querying and data management is a solved problem • at least for traditional data (business data, documents) • “Big picture” analysis still hard

  3. Data Analysis c. 1998 • Complex: people using many tools • SQL Aggregation (Decision Support Sys, OLAP) • AI-style WYGIWIGY systems (e.g. Data Mining, IR) • Both are Black Boxes • Users must iterate to get what they want • batch processing (big picture = big wait) • We are failing important users! • Decision support is for decision-makers! • Black box is the world’s worst UI

  4. Black Box Begone! • Black boxes are bad • cannot be observed while running • cannot be controlled while running • These tools can be very slow • exacerbates previous problems • Thesis: • there will always be slow computer programs, usually data-intensive • fundamental issue: looking into the box...

  5. Crystal Balls • Allow users to observe processing • as opposed to “lucite watches” • Allow users to predict future • Ideally, allow users to change future • online control of processing • The CONTROL Project: • online delivery, estimation, and control for data-intensive processes

  6. Performance Regime for CONTROL • Online performance: • Maximize 1st derivative of the “mirth index” 100% CONTROL  Traditional Time

  7. Examples • Online Aggregation • Informix Dynamic Server • Enhanced by UCB students with Control algorithms • Lots of algorithmics, many fussy end-to-end system issues [Avnur, Hellerstein, Raman DMKD ’00] • IBM has ongoing project to do this in DB2 • IBM buys Informix (4/01) • Online Visualization • Visual enumeration & aggregation • Interactive data cleaning & analysis • Potter’s Wheel ABC • Online “enumeration” and discrepancy detection

  8. Example: Online Aggregation SELECT AVG(gpa) FROM students GROUP BY college

  9. Example: Online Data Visualization • In Tioga DataSplash

  10. Visual Transformation Shot

  11. Scalable Spreadsheets

  12. Decision-Support in DBMSs • Aggregation queries • compute a set of qualifying records • partition the set into groups • compute aggregation functions on the groups • e.g.: Select college, AVG(grade) From ENROLL Group By college;

  13. Interactive Decision Support? • Precomputation • the typical “OLAP” approach (a.k.a. Data Cubes) • doesn’t scale, no ad hoc analysis • blindingly fast when it works • Sampling • makes real people nervous? • no ad hoc precision • sample in advance • can’t vary stats requirements • per-query granularity only

  14. Online Aggregation • Think “progressive” sampling • a la images in a web browser • good estimates quickly, improve over time • Shift in performance goals • online mirth index • Shift in the science • UI emphasis drives system design • leads to different data delivery, result estimation • motivates online control

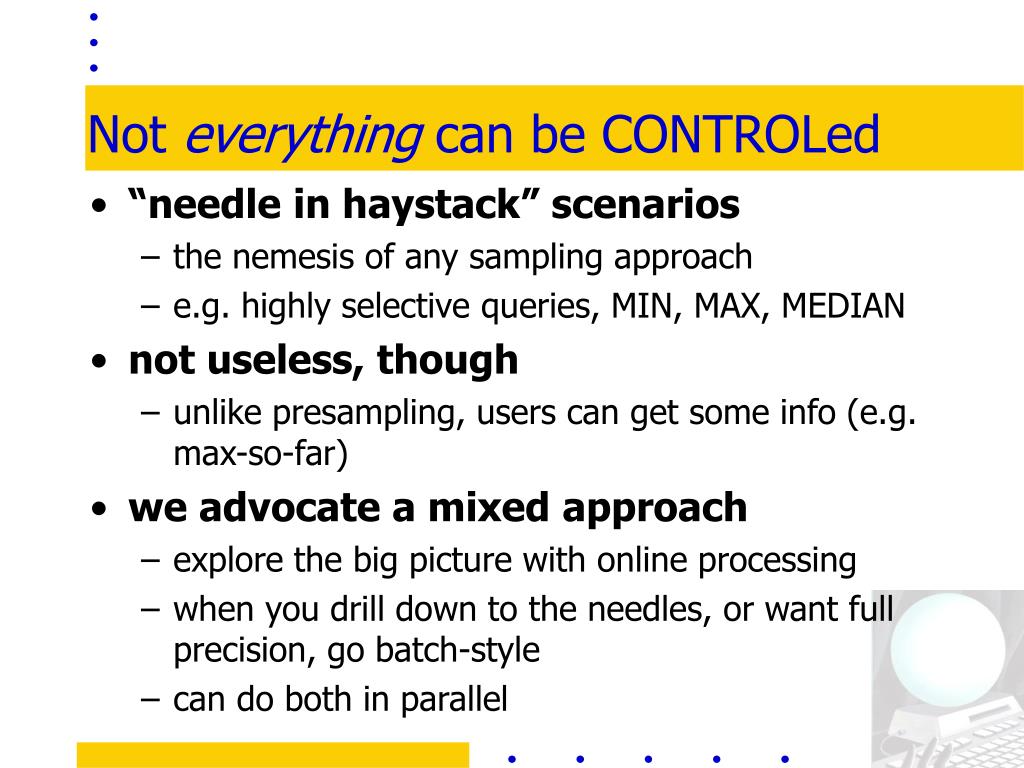

  15. Not everything can be CONTROLed • “needle in haystack” scenarios • the nemesis of any sampling approach • e.g. highly selective queries, MIN, MAX, MEDIAN • not useless, though • unlike presampling, users can get some info (e.g. max-so-far) • we advocate a mixed approach • explore the big picture with online processing • when you drill down to the needles, or want full precision, go batch-style • can do both in parallel

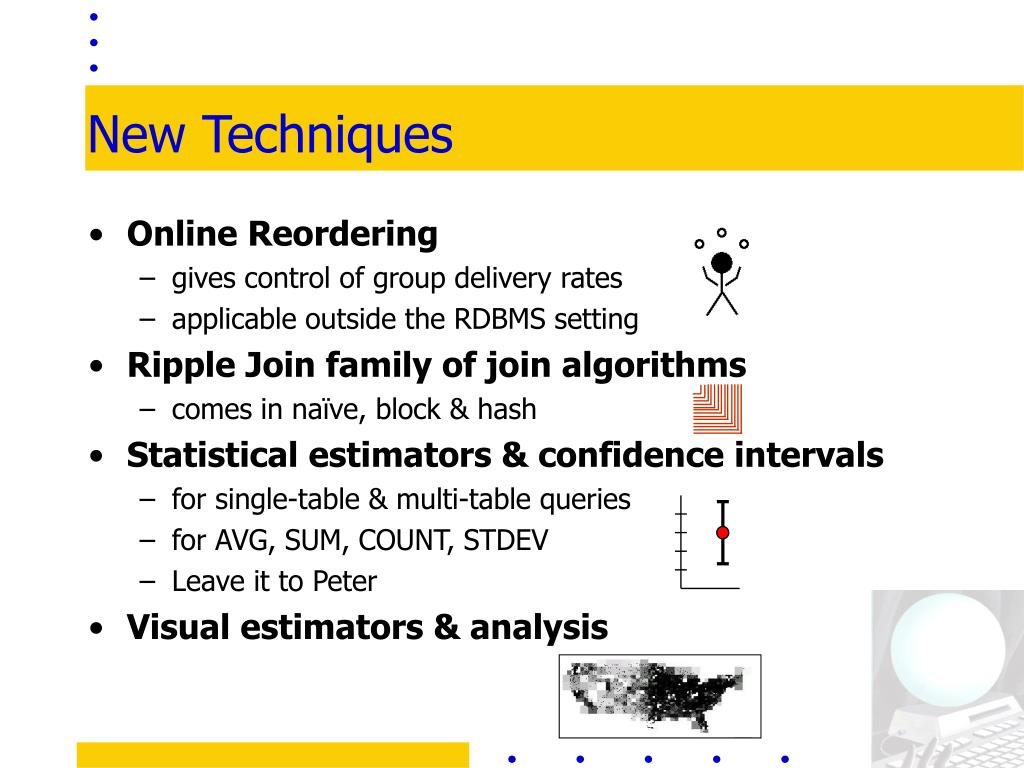

  16. New Techniques • Online Reordering • gives control of group delivery rates • applicable outside the RDBMS setting • Ripple Join family of join algorithms • comes in naïve, block & hash • Statistical estimators & confidence intervals • for single-table & multi-table queries • for AVG, SUM, COUNT, STDEV • Leave it to Peter • Visual estimators & analysis

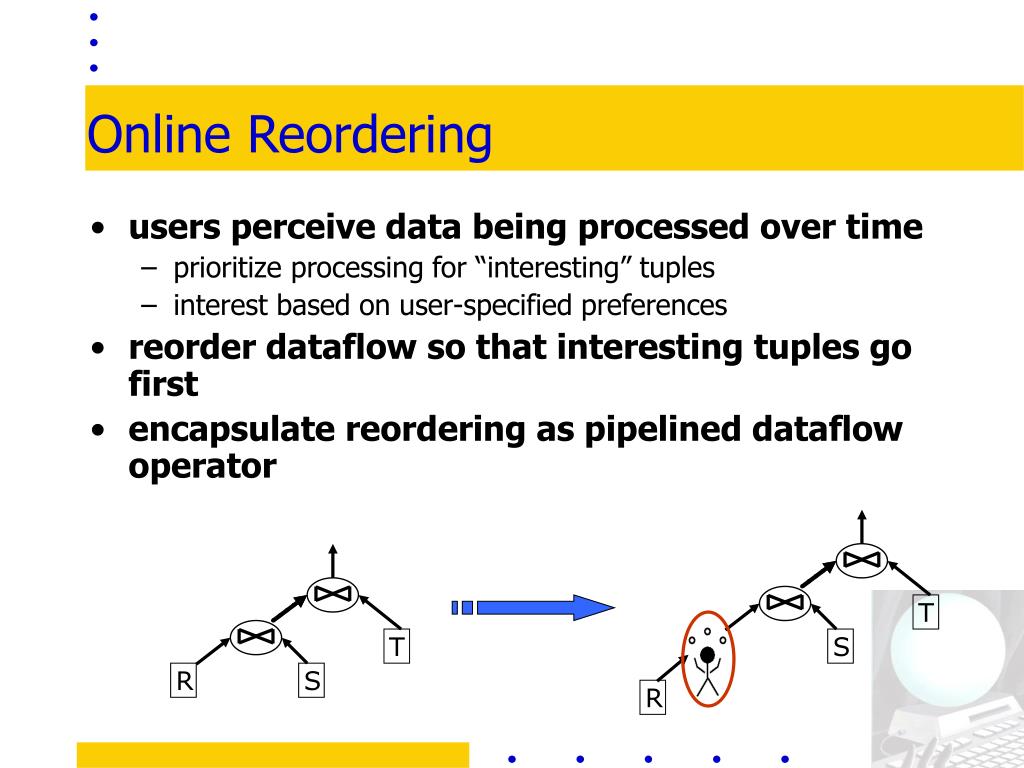

  17. Online Reordering • users perceive data being processed over time • prioritize processing for “interesting” tuples • interest based on user-specified preferences • reorder dataflow so that interesting tuples go first • encapsulate reordering as pipelined dataflow operator T T S R S R

  18. Context: an application of reordering • online aggregation • for SQL aggregate queries, give gradually improving estimates • with confidence intervals • allow users to speed up estimate refinement for groups of interest • prioritize for processing at a per-group granularity SELECT AVG(gpa) FROM students GROUP BY college

  19. consume produce Framework for Online Reordering • want no delay in processing • in general, reordering can only be best-effort • typically process/consume slower than produce • exploit throughput difference to reorder • two aspects • mechanism for best-effort reordering • reordering policy network xfer. acddbadb... f(t) abcdabc.. process reorder user interest

  20. Juggle mechanism for reordering process/consume • two threads -- prefetch from input -- spool/enrich from auxiliary side disk • juggle data between buffer and side disk • keep buffer full of “interesting” items • getNext chooses best item currently on buffer • getNext, enrich/spool decisions -- based on reordering policy • side disk management • hash index, populated in a way that postpones random I/O getNext buffer prefetch enrich spool produce side disk

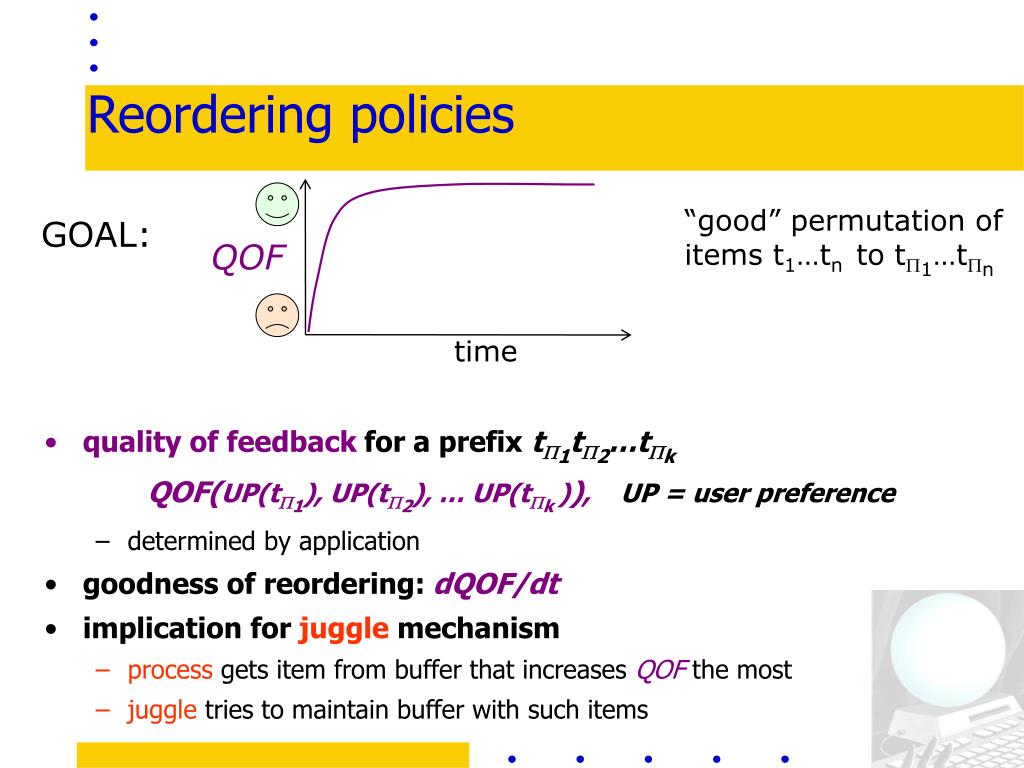

  21. Reordering policies “good” permutation of items t1…tn to t1…tn GOAL: • quality of feedback for a prefix t1t2…tk QOF(UP(t1), UP(t2), … UP(tk )), UP = user preference • determined by application • goodness of reordering: dQOF/dt • implication for juggle mechanism • process gets item from buffer that increases QOF the most • juggle tries to maintain buffer with such items QOF time

  22. QOF in Online Aggregation • avg weighted confidence interval • preference acts as weight on confidence interval (Recall from Central Limit Theorem that sample mean’s confidence interval half-width is proportional to s/n. Conservative (Hoeffding) confidence intervals also have a n in the denominator. So…) QOF= UPi /ni , ni= number of tuples processed from group I • process pulls items from group with maxUPi /nini • desired ratio of group i tuples on buffer =UPi2/3/ UPj2/3 • juggle tries to maintain this by enrich/spool

  23. Other QOF functions • rate of processing (for a group)  preference • QOF=  (ni - nUPi)2(variance from ideal proportions) • process pulls items from group with max(nUPi - ni ) • desired ratio of group i tuples in buffer = UPi

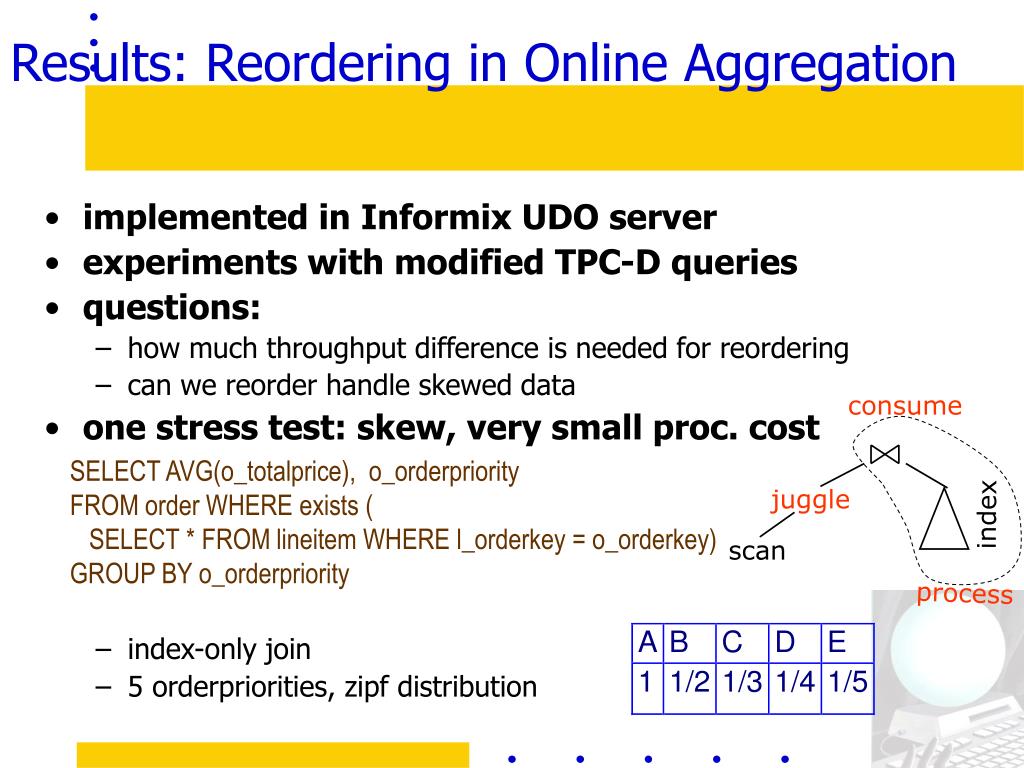

  24. Results: Reordering in Online Aggregation • implemented in Informix UDO server • experiments with modified TPC-D queries • questions: • how much throughput difference is needed for reordering • can we reorder handle skewed data • one stress test: skew, very small proc. cost • index-only join • 5 orderpriorities, zipf distribution consume SELECT AVG(o_totalprice), o_orderpriority FROM order WHERE exists ( SELECT * FROM lineitem WHERE l_orderkey = o_orderkey) GROUP BY o_orderpriority juggle index scan process

  25. Performance results confidence interval # tuples processed E C A time time • 3 times faster for interesting groups • 2% completion time overhead

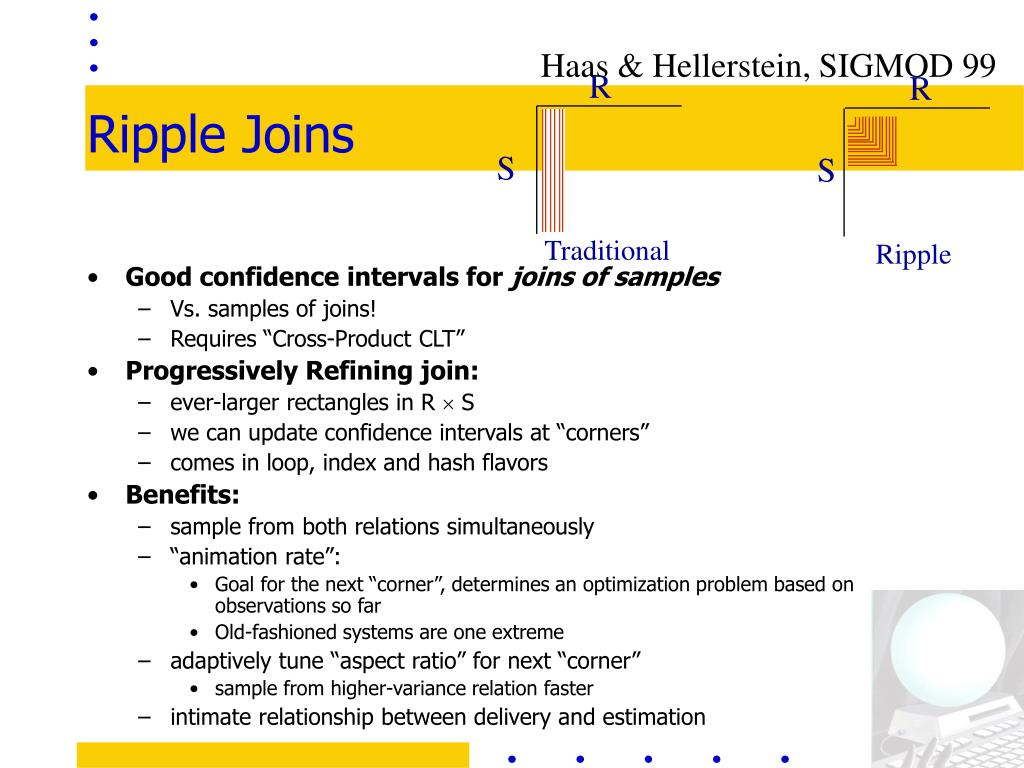

  26. R R S S Traditional Ripple Haas & Hellerstein, SIGMOD 99 Ripple Joins • Good confidence intervals for joins of samples • Vs. samples of joins! • Requires “Cross-Product CLT” • Progressively Refining join: • ever-larger rectangles in R  S • we can update confidence intervals at “corners” • comes in loop, index and hash flavors • Benefits: • sample from both relations simultaneously • “animation rate”: • Goal for the next “corner”, determines an optimization problem based on observations so far • Old-fashioned systems are one extreme • adaptively tune “aspect ratio” for next “corner” • sample from higher-variance relation faster • intimate relationship between delivery and estimation

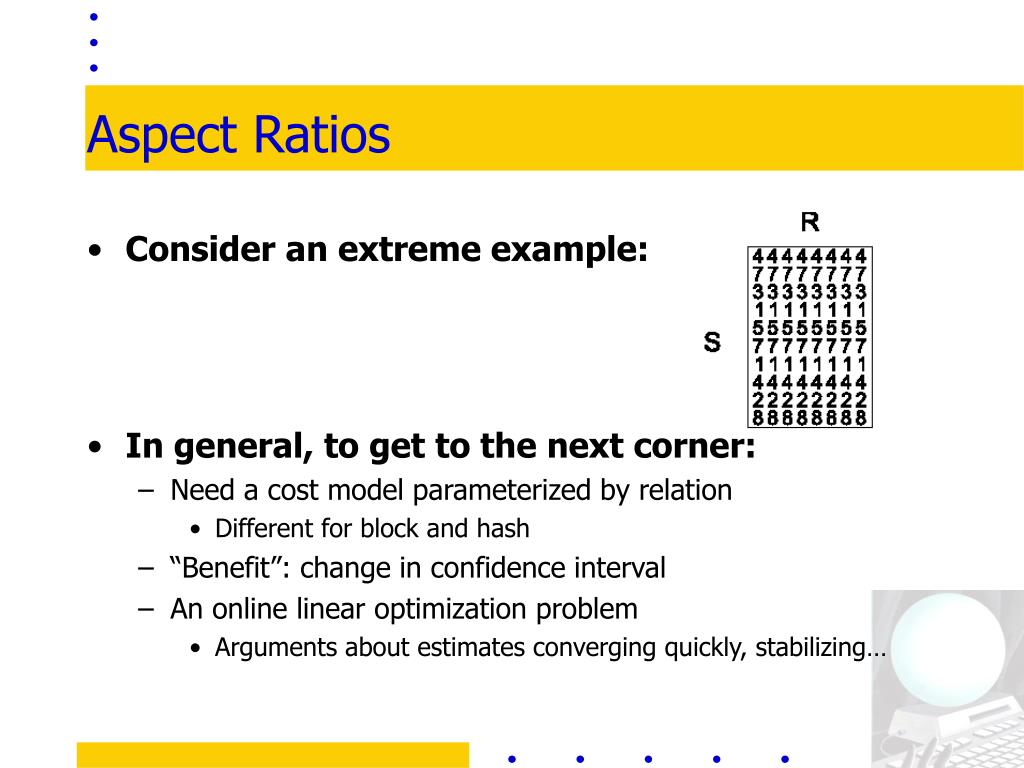

  27. Aspect Ratios • Consider an extreme example: • In general, to get to the next corner: • Need a cost model parameterized by relation • Different for block and hash • “Benefit”: change in confidence interval • An online linear optimization problem • Arguments about estimates converging quickly, stabilizing…

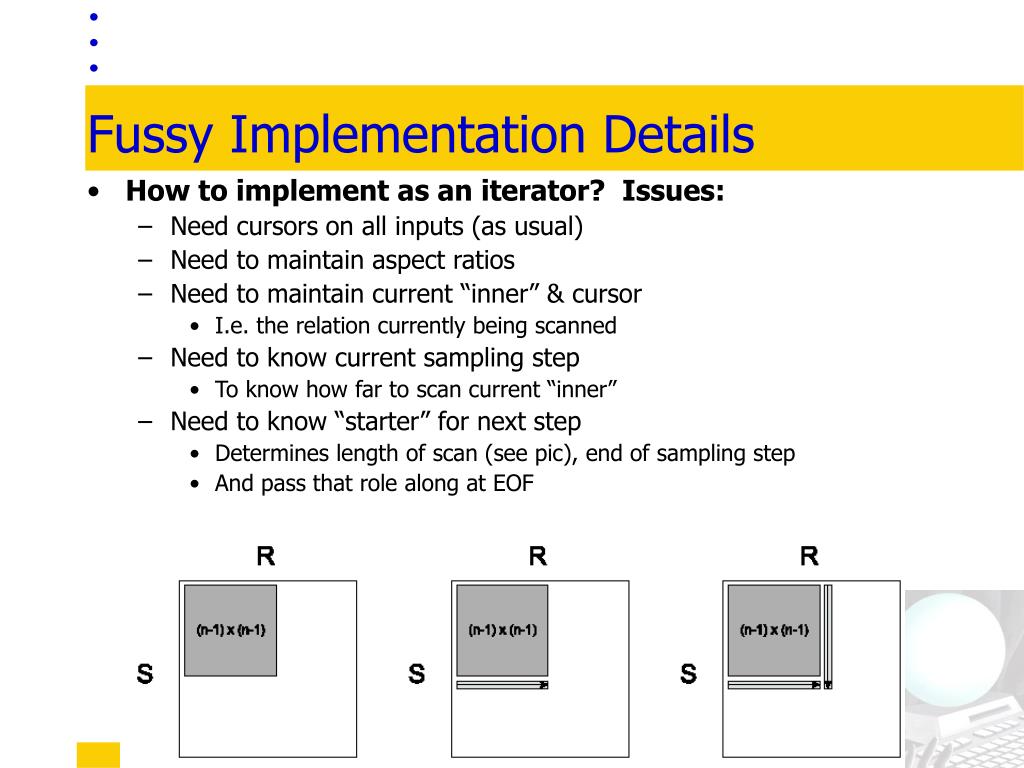

  28. Fussy Implementation Details • How to implement as an iterator? Issues: • Need cursors on all inputs (as usual) • Need to maintain aspect ratios • Need to maintain current “inner” & cursor • I.e. the relation currently being scanned • Need to know current sampling step • To know how far to scan current “inner” • Need to know “starter” for next step • Determines length of scan (see pic), end of sampling step • And pass that role along at EOF

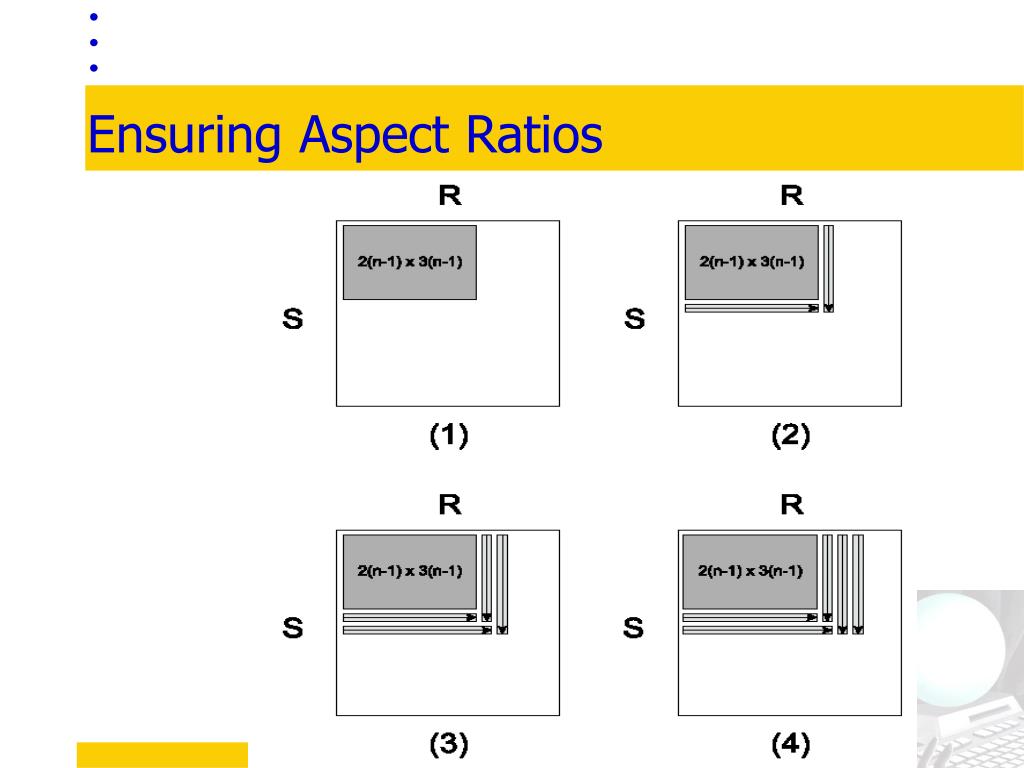

  29. Ensuring Aspect Ratios

  30. Ripple Join Performance • Too lazy to fetch graphs, but… • Typical orders of magnitude benefit vs. batch…

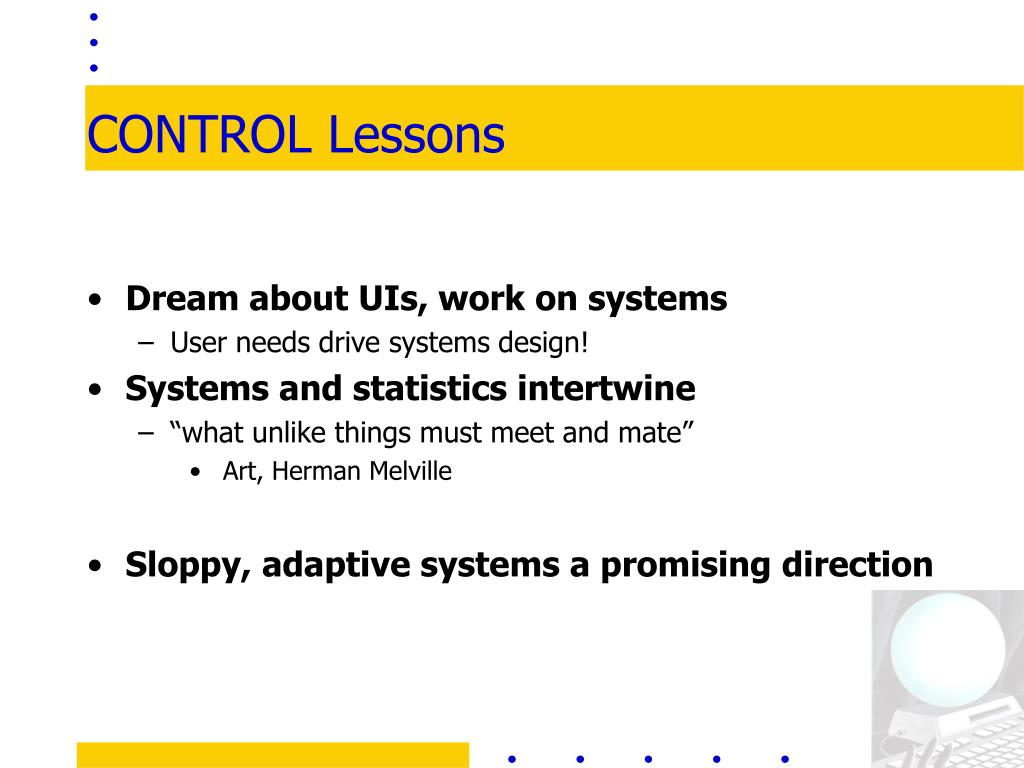

  31. CONTROL Lessons • Dream about UIs, work on systems • User needs drive systems design! • Systems and statistics intertwine • “what unlike things must meet and mate” • Art, Herman Melville • Sloppy, adaptive systems a promising direction

  32. Questions • Where else do these lessons apply? • Outside of data analysis, manipulation • Systems people think a lot about interfaces (APIs)… • Encapsulation, narrow interfaces … • In the CONTROL regime, how do you design these APIs and build systems? • Ubiquitous computing: • Is it about portable computing and point access/delivery? • Or sensors/actuators, dataflow, big-picture queries?

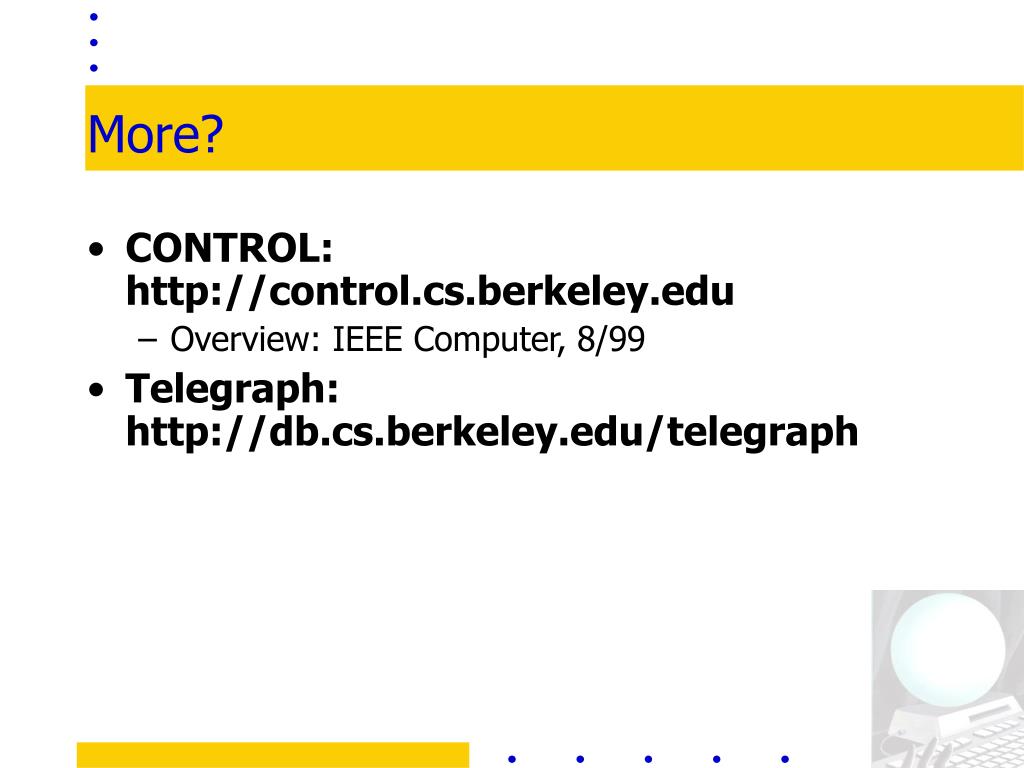

  33. More? • CONTROL: http://control.cs.berkeley.edu • Overview: IEEE Computer, 8/99 • Telegraph: http://db.cs.berkeley.edu/telegraph

  34. Backup slides • The following slides may be used to answer questions...

  35. Sampling • Much is known here • Olken’s thesis • DB Sampling literature • more recent work by Peter Haas • Progressive random sampling • can use a randomized access method (watch dups!) • can maintain file in random order • can verify statistically that values are independent of order as stored

  36. Estimators & Confidence Intervals • Conservative Confidence Intervals • Extensions of Hoeffding’s inequality • Appropriate early on, give wide intervals • Large-Sample Confidence Intervals • Use Central Limit Theorem • Appropriate after “a while” (~dozens of tuples) • linear memory consumption • tight bounds • Deterministic Intervals • only useful in “the endgame”
