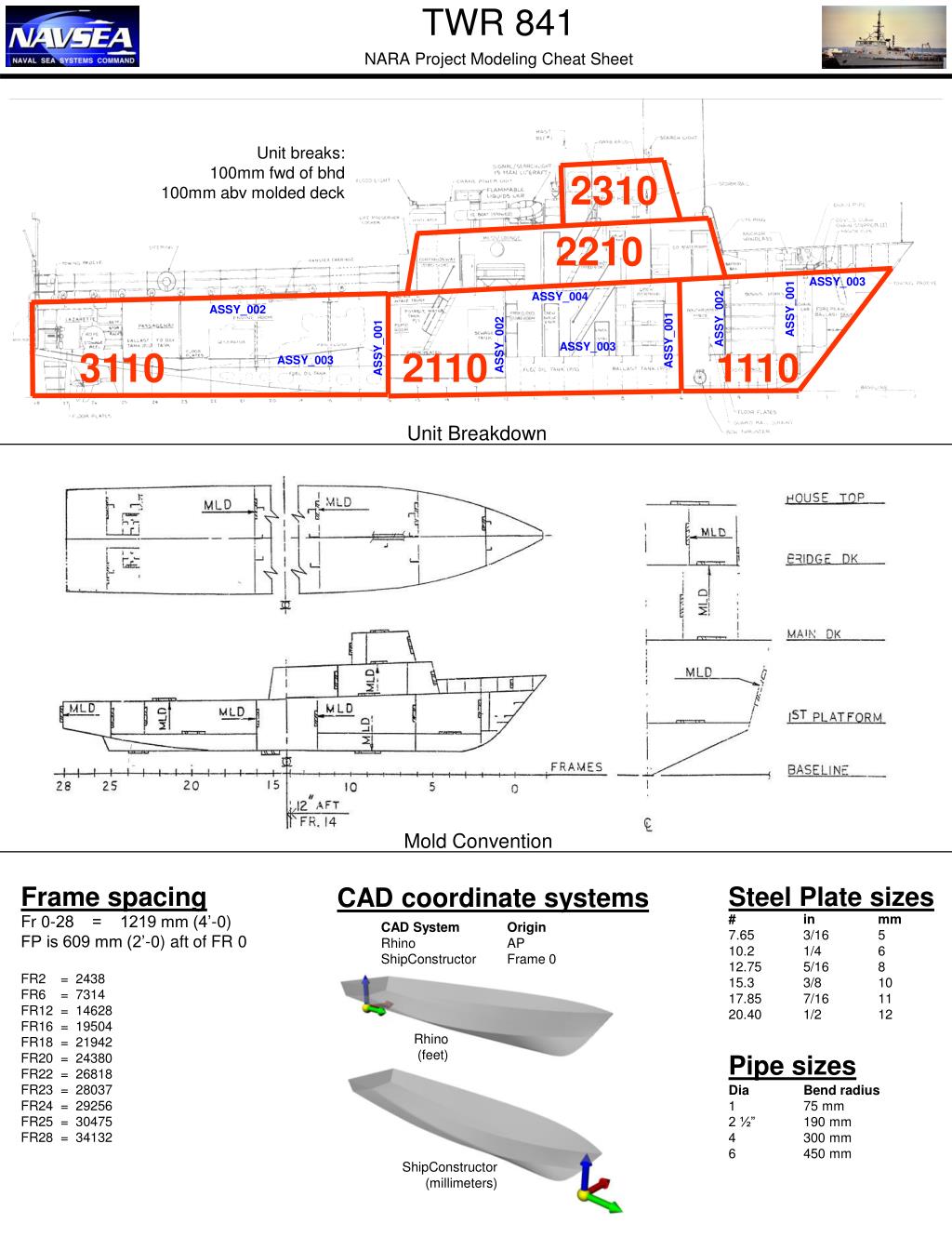

  1. TWR 841 NARA Project Modeling Cheat Sheet Mold Convention Unit Breakdown Rhino (feet) ShipConstructor (millimeters) Unit breaks: 100mm fwd of bhd 100mm abv molded deck 2310 2210 ASSY_003 ASSY_004 ASSY_001 ASSY_002 ASSY_002 ASSY_001 ASSY_002 ASSY_003 ASSY_001 3110 2110 1110 ASSY_003 CAD coordinate systems Frame spacing Fr 0-28 = 1219 mm (4’-0) FP is 609 mm (2’-0) aft of FR 0 FR2 = 2438 FR6 = 7314 FR12 = 14628 FR16 = 19504 FR18 = 21942 FR20 = 24380 FR22 = 26818 FR23 = 28037 FR24 = 29256 FR25 = 30475 FR28 = 34132 Steel Plate sizes # in mm 7.65 3/16 5 10.2 1/4 6 12.75 5/16 8 15.3 3/8 10 17.85 7/16 11 20.40 1/2 12 CAD System Origin Rhino AP ShipConstructor Frame 0 Pipe sizes Dia Bend radius 1 75 mm 2 ½” 190 mm 4 300 mm 6 450 mm
