Lecture 21: Bacterial diversity and Microbial Ecology

1. Lecture 21: Bacterial diversity and Microbial Ecology • Dr Mike Dyall-Smith • Haloarchaea Research Lab., Lab 3.07 • mlds@unimelb.edu.au • Ref: Prescott, Harley & Klein, 6th ed., parts of chapters 21-24 (refer to these notes). Also p590-1 (lichens)

2. Main Topics • That, along with the Archaea, the Bacteria are very widespread in nature • That the Domain Bacteria contains many, different groups, with considerable metabolic diversity • How microbial diversity is studied

3. Microbial habitats • Archaea and Bacteria are found wherever there is: • Water • Energy source • C, N, P, S, etc. • Within physicochemical limits (℃, pH, salt,...)

4. Ecological characteristics of bacteria • live almost anywhere there is liquid water • occur in large numbers • Most bacterial cells are relatively small • Species diversity is very large (and growing) • Most of the ~35 phyla are poorly understood • Can be studied to some extent without cultivation

5. Ecological characteristics of bacteria • Most of the 1030 bacterial cells are relatively small * exceptions

6. Microbial habitats • Within physicochemical limits: • TEMP: –10 to 113 ℃ (20 - 40 ℃ range for a particular species) • pH: 0 to 11 (3 - 5 units for any one species) • [NaCl]: 0 to 6 M (~saturation) depending on species • Others: Oxygen (toxicity), pressure, radiation

7. Phylogeny of Bacteria (using 16S rRNA) • At least 35 phyla • Groupings and relationships are very informative: e.g. • Gram positives cluster together in Firmicutes • Cyanobacteria: photosynthetic • Spirochaetes: helical cells; motility by axial filaments • placement of a new isolate into a phylogenetic grouping can be highly predictive

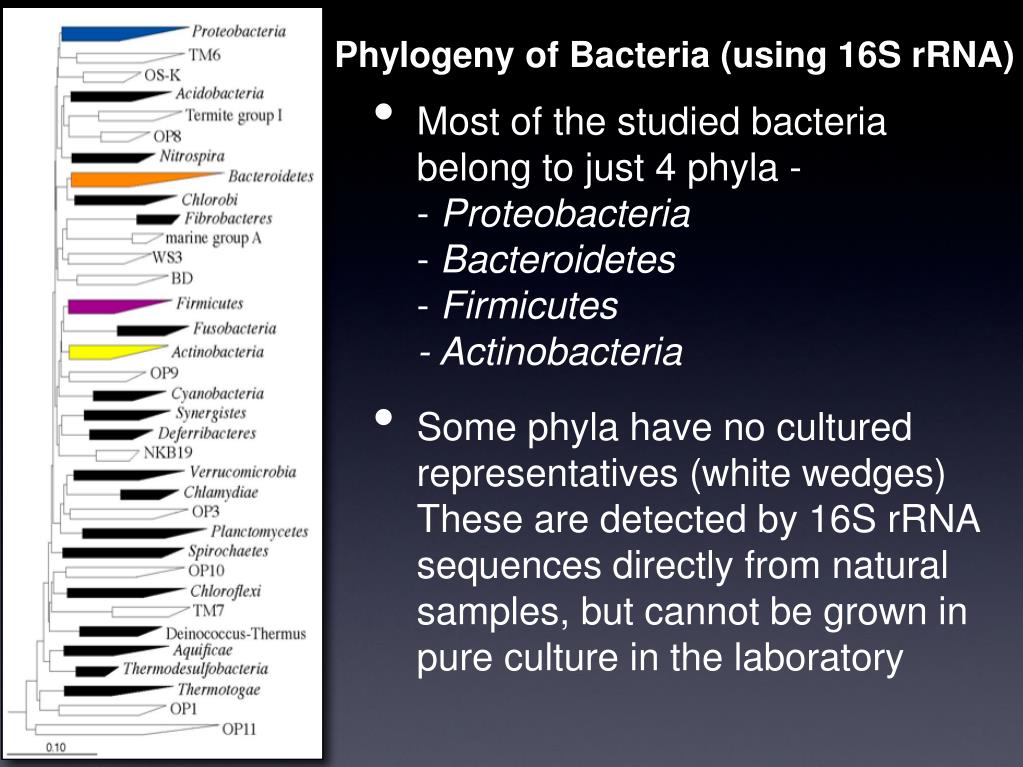

8. Phylogeny of Bacteria (using 16S rRNA) • Most of the studied bacteria belong to just 4 phyla -- Proteobacteria- Bacteroidetes- Firmicutes- Actinobacteria • Some phyla have no cultured representatives (white wedges)These are detected by 16S rRNA sequences directly from natural samples, but cannot be grown in pure culture in the laboratory

9. How to study microbial diversity and ecology • Cultivation dependent - ideal, but has problems! • Cultivation independent: • Sequence information - eg. 16S rRNA sequences, genome sequences • rRNA targeted probes, eg. FISH(Fluorescent In Situ Hybridization)Allows a visual inspection of phylogenetic groups of cells in a natural sample

10. Cultivation dependent • Pure cultures are the basis of the traditional way of studying bacteria • Usually only 1% of cells in a natural sample will form colonies on plates • Different bacteria have different abilities to be cultured; from easy to difficult • Known examples that cannot be cultured

11. Bacteria: examples that have not yet been cultured • Mycobacterium leprae (leprosy) • Treponema pallidum (syphilis) • Epulopiscium fishelsoni • All members of the TM7 phylum(a major lineage of Bacteria)

12. Mycobacterium leprae Treponema pallidum Epulopiscium

13. Cultivation independent: Sequence data • 16S rRNA sequences, specific genes, mRNAs, whole genome sequences, metagenomes • Discovered many new groups of Bacteria- but physiologies yet unknown • Can use sequence information to directly visualise specific bacteria in situ (in their natural state)Fluorescent In Situ Hybridization (FISH) ...

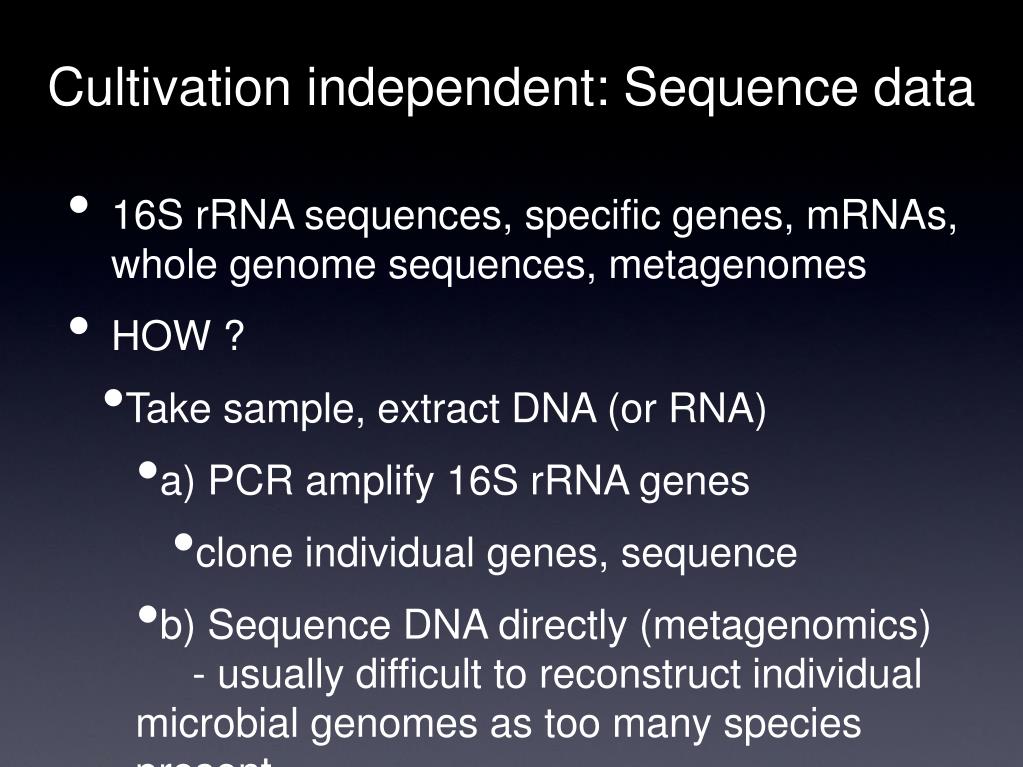

14. Cultivation independent: Sequence data • 16S rRNA sequences, specific genes, mRNAs, whole genome sequences, metagenomes • HOW ? • Take sample, extract DNA (or RNA) • a) PCR amplify 16S rRNA genes • clone individual genes, sequence • b) Sequence DNA directly (metagenomics) - usually difficult to reconstruct individual microbial genomes as too many species present

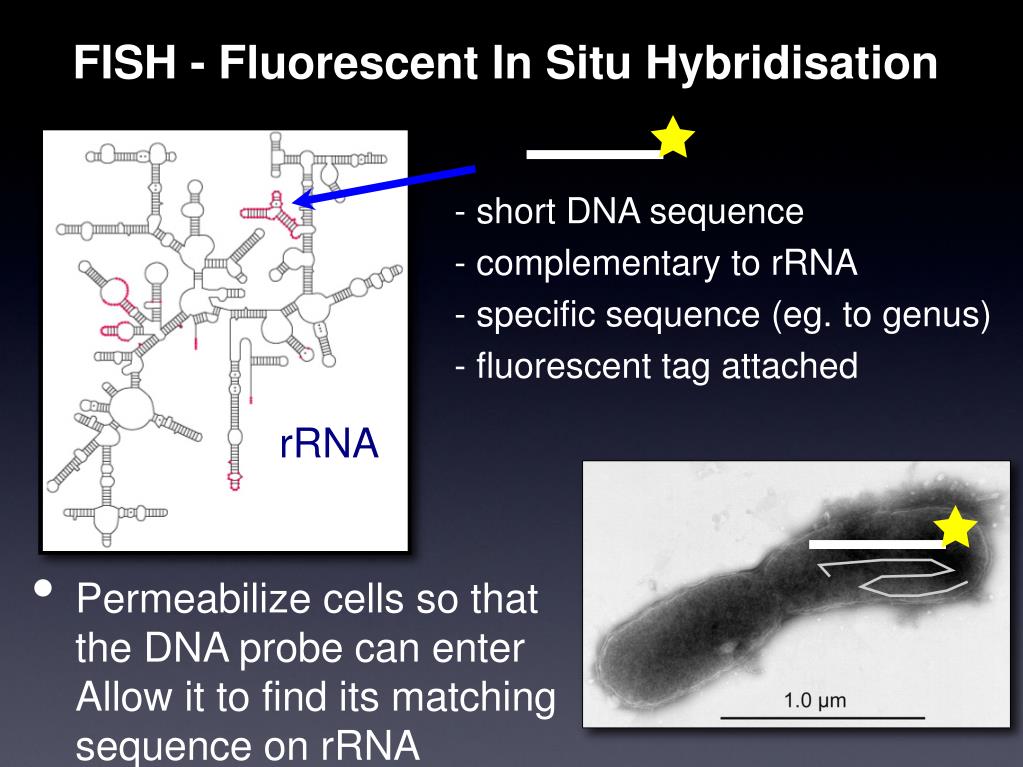

15. FISH - Fluorescent In Situ Hybridisation - short DNA sequence- complementary to rRNA - specific sequence (eg. to genus)- fluorescent tag attached • Permeabilize cells so that the DNA probe can enter Allow it to find its matching sequence on rRNA rRNA

16. FISH - Fluorescent In Situ Hybridisation View cells (in situ) under fluorescent microscope, and see what cells fluoresce, showing they have bound the probe • Fluorescent DNA probe will bind to rRNA in the cells only if it exactly matches complementary sequence of rRNA target region • Many different coloured fluors, so can do simultaneous probes for different genera, families....

17. FISH - Fluorescent In Situ Hybridisation

18. Growth in Laboratory media versus natural conditions

19. Oligotrophy is the rule in nature • Most of the biosphere has low available nutrients (or at least one limiting nutrient) • oligotrophy (‘small feeding’) is growth at low nutrient concentrations

20. Surface area to Volume ratio • Small cell size is a way to cope with low substrate availability. It increases the surface area to volume ratio. • Substrate uptake is via cell membrane proteins. Increasing SA/Vol improves the ability to supply nutrients to the cytoplasmic volume

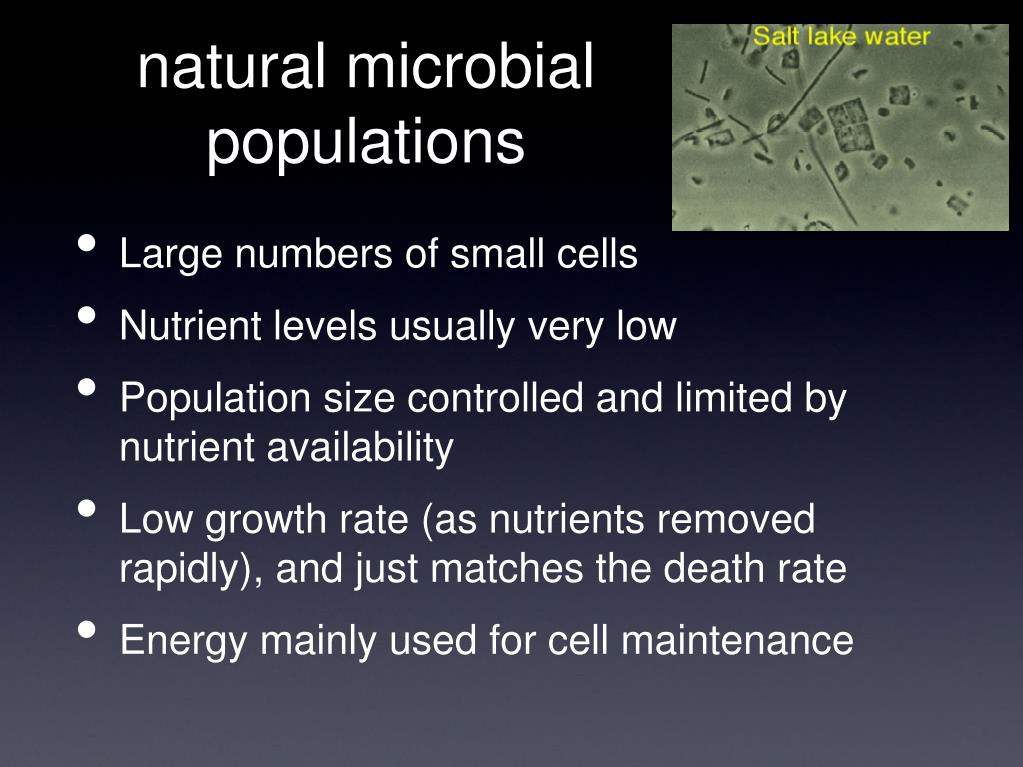

21. natural microbial populations • Large numbers of small cells • Nutrient levels usually very low • Population size controlled and limited by nutrient availability • Low growth rate (as nutrients removed rapidly), and just matches the death rate • Energy mainly used for cell maintenance

22. Microcystis bloom in Matilda Bay, Swan-Canning Estuary, Western Australia. an un-natural cyanobacterial bloom due to excessive nutrients (pollution) Photo by Tom Rose (WA Waters and Rivers Commission)

23. Phylum: Cyanobacteria • Largest and most diverse group of photosynthetic bacteria (24 genera) • carry out oxygenic photosynthesis: similar to eukaryotes. Fix CO2 • Cells contain thylakoid membranes • Significant proportion of marine plankton (and marine microbial food web)

24. Phylum: Cyanobacteria Cells contain thylakoid membranes

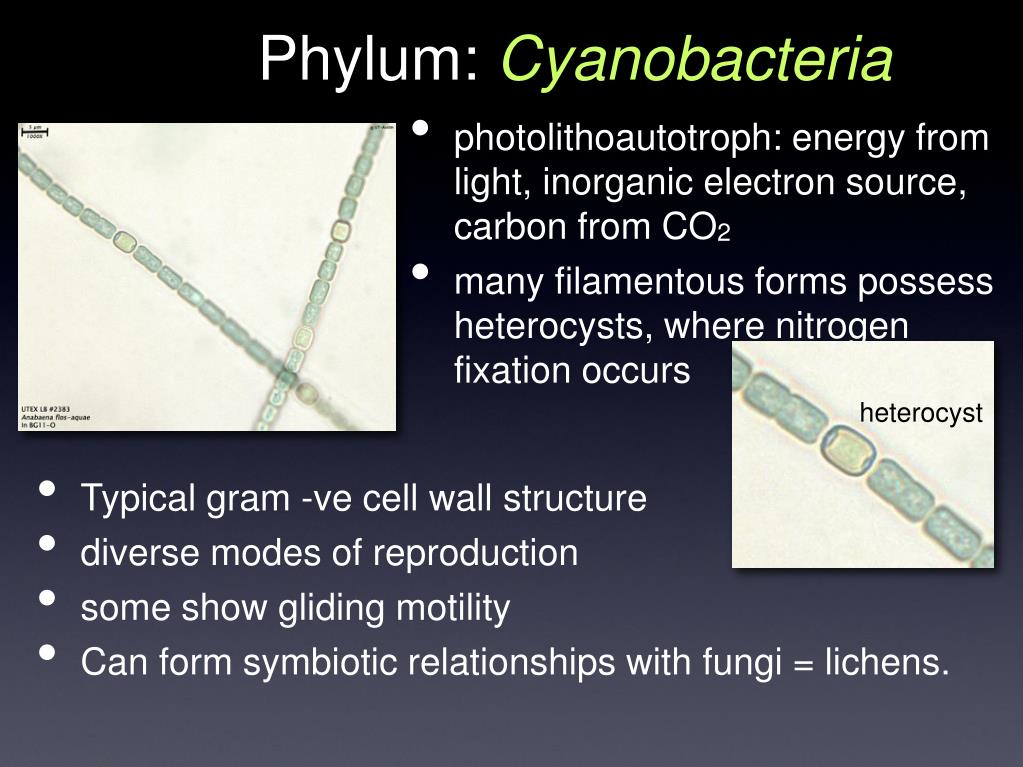

25. Phylum: Cyanobacteria • photolithoautotroph: energy from light, inorganic electron source, carbon from CO2 • many filamentous forms possess heterocysts, where nitrogen fixation occurs heterocyst • Typical gram -ve cell wall structure • diverse modes of reproduction • some show gliding motility • Can form symbiotic relationships with fungi = lichens.

26. Lichens: an association between two partners: an ascomycete (fungus) and a cyanobacteria (or alga). • Partnership forms when both are nutritionally deprived • Cyanobacteria provide organic compounds via photosynthesis, and can fix nitrogen • Fungus provides protection, water retention, extracts minerals and nutrients from substrate

27. Summary • 16S rRNA gene sequence comparisons allow a phylogenetic framework to be discerned. Useful for taxonomy, ecological and evolutionary research • Domain Bacteria has 35 phyla, and are species rich • Great metabolic and genetic diversity within phyla • Many phyla are poorly studied because no members have yet been cultivated • Despite this, useful information can be obtained using cultivation independent methods (e.g. 16S rRNA sequences, genome sequences, FISH) • One example given, phylum Cyanobacteria

28. Summary • 50 - 90% of all biomass on Earth is microbial • bacteria widespread, only limited by: free water, energy source, components of biomass, and where biomolecules can be stable • oligotrophy is the most common state in nature • cell size is small in order to increase the surface area to volume ratio, hence improving the ability to take up nutrients at low concentration

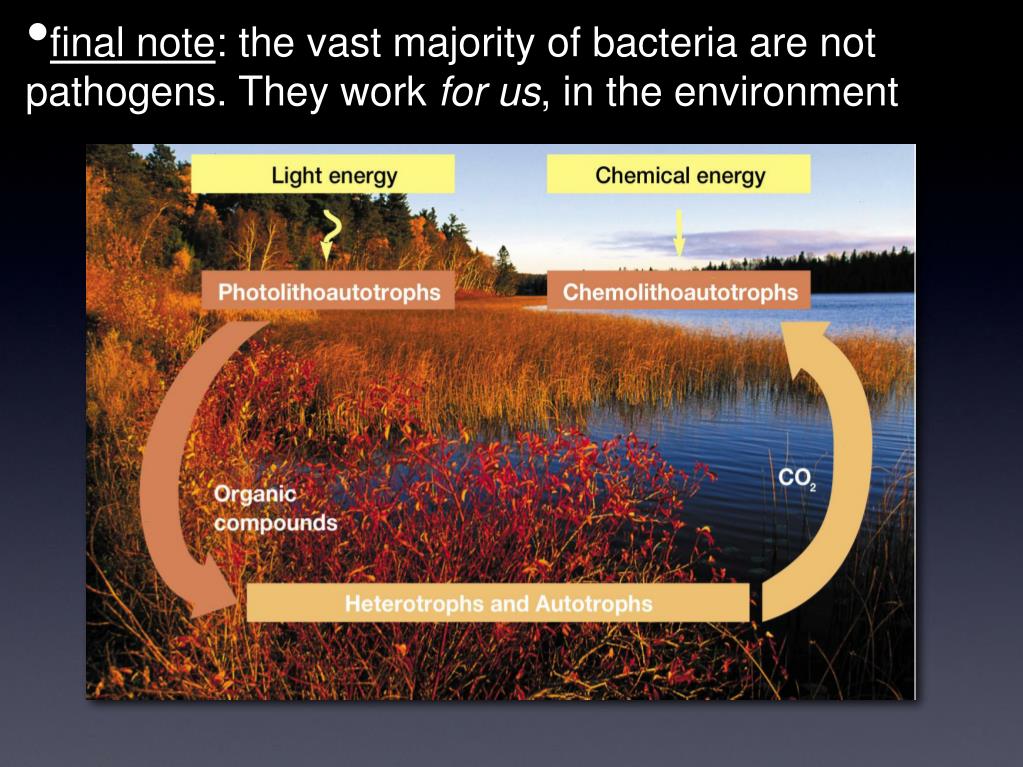

29. final note: the vast majority of bacteria are not pathogens. They work for us, in the environment

30. PICTURE CREDITS • Treponema pallidum: http://www.brooksidepress.org/Products/OperationalMedicine/DATA/operationalmed/Manuals/GMOManual/clinical/Dermatology/Treponema%20pallidum500.jpg • Mycobacterium leprae: www.wissenschaft-online.de • Cyanobacterial bloom in Swan river: http://www.ozestuaries.org/indicators/econ_cons_algal_blooms.jsp Photo by Tom Rose (WA Waters and Rivers Commission) • Others from Prescott, Harley and Klein.
