  1. The Overflow Relief Cap - ORC Anti-infiltration overflow-relief device

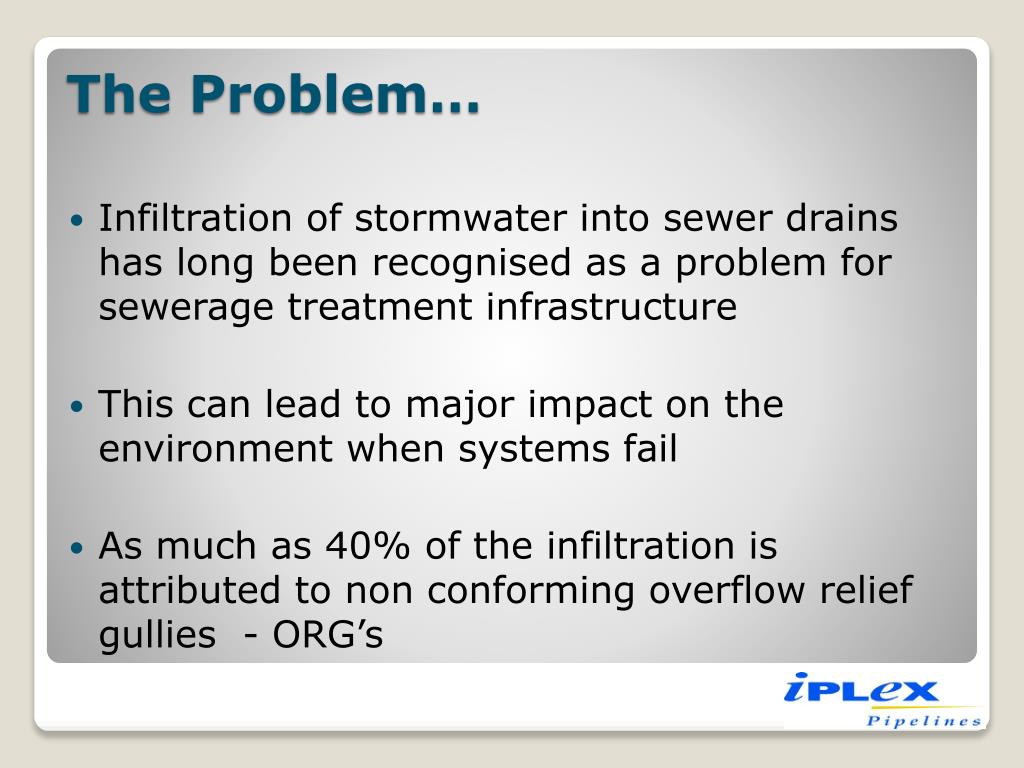

  2. Infiltration of stormwater into sewer drains has long been recognised as a problem for sewerage treatment infrastructure • This can lead to major impact on the environment when systems fail • As much as 40% of the infiltration is attributed to non conforming overflow relief gullies - ORG’s The Problem…

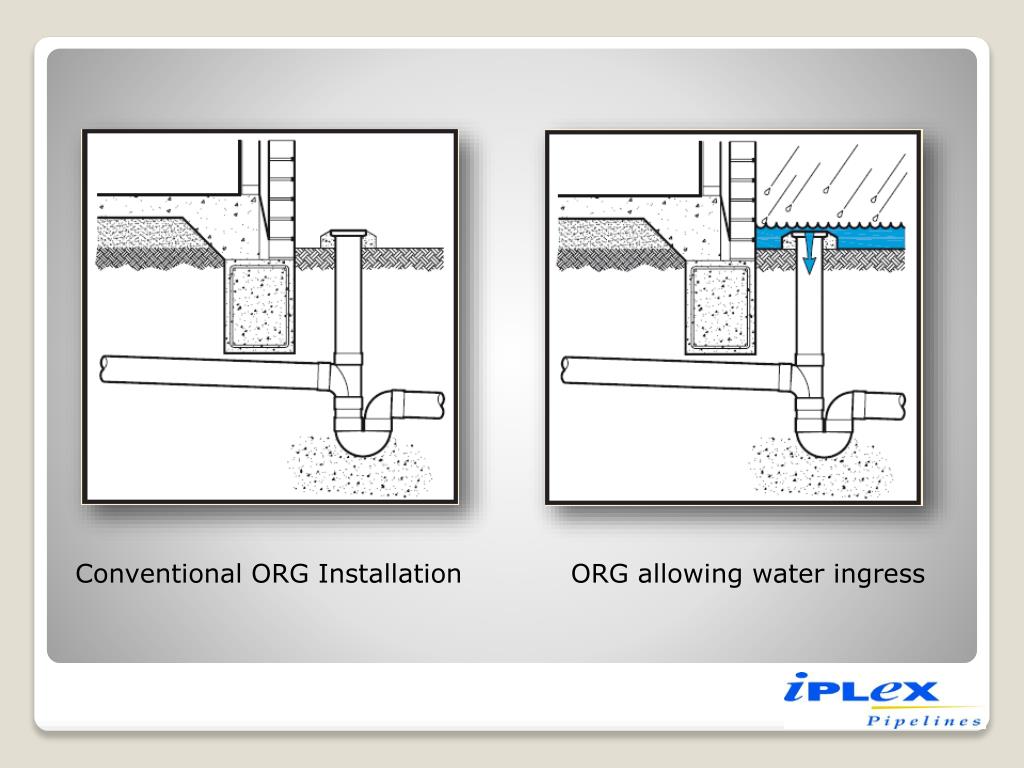

  3. Conventional ORG Installation ORG allowing water ingress

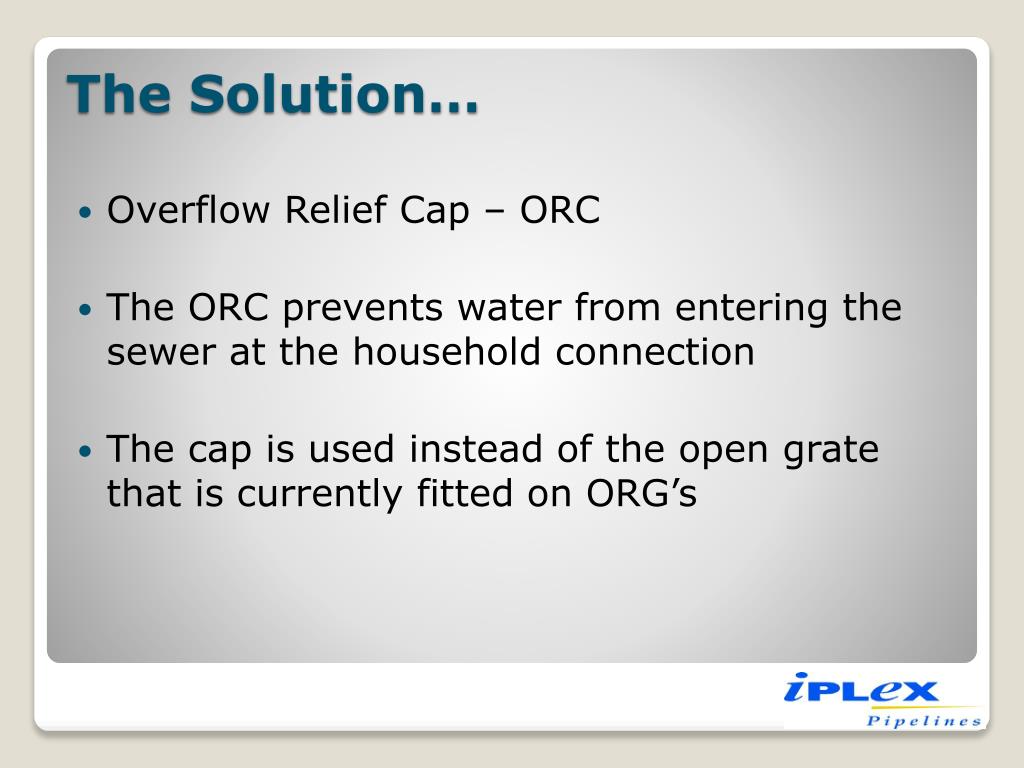

  4. Overflow Relief Cap – ORC • The ORC prevents water from entering the sewer at the household connection • The cap is used instead of the open grate that is currently fitted on ORG’s The Solution…

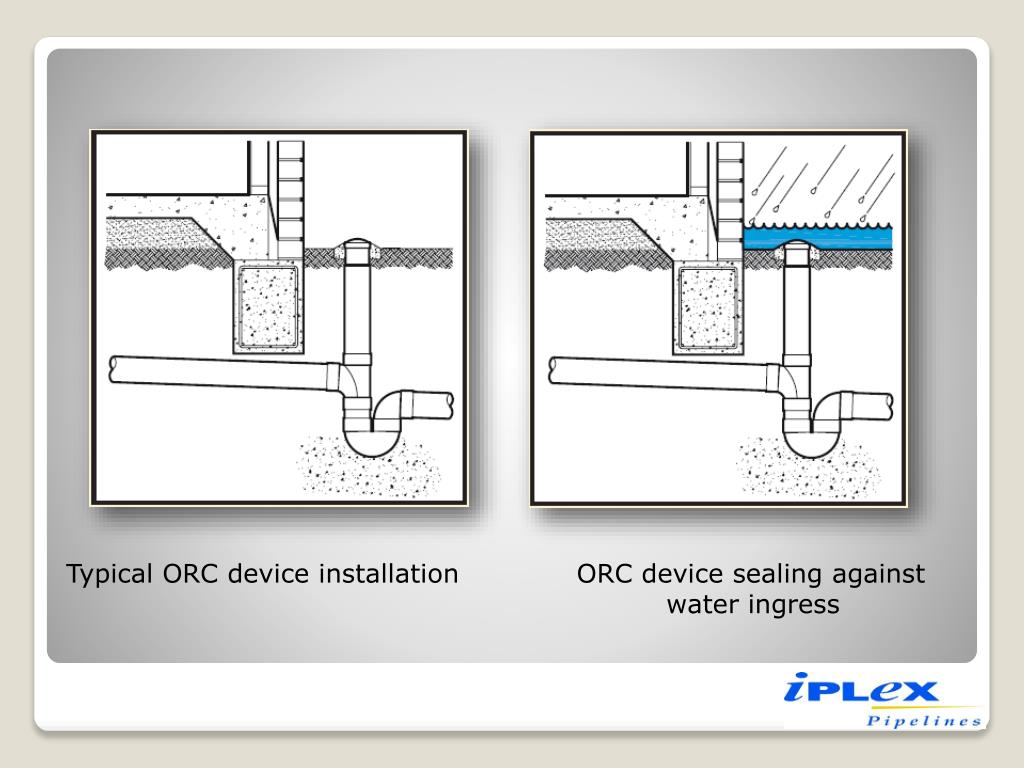

  5. Typical ORC device installation ORC device sealing against water ingress

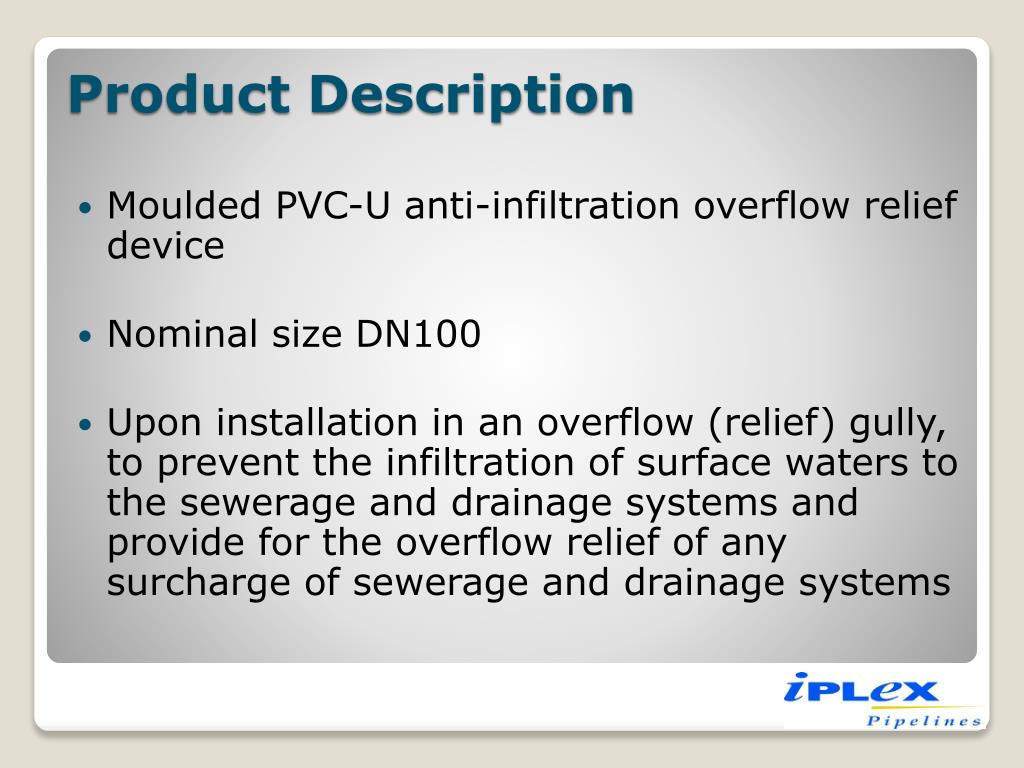

  6. Moulded PVC-U anti-infiltration overflow relief device • Nominal size DN100 • Upon installation in an overflow (relief) gully, to prevent the infiltration of surface waters to the sewerage and drainage systems and provide for the overflow relief of any surcharge of sewerage and drainage systems Product Description

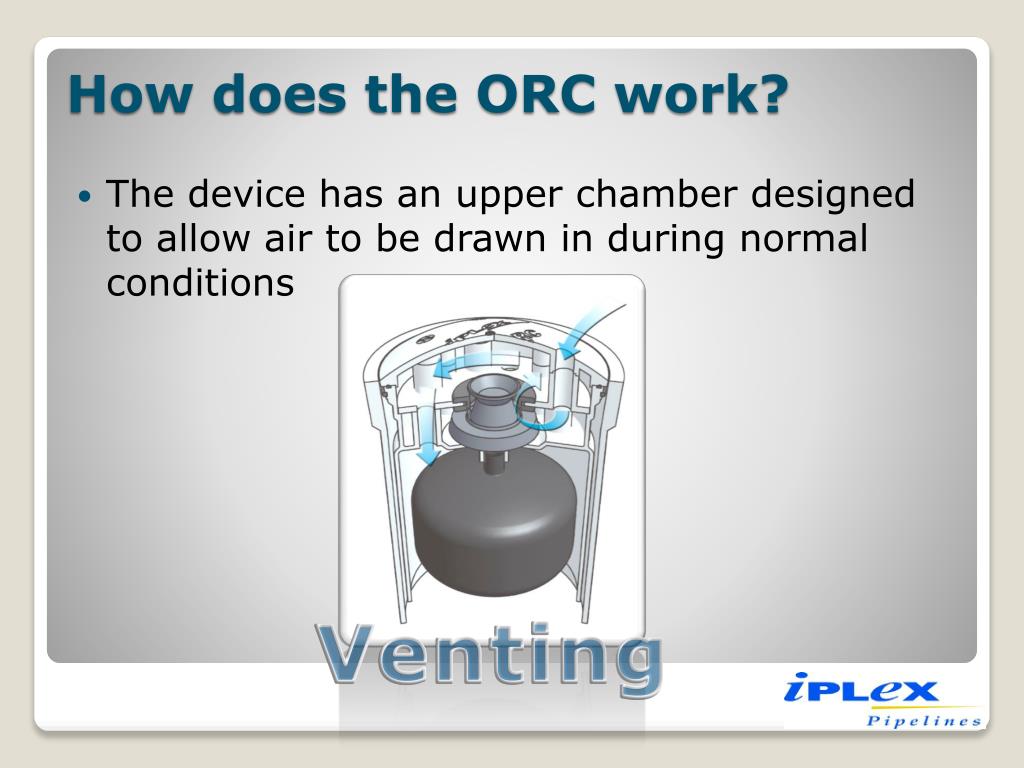

  7. The device has an upper chamber designed to allow air to be drawn in during normal conditions How does the ORC work? Venting

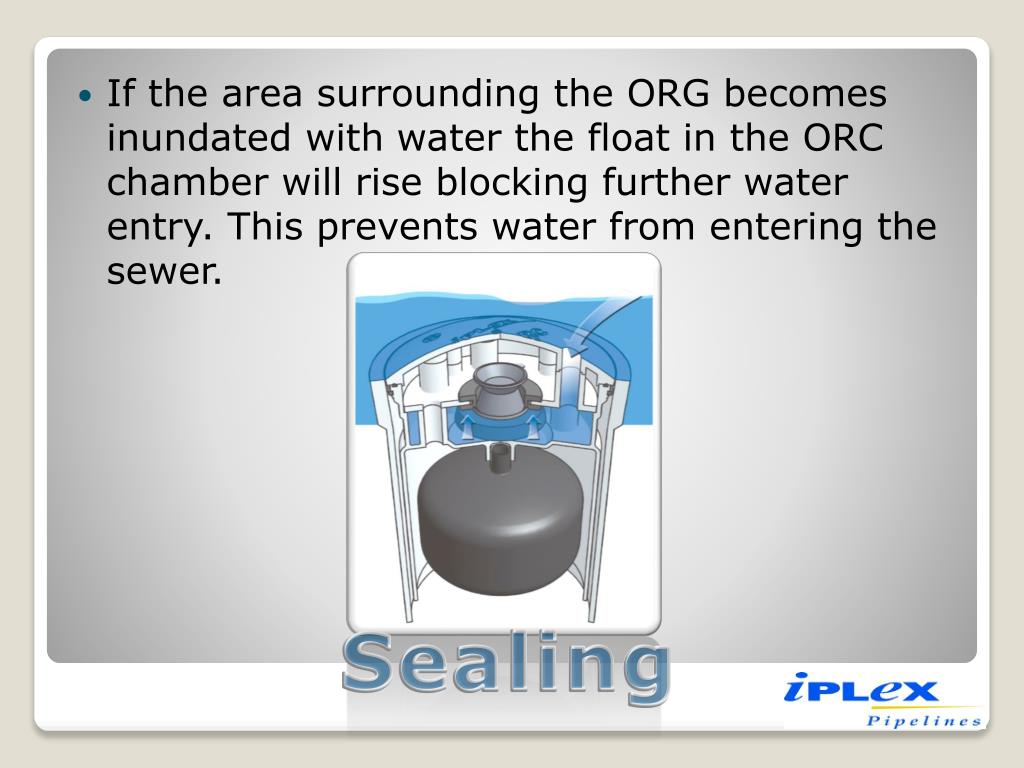

  8. If the area surrounding the ORG becomes inundated with water the float in the ORC chamber will rise blocking further water entry. This prevents water from entering the sewer. Sealing

  9. In the event of a surcharge the ORC will pop out of the pipe allowing effluent to run out (as grates do now) Overflow

  10. The cap instead of a grate currently fitted on ORG’s will keep pests and vermin from entering the system at the point • Cap is designed with special vents to allow fixtures connected to it to discharge normally • Reduces sewerage processing costs by preventing rainwater infiltration in the sewerage system Features and Benefits

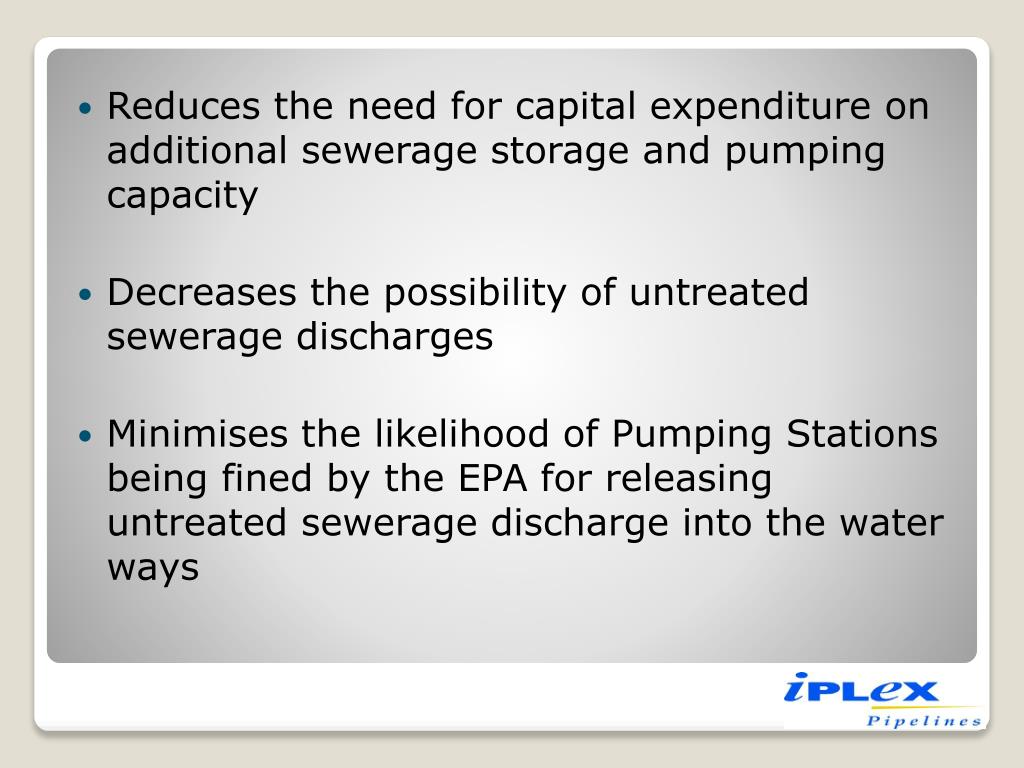

  11. Reduces the need for capital expenditure on additional sewerage storage and pumping capacity • Decreases the possibility of untreated sewerage discharges • Minimises the likelihood of Pumping Stations being fined by the EPA for releasing untreated sewerage discharge into the water ways

  12. Quick and easy to install • The ORC is designed to be installed into the normal ORG • The ORC can be easily retrofitted to an existing ORG Features and BenefitsBuilders & Plumbers

  13. The cap will prevent water from entering the sewer – saving unnecessary water processing costs • In the event of a surcharge the ORC will pop out of the pipe allowing effluent to run out (as grates do now) • Reduces likelihood of unprocessed discharges of sewerage to outfall during floods Features and BenefitsWater Authorities

  14. The ORC reduces processing costs by preventing rain water infiltration into the sewerage system • It reduces the need for capital expenditure on additional storage and pumping capacity • It decreased the possibility of untreated sewerage discharges Green Credentials

  15. Awarded Watermark 60012 for compliance with Australian Technical Specification ATS 5200.501-2011 Note: The Australian designed Over Relief Cap is patented (patent application PCT/AU2008/0002340) Compliances and Standards

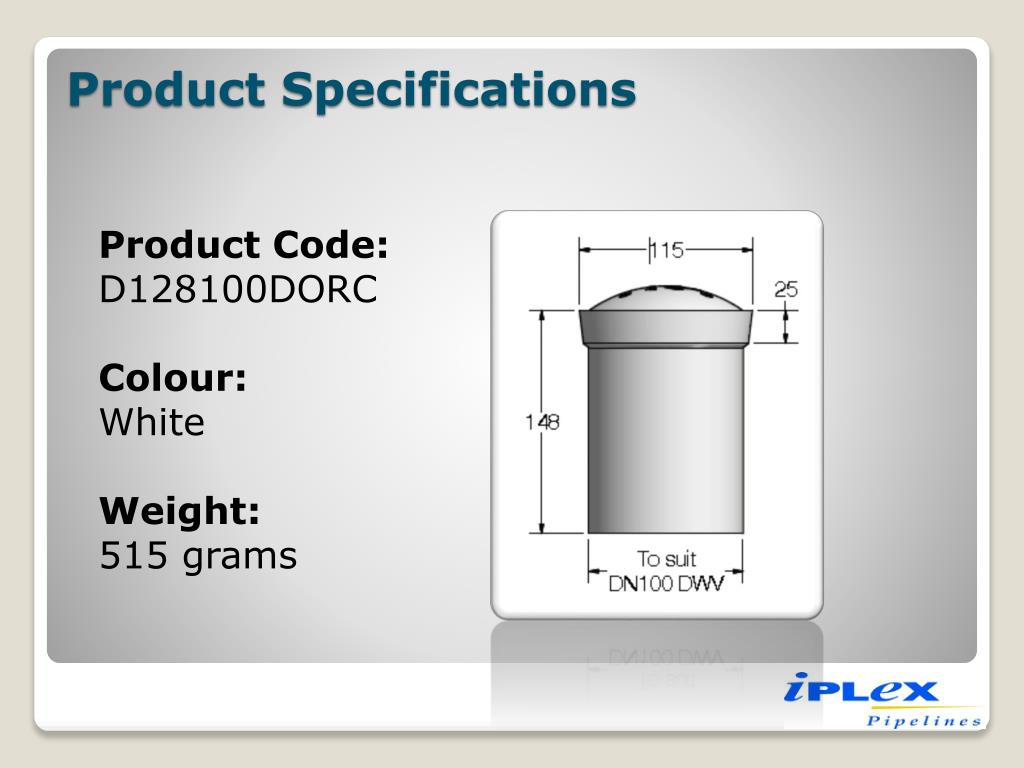

  16. Product Code: D128100DORC Colour: White Weight: 515 grams Product Specifications
