Storage management and caching in PAST

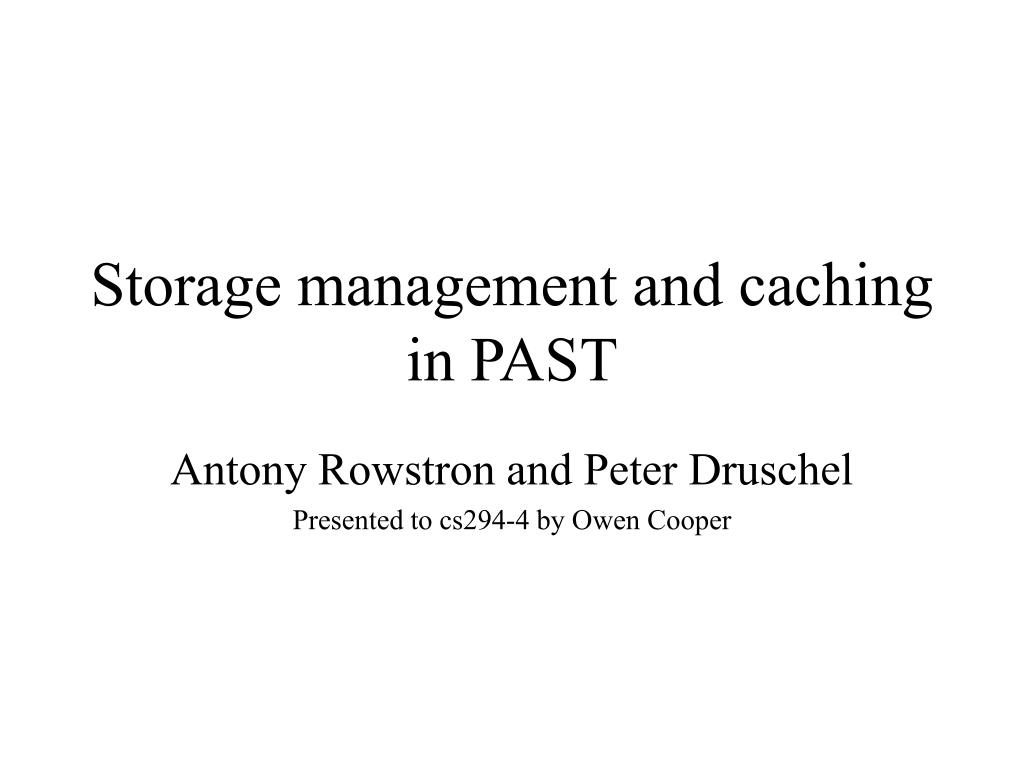

1. Storage management and caching in PAST Antony Rowstron and Peter Druschel Presented to cs294-4 by Owen Cooper

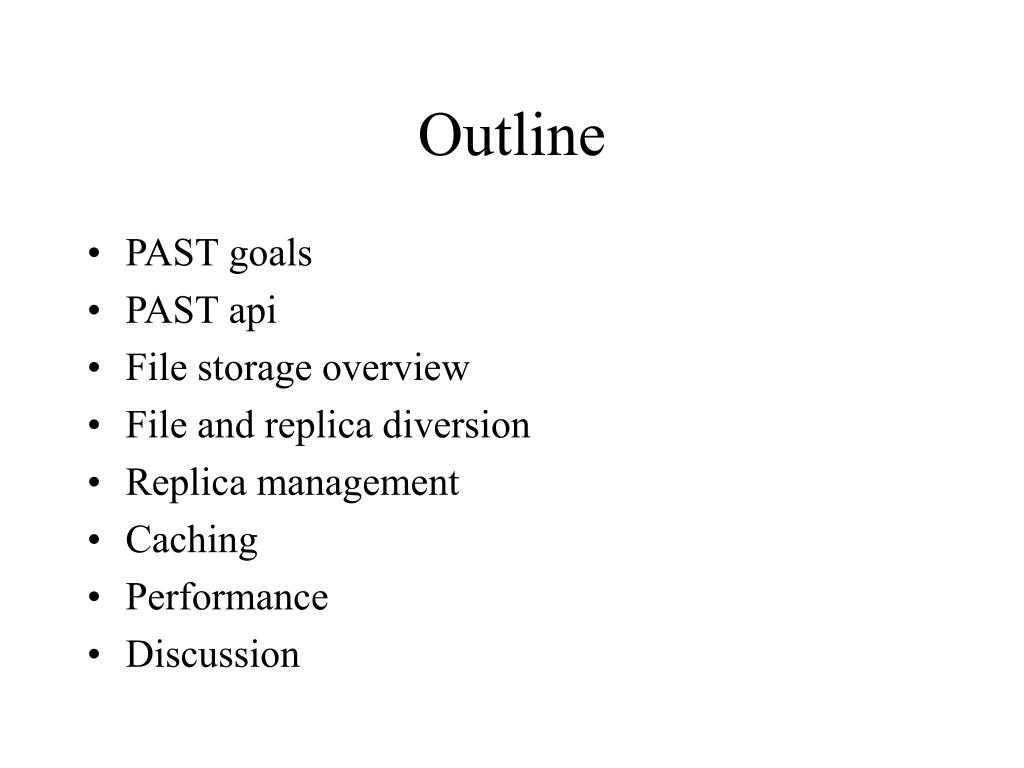

2. Outline • PAST goals • PAST api • File storage overview • File and replica diversion • Replica management • Caching • Performance • Discussion

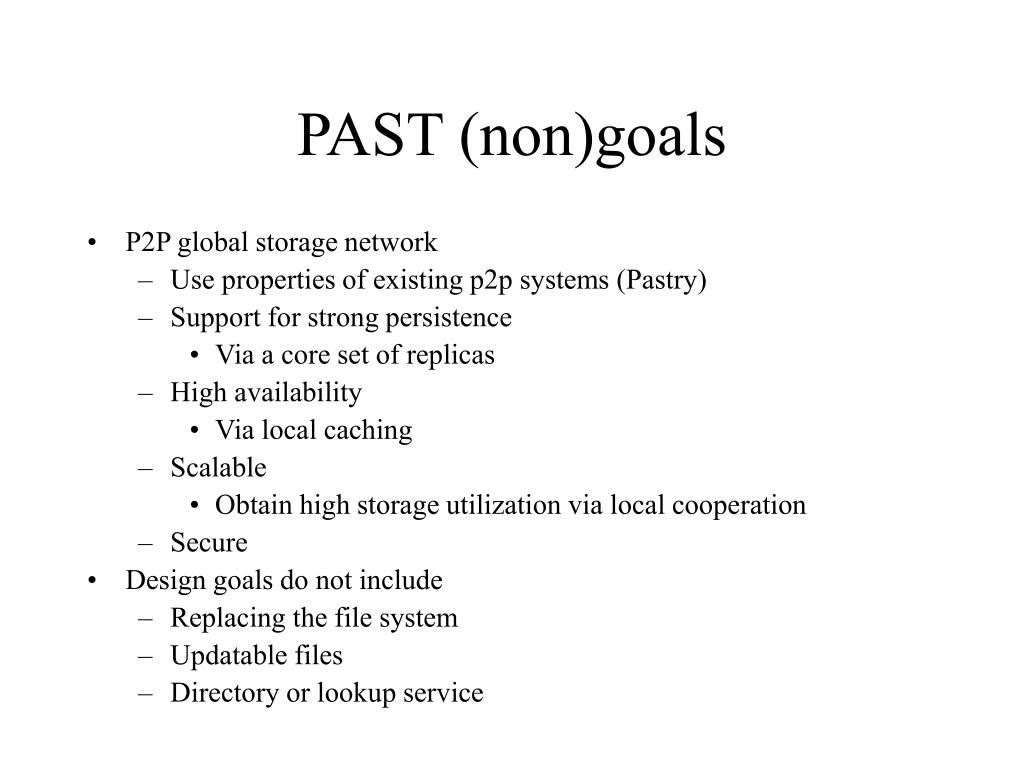

3. PAST (non)goals • P2P global storage network • Use properties of existing p2p systems (Pastry) • Support for strong persistence • Via a core set of replicas • High availability • Via local caching • Scalable • Obtain high storage utilization via local cooperation • Secure • Design goals do not include • Replacing the file system • Updatable files • Directory or lookup service

4. Security Model • Pastry node ids are a hash of a public key • Smartcard based security • Provides keys • Quota management • Nodeid and fileid generation controlled • Try to stop nodes from getting consecutive ids • Or clients from overloading parts of the network • But node id and real world identity may not be linked • Data not encrypted

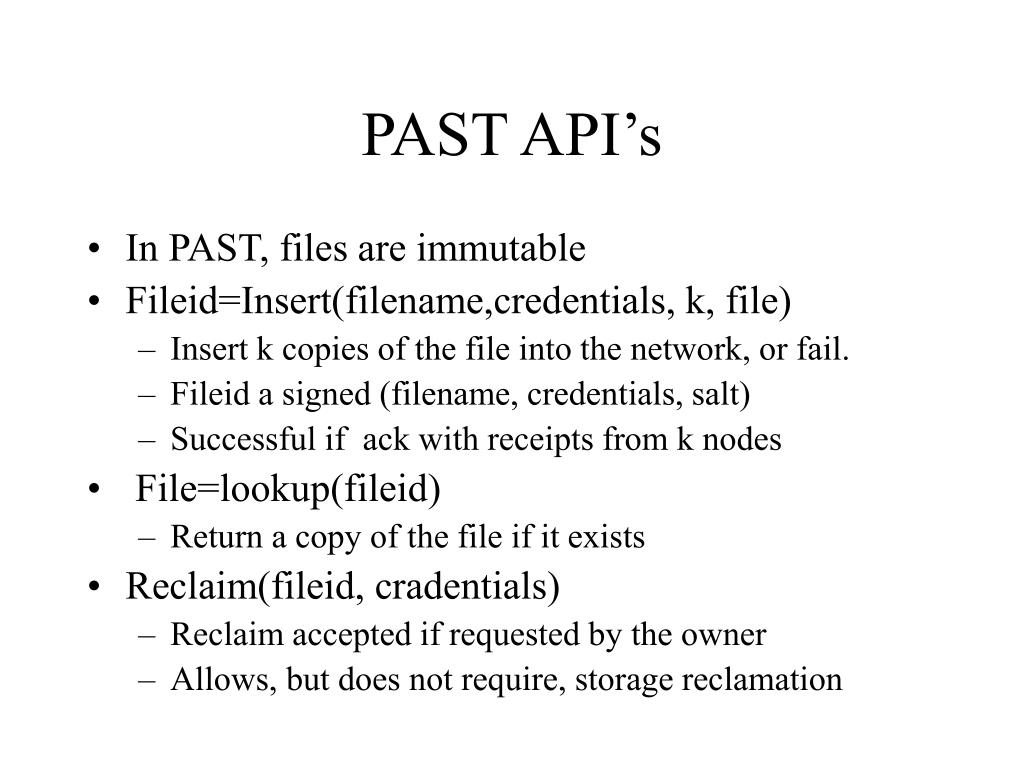

5. PAST API’s • In PAST, files are immutable • Fileid=Insert(filename,credentials, k, file) • Insert k copies of the file into the network, or fail. • Fileid a signed (filename, credentials, salt) • Successful if ack with receipts from k nodes • File=lookup(fileid) • Return a copy of the file if it exists • Reclaim(fileid, cradentials) • Reclaim accepted if requested by the owner • Allows, but does not require, storage reclamation

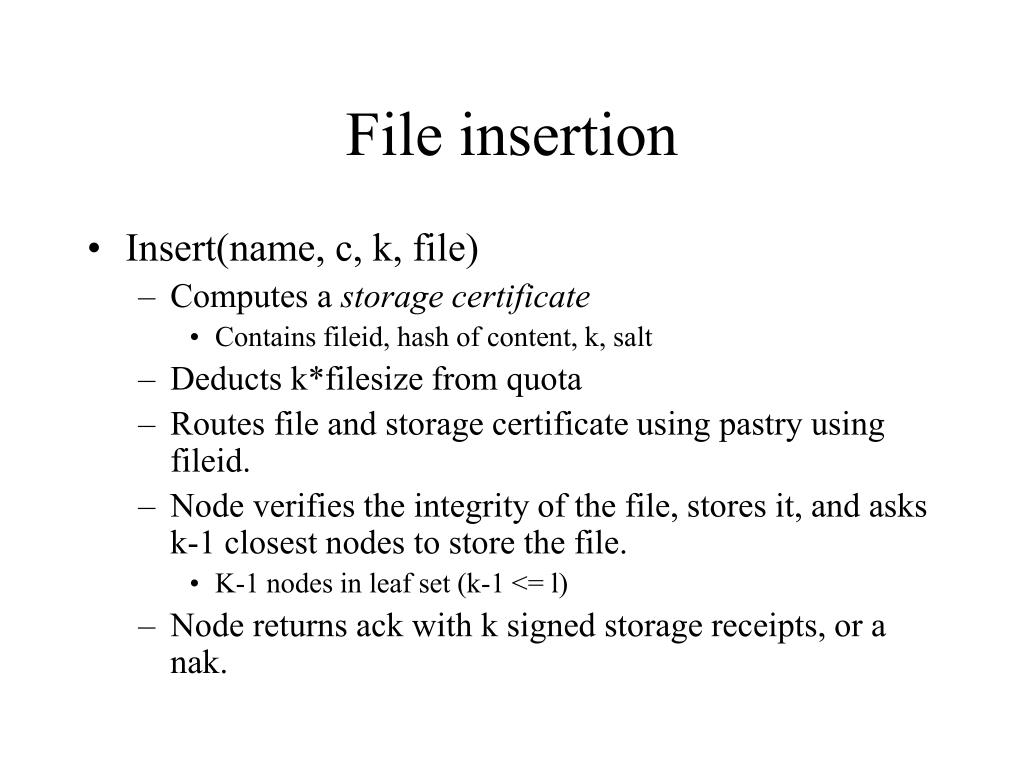

6. File insertion • Insert(name, c, k, file) • Computes a storage certificate • Contains fileid, hash of content, k, salt • Deducts k*filesize from quota • Routes file and storage certificate using pastry using fileid. • Node verifies the integrity of the file, stores it, and asks k-1 closest nodes to store the file. • K-1 nodes in leaf set (k-1 <= l) • Node returns ack with k signed storage receipts, or a nak.

7. Lookup and Reclamation • Pastry ensures replica is found • Since a lookup is routed to the closest nodeid • Reclamation • Client generates a reclaim certificate • Sends it to the fileid via pastry • Recipients verify the certificate & issue receipt • Client reclaims quota

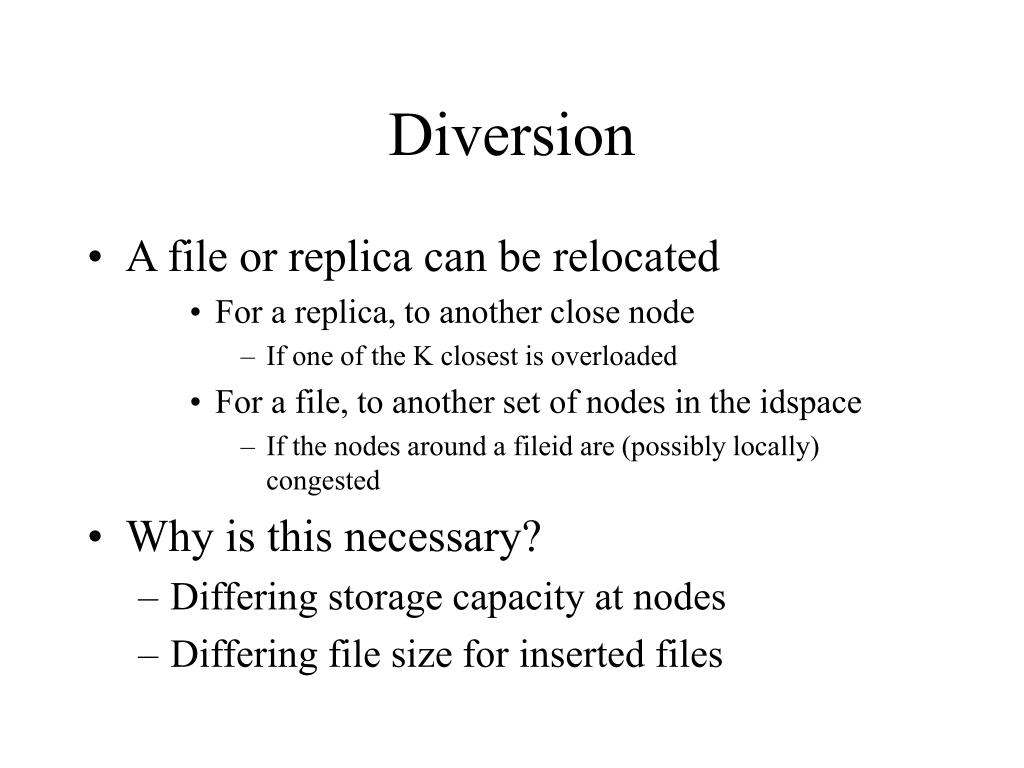

8. Diversion • A file or replica can be relocated • For a replica, to another close node • If one of the K closest is overloaded • For a file, to another set of nodes in the idspace • If the nodes around a fileid are (possibly locally) congested • Why is this necessary? • Differing storage capacity at nodes • Differing file size for inserted files

9. Replica Diversion • Node responsible for fileid asks k-1 neighbors to store the file • Neighbor (N) may divert a copy to a node in its leaf set • Pointer to copy inserted at N • N issues storage certificate • N also inserts a pointer on the k+1th closest node • No orphan if N fails • N remains responsible for pointer maintenance

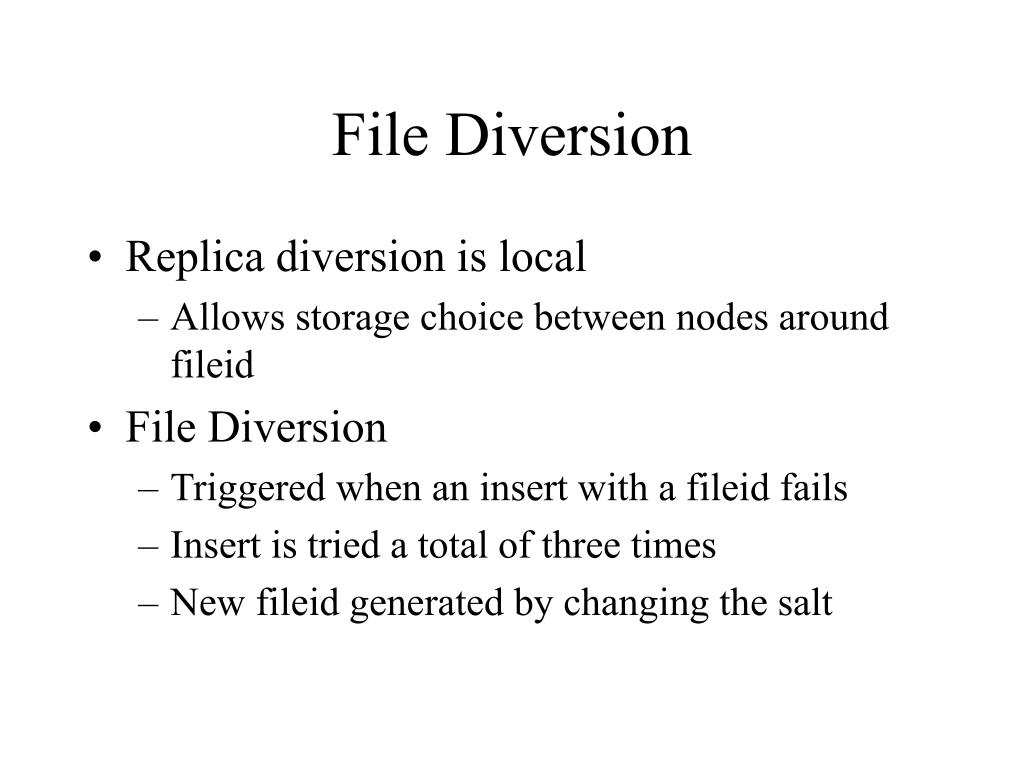

10. File Diversion • Replica diversion is local • Allows storage choice between nodes around fileid • File Diversion • Triggered when an insert with a fileid fails • Insert is tried a total of three times • New fileid generated by changing the salt

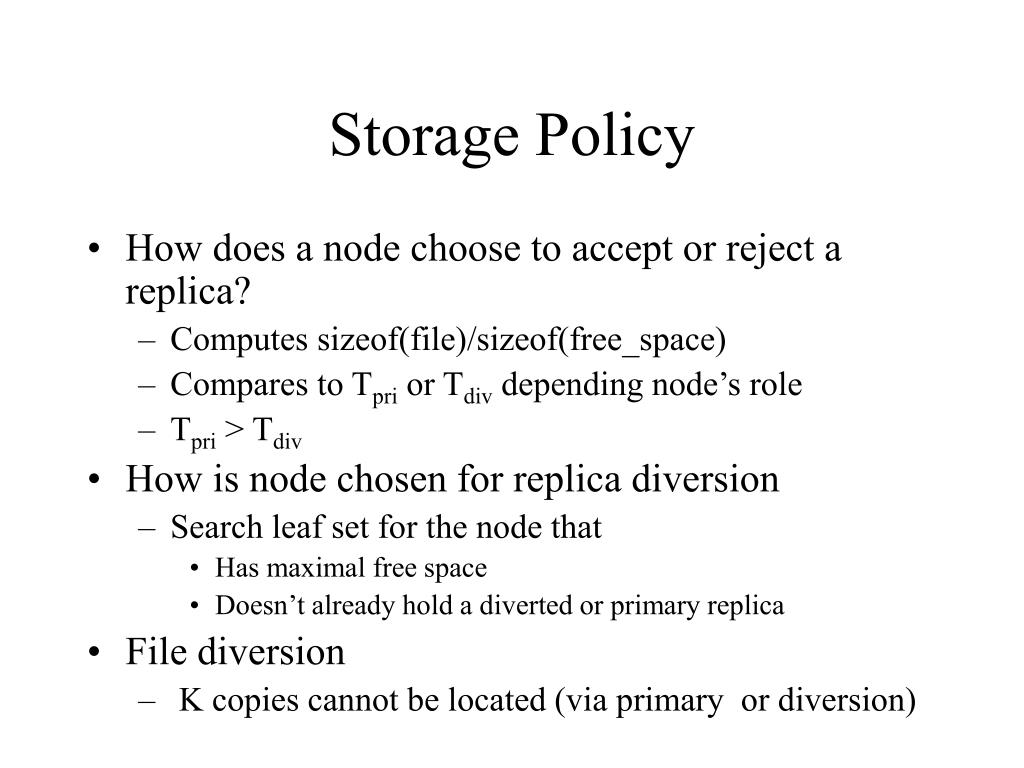

11. Storage Policy • How does a node choose to accept or reject a replica? • Computes sizeof(file)/sizeof(free_space) • Compares to Tpri or Tdiv depending node’s role • Tpri > Tdiv • How is node chosen for replica diversion • Search leaf set for the node that • Has maximal free space • Doesn’t already hold a diverted or primary replica • File diversion • K copies cannot be located (via primary or diversion)

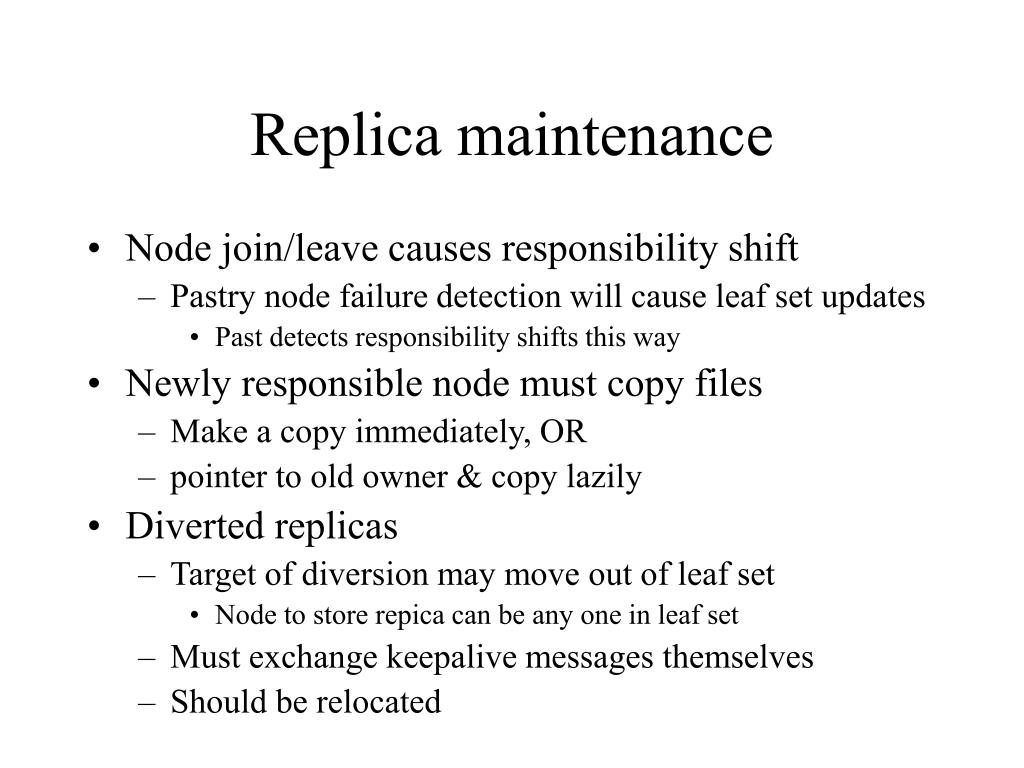

12. Replica maintenance • Node join/leave causes responsibility shift • Pastry node failure detection will cause leaf set updates • Past detects responsibility shifts this way • Newly responsible node must copy files • Make a copy immediately, OR • pointer to old owner & copy lazily • Diverted replicas • Target of diversion may move out of leaf set • Node to store repica can be any one in leaf set • Must exchange keepalive messages themselves • Should be relocated

13. Replica maintenance (2) • Node failure may cause storage shortage • No node in leaf set can take over ownership • Search space is widened • Ask most extreme nodes to locate storage • Increases search space to 2l nodes • If no storage space found, fail.

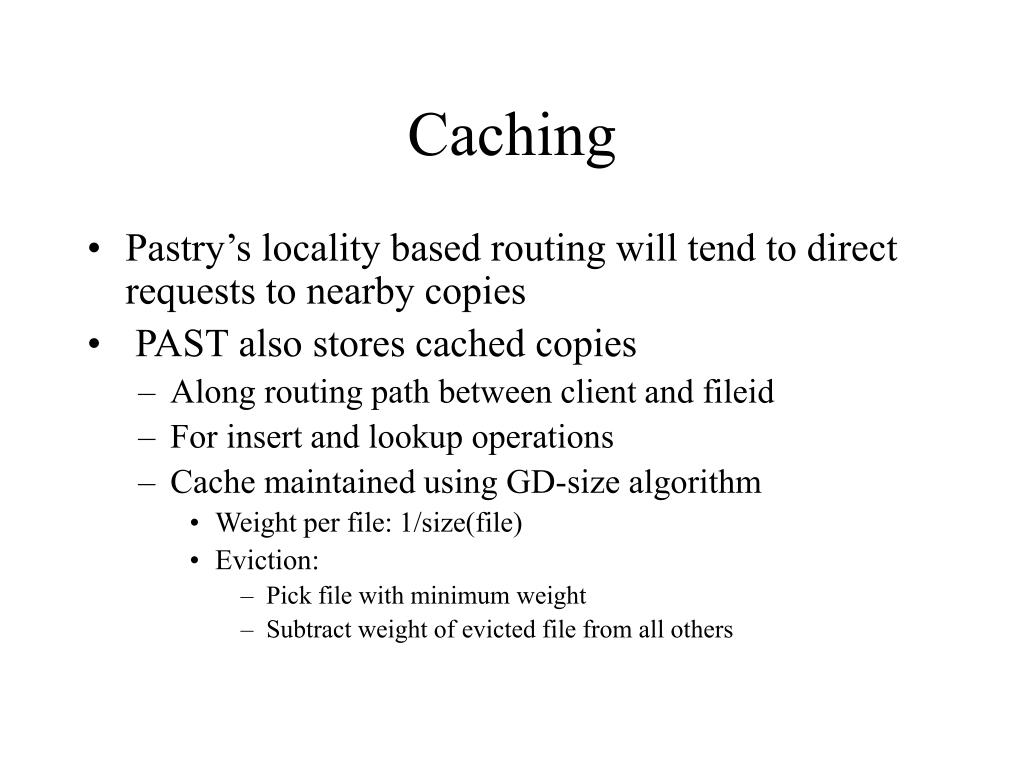

14. Caching • Pastry’s locality based routing will tend to direct requests to nearby copies • PAST also stores cached copies • Along routing path between client and fileid • For insert and lookup operations • Cache maintained using GD-size algorithm • Weight per file: 1/size(file) • Eviction: • Pick file with minimum weight • Subtract weight of evicted file from all others

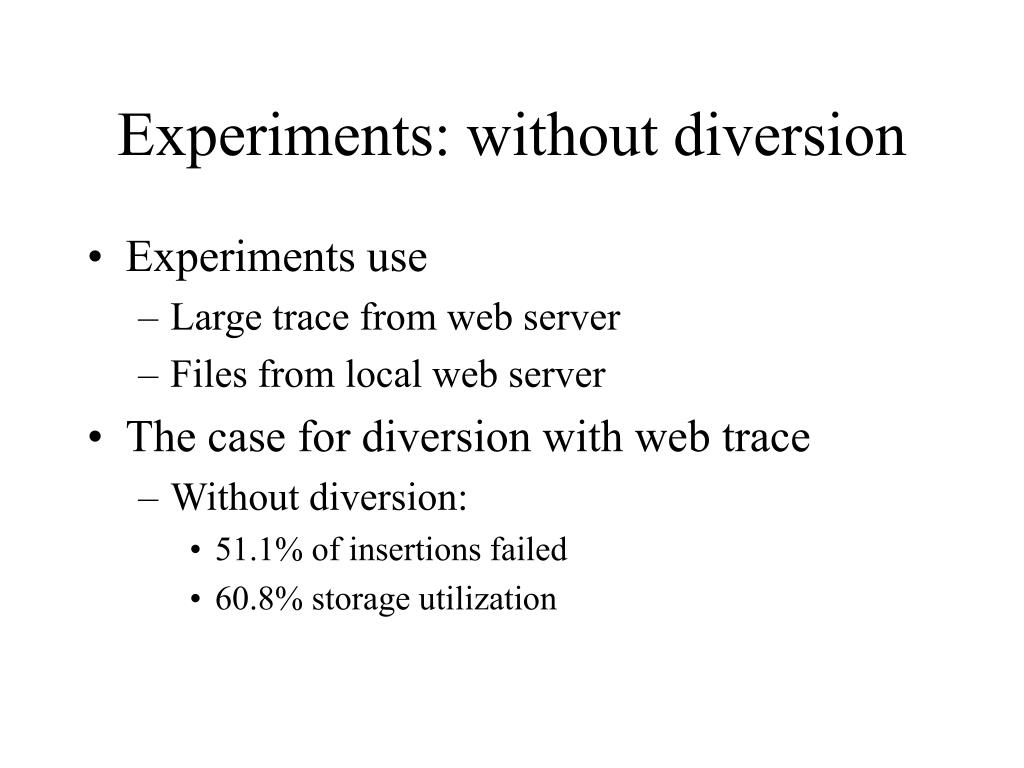

15. Experiments: without diversion • Experiments use • Large trace from web server • Files from local web server • The case for diversion with web trace • Without diversion: • 51.1% of insertions failed • 60.8% storage utilization

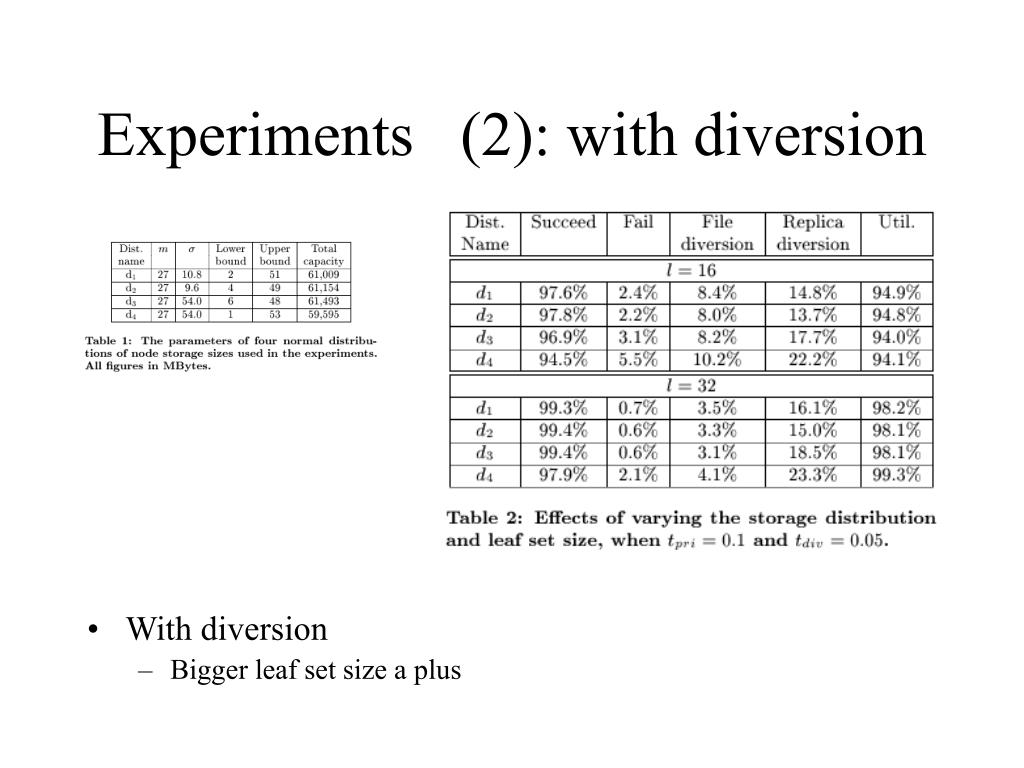

16. Experiments (2): with diversion • With diversion • Bigger leaf set size a plus

17. Experiments (3):varying Tpri • Effects of varying Tpri • # files stored v.s. size of file

18. Experiments (4): Varying Tdiv • Varying Tdiv • Tpri is constant

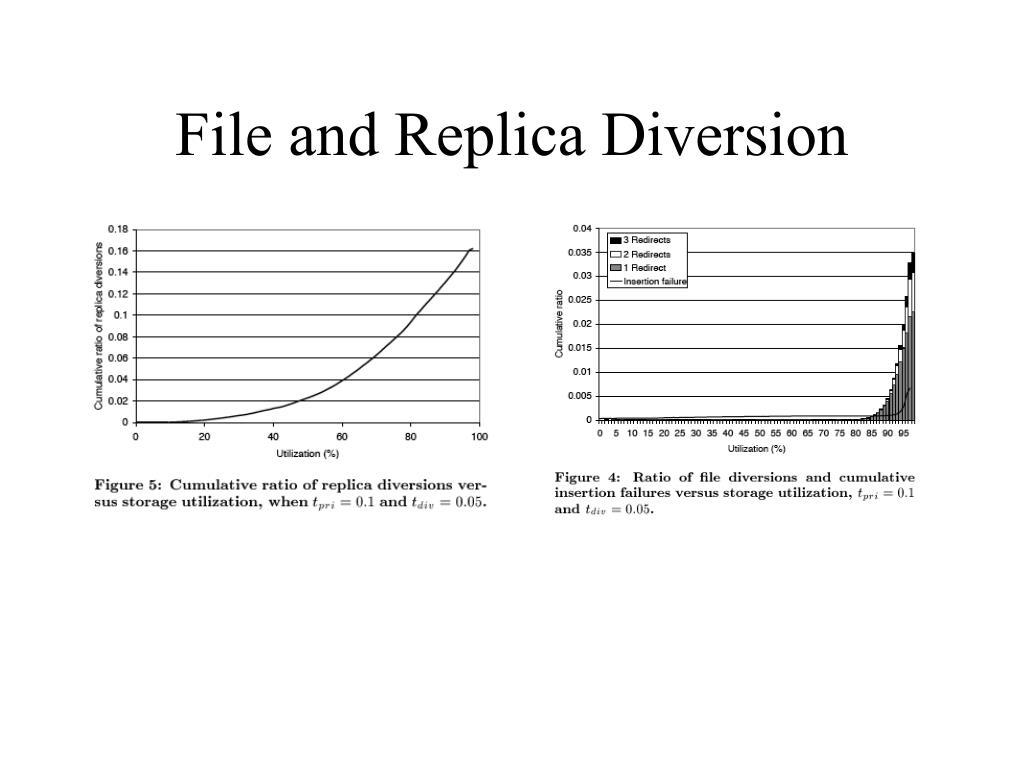

19. File and Replica Diversion

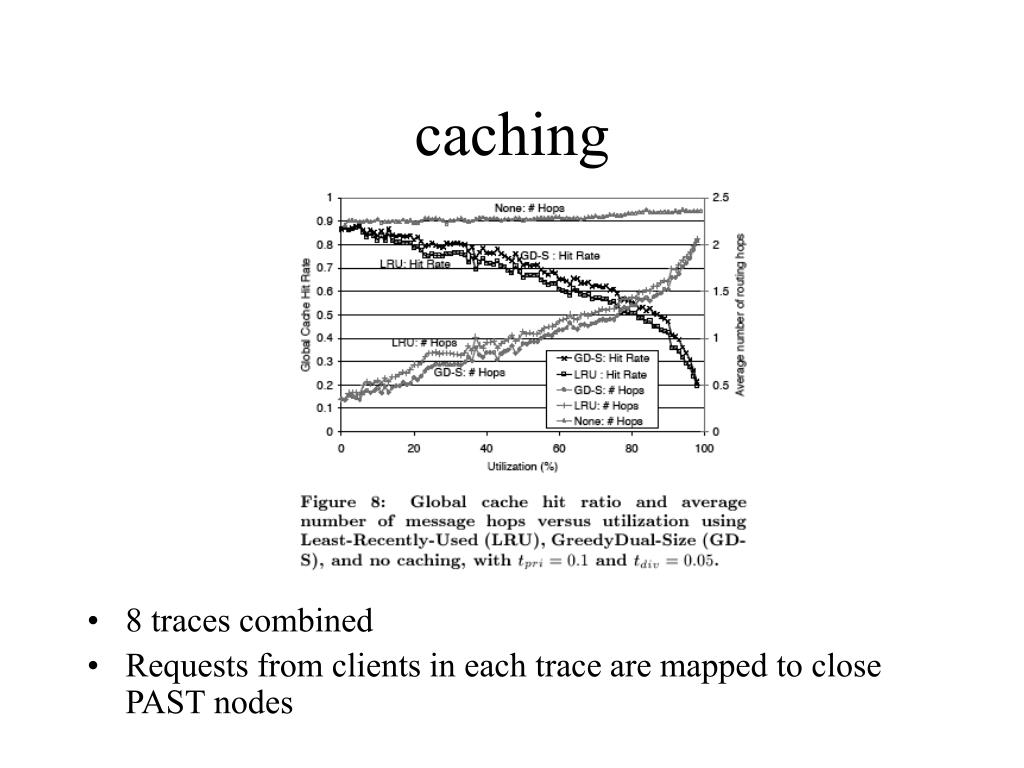

20. caching • 8 traces combined • Requests from clients in each trace are mapped to close PAST nodes
