  1. 1. Take knife and cut shrink wrap at the cardboard tabs.Note: Do not remove shrink wrap from entire package.

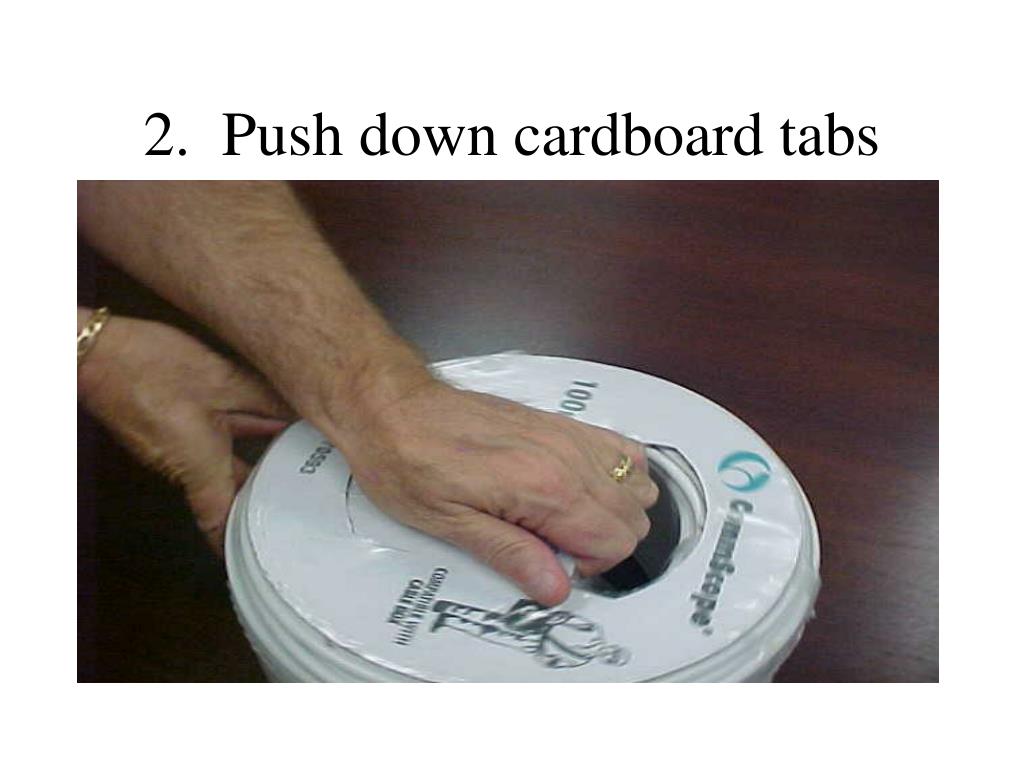

  2. 2. Push down cardboard tabs

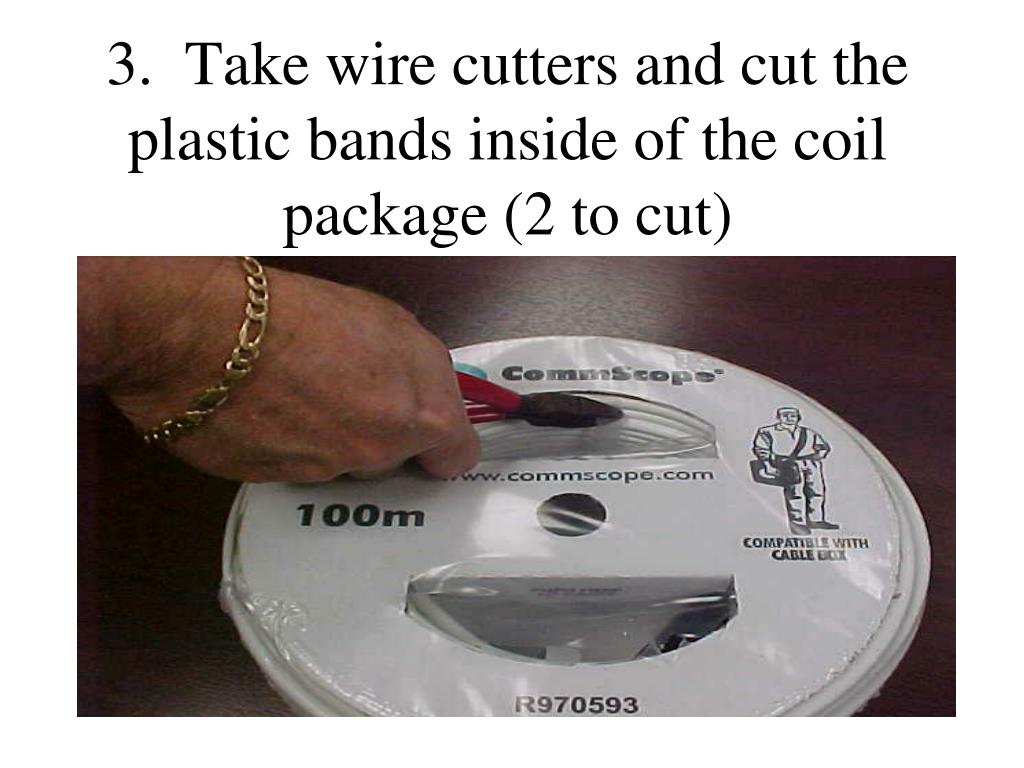

  3. 3. Take wire cutters and cut the plastic bands inside of the coil package (2 to cut)

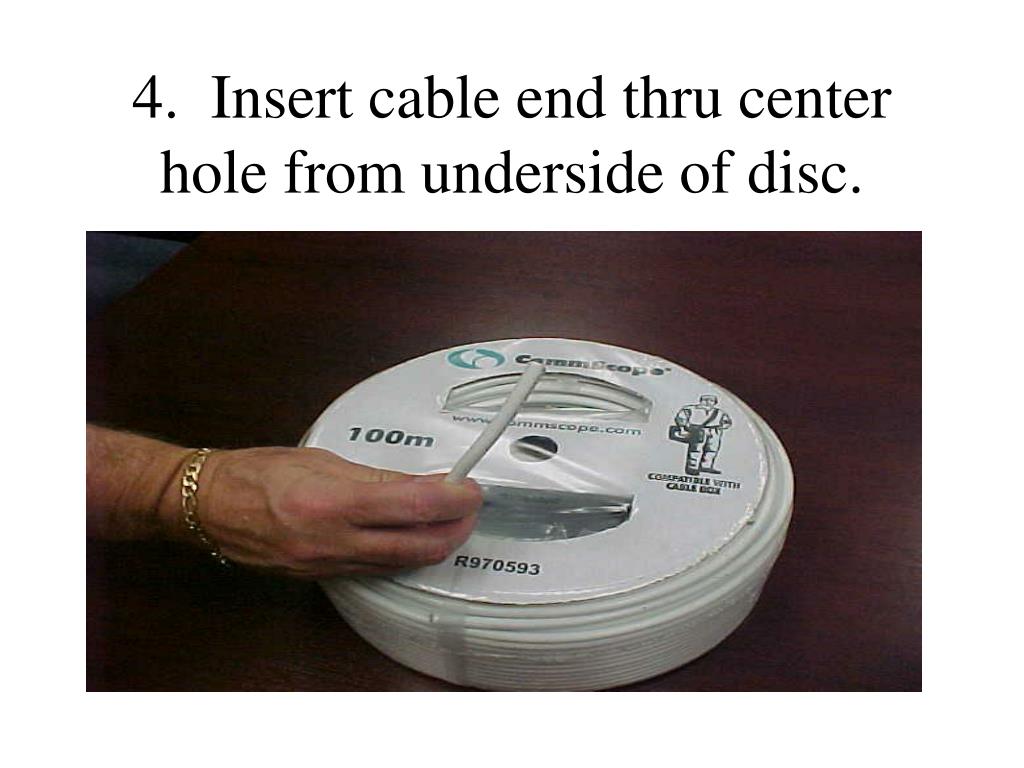

  4. 4. Insert cable end thru center hole from underside of disc.

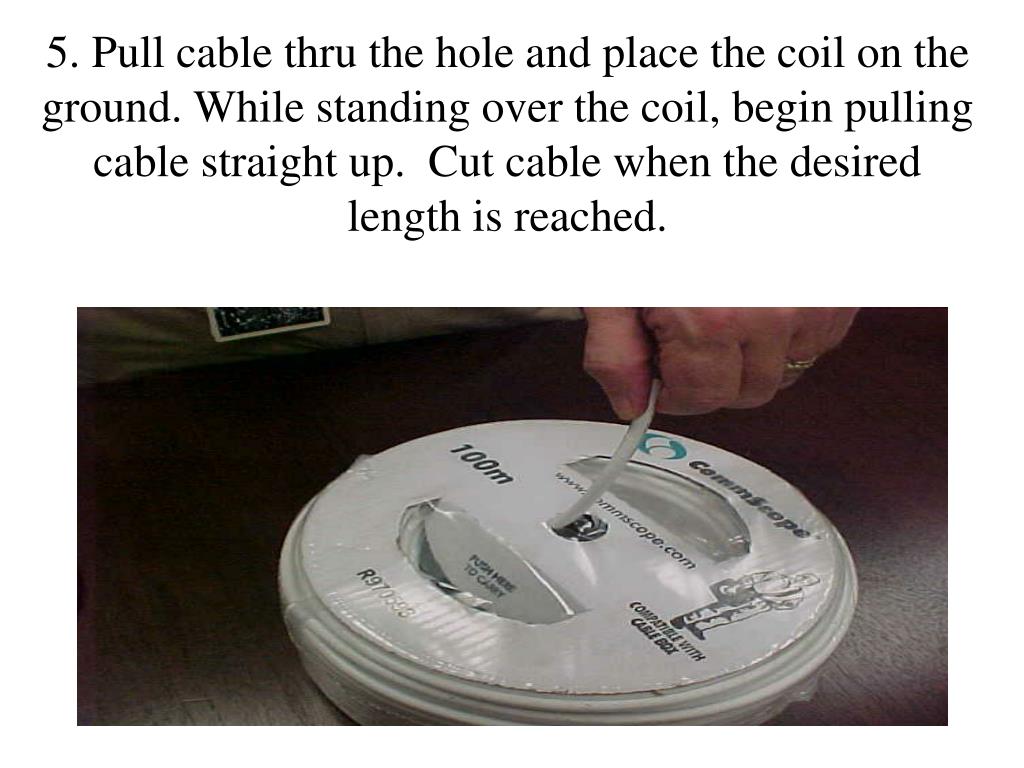

  5. 5. Pull cable thru the hole and place the coil on the ground. While standing over the coil, begin pulling cable straight up. Cut cable when the desired length is reached.
