Understanding Linear Trend Lines and Simple Linear Regression Modeling in Excel

komala avatar
komala
14 diapositives · 293 Views · Sep 11, 2014

This guide explores linear trend lines and simple linear regression modeling using Excel. It explains essential formulas, including Yt = b0 + b1Xt, where Yt represents the dependent variable, and Xt denotes the independent variable. Key concepts such as the slope (b1), y-intercept (b0), and the coefficient of determination (R²) are discussed. Techniques for predicting values with Excel's TRIM function and programming seasonal adjustments using Solver are also covered. Real-world examples demonstrate the practical application of these concepts in forecasting.

Understanding Linear Trend Lines and Simple Linear Regression Modeling in Excel - slide 1
01 / 14Understanding Linear Trend Lines and Simple Linear Regression Modeling in Excel
1 / 17

Télécharger la présentation

Understanding Linear Trend Lines and Simple Linear Regression Modeling in Excel
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

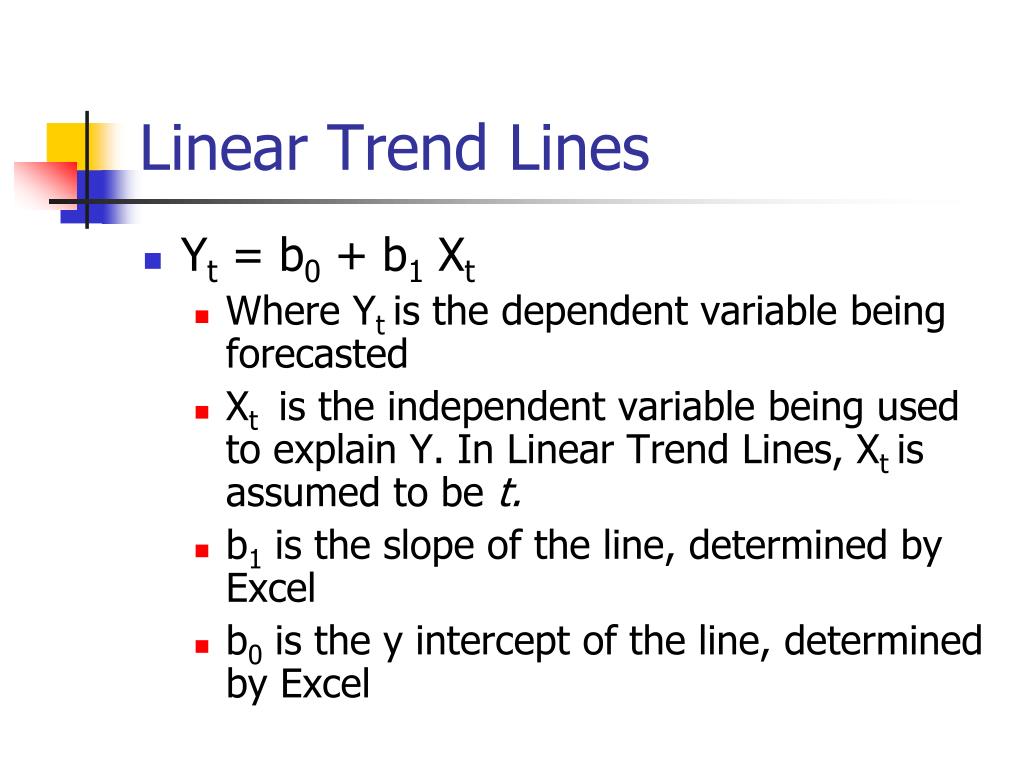

  1. Linear Trend Lines • Yt = b0 + b1 Xt • Where Yt is the dependent variable being forecasted • Xt is the independent variable being used to explain Y. In Linear Trend Lines, Xt is assumed to be t. • b1 is the slope of the line, determined by Excel • b0 is the y intercept of the line, determined by Excel

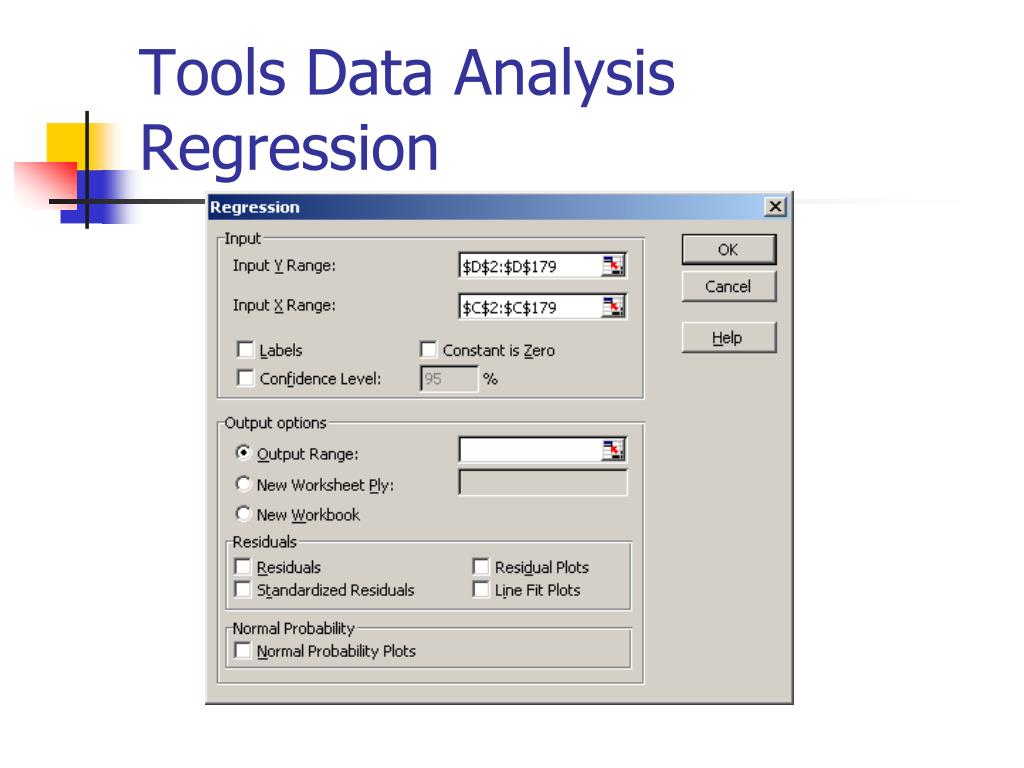

  2. Tools Data Analysis Regression

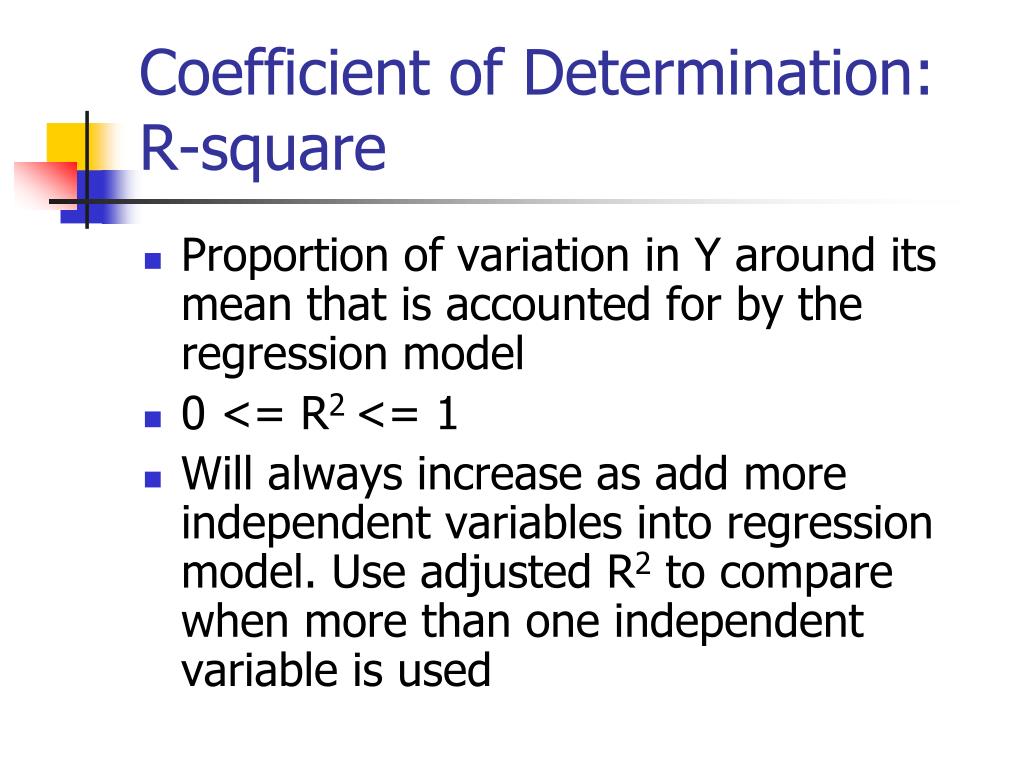

  3. Coefficient of Determination: R-square • Proportion of variation in Y around its mean that is accounted for by the regression model • 0 <= R2 <= 1 • Will always increase as add more independent variables into regression model. Use adjusted R2 to compare when more than one independent variable is used

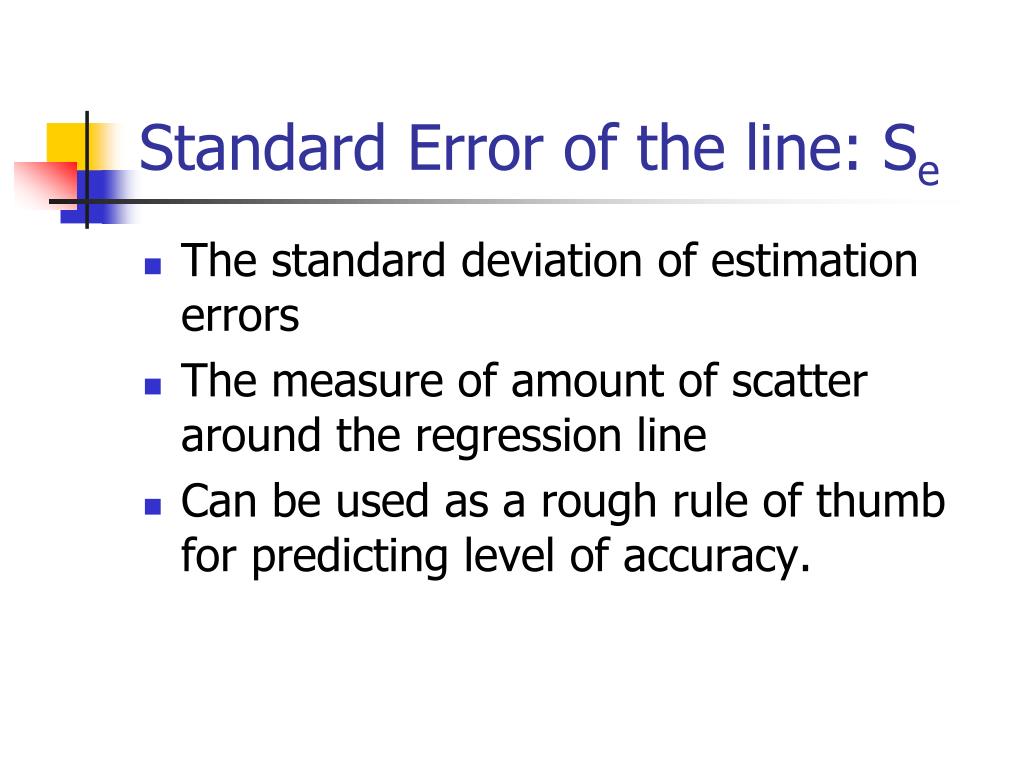

  4. Standard Error of the line: Se • The standard deviation of estimation errors • The measure of amount of scatter around the regression line • Can be used as a rough rule of thumb for predicting level of accuracy.

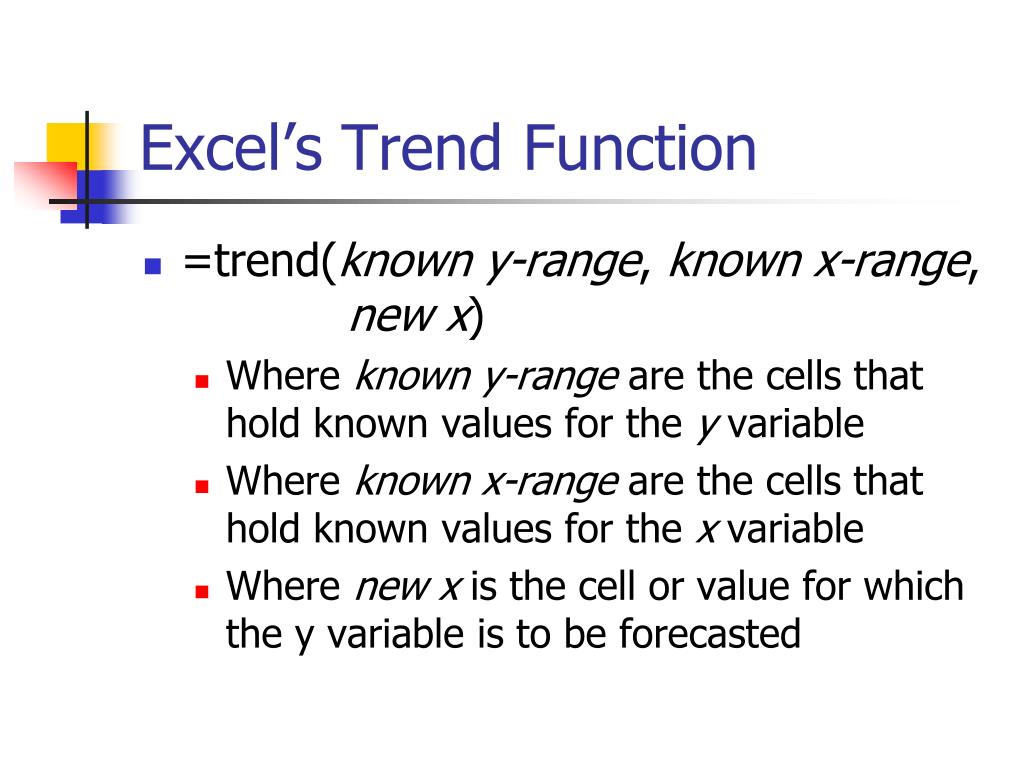

  5. Excel’s Trend Function • =trend(known y-range, known x-range, new x) • Where known y-range are the cells that hold known values for the y variable • Where known x-range are the cells that hold known values for the x variable • Where new x is the cell or value for which the y variable is to be forecasted

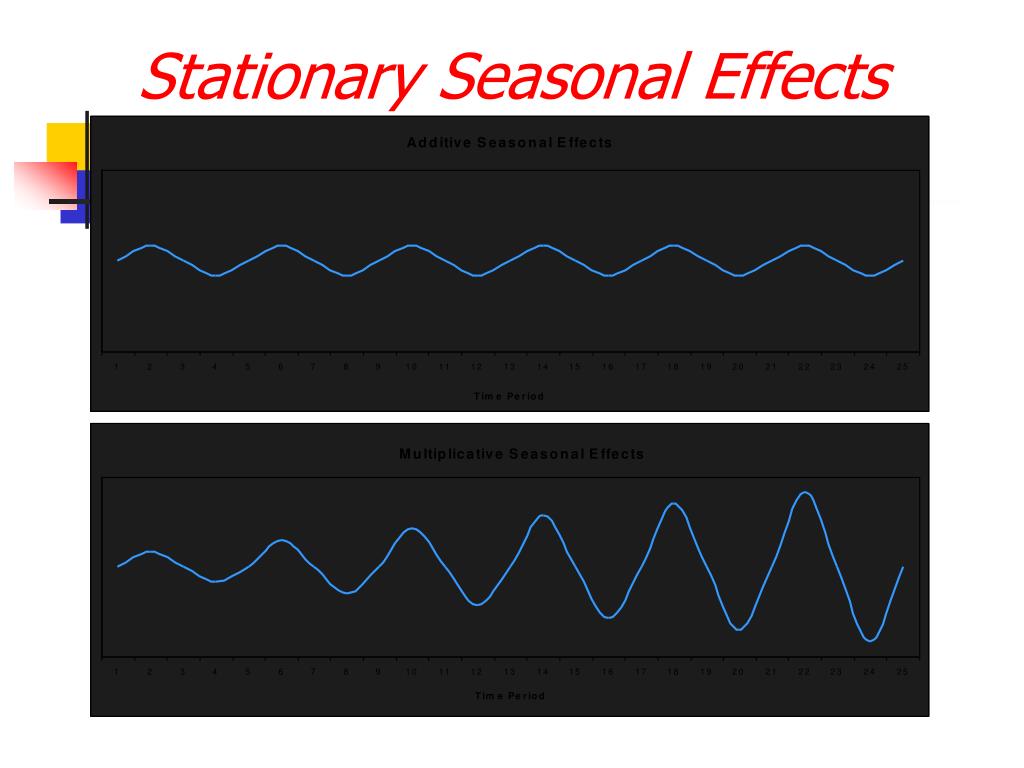

  6. Stationary Seasonal Effects

  7. Text Use of Multiplicative Seasonal Indices (pg. 532) • Create a trend model and calculate the estimated value for each observation • Calculate the ratio of the actual value to the predicted value for each observation • Use the average of the values for each seasonal period to compute the seasonal index • Multiply any forecast produced by the trend model by the appropriate seasonal index

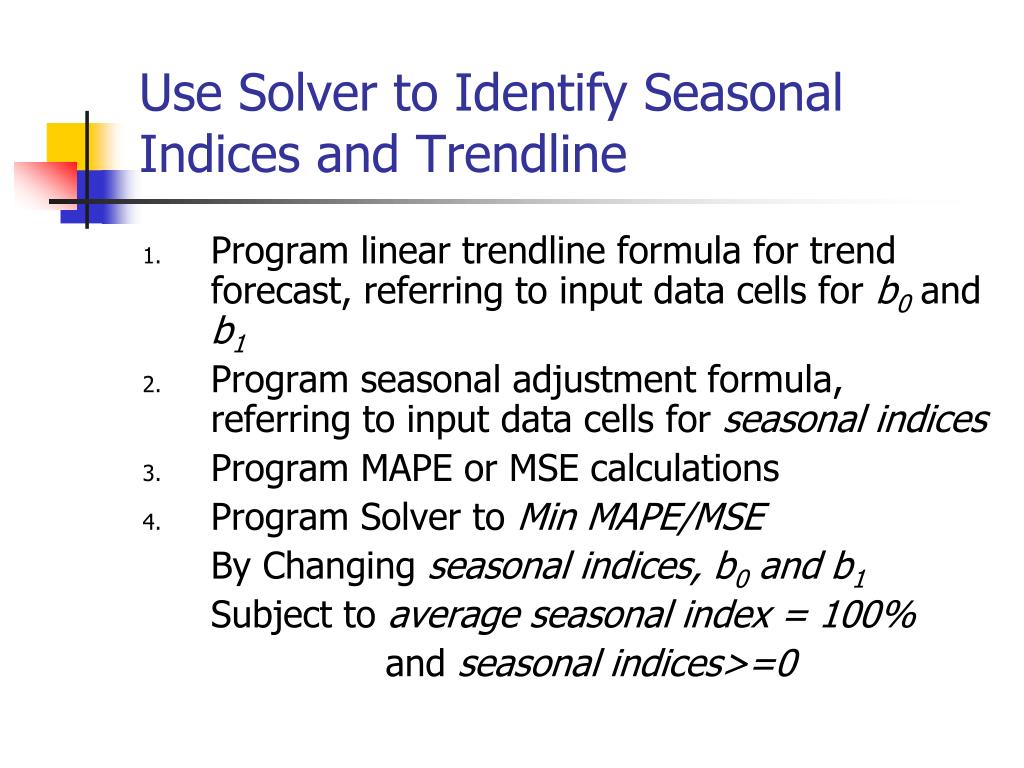

  8. Use Solver to Identify Seasonal Indices and Trendline • Program linear trendline formula for trend forecast, referring to input data cells for b0 and b1 • Program seasonal adjustment formula, referring to input data cells for seasonal indices • Program MAPE or MSE calculations • Program Solver to Min MAPE/MSE By Changing seasonal indices, b0 and b1 Subject to average seasonal index = 100% and seasonal indices>=0

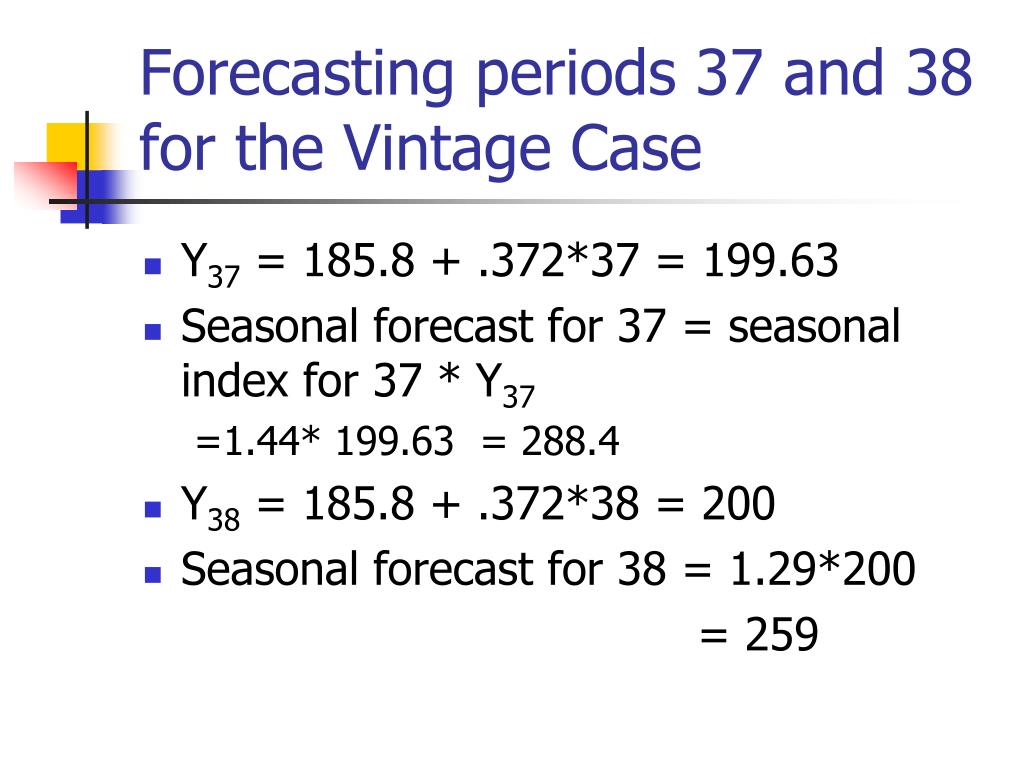

  9. Forecasting periods 37 and 38 for the Vintage Case • Y37 = 185.8 + .372*37 = 199.63 • Seasonal forecast for 37 = seasonal index for 37 * Y37 =1.44* 199.63 = 288.4 • Y38 = 185.8 + .372*38 = 200 • Seasonal forecast for 38 = 1.29*200 = 259

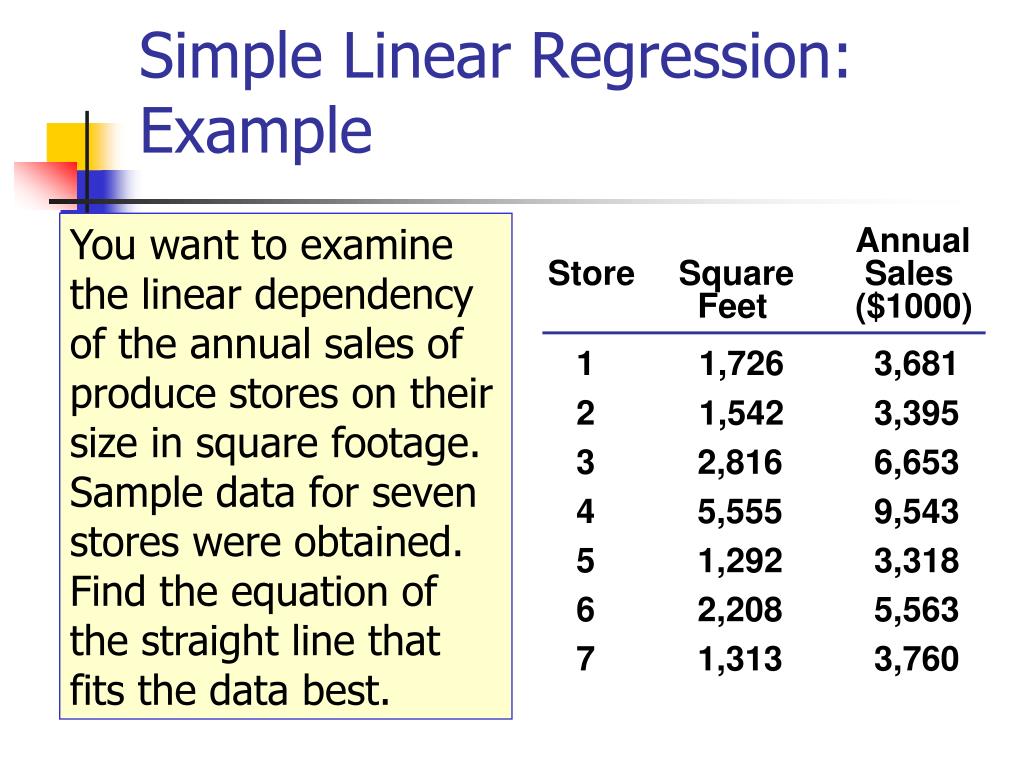

  10. Simple Linear Regression: Example You want to examine the linear dependency of the annual sales of produce stores on their size in square footage. Sample data for seven stores were obtained. Find the equation of the straight line that fits the data best. Annual Store Square Sales Feet ($1000) 1 1,726 3,681 2 1,542 3,395 3 2,816 6,653 4 5,555 9,543 5 1,292 3,318 6 2,208 5,563 7 1,313 3,760

  11. Scatter Diagram: Example Excel Output

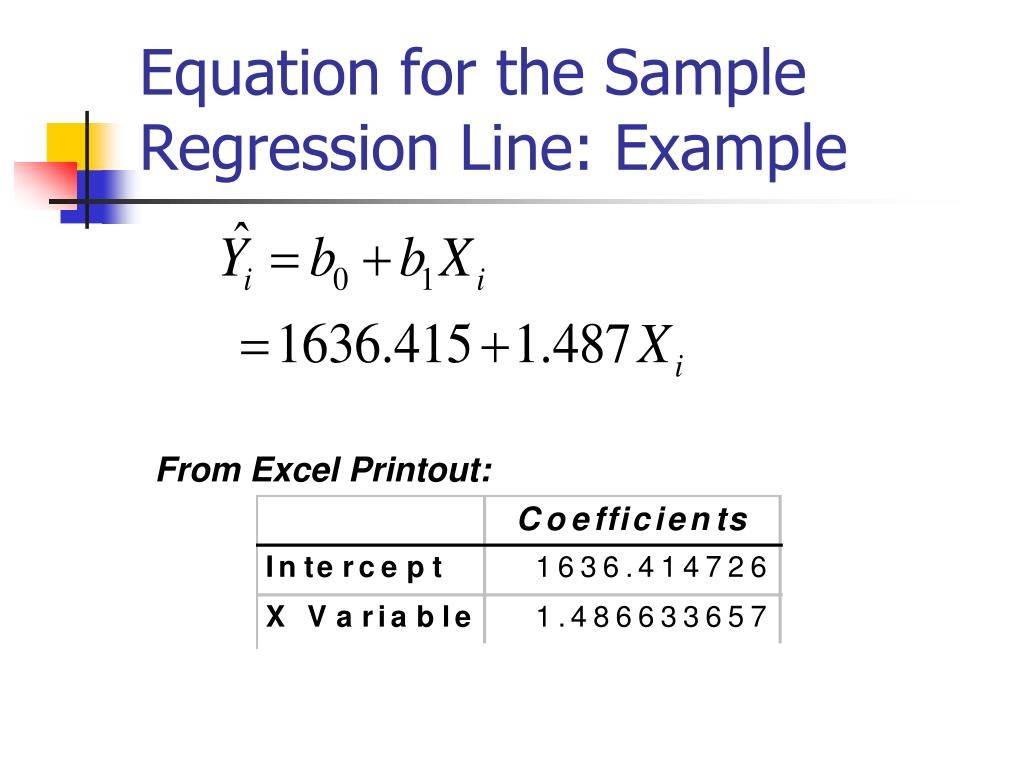

  12. Equation for the Sample Regression Line: Example From Excel Printout:

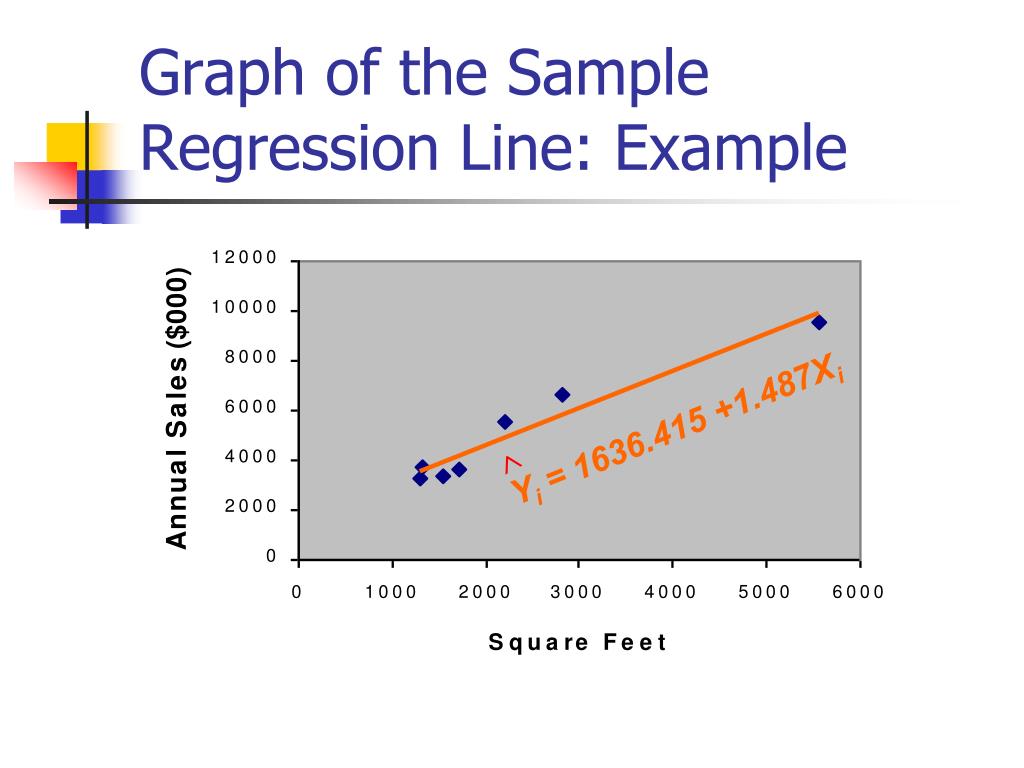

  13. Graph of the Sample Regression Line: Example Yi = 1636.415 +1.487Xi 

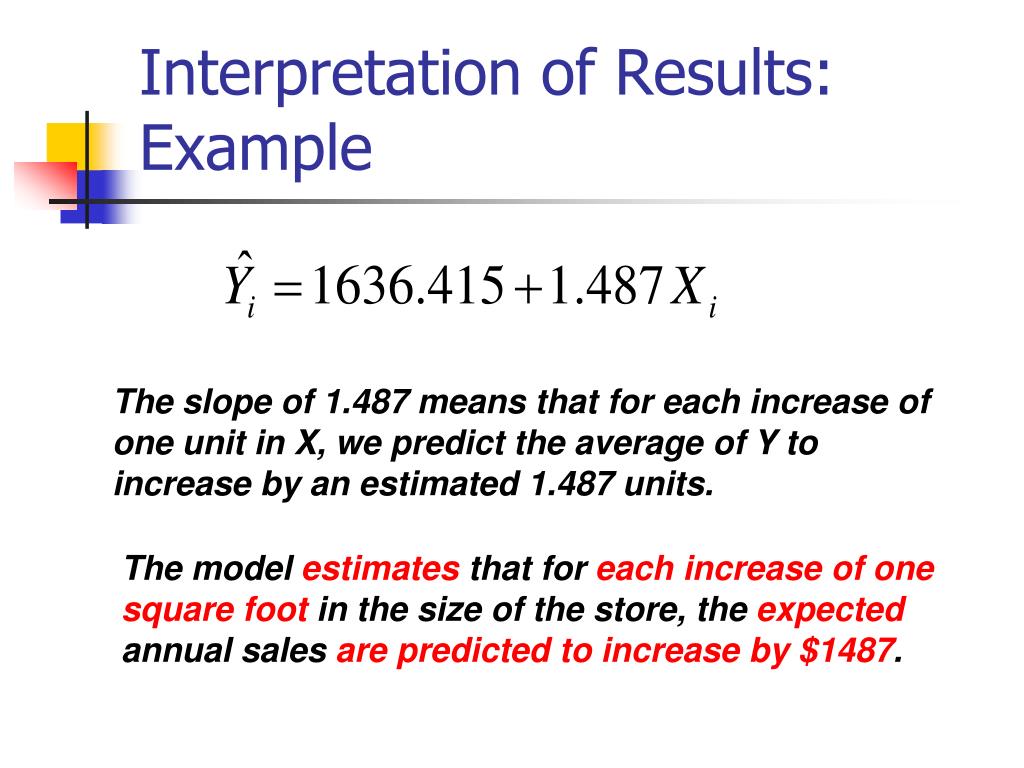

  14. Interpretation of Results: Example The slope of 1.487 means that for each increase of one unit in X, we predict the average of Y to increase by an estimated 1.487 units. The model estimates that for each increase of one square foot in the size of the store, the expected annual sales are predicted to increase by $1487.
