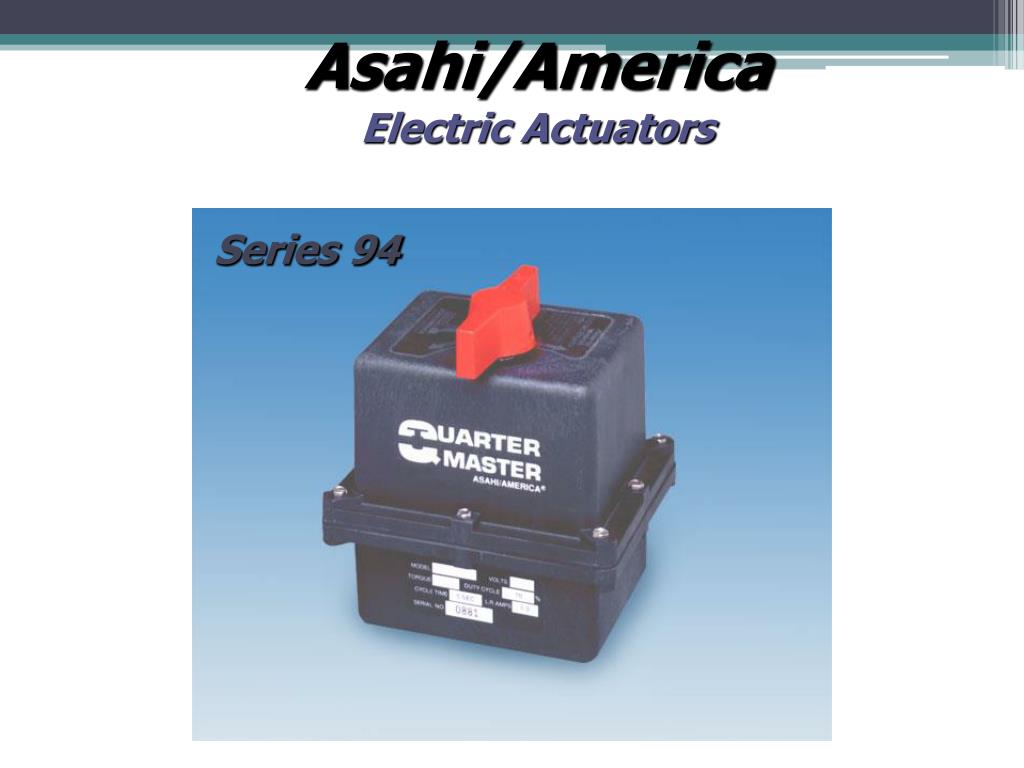

  1. Asahi/America Electric Actuators Series 94

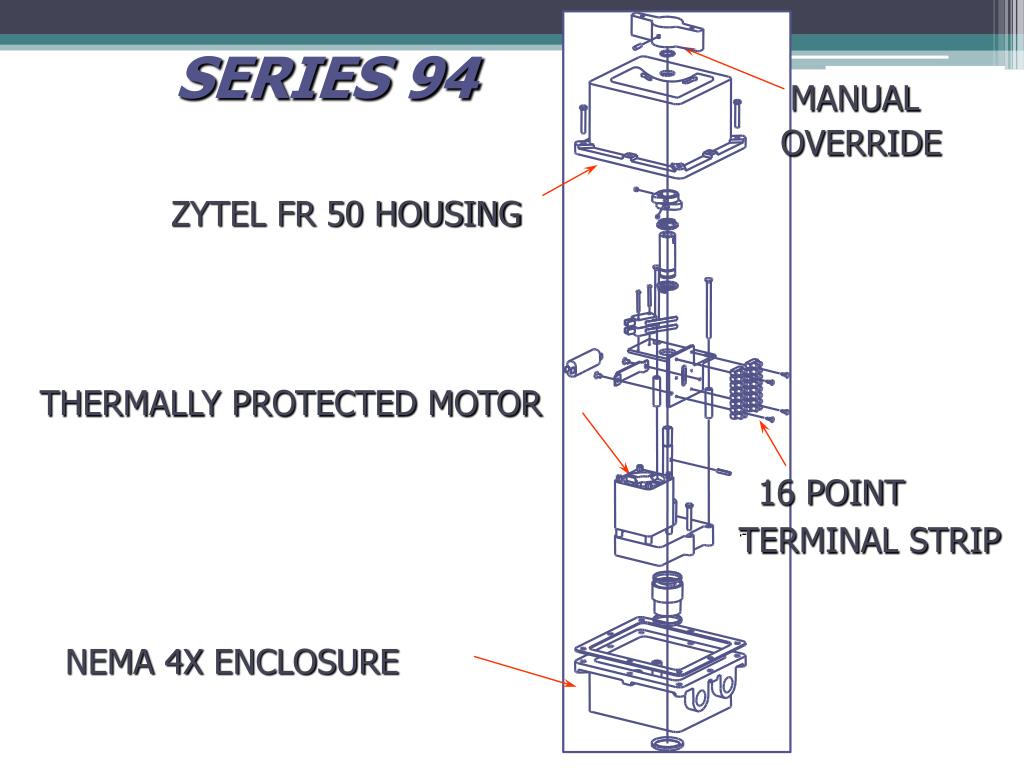

  2. SERIES 94 MANUAL OVERRIDE ZYTEL FR 50 HOUSING THERMALLY PROTECTED MOTOR 16 POINT TERMINAL STRIP NEMA 4X ENCLOSURE

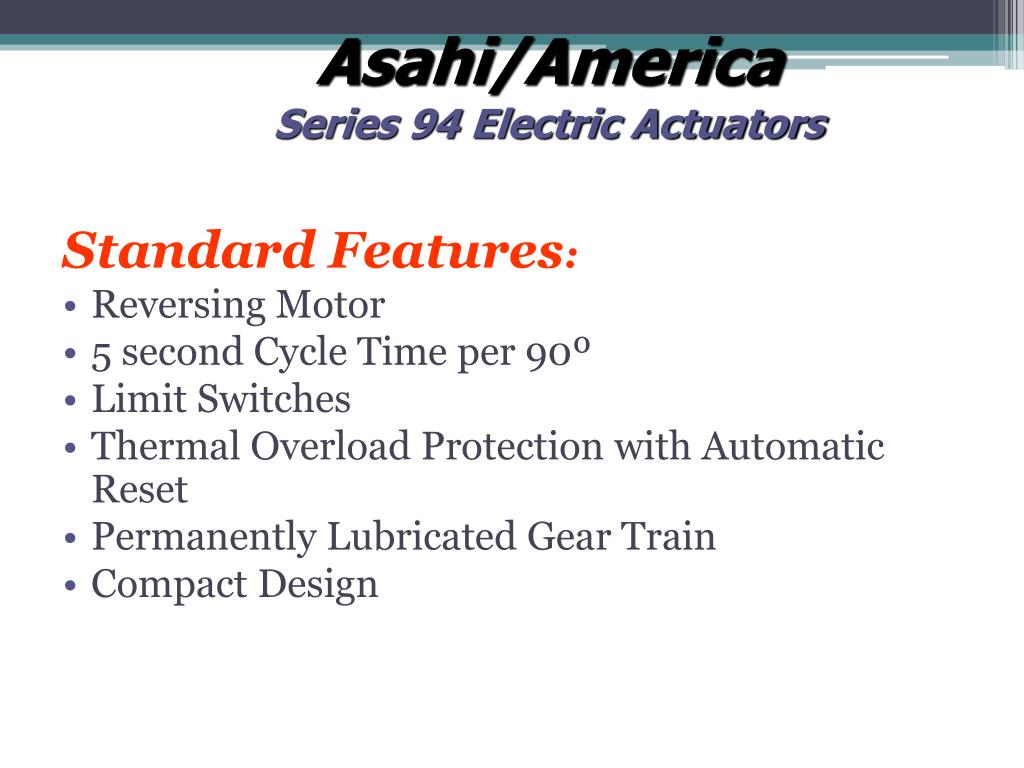

  3. Asahi/America Series 94 Electric Actuators Standard Features: • Reversing Motor • 5 second Cycle Time per 90º • Limit Switches • Thermal Overload Protection with Automatic Reset • Permanently Lubricated Gear Train • Compact Design

  4. Asahi/America Series 94 Electric Actuators Unique Features: • Nema 4x with Stainless Steel Trim • C E Compliable (115vac & 220vac) • ISO Bolt Circle • Heat Treated, Hardened Spur Gear • 100% Duty Cycle • Position Indicator / Manual Override • 16 Point Terminal Strip

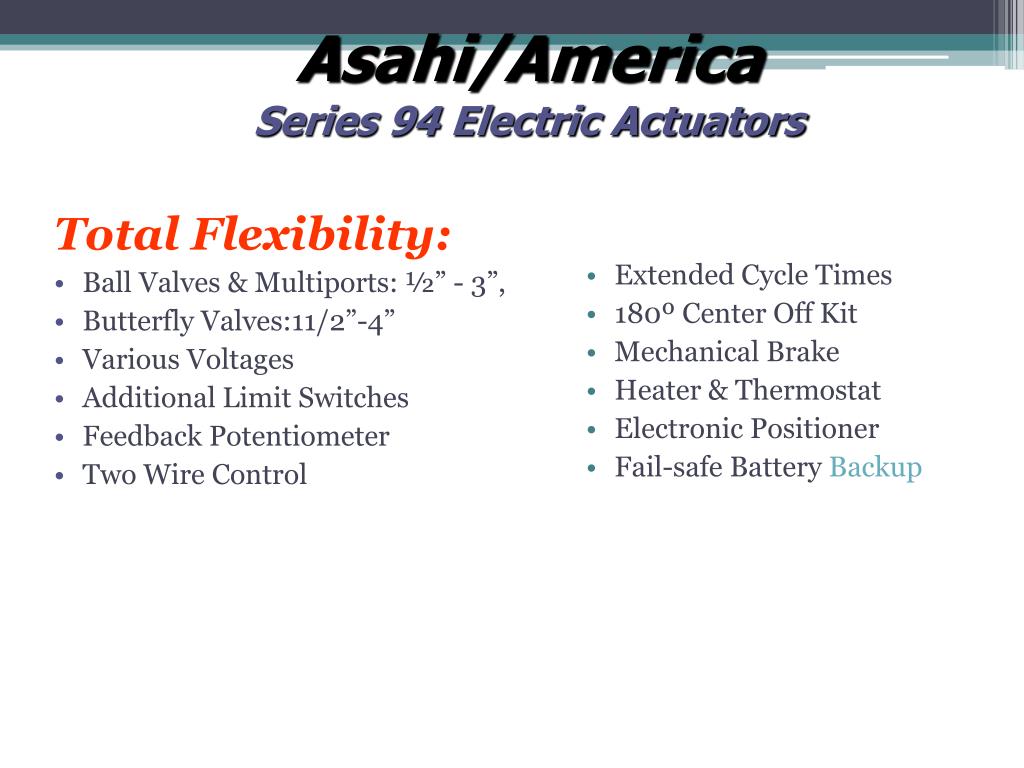

  5. Asahi/America Series 94 Electric Actuators • Extended Cycle Times • 180º Center Off Kit • Mechanical Brake • Heater & Thermostat • Electronic Positioner • Fail-safe Battery Backup Total Flexibility: • Ball Valves & Multiports: ½” - 3”, • Butterfly Valves:11/2”-4” • Various Voltages • Additional Limit Switches • Feedback Potentiometer • Two Wire Control

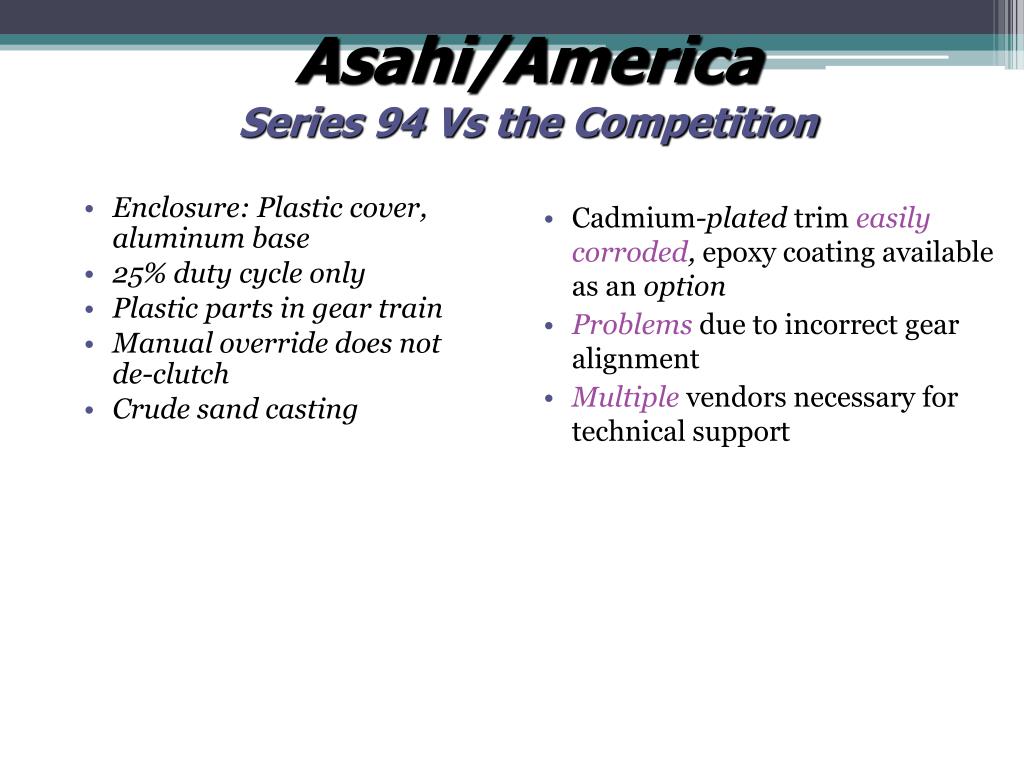

  6. Asahi/America Series 94 Vs the Competition • Cadmium-plated trim easily corroded, epoxy coating available as an option • Problems due to incorrect gear alignment • Multiple vendors necessary for technical support • Enclosure: Plastic cover, aluminum base • 25% duty cycle only • Plastic parts in gear train • Manual override does not de-clutch • Crude sand casting

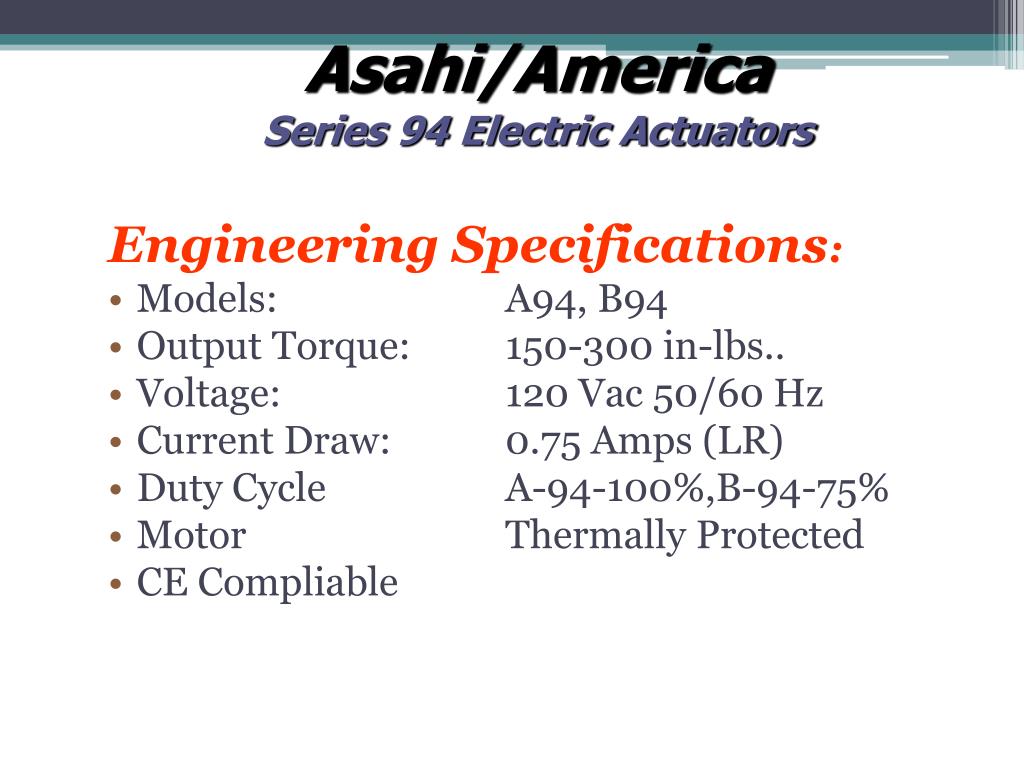

  7. Asahi/America Series 94 Electric Actuators Engineering Specifications: • Models: A94, B94 • Output Torque: 150-300 in-lbs.. • Voltage: 120 Vac 50/60 Hz • Current Draw: 0.75 Amps (LR) • Duty Cycle A-94-100%,B-94-75% • Motor Thermally Protected • CE Compliable

  8. Asahi/America Series 94 Electric Actuators Engineering Specifications • Conduit Entry: ½” NPT, Quantity of 2 • Enclosure Nema 4X • Max. Temperature: 150º F • Switches: Two SPDT (15 amps) • Cycle Time: 5 seconds / 90º • Bolt Circle ISO • Manual Override Declutchable
