Four Byte AS Number Experiment

This document outlines an informational idea regarding an experimental framework for four-byte Autonomous System Numbers (ASNs) aimed at promoting widespread testing within the live Internet environment. Based on the draft "BGP Support for Four-octet AS Number Space," it suggests methods for operators, including existing 16-bit ASN holders, to trial 32-bit ASNs and experimental IPv4 address blocks, facilitating community engagement prior to the official protocol cut-off. The aim is to ensure legacy systems can adapt in practice, fostering cooperation and shared learning among network operators.

korbin
Télécharger la présentation

Four Byte AS Number Experiment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

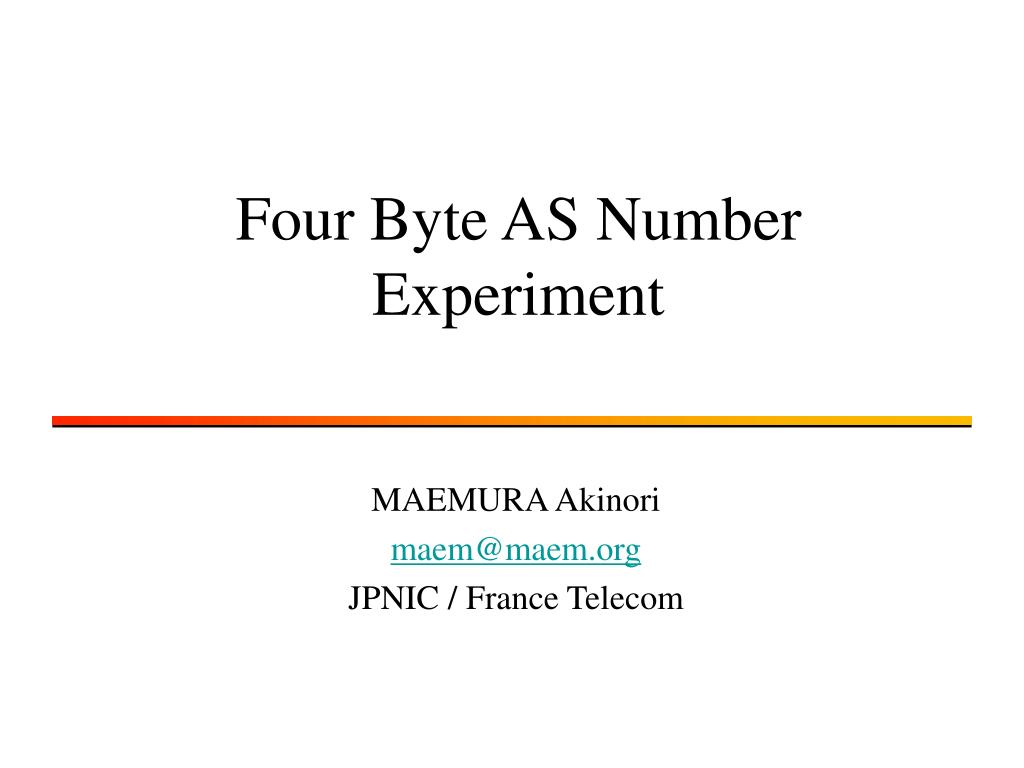

  1. Four Byte AS Number Experiment MAEMURA Akinori maem@maem.org JPNIC / France Telecom

  2. Summary • Not proposal but Informational • Raising an idea for 4-byte ASN experiment for discussion • Idea itself • Procedures from now on • Etc…

  3. Background • draft-ietf-idr- as4bytes-12.txt “BGP Support for Four-octet AS Number Space” • Defines protocol extension with which BGP can handle four-octet ASN • prop-032-v002: 4-byte AS number policy proposal • On-demand assignment of 32bit only ASN from Jan 2007 • Default assignment of 32 bit only ASN from Jan 2009 • Consensus reached, EC Endorsed • One can obtain a four-byte ASN in January 2007

  4. Problem? • The existing Autonomous System operators with a 16-bit ASN cannot use their own ASN to try that protocol extension • A new ASN holder only can try before the cut-off of their service provision • Tests in isolated test beds will not be enough to check the normal operation of 4 byte ASNs • The whole live Internet need test before an Autonomous System with 32-bit ASN will have live traffic

  5. This is a similar situation with… • RFC1797 – “Class A Subnet Experiment” • Allowed any AS operators to have a /24 class A subnet advertised and used in the live Internet • Operators verified if their hosts (especially old implementations ) can handle a Class A subnet

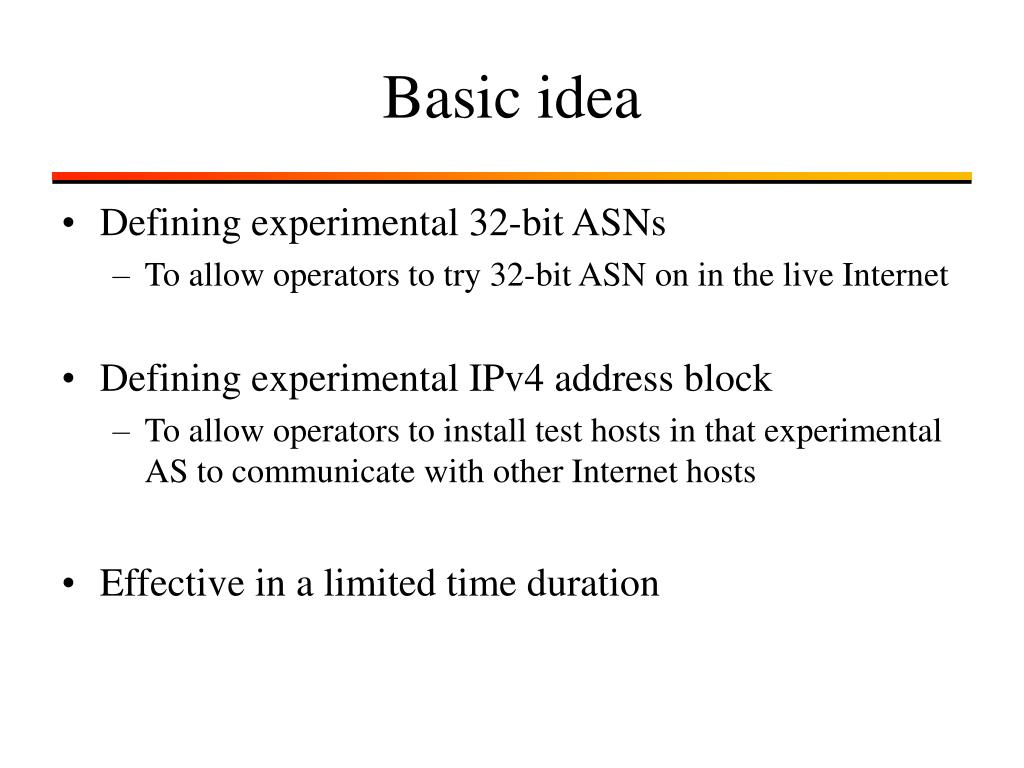

  6. Basic idea • Defining experimental 32-bit ASNs • To allow operators to try 32-bit ASN on in the live Internet • Defining experimental IPv4 address block • To allow operators to install test hosts in that experimental AS to communicate with other Internet hosts • Effective in a limited time duration

  7. A possible proposal • Defining experimental 32-bit ASN • Let’s say 39.[existing ASN] for 16-bit ASN holders • Let’s say 39.[49152—65535] for non ASN holders • 49152 == 1100 0000 , 65535 == 1111 1111 • Defining experimental IPv4 /24 blocks • Let’s reuse net 39 as RFC1979 • 39.[upper byte of existing ASN].[lower byte].0 / 24 • 39.192.0.0/24 – 39.255.255.0/24 for non ASN holders • Defining the duration of experiment • Let’s say till December 2009 • Consistent with prop-032-v002 – RIRs will stop distinguishing 16-bit and 32-bit ASNs

  8. Your thought? • For the idea of experiment itself • Also talking among idr@ietf.org • Could be compiled as an Internet-Draft

  9. Thank You ! Four Byte AS Number Experiment MAEMURA Akinori maem@maem.org Japan Network Information Center France Telecom Research & Development Tokyo
